USER’S MANUAL
For Models
AP160N-6K – AP160N-6K-PDU
AP160N-10K – AP160N-10K-PDU
Uninterruptible Power System
Contents
1. Introduction............................................................................................1
2. Safety Warnings.....................................................................................4
2.1 Installation..........................................................................................4
2.2 Operation...........................................................................................5
2.3 Maintenance, servicing and faults.....................................................6
2.4 Transport............................................................................................7
2.5 Storage...............................................................................................7
2.6 Standards...........................................................................................7
3. Installation...............................................................................................9
3.1 Inspecting the Equipment..................................................................9
3.2 Unpacking the Cabinet.......................................................................9
3.3 UPS Rear Panel...............................................................................12
3.4 UPS Front Panel..............................................................................14
3.5 Rackmount Setup............................................................................15
3.6 Tower Setup.....................................................................................19
3.7 Installation of UPS with AC inputs....................................................20
4. Power cables connection & Startup...................................................22
4.1 Access to terminal block..................................................................23
4.2 Common input sources connection.................................................23
4.3 Separate input sources connection.................................................24
4.4 Frequency converter connection.....................................................25
4.5 UPS Initial Startup............................................................................25
4.6 Parallel operation.............................................................................26
5. Operation..............................................................................................26
5.1 Display Panel...................................................................................32
5.2 Operating mode...............................................................................34
5.3 Turning on and Turning off UPS.......................................................37
5.4 LCD operation..................................................................................39
6. UPS Maintenance.................................................................................48
6.1 UPS and Battery Care.....................................................................48
6.2 Transporting the UPS.......................................................................48
6.3 Storing the UPS and Batteries.........................................................49
6.4 Testing Batteries..............................................................................49
6.5 Recycling the Used Battery or UPS.................................................50
7. Specifications.......................................................................................51
8. Troubleshooting...................................................................................53
8.1 Typical Alarms and Conditions.........................................................53
9. Communication....................................................................................58
9.1 RS-232 and USB Communication Ports..........................................58
9.2 Network Management Card (Optional)............................................60
9.3 UPS Management Software............................................................60
9.4 REPO Function................................................................................61
1
1. Introduction
This Online R/T Series is an uninterruptible power supply
incorporating double-conversion technology. It provides perfect
protection specifically for computer equipment, communication
systems to computerized instruments. It protects your sensitive
electronic equipment from basic power problems such as power
failures, power sags, power surges, brownout, and line noise.
Power outages can occur when you least expect them and power
quality can be erratic. These power problems have the potential to
corrupt critical data, destroy unsaved work sessions, and damage
hardware － causing hours of lost productivity and expensive
repairs.
With the Online R/T UPS, you can safely eliminate the effects of
power disturbances and guard the integrity of your equipment. The
UPS can handle array--network devices flexibility that makes it the
best choice for protect your LANs, servers, workstations, and other
electrical equipment.

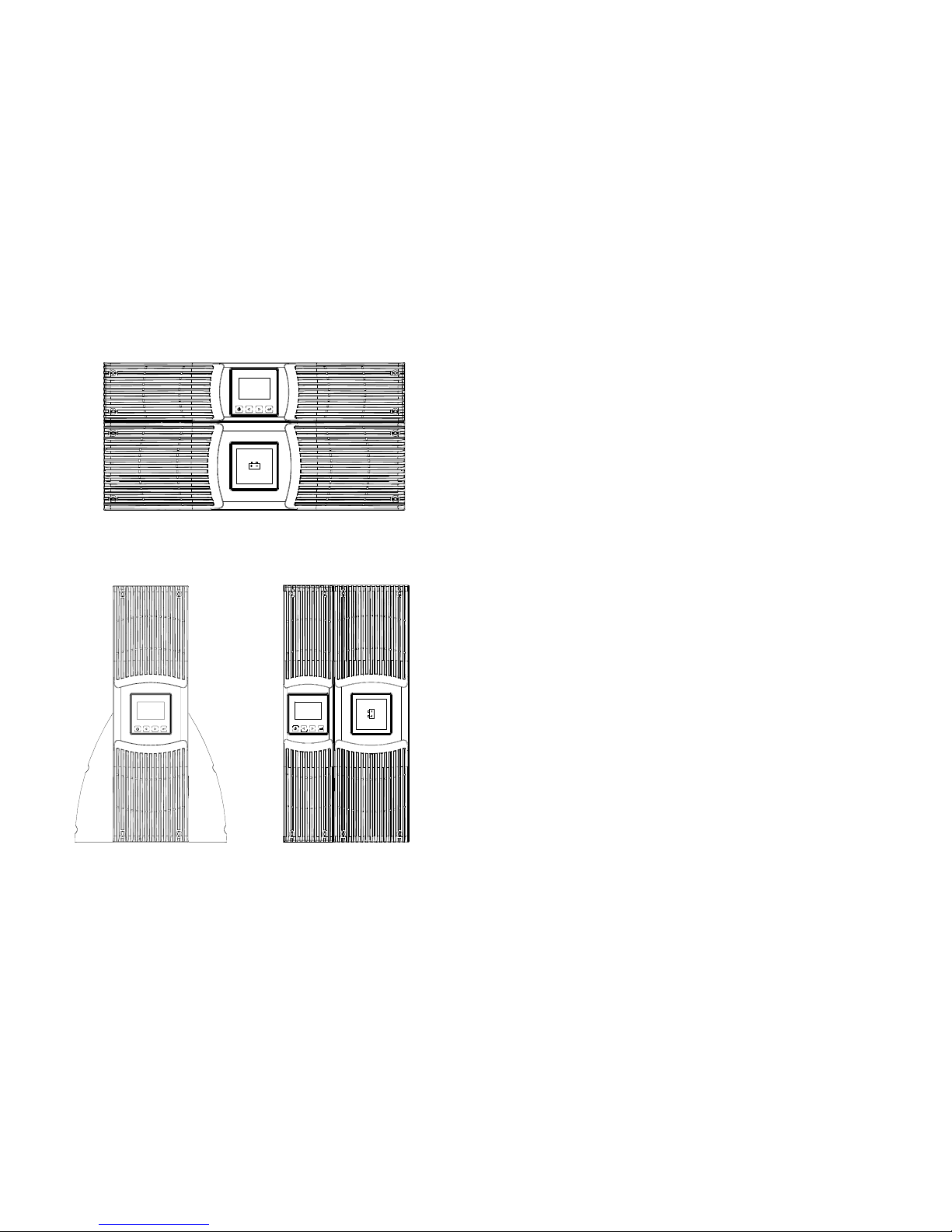

Online R/T UPS as Rack installation:
Figure 1-1: Online R/T 6K UPS
2
Figure 1-2: Online R/T 10K UPS
Online R/T UPS as Tower installation.
Figure 1-3: Online R/T 6K UPS Figure 1-4: Online R/T 10K UPS
3
Providing outstanding performance and reliability, the UPS’s unique
benefits include:
l Online UPS design with pure sine wave output.
l True online double-conversion technology with high power
density, utility frequency independence, and generator
compatibility.
l Intelligent Battery Management technology that uses advanced
battery management to increase battery service life, optimize
recharge time.
l Selectable High Efficiency mode ( Eco-Mode) of operation.
l Start-on-battery capability for powering up the UPS even if
utility power is not available.
l Standard communication options: one RS-232 communication
port, one USB communication port.
l Optional connectivity cards with enhanced communication
capabilities.
l Extended runtime with up to four Extended Battery Modules
(EBMs) per UPS.
l Optional installation method － Rack & Tower.
l Remote shutdown control through the Remote Emergent
Power-off (REPO) port.
l Parallel with another Online R/T UPS, max amount is 2.
l Optional Rack Slider.
l Maintenances are simplified by allowing the safe replacement
of batteries without powering down the UPS.
4
2. Safety Warnings
IMPORTANT SAFETY INSTRUCTIONS FOR EACH STEP SAVE
THESE INSTRUCTIONS.
2.1 Installation
l Condensation may occur if the UPS is moved directly from a
cold to a warm environment. The UPS must be absolutely dry
before being installed. Please allow an acclimatization time of
at least two hours.
l Do not install the UPS near water or in damp environment.
l Do not install the UPS where it would be exposed to direct
sunlight or near heat.
l Do not block ventilation openings in the UPS’s housing.
l Place cables in such a way that no one can step on or trip over
them.
l UPS has provided earthed terminal, in the final installed system
configuration, equipotent earth bonding to the external UPS
battery cabinets.
l An integral single emergency switching device which prevents
further supply to the load by the UPS in any operation mode
should be provided in the building wiring installation.
l An appropriate disconnect device as short-circuit backup
protection should be provided in the building wiring installation.
l For the equipment connection to an IT power system, a
two-pole device which disconnect phase conductors and the
CAUTION:
Before performing the procedures in this document, read and follow
the safety instructions and important regulatory information in your
Safety, Environmental, and Regulatory Information document.
5
neutral conductor have to be provided in the building wiring
installation.
l This is permanently connected equipment , it must be installed
by qualified maintenance personnel.
l For permanently connected equipment: make sure that a
readily accessible disconnect device is incorporated in the
building installation wiring.
To reduce the risk of fire, connect only to a circuit provided with
branch circuit overcurrent protection with an ampere rating in
accordance with the IEC/EN 60934 standard or your local
electrical code and have a contact air gap of at least 3 mm.
Uninterruptible power supply
output power
240V
6K
40 amp
2-pole circuit breaker
10K
63 amp
2-pole circuit breaker
l You can connect four extended battery modules to the
uninterruptible power supply.
l Earthing connection is essential before connecting to the
building wiring terminal.
2.2 Operation
l Do not disconnect the earth conductor cable from the UPS or
the building wiring terminals in any time since this would cancel
the protective earthing of the UPS system and all connected
loads.
l The UPS output terminal block may be electrically active even if
the UPS system is not connected to the building wiring
terminal.
l In order to completely disconnect the UPS, firstly press the
OFF button, and then disconnect the mains lead.
6
l Ensure that no liquid or other foreign objects can enter the
UPS.
l The UPS can be operated by any individual without previous
experience.
2.3 Maintenance, servicing and faults
l The UPS operates with hazardous voltages. Maintenance
should be carried out only by qualified maintenance personnel.
l Caution - risk of electric shock. Even after the unit is
disconnected from the mains power supply (building wiring
terminal), components inside the UPS are still connected to the
battery which have potentially dangerous.
l Before carrying out any kind of service and/or maintenance,
please disconnect the batteries. Verify that no current is
present and no hazardous voltage exist in the capacitor or BUS
capacitor terminals.
l Batteries must be replaced only by qualified personnel.
l Caution – the risk of electric shock. The battery circuit is not
isolated from the input voltage. Hazardous voltage may occur
between the battery terminals and the ground. Verify that no
voltage is present before servicing!
l Batteries have a high short-circuit current and pose a risk of
shock. Take all precautionary measures specified as below and
any other measures necessary when working with batteries:
1) Remove all jewellery, wristwatches, rings and other metal
objects
2) Use only tools with insulated grips and handles.
3) When changing batteries, replace with the same quantity
and the same type of batteries.
4) Do not attempt to dispose of batteries by burning them. It
could cause explosion.
7
5) Do not open or destroy batteries. Effluent electrolyte can
cause injury to the skin and eyes. It may be toxic.
l Please replace the fuse only with the same type and of the
same amperage in order to avoid fire hazards.
l Do not dismantle the UPS, except the qualified maintenance
personnel.
2.4 Transport
l Please transport the UPS only in the original packaging (to
protect against shock and impact).
2.5 Storage
l The UPS must be stockpiled in the room where is ventilated
and dry.
2.6 Standards
* Safety
IEC/EN 62040-1
* EMI
Conducted Emission.........................:IEC/EN 62040-2 Category C2
Radiated Emission............................:IEC/EN 62040-2 Category C2
*EMS
ESD................................................:IEC/EN 61000-4-2 Level 4
RS..................................................:IEC/EN 61000-4-3 Level 3
EFT................................................ :IEC/EN 61000-4-4 Level 4
SURGE......................................... :IEC/EN 61000-4-5 Level 4
CS................................................. :IEC/EN 61000-4-6 Level 3
8
Power-frequency Magnetic field.... :IEC/EN 61000-4-8 Level 3
Low Frequency Signals..................:IEC/EN 61000-2-2
Warning: This is a product for commercial and industrial application
in the second environment-installation restrictions or additional
measures may be needed to prevent disturbances.
9
3. Installation
This chapter explains:
l Equipment inspection
l Unpacking the carton
l Checking the Accessory
l UPS setup and installation
l Connecting the internal battery
l Connecting the EBM(Extended Battery Modules)
l Installation requirements
3.1 Inspecting the Equipment
If any equipment has been damaged during shipment, keep the
shipping cartons and packing materials for the carrier or place of
purchase and file a claim for shipping damage. If you discover
damage after acceptance, file a claim for concealed damage.
Note: Check the battery recharge date on the shipping carton label.
If the date has passed and the batteries were never recharged, do
not use the UPS. Contact your service representative.
3.2 Unpacking the carton
CAUTION: If the carton unpacks in a low-temperature of
environment it may cause condensation of moisture in or on the
cabinet of UPS. Do not install the UPS until the inside and outside of
the cabinet is absolutely dry to prevent hazard of electric shock.
CAUTION: The cabinet is heavy. Refer following instruction to
unpack and move the cabinet from packing carton.
Be careful when moving and opening the carton. The unpacking
steps are shown as below:
10
Step 1:
Open the outer carton and remove the accessories out of the
carton (see Figure 3-1&3-2).
Online R/T 6K UPS:
Figure 3-1: Unpacking the carton of 6K UPS
Online R/T 10K UPS
Figure 3-2: Unpacking the carton of 10K UPS
11
Step 2:
With one person on each side, carefully lift the cabinet out of the
outer carton using the handles on the cardboard and set it on a flat,
stable surface (see Figure 3-3&3-4).
Place the cabinet in a protected area that has adequate airflow and
is free of humidity, flammable gas, and corrosion.
Lifting the Cabinet:
Figure 3-3: Lifting the Cabinet out of 6K UPS carton
CAUTION:
The cabinet is heavy. Lifting the cabinet out of the carton required
two persons at least.
12
Figure 3-4: Lifting the Cabinet out of 10K UPS carton
Step 3:
Discard or recycle the packaging in a responsible manner, or store
it for future use.
3.3 UPS Rear Panel
This section shows the rear panel of the Online R/T models.
6K model
Figure 3-5A: 6K Rear Panel ( single & parallel, without maintenance bypass)
13
Figure 3-5B: 6K-PDU Rear Panel ( no parallel Card, with maintenance bypass)
10K model
Figure 3-6A: 10K Rear Panel ( single & parallel, without maintenance bypass)
14
Figure 3-6B: 10K-PDU Rear Panel ( no parallel Card, with maintenance bypass)
3.4 UPS Front Panel
This section shows the front panel of the Online R/T UPS. The Online
series have the same LCD panel and the same control button.
Figure 3-7: The Online R/T UPS Front Panel
15
3.5 Rack mount Setup
CAUTION:
The cabinet is heavy, so:
1) Remove the battery tray from the UPS before lifting.
2) Lifting the cabinets into the rack requires a minimum of two
people.
CAUTION: Removing the batteries requiered precautions, which
should be performed or supervised by personnel with knowledge of
batteries . Keep unauthorized personnel away from batteries.
CAUTION: If installing an EBM(Extended Battery Module), install
the EBM directly below the UPS.
3.5.1 Install the UPS and EBM (Extended Battery Modules) in
a rack:
1. Open the front panel and put it above the UPS.
Figure 3-8. Open the front panel (left: 6K Model, right: 10K Model)
2. Remove the battery protection plate:
Figure 3-9. Removing the Battery Protection Plate
16
3. Pull the battery tray out using the plastic tabs and then remove
the battery tray.
Figure 3-10: Removing the Battery Tray
4. Install the PDU’s ears to the UPS
Figure 3-11. Install the PDU’s ears to the UPS
5. Select the proper holes in the rail for positioning the cabinet in
the desired location in the rack. Locate the rails at the bottom of
the 3U(3U/6K,5U/10K) space allocated for the each UPS and
EBM.
6. Install the sliding rails in the rack, then install the UPS in the
sliding rail.
17
Figure 3-12. Install the sliding rails
7. For 10K---Install the battery pack and battery protection plate,
then fix the front panel.
Figure 3-13. Installing the Cabinet
8. For 6K---Install the battery tray, and connect the internal battery
connector, then fix the protection plate and the front panel.
9. If installing additional UPSs, repeat from Step 1 to Step 8 for
each cabinet.
3.5.2 Installing the EBMs
Note: A little of arcing may occur when connecting an EBM to the
UPS. That is normal and not harmed. Plug the EBM cable into the
UPS battery connector quickly and firmly.
18
To install EBMs:
6K Model:
1. Plug the EBM cable into the UPS battery connector
Figure 3-14. Plug the EBM cable into the UPS battery connector
2. Replace UPS’s front panel and EBM’s front panel.
Figure 3-15. Replace UPS’s front panel and EBM’s front panel.
19
10K Model:
Figure 3-16. Plug the EBM cable into the UPS battery connector
3.6 Tower Setup
Tower setup as below:
Figure 3-17. Tower setup
CAUTION:
Please connect the EBM to protective ground with 10mm2/ 6AWG
wire for EBM model firstly.
20
3.7 Installation of UPS with AC inputs
CAUTION: Online 6K/10K series support that the UPS can have
separate AC inputs. So before connecting wires of seperate AC
inputs, you should confirm that their earthing systems are identical.
Otherwise, a transformer is necessary.
UPS with common Normal and Bypass AC inputs
UPS with separate Normal and Bypass AC inputs
Ø Earthing systems are identical:
Ø Earthing systems are separate:
Three different installations can be choosen:
1) Transformer in the Normal AC input.
21
2) Transformer in the Bypass AC input.
3) Both of them have transformer
Frequency converter (without Bypass AC input)
22
4. Power cables connection & Startup
This section explains:
l Access to terminal block
l Common input sources connection
l Separate input sources connection
l Frequency converter connection
l UPS initial startup
Use cable cross section and protective device specification
Model 6K 10K
Protective earthing conductor
Min cross section
4mm2 (10AWG) 10mm2 (6AWG)
Input L, N, G
Min conductor cross section
4mm2 (10AWG)
10mm2 (6AWG)
Input fuse on UPS 60A 80A
Output L,N,
Min conductor cross section
4mm2 10AWG) 10mm2 (6AWG)
External Battery Cabinet
Positive Pole(+),
Negative pole(-)
Min conductor cross section
4mm2 (10AWG)
10mm2 (6AWG)
External Battery Cabinet Fuse
in Positive Pole(+),
Negative pole(-)
60A 80A
The UPS does not have an automatic protection device against current
backfeed. It is suggested that install an external isolating device ,which
is shown in the following illustration. Check for hazardous voltage
between all terminals before operating on this circuit.
23
4.1 Access to terminal block
Access to terminal block: remove the 2 screws of the terminal block
cover
Figure 4-1. Terminals of 6K/10K
4.2 Common input sources connection
CAUTION:
This type of connection must be carried out by qualified electrical
personnel.
Always connect the earthing wire first
24
Figure 4-2. Common input sources connection
4.3 Separate input sources connection
CAUTION:
This type of connection must be carried out by qualified electrical
personnel.
Always connect the earthing wire first.
Figure 4-3. Separate input sources connection
25
4.4 Frequency converter connection
Figure 4-4. Frequency converter connection
4.5 UPS Initial Startup
To start up the UPS:
Verify that the total equipment ratings do not exceed the UPS
capacity to prevent an overload alarm.
1. Verify that the internal batterties are connected.
2. If optional EBMs are installed, verify that the EBMs are
connected to the UPS.
3. Set the upstream circuit breaker (not included) to the “I” position
(ON).
The UPS display panel illuminates
4. Verify that the UPS transfers to Bypass mode.
5. Press the button on the UPS front panel for at least
3seconds.
The UPS display “ ” with flashing.
6. Check the UPS display for active alarms or notices. Resolve any
active alarms before continuing. See “Troubleshooting”
7. Verify that the UPS is operating normally and load is powered.
26
8. If optional EBMs are installed, see “Configuring the UPS for
EBMs” to set the number of installed EBMs.
9. To change any other factory-set defaults, see “Operation”
Online series recommends setting the date and time.
At initial startup, the UPS sets system frequency according to
input line frequency (input frequency auto-sensing is enabled by
default). After initial startup, auto-sensing is disabled until
manually re-enabled by output frequency setting.
At initial startup, inut voltage auto-sensing is disbaled by default.
When manually enabled by output voltage setting, at the next AC
startup the UPS sets output voltage according to input line
voltage. After the subsequent startup, auto-sensing is disabled
until manually re-enabled by output voltage setting.
10. If you installed an optional REPO, test the REPO function:
Activate the external REPO switch. Verify that status change on
the UPS display.
Deactivate the external REPO switch and restart the UPS.
4.6 Parallel Installation and Operation
4.6.1 Brief introduction of the redundancy
The parallel structure is 1+1.As long as the UPS is equipped with
parallel cables, up to 2 UPSs can be connected in parallel to
configure a sharing and redundant output power.
4.6.2 Installation and operation
How to install a new parallel UPS system:
1) Before installing a new parallel UPS system, user need to
prepare the input and output wires, the input and output
breakers, and the parallel signal cables.
2) Users need to use a special 15-pins communication cable
(optional) for this system, which have to have 15 cores,
corresponding stitches and shield, as the UPS parallel cable.
27
The length of the parallel cable have to be less than 3 m.
3) Strictly follow the chapter 4, the wiring requirement of single
UPS to perform the wiring of each UPS.
4) Each UPS need independent battery packs.
5) Please connect the input and output wires, fix all the wiring
according to the Figure 4-5 and make sure all these breakers
are open.
28
Figure 4-5.a: Parallel systerm wiring diagram of 6K/10K
29
Figure 4-5.b: Parallel System Installation Diagram
30
6) Turn on the input breakers for the two parallel UPS.
7) Pressing button continuously for more than 1 second for
one UPS of the system, then the system will start to turn on and
enter line mode.
8) Regulate the output voltage of the each UPS separately, and
check if the output voltage difference between the two ups is
less than 0.5V. If the difference is more than 0.5V, the UPS
need to be regulated.
9) If the difference output voltage is less than 0.5V, switch on the
output breakers for the two UPS separately and switch on the
main O/P breakers, then the system will work normally in
parallel.
■ The output wiring requirement as follows:
● When the distance between the UPS in parallel and the
breaker panel is less than 10 meters, the length difference
between input and output cable of the UPSs is required to be
less than 20%.
● When the distance between the UPS in parallel and the
breaker panel is more than 20 meters, the length difference
between input and output cable of the UPSs is required to be
less than 5%.
How to join a new UPS to a parallel system:
1) If load cannot be stopped firstly a main external maintenance
bypass switch should be installed for the parallel system.
2) Regulate the output voltage of the new UPS: check if the output
voltage difference between the new UPS and the existing UPS
is less than 0.5V.
3) Ensure the bypass of the parallel system is in tolerance and the
bypass setting is “enable”, then press the button to turn off
the UPS, then UPS will work in bypass mode.
31
4) Set the main maintenance bypass switch from “UPS” to
“ByPass”, then switch off the main output breaker and the input
breaker and mains breaker, then the UPS will shut down.
5) Connect the cable and wire of the added UPS according to the
Figure.4-5.a and Figure.4-5.b
6) Switch on the input breakers and mains breaker, and make
sure that every UPS work in bypass mode.
7) Switch on the O/P breakers & main O/P breaker，transfer the
main maintenance bypass switch from “ByPass to “UPS”.
8) Press the button of one UPS, each UPS would start to turn
on, after that, the two UPS should work parallel in Line mode.
How to remove a single UPS from a parallel system:
1) If load cannot be stopped, firstly a main maintenance bypass
switch should be installed for the parallel system.
2) Ensure the bypass is in tolerance and the bypass setting is
“enable”, press the button to turn off the UPS system, and
the UPS system will work in bypass mode.
3) Transfer the main maintenance bypass switch from “UPS” to
“Bypass”, then switch off the output breakers and the input
breakers and mains breaker for the two UPS, and the UPS
would shut down.
4) Switch off the main O/P breaker and O/P breaker for the UPS
system.
5) Remove the wanted UPS, cables and wires.
6) Switch on the mains breaker and input breaker of the reserved
UPS, make sure the UPS work in bypass mode.
7) Switch on the O/P breaker and main O/P breaker.
8) Transfer the main maintenance bypass switch from “Bypass” to
“UPS”, and press the button to turn on the UPS, and the
UPS would start to turn on, then the UPS should work in Line
mode.
32
5. Operation
5.1 Display Panel
The UPS has a four-button graphical LCD with dual color backlight.
Standard back-light is used to light up the display with white text and
a blue background. When the UPS has a critical alarm, the backlight
changes the text to dark amber and the background to red. See
Figure below.
Figure 5-1. 6-10K Rack On-line UPS Control Panel
Table 5-1 Control Button Functions
The Button Function Illustration
Power on
When the unit is no powered and has
connected with battery, press this button
for > 0,1sec, & <1s to power ON
Turn on
When the unit is powered ON and in
Bypass mode, press this button for >1s
to turn ON
Turn off
When the unit has been turned ON,
press this button for >3s to turn OFF
33
Enter main
menu
When displaying default UPS status
summary screen, press this button for
>1s to enter the main menu tree
Exit main
menu
Press this button for >1s to exit the
present menu to default system status
display menu without executing a
command or changing a setting
Scroll up
Press this button for >0,1sec & <1s to
scroll up the menu option
Scroll down
Press this button for >0,1sec & <1s to
scroll down the menu option
Enter next
menu tree
Press this button for >0,1sec & <1s to
select the present menu option, or enter
next menu, but do not change any
setting
Select one
menu
option
Press this button for >0,1sec & <1s to
select the present menu option, or enter
next menu, but do not change any
setting
Confirm the
present
setting
Press this button for >1s to confirm the
edited options and change the setting
Table 5-2 Buzzer definition
UPS condition Buzzer status
Fault active Continuous
Warning active Beep every second
Battery Mode
Beep every 4 seconds, if battery low, buzzer Beep
every second
Bypass output Beep every 2 minutes
The UPS provides useful information about UPS itself, load status,
events, measurements, identification, and settings through the front
panel display.
34
After powering on, the LCD will display Start-UP for few seconds and
then enter to the default page which shows the UPS status summary.
The display automatically returns to the default UPS status summary
screen when no button has been pressed within 15 minutes.
On the UPS status summary screen it provides the following information:
l Status summary, including mode and load
l Alarm status, if any are present
Notes: alarm including fault and warning information
l Battery and charger status, including battery voltage, charge level
and charger status
l Running information and running time
Figure 5-2 The default LCD display
There are more operation details for LCD is illustrated in the chapter of
5.4
5.2 Operating mode
The different graphic symbol could be displayed corresponding to
current operating mode or status.
35
Table 5-3 Status Summary Screens
Status Summary Screen Description
Fig 5-3
Normal mode:
The UPS is operating in Normal mode
from utility power.
Fig 5-4
Battery mode:
When the UPS is running in battery
mode, the buzzer beeps once every 4
seconds.
Fig 5-5
Bypass with output:
The UPS does not have the backup
function when it is in bypass mode.
The power used by the load is supplied
from the utility power via internal filter.
The UPS will beep once every 2
minutes in bypass mode.
Fig 5-6
Bypass without output:
The UPS in bypass mode without
output
Fig 5-7
High Efficiency Mode:
After the UPS is turned on, the power
used by the load is supplied from the
utility power via internal bypass while
the utility power is in normal range, so
the high efficiency could be gained in
the HE mode. Once the mains is loss
or abnormal, the UPS would transfer to
Line mode or Battery mode and the
load is supplied continuously.
1) The function could be enabled
through the LCD setting or the
36
software (Winpower, etc.).
2) It is attention that the transfer time
of UPS output from HE mode to
battery mode is about 10ms. But it
is still too long for some sensitive
load.
Fig 5-8
Converter mode
In converter mode, the UPS would free
run with fixed output frequency (50Hz
or 60Hz). Once the mains is loss or
abnormal, the UPS would transfer to
battery mode and the load is supplied
continuously.
1) The function could be enabled
through the LCD setting or the
software (Winpower, etc.).
2) The load have to be derated to
80% in converter mode.
Fig 5-9
Warning:
When the warning occurs, it illustrates
that there are some abnormal
problems during the operation of UPS.
Normally the problems are not fatal
and the UPS continues working, but
they should be paid attention to, or the
UPS may fail.
Fig 5-10
Fault:
When the fault occurs, it illustrates that
some fatal problems happened, the
UPS would directly cut off the output or
transfer to bypass, and keep alarming.
The backlight of LCD would also turn
to red.
37
Fig 5-11
Overload:
When the UPS is overload, the alarm
will beep twice every second. Some
unnecessary loads should be get rid of
one by one to decrease the loads
connected to the UPS.
Fig 5-12
Battery Test
UPS is executing a battery test
Fig 5-13
Battery fail:
if the battery status detected is “bad
battery detected” or “battery
disconnected”, the symbol of battery
failure would be shown and UPS would
alarm.
5.3 Turning on and Turning off UPS
Attention: The UPS could only be turning on while connecting with the
utility for the first time.
Attention: Please switch off the connected loads at first before turning
on the UPS, and switch on the loads one by one after the UPS is turned
on. Switch off all of the connected loads before turning off the UPS.
5.3.1 Turning on UPS with utility
1) Check all the connection is correct.
2) Power on the UPS, the fan begins to rotate, LCD will switch-ON.
After that, the LCD will show the default UPS status summary
screen.
3) Pressing button continuously for more than 1 second, the
buzzer will beep 1s, UPS starts to turn on.
38
4) A few seconds later, the UPS turns into Line mode. If the utility
power is abnormal, the UPS will transfer to Battery mode
without output interruption of the UPS.
5.3.2 Turning on UPS without utility
1) Check all the connection is correct.
2) Pressing button continuously for more than 0,1s, the UPS
would be powered on. At this time the fan begins to rotate, LCD
will switch-ON . Then LCD will show the default UPS status
summary screen after UPS finishing self-test.
3) Pressing button continuously for more than 1 second, the
buzzer will beep for 1s, UPS starts to turn on.
4) A few seconds later, the UPS turns into Battery mode. If the
utility power comes back, the UPS will transfer to Line mode
without output interruption of the UPS.
5.3.3 Turning off UPS with utility
1) Pressing button continuously for more than 3 seconds and
the buzzer will beep 3s. After that, the UPS will turn into Bypass
mode at once.
2) When completing the above action, UPS output voltage is still
present. In order to cut off the UPS output, simply cut off the
utility power supply. A few seconds later, LCD display shuts
down and no output voltage is available from the UPS output
terminal.
5.3.4 Turning off UPS without utility
1) To power off the UPS by pressing button continuously for
more than 3 second, and the buzzer will beep for 3s. The UPS
will cut off the output at once.
2) A few seconds later, LCD shuts down and no voltage is
available from the UPS output.
39
5.4 LCD operation
Except the default UPS status summary screen, the user could get
more useful information about UPS current status, detailed various
measurements, previous event records which ever occurred, UPS
own identification, and could change the settings to fit the user own
requirements, optimize the function of UPS.
5.4.1 The main menu
In the default UPS status summary screen, when pressing or
<1s, the detailed information about alarm, the system status,
battery would be shown.
In the default UPS status summary screen, when pressing >1s,
the display would enter main menu tree.
The main menu tree includes six branches: UPS status menu,
event log menu, measurement menu, control menu, identification
menu and setting menu.
40
Figure. 5-14 Main menu tree
41
5.4.2 The UPS status menu
By pressing on the menu of “UPS status”, the display would
enter the next UPS status menu tree.
The content of UPS status menu tree is same as the default UPS
status summary menu.
By pressing >1s, the display would return the last main menu
tree.
The detail information about “UPS status”, please see Fig5-14
5.4.3 The event log menu
By pressing on the menu of “Event log”, the display would
enter the next event menu tree.
All the previous events, alarm and fault have been recorded here.
The information includes the illustration, the event code, and the
precise time of UPS when the event happened. By press or
<1s, all the events could be displayed one by one.
The max number of record is 50, when the number is larger than 50,
the latest will replace the previous.
By pressing >1s, the display would return the last main menu
tree.
42
Figure. 5-15 Event menu tree
5.4.4 The measurement menu
By pressing on the menu of “Measurement”, the display would
enter the next measurement menu tree.
A lot of detailed useful information could be checked here, Ex. the
output voltage and frequency, the output current, the load capacity,
the input voltage and frequency, etc.
By pressing >1s, the display would return the last main menu
tree.
43
Figure. 5-16 Measurement menu tree
5.4.5 The control menu
By pressing on the menu of “Control”, the display would enter
the next control menu tree.
1) Start Battery Test: this is one command that control the UPS to
do the battery test.
2) Clear EPO status: once EPO status is enabled, the UPS output
would be cut off. To recover to normal status, first EPO
connector should be closed, and enter this menu to clear EPO
status, then UPS would stop alarm and recover to Bypass
model. And UPS needs be turned on by manual operation.
3) Reset Fault status: when fault occurs, UPS would keep in Fault
mode and alarm. To recover to normal status, enter this menu
44
to reset error status, then UPS would stop alarm and recover to
Bypass mode. And the reason of fault should be checked and
deleted before UPS is turned on again by manual operation.
4) Restore factory settings: all the settings would be recover to
default factory settings. It could only be done in Bypass mode.
Figure. 5-17 Control menu tree
45
5.4.6 The identification menu
By press on the menu of “Identification”, the display would
enter the next identification menu tree.
The identification information includes UPS serial number, firmware
serial number, model type, would be shown here.
By press >1s, the display would return the last main menu tree.
Figure. 5-18 Identification menu tree
5.4.7 The setting menu
Please contact your local distributor for further information before
using the settings. Some settings would be changed the
specification, and some settings would enable or disable some
functions. The unsuitable option setting by user may result in
46
potential failures or protecting function loss, even directly damage
the load, battery or UPS.
Most of settings could only be done while UPS is in Bypass mode.
Figure. 5-19 Setting menu tree
47
Example: set rated output voltage value
Figure. 5-20 Set rated output voltage value
48
6. UPS Maintenance
This chapter explains how to:
l Care for the UPS and batteries
l Transport the UPS
l Store the UPS and batteries
l Test the batteries
l Recycle the used Battery or UPS
6.1 UPS and Battery Care
For the best preventive maintenance, keep the area around the UPS
clean and dust-free. If the atmosphere is very dusty, clean the outside of
the system with a vacuum cleaner. For full battery life, keep the UPS at
an ambient temperature of 25°C (77°F)
Note: The batteries in the UPS are rated for a 3-5 year service life. The
length of service life depends on the frequency of usage and ambient
temperature. Batteries used beyond expected service life will have
severely reduced runtimes. Replace batteries at least every 4,5 years to
keep units running at peak efficiency, first date is based on production
date.
6.2 Transporting the UPS
NOTE: The internal UPS batteries MUST be disconnected before
transport.
CAUTION: The following procedure should be performed or supervised
by personnel knowledgeable about batteries and the required precaution.
Keep unauthorized personnel away from batteries.
If the UPS requires any type of transportation, the batteries must be
disconnected (but not removed) before the unit is transported:
1. Verify that the UPS is off and disconnected from utility power.
2. Place the UPS on a flat, stable surface with the front of the cabinet
facing you.
49
3. Remove the UPS front cover
4. Disconnect the internal battery connectors
5. Fix the UPS front cover
6.3 Storing the UPS and Batteries
If you store the UPS for a long period, recharge the battery every 6
months by connecting the UPS to utility power. The batteries charge to
90% capacity in approximately 4 hours. However, it is recommended
that the batteries charge for 48 hours after long-term storage.
Check the battery recharge date on the shipping carton label. If the date
has passed and the batteries were never recharged, do not use the UPS.
Contact your service distributor.
When to Replace Batteries
When the status summary screen displays the UPS fault icon with the
“Service Battery” alarm and the audible alarm sounds continuously, the
batteries may need replacement. Contact your service representative to
change or order new batteries.
6.4 Testing Batteries
For a battery test, please check:
l The batteries must be fully charged.
l The UPS must be in Normal mode with no active alarms.
l The load must be higher than 10%.
To test batteries:
1 Connect the UPS to utility power for at least 48 hours to charge
the batteries.
2 Press the button for one second to go to the main menu
selection and scroll down to the Control menu using the
button.
3 Press the button to enter the Control menu.
4 Use the button to scroll to the Battery Test option.
50
5 Press the button to start the battery test.
During the battery test, the UPS transfers to Battery mode and
discharges the batteries for 25% of the original expected runtime.
The status screen displays “Battery test running” and the percentage
of the test completed. The results display on the UPS status screen
as completing.
6.5 Recycling the Used Battery or UPS
Contact your local recycling or hazardous waste center for
information on proper disposal of the used battery or UPS.
51
7. Specifications
This chapter provides the following specifications:
l Model list
l General Specification
l Electrical Performance
l Environmental and Safety
7.1 Electrical specification
Model
Online RT 6K Online RT 10K
Output
Power Capacity 6KVA/5.4KW 10KVA/9KW
Voltage Range
208VAC/220VAC/
230VAC/ 240VAC
208VAC/220VAC/
230VAC/ 240VAC
Frequency 50/60Hz 50/60Hz
Voltage Distortion
<5%@Nonlinear load
<2%@Linear load
<5%@Nonlinear load
<2%@Linear load
Over Load
Line Mode:
2mins 102% ~ 130%
30s 130% ~ 150%
100ms >150%
Battery Mode:
10s 102% ~ 130%
100ms >130%
Efficiency
Line mode >92% >93%
ECO mode >96% >97%
Battery mode >89% >90%
Input
Input wire 1 Ph (L1,L2/N)+ PE
Input Type Support dual input
Phase Single
Voltage Range 176-276Vac
Frequency Range
(45~55)/(54~66)Hz
52
Current
26.4A@230Vac 44.0A@230Vac
Power Factor
≥ 0,99 @100% Nominal Load
≥ 0,98 @50% Nominal Load
≥ 0,95 @25% Nominal Load
THDI
< 5 %@Full load and battery full charged
Battery & Charger
Battery 180VDC / 5Ah 240VDC / 9Ah
Current 39A 48A
Charger current 1A 1.7A
7.2 Dimension and Weight
Dimension
(W*D*H) mm
438*698*129 438*704*215.5
Net Weight (KG) 46 82.5
Gross Weight (KG) 50 87.5
7.3 Operating Environment
Item 6K/10K Standards/Comments
Cooling Force Air Cooling /
Operating
Temperature
Range
0°C ~ 40 °C
Nominal power & continuous
operating mode
-15°C~60°C UPS Storage
Temperature
0~35°C Battery
Relative
Humidity
0-95% No condensing
Altitude <1000m for Nominal power
Over 1000 m the power
derating is 1 % every 100 m
Acoustic
Noise
<55dB /
53
8. Troubleshooting
The online series UPS is designed for durable, automatic operation
and issues alarms to alert you whenever potential operating
problems occur. Usually the alarms shown by the control panel do
not mean that the output power is affected. Instead, they are
preventive alarms intended to alert the user. Active alarms are
accompanied by an audible buzzer.
The control panel provides troubleshooting information from two
main menus:
l UPS status menu: Access to all active alarms
l Event Log menu: Access to the most recent 50 events, which
may include active and closed alarms
8.1 Typical Alarms and Conditions
Alarm or Condition Possible cause Action
ON Maintenance
Bypass
Alarm Code: 72
UPS was manually
commanded to switch to
bypass and will remain in
bypass until commanded
out of bypass
Check the maintain bypass
switch status
In Battery Mode
Alarm Code: 62
A utility failure has
occurred and the UPS is
in Battery mode.
The UPS is powering the
equipment with battery
power. Prepare your
equipment for shutdown.
In ECO Mode
Alarm Code: 63
The UPS is on bypass
while operating on the
High Efficiency setting.
The equipment transferred
to bypass utility power as a
normal function of High
Efficiency operation. Battery
mode is available and your
equipment is protected.
EPO Active
Alarm Code: 71
The external contacts in
the rear of the UPS are
configured for REPO
operation and they have
been activated.
Check the EPO connector
status
54
Site Wiring Fault
Alarm Code: 04
Site Fault detection is
supported on all models
anytime there is a
Grounding Neutral
connection.
Alarm triggers when the
difference between
ground and neutral
voltage is > 15v.
Site Fault detection should
be enabled by default. It can
still be enabled / disabled
from the LCD settings
menu.
Reconnect all input wires
Utility Abnormal
Alarm Code: 02
Utility is out of the
tolerance of input
Check input mains condition
Back feed
Alarm Code:93
UPS has a unexpected
bypass current on battery
mode
Transfer to maintenance
bypass and call service.
Battery Disconnect
Alarm Code:11
Battery voltage is lower
than the batteries
disconnected level
defined for this UPS. This
may be due to a blown
fuse, intermittent battery
connection or battery
cable being
disconnected.
Verify that all batteries are
properly connected.
If the condition persists,
contact your service
representative.
Battery low
Alarm Code:12
The UPS is in Battery
mode and the battery is
running low
This warning is
approximate, and the actual
time to shutdown may vary
significantly.
Depending on the UPS load
and number of Extended
Battery Modules(EBMs), the
“Battery Low” warning may
occur before the batteries
reach 25% capacity
Service Battery
Alarm Code:13
A faulted battery string
has been detected and as
a result the battery
charger has been
disabled until it is
replaced
Contact your service
representative
55
Output Overload
Alarm Code:41
Output is overload.
Remove some of the
equipment from the UPS.
The UPS continues to
operate, but may switch to
Bypass mode or shutdown if
the load increases.
The alarm resets when the
condition becomes inactive.
Inv Overload Fault
Alarm Code:42
UPS has transferred to
bypass or fault mode
because of overload in
inverter mode
The UPS transfers to
Battery mode if supporting
the load.
Remove some of the
equipment from the UPS
Byp Overload Fault
Alarm Code:43
UPS has cut off the
output and transferred to
fault mode because of
overload in bypass mode
or HE mode.
Remove some of the
equipment from the UPS
Output Short Circuit
Alarm Code:31
Indicates that the UPS
has detected abnormally
low impedance placed on
its output and considers it
a short circuit
Remove all the loads. Turn
off the UPS.
Check if UPS output and
loads is short circuit.
Ensure short circuit is
removed before turning on
again.
Fan Failure
Alarm Code:84
Indicates that the fan
could not work normally.
Check fans of UPS
Heatsink Over
Temperature
Alarm Code:81
Indicates that the
temperature of heatsink
is too high, UPS will get
over temperature fault
soon.
If the UPS transferred to
Bypass mode,
If the condition persists,
shut down the UPS. Clear
vents and remove any heat
sources. Allow the UPS to
cool. Ensure the airflow
around the UPS is not
restricted. Restart the UPS.
Ambient Over
Temperature
Alarm Code:82
Indicates that the ambient
temperature is higher
than the operation
temperature on
specification
56
BUS Over Voltage
Alarm Code:21
Indicates that the UPS
get BUS over voltage
fault because of BUS.
The UPS transfers to
Bypass mode if supporting
the load
BUS Under Voltage
Alarm Code:22
Indicates that the UPS
get BUS under voltage
fault
The UPS transfers to
Bypass mode if supporting
the load
BUS Unbalance
Alarm Code:23
Indicates that the positive
BUS voltage and
negative BUS voltage are
too lopsided to fault
The UPS transfers to
Bypass mode if supporting
the load
BUS Short
Alarm Code:24
Indicates that the BUS
voltage decrease very
fast
Contact your service
representative
BUS Softstart Fail
Alarm Code:25
Indicates that the BUS
could not soft start
successfully
Contact your service
representative
Inv Over Voltage
Alarm Code:32
Indicates that the UPS
get invert over voltage
fault
The UPS transfers to
Bypass mode if supporting
the load
Inv Under Volatge
Alarm Code:33
Indicates that the UPS
get inverter under voltage
fault
The UPS transfers to
Bypass mode if supporting
the load
Inv Softstart Fail
Alarm Code:34
Indicates that the inverter
could not start
successfully
Contact your service
representative
Charger Fail
Alarm Code:15
Indicates that the UPS
has confirmed the
charger has failed
The UPS turns off the
charger until the next power
recycle. Contact your
service representative
Battery Over Voltage
Alarm Code:16
Indicates that the battery
voltage is too high
The UPS will turn off the
charger until the battery
voltage is normal
Fatal eeprom Fault
Alarm Code:A3
Indicates that the UPS
could not read eeprom
successfully
Contact your service
representative
Negative power Fault
Alarm Code: E1
In parallel system，power
of UPS is negative
Redundancy mode，the fault
UPS turn to fault mode
without output
Increase mode，UPS1&
UPS2 turn to fault mode
57
Parallel cable loss
Alarm Code: E2
In parallel system，
parallel cable disconnect
Disconnect parallel cable
one turn to fault mode
Parallel system
battery status
Alarm Code: E6
UPS1 connect battery，
UPS2 without battery
Check battery connect
status
Line input different
Alarm Code: E7
Parallel system，UPS1
line ok，UPS2 line loss
Check the line input
Bypass input different
Alarm Code: E8
Parallel system，UPS1
bypass ok，UPS2 Bypass
loss
Bypass different，not allow
turn on UPS. Check bypass
input
Power strategy
different
Alarm Code: E9
Parallel system，UPS OP
mode（normal ，
converter，HE） different
Check UPS OP mode, Keep
OP mode be the same
Rate power different
Alarm Code: EA
Parallel system rate
power different
Rate power different，not
allow turn on UPS. Keep
rate power be the same
HE in parallel
Alarm Code: EB
Parallel system，OP
mode set as HE
HE not allow in parallel
system，change OP mode
58
9. Communication
This chapter contains:
l Communication ports (RS-232 and USB)
l Network Management Card (Optional)
l UPS Management Software
l REPO
9.1 RS-232 and USB Communication Ports
To establish communication between the UPS and a computer, connect
your computer to one of the UPS communication ports using an
appropriate communication cable.
When the communication cable is installed, power management
software can exchange data between your computer and the UPS. The
software will obtain the detailed information of the UPS on the status of
the power environment. If power emergency occurs, the software
initiates the saving of all data and an orderly shutdown of the equipment.
The cable pins for the RS-232 communication port are identified in figure
9-1, and the pin functions are described in Table 3.
Figure.9-1 RS-232 Communication Port (DB-9 Connector)
Table 3 RS-232 Communication Port Pin Assignment
Pin
Number
Signal
Name
Function Direction from
the UPS
1 Battery Low signal Out
2 RxD Transmit to ext. PC/Server RS232
3 TxD Receive from ext. PC/Server RS232
5 GND Signal common --
59
7 Not used -8 On Battery signal/Main failure Out
9 Vdc Power（+12V）
This pin is connected via a
jumper to pin 2 of SNMP
connector
Out
Figure.9-2 RS-232 Communication Port
Figure. 9-3 Pin1/Pin8 typical application
Notes: The Pin 1 & 8 are driven by Transistor ( aren’t a relay), so
maximum voltage of ‘+V’ is 30Vdc, the maximum current is 45mA.
60
9.2 Network Management Card (Optional)
Network Management Card allow the UPS to communicate with different
types of devices in variety of networking environments. The Online
series has one available communication bay for the following
connectivity cards:
l Connect UPS- MS Web/SNMP Card – has SNMP and HTTP
capabilities as well as monitoring through a Web browser interface;
connects to a twisted-pair Ethernet (10/100BaseT) network. In
addition.
l This series UPS has AS400/Relay card (as optional accessory) for
AS400 communication protocol, or for standard Relay alarm signal.
Please contact your local distributor for details.
9.3 UPS Management Software
Free Software Download – WinPower
WinPower is a new software for UPS monitoring, which provides
user-friendly interface to monitor and control your UPS. This unique
software provides safely auto shutdown for multi-computer systems
while power failure. With this software, users can monitor and control
any UPS on the same LAN no matter how far from the UPSs.
61
Installation procedure:
1. Go to the website:
http://www.ups-software-download.com/
2. Choose the operation system you need and follow the instruction
described on the website to download the software.
3. When downloading all required files from the internet, enter the serial
No: 511C1-01220-0100-478DF2A to install the software.
When you finish installation, restart your computer, the WinPower
software will appear as a green plug icon located in the system tray, near
the clock.
9.4 REPO Function
The Remote Emergence Power Off interface provides an emergence
power off function. When the REPO function is enabled, once the EPO
port is pulled out, the UPS would shut off the output and enter into EPO
mode, and the UPS would not respond anything command unless the
port is plugged back.
62
614-08108-00
Loading...
