TeachLogic Quantum II User Manual
owner’s manual
Infrared Wireless Microphone System
Quantum II
owner’s manual
thank you
Congratulations on the purchase of your new
Quantum II Infrared Wireless Microphone Sound
System. You can be assured that the Quantum II
fulfills all specifications and was produced to very
high quality control standards. TeachLogic
incorporates the latest state of the art technology,
employs the most advanced manufacturing
methodology and uses only premium quality
components to assure many years of reliable
performance. We appreciate your confidence by
your selection of our product. It is TeachLogic’s
intent to uphold that confidence by providing
factory assistance and dealer support.
We hope you will take the time to view this manual
to familiarize yourself with the product operation
and features. This manual will help you learn to use
and gain the maximum benefit of the Quantum II
system. The manual provides a basic explanation on
the principles and advantages of infrared
transmission. Followed by the system description,
operation and installation instructions, the manual
will conclude with maintenance and troubleshooting
procedures.
contact
If you should encounter
some unresolved issue,
please contact TeachLogic
customer service department for further assistance.
Brian Van Waay
President
1•800•588• 0018
sales @teachlogic.com
1•760•631•1283
www.teachlogic.com
2
safety instructions
Read Instructions
All safety and operation instructions should be read
before operating this TeachLogic product.
Retain Instructions
Safety and operating instructions should be kept
for future reference.
certifications
US CA
Listed
TeachLogic systems are
manufactured using leadfree processes and are free
of materials harmful to the
environment. They conform
to the most stringent new
European guidelines for
consumer products (RoHS).
caution
Recycle—Do not dispose
rechargeable batteries in
trash. Actually it is unlawful
to do so in CA, NY & ME.
Contact: Earth911.com
1-800-CLEANUP
Save our resources and
don’t contaminate.
Go Green
Water & Moisture
This product should not be operated near water.
Heat Environment
Do not subject this product to excessive heat
conditions.
Power Source
This product must be connected to an AC power
source per the voltage input specified and marked
on the power supply.
Power Cord Caution
Power cable should be routed clear of foot traffic
and supported clear of kinking or abrasion.
Object Protection
Locate the operating unit so it will not be subjected
to falling objects or water entry.
Internal Service
User should not attempt to service this product.
All internal service must be accomplished by a
qualified technician.
Electric Shock
Do not adapt or modify the AC power plug thus
lifting the earth ground connection.
Quantum II
owner’s manual
-9
table of contents
About Infrared ............................................................
Product Description ...................................................
Assembly and Installation ..........................................
Quantum II Controls .................................................
Sapphire Microphone/Transmitters IRT-55 .............
Handheld Microphone/Transmitter IRH-35 .............
Drop-in Chargers BRC-55/Ceiling Sensor ICS-55 ...

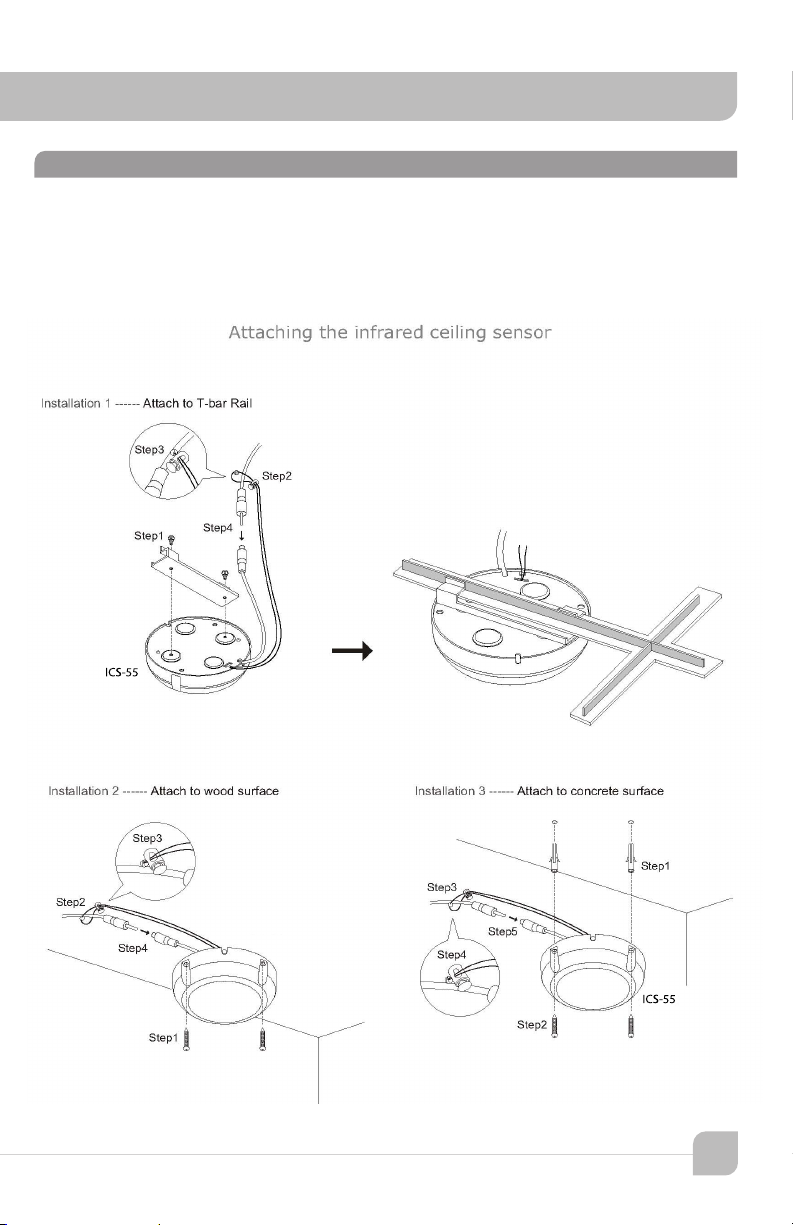

Installation of Ceiling Sensor .....................................
Operation of Wireless Microphone .........................
Troubleshooting ..........................................................
General Specifications ...............................................
transmitter
1
2
3
4&5
6
7
8
9
10
11
12
Microphone Specifications ........................................
Five Year Limited Warranty .......................................
13
14
4
IR transmission
The IR transmitter
transmits directly to the
sensor. However; due to
the strength of the IR
transmitter, the infrared
signal will bounce off the
walls, ceiling and floor for
reception thus providing
continuous connectivity
throughout the room.
Benefit: total freedom
of movement within the
room with no restriction
of orientation.
“What’s said in
the room, stays in
the room”.
Infrared will not
penetrate a solid surface
thus preventing any
transmission from
going out of the room.
a brief word about infrared
Infrared is a light ray that is below the visible
spectrum, just like the sound spectrum extends
beyond your hearing ability. An example of infrared
transmission is the remote control for your TV set.
When a button is pressed, a beam of infrared light
is emitted by a Light Emitting Diode (LED) from the
remote control. It is detected by a receiving diode
in your TV set. When you press a certain command
on your control, the internal electronics cause the
infrared light to flicker in a programmed sequential
pattern (called modulating the light beam). The
modulated infrared beam is detected by the
receiving diode and is electronically decoded. The
decoded signal activates the circuitry to perform
the command function on your TV set.
So how does this apply to the infrared
communication system you are about to start
using? The microphone/transmitter has several
Light Emitting Diodes (LED) that emit infrared light
beams to the sensor located in the corner of the
room. Now when you talk into the microphone, the
microphone element modulates the light beam,
causing it to flicker in sync with your speech. The
sensor detects the sequential signal and the
electronic circuitry in the Quantum II converts that
sequential signal into a line level analog audio
signal. Now that audio signal can be fed into an
amplifier. The amplifier magnifies the electronic
signal and sends it to the speakers. This causes the
speaker cone to move in sync with your voice. The
speaker replicates your voice and disperses your
voice evenly throughout the room.
1
Quantum II
owner’s manual
product description
The Quantum II is an infrared wireless microphone
sound system. It is the nucleus of the classroom
sound field system which provides optimum voice
reinforcement.
The addition of a Quantum II sound system will
transform your classroom into a totally hands free,
voice re-enforcement system, resulting in reduced
voice fatigue, enhanced student listening and
improved student learning. The wireless function
permit s 360° connec tivity throughout the classroom
regardless of body position or orientation.
The system is comprised of an infrared detecting
sensor. The sensor collects the IR wireless signal
from the microphone/transmitter and sends a
composite signal to the mixer/amplifier. The
receiver transforms the composite signal into an
analog audio signal which is fed to the Quantum
II mixer. An additional audio sources, such as;
computer, DVD, VCR or Projector can be plugged
in to the Quantum II. The AUX IN level controls the
individual audio input. The audio will then be fed to
the speaker in the column for voice reinforcement
throughout the room.

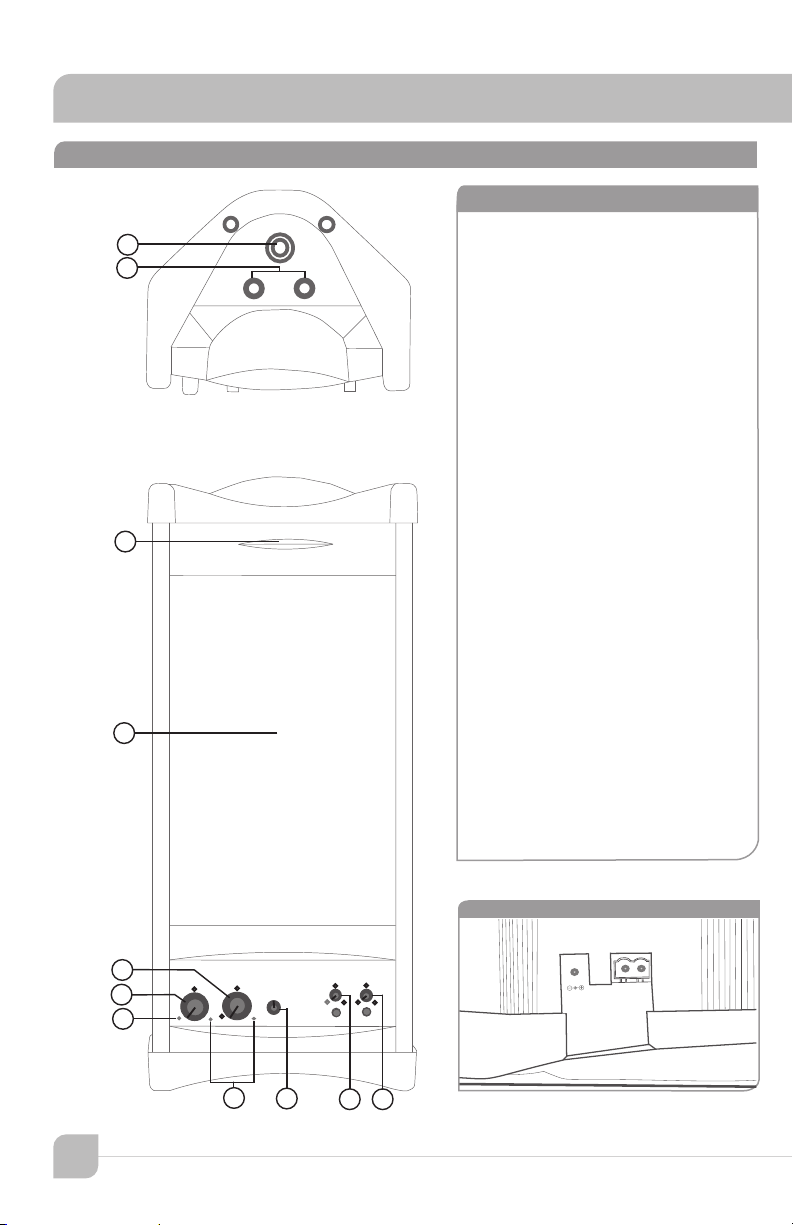

On the front panel of the Quantum II, there is a
3.5mm output jacks for interface with an assistive
listening system (ALS) or lesson capture (LINE
OUT).

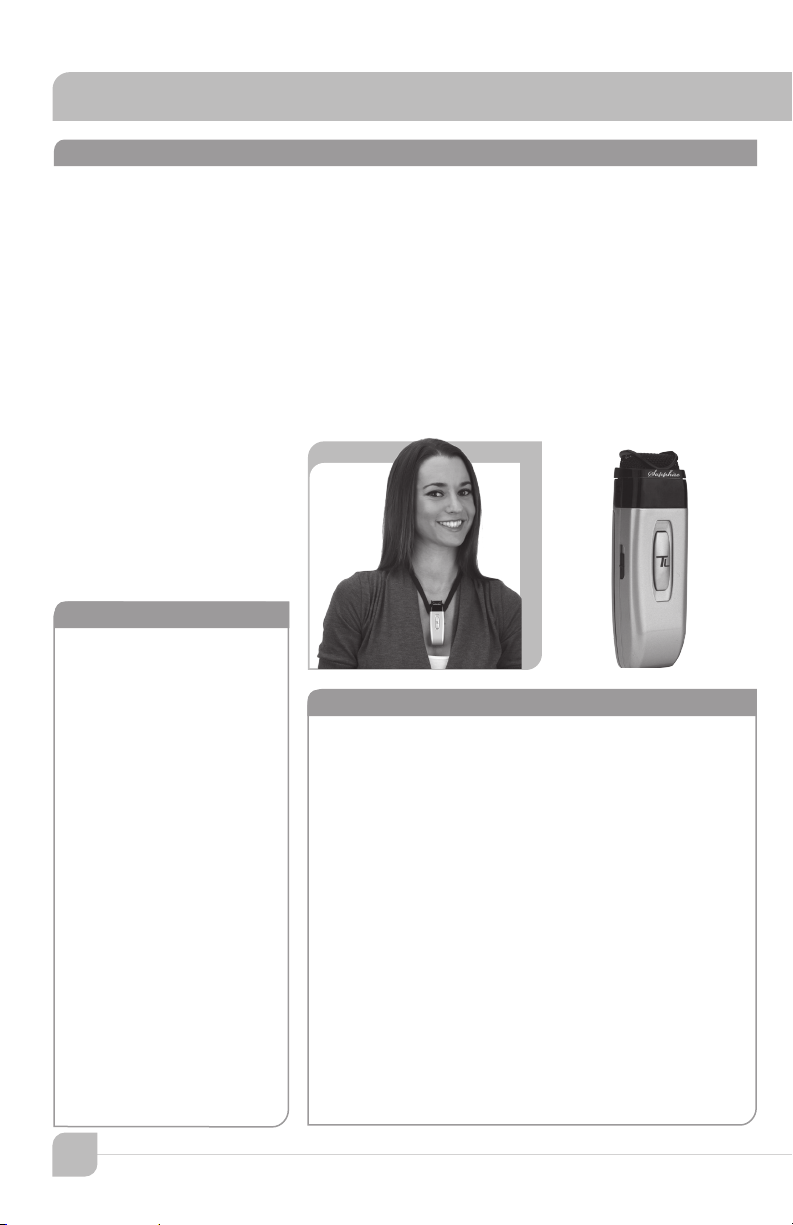

The microphone / transmitter can be one or two
Sapphire Pendants or Handhelds. The rechargeable
batteries will provide 6 – 8 hours of service per

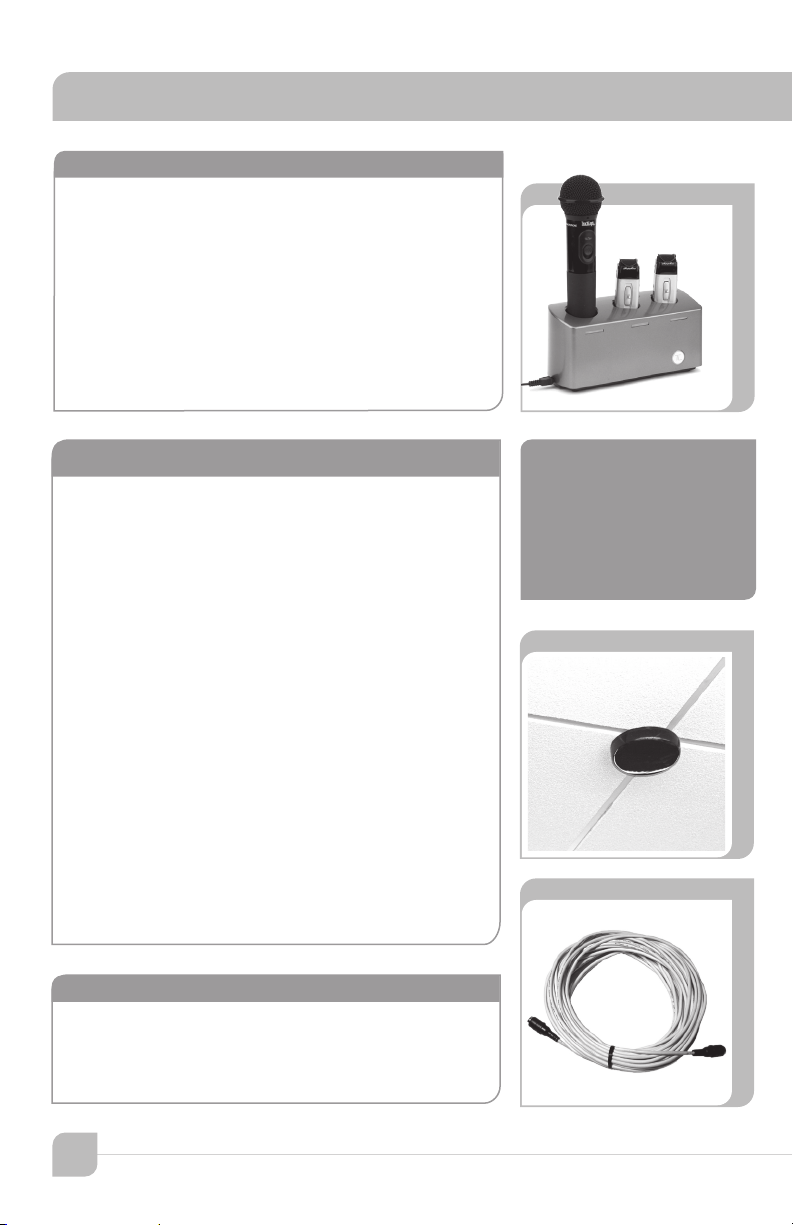

charge. The drop-in charger will recharge the
batteries overnight, ready for another day’s use.
2
Reliable
performance.
Use with
confidence.
2
