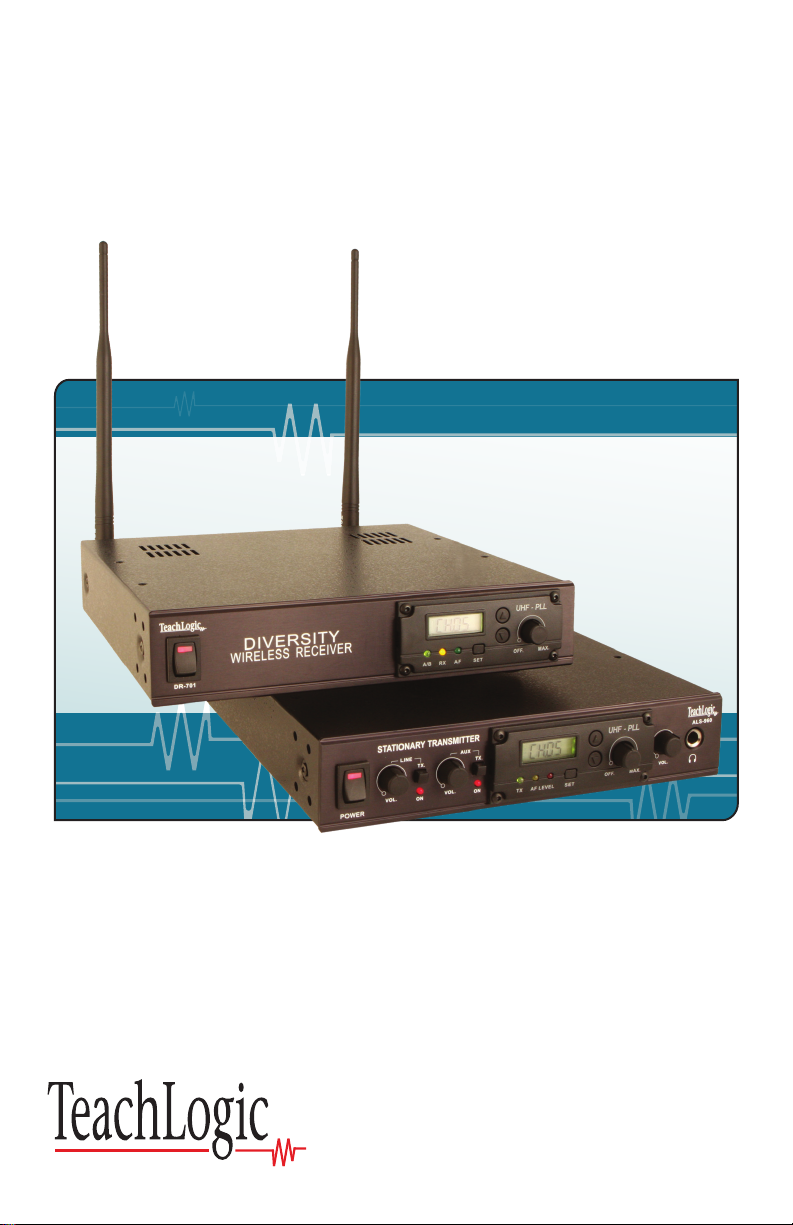

AirLink
owner’s manual
thank you
Thank you for purchasing the AirLink, a stationary
line level audio transmission system. Whether the
need is to distribute audio to a distant location, to
an overflow crowd at a special event, or send the
announcer’s voice across the football stadium, AirLink can get the message across with ease. Tests
have been performed through multi-story buildings from basement to upper conference room,
from press box to a remote concession stand, and
to multiple locations using several receivers. Transmission distance in excess of 500 feet has been
achieved in direct line of sight with absolute clarity
and rock solid connectivity.
This manual contains helpful information and instructions for setting up and operating the AirLink
system. The system is comprised of a stationary
transmitter and remote receiver. You simply plug a
line level program signal into the transmitter and it
will transmit the program to the remote receiver.
TeachLogic appreciates your confidence with your
purchase of our AirLink system. Be assured that
TeachLogic products are built to very high quality
standards, incorporate state of the art technology,
and employ the most advanced manufacturing
methodology.
Brian Van Waay
President
contact
Hopefully this manual will
provide all the information needed, however: our
customer service department is readily available for
assistance.
1
•800•588•0018
•760•631•1283
www.teachlogic.com
4
Page 5
safety instructions
Read Instructions
All safety and operation instructions should be
read before operating this TeachLogic product.
Retain Instructions
Safety and operating instructions should be kept
for future reference.
certifications
US CA
Listed
TeachLogic systems are
manufactured using leadfree processes and are free
of materials harmful to the
environment. They conform
to the most stringent new
European guidelines for
consumer products (RoHS).
caution
Recycle—Do not dispose
rechargeable batteries in
trash. Actually it is unlawful
to do so in CA,NY & ME.
Contact: Earth911.com
1-800-CLEANUP
Save our resources and
don’t contaminate.
Go Green
Water & Moisture
This product should not be operated
near water.
Heat Environment
Do not subject this product to excessive heat
conditions.
Power Source
This product must be connected to an AC power
source per the voltage input specified and marked
on the power supply.
Power Cord Caution
Power cable should be routed clear of foot traffic
and supported clear of kinking or abrasion.
Object Protection
Locate the operating unit so it will not be
subjected to falling objects or water entry.
Internal Service
User should not attempt to service this product.
All internal service must be accomplished by a
qualified technician.
Electric Shock
Do not adapt or modify the AC power plug thus
lifting the earth ground connection.
Page 6
AirLink
owner’s manual
transmitter
table of contents
Product Description.....................................................
Transmitter Panel Components...............................
Receiver Panel Components.....................................
Transmitter Setup Instructions.................................
Receiver Setup Instructions......................................
Operating the AirLink Router System....................
Troubleshooting............................................................
Specifications.................................................................
Five Year Limited Warranty........................................
1
2
3
4
5
6
7
8
9
6
Page 7
product description
The AirLink system is a wireless audio router that
transmits audio via an RF signal to a receiver. The
system is comprised of a transmitter base station
that transmits to a diversity receiver. The system
operates in the UHF range (640–664 MHz). The
system has 96 selectable preset channels. Transmitter RF output is 40 mW.
The input to the transmitter is line level audio. Two
line level audio signals can be input and mixed in
the transmitter for a composite signal transmission.
The output level of each input can be adjusted and
turned “on/off”. The output of the unbalanced line
input can be monitored with a headset.
The receiver is a diversity receiver, meaning the
signal will be received by either of two receivers;
whichever has the best reception. Each receiver
has a half-wave antenna for extra sensitive reception. The output of the receiver is either a balanced (XLR) or unbalanced (RCA) and is adjustable
from 0–700 mV.
1
Page 8
AirLink
owner’s manual
1413121110987654321
STATIONARY TRANSMITTER
POWER
LINE
TX.
ON ON
AUX
TX.
VOL.VOL.
TX AF LEVEL
UHF-PLL
OFFM AX
SET

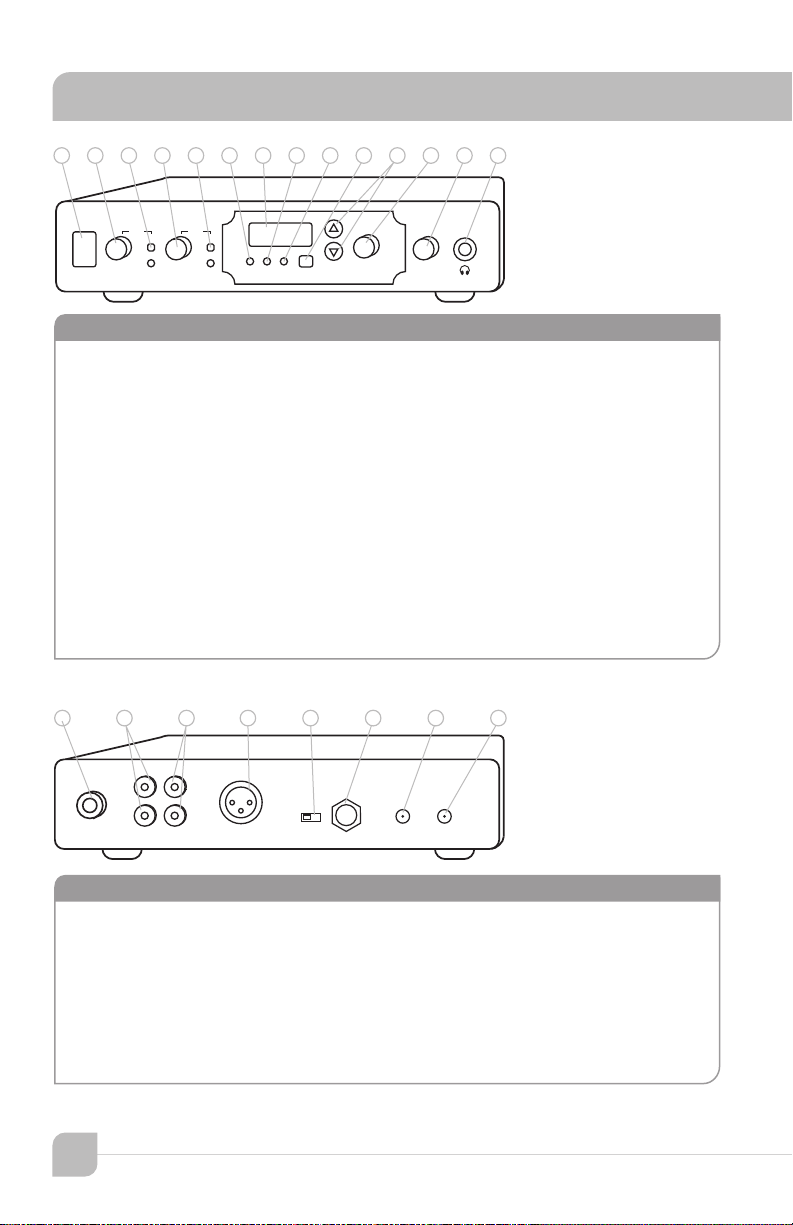

front of ALS-960 transmitter
1
Power Switch and LED
2
Output Gain Control for
Balanced Input
3
Transmit “on/off” for
Balanced Input
4
Output Gain Control for
Unbalanced Input
5
Transmit “on/off” for
Unbalanced Input
6
RF Transmission Indicator
(Yellow LED)
ANTENNA
AUX LINE LEVEL
L
R
OUTI N
L
R
BALANCED
MIC IN
CONDENSER-—UNBAL.D C OUT
5V
OFF
OFF/ON
ALS-960
VOL.
7
LCD Display: Channel # or
Frequency Readout
8
AF Transmission Indicator
(Orange LED)
9
Signal Peak Indicator (Red LED)
10
Channel Set: Lock/Unlock
11
Channel “Up/Down” Selector
12
Transmitter Module: “on/off”
and Master Gain
13
Headphone Volume
14
Headphone Output for
Unbalanced Input
87654321
DC IN
10~15V
10~15V
back of ALS-960 transmitter
1
TNC Antenna Connector
2
Unbalanced Line Output
(Pre Fader)
3
Unbalanced Line Input
(Stereo RCA)
4
Balanced Line Level Input (XLR)
2
5
Phantom Mic Power “on/off”, 5v
6
Microphone Input: Hi-z/
Condenser
7
DC Output: 10–15 volt
8
Power Input: 10–15 volt
2
Page 9
POWER
front of DR-701 receiver
UHF-PLL
PRO. WIRELESS RECEIVER
A/BR XA F
87654321
UHF-PLL
OFFM AX
SET
1
Power Switch and LED
2
RF Reception: Diversity A/B
Antenna (Red/Green LED)
3
LCD Display: Channel # or
Frequency Readout
4
AF Signal Present Indicator
(Green LED)
rear of DR-701 receiver
1
TNC connector for swivel
antenna “A”
2
Balanced Line Level Output:
0-700 mV (XLR)
3
Unbalanced Output: Switchable
mic/line level (1/4” phone)
5
Signal Peak Indicator (Red LED)
6
Channel Set: Lock/Unlock
7
Channel “Up/Down” Selector
8
Receiver Module: “on/off”
and Master Gain
DC OUT
LOW/HI
AF OUT
4
Mic/Line Level switch for
12~15V/1A
unbalanced output
5
DC power input: 12–15 volt, 1A
6
TNC connector for swivel
antenna “B”
654321
ANT. BANT. A
3
Page 10
AirLink
owner’s manual
transmitter

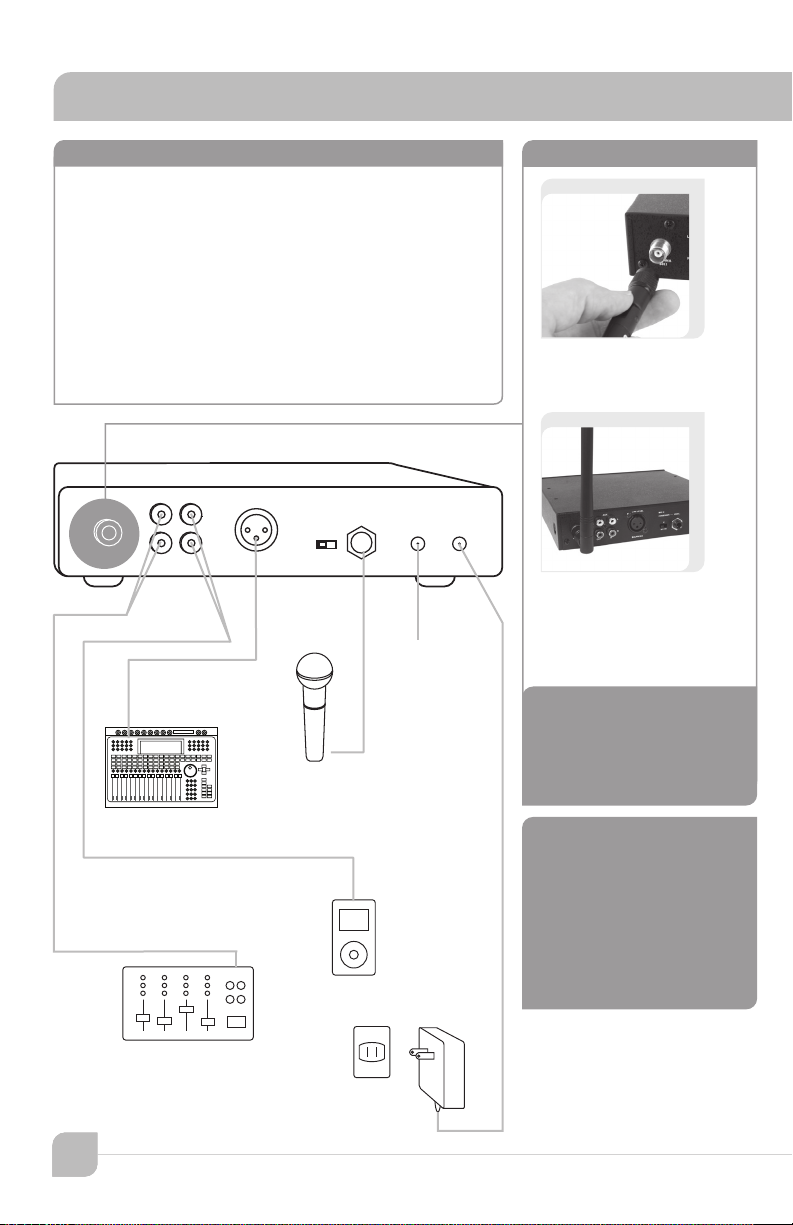

TRANSMITTER setup instructions
•
Locate transmitter (ALS-960) in vicinity of mixer
or other audio source.
•
Plug power supply into AC power outlet
•
Connect output from primary audio source to
transmitter to either:
•
Balanced Input: Shielded cable with XLR
•
Unbalanced Input: Shielded cable with RCA
connector (Mono or Stereo)
•
Connect alternate audio source to other input
Transmitter
ANTENNA
L
R
AUX
OUT IN
L
R
BALANCED
MIC IN
CONDENSER-—UNBAL .DC OUT
5V
OFF/ON
10~15V
OFF
.DC OUT
10~15V
DC IN
10~15V
antenna installation
Screw antenna into TNC
connector loosely.
Adjust antenna to straight
up vertical position.
Tighten connector to
snug fit.
4
MIXER
RECORDER
MICROPHONE
DIGITAL MUSIC PLAYER
POWER SUPPLY
caution
Do not attempt to change
antenna orientation while
in tightened condition.
note
To extend the range of the
AirLink AR-960 system,
replace the antenna of the
transmitter with a periodiclog antenna oriented in the
horizontal position.
104
Page 11
antenna installation
Screw antenna into TNC
connector loosely.
RECEIVER setup instructions
•
Locate receiver at remote location
•
Plug power supply into AC power outlet
•
Connect audio output from receiver to input of
auxiliary sound system
Receiver
DC IN
LOW/HI
ANT. A ANT. B
AF OUT
OR
10~15V
Adjust antennas to 45°
outward position.
Tighten connector to
snug fit.
caution
Do not attempt to change
antenna orientation while
in tightened condition.
note
SPEAKER
AMPLIFIER
POWER SUPPLY
5
Page 12
AirLink
owner’s manual
transmitter
operating the AirLink router system
•
Initially have all controls at minimum level
•
Turn on transmitter and receiver units
•
Turn on transmitter and receiver modules
•
LCD window will light and channel # display
•
Tx LED (Yellow) on transmitter will light
(indicating transmission)
•
Rx LED (Yellow) on receiver will light
(receiving transmission)
•
A/B LED (Red or Green) diversity ant. receiving
•
Select transmission channel
•
Press and hold “SET” button for one second
•
Number in LCD will start flashing
•
Press UP or DOWN arrow to select desired
channel
•
Press “SET” button to lock channel selected
•
Repeat procedure on receiver
•
Transmitter and receiver must be on same channel
•
Insert an audio signal into either input of
transmitter
•
Push in respective mute switch
(Small square red button)
•
Tx (Red LED) indicates audio is being passed
to transmitter
•
Adjust input gain until AF (Green LED)
transmitter module flashes
•
Adjust master volume on transmitter module
until AF (Green LED) on receiver starts flashing
•
Adjust gain control of receiver for desired output
level
•
Headphone Output
•
Monitors the auxiliary input (RCA) only
•
Line out
•
Dual RCA jack: Line level output—Pre-fader
•
Microphone Input (1/4” phone)
•
Low level line or condenser microphone input
(1/4” phone)
6
12
6
Page 13
troubleshooting
Problem Solution
No Power
Failed Receiver Signal
Short Transmission
Range
•
Be sure unit is plugged in
•
Be sure you are using the
correct connector
•
Check if power switch is
turned on
•
Verify proper power
supply
•
Verify AC power
•
Be sure that transmitter
and receiver are tuned
to the same frequency
•
Be sure the receiver is
turned on
•
Be sure the volume is
turned up
•
Be sure the distance
between transmitter and
receiver are within range
•
Check that antennas are
connected firmly
•
Be sure that transmitter
and receiver are tuned to
the same frequency
•
Try another channel to
avoid interference from
other RF products
Verify Antenna Position:
•
Receiver—45°
•
Transmitter—vertical
7
Page 14
AirLink
owner’s manual
transmitter specifications
96 Selec table Channels from
640 –664 MHz
Maximum Deviation
Dynamic Range
THD
Pre/ De- Empha sis
Frequency Re sponse
RF Output
Spurious Emissions
Input s
Headphone Output
AC Power Req uirement
Switchable Supply Output
Dimensions
Weight
receiver specifications
Oscillation Type
Operating Frequency Ban ds
Selec table Channels
Dynamic Range
THD
Sensitivit y
Squelch
Frequency Re sponse
Operating Range
Audio Output Level
Power Req uirements
Dimensions
Weight
80 kHz, with Level Limiting
110 dB
Less Than 0.5%
50 µs
70 Hz–17kHz
30 mW
Less than 250 nW
Balanced Line L evel (Unbalanced Line
Level ( Stereo Phone Jack or Dual RCA)
Input s blen ded to mono output
1/4” Phone Jack
100–240 VAC
12 VDC, 1 A
8” D x 8.5” W x 1.75” H
2.75 lbs
PLL Synth, Control OSC
640 –664 MHz (96 Switchable Channels)
Pre-Progr ammed (96 Switchable
Channels)
110 dB
Less than 0.5%
4µV @ 30 dB SINAD
Tone Key and Noise Lock Dual-Squelch
70 Hz–17kHz
In Exce ss of 50 0ft with Half-Wave
Antenna
XLR Bala nced —700mV @ 10k ohms
100–240 VAC/12VDC 1A Switching
Supply
8” D x 8.5” W x 1.75” H
1.2 lbs
8
8
Page 15
three year limited warranty
TeachLogic RF products are guaranteed to be free
of defects in workmanship or material for a period
of three (3) years from date of original purchase,
subject to the following conditions:
1. Warranty excludes defects caused by normal
use and wear, any abuse, or failure to use the
product in accordance per instructions.
2. Warranty is void if damage occurred because
of misuse, or attempted repair or modification
by unauthorized personnel.
3. Warranty on batteries, cables, and cable
connections are limited to one (1) year.
4. Warranty on microphones and microphone
elements are limited to one (1) year.
5. Warranty does not extend to finish or
appearance past ninety (90) days.
6. All warranty service will be provided by
TeachLogic or authorized service center
7. Warranty is made to the original purchaser and
may not be transferred another user.
8. Warranty service rendered will be on a repair
or replacement basis, whichever TeachLogic
deems to be most prudent for customer
satisfaction and economic feasibility.
contact
TeachLogic, Inc.
Customer Service Dept.
1688 Ord Way
Oceanside, CA 92056
TeachLogic will only accept warranty shipments
accompanied by Return Authorization Number
previously assigned by TeachLogic personnel.
Advance warranty replacements will be made per
the discretion of TeachLogic personnel.
TeachLogic will pay return shipping cost on all
warranty repairs or replacements.
9
Page 16
Loading...
