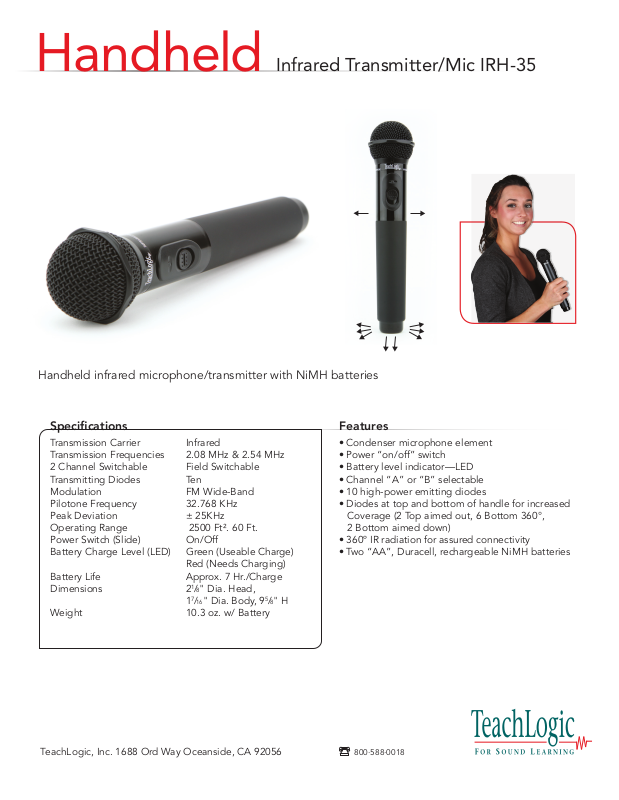

Handheld

Infrared Transmitter/Mic IRH-35

Handheld infrared microphone/transmitter with NiMH batteries

Specifications Features

Transmission Carrier
Transmission Frequencies
2 Channel Switchable
Transmitting Diodes
Modulation
Pilotone Frequency
Peak Deviation
Operating Range
Power Switch (Slide)
Battery Charge Level (LED)

Battery Life
Dimensions

Weight

Infrared

2.08 MHz & 2.54 MHz
Field Switchable
Ten
FM Wide-Band

32.768 KHz
± 25KHz
�2500 Ft². 60 Ft.
On/Off
Green (Useable Charge)
Red (Needs Charging)
Approx. 7 Hr./Charge
21/8" Dia. Head,
17/16" Dia. Body, 95/8" H

10.3 oz. w/ Battery

• Condenser microphone element

• Power “on/off” switch

• Battery level indicator—LED

• Channel “A” or “B” selectable

• 10 high-power emitting diodes

• Diodes at top and bottom of handle for increased
Coverage (2 Top aimed out, 6 Bottom 360°,
2 Bottom aimed down)

• 360º IR radiation for assured connectivity

• Two “AA”, Duracell, rechargeable NiMH batteries

TeachLogic, Inc. 1688 Ord Way Oceanside, CA 92056

800.588.0018
