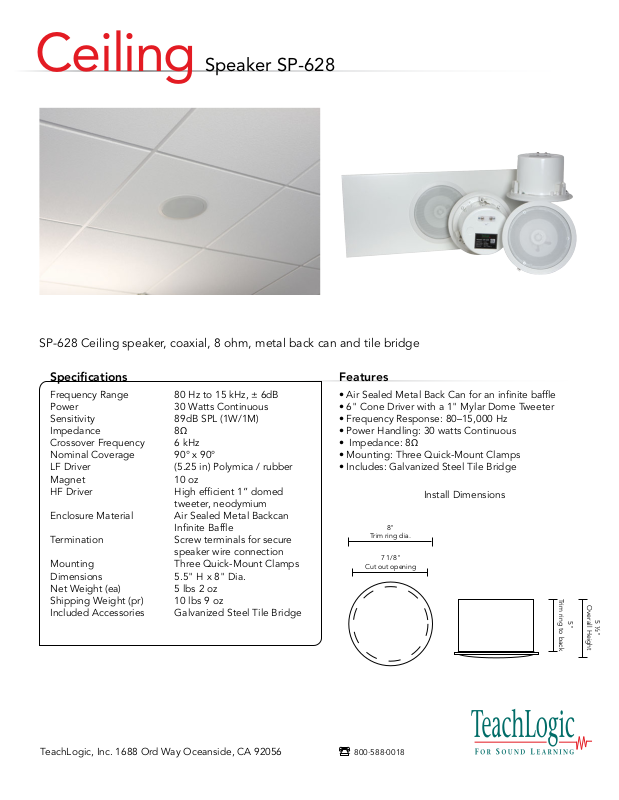

Ceiling

Speaker SP-628

SP-628 Ceiling speaker, coaxial, 8 ohm, metal back can and tile bridge

Specifications Features

Frequency Range
Power
Sensitivity
Impedance
Crossover Frequency
Nominal Coverage
LF Driver
Magnet
HF Driver

Enclosure Material

Termination

Mounting
Dimensions

Net Weight (ea)
Shipping Weight (pr)

Included Accessories

80 Hz to 15 kHz, ± 6dB
30 Watts Continuous
89dB SPL (1W/1M)

8Ω

6 kHz
90° x 90°
(5.25 in) Polymica / rubber
10 oz
High efficient 1” domed
tweeter, neodymium
Air Sealed Metal Backcan
Infinite Baffle
Screw terminals for secure
speaker wire connection
Three Quick-Mount Clamps

5.5" H x 8" Dia.
5 lbs 2 oz
10 lbs 9 oz
Galvanized Steel Tile Bridge

• Air Sealed Metal Back Can for an infinite baffle

• 6" Cone Driver with a 1" Mylar Dome Tweeter

• Frequency Response: 80–15,000 Hz

• Power Handling: 30 watts Continuous

• Impedance: 8Ω

• Mounting: Three Quick-Mount Clamps

• Includes: Galvanized Steel Tile Bridge

Trim ring dia.

Cut out opening

8"

7 1/8"

Install Dimensions

Trim ring to back

Overall Height

5 ½"

5"

TeachLogic, Inc. 1688 Ord Way Oceanside, CA 92056

800.588.0018
