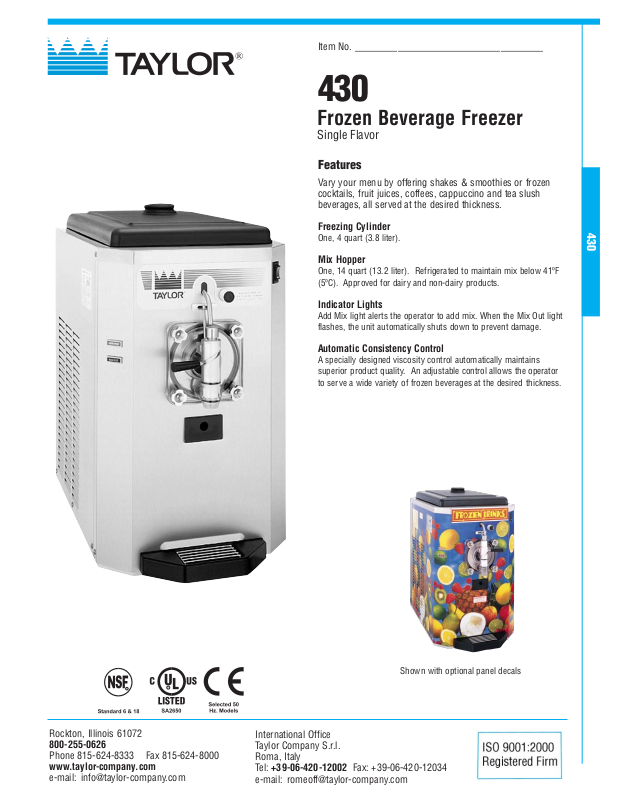

430

Item No.

_______________________________

430

Vary your menu by offering shakes & smoothies or frozen
cocktails, fruit juices, coffees, cappuccino and tea slush
beverages, all served at the desired thickness.

Freezing Cylinder

One, 4 quart (3.8 liter).

Mix Hopper

One, 14 quart (13.2 liter). Refrigerated to maintain mix below 41ºF
(5ºC). Approved for dairy and non-dairy products.

Indicator Lights

Add Mix light alerts the operator to add mix. When the Mix Out light
flashes, the unit automatically shuts down to prevent damage.

Automatic Consistency Control

A specially designed viscosity control automatically maintains
superior product quality. An adjustable control allows the operator
to serve a wide variety of frozen beverages at the desired thickness.

Features

Frozen Beverage Freezer

Single Flavor

Shown with optional panel decals

430

430Frozen Beverage Freezer

16-7/16

(418)

OVERALL WIDTH

13-7/8

(352)

11-1/2

(292)

11-1/16

(281)

C.L. OF

DRIP PAN

16-1/8

(410)

C.L. OF

BARREL

27-1/2

(699)

OVERALL

HEIGHT

24-15/16

(633)

13

(330)

1-3/4

(44)

2-5/16

(59)

21-15/16

(557)

AIR IN

(AIR OUT OPPOSITE SIDE)

3/8

(95)

1-1/8

(29)

1-5/16

(33)

24-3/8

(619)

29-5/8

(752)

27-11/16

(703)

OVERALL LENGTH

POWER CORD

NOTE: FIGURES IN PARENTHESES

INDICATE MILLIMETERS.

WATER IN
(3/8” NPT)

WATER

OUT

(3/8” NPT)

Electrical

One dedicated electrical connection is required. See the Electrical chart for
the proper electrical requirements. Manufactured to be cord connected.
Consult the international Taylor distributor for cord & receptacle specifications
for 50 Hz. equipment.

Refrigeration System

One, approximately 4,000 BTU/hr compressor. R404A.
(BTUs may vary depending on compressor used.)

Beater Motor

One, 1/4 HP.

Air Cooled

Minimum Clearance: 3” (76 mm) on both sides. It is recommended to place
the rear of the unit against the wall. Minimum air clearances must be met to
assure adequate air flow for optimum performance.

Water Cooled

Water inlet and drain connections out of rear 3/8” FPT.

Printed in U.S.A.

Weights lbs. kgs.

Net 176 79.8
Crated 212 96.2

cu. ft. cu. m.

Volume 17.3 0.49

Dimensions in. mm.

Width 16-7/16 418
Depth 27-11/16 703
Height 27-1/2 699
Counter Clearance -- --

Designed to rest on a plastic pad directly on counter top.

Bidding Specs

Electrical: Volt ___________________ Hz__________ ph_________

Neutral:  Yes No Cooling:  Air  Water  NA

Options:_________________________________________________
_________________________________________________________

 Flavor Burst Connection
 Graphic Panel Decals
 Panel Spinner
 Set of Four Flavor Cards; Frozen Drinks, Frozen Fruit Drinks,

Frozen Cocktails, Smoothies

Options

Specifications

049652-ADV

8/07

Continuing research results in steady improvements; therefore, these

specifications are subject to change without notice.

Taylor Company,

A Division of Carrier Commercial Refrigeration, Inc.
Rockton, Illinois 61072
815-624-8333 800-255-0626 Fax [phone]

www.taylor-company.com

Electrical Total Supplied
Amps with NEMA Cord

115/60/1 Air 16.0 5-20P
208-230/60/1 Air 9.5 6-15P
220-240/50/1 Air 7.6 ---­220-240/50/1 Water 7.6 ----

This unit may be manufactured in other electrical characteristics. Refer to the
local Taylor Distributor for availability.
(For exact electrical information, always refer to the data label of the unit.)
