TaoTronics TT-SH016 Online Manual

TaoTronics Magnetic Air Vent Phone Holder

ONLINE GUIDE

Model NO.: TT-SH016

1

Thank you for choosing the

TaoTronics TT-SH016 Magnetic Air Vent

Phone Holder. Please read this manual carefully and if you have any

issues or questions about this product, contact our support team by
email at [e-mail].

2

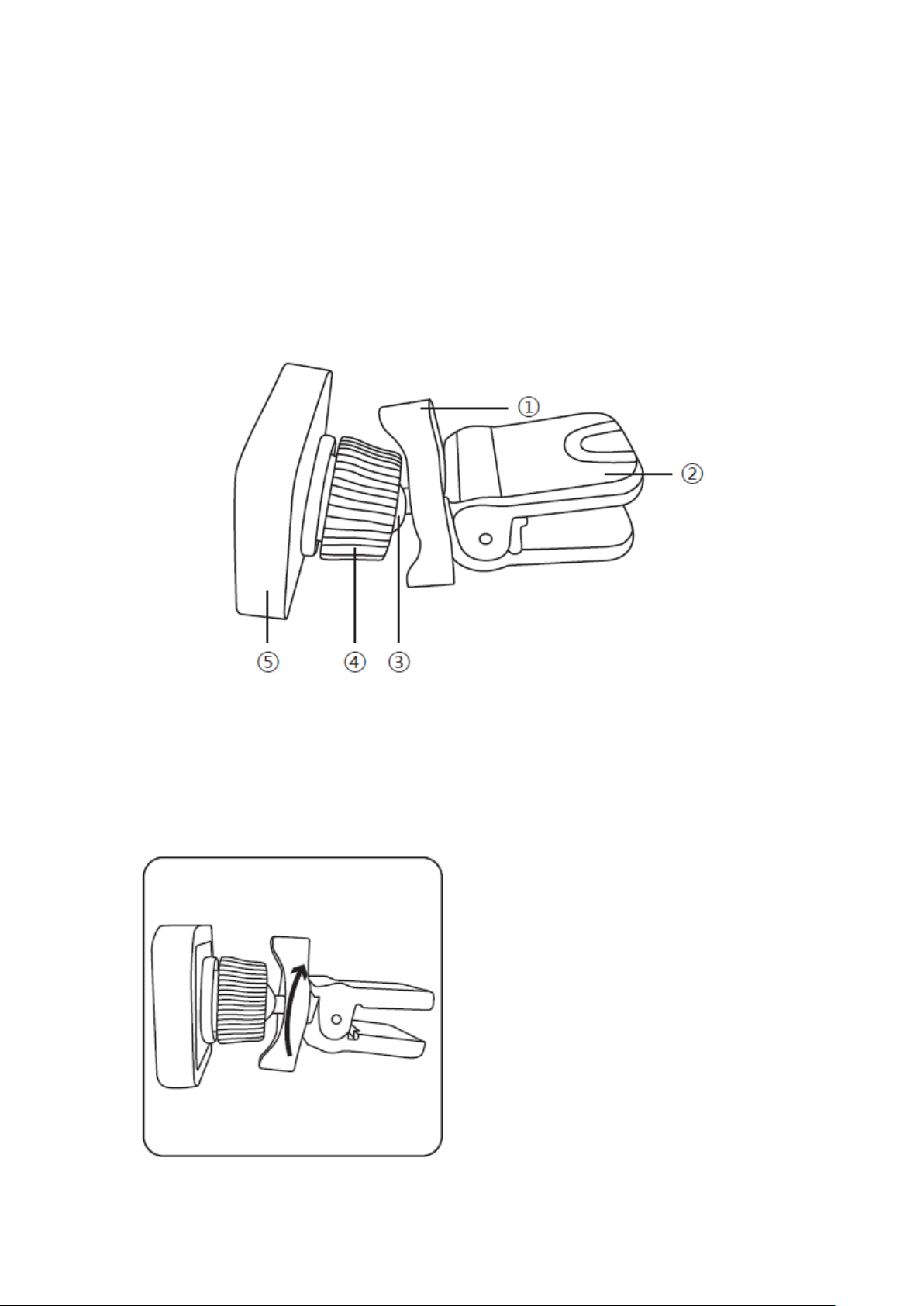

Product Diagram

① Clip Adjusting Knob
② Air Vent Clip
③ Swivel Joint
④ Viewing Angle Adjusting Knob
⑤ Magnet

Adjusting the Air Vent Clip

Rotate the clip adjusting knob counter-clockwise, then fully insert the
clip into your car’s air vent.

3

Rotate the clip turning knob clockwise until the clip tightly holds the air
vent blade in place. The best mounting position is to set the knob

perpendicular to the blade.

Mounting the Metal Sheet

Use the 3M tape to stick the metal sheet to the back of your phone case.
You can also choose to put the metal sheet between your phone and
the case. Please make sure the metal side is always facing the magnet
as this will maximize the attraction.

4

If the magnetic attraction is not strong enough when the metal sheet is
between the phone and the case, we suggest using a thinner phone
case or put it outside for direct contact with the magnet.

Adjusting the Viewing Angle

We suggest adjusting the holder to an appropriate viewing angle
before mounting it on your car’s air vent blade. To adjust the viewing
angle while mounted on the blade, hold the panel with one hand and
adjust the angle with the other.

5

Caution

 For your safety, do not install or adjust the holder while driving.
 The phone holder may not work on some special shaped

air vent blades.

 To firmly hold the device, make sure the vent clip is fully inserted and

the clip adjusting knob is perpendicular to your vent blade.

 Use the sticker on the metal sheet to protect your phone or phone

case from scratching.

 When using the holder, make sure the metal sheet is in full contact

with the magnet to prevent the phone from falling off.

Warranty

TaoTronics products are covered by a 12 month limited warranty from
the date of its original purchase. If any problems occur, please contact
our support team.

We can only provide after sales service for products that are sold by
TaoTronics or TaoTronics authorized retailers and distributors. If you have
purchased your unit from a different place, please contact your seller for
return and warranty issues.
