TANDBERG 5000 User Manual

Download
User Manual
Software version C4
D11273-4.0
This document is not to be reproduced in whole or in part
without the permission in writing from:
TANDBERG
1
2
Trademarks and copyright
COPYRIGHT © 1998, Tandberg Philip Pedersensvei 22 1324 Lysaker, Norway, Tel: +47 67 125 125, Fax: +47 67 125 234 All rights reserved. This document contains information that is proprietary to Tandberg. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form, or by any means, electronic, mechanical, photocopying, or otherwise, without the prior written permission of Tandberg.
Nationally and internationally recognized trademarks and tradenames are property of their respective holders and are hereby ack nowledged.
Disclaimer
The information in this document is furnished for informational purposes only, is subject to change without prior notice, and should not be construed as a commitment by Tandberg.
The information in this document is believed to be accurate and reliable, however Tandberg assumes no responsibility or liability for any errors or inaccuracies that may appear in this document, nor for any infringements of patents or other rights of third parties resulting from its use. No license is granted under any patents or patent rights of Tandberg.
This document was written by the Technical Support Department of Tandberg, Norway. We are committed to maintaining a high level of quality in all our documentation. Towards this effort, we welcome your comments and suggestions regarding the content and structure of this document. Please fax or mail your comments and suggestions to the attention of:
Technical Support Department Tandberg, Philip Pedersensvei 22 1324 Lysaker, Norway Tel: +47 67 125 125 Fax: +47 67 125 234
Environmental Issues
Thank you for buying a product which contributes to a reduction in pollution and thereby helps save the environment.
Our products reduce the need for travel and transport and thereby reduce pollution. Our products have either none or few consumable parts (Chemicals, toner, gas, paper). Our products are low energy consuming products.
Battery handling:
Batteries for the Remote Control are Long Life and Alcaline batteries saving the environment, please follow guidelines on the packing material for handling and disposal of the batteries.
Waste handling:
No need to send material back to Tandberg as there are no consumables to take care of. Please contact your local dealer for information on recycling the product by sending the main parts of the products for disassembly at local electronic waste stations, recycable parts are marked so the waste station can disassemble and re-use recycable parts.
Production of products:
Our factories employ the most efficient environmental methods for reducing waste and pollution and ensure the products are recyclable.
3
Operator Safety Summary
For your protection, please read these safety instructions completely before operating the equipment and keep this manual for future reference. The information in this summary is intended for operators. Carefully observe all warnings, precautions and instructions both on the apparatus and in
the operating instructions.
Equipment Markings
The lightning flash symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltages within the products enclosure that may be of sufficient magnitude to constitue a risk of electrical shock.
The exclamation mark within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions within literature accompanying the equipment.
Warnings
Water and moisture - Do not operate the equipment under or near water - for example near a bathtub, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool or in area with high humidity.
Cleaning - Unplug the apparatus from the wall outlet before cleaning or polishing. Do not use liquid cleaners or aerosol cleaners. Use a lint-free cloth lightly moistened with water for cleaning the exterior of the apparatus.
Ventilation - Do not block any of the ventilation openings of the apparatus. Install in accordance with the installation instructions. Never cover the slots and openings with a cloth or other material. Never install the apparatus near heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
Grounding or Polarization - Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or third prong is provided for your safety. If the provided
plug does not fit into your outlet, consult an electrician.
Power-Cord Protection - Route the power cord so as to avoid its being walked on or pinched by items placed upon or against it, paying particular attention to the plugs, receptacles, and the point where the cord exits from the apparatus.
Attachments - Only use attachments as recommended by the manufacturer.
Accessories - Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
Lightning - Unplug this apparatus during lightning storms or when unused for long periods of time.
Servicing - Do not attempt to service the apparatus yourself as opening or removing covers may expose you to dangerous
voltages or other hazards, and will void the warranty. Refer all servicing to qualified service personnel.
Damaged Equipment - Unplug the apparatus from the outlet and refer servicing to qualified personnel under the following conditions:
When the power cord or plug is damaged or frayed. If liquid has been spilled or objects have fallen into the apparatus. If the apparatus has been exposed to rain or moisture If the apparatus has been subjected to excessive shock by being dropped, or the cabinet has been damaged If the apparatus fails to operate in accordance with the operating instructions
4
Contents
Introduction ...................................................................................7
How to use this guide ................................................................................................... 7
Menu structure..............................................................................8
Vision 5000 videoconferencing system .......................................9
At a glance  the Vision 5000 system ........................................................................9
Installation .................................................................................. 13
Precautions .................................................................................................................13
Unpacking................................................................................................................... 14
Connecting cables....................................................................................................... 15
Power on monitor ....................................................................................................... 16
Power on codec.......................................................................................................... 17
Configuration .............................................................................................................. 18
Environmental considerations ..................................................................................... 19
Getting started ........................................................................... 23
System start-up ........................................................................................................... 23
On-screen help ........................................................................................................... 23
Basics ......................................................................................................................... 24
Making and ending calls ............................................................................................. 25
General use................................................................................. 28
Adjusting volume ........................................................................................................ 28
View outgoing video ................................................................................................... 28
Microphone on/off ...................................................................................................... 29
Moving the picture-in-picture (PIP) ...........................................................................29
Controlling the Main Camera ..................................................................................... 29
Camera Tracking ........................................................................................................ 30
Selecting video sources .............................................................................................. 31
Selecting audio sources .............................................................................................. 31
Presets ........................................................................................................................ 32
Sending/receiving graphics ......................................................................................... 33
Far end camera control (FECC)................................................................................. 35
5
Advanced use.............................................................................. 36
General .......................................................................................................................36
Main menu .................................................................................................................. 37
Call quality .................................................................................................................. 38
Edit directory .............................................................................................................. 41
Utilities ........................................................................................................................ 44
MCU services ............................................................................................................50
Audio setup .................................................................................................................53
Video input ..................................................................................................................59
Camera adjustments ...................................................................................................60
Video output ................................................................................................................62
Terminal settings ......................................................................................................... 63
Network configuration ................................................................................................ 63
Dataport configuration ................................................................................................ 72
Restore defaults.......................................................................................................... 74
TCP/IP Settings.......................................................................................................... 75
Ethernet Functionality .............................................................. 76

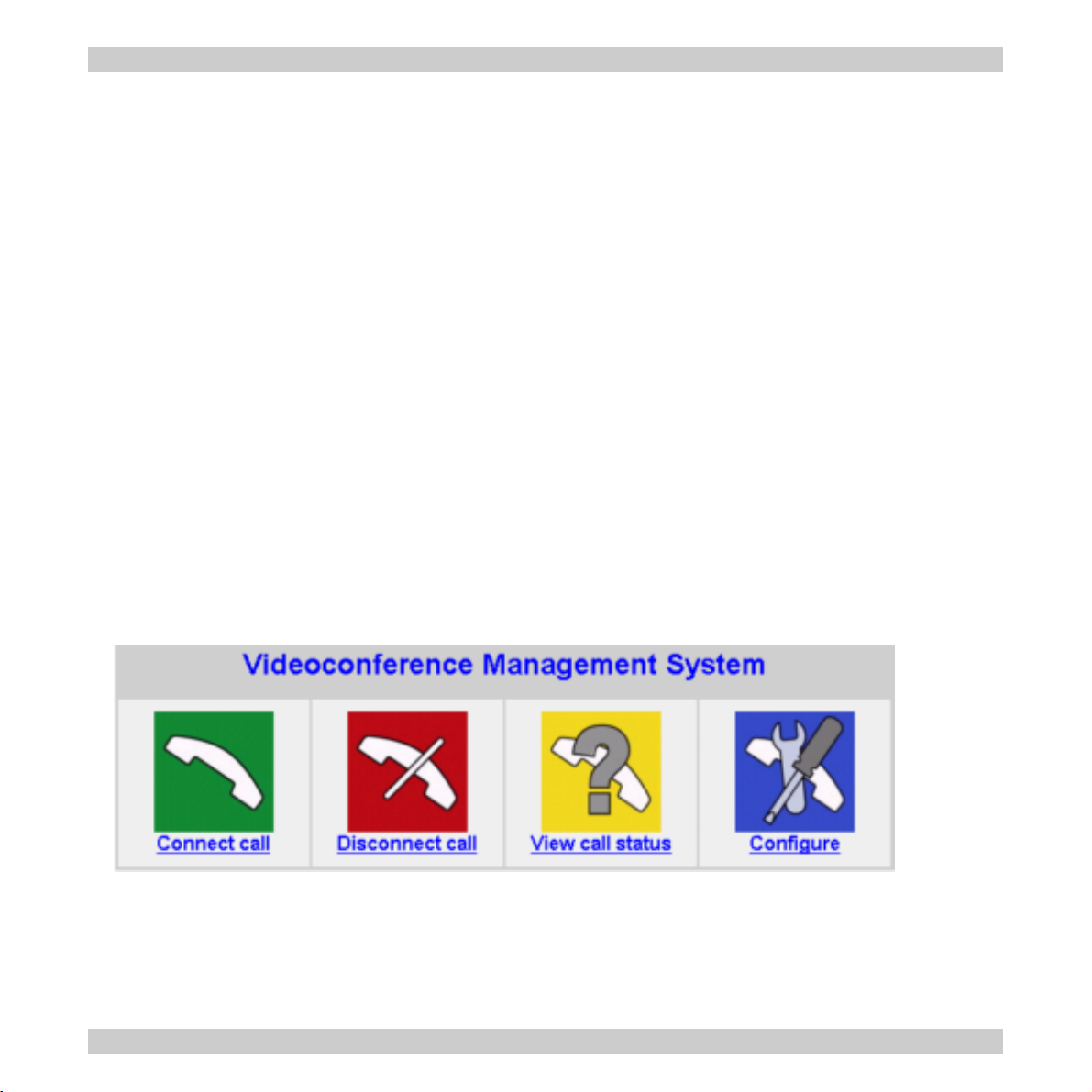

WWW-interface ......................................................................................................... 76
Peripheral Equipment ............................................................... 78
Interfaces ................................................................................................................... 79
Dual Monitor (optional) .............................................................................................. 80
Natural Audio module (optional)................................................................................. 81
AudioScience module (optional) ................................................................................. 81
Multiple controllable cameras (optional) ..................................................................... 82
Tracker (optional) ....................................................................................................... 82
Document camera ...................................................................................................... 83
Video Cassette Recorder (VCR) ............................................................................... 84
Telephone Add-On ..................................................................................................... 85
Extra cameras ............................................................................................................85
PC applications ........................................................................................................... 86
Additional microphones .............................................................................................. 87
Appendices .................................................................................. 88
Index ............................................................................................ 94
6
Introduction
This User Manual is provided to help you make the best use of your Vision 5000 system. The Vision 5000 offers superior quality audio and video in a fully-featured rollabout unit. Incorporating plug and play technology, the system can be effortlessly moved within the office environment. The Vision 5000 is an ideal choice for mid to large group applications and is available with single or dual monitors.
Features:  Compatibility with other videoconferencing systems conforming to the H.320 and T.120 standards.
 Selection of up to 12B channel (768 kbps) call quality.  SoftMux - innovative internal software IMUX which increases reliability and eliminates the need for an
additional external multiplexer.
 Downspeed - if channels are dropped during a videoconferencing session, Downspeeding automatically
maintains the connection without interrupting the call in progress.  W.A.V.E (Wide Angle View) Camera - delivers the widest angle of view in the industry.  Support for multiple W.A.V.E. Cameras.  Web-interface for management and diagnostics.  Software upgrades via LAN.  Natural Audio module - Frequency-compensated loudspeaker system optimised for voice response.  Provision for connecting auxiliary cameras, additional microphones, document camera, telephone add-on,
Personal Computer (PC), and Video Cassette Recorder (VCR).  On-screen real-time user feedback and help.
The Vision 5000 is available with different network configurations. To find your configuration, see Power Up and System Info or boot-up text.
How to use this guide
 to gain a basic understanding of how to control your system - see Getting startedand General use.  when you need to use basic features - see General use.  as a reference when you need more details about the system features - see Advanced use.
Hints and tips boxes
In this guide, weve included helpful tips and notes. They appear in grey boxes like this one.
7
Menu structure
The Vision 5000 on-screen menu structure is shown below.
Main menu
Call quality Audio setup
Advanced
settings
Presentation
settings
Diagnostics
Press the
Press the
Edit directory
Add new entry
Edit/delete
entry
Store last
number
Power up & system info
Call status
Test
subsystem
View current
settings
MENU
key on the remote control to enter/leave the Main Menu.
DOWN
UP
LEFT
,
,
Test all
Test network
Test video
system
Test audio
system
RIGHT
and
Utilities
Inputs
Outputs
Echo control
AGC settings
Tones&volume
Restore audio
defaults
Request floor
Release floor
Chair control
Terminal ID
Level settings
Level settings
Floor to
site #
View site #
Disconnect
site #
Terminate
meeting
Short menu
keys to move through the menu structure.
Video input
Camera
adjustment
Network Restore
defaults
TCP/IP
Settings
Data port 1
Data port 2
Language
Floor to
site #
View site #
Release
Video outputMCU services
Focus
Backlight
Brightness
Whitebalance
ISDN-BRI
settings
Ext. network
settings
Advanced
settings
ISDN-PRI/
T1 settings
Terminal
settings
ISDN switch
type
Line 1 setup
Line 2 setup
Line 3 setup
Line 4 setup
Adv. ISDN
settings
PRI switch
type
Channel
hunting
Press the OK key to confirm your selection and display the selected menu item options.
8
Vision 5000 videoconferencing system
At a glance  the Vision 5000 system
9
Camera
The Main Camera is mounted on top of the monitor. The Main Camera includes a high quality colour camera with a fast pan/tilt/zoom action. The Main Camera is controlled by the systems infra-red remote control and operates pan/tilt, focus and zoom.
You can pre-store up to ten camera positions using the remote control.
Monitor(s)
The monitor displays the far-end and near-end videoconferencing sites. The standard system also utilizes the built-in speaker of the monitor. If the Natural Audio module is installed (optional), the monitor speaker is not used. The monitor is also used for displaying the Vision 5000 menus, on-screen help, video from connected video sources and high-resolution still images.
You can also connect a second monitor for displaying self-view and still images.
Codec
The Codec is the heart of the system. The main task for the Codec is the compression of outgoing video, audio and data, the transmission of this information to a remote site and the information. Hence the name Codec. Intelligent Call Management (ICM) and the SoftMux are features built into the Codec.
decompression of the incoming
10
Cart
The cart is easily movable with large wheels and handles.
The Codec is located inside the cart.
Below the Codec is an accessories drawer for storing the remote control, your user manual and other accessories. Push gently in on the drawer and it will pop out.
The Natural Audio module (optional) is mounted above the Codec.
Below the Codec there is room for additional equipment, e.g. a VCR, or a PC.
Remote control
The remote control is used to control all functions of the Vision 5000.
Note:
There is a separate remote control for operating the monitor
11
Table microphone
The high quality table microphone is specially designed to be used on a table during a video conference.
The ideal location for the microphone is on a flat surface at least 2m (6.5 ft) from the front of the Vision
5000. The microphone cable should always point towards the Vision 5000.
You can connect up to three microphones without the need for an external audio mixer.
The Vision 5000 will automatically equalize sound levels. Loud and soft voices are picked up and transmitted to the far end at approximately the same level.

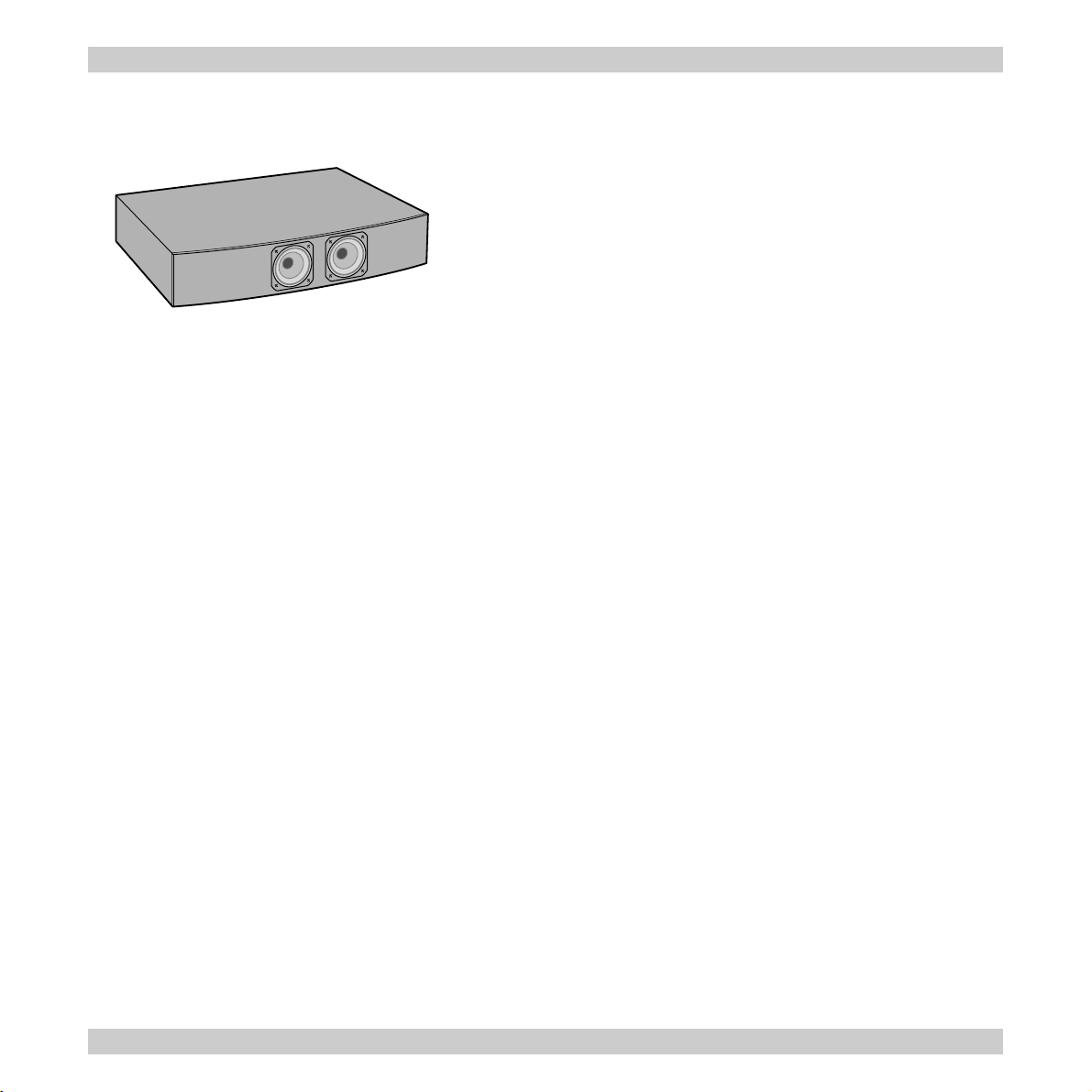

TANDBERG Natural Audio module (optional on some systems)
The Natural Audio module is designed to improve audio quality during a videoconference. It is mounted in the cart above the Codec and consists of a audio system optimized for speech. The monitor speaker is not used when using the Natural Audio module. See Peripheral Equipment for further information.
TANDBERG AudioScience module (optional)
The AudioScience module is a prize winning ceiling-mount microphone system. It is designed to improve audio quality during a videoconference and is an alternative to tabletop microphones.
12
Installation
Installation
Precautions
 Never install telephone wiring during a lightning storm.  Never install telephone jacks in wet locations unless the jack is specifically designed for wet locations.  Never touch uninstalled telephone wires or terminals unless the telephone line has been disconnected at
the network interface.  Use caution when installing or modifying telephone lines.  Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk
of electrical shock from lightning.  Do not use the telephone to report a gas leak in the vicinity of the leak.  The socket outlet shall be installed near to the equipment and shall be easily accessible.  Never do any installation of cables without first switching the power OFF.  1TR6 network type is not approved for connection directly to the telecommunications network. This
network type is only to be used behind a PABX.  X.21 network type is not approved for connection directly to the telecommunications network. This
network type is only to be used together with already approved equipment, and is not meant for direct
connections to the telecommunication networks.  V.35/RS-449/RS-366 network type is not approved for connection directly to the telecommunications
network. This network type is only to be used together with already approved equipment, and is not
intended for direct connection to the telecommunication networks.  This product complies with directives:
89/366/EEC
93/261/EEC
13
VISION 5000 Videoconferencing SystemInstallation
Unpacking
To avoid damage to the unit during transportation the Vision 5000 is delivered as separate components. We recommended that you store all packaging material in case the need should arise to transport the system to another location.
Note
Please follow the instructions carefully.
The Vision 5000 consists of the following items:
 Cart  High quality monitor  Option: Dual Monitor. Consists of an extra cart and an additional high quality monitor Inside the cart you should find the accessories box which will contain the following:
 Camera  Table Microphone  Remote Control  Batteries
Important
The camera should be aligned with the front edge of the monitor to ensure the IR-sensor in the camera can pick up signals from the remote control.
 User Manuals  Monitor securing kit and other documentation Please retain the accessories box in case of future
transportation requirements.
Place the monitor on top of the cart and ensure it is stable. You may fasten the monitor to the cart using the securing kit. Take the camera and remove the plastic backing from the double sided tape-pads on the base of the unit. Place the camera centrally, on top of the monitor close to the front (see picture on left).
14
Installation

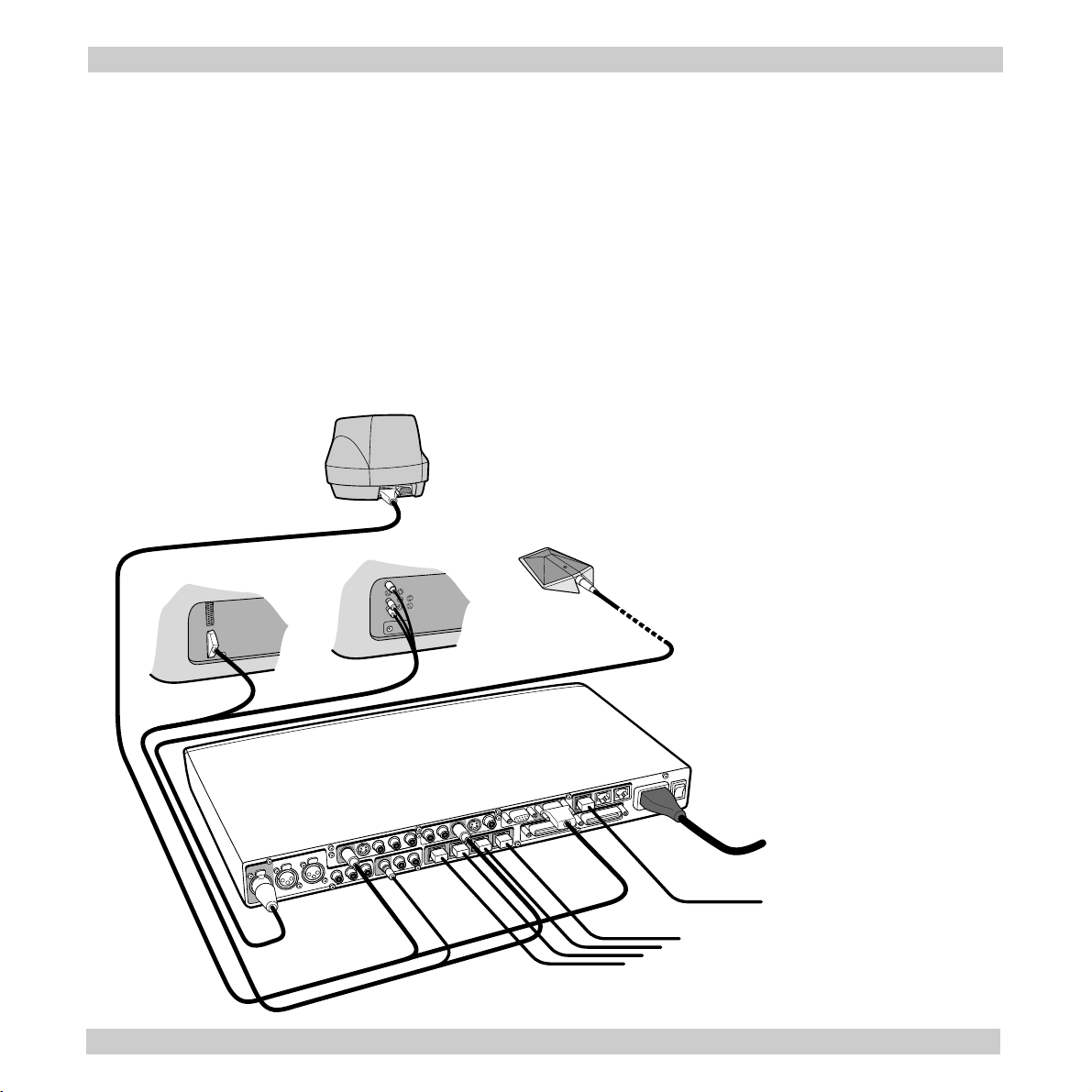

Connecting cables
All cables needed in standard configuration are connected to the Codec. These Codec inputs are marked green. Connect:
 Vision 5000 power cable and monitor power cable to an electrical distribution socket.  Europe: Scart connector to one of the Scart connectors on the monitor, (for a 29 monitor, use Ext-1).  USA: Connect the cable terminating in two RCA connectors and one S-video connector to the monitor. The
two RCA connectors are for the left and right audio channels (not if Natural Audio module is mounted). The S-video connector is for video. The audio signal from the Vision 5000 is a monaural signal and therefore is
fed into both audio-in sockets on the monitor.  Microphone to the microphone cable.  Connect the camera and the camera cable. The camera cable terminates in a 15 pin D-SUB connector.
ISDN cables - using BRI interface
Take the four ends of the ISDN cables and verify that they are labelled ISDN 1, 2, 3 and 4.
Note
Some software versions of Vision 5000 do not support 4 ISDN lines.
Connect ISDN cable No. 1 to the first ISDN socket (S/T-interface) provided by the service provider. This will be your main number. Connect ISDN cable No. 2 to the second ISDN socket, ISDN cable No. 3 to the third ISDN socket and ISDN cable No. 4 to the fourth socket (if used).
USA: The Vision 5000 does not have a built in network terminator. If your wall socket provides you with an ISDN U-interface, you will need an NT1 between your Vision 5000 and your ISDN line, see Appendix 1.
Note
Write down the numbers associated with each of the ISDN lines. You will need them later to configure the system.
Connecting to the Switched 56 network
When connecting to the Switched 56 network you may use one of the BRI interfaces or the V.35 interface on the Vision 5000. Please refer to Appendix 2 for further information.
ISDN cable - using the PRI/T1 interface
If you are using the PRI/T1 interface, the PRI/T1 cable should be connected to a CSU (Channel Service Unit). You will need a CSU between your Vision 5000 and the line from your network provider, see Appendix 3.
15
VISION 5000 Videoconferencing SystemInstallation
Power on monitor
Power on the monitor and use the monitor remote control to select the Audio/Video input used (refer to your monitor manual). Remember to select S-video (S-VHS) input to avoid a black and white picture.
Example 29 monitor (not USA)
For the JVC av-29TS2/ BD3 29 monitor select the External input for Scart 1 and then select an S-VHS (S­Video) signal. Do this by pushing the 0/AV button on the monitor remote control until the E1 message is displayed. To select S-VIDEO input please do the following (using the monitor remote control):  Press OK. The MENU appears.  Press  Press  Press  Press yellow button. The S-VIDEO input indication appears.
Toggle between Composite Video and S-VIDEO with the yellow button.
 Press OK to exit menu.
Example 33 monitor (not USA)
For the Grundig M84 33 monitor you have to select the External input for Scart 1 and then select S-VHS(S­Video) signal. Do this by pushing the 0/AV button on the remote control until the AV 1 message is displayed on the monitor. To select S-VIDEO input please do the following:
s/t to select EXT SOURCE, then press OK. The EXT SOURCE menu appears. s/t to select EXT SETTING, then press OK. The EXT SETTING menu appears.
s/t to select an EXT input terminal.
 Press i and OK. The DIALOG CENTER appears.
p+
 Press
s/tp- to select AUDIO/VIDEO INPUTS, then press OK.
The AUDIO/VIDEO INPUTS menu appears.
p+
 Select Video recorder using the  Press the
- +
buttons until the SVHS input indication appears.
s/tp- keys.
 Press the TXT button to exit from the menu. You only need to set this once as the monitor will remember its setting even if powered off.
16
Installation
To let the monitor automatically start up in the last AV position you had when you turned it off, follow this example:
 Press i and OK. The DIALOG CENTER appears.
p+
 Press
s/tp- to select SPECIAL FUNCTIONS, then press OK.
The SPECIAL FUNCTIONS menu appears.
p+
 Press  Press
s/tp- to highlight Switch on with, select AV with the - + keys.
p+
s/tp- to highlight Mains economy sw., select Off with the - + keys.
Press the TXT button to exit from the menu.
Example monitor (USA)
 When you start up the monitor for the first time you will get up an auto setup screen. Quit this screen by
pressing the setup button on the monitor.  Press the TV/VIDEO button either on the remote control or on the monitor. The monitor is now set.  The monitor will automatically remember its last setting. This means that if the monitor is set to VIDEO
mode and you turn it off, next time you turn it on again it will start up in VIDEO mode.
Power on codec
 Check that the power switch on the Vision 5000 (located on the right hand side at the rear of the unit) is
set to on and that a green light is showing (located in the centre at the front of the codec).  After the Vision 5000 has performed a self-test routine, power up information and product status will be
displayed on the monitor for a short while (white text on blue background). Check that selftest is OK and
that the ISDN lines are reported as active.
ACCEPT
END CALL
 Press the  Using the monitor remote control, adjust the volume on the monitor to a level of your choice. This volume
will be the default volume for all calls.
Tip
Once the Vision 5000 has been switched on it can be left on at all times.
key on the Vision 5000 remote control. A dial tone should be heard.
17
VISION 5000 Videoconferencing SystemInstallation
Configuration
For each installation of the Vision 5000 it is necessary to configure the unit. All configuration parameters are available via the Terminal Settings menu through the on-screen menu system. If you are using an external IMUX or special networks, the external equipment may also need to be configured.
MENU
 Press
ISDN-BRI configuration
When using the internal SoftMux on ISDN-BRI, select Current Network: ISDN-BRI, enter ISDN-BRI Settings, select Switch Type and Line1-4 Setup. For details, follow the instructions in chapter Terminal
Settings, ISDN-BRI Settings in this guide.
For further information refer to the examples in:
ISDN-PRI/T1 configuration
When using the internal SoftMux on ISDN-PRI/T1, select Current Network: ISDN-PRI/T1, enter ISDN- PRI/T1 Settings and specify needed parameters. For details, follow the instructions in chapter Terminal
Settings,ISDN-PRI/T1 Settings in this guide.
on the remote control. Select the menu Terminal Settings, then Network.
Appendix 1: Connecting Vision 5000 to ISDN using NT1 network adapters Appendix 2: Connecting Vision 5000 to the Switched 56 network
External Network configuration
When using external network equipment such as an external IMUX or terminal adapters for special networks, select Current Network: External and set your network specific parameters via the External Network Settings option. For details, follow the instructions in chapter Terminal Settings,External Network Settings in this guide.
Language and Dual Monitor configuration
 To select a different language, select Terminal Settings, Language.
 If you are using two monitors, Dual monitor should be selected On in the Video Output menu.
 The Vision 5000 is now configured and ready to make a call.
18
Installation
Environmental considerations
This section explains how to carry out basic adjustments and simple tests to ensure that you send and receive the best possible image and audio quality when using your Vision 5000.
Iris control and lighting
By default the Vision 5000 camera will use an automatic iris to compensate for changes in lighting. In addition to this feature you may further assist the Vision 5000 to maintain the best possible image quality by paying special attention to environmental lighting and background colours as described below. Remember the Vision 5000 will send live images of yourself and your immediate surroundings.
 Avoid direct sunlight on the subject matter i.e. yourself, the background or onto the camera lens as this
will create harsh contrasts.  If light levels are too low you may need to consider using artificial lighting. As above avoid direct
illumination of the subject matter and camera lens.  When using artificial lighting, daylight type lamps will produce the most effective results. Avoid
coloured lighting.  Indirect light from shaded sources or reflected light from pale walls, often produces excellent results.  Avoid harsh side lighting or strong light from above, for example: strong sunlight from a window or
skylight, as this may put part or all of the subject matter in shadow or cause silhouetting.  If you still have problems with the iris and lighting, manual adjustment of the camera parameters might
help - see Camera adjustments in Video Input menu.  Dim scenes can also be improved by manually adjusting the camera brightness setting.
Background
The appearance of the picture background is very important but easily overlooked. It is important to remember that the camera also shows whats behind you when in a videoconference. To ensure a suitable background we recommend you consider the following:
 Use a neutrally coloured background with a medium contrast and a soft texture, e.g. a plain curtain with
no heavy patterns or strong colours that may adversely tint the whole scene.
19
VISION 5000 Videoconferencing SystemInstallation
 Avoid moving backgrounds, for example: curtains in a draught, moving objects, or people walking behind
you, as this may both reduce image quality and distract the attention of the calling party.  Do not place the camera facing a doorway.
Brightness control
For adjusting brightness, colours or other settings of the TV monitor, you must use the TV monitors own remote control. Adjust the TV monitor to suit the conditions of the conference room.
The TV monitor has an on-screen menu and is very easy to use. For more information on configuring the TV monitor refer to the user manual for that unit.
Loudspeaker volume
The audio system will use the loudspeakers built into the TV monitor or the Natural Audio module (if installed). The volume of the audio system is controlled by the Volume Control keys on the Vision 5000 hand­held remote control.
The default volume level can be set by adjusting the volume on the TV monitor using the TV monitors own remote control.
20
Installation
Guidelines for setting up videoconferencing rooms
The following are a set of guidelines to consider when either building a video conferencing room, or using an existing room for videoconferencing.
Lighting:
- Low Contrast desired for light intensity. No dark spots.
- Intensity @ table 800 - 1400 Lux as measured with an Incident light meter.
- Intensity @ back wall: minimum ½ of that measured at table, Max ¾ of
that measured at table.
- Colour temperature: Depends upon wall color and camera. Typically 3200 -
3600 degrees Kelvin
- Block sunlight from entering room.
Seating Area (Table):
- Should allow all participants to see Monitors.
- Should allow camera to see all participants.
- Should allow participants to see each other.
- Should allow 3 linear feet for each participant.
- Non-shiny non-patterned preferably light grey surface (if table used).
Walls:
- Colour: Depends on participants skin tones, cameras, and lighting.
Generally high contrast colour desired . Light blue is commonly used.
- Acoustically reflective surfaces (such as glass or concrete) should be
covered with curtains or sound treatment.
Audio:
- Noise Floor Maximum 50dBC.
- Noise Floor preferred less than 44dBC.
- Reverb Time .3 to .5 sec.
- Absorption Coefficient .25 to .45.
- No flutter echoes.
Ventilation:
- Keep in mind Noise Floor.
- 300W (1024 BTU/HR) per person.
- 400W (1365 BTU/HR) for equipment.
- 40 W (137 BTU/HR) for each Fluorescent tube (maybe).
- Intake and exhaust should be located near equipment.
- Velocity = Noise. Therefore keep velocity of air low.
Monitor Size:
- Optimal distance from monitor for viewing people is about 7.5 x monitor
size.
- Optimal distance from monitor for viewing documents is about 3.25 x
monitor size.
- Viewing Angle: 45 degrees off axis maximum.
Room:
- Should be located away from Noise
- Should not have windows
- Doors should be located off camera - A diamond shape gives best viewing angles, camera angles, and can seat the most people.
Lighting: Type Temp
Bright Daylight near equator 10 000K to 30 000K Metal Halide Lamp 10 000K Verilux Reptile Daylight 6 500K Daylight White Fluorescent 6 300K Verilux Full spectrum Fluor 6 280K Verilux Reptile D-light 5 600K Average Daylight 5 500K Cool white 4 200K Lite White 4 150K 3500K Fluorescent 3 500K Warm White 3000-3200K 100W Light bulb 2 850K Candlelight 1 900K
Source Intensity
Sunlight 30 000 to 100 000Lux TV Studio 2000Lux Average office 400Lux By my Computer 600Lux Moonlight 1Lux
Note: As measured with an incident light meter.
21
VISION 5000 Videoconferencing SystemInstallation
How to prepare a typical room for videoconferencing
The diagram below shows a typical room designed to obtain the best results when using the Vision 5000.
The microphone should be placed at the front of the table to ensure that all speech will be detected. The best position for the microphone is at least 2 meters (6.5 feet) in front of the Vision 5000 on a plain, flat table with at least 0.3 meters (12 inches) of table in front of the microphone.
The document camera should be close to the leader or a designated controller of the document camera for ease of use. (Remember to arrange all the peripherals so that one participant can reach each of them to point, change the display, tape, and so forth).
The camera supports up to 15 pre-stored camera positions. The illustration shows three possible camera positions. One of all the participants, one of the whiteboard and one of the main speaker. The remaining presets are then available for other peripheral equipment, for example: a VCR.
Vision 5000
Grand Vison
Document camera
Leader
Board
1–3:
Prestored camera views
Microphone
3
1
2
Table
22
Position the Vision 5000 in such a way as to avoid the possibility of somebody inadvertently walking into the cameras field of view when entering the room. Other than the conference participants there should be no moving items in the sent image.
Getting started
Getting started
System start-up
Your Vision 5000 should be in standby mode, if so pressing any key will wake up the system.
If the Vision 5000 does not respond: turn on the system by using the On/Off switch located at the rear of the Codec, see figure below. After a few seconds you should see a start-up message on the monitor.
If this does not help, check if your monitor is switched on. To switch your monitor on you normally push the power button in front of the monitor (depending on monitor type).
On/Off
On-screen help
Press the
The help system has two formats:
1. A separate Help Menu.
2. Context sensitive help, i.e. HELP relative to wherever you are in the menu system.
HELP
key to get help.
23
VISION 5000 Videoconferencing SystemGetting started
Basics
The Vision 5000s most commonly used functions are accessible directly from the remote control by single key presses. In addition, the user interface is represented by on-screen boxes which take the form of menus and lists. Individual items within the menus and lists can be selected by moving a white highlighter bar to the desired option. Use the cursor keys (shown below) to move the highlighter bar to the desired option and use the
OK
key to select.
0
*
HELP
VOLUME
MENU UP
654
#
DIRECTORY
SEND321
ACCEPT
END CALL
DELETE987
SELFVIEW
P4P3P2P1
UP
RIGHTOKLEFT
DOWN
To confirm the selection press OK.
All functions are accessible using the keys on the remote control, these keys can be divided into three functional groups (see figure).
To make a call you only need to use the Dialling keys. The twelve number keys, (0-9), #, * operate in the same way as on a modern push-button telephone.
The Control keys are probably the most frequently used keys during a call, allowing you to switch between pre-stored camera positions, control the volume, select self-view and obtain help.
STORE
MIC OFF
VIDEO
SOURCE
FOCUS ZOOM
FAR END
AUTO
CAMERA
FOCUS
DOWN
PIP
MOVE
RIGHTOKLEFT
GRAPHICS
FREEZE
The Hidden Control keys are protected by a sliding panel and facilitate a more advanced use of your Vision 5000. With these keys you may enter the menu system to change parameters, control the camera, set new pre-stored positions and so forth.
24
Getting started
Making and ending calls
Making a call
The Vision 5000 has its own internal software controlled inverse multiplexer, SoftMux and uses Intelligent Call Management (ICM). This enables you to dial to other videoconferencing equipment, phones and
mobile phones without needing to use a prefix. ICM provides you with on-screen, real-time feedback on the progress of a call. You will, when calling to videoconferencing equipment, obtain a connection on as many channels as possible.
External Networks
ICM is not available when using an external IMUX or when connecting via special networks.
Ending a call
Switching off the monitor(s) will not disconnect a call. To disconnect a call you should press the
Video call
To make a video call, enter the number of the unit you wish to call using the Dialling keys and press
Example: 12345678 +
SEND
, 12345678 = Number
ACCEPT
END CALL
key.
SEND
.
The system will, by default, try to connect using 6 channels and BONDING. If the requested number of channels cannot be established, the system will establish a connection on as many channels as possible (some limitations depending on remote system).
The SoftMux supports high reliability and includes the unique Downspeed feature. If channels are dropped during a meeting, Downspeeding automatically maintains the connection without interrupting the call in progress.
If you are calling to a unit that does not support more than 2 channels, the Vision 5000 will connect on 2 channels. When dialling to an analogue telephone, you will also connect without using a prefix. Due to ICM you should never need to use any special prefix.
To force a special number of channels, see Special Call Prefixes.
The default number of channels may be changed , see Advanced ISDN settings in Advanced use.
25
VISION 5000 Videoconferencing SystemGetting started
Dialling two numbers
Sometimes (especially calling to and within the USA) it is necessary to dial both ISDN numbers when making a video call using 2x64 kbps or 2x56 kbps. Type in the first number followed by ** and edit the
DELETE
automatically inserted second number by using the
Example: 12345678 ** 12345679 +
SEND
key and the number keys.
Restricted call
A restricted call is a call to a 56 kbit network. By default the system will dial an unrestricted call (a call to a 64 kbit network). To force a restricted call, add a # at the end of the number being dialled.
Example: 12345678# +
SEND
Telephone call (SoftMux only)
To force a telephone call, press ** and then enter the number.
Example: **12345678 +
SEND
Special call prefixes
Default call type is #6* which means 6B BONDING. If you want to force another call type, you can use one of the prefixes below. If you want your system to always dial another call type, see Default Call Type in Advanced ISDN Settings.
Prefix Call Type
#12* 12B call (BONDING), 768 kbps (PRI and Ext.network only) #8* 8B call (BONDING), 512 kbps #6* 6B call (BONDING), 384 kbps #5* 5B call (BONDING) #4* 4B call (BONDING), 256 kbps #3* 3B call (BONDING) #2* 2B call (H.221), 128 kbps #1* 1B call (H.221) #92* 2B call (BONDING) #91* 1B call (BONDING) #81* 1xH0 channel call (PRI only)
** Telephone Call
Example: If you want to dial a 4-channel call, you can dial #4* 12345678 +
26
SEND
Getting started
Accept/end call
To answer a call, press the
SEND
or the
ACCEPT
END CALL
key. Manual answer of a call is needed if the autoanswer facility
is switched off. See Utilities in Advanced use.
ACCEPT
END CALL
To end a call, press the
key.
Correcting keying mistakes
To delete the last digit (or character) entered, press the
DELETE
key.
Last number redial/using the call directory
To get access to your list of pre-stored numbers (up to 99 entries) and the last number dialled, press the
DIRECTORY
key.
To select a number from the list, type the two-digit entry number or use UP and
LEFT
press
To dial the selected number press
and
RIGHT
to move one page up/down.
SEND
.
Example: You wish to dial the number stored at entry number 03.
DIRECTORY
Press
+ 03 and
If you want to make changes to the number before dialling, press
SEND
.
OK
instead of
DOWN
to move up/down, or
SEND
.
To program numbers and edit your directory list, see Edit Directory in Advanced use.
27
VISION 5000 Videoconferencing SystemGeneral use
General use
Adjusting volume
Press the
Tip
It is important that you use the Volume control keys and not the monitor remote control. For best performance set the volume level on the monitor initially using the dial-tone as a reference level and from then on use only these volume keys. Too high a volume setting may result in echo being experienced by the remote side of a video conference.
View outgoing video
Press the
VOLUME
keys to adjust the volume level. An on-screen indicator will show the current level.
SELFVIEW
key to see your own picture (the outgoing video during a call).
If you have a single monitor system, the first button press provides you with your own picture (selfview) in Picture-In-Picture. One more key press will provide you with your selfview in full screen size. The next press will remove your selfview from the monitor.
PIP
Press the
If you have a dual monitor system, pressing the
MOVE
key to move the Picture-in-Picture to different corners of the screen.
Automatic selfview
To help you see your selfview when adjusting camera positions, your selfview will always appear in PIP when you move your camera (if Auto-PIP is off, see Video Output in Advanced use)
SELFVIEW
key will toggle between your selfview and the last sent or
received still image on the dual monitor.
28
General use
Microphone on/off
To switch your microphone on/off during a call, press the the microphone is off.
MIC OFF
Pressing
will mute audio inputs Mic1-3 and Audio4. It will not mute audio input from AUX and VCR
(Audio input 5&6).
MIC OFF
key. An on screen indicator will appear when
Moving the picture-in-picture (PIP)
PIP
Press the
MOVE
key to move the Picture-in-Picture to different corners of the screen.
Controlling the Main Camera
Moving camera
To move the Main Camera, use the Camera Position keys,  you must be outside the menu system to do this.
UP
RIGHTOKLEFT
DOWN
Whenever you use the Camera Position, Focus or Zoom keys to control the Main Camera, a Picture-In­Picture (PIP) will appear on the screen to show your image (provided the Auto-PIP feature is enabled and you are not using a dual monitor system).
Zooming camera
To zoom in/out with the Main Camera, use the Zoom keys:
ZOOM
29
VISION 5000 Videoconferencing SystemGeneral use
Focusing camera
To manually focus the Main Camera, use the Focus keys:
FOCUS
The Main Camera is set for autofocus by default. An on screen indicator will appear whenever autofocus is On.
If the Main Camera is moved (pan/tilt/zoom), autofocus will be switched On automatically for 5 seconds.
Camera Tracking
Before using camera tracking, presets P7 (Mic1), P8 (Mic2) and/or P9 (Mic3) must be stored using Video Input #1 as the video source.
Example:
The camera position stored at P7 must be related to Mic1, therefore all participants which are located closest to Mic1 should be included in the P7 camera position etc.
When camera tracking is activated and a person close to Mic1 speaks, P7 will be automatically selected.
If a person close to Mic1 has a conversation with a person close to Mic2, the camera will adjust to a camera position which includes both persons.
Start camera tracking by selecting # in the Video Source menu (see the Selecting video sources section for starting/stopping camera tracking).
When activating another video source (e.g. document camera), camera tracking will temporarily be disabled until you select MainCam or a MainCam preset.
MIC OFF
Pressing
will temporarily disable camera tracking.
A Voice Detector makes the system more tolerent against noise and the camera will normally not be moved by noise like paper shuffling etc.
The camera tracking speeds may be altered in the Video Input menu. See Advanced use for further details.
30
VIDEO
SOURCE
Selecting video sources
General use
======== Local Video Source ======= 1 - MainCam 2 - Video2 3 - Video3 4 - Video4 5 - Video5 0 - View still image # - Start Camera Tracking
To switch between the 5 possible video inputs, press the highlighter bar to a source and press
OK
.
Send still images by moving the highlighter bar to a source and press
Note
The Start Camera Tracking entry will be greyed out if not using the standard Main Camera.
key and a number between 1-5, or move the
GRAPHICS
FREEZE
.
To view the last sent or received still image, select 0.
To name a video source and to adjust the camera settings, see Video Input in Advanced use.
Enable/Disable Camera Tracking
Enable Camera Tracking by pressing/selecting #. An on-screen indicator CamTrackOn will appear.
Disable Camera Tracking by:  moving the camera manually  activating a MainCam preset when MainCam is already activated.  disconnecting the call. An on-screen indicator CamTrackOff will appear.
Selecting audio sources
All audio sources are by default active. Connect an audio source and it is ready to use. For level adjustments refer to Audio set-up in Advanced use.
31
VISION 5000 Videoconferencing SystemGeneral use
D
Presets
The preset buttons enable you to pre-store up to ten different settings. Each preset is able to store:
 Video source  Camera position, pan/tilt/zoom/focus (if Main Camera)  Brightness (if Main Camera)  Audio source selection (see Audio set-up in Advanced use)
Selecting presets
To select a pre-stored camera position, audio and video source, use the keys until LocalCamera appears as an on screen indicator and use 0-9 to activate P0-P9 presets.
P1-P4 are the same presets as when pressing
OK
and 1- 4.
Storing presets
To store the current camera position, audio and video source:
 Press  Then press one of the keys
STORE
once.
P4P3P2P1
or a key 0-9.
0
*
P4P3P2P1
or press
321
654
987
#
OK
32
VIDEO
SOURCE
General use
Sending/receiving graphics
When a still image is sent, received or requested, it will be stored in the graphics memory.
One high-quality image (4xCIF) can be stored in memory. When a new image is sent or received, the old image will be overwritten.
Sending a still image
GRAPHICS
 Press
FREEZE
. The outgoing video is frozen when Freeze is displayed on the screen. The video remains
frozen until the key
Note
GRAPHICS
FREEZE
is pressed again (not if calling to a dual monitor system).
If a still image from another video source is sent, please check your Presentation Settings. See below.
Dual Monitor
Using a dual monitor system and with Dual Monitor: On selected in the Video Output menu, the still image is automatically shown on the dual monitor until on
the dual
monitor.
SELFVIEW
is pressed. Use
 To send a still image from another video source (e.g. the document camera), press
GRAPHICS
to highlight the video source and press
FREEZE
. See Presentation Settings below for automatic setup of
SELFVIEW
to toggle between selfview and still image
VIDEO
SOURCE
, use UP and
this operation.
Requesting a still image
FAR END CAMERA
Press
 Press
monitor).
Dual Monitor
Use
until the FarEndCamera on screen indicator is displayed.
GRAPHICS
FREEZE
. The still image is automatically displayed, press any key to return to normal view (single
SELFVIEW
to toggle between selfview and still image on
the dual
monitor.
DOWN
 To request a still image from another video source, press
GRAPHICS
source and press
FREEZE
.
33
, use UP and
DOWN
to highlight the video
VISION 5000 Videoconferencing SystemGeneral use
Viewing a still image
VIDEO
 Press
SOURCE
and 0 to view the last sent or received still image.
 Press any key to return to normal view.
Dual Monitor
SELFVIEW
Use
to toggle between selfview and still image on
the dual
monitor.
Receiving a still image
A received still image will automatically be shown on your screen (if Auto-Display Still Image is On, see section Video Output) and will be removed by pressing any key. If Auto-Display Still Image is Off, press
VIDEO
SOURCE
and 0 to view the still image.
Dual Monitor
The received still image is automatically shown on the dual monitor. Press
To customize your still image transfer options refer to the Presentation Settings section in Advanced use.
SELFVIEW
to return to selfview.
34
General use
Far end camera control (FECC)
FAR END
Press the
For this feature to operate the remote side must support Far end camera control (H.281).
Whilst activated you will be able to control the remote sides camera (pan/tilt/zoom/focus) and presets.
To control the remote camera use the keys below:
CAMERA
key until the FarEndCamera on-screen indicator is displayed.
UP
RIGHTOKLEFT
for pan/tilt, and
DOWN
Remote presets can be activated by pressing the keys
ZOOM
for zooming,
FOCUS
for focusing.
P4P3P2P1
or the keys 0-9 to activate presets P0-
P9.
VIDEO
SOURCE
Selection of remote videosources is achieved by pressing
when in FarEndCamera mode and selecting
the desired video source from the menu.
Note
You cannot store presets on the remote side and some units do not support ten presets.
To prevent others from controlling your camera, select Far End Camera Control:Off in Utilities Advanced use.
35
VISION 5000 Videoconferencing SystemAdvanced use
Advanced use
General
Overview
The Vision 5000 menu system can be used to:
 Set default settings for your system.  Select available functions and utilities.  Obtain information and help. Help is available for every topic in the menu system. Just press
context specific help will be provided.
Tip
In the following menu diagrams the default settings are shown in bold.
HELP
and
To enter/leave the menu system
Press the
You may leave the menu system at any time by pressing the
MENU
key to enter the menu system.
36
MENU
key.
Advanced use
Navigation
To navigate through the menu system, use the cursor keys to move the highlighted bar to the desired sub­menu or choice.
UP
RIGHTOKLEFT
DOWN
To confirm a highlighted selection, press OK.
To see the previous page, press the
*
key or select Previous Menu.
Menu structure
The following sections detail the menu structure. Refer to Menu structure at the front of this manual.
Main menu
To enter the menu system and the main menu, press the
============ Main Menu ============= Call Quality Audio Setup Edit Directory Video Input Utilities Video Output MCU Services Terminal Settings Exit Menu
All submenus are explained below.
37
MENU
key.
VISION 5000 Videoconferencing SystemAdvanced use
Call quality
The Call Quality menu enables you to control the preferred quality of your call.
========== Call Quality ========== Audio: Off Normal High Video: Off On Advanced Settings Previous Menu
Note
Due to actions or limitations at the remote side you may not always be able to set the selections you want.
Audio
Audio Off Switches the audio OFF at both sites. Audio Normal This will provide you with the best audio/video combination for different
bandwidths. For 1-2 channels, G.728 will be selected, else G.722.
Audio High High audio quality (G.722) regardless of bandwidth.
Video
Video Off Switches the video off at both sites. Video On Switches the video on at both sites.
If Video: Off is selected when receiving an incoming call, no video will be transmitted during the call.
38
Advanced call quality
====== Advanced Call Quality ======= Audio: G711 G722 G728 Auto Video Mode: H261 H263 Auto Quality: Motion Auto
Sharpness
Resolution: QCIF CIF Channels: 1 2 Status Format: Basic Advanced Previous Menu
Audio
G711 Normal quality audio (telephone quality, 3.1 kHz). G722 High quality audio (7 kHz). G728 Compressed normal quality audio leaving more bandwidth for video. Auto Optimized audio/video quality depending on bandwidth available.
Video Mode
H261 Normal video compression and decompression. H263 Bandwidth efficient video compression and decompression. Auto Optimized video quality depending on bandwidth available.
Advanced use
Quality
Motion Smooth motion video is prioritized for sent picture (increased framerate). Auto Optimized video quality depending on motion and sharpness. Sharpness Sharp video is prioritized for sent picture (decreased framerate).
39
VISION 5000 Videoconferencing SystemAdvanced use
Resolution
QCIF Low resolution video (176 x 144 pixels) CIF High resolution video (352 x 288 pixels). The recommended choice.
Channels
Enables you to choose whether to use 1 or 2 channels at any time during an H.221 call. We recommend that you use 2 channels for best performance.
Status Format
Provides call quality feedback on the status line during call setup.
Basic Video off/on, Audio off/normal/high Advanced Video H261/H263 & CIF/QCIF, Audio G728/G722/G711,
LEDs in front of codec will be active.
Tip
You may change these settings during a call (dependent on capabilities of remote system).
40
Advanced use
Edit directory
========= Edit Directory ========= Alphabetic Sort: Off On Add New Entry Edit/Delete Entry Store Last Number Previous Menu
The directory is a local phone book that stores up to 99 directory entries (number and name). A number may consist of the digits 0 through 9 and the symbols * and #.
When the system is receiving an incoming call, the incoming number is compared to the numbers in the directory list. If the number (with its corresponding name) is found in the directory, the name will be displayed instead of the number.
In addition, alphabetic sorting of the directory is also available.
Alphabetic Sort
When Alphabetic Sort is On, the directory will be sorted alphabetically. The index numbers will remain unchanged. Shown below is an example with Alphabetic Sort:Off:
=========== Directory =========== 00 Last Number Dialled 01 John 02 Mary 03 Peter 04 Annie 05 555 1212 06 07
41
VISION 5000 Videoconferencing SystemAdvanced use
Shown below is the same directory with Alphabetic Sort:On. Last Number Dialled will always be displayed first.
=========== Directory =========== 00 Last Number Dialled 05 555 1212 04 Annie 01 John 02 Mary 03 Peter 06 07
Add New Entry
When selecting Add New Entry, the first empty directory entry is selected and the edit menu is shown.
===== Edit Directory Entry 04 ===== Name: ________________ Number: ________________________ 2nd: ________________________ Previous Menu Clear Entry
1 Select Name and press
OK
. To finish editing and save the name move the cursor to Store and press OK. You may use the
OK
to edit. To enter a character move the cursor to the desired character and press
key to delete the last character.
2 Select Number, key in the number and press
both numbers should be specified (2x64 or 2x56 calls).
To make a call using your directory number, press
OK
. Specify only one number. If two numbers are required,
DIRECTORY
to access the directory list.
42
DELETE
Advanced use
Edit/Delete Entry
When selecting Edit/Delete Entry the Edit Directory menu is shown.
========= Edit Directory ========= 01 John 02 Mary 03 Peter 04 Annie 05 555 1212 06 07 08 Number:
Press OK to edit, DELETE to delete
When pressing OK, the Edit Directory Entry menu is shown. See chapter Add New Entry.
When pressing
DELETE
, the selected entry is deleted.
Store Last Number
Use this to store the last number dialled into your directory.
When selecting Store Last Number, the first empty directory entry is selected and the Edit Directory Entry menu is shown with the number dialled already added.
43
VISION 5000 Videoconferencing SystemAdvanced use
ACCEPT
END CALL
Utilities
============ Utilities ============ Autoanswer: Off On Do Not Disturb: Off On Far End Camera Control: Off On Hotline: Off On Automatic Call-up: Off On MCU Status Line: Off On Systemname: _____________ Presentation Settings Diagnostics Previous Menu
Autoanswer
If autoanswer is set to Off, you must manually answer all incoming calls by pressing the
SEND
or the
ACCEPT
END CALL
key.
When Autoanswer is set to On, the system will automatically answer all incoming calls after the first ring.
Do not disturb
Do Not Disturb On will remove all audible and visible indications of incoming calls. The caller will hear a busy ringing tone when calling this unit. The function can be activated while the system is not in a call. Pressing any key will turn off Do Not Disturb.
Far end camera control
When Far End Camera Control is On, the other side will be able to:  Control your camera (if controllable)
 Select your video sources  Activate your presets  Request still images
When set to Off none of the four features above can be accessed by the other side, however you will still be able to control the remote side.
Hotline
When the hotline function is On, pressing the index 01 in the Directory. When Hotline is active you cannot use the number keys for dialling. You may still use the Directory to dial any of the other pre-stored numbers.
SEND
or the
key will automatically dial the number stored in
44
Advanced use
Automatic call-up
When the automatic call-up function is On, the connection of the RTS line to the CTS line on Data Port 2 will initiate an out-going call to the number stored in entry 01 in the Directory (reserved for special applications).
MCU status line
During an MCU conference, a status line is displayed by default which provides user information about the conference. To remove this status line, select MCU Status Line: Off.
System Name
Identifies the system during an MCU conference call, when using the Web-interface and when the codec is acting as an SNMP Agent.
Presentation Settings
This menu allows setup of still-image/graphics transfer.
====== Presentation Settings ====== Presentation Mode: Normal Preview Still image source: Current Video1 Video2 Video3 Video4 Video5 Previous Menu
Presentation Mode: Normal
GRAPHICS
To send a still-image immediately after pressing
FREEZE
, select Presentation Mode: Normal.
Presentation Mode: Preview
To preview your image before it is transferred as a still-image, select Presentation Mode: Preview. When pressing still-image by pressing
GRAPHICS
FREEZE
you will be allowed to view your image, e.g. from the document camera, before sending it as a
GRAPHICS
FREEZE
again.
Still image source
To select a default still image source, e.g. the document camera connected at video input 3, select Still image source: Video3. When pressing
GRAPHICS
FREEZE
the system will switch to the chosen video input and send a still
image from this video input. After the image is sent the system will switch back to the original video input.
To send a still image from your current video source, select Still image source: Current.
45
VISION 5000 Videoconferencing SystemAdvanced use
Diagnostics
Allows testing of individual system components and displays the current system settings.
=========== Diagnostics =========== Local Testpicture: Off On Power Up and System Info Call Status Test Subsystem View Current Settings Previous Menu
If Local Test Picture is set to On, a test pattern is shown on the monitor. This test picture remains on the monitor until Local Test Picture is set to Off or the unit is switched off and then on again.
Power up and system info
The Power Up and System Info provides the information displayed on the monitor when the unit is first turned on. In addition the Hardware Serial Number of your unit (used for software upgrade) and the model numbers of the hardware modules used are also displayed (use
UP
and
DOWN
keys to scroll through the list).
Test subsystem
You can test the different subsystems of the Vision 5000.
=========== Test Subsystem =========== Test All Test Video System Test Network Test Audio System Previous Menu
The system performs a check on its hardware to determine internal hardware integrity. Test Network is useful when you want to check if your network connection is active.
View current settings
This window will display all the system settings. Use UPand
DOWN
keys to scroll through the list.
46
Call status - BRI
Advanced use
Comprehensive information about the call progress is available through the Call Status window. This window indicates the various states each B-channel transitions through whilst establishing a connection. Each channel will transition through the following states:
Status - BRI Status - PRI Comments
Idle the channel is idle Calling Call when calling  the network has acknowledged the call Connected Conn when connection is established Sync Sync when the channels are synchronised Active Act when all available channels are connected Releasing Rlng waiting for the network to confirm a release of the call Released Rel when disconnected - the network has acknowledged the disconnection
=========== Call Status =========== Outgoing BONDING call 1-B1 Active 12345800 B2 Active 12345800 2-B1 Active 12345802 B2 Active 12345802 3-B1 Active 12345804 B2 Released 12345804 17 4-B1 Idle B2 Idle
MENU
Press
+1 to bring this menu up when not in the menu system.
The numbers used to call out to the remote site are shown in the window. If an error occurs a cause code will be displayed on the right hand side of the window.
A list of the most common ISDN cause codes is provided at the end of this chapter.
47
VISION 5000 Videoconferencing SystemAdvanced use
Call status - PRI
The PRI interface has 23 data channels and 1 signalling channel. The Vision 5000 uses up to 12 of these channels. To make room for the necessary information, the screen is divided into 2 pages. The first page will show channel status and cause codes.
======== Call Status-PRI ======== BONDING call to 004717117790 01 09 17 Rel 18 02 10 18 Act 03 11 19 Act 04 12 20 Act 05 13 21 Act 06 14 22 Act 07 15 23 Act 08 16 Rel 18
The channel status information will be shown as abbreviated text. For a description, see Call Status BRI.
The second page is accessed using the UPand numbers dialled for each channel.
======== Call Status-PRI ======== BONDING call to 004717117790 01 09 17 7117804 02 10 18 7117798 03 11 19 7117798 04 12 20 7117796 05 13 21 7117796 06 14 22 7117790 07 15 23 7117790 08 16 7117804
DOWN
keys. This page will show the last 7 digits of the
The example above indicates an outgoing call on 8 channels where the 2 last channels have been released due to cause code 18, No user responding.
48
Cause codes
The most common cause codes (for ISDN) are:
1 - Unallocated (unassigned) number 2 - No route to specified transit network (WAN) 16 - Normal clearing 17 - User busy 18 - No user responding 21 - Call rejected 28 - Invalid number format (incomplete number) 29 - Facility rejected 31 - Normal, unspecified 34 - No circuit/channel available 41 - Temporary failure 58 - Bearer capability not presently available 65 - Bearer service not implemented 69 - Requested facility not implemented 81 - Invalid call reference value 88 - Incompatible destination 100 - Invalid information element contents 102 - Recovery on timer expiry 127 - Internetworking, unspecified
Advanced use
49
VISION 5000 Videoconferencing SystemAdvanced use
MCU services
A Multipoint Control Unit (MCU) enables several sites to participate in the same conference.
An MCU conference can have different modes: Voice Switched and Continous Presence with or without Chairman control.
Voice Switched means that the image of the person currently speaking will be broadcast to all the other conference participants. This will remain the case until another participant starts to speak. Voice Switched requires a certain amount of discipline from all participants.
Continous Presence shows several participants on the same screen at the same time.
Chairman Control functionality enables one participant to control the meeting by selecting which of the
conference participants is to be broadcast to the other participants.
Tip
During an MCU conference, a status line is displayed by default which provides user information about the conference. To remove this status line, select Utilities, MCU Status Line: Off.
========== MCU Services =========== Request Floor Chair Control Release Floor Terminal ID Previous Menu
Request floor
When requesting the floor your unit will try to force the MCU to broadcast its own video to all other participants in the conference. In other words it will try to put you On Air. If the MCU conference has a chairman, a floor request is sent to the chairman.
You will remain On Air until either you select Release Floor or the chairman decides to release the floor to another participant.
50
Advanced use
Release floor
You choose Release Floor when you want to stop being On Air. You should do this when you no wish to make the floor available to the other participants in the conference.
Terminal ID
Allows you to see the site numbers of other sites connected in the conference. To find out who the participants actually are at each site, the participants will need to identify themselves by their site number.
Chair control
You select Chair Control and Take Chair to assume the role of chairman of the meeting. Chair Control provides considerable conference management functions. In order to make use of Chair Control features the MCU must support Chair Control (H.243).
As chairman you may control which site you and the other sites see.
========== Chair Control ========== Take Chair View Site # Release Chair End View Floor To Site # Disconnect Site # Release Floor Terminate Meeting Previous Menu Short Menu
Take chair
Allows you to request chairmanship of the conference. If no one else is currently chairman the MCU will give you the chair.
Release chair
Allows you to relinquish the privileges of chairmanship of the conference.
Floor to site #
Allows the chairman to select which of the conference participants is to be broadcast to all other participants.
51
VISION 5000 Videoconferencing SystemAdvanced use
Release Floor
Allows the chairman to release the floor.
View site #
Allows you to view any participant in the conference other than the participant currently On Air.
End view
Allows you to stop viewing the site previously chosen with View Site #, and returns your view to the site that is currently On Air.
Tip
View Site and End View can be used by all conference participants.
Disconnect site #
Allows the chairman to disconnect any participant in the conference.
Terminate meeting
Allows the chairman to terminate the conference altogether.
Short menu
============ Short Menu ============
1-FloorToSite 2-ViewSite 3-Release
MENU
Press
+2 to bring this menu up when outside the menu system.
This is a transparent menu for the chairman of a video conference. FloorToSite and ViewSite are explained above. Release has the same functionality as Release Floor after you have selected FloorToSite. Release also has the same functionality as End View after you have selected ViewSite.
52
Audio setup
=========== Audio Setup =========== Inputs Outputs Echo Control Audio Levelling (AGC) Alert Tones & Volume Restore Audio Defaults Previous Menu
Audio Inputs
============= Inputs ============= Mic1: Off On Mic2: Off On Mic3: Off On Audio4: Off On Audio5(AUX): Off On Audio6(VCR): Off On Mix mode: Fixed Auto Level Settings Previous Menu
Advanced use
By default, all inputs are enabled. The user just plugs in an audio source and it is active. Audio inputs that are On will automatically be mixed. Select Off to prevent audio/noise from unused inputs or if you want to disable a specific input. The activated audio sources are stored on presets.
Mic 1,2 and 3 are intended for electret type microphones. The microphone inputs are balanced with 24V phantom power.
Audio input 4 is intended for connection to an external microphone amplifier or an external fixed mixer.
External mixer
When using an external mixer, it is very important that this is a fixed mixer; automatic, smart and other types of adaptive mixers will cause malfunction of the echo canceller.
Audio input 5 is intended for connection to external playback devices or to telephone add-on hybrids. As there is no acoustic echo canceller on this input it should not be connected to any microphones. The audio entering this input will be heard from the local speaker.
53
VISION 5000 Videoconferencing SystemAdvanced use
Audio input 6 is intended for connection to a VCR. It can also be connected to other external playback devices. As there is no acoustic echo canceller on this input it should not be connected to any microphones. The audio entering this input will be heard from the local speaker.
Mix Mode
Auto automatically adjusts the weighting of each microphone to obtain the best possible audio and minimizes the background noise. Auto will also attenuate the VCR audio when someone talks into a microphone. Fixed will keep a constant weighting of all microphones.
Level Settings - Inputs
Audio level: |||||| Mic1
========= Level Settings =========
Mic1: || +3.0dB
Mic2: || +3.0dB Mic3: || +3.0dB Audio4: |||| +9.0dB Audio5(AUX): |||| +9.0dB Audio6(VCR): |||| +9.0dB Previous Menu
Adjust the audio input levels according to the parameters of the external audio equipment connected. These levels should be adjusted when installing new audio equipment only. The audio level for the current audio source is displayed in the indicator area. The audio level indicator will make it easier to set correct input level settings. The input level should be adjusted so that the average level reaches the preferred level marker.
The audio inputs are adjustable in steps of 1.5 dB from 0 dB to 22.5 dB.
The default levels for Mic 1,2 and 3 are set for use with an Audio Technica AT871 microphone in an average videoconferencing room. The gain can be adjusted correctly for a wide range of microphones.
A few examples of microphone levels are:
Crown PCC-160 +3dB Audio Technica AT851R +7dB Tandberg Audio Science +12dB
Audio 4, 5 and 6 are set to a default level which is adhered to by most manufacturers of audio-visual equipment and is a level which most audio-visual equipment (CD-players, VCRs) will work at.
54
Advanced use
Audio Outputs
============= Outputs ============= Out1: Off On Out2(AUX): Off On Out3(VCR): Off On Level Settings Previous Menu
Audio out 1 is intended for connection to Tandberg Natural Audio module, televisions or audio amplifiers with loudspeakers.
Audio out 2 is intended for connection to audio recording equipment or to a telephone add-on hybrid. The signal is a mix of audio from both the remote and local side (not from Audio in 5).
Audio out 3 is intended for connection to a VCR or other recording equipment. The signal is a mix of audio from remote side and local side (not from Audio in 6).
NOTE
Never connect audio out 2 or audio out 3 to a loudspeaker placed in the same room as the microphones connected to the system. Doing this will cause howling and possible damage to the speaker system.
If an output is Off, no audio will be sent to that output.
Level Settings - Outputs
========= Level Settings ========= Out1: |||| +13.5dB Out2(AUX): |||| +13.5dB Out3(VCR): |||| +13.5dB Previous Menu
Adjust the audio output levels according to the parameters of the external audio equipment connected. These levels should be adjusted when installing new audio equipment only. The default settings are correct for the Tandberg Natural Audio module and for most consumer electronics devices (televisions, CD-players, VCRs, etc.).
The audio output levels specify the maximum level of the output.The audio outputs are adjustable in steps of
1.5 dB from 0 dB to 22.5 dB.
The volume control on the remote control will control the level of output 1 (the speaker output). The volume control will have no effect on output 2 and 3.
55
VISION 5000 Videoconferencing SystemAdvanced use
Echo Control
========== Echo Control ========== Mic1: Off On On+NR Mic2: Off On On+NR Mic3: Off On On+NR Audio4: Off On On+NR Previous Menu
Each of the 3 microphone inputs and Audio input 4 have a separate echo canceller.
One echo canceller per
input provides more sophisticated control than having one common canceller for all microphones.
Echo control is normally set to On to prevent the remote site from hearing their own audio. Once selected On echo cancellation is active at all times. The echo canceller continously adjusts itself to the audio characteristics of the room and compensates for any changes it detects in the audio environment. If the changes in the audio conditions are very significant the echo canceller may take a few seconds to re-adjust.
You can choose to switch off the echo canceller for the available audio sources.
Echo Control
Echo Control should be switched OFF if external echo cancellation or playback equipment is used. Audio 5 and 6 do not have echo cancellation since these inputs are intended for audio playback equipment.
It is your echo canceller that improves the audio quality experienced by the other site. When you hear an echo of your own audio it is most likely the remote sites echo canceller that is malfunctioning.
Noise Reduction
In addition to echo cancellation the system has built in noise reduction algorithms (NR).
NR reduces constant background noise (e.g. noise from air-conditioning systems, cooling fans etc.). In addition, a highpass filter (Humfilter) reduces very low frequency noise.
Choose On+NR to activate both Echo Control and Noise Reduction.
56
Advanced use
AGC Settings
========== AGC Settings ========== Mic1-3,Audio4: Off On Audio5(AUX): Off On Audio6(VCR): Off On Received Audio: Off On Previous Menu
Select On to allow automatic adjustments (Automatic Gain Control) of audio levels. When On, the AGC maintains the audio signal level at a fixed value by attenuating strong signals and amplifying weak signals. Very weak signals, i.e. noise alone, will not be amplified.
Example: In most conferences, the participants will speak at different levels, and be at different distances from the microphones. As a result, some of the participants will be harder to hear than others. The AGC corrects this problem by automatically increasing the mic levels when quiet or distant people speak, and by decreasing the mic levels when louder people speak.
Important
To ensure correct behaviour of the AGC, it is crucial that the levels on the input connectors are adjusted correctly using the audio input level settings. The AGC will not compensate for severe misadjustment of input levels.
When applying a weak signal in the presence of strong background noise, the leveller might amplify the background noise as well as the signal. Therefore, in noisy environments, it is advisable to turn the leveller off.
Tips for improving the echo canceller performance:
 Place all microphones as far as possible from the loudspeaker. Minimum loudspeaker-microphone distance
should be 2 meters.
 Place all microphones as close as possible to the persons speaking. By using several microphones, the ratio
distance loudspeaker-to-mic/mic-to-speaker can be increased. Increasing this ratio improves the
echo canceller performance.  Place all microphones as far as possible from noise sources.  Reduce the volume setting. Ensure that the loudspeaker does not distort the audio.  The echo canceller tries to estimate the echo path from the speaker system to the microphones. Moving objects
change this path, therefore avoid moving objects. Be especially aware of large objects and objects placed close
to either the microphone or the speaker system as these objects will cause severe changes to the echo path.
57
VISION 5000 Videoconferencing SystemAdvanced use
 Avoid putting paper sheets etc. on the microphone.  Avoid moving the microphone or loudspeaker.  In the event of poor echo cancelling, allow the canceller to adapt. After each change, the echo canceller
requires a few seconds to adapt. Do not change settings etc. without allowing the canceller to adapt to
the new settings.  In the presence of low frequency noise, enable the noise reduction (NR).
Alert Tones & Volume
======= Alert Tones & Volume ====== Video Call Alert Tone: A B C D E F Telephone Alert Tone: A B C D E F Alert Volume (0=min): ||| 8 Alert Speaker: Off On Previous Menu
To help distinguish between incoming video calls and ordinary telephone calls, different ringing tones may be selected. You may also select different volume levels for the ringing tone.
Alert Speaker
The Vision 5000 also has an internal, call alerting speaker. When selected On the internal speaker will warn you of an incoming call even though the monitor may not be switched on.
Restore Audio Defaults
There are many audio settings. It is easy for the user to configure the codec to be unusable. Therefore it is possible to set all audio settings back to default settings by using Restore Audio Defaults.
58
Video input
=========== Video Input =========== Video1 Name: MainCam___ Video2 Name: __________ Video3 Name: __________ Video4 Name: __________ Video5 Name: __________ Camera Track Mode: Slow Norm Fast Camera Adjustment Previous Menu
Enter a video source name
Use the UPand
To select a video source, press the further details.
To connect a video source, see Peripheral equipment.
DOWN
keys to select the video source. Press OK to edit the name for this source.
VIDEO
SOURCE
key and a number between 1-5 or see Selecting video source for
Advanced use
Note
The Camera Track Mode entry will be greyed out if not using the standard Main Camera.
Camera Track Mode
Select the camera tracking mode:
Slow: The system waits a while before zooming in on a single person speaking. Suitable when wide-angle
images are preferred over close-up images.
Norm: Should be used in regular meetings. Fast: The system quickly zooms in on a single person speaking. Suitable when close-ups are preferred
over wide-angle images.
59
VISION 5000 Videoconferencing SystemAdvanced use
Camera adjustments
Allows manual adjustment of camera parameters. These adjustments applies to all WAVE Cameras in daisy chain.
======== Camera Adjustments ======= Focus Backlight Brightness Whitebalance Previous Menu
Focus
============ Focus ============== Auto Manual
Press OK to exit
To manually adjust the focus select Manual and use the UPand
FOCUS
same functionality as using the
keys on the remote control.
DOWN
keys to adjust. This operation has the
Backlight
=========== Backlight ============= Off On
Press OK to exit
This function is automatic in the WAVE Camera and is therefore disabled. Manual backlight adjustment is possible using older cameras.
60
Brightness
========== Brightness ============= Auto Manual
Press OK to exit
Advanced use
To manually adjust the brightness select Manual and use the UPand
DOWN
keys to adjust.
Whitebalance
========== Whitebalance =========== Auto Manual
Press OK to exit
In Auto mode the whitebalance is continuously updated. To update the whitebalance manually, select Manual and press
Tip
A white object should be held in front of the camera a few seconds before and after selecting Manual whitebalance.
OK
.
61
VISION 5000 Videoconferencing SystemAdvanced use
Video output
========== Video Output ========== Auto-PIP: Off On Still Image Filter: Off On Auto-Display Still Image: Off On Dual Monitor: Off On Output 1-3: Interlaced Non-Interl. Output 4-5: Interlaced Non-Interl. Previous Menu
Auto-PIP
Select On to automatically display a PIP whenever the camera position or video source is changed and to have the remote site appear in PIP when in full screen selfview.
Still image filter
Select On to remove any instability in the high quality still image.
Auto-display still image
VIDEO
Select On to automatically display a received still image. If this selection is Off, you will have to press
SOURCE
and 0 to display a still image.
Dual Monitor
Select On to show selfview and still images on the 2nd monitor. Toggle with shows selfview only. See section Sending/receiving graphics for further information.
SELFVIEW
. If Off, the 2nd monitor
Output
If your external equipment requires an interlaced signal you can select it here. Outputs 1-3 provide the same signal as your main monitor. Outputs 4-5 provide the selfview/still image signal used on the 2nd monitor.
62
Advanced use
Terminal settings
======== Terminal Settings ======== Network Data Port 1 Restore Defaults Data Port 2 TCP/IP Settings Language Previous Menu
This menu provides basic network setup for the unit and should be used when installing the system. In addition to network setup and data port setup you can also select different languages for the system menus.
Network configuration
============= Network ============= Current Network:
ISDN-BRI ISDN-PRI/T1
External ISDN-BRI Settings ISDN-PRI/T1 Settings External Network Settings Previous Menu
Before using the system it is necessary to specify which network to use, and define the settings specific to that network.
If you want to use your system via ISDN-BRI you should select Current Network: ISDN-BRI and enter the ISDN-BRI Settings menu to set the BRI parameters.
If you want to use your system via ISDN-PRI/T1 (optional, USA only) you should select Current Network: ISDN-PRI/T1 and enter the ISDN-BRI/T1 Settings menu to set the PRI/T1 parameters.
If you want to use special networks and connect using RS449, V.35, X.21 or connect to ISDN via an external IMUX you should select Current Network: External and enter the External Network Settings menu to set the External Network parameters.
63
VISION 5000 Videoconferencing SystemAdvanced use
ISDN-BRI Settings
======== ISDN-BRI Settings ======== ISDN Switch Type Line 1 Setup Line 2 Setup Line 3 Setup Line 4 Setup Advanced ISDN Settings Previous Menu
ISDN switch type
Select the type of ISDN network connected to your unit (PAL version).
========= ISDN Switch Type ======== ISDN Switch Type: ETSI (Euro ISDN) Japan/Taiwan ISDN Australia ISDN 1TR6 National ISDN AT&T Custom ISDN Fetex ISDN Previous Menu
Note
Some software versions of Vision 5000 do not support 4 ISDN lines and one of the Line Setup lines will be grayed out. To find your configuration, see Power Up and System Info or boot-up text.
Note
1TR6 should only be used if you are operating the system behind a PABX.
The NTSC version is shown below.
========= ISDN Switch Type ========
ISDN Switch Type: National ISDN AT&T Custom ISDN ETSI (Euro ISDN) Japan/Taiwan ISDN Australia ISDN 1TR6 Fetex ISDN Previous Menu
64
Line setup
Advanced use
This menu allows you to program the numbers associated with your ISDN line.
========== Line 1 Setup =========== Enabled: Off On Number1: 700 Number2: 701 SPID1: 012347700000 SPID2: 012347701000 Previous Menu
If you want to use this ISDN line you need to set Enabled: On and enter the numbers of your ISDN line. If some of the ISDN lines are not to be used, set Enabled: Off. Line 1 should always be enabled.
In the USA you will also need to enter the SPID numbers associated with your ISDN numbers. If you have received two different SPID numbers for each ISDN line from your telephone company, you must program both.
When inserting ISDN line numbers, we recommend that you only use those digits that differ from number to number. See the following example:
Example:
Number Line Setup Line Setup USA (Number, Spid)
ISDN 1, Number1 2347700 700 700, 012347700000
Number2 2347701 700 or 701 701, 012347701000
ISDN 2, Number1 2347806 806 806, 012347806000
Number2 2347807 806 or 807 807, 012347807000
ISDN 3, Number1 2347842 842 842, 012347842000
Number2 2347843 842 or 843 843, 012347843000
ISDN 4, Number1 2347852 852 852, 012347852000
Number2 2347853 852 or 853 853, 012347853000
65
VISION 5000 Videoconferencing SystemAdvanced use
Advanced ISDN settings
===== Advanced ISDN Settings ====== Subaddress: ____ Default Call Type: ________ Validate Numbers (MSN): Off On Parallel Dial: Off On Downspeed: Off On Fallback to telephony: Off On Send Own Numbers: Off On Previous Menu
Subaddress
Using a subaddress enables you to connect up to eight ISDN terminals to the same ISDN telephone number and line. The terminals are addressed by using different subaddresses.
To call a terminal with a Subaddress, separate the ISDN telephone number and the subaddress with a *.
Example: 12345678*2 (Up to four digit subaddresses are possible)
USA: This service is not available on all networks in the USA.
66
Default Call Type
Default Call Type selects the number of channels to be used, by default, when placing a call. The Vision 5000 will by default try to make a 6B channel BONDING call. This feature can be bypassed by prefixing the dialled number as shown in the following listing.The format is #n*yyy, where n is the number of channels to dial and yyy is a call prefix you can use, e.g. 0 to access external line.
Prefix Call type Prefix Call type
#12* 12B call (BONDING) #2* 2B call (H.221) #8* 8B call (BONDING) #1* 1B call (H.221) #6* 6B call (BONDING) #92* 2B call (BONDING) #5* 5B call (BONDING) #91* 1B call (BONDING) #4* 4B call (BONDING) #0* Telephone call #3* 3B call (BONDING) #81* 1xH0 channel call (PRI only)
Example: #12*10288 specifies an 12 channel call and the prefix 10288 to the number.
MSN (Multi Subscriber Number)
The use of MSN (Multi Subscriber Number) enables you to attach different ISDN terminals, with different numbers, to the same physical ISDN telephone line. If Validate Numbers is set to On only calls to those numbers specified in the Line Setup menus will be answered. This service can be ordered from your telephone company.
Advanced use
Parallel dial
If set to On, channels will be dialled and connected in parallel when setting up a BONDING call. If set to Off, channels will be dialled one by one which may increase the dialling time.
Downspeed
Downspeed enables your unit to automatically adjust to the maximum available bandwidth even if this is only a telephone call. The downspeed ability is always active when dialling without a prefix. If however, a prefix is used and downspeed is Off, a connection will not be possible unless the requested number of channels are available. We recommend that downspeed is set to On.
Fallback to telephony
Fallback to telephony enables fallback from video calls to telephony/speech calls.
Send Own Numbers
If set to On, this unit will send its own numbers to the remote unit. If set to Off, the network may still send your numbers to the remote unit.
67
VISION 5000 Videoconferencing SystemAdvanced use
ISDN-PRI/T1 Settings (optional)
ISDN-PRI/T1 Settings Number: __________________ Max Channels: |||||| 12 Cable Length 1: | 0-133 ft Cable Length 2: | 0-133 ft
PRI Switch Type Channel Hunting
Advanced ISDN Settings Previous Menu
Note
The T1 format is predefined to ESF and the line code is B8ZS. This is not configurable.
Number
Enter the main number for your PRI/T1 line. If this number is programmed and MSN is on (see Validate numbers in Advanced ISDN Settings) only calls to this number will be answered.
Max Channels
Max Channels specifies the highest number of channels the codec is allowed to use.
Cable Length 1&2
Cable Length 1 specifies the distance to the CSU connected to the PRI/T1 1 port on codec 1. Cable Length 2 specifies the distance from the PRI/T1 2 port on codec 1 to the PRI/T1 1 port on codec 2.
Possible values are 0-133 feet, 133-266 feet, 266-399 feet, 399-533 feet, 533-655 feet.
For further information refer to the example in:
Appendix 3: Connecting Vision 5000 to PRI/T1
Advanced ISDN Settings
This is the same menu as for ISDN-BRI. The settings will be common for ISDN BRI and ISDN PRI. Please refer to section ISDN-BRI Settings.
68
PRI Switch Type
========= PRI Switch Type ========= PRI Switch Type:
AT&T ISDN
National ISDN
Previous Menu
Select the type of PRI network to which your unit is connected.
Below is a list of common PRI switches.
Type Manufacturer PRI Switch Type setting
ATT 4 ESS AT&T AT&T ISDN ATT 5 ESS AT&T/Lucent AT&T ISDN or National ISDN* DMS 100 Northern Telecom National ISDN
DMS 250 Northern Telecom National ISDN *Settings will depend on configuration of the switch. PRI Switch Type is not changed when Restoring Defaults.
Advanced use
Channel Hunting
========= Channel Hunting ========= Low Channel: _____ High Channel: _____ Search: High Low Previous Menu
Channel hunting is normally only used with a PRI unit in the daisy chain which is not a Vision 5000. The channels outside low and high can then be reserved by other devices.
Channel hunting defines where to search for channels for outgoing calls. Low Channel default is 1 and High Channel default is 23.
Search defines if the channel search will start from the highest or lowest channel.
69
VISION 5000 Videoconferencing SystemAdvanced use
External network settings
==== External Network Settings ==== Call Control:
RS366 Dialling
Leased Line Data Triggered Manual
Network Clocking:
RS449/V35 Compatible
X21 Compatible Advanced Network Settings Previous Menu
Before using the system together with external network equipment, you must specify the network parameters on this page.
Note
The system has support for up to 384/512/768 kbps using External Network (RS449/V.35/X.21) interface depending on software version.
IMPORTANT
The physical interfaces on External Networks are two non-standard 44 pin connectors. Special cables are required.
Call control
RS366 Dialling is the only dialling protocol and would normally be used together with network clocking RS449/V35 Compatible when the external equipment uses RS366 ports.
Leased Line is a non-dialling protocol and should be used when only two codecs are connected in a point to point connection. Use Leased Line when handshake signals DTR and CD are available. DTR and CD correspond to the X21 networks C and I signals.
Data Triggered mode uses TxData (transmit data), RxData (receive data) and clock signals only. UseData Triggered when no handshake signals are available.
Manual should be used when no handshake signals are available, and the external equipment requires a constantly connected line.
70
Network clocking
Advanced use
The network clock setting specifies the number of physical external clock signals.
Use RS449/V35 Compatible when the external equipment provides two clock signals, one for transmit and one for receive. The difference between RS449 and V35 is the cable only.
Use X21 Compatible when external equipment provides a common clock signal for both transmit and receive.
Advanced Network Settings
==== Advanced Network Settings ==== IMUX Default Prefix, Net1: #001_ IMUX Default Prefix, Net2: #001_
IMUX Restrict Offset: 10_
Previous Menu
IMUX default prefix
When using an external IMUX to make a call, you should specify a prefix which informs the IMUX of how to make the call (which protocol to use, number of channels etc.) in the absence of a user dialled prefix.
Example: To make a call using an Ascend Multiband VSX IMUX, you could use the following prefixes:
Prefix Call Type
#008 8B call (BONDING) #003 3B call (BONDING) #006 6B call (BONDING) #002 2B call (BONDING) #005 5B call (BONDING) #001 2B call (H.221) #004 4B call (BONDING)
The default prefix is chosen to be #001, a call on 2 B-channels. If you want to change the default prefix, insert the same prefix at both Net1 and Net2.
Restrict offset
When using the # after the number, the restrict offset will be added to the prefix used. This means that if you want to make a 6 channel call to a 56 kbps network you should dial #006<number>#. If the restrict offset is 10, this is equivalent to dialing #016<number>.
71
VISION 5000 Videoconferencing SystemAdvanced use
Dataport configuration
The Vision 5000 provides a standard RS 232 serial port to allow a computer to be connected for data transfer and control purposes.
Note
When connecting to a PC the connecting cable must be a straight through RS232 cable.
Dataport 1
=========== Data Port 1 ============ Baudrate: 1200 2400 4800 9600 19200 38400 Parity: None Odd Even Databits: 7 8 Stopbits: 1 2 Mode: Data Control Modem T120 Previous Menu
If you wish to connect a PC to Dataport 1, you must ensure that the PC and the Vision 5000 are identically configured. The available settings are:
 Baudrate  Parity  Databits  Stopbits  Mode (Data channel, Modem and Control)
72
Dataport 1 supports 4 different modes:
 Data  Control  Modem  T.120
Data mode
Provides a transparent data channel. This channel can be used for many different purposes such as file transfer, application sharing and more. When using this mode, it is necessary to have a Tandberg system at the remote site.
Control mode
The control interface provided by the Dataport supports a subset of the Hayes command set as well as a comprehensive set of Vision 5000 specific commands.
This mode maintains communication with the Dataports command interpreter at all times. All features available from the hand-held remote control can be accessed through the dataport.
Modem mode
Allows you to control the Vision 5000 externally via a PC as in Control Mode. Once a call is established Dataport 1 will automatically switch to Data mode. When the call disconnects, Dataport 1 switches back to Control Mode.
Advanced use
T.120
Provides you with a data channel supporting the T.120 standard for data communication. Using T.120 software on your PC, you can communicate with other T.120 systems using your PC and your Vision 5000.
For more details on connecting to the Dataport, see Peripheral Equipment.
73
VISION 5000 Videoconferencing SystemAdvanced use
Dataport 2
=========== Data Port 2 ============
Baudrate: 1200 2400 4800
9600 19200 38400 Parity: None Odd Even Databits: 7 8 Stopbits: 1 2 Mode: VISCA Auto Previous Menu
Dataport 2 is dedicated to the main camera and will not be available in standard configuration.
The Codec will automatically detect Tandberg cameras. If you are using a camera supporting the VISCA protocol select Mode:VISCA.
Restore defaults
You may restore all system settings to the factory default using this function.
Note
This default setting will not affect your Call Directory information, Network Type, Line Setup numbers or your SPID numbers (US only)
74
Advanced use
TCP/IP Settings
========= TCP/IP Settings ========== IP-assignment: DHCP Static IP-address: ___.___.___.___ IP-subnet mask: ___.___.___.___ Gateway: ___.___.___.___ Previous Menu
IP-assignment
DHCP (Dynamic Host Configuration Protocol) can be selected when a DHCP server is present. When using DHCP, IP-address and IP-subnet mask is not used because these parameters are assigned by the DHCP server. When using DHCP the IP address given is displayed in the boot-up text and in Test Subsystem.
If Static is selected, the codecs IP-address and IP-subnet mask must be specified in the IP-address field.
IP-address
A IP-address defines the network address of the codec and is defined by 4 numbers in the range of 0-255. This address is only used in static mode. The IP-address can be found in the boot-up text.
Note
The IP-address and IP-subnet mask entries will be greyed out when IP-assignment is set to DHCP and are then not valid.
IP-subnet mask
A IP-subnet mask defines the type of network and is defined by 4 numbers in the range 0-255. This address is only used in static mode.
If the setting is 255.255.255.0 the local network can have 256 nodes. This is a class C network.
If the setting is 255.255.0.0 the local network can have 65536 nodes. This is a class B network.
Gateway
When using DHCP, the default gateway should automatically be set. If the LAN utilizes static IPs, an IP number, subnet mask, and default gateway must be specified by the LAN administrator.
See section Ethernet Functionality for further information.
75
VISION 5000 Videoconferencing SystemEthernet
Ethernet Functionality
The system supports TCP/IP connectivity over Ethernet. The following functionalities are supported:
 Control of the system via a standard WWW-browser  Dataport access using Telnet (described in the document Dataport User Guide)*.  Software Upgrade using WWW-browser or FTP (described in the document Upgrading Software)*.  SNMP (Simple Network Management Protocol) (MIB-II)*.
WWW-interface
It is possible to access the system remotely via a local area network (LAN) using a standard WWW­browser.
What is needed
 PC with a WWW-browser.
 Ethernet cable (RJ-45).
 LAN-network port.
NOTE: You should not connect the PC directly to the codec. The connection should always go through a local area network.
LAN port
Local Area Network - LAN
* - Please contact your dealer for further information.
76
LAN port
Ethernet
How is it done
Connect your system to a local area network. The network cable should be connected from the LAN-port at the rear of the codec to a port in your network using a standard RJ-45 cable.
Configure your codec by performing the following:
 Press MENU, select Terminal Settings, TCP/IP Settings  Specify IP-assignment DHCP or Static. If DHCP is selected no other settings are needed. If Static is
selected, IP-address, IP-subnet mask and Gateway must be specified.
Example:
IP-assignment: Static IP-address: 192.9.200.111 IP-subnet mask: 255.255.255.0 Gateway: 192.9.200.21
See chapter TCP/IP Settings in Advanced use for further information on these settings.
 Start your Web-browser. In the address field type the IP-address of the codec
Example: 192.9.200.129
 You will now see the front page of the codecs Web-interface.
The following Web-browsers have been tested:  Netscape Communicator 4.05
 Microsoft Internet Explorer 4.0 and 3.0  Opera 3.51
77
VISION 5000 Videoconferencing SystemPeripherals
Peripheral Equipment
Using the peripheral devices outlined in this manual and the many others available you will be able to build your own applications for use with the Vision 5000 thereby better integrating the system into your business environment.
This chapter will explain how to connect peripheral equipment to your Vision 5000. However, first of all we recommend you examine the figure below detailing the available connectors on the back of the system Codec.
78
Peripherals
Interfaces
5 Video Inputs
 2 video inputs supporting S-Video through Mini-DIN connectors.  3 video inputs supporting composite signals through RCA connectors.
VIDEO
SOURCE
The standard camera uses one of the S-Video inputs. The inputs are selected using the
The system will automatically adapt to a PAL or NTSC input
5 Video Outputs
 2 supporting S-Video through Mini-DIN connectors  3 supporting Composite signals through RCA connectors The first 3 connectors provide main video (incoming/outgoing video and menus). The last 2 connectors
provide selfview/still image. The monitor uses one of the S-Video outputs. The outputs are always active.
The format of the output will be either PAL or NTSC depending on your countrys standard video format.
button.
6 Audio Inputs
 3 microphone inputs (balanced, 24V phantom powered) via XLR connectors.  3 audio inputs (line level) via RCA connectors. All audio inputs are active by default. For further information, refer to section Audio Setup.
3 Audio Outputs
 1 output (line level) via RCA connector providing audio from remote side in addition to dial tones.
This output is used either by the monitor or by the Natural Audio module (if installed).
 1 AUX output (line level) via RCA connector providing a mixed signal between audio from the local
side and audio from the remote side. This output is intended for connection to a telephone add-on system.
 1 VCR output (line level) via RCA connector providing a mixed signal between audio from the local
side and audio from the remote side. This output is intended for connection to a VCR.
For further information refer to section Audio Setup. See examples later in this chapter.
79
VISION 5000 Videoconferencing SystemPeripherals
Dual Monitor (optional)
It is possible to install the Vision 5000 system in a Dual Monitor configuration.
The Dual Monitor system consists of an additional monitor, cart and associated cabling.
The Dual Monitor can be used to show full screen selfview and still images.
To use the Vision 5000 in the Dual Monitor configuration:
 Connect Video Out 4 (preferably) otherwise 5 on the Vision 5000 to a video input on the monitor.
80
Peripherals
Natural Audio module (optional)
The Natural Audio module is designed to improve the audio quality during a videoconference. It consists of a specially designed speaker system optimized for speech. The monitor audio system is not used when using the Natural Audio module.
The Natural Audio module uses a frequency-compensated speaker system optimized for voice response and is designed specifically for videoconferencing requirements.
The Natural Audio module provides natural sounding audio - as if the person is in the same room - by delivering a flat response across the vocal range.
Monitor speakers are optimized for music and not designed to reproduce speech. Natural Audio reproduces voice without the distortion of speech caused by television speakers.
AudioScience module (optional)
Tandberg's prize-winning AudioScience microphone is a ceiling-mounted, wide coverage, boundary microphone, that can eliminate the need for table microphones. It is designed to pick up the audio from all conference participants seated within in its pick-up area, defined by a quarter-sphere of approximately 14 foot (4.25m) radius extended in front of, and to the sides of the microphone.
Please contact your dealer for further information.
81
VISION 5000 Videoconferencing SystemPeripherals
GRAPHICS
FREEZE
Multiple controllable cameras (optional)
The system is able to control up to 5 WAVE-cameras (like the Main Camera). Optional WAVE-cameras are supplied with a cable and a power supply.
WAVE-camera number two must be connected to video input 2, camera number three must be connected to video input 3, and so forth.
Tracker (optional)
The Tracker has two buttons:
 One button to point the camera at one person.  One button to point the camera at all participants. The Tracker was designed to give all participants in the meeting their own remote
control. The participant simply presses the Single person button to let the camera point at him/her. To show all participants one of the participants can press the Group button.
The Group button can be set to activate P1 (preset 1) or
The Single person button can be set to activate P2-P15.
82
.
Peripherals
Document camera
A document camera can be used for showing text, diagrams and a variety of graphical material as well as small three-dimensional objects. To use a document camera with your Vision 5000:
 Connect the document camera to one of the Video inputs on the Codec.
VIDEO
SOURCE
 Press  Enter the menu system, select Video Input and name the video source associated with the document
camera.
 We recommend storing the document camera input using one of the presets, P0-P9, to facilitate fast and
easy selection during a conference.
 See also Presentation Settings for easy access to still image transfer from document camera.
Tip
If the document camera has an S-Video output you should use this output to connect to the S-Video input on the system Codec. This will ensure you obtain the best possible image quality.
and choose the relevant Video In source to select the document camera as the source.
83
VISION 5000 Videoconferencing SystemPeripherals
Video Cassette Recorder (VCR)
Vision 5000: Video Output 2
Vision 5000: Video Input 5 VCR: Video Output
Vision 5000: Audio Input 6 VCR: Audio Output
VCR - Playback
For playback, connect a cable between Video Out on the VCR and VideoIn 5 (VCR) on the system and from Audio Out on the VCR to AudioIn 6 (VCR) on the system.
Select correct video input on the system using Setup. If audio from VCR is too low, this level can be adjusted in Audio Setup, Inputs, Level Settings. The audio from the VCR will be audible in the local speaker system.
VCR: Video Input
Vision 5000: Audio Output 3 VCR: Audio Input
VCR
To simplify connecting a VCR, the necessary connectors are marked VCR
VIDEO
SOURCE
. Make sure that Audio In 6 (VCR) is On (see Audio
The audio from the VCR and your microphone(s) will be mixed and sent to the other side. When a person talks the VCR level will be reduced to make it easier to comment a video recording (when Audio Setup,Mix Mode: Auto).
VCR - Recording
When recording, the VCR will record the video as showed on the main monitor, the local audio and the audio from the other side.
When recording a videoconference, connect a cable between VideoOut 2 on the system and Video In on the VCR. Connect a cable between AudioOut 3 on the Vision 5000 to Audio In on the VCR.
84
Peripherals
Telephone Add-On
A telephone add-on is used when you want to include a telephony participant in the meeting. You can also use this functionality when you want to have conference participants in an adjacent room with its own microphone and speaker system.
The telephone add-on connectors are marked AUX on the Vision 5000 (audio input 5 and audio output 2). Audio output 2 provides a mixed signal between local and remote side.
Extra cameras
You can connect extra cameras to your Vision 5000, for example, a whiteboard camera. The procedure for connecting an additional video source is as follows.
Connect the video output of the additional camera to one of the available Video In sockets on the system Codec.
We recommend storing the additional camera input using one of the presets, P0-P9, to facilitate fast and easy selection during a conference.
85
VISION 5000 Videoconferencing SystemPeripherals
PC applications
A PC can be connected to the Vision 5000 in two different ways.
 Through a VGA to PAL (or NTSC) converter.  Through an RS232 data cable.
VGA to PAL converter
By connecting your PC to a VGA-PAL (NTSC) converter and taking the video signal out of this box and into the VideoIn on the Vision 5000, you may show your PC documents to your participant(s) at the far end. Please contact your dealer for more information.
T.120 and other PC applications
A PC can be connected to the Vision 5000 using a serial cable. This will enable interactive editing, file transfer and application sharing between two computers.
Appropriate communication software should be used (for example: Microsoft NetMeeting, Intel ProShare Premier, Windows HyperTerminal, Procomm Plus and so forth.)
The Vision 5000 has been specially designed to work with interactive programs and includes a data channel that can send and receive data to and from a remote unit at speeds of up to 38,400 baud.
Video In
Dataport 1
VGA - PAL/NTSC converter
VGA
COM port
T.120 / data
86
Peripherals
Additional microphones
If your environment is such that you require more than one microphone for your room, e.g. you have a whiteboard a long way from your table microphone, then you may connect additional microphones to your Vision 5000.
Connecting additional microphones to your Vision 5000:
You can connect up to three microphones to your Vision 5000. The connectors are marked Mic1, Mic2 and Mic3. The connected microphones will by default be mixed.
87
VISION 5000 Videoconferencing SystemAppendix 1
Appendices
Appendix 1: Connecting Vision 5000 to ISDN using NT1 network adapters
Connecting
Connect the first ISDN cable from ISDN 1 on the codec to the S-interface on your first NT1 network adapter. Connect the second, third and fourth ISDN cable to the appropriate NT1 network adapters.
U-interface
Wall
Connect the U-interface of your NT1 adapter to the line provided from your network provider.
For convenience the NT1 adapters could be placed inside the cart. If needed, use the shorter ISDN cable (RJ45 connectors) delivered with the NT1 between the codec and the NT1 and the longer ISDN cable between the NT1 and the connector (RJ45) at the wall socket.
Configuring
The configuration of the codec is performed in the same manner as described in ISDN BRI Settings.
The NT1 should be powered up and you should check that the network is active. Please check your NT1 User Manual.
NT1
U S/T
NT1
U S/T
NT1
U S/T
NT1
U S/T
NT- 384 (NT-1 triple)
S/T-interface
1 2
ISDN 3 4
Vision 5000
88
Appendix 2
Appendix 2: Connecting Vision 5000 to the Switched 56 network
Using Telesync TS-256 SW56/ISDN adapter
Connecting the Vision 5000 to the SW56 network using a Telesync Adapter will allow up to 2x56kbps transmission.
NOTE: There are different Telesync Adapters for different configurations of SW56 networks. The network types tested with Vision 5000 is SW56 2Wire and 4Wire.
Connecting
Connect the Vision 5000 ISDN1 cable to the BRI S/T interface on the Telesync Adapter. Connect the two SW56 cables from the Telesync adapter Line 1 and Line 2 to the SW56 network.
Circuit #1
Circuit #2
SW56
Configuration of Telesync Adapter
No configuration of the Telesync Adapter is necessary.
Configuration of Vision 5000
Select network type to National ISDN1, 1 number. Line Setup 1 configuration:
Set Number1 and SPID1 enter your SW56 number for the first line. Important: Number1 and SPID1 must be exactly the same number. Leave Number2 and SPID2 blank.
Disable Line Setup 2, Line Setup 3 and Line Setup 4.
How to call
Important: Add the # sign when you dial a number.
Example: One number dialing enter: 1703111222# Two number dialing enter: 1703111222**1703111223#
Line 1
BRI S/T
Line 2
Telesync Adapter
ISDN1
Vision 5000
89
VISION 5000 Videoconferencing SystemAppendix 2
Using CSU/DSUs
Connect the RS366/V35 cable to NET 1 and CSU#1 Connect the RS366/V35 cable to NET 2 and CSU#2 .
RS-366
Circuit #1
V.35
Circuit # 2
RS-366
V.35
Master Vision 6000
The cable set consists of a pair of RS-366/V.35 cables cable and should be connected thus:
Configuration of Vision 5000
MENU
Press
on the remote control. Select Terminal Settings.
Select Current Network: External and check the following:
==== External Network Settings ====
Call Control:
RS366 Dialling
Leased Line Data Triggered Manual
Network Clocking:
RS449/V35 Compatible
X21 Compatible
Advanced Network Settings
Previous Menu
==== Advanced Network Settings ==== IMUX Default Prefix, Net1: _____ IMUX Default Prefix, Net2: _____
IMUX Restrict Offset: ___
Previous Menu
V.35/RS-366 cable
Signal Name Female Male 34pin Male 25pin
Frame ground 1 A Signal ground 15,25,28,44 B TX(A), transmit data 29 P TX(B) 30 S RX(A), receive data 40 R RX(B) 39 T RCLK(A), rcv clock 37 V RCLK(B) 38 X TCLK(A), xmt clock 41 Y TCLK(B) 42 AA DTR 7 H, C RI 4 3 L, J RLSD 36 F DSR 6 E RS366 DPR 9 2 RS366 ACR 10 3 RS366 CRQ 11 4 RS366 PND 12 5 RS366 DLO 13 22 RS366 NB1 21 14 RS366 NB2 22 15 RS366 NB4 23 16 RS366 NB8 24 17 RS366 DSC 14 13 RS366 GND 35 7
RS-366
Net 1
Net 2
Vision 5000
VISIONCSU’sWall Socket
44pin DSUB Winchester DSUB
Clear the IMUX Default Prefix, Net1, IMUX Default Prefix, Net2 and IMUX Restrict Offset.
If the CSUs are connected and configured properly (see next page), you are now ready to make your videoconferencing calls.
90
Configuring your CSU/DSU
Recommended configuration of your CSU/DSU using TANDBERG equipment. Motorola UDS SW-56 Software revision : 350427RF Transstream T1100 With RS-366 Apac Transstream T1000 With RS-366 Apac Inc CM-1056,CM-1056 DP Adtran DSU III S4W
Appendix 2
Motorola DSU
DSU Line 56000bps TIMING DDS OPERATION OVER SW. LINE YES DTE 56000 bps. DTE TIMING SLAVE SYNCHRONOUS DATA BUFFER DISABLED CTS FOLLOWS RTS ANTISTREAM OFF DCD NORMAL DSR ON DURING LOOPBACK DTE RL DISABLED DTE LL DISABLED DTR AUTO DIAL OFF RESPONDS TO DTR EIA-366 DIALER SPEAKER DISABLED BISYNC DIAL OFF HDLC OFF
Adtran DSU III S2W/4W
Config Local
Network options
Network Type = AT&T /MCI/Other or Sprint
DTE Options
DTE Rate = 56k Connector Type = V.35 Data Format = Synchronous DTE CMD Option = Disabled Transmit Clock = Normal CS Options = Forced On
CS Delay Short
CD Options = Normal TR Options = Idle When Off
SR options = Forced ON Test Options Ignore Dial Options
Auto Answer = Disabled (In some cases: enabled) RS 366 EON = Enabled
Manual Command Ignore
Transstream T1100 DSU
Network Accunet. Auto Answer Yes DTR Asserted No DSR Asserted Yes RTS Asserted Yes CTS in Data Mode Yes Audible Alarm Off Remote Loop Back Ignore Wait for answer 060 Speaker On
Transstream T1000
DIP switches should be set in the following way, where the bold selections shows which settings to choose:
SW2 SW3
Left Side Right Side Left Side Right Side 1 Sync Async Normal Auto originate 2 Normal Autobaud Normal Far End Loop 3 Command Port Port A Normal Local Loop 4 Data Port Port A Normal Line Loop 5 7 Bits 8 Bits Int. Clock External Clock 6 Normal DTR Assert Normal Back to back 7 Normal RTS Assert Normal Adapt 8 Normal CTS Delay Auto Answer Manual
INC DSU
Set the DIP switches set as follows.
1. RS-232 Dial Port DOWN/OFF
2. Loop Master DOWN/OFF
3. System Status UP/ON
4. Switched 56 Operation UP/ON
5. Keypad Enable UP/ON
6. Permanent Request To Send DOWN/OFF
7. Permanent Data Term. Ready DOWN/OFF
8. Circuit Assurance DOWN/OFF
9. Data Mode During Local Loop UP/ON
10.Remote Digital Loop Enable UP/ON
For configuration of other CSUs refer to the appropriate user manuals.
91
VISION 5000 Videoconferencing SystemAppendix 3
Appendix 3: Connecting Vision 5000 to PRI/T1
Using CSU adapter
Connecting the Vision 5000 to the ISDN network via the PRI/T1-interface using an Adtran T1 ESF CSU ACE will allow up to 768 kbps transmission. The PRI/T1-interface must be connected to a CSU approved according to IEC 60950, UL 1950 or equivalent standard. NOTE: The PRI-line will run the AT&T 4ESS protocol only.
Vision 5000
ISDN PRI/T1 (1)
ISDN PRI/T1 (2)
Vision 5000
ISDN PRI/T1 (1)
*RJ-48C type interface
NET*
Adtran
CSU
PRI-interface
CPE*
Wall
Connecting to Adtran T1 ESF CSU ACE
Connect the PRI cable from the Vision 5000 to the input marked CPE on the Adtran CSU (straight through category 5 cable is recommended). Connect to the network via the NET connector on the Adtran CSU. When two Vision 5000 are cascaded, connect the second Vision 5000 to the PRI/T1 port 2 on the first Vision 5000 using a T1 crossover cable.
Configuration of Vision 5000
MENU
Press Select Current Network: PRI/T1 and specify your PRI number, max. channels and cable length (between Vision 5000 and CSU):
on the remote control. Select Terminal Settings, Network.
ISDN-PRI/T1 Settings
Number: ____________________ Max Channels: |||||| 12 Cable Length 1: | 0-133 ft Cable Length 2: | 0-133 ft
PRI Switch Type Channel Hunting Advanced ISDN Settings
Previous Menu
Note
Cascaded connection: Remember to program numbers and MSN. Otherwise, the first codec will answer all calls.
Configuration of Adtran T1 ESF CSU ACE
*Enter 2)CONFIG menu using SCROLL and ENTER buttons. *Enter 3)TERMINAL menu. Check 1)FORMAT:ESF
2)CODE: B8ZS 3)SET LBO: 0-133 (Corresponding to Cable Length setting on Vision 5000.
*Go to main menu and enter 1)NETWORK menu.
7)SET LBO: 0.0 (According to information from Telco). Also other network parameters should be set according to information from Telco.
Making a call
To make a call, enter the number and press SEND. See chapter Making and ending calls.
92
Appendix 4
Appendix 4: LED indication
On the front of the Codec, there are 18 LEDs to give the user precise information on the status of the Codec and the network activity. The LED display is specially designed to provide the user with quick and accurate indications whenever there is a change of status. G, Y, and R mean green, yellow, and red, respectively. (For convenience the LEDs in the example below are diveded into 2 boxes refered to as Left and Right, although there is not such a division on the physical display)
H221-2
LED 2 LED 1
Each LED can have three states; off, blink, and on. All states are not applicable to all LEDs. The table below shows the possible LED states for the LEDs in the Left box.
LED LED1 LED2 Description
Power Off Power is off
IR Blink IR code received H221 Off Off No call
BRI (1-4) Off Off Layer 1&2 active or BRI disabled
The PRI LEDs in the Right box are indicating PRI/T1 status and are defined as below:
Green Yellow Red Description
Off Off Off PRI disabled Off Off Blink Blue alarm Off Off On Red alarm Off On Off Yellow alarm Off On Blink Blue and yellow alarm Off On On Red and yellow alarm Blink Off Off Sync (Layer 2 deactivated) On Off Off Established Blink Blink Off Sync and loop active (Layer 2 deactivated) On Blink Off Established and loop active
Power
IR
IR
Power
GGGGGGGGGGGGG
GYYRR
BRI1 H221-1BRI2 BRI4BRI3
On Power is on
On Off H221 active on 1 channel (PRI/Ext) On On H221 active on 2 channels (PRI/Ext) Off On N/A
Blink Off Layer 1 active, Layer 2 deactivated Blink Blink Layer 1 deactivated On Off Connected on 1B On On Connected on 2B
PRI2 PRI1
93
VISION 5000 Videoconferencing SystemIndex
Index
Symbols
1TR6 64 4xCIF 33
A
Accept/end call 27 accessories drawer 11 Add New Entry 42 Additional microphone 87 Adjusting volume 28 Advanced call quality 39 Advanced ISDN settings 66 AGC Settings 57 Alert Speaker 58 Alphabetic Sort 41 Audio
inputs 53, 79 outputs 55, 79 quality 38 setup 53
sources 53 AudioScience 12, 81 Auto-display still image 62 Auto-PIP 62 Autoanswer 44 Autofocus 30 Automatic call-up 45 Automatic Gain Control 57
B
Background 19 Backlight 60 Basics 24 Battery handling 3 BONDING 25 BRI interface 15 Brightness 61
C
Cable Length 68 Cables 15 Call
accept/end 27 directory 27 making a video call 25 restricted 26 special profiles 26
telephone call 26 Call control 70 Call Quality menu 38 Call status 47, 48
BRI 47
PRI 48 Camera 10
adjustments 60
controlling 29
Extra camera 85 Camera Tracking 31 Cart 11 Cause codes 49 Chair control 51 Chairman functionality 50 Channels 38 CIF 40 Codec 10 Configuration 18
Dual Monitor 18
External Network 18
ISDN-BRI 18
ISDN-PRI/T1 18
Language 18 Connecting cables 15 Continuous Presence 50 Control mode 73 Copyright 3 Correcting keying mistakes 27
D
Data mode 73 Dataport configuration 72, 75 Default Call Type 67
Delete Entry 43 DHCP 75 Diagnostics 46 Dialling 25 Directory
Add New Entry 42 Alphabetic Sort 41 Delete Entry 43 Edit Entry 43 editing 41 last number redial 27 Name 42
using 27 Disconnect site # 52 Do not disturb 44 Document camera 83 Downspeed 25, 67 Dual Monitor 18, 33, 34, 62, 80
E
Echo Control 56 Edit directory 41 Edit/Delete Entry 43 Ending a call 27 Enter a video source name 59 Environmental considerations 19 Environmental Issues 3 Ethernet Functionality 76 Euro ISDN cause codes 49 External mixer 53 External network settings 70 Extra cameras 85
F
Far end camera control 35, 45 FECC 35 Floor to site # 51 Focus 60 Focusing camera 30
G
G711 39 G722 39
94
Index
G728 39 Gateway 75 General 36 Getting started 23 Graphics
Receiving 33 Sending 33
Guidelines for making rooms 21
H
H.281 35 H261 39 H263 39 Hardware Serial Number 46 Help Menu 23 How to prepare a typical room for videoconferences 22 HumFilter 56
I
IMUX
default prefix 71 Installation 13 Intelligent Call Management (ICM) 10, 25 Interfaces 79 Interlaced 62 Introduction 7 IP-address 75 IP-subnet mask 75 Iris control and lighting 19 ISDN cables 15 ISDN switch type 64 ISDN-BRI Settings 64 ISDN-PRI/T1 Settings 68
L
Language 18
changing 63 Last number redial 27 LED indication 93 Level Settings 54
Inputs 54
Outputs 55 Lighting 21 Line setup 65 Loudspeaker volume 20
M
Main camera 10 Main menu 37 Making a call 25 MCU services 50 MCU status line 45 Menu structure 8 Menu system 37 Microphone
levels 54
on/off 29 Modem mode 73 Monitor 16 Motion 39 Moving camera 29 MSN (Multi Subscriber Number) 67 Multiple cameras 82 Multipoint Control Unit (MCU) 50
N
Natural Audio module 12, 81 Navigation 37 Network configuration 63 Non-Interlaced 62 NT1 15 NTSC 79
O
On-screen help 23 Output 62
P
PA L 79 Parallel dial 67 PC applications 86 Phantom power 53 Picture-in-Picture 28
Picture-in-picture
moving 29 PIP 28 Power up and system info 46 Precautions 13 Prefixes 26 Presentation Mode 45 Presentation Settings 45 Preset buttons 32 Presets
selecting 32
storing 32 PRI/T1 interface 15
Q
QCIF 40
R
Release chair 51 Release floor 51 Remote control 11 Request floor 50 Requesting a still image 33 Restore Audio Defaults 58 Restore defaults 74 Restricted call 26
S
Seating Area 21 Selecting video sources 31 selfview 28 Send Own Numbers 70 Sharpness 39 Short menu 52 SoftMux 10, 25 Special call prefixes 26 Start-up 23 Status Format 40 Still image
Auto-display 62
filter 62
Receiving 34
Requesting 33
95
VISION 5000 Videoconferencing SystemIndex
Sending 33 Set-up 45 source 45
Viewing 34 Store Last Number 43 Storing presets 32 Subaddress 66 Switched 56 network 15 System Name 45 System overview 9 System set-up 63 System start-up 23
T
T.120 73 T.120 and other PC applications 86 Table microphone 12 Take chair 51 TCP/IP Settings 75 Telephone Add-On 85 Telephone call 26 Terminal ID 51 Terminal settings 63 Terminate meeting 52 Test subsystem 46 To adjust the volume 28 To answer a call 27 To call a terminal with a SUB-address 66 to connect a PC to Dataport 1 72 To end a call 27 To enter/leave the menu system 36 To manually focus the Main Camera 30 To navigate through the menu system 37 To select a preset 32 To store the current camera position 32 To use the dataport for PC applications 87 Tracker 82 Trademarks 3
V
VCR - Playback 84 VCR - Recording 84 VGA to PAL converter 86 Video 38
input 59 inputs 31, 79 mode 39 name 59 output 62 outputs 79 source name 59
sources 31 Video call 25 Video cassette recorder (VCR) 84 Video Quality 39 View
current settings 46
outgoing video 28 View site # 52 Viewing a still image 34 Vision 5000 system 9 Voice Switched 50 Volume 28
W
Waste handling 3 Whitebalance 61 WWW-interface 76
Z
Zooming camera 29
U
Unpacking 14 Using a SUB-address 66 Utilities 44
96
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
