OY1210
LoRaWAN CO2 meter
User manual
Version 0.4
October 2019
OY1210 LoRaWAN CO2 meter, User manual, Version 1.0
2
Table of Contents
1 Disclaimer............................................................................................................................ 3
1.1 Technical support ....................................................................................................................... 3
1.2 EU Declaration of conformity ..................................................................................................... 3
2 Warnings ............................................................................................................................. 4
3 Environmental ..................................................................................................................... 5
4 Product Description ............................................................................................................. 6
5 Installation and activation ................................................................................................... 7
5.1 LoRaWAN Configuration ............................................................................................................ 8

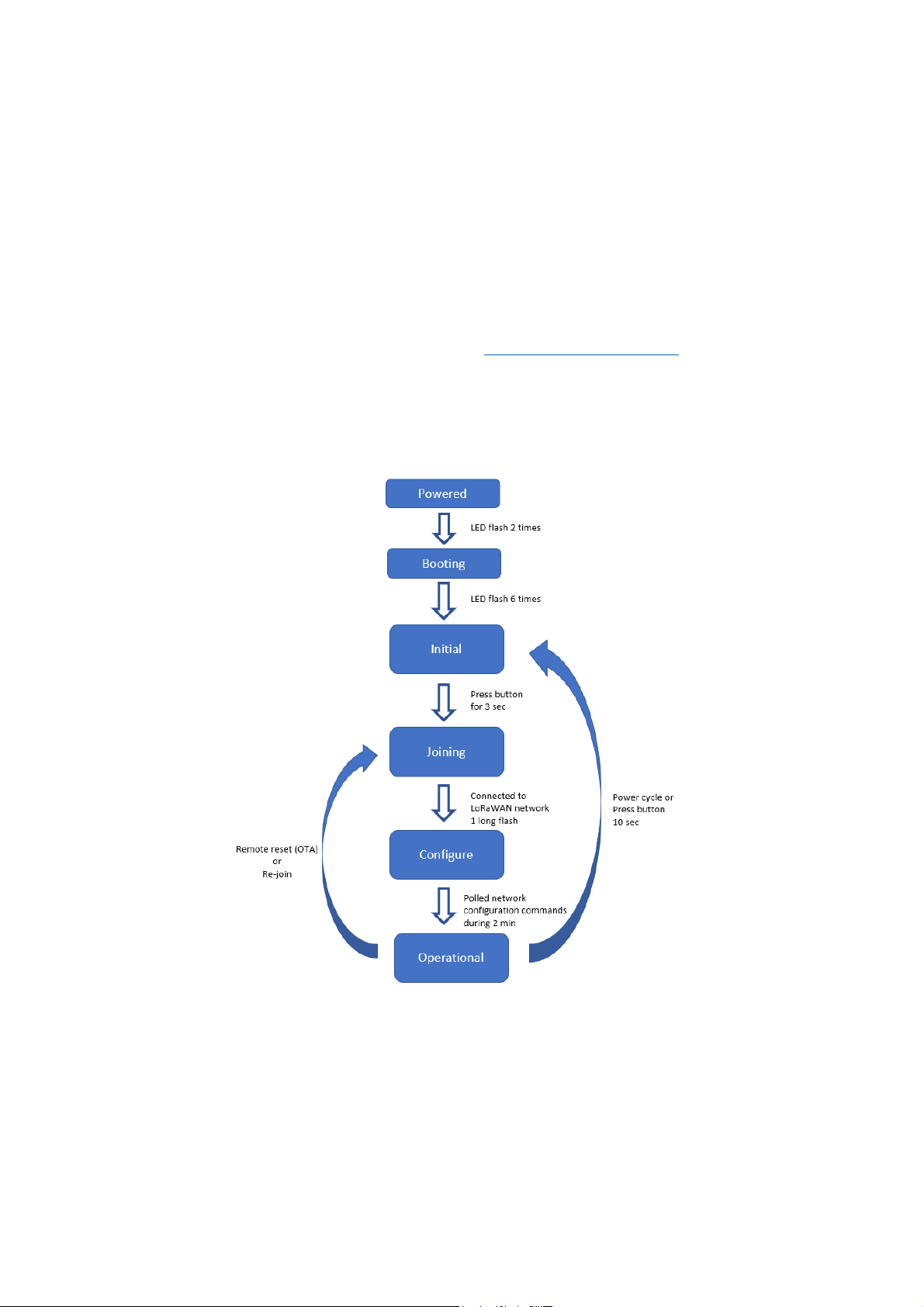

5.2 Sensor states and state check .................................................................................................... 9
5.2.1 Re-join functionality ............................................................................................................. 10
6 Specification ...................................................................................................................... 11
7 Battery life ......................................................................................................................... 13
8 Security ............................................................................................................................. 13
9 Protocol ............................................................................................................................. 13
9.1 LoRaWAN standard commands ................................................................................................ 13
9.2 Unsolicited uplink status commands ....................................................................................... 13
9.3 Periodic measurement reports ................................................................................................ 14
9.3.1 Periodic measurement report .............................................................................................. 14
9.3.2 Measurement value ............................................................................................................. 14
9.3.3 Example: Single measurement report .................................................................................. 15
9.4 Downlink commands and queries ............................................................................................ 16
9.4.1 Measurement and reporting interval ................................................................................... 19
9.4.2 Reset device.......................................................................................................................... 19
9.5 Uplink query response.............................................................................................................. 19
OY1210 LoRaWAN CO2 meter, User manual, Version 1.0
3
1 Disclaimer
This document represents information on products at the time of publication and is subject to
change without prior notice due to product improvements or other reasons. Talkpool makes
no warranties based on the accuracy or completeness of the contents of this document and
reserves the right to make changes to specifications and product descriptions at any time
without notice. Talkpool reserves all rights to this document and the information contained
herein.
1.1 Technical support
Please visit www.talkpool.io for additional information, or contact IoT.support@talkpool.com
1.2 EU Declaration of conformity
EC DECLARATION OF CONFORMITY
certify that the design and manufacturing of this product
WIRELESS CO2 SENSOR /
FUNK-CO2 SENSOR /
TRÅDLÖS CO2 SENSOR /
TRÅDØS CO2 SENSOR /
DRAADLOZE CO2 SENSOR
OY1210 EU868
conforms to the following directives and standards
The Radio Equipment Directive (2014/53/EU),
EN 300 220-1 V2.4.1, EN 300220-2 V2.4.1,
EN 301 489-1 V1.9.2, EN 301 489-3 V2.1.1,
EN 60950-1:2006+A11+A1+A12+A2
EN 62479:2010
RoHS 2.0 Directive 2011/65/EU
European Delegated Directive (EU) 2015/863
REACH regulation 1907/2006 EU
This product was CE marked in year -19
2019-09-10 ___________________
Managing Director Stefan Lindgren
OY1210 LoRaWAN CO2 meter, User manual, Version 1.0
4
2 Warnings
The following safety precautions must be observed during all phases of the operation, usage,
service or repair of this Talkpool product.
• Read the product manual.
• Do not modify the product.
• The product should not be exposed to extreme heat or open flame.
• The device must not be exposed to harsh chemical agents or solvents.
• The labelling of the product may not be changed, removed or made unrecognizable.
OY1210 LoRaWAN CO2 meter, User manual, Version 1.0
5
3 Environmental
This symbol on the product or on its packaging indicates that this product must not be
disposed of with your other household waste. Instead, it is your responsibility to dispose of
your waste by taking it to a collection point designated for the recycling of electrical and
electronic appliances. Separate collection and recycling of your waste at the time of disposal
will contribute to conserving natural resources and guarantee recycling that respects the
environment and human health. For further information concerning your nearest recycling
center, please contact your nearest local authority/town hall offices, your household waste
collection company or the shop where you bought the product.
OY1210 LoRaWAN CO2 meter, User manual, Version 1.0
6
4 Product Description
The OY1210 LoRaWAN CO2 meter is designed to measure carbon dioxide, temperature and
humidity in indoor environments. The sensor is intended for indoor climate control, air
quality monitoring and energy optimizations. It is optimized for reliable and secure
measurements with more than 5 years life length on batteries.

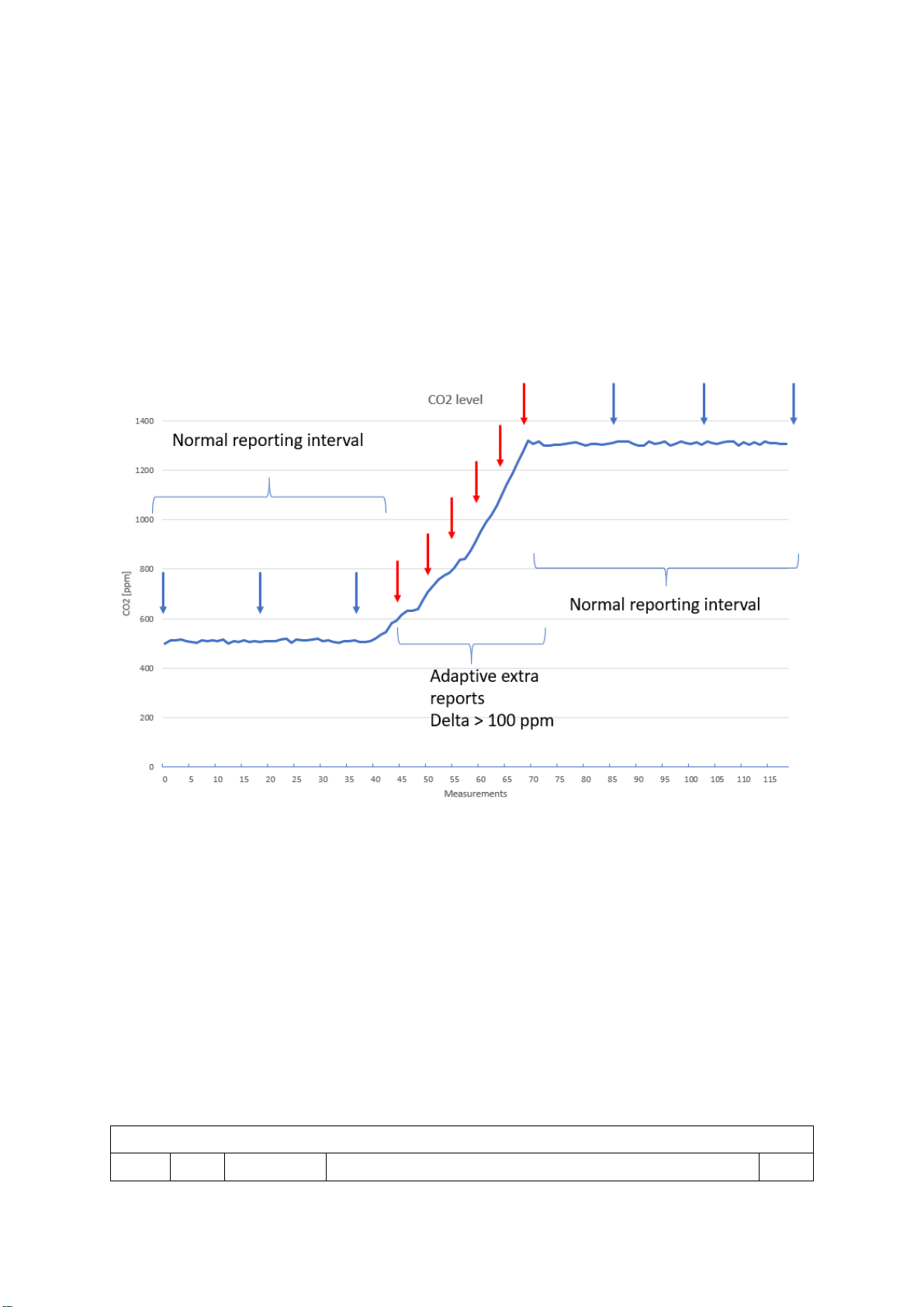

The standard measurement interval is every minute and standard reporting interval is every 20
measurements (resulting in a measurement report transmitted every 20 minutes). The fast
measurement interval makes it possible to insert additional transmissions when large changes
in the CO2 level are detected, resulting in low reporting latency. By default, CO2 level
changes larger than +/-100ppm from the last transmitted measurement report causes an
additional measurement report over the LoRa uplink channel. If the absolute CO2 level is
below a certain threshold, by default 750ppm, these additional reporting events are however
omitted. All these parameters can be adjusted using LoRa downlink commands if needed.
