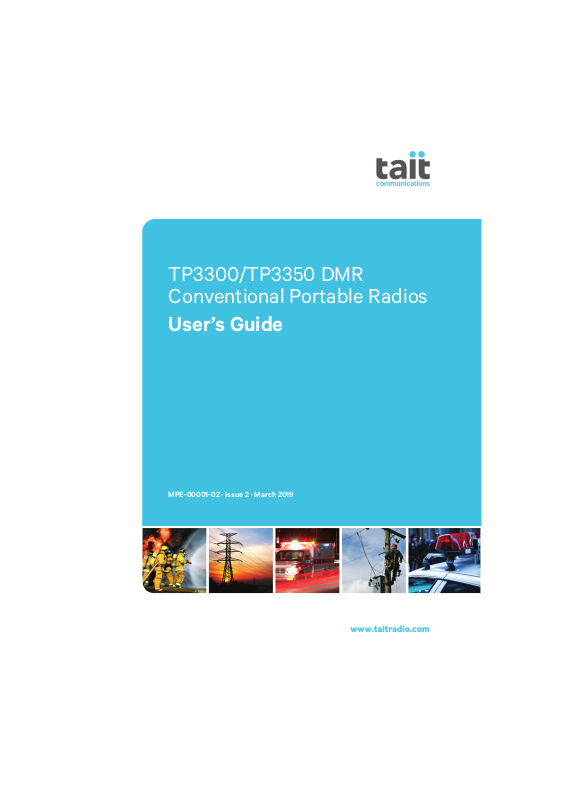

Tait TPEB1D User Manual

TP3300/TP3350 DMR Conventional Portable Radios

User’s Guide

MPE-00001-02 · Issue 2 · March 2019

User Guide Cross Reference

T03-00302-BAAA/BBAA/BCAA : Analog and DMR Tier 2 portable radios are elsewhere in this manual referred to as TP3300

T03-00303-BAAA/BBAA/BCAA : Analog and DMR Tier 2 portable radios, with added GPS and BT functionality, are elsewhere in this manual referred to as TP3350

Contents

For your safety..................................................................7

Menu map........................................................................19

1 About this guide .............................................................20

Safety warnings used in this guide ........................................... 20

Related documentation............................................................. 21

2 Before using your radio.................................................22

Package Contents .................................................................... 23

For your safety — battery warning ...................... ....................... 24

Attaching labels to the radio or battery ..................................... 24

Charging the battery before first use ........................................ 25

Attaching the battery................................................................. 26

Removing the battery ............................................................... 26

Attaching the antenna............................................................... 27

Removing the antenna ............................................................. 27

Replacing the belt clip .............................................................. 27

Attaching an audio accessory................................................... 28

3 Getting started ................................................................29

About your DMR digital radio.................................................... 30

About the radio controls............................................................ 32

Understanding the radio display ............................................... 34

Understanding the radio indicators........................................... 36

Using function keys to access frequently used features........... 38

Navigating the radio’s menus ................................................... 39

4 Operation.........................................................................40

Turning the radio on and off ..................................................... 41

Adjusting the speaker volume .................................................. 42

Connecting to a Bluetooth

Selecting a zone ....................................................................... 45

Selecting a channel .................................................................. 45

Making a group call .................................................................. 46

Making a private call................................................................. 47

Turning scanning on and off ..................................................... 47

Making a call alert..................................................................... 48

Sending a quick text message.................................................. 49

Sending an emergency alarm................................................... 51

Turning location information on and off (TP3350 only)............. 52

device (TP3350 only) ................... 42

5 Charging and caring for batteries.................................53

About the chargers ................................................................... 54

Before using the charger .......................................................... 54

Contents 3

Charging temperatures............................................................. 55

Leaving the battery on charge .................................................. 55

Receiving calls while charging.................................................. 56

Low battery warning ................................................................. 56

Charging a battery for the first time .......................................... 57

Charging a battery .................................................................... 57

LED behavior............................................................................ 58

Removing the battery from the charger .................................... 59

Maintaining battery life and performance ................................. 59

Storing batteries ....................................................................... 59

Disposing of batteries ............................................................... 60

6 Troubleshooting .............................................................61

About troubleshooting............................................................... 62

When your radio won’t turn on.................................................. 62

Identifying the radio’s audible tones ......................................... 62

Viewing radio information ......................................................... 62

General care............................................................................. 63

Tait Software Licence Agreement.................................64

Simplified Declaration of Conformity ...........................71

4 Contents

All information contained in this document is the property of Tait International Limited. All rights reserved. This document may not, in whole or in part, be copied, photocopied, reproduced, translated, stored, or reduced to any electronic medium or machine-readable form, without prior written permission from Tait International Limited.

The word TAIT and the TAIT logo are trademarks of Tait International Limited.

All trade names referenced are the service mark, trademark or registered trademark of the respective manufacturers.

Disclaimer

There are no warranties extended or granted by this document. Tait International Limited accepts no responsibility for damage arising from use of the information contained in the document or of the equipment and software it describes. It is the responsibility of the user to ensure that use of such information, equipment and software complies with the laws, rules and regulations of the applicable jurisdictions.

Enquiries and comments

If you have any enquiries regarding this document, or any comments, suggestions and notifications of errors, please contact your regional Tait office.

Updates of manual and equipment

In the interests of improving the performance, reliability or servicing of the equipment, Tait International Limited reserves the right to update the equipment or this document or both without prior notice.

Intellectual property rights

This product may be protected by one or more patents or designs of Tait International Limited together with their international equivalents, pending patent or design applications, and registered trade marks.

This product may also be made under license under one or more of the following patents:

- US7203207, AU2004246135, CA2527142, GB2418107, HK1082608, MY134526, US8306071

- US7339917, AU2004246136, CA2526926, GB2418812, MY134217

- US7499441, AU2005262626, CA2570441, GB2430333, JP4690397, NZ551231, KR100869043, RU2351080,

BRP10512052, MXPA06015241

- US 7200129, AU2005226531, CA2558551, CN1930809, GB2429378, JP4351720, BRP10508671, NZ549124, KR848483, RU2321952

The AMBE+2™ voice coding Technology embodied in this product is protected by intellectual property rights including patent rights, copyrights and trade secrets of Digital Voice Systems, Inc. This voice coding Technology is licensed solely for use within this Communications Equipment. The user of this Technology is explicitly prohibited from attempting to decompile, reverse engineer, or disassemble the Object Code, or in any other way convert the Object Code into a human-readable form.

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc, and any use of such marks by Tait International Limited is under licence. Other trademarks and trade names are those of their respective owners.

Environmental responsibilities

Tait International Limited is an environmentally responsible company which supports waste minimization, material recovery and restrictions in the use of hazardous materials.

The European Union’s Waste Electrical and Electronic Equipment (WEEE) Directive requires that this product be disposed of separately from the general waste stream when its service life is over. For more information about how to dispose of your unwanted Tait product, visit the Tait WEEE website at environmentally responsible and dispose through the original supplier, or contact Tait International Limited.

Tait International Limited also complies with the Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment (RoHS) Directive in the European Union.

In China, we comply with the Measures for Administration of the Pollution Control of Electronic Information Products. We will comply with environmental requirements in other markets as they are introduced.

www.taitradio.com/weee

. Please be

For your safety

Before using your radio, please read the following important safety and compliance information.

Radio frequency exposure information

For your own safety and to ensure you comply with the radio frequency (RF) exposure guidelines of the United States Federal Communication Commission’s (FCC), Industry Canada, and those from other administrations, please read the following information before using this radio.

Using this radio

You should use this radio only for work-related purposes (it is not authorized for any other use) and if you are fully aware of, and can exercise control over, your exposure to RF energy. To prevent exceeding FCC RF exposure limits, you must control the amount and duration of RF that you and other people are exposed to.

It is also important that you:

■

Do not remove the RF Exposure label from the radio.

■

Ensure this RF exposure information accompanies the radio when it is transferred to other users.

Do not use the radio if you do not adhere to the

■

guidelines on controlling your exposure to RF.

Controlling your exposure to RF energy

This radio emits radio frequency (RF) energy or radio waves primarily when calls are made. RF is a form of electromagnetic energy (as is sunlight), and there are recommended levels of maximum RF exposure.

To control your exposure to RF and comply with the maximum exposure limits for occupational/controlled environments, follow these guidelines:

For your safety 7

■

Do not talk (transmit) on the radio more than the rated transmit duty cycle(50%). This is important because the radio radiates more energy when it is transmitting than when it is receiving.

When listening and talking on the radio, hold it

■

upright in front of your face so that it is at least one inch (2.5 cm) away from any part of your face. Keeping the radio at the recommended distance is important because exposure to RF decreases rapidly the further away the antenna is from your body.

■

Keep the antenna at least one inch (2.5 cm) from your face at all times.

If you wear your radio, you must always put it in a

■

carrying accessory carry accessory that has been specifically approved by Tait for this radio. Using non-approved body-worn accessories may mean you expose yourself to higher levels of RF than recommended by the FCC’s occupational/controlled environment RF exposure limits.

■

Ensure you only use Tait-approved antennas, batteries, and accessories.

8 For your safety

For more information on what RF energy is and how to control your exposure to it, visit the FCC website at

www.fcc.gov/oet/rfsafety/rf-faqs.html.

Compliance with RF energy exposure standards

This two-way radio complies with these RF energy exposure standards and guidelines:

■

United States Federal Communications Commission, Code of Federal Regulations; 47 CFR §§

1.1307, 1.1310, and 2.1093.

■

American National Standards Institute (ANSI) / Institute of Electrical and Electronic Engineers (IEEE) C95.1-2005.

Institute of Electrical and Electronic Engineers

■

(IEEE) C95.1-2005 Edition.

■

European Directive 2013/35/EU on minimum health and safety requirements regarding the exposure of workers to the risks arising from physical agents (electromagnetic fields).

This radio complies with the IEEE and ICNIRP exposure limits for occupational/controlled RF exposure environments at operating duty factors of up to 50% talk to 50% listen.

Conformité aux normes d’exposition à l’énergie RF

Cette radio émetteur-récepteur se conforme aux normes et aux règlements d’exposition à l’énergie RF :

La Commission fédérale de la communication des

■

Etats-Unis, Code de règlements fédéraux (CFR) Titre 47 Sections 1.1307, 1.1310 et 2.1091 (radios mobiles) ou 2.1093 (radios portatives).

American National Standards Institute (ANSI) /

■

Institute of Electrical and Electronic Engineers (IEEE) C95. 1-2005.

■

Institute of Electrical and Electronic Engineers (IEEE) C95.1-2005 Edition.

La directive européenne 2013/35/EU concernant

■

les prescriptions minimales de sécurité et de santé relatives à l'exposition des travailleurs aux risques dus aux agents physiques (champs électromagnétiques).

Cette radio se conforme aux limites d’exposition de l’IEEE (FCC) et ICNIRP pour les environnements d’exposition au rayonnement RF professionnel et contrôlé aux cycles de marche de 50% en mode transmission et 50% en mode réception.

For your safety 9

Radio frequency emissions limits in the USA

CFR Title 47 Part 15.19 (a) (1) - Receivers

Part 15 of the FCC Rules imposes RF emission limits on receivers. This radio complies with Part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference.

CFR Title 47 Part 15.19 (a) (3) - All other devices

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions. (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

Note

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

10 For your safety

Reorient or relocate the receiving antenna.

■

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit

■

different from that to which the receiver is connected.

■

Consult the dealer or an experienced radio/TV technician for help.

NOTICE: This radio is intended for use in

occupational/controlled conditions where users have full knowledge of their exposure and can exercise control over their exposure to meet the occupational limits in FCC and International standards. This radio device is NOT authorized for general population consumer use.

For your safety 11

Radio frequency emissions limits in Canada

ISEDC RSS warning

Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference,including interference that may cause undesired operation of the device.

L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.

Under Innovation, Science and Economic Development Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Innovation, Science and Economic Development Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that, the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.

12 For your safety

Conformément à la réglementation d'Innovation, Sciences et Développement économique Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une communication satisfaisante.

EMC regulatory compliance in Australia

This product meets all ACMA regulatory requirements for electromagnetic compatibility (EMC). For more information about EMC compliance, visit the ACMA website at https://www.acma.gov.au/Industry/

Suppliers/Product-supply-and-compliance.

Australia and New Zealand citizens band (148 to 174 MHz)

AS/NZS 4365 deals with the use of frequencies in the 148 to 174 MHz band. Products capable of operating in this band have been approved for operation in the UHF Citizens Band Radio Service which is licensed in Australia by the ACMA Radiocommunications (Citizens Band Radio Stations) Class Licence and in New Zealand by the MED General User Radio Licence for Citizens Band Radio. Operation is subject to conditions contained within those licences.

Repeaters operate by receiving a transmission on one channel and re-transmitting it on another. Operators are required to avoid using local repeater input channels, which will be in the range of 31 to 38, unless it is intended to use the repeater facility, and to avoid using local repeater output channels, which will be in the range 1 to 8, at any time.

No voice transmissions are permitted on data channels 22 and 23. Equipment meeting this standard will inhibit voice operation on channels 22 and 23.

In Australia:

■

Except in an emergency, a CB transmitter must not be operated on UHF channels 5 and 35.

Channel 11 is the customary calling channel for

■

establishing communications.

For your safety 13

■ Channel 40 is the customary road vehicle chan-

nel.

Health, safety and electromagnetic compatibility in Europe

In the European Community, radio and telecommunications equipment is regulated by the Radio Equipment Directive (2014/52/EU). The requirements of this directive include protection of health and safety of users, as well as electromagnetic compatibility.

Intended purpose of product

This product is an FM radio transceiver. It is intended for radiocommunication in the Private Mobile Radio (PMR) or Public Access Mobile Radio (PAMR) services, to be used in all member states of the European Union (EU) and states within the European Economic Area (EEA).

Restrictions

This product can be programmed to transmit on frequencies that are not harmonized throughout the EU/EEA, and will require a licence to operate in each member state.

14 For your safety

This product can be programmed for frequencies or emissions that may make its use illegal. Where applicable, a license must be obtained before this product is used. All license requirements must be observed. Limitations may apply to transmitter power, operating frequency, channel spacing, and emission.

Declaration of conformity

Simplified declarations of conformity appear on

page 71 of this document. To download the formal

declaration of conformity, go to www.taitradio.com/

eudoc.

Interference with electronic devices

Warning Some electronic devices may be prone to

malfunction due to the lack of protection from RF energy that is present when your radio is transmitting.

Examples of electronic devices that may be affected by RF energy are:

■ aircraft electronic systems

■ vehicular electronic systems such as fuel injec-

tion, anti-skid brakes, and cruise control

■ medical devices such as pacemakers and hearing

aids

■ medical equipment in hospitals or health care

facilities.

Switch off the radio before boarding an aircraft. Using your radio while in the air is not permitted.

Consult the manufacturer (or its representative) of any such electronic devices to determine whether electronic circuits in those devices will perform normally when the radio is transmitting.

Warning If you have a pacemaker:

■ immediately turn off the radio if you suspect it is

interfering with the pacemaker

■ keep the radio at least 6 inches (15 cm) from the

pacemaker while the radio is on

■ use the radio on the side opposite to the pace-

maker to minimize interference

■ never carry the radio in a breast pocket.

If there is interference between your hearing aid and the radio, please discuss an alternative solution with the hearing aid manufacturer.

For your safety 15

Potentially explosive atmospheres and blasting areas

Warning Unless the radio is specifically certified for

use in a potentially explosive atmosphere, do not take the radio into such an atmosphere. An explosion could cause serious injury or death. Examples of potentially explosive atmospheres include any environment where there are flammable liquids, gases, or dusts.

Warning Turn off the radio before approaching any area where you are instructed to turn off a two-way radio.

Radio installation and operation in vehicles

Warning Keep the radio away from airbags and

airbag deployment areas. Do not install, charge, or place a radio near such areas. An activated airbag can propel a portable radio with sufficient force to cause serious injury to vehicle occupants. An airbag may not perform to specification if obstructed by a radio.

Warning To avoid damage to existing wiring, airbags, fuel tanks, fuel and brake lines, or battery cables, refer to the installation guide for the radio, and to the vehicle manufacturer’s manual, before installing electronic equipment in the vehicle.

16 For your safety

Using a handheld microphone or a radio while driving a vehicle may violate the laws and legislation that apply in your country or state. Please check the vehicle regulations in your area.

Electromagnetic compatibility in European vehicles

In the European Community, radio equipment fitted to automotive vehicles is regulated by UNECE Regulation 10 Revision 5. The requirements of this regulation cover the electromagnetic compatibility of electrical or electronic equipment fitted to automotive vehicles.

Unapproved modifications or changes to radio

The radio is designed to satisfy the applicable compliance regulations. Do not make modifications or changes to the radio that are not expressly approved by Tait. Failure to do so could invalidate compliance requirements and void the user’s authority to operate the radio.

Attaching of labels

Warning Do not obstruct the vent hole on the battery

or the vent hole on the radio chassis label. If the vent on the battery is obstructed, the battery may explode, causing personal injury and/or damage to property. If the vent on the radio is obstructed, audio quality and/ or key function may deteriorate and radio seals may be damaged.

Caution Tait recommends that you do not affix additional labels to the surfaces between the radio chassis and the battery. The fit between these surfaces is intentionally firm and any added thickness will damage the points of attachment between radio and battery. Do not obstruct the vent holes (see Warning above). Do not allow the paper label to extend beyond the recessed label area or to conceal relevant product information.

For your safety 17

Use of lithium-ion batteries

Warning A damaged battery can cause an explosion

or fire, and can result in personal injury and/or property damage. To prevent personal injury and/or damage to property, read the important safety information supplied with the battery.

Short-circuiting battery contacts

Warning Do not short-circuit the battery contacts,

neither intentionally nor accidentally, e.g. by placing the battery with conductive materials such as keys or jewelry inside a pocket or container. Short-circuiting the battery contacts can heat up the conductive material and cause personal injury and/or damage to property.

18 For your safety

Menu map

This section shows the menus and submenus that may be programmed for your radio (for radios with display only).

Contact

Favorite contact list Contact list

Edit contact Delete contact View contact

New contact Manual dial

Ctrl services

Alert call Radio check Radio disable Radio enable Remote monitor

Message

New message Quick text Status message Inbox

Forward Reply

Outbox Drafts

Call logs

Outgoing Incoming

Missed Zone Scan

Scan on/off

Scan list Programming

Channel

Frequency Slot Color code Tx contact Rx group list CTCSS

Radio

Radio alias Radio ID

Settings

Radio settings

Talk around Power level Squelch level Lone worker Backlight Day/night mode Brightness Keypad lock LED Tones Man down

Encrypt Channel display mode Language Radio password Optional key VOX Keypad mode Vibration

Radio information

Accessories

GPS Position view Time zone

BT Work order

1. TP3350 only

Menu map 19

1 About this guide

This user’s guide provides information about the T03-00302 (TP3300) and T03-00303 (TP3350) DMR conventional and analog portable radios.

Both models are available with the following front panels:

■ display and 16 keys

■ display and 4 keys

■ no display and no keys

These front panels are interchangeable. Contact your radio provide for more information.

Bluetooth man-down features are only available in TP3350 portables.

The radio behavior described in this guide applies to radios with firmware version v1.01. If your radio does not operate as you expect, contact your radio provider for assistance.

(page 42), GPS (page 52), and

Safety warnings used in this guide

20 About this guide

Please follow exactly any instruction that appears in the text as an ‘alert’. An alert provides necessary safety information as well as instruction in the proper use of the product. This user’s guide uses the following types of alert:

Warning This alert is used when there is a hazardous situation which, if not avoided, could result in death or serious injury.

Caution This alert is used when there is a hazardous situation which, if not avoided, could result in minor or moderate injury.

Notice This alert is used to highlight information that is required to ensure procedures are performed correctly. Incorrectly performed procedures could result in equipment damage or malfunction.

This icon is used to draw your attention to information that may improve your understanding of the equipment or procedure.

Tait TPEB1D User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
