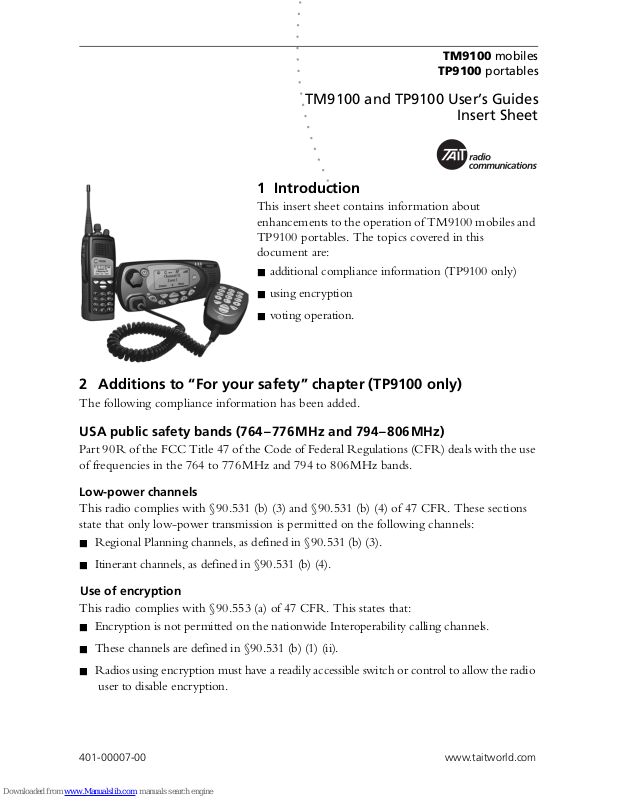

TM9100 mobiles
TP9100 portables
TM9100 and TP9100 User’s Guides
Insert Sheet
1 Introduction
This insert sheet contains information about
enhancements to the operation of TM9100 mobiles and
TP9100 portables. The topics covered in this
document are:
■ additional compliance information (TP9100 only)
■ using encryption
■ voting operation.
2 Additions to “For your safety” chapter (TP9100 only)
The following compliance information has been added.
USA public safety bands (764– 776MHz and 794– 806MHz)
Part 90 R of the FCC Title 47 of the Code of Federal Regulations (CFR) deals with the use
of frequencies in the 764 to 776MHz and 794 to 806MHz bands.
Low-power channels
This radio complies with §90.531 (b) (3) and §90.531 (b) (4) of 47 CFR. These sections
state that only low-power transmission is permitted on the following channels:
■ Regional Planning channels, as defined in §90.531 (b) (3).
■ Itinerant channels, as defined in §90.531 (b) (4).
Use of encryption
This radio complies with §90.553 (a) of 47 CFR. This states that:
■ Encryption is not permitted on the nationwide Interoperability calling channels.
■ These channels are defined in §90.531 (b) (1) (ii).
■ Radios using encryption must have a readily accessible switch or control to allow the radio
user to disable encryption.
401-00007-00 www.taitworld.com
3 Additions to “Safeguarding you and your radio” chapter
About encryption
Note: This feature is available for digital and
dual-mode channels only.
Your radio may be programmed to use
encryption to make your communications
completely private. You may be able to turn
encryption on and off and change the
encryption key that your radio uses when
you make a call.
The radio receiving your call must have the
same encryption key in order to decode
your encrypted call.
The encryption symbol
remains in
the display while encryption is turned on.
Turning encryption on and off
Using the Main menu
To turn encryption on and off using the
Main menu:
1. Turn the 3-way selector to either position A or B.
The message
Encryption activated appears
in the display.
2. Turn the 3-way selector to position C to
turn encryption off.
The message
Encryption deactivated
appears in the display.
Making an encrypted call
1. Select the required channel and group.
2. Check that encryption is on (the encryption symbol
is showing in the display).
3. Check that the channel is free (green
LED is off).
4. Press and hold the PTT key to transmit.
The name of the encryption key that
your radio is using for the transmission
may appear briefly:
1. Press
2. Scroll to
Menu and select
Security>Encryption.
On (or Off) and press Select.
The message
Encryption deactivated) appears in
Encryption activated (or
the display.
Using a function key
To turn encryption on and off using a
function key programmed for encryption.
1. Press the function key to turn
encryption on.
The message
Encryption activated appears
in the display.
2. Press the function key again to turn
encryption off.
The message
Encryption deactivated
appears in the display.
Using the 3-way selector (TP9100 only)
To turn encryption on and off when the
3-way selector is programmed for encryption:
While you are transmitting, the LED
glows red and the transmit symbol
appears in the display.
Receiving an encrypted call
When you receive an encrypted call, your
radio unmutes and you can hear clear speech
if the received call is encrypted with a key
that matches a key stored in your radio.
The name of the encryption key used in the
transmission may appear briefly:
If the key required to decode the call is not
present in your radio, then the radio
remains muted.
2 TM9100 and TP9100 User’s Guides
© Tait Electronics Limited December 2005
‘Proper Key Detect’ feature
Your radio may be programmed so that you
can only hear the encrypted call if the key
used to encrypt the call matches the
encryption key that currently encrypts
your transmissions.
In this case, your radio remains muted even
if the received call is encrypted with a key
that matches another key stored in
your radio.
Using the Preset Keys menu
To change to the default encryption key for
each channel:
1. Press
Menu and select Security >
Preset Keys.
The message
Select Preset Keys? appears in
the display:
For example, you are encrypting your
transmissions using encryption
Although
key 1 and key 2 are also stored in
key 7.
your radio, your radio has been
programmed so that only calls encrypted
key 7 unmute the radio.
using
Changing your radio’s encryption key
You may be able to use the Change All
menu to change the encryption key that
encrypts your transmissions.
Note: Once you change the encryption key,
it may also automatically update the
encryption keys used to encrypt calls on
other channels.
You can use the Preset Keys menu to change
the encryption keys back to the default
encryption key for each channel.
2. Press
OK and the message Preset Key
Selected
appears in the display.
Removing encryption keys from
your radio
It may be possible for you to delete
encryption keys from your radio.
Note: When emergency mode is activated or
when your radio is immobilized (‘inhibited’),
your encryption keys may be automatically
deleted from your radio.
To delete an encryption key:
1. Press
Menu and select Security > Advanced
Zeroize Key.
>
2. Scroll to the key you want and
press
Select.
Using the Change All menu
To change the encryption key using the
Change All menu:
1. Press
Menu and select Security >
Change All. A list of all the encryption
keys stored in your radio appears.
2. Scroll to the key you want and
Select.
press
The message
Global Key Selected appears
in the display.
TM9100 and TP9100 User’s Guides 3
© Tait Electronics Limited December 2005
The message
Single Key Zeroized appears
in the display.
To delete all encryption keys:
1. Press
Menu and select Security > Advanced
> Zeroize All.
The message
Zeroize All Keys? appears in
the display:
2. Press OK and the message
Zeroized
appears in the display.
All Keys
4 Additions to “Listening to channel traffic” chapter
Using your radio in different
repeater areas
Your radio may have a group of channels
programmed as a voting group. The
channels in the voting group all carry the
same traffic, but from different repeaters. As
your radio moves in and out of different
repeater coverage areas, the best
communication channel is automatically
selected for you to use.
This channel is known as the ‘home’
channel, and is the channel you make and
receive calls on until another channel is
voted the home channel. While voting is
active, the LED glows amber and the
scanning symbol appears in the display.
Selecting a voting group
A group is collection of channels that are
grouped together for either voting or
scanning. Select a voting group either by using
a function key or by using the main menu.
On TP9100 portables, you may be able to
use the 16-way channel selector (refer to
your user’s guide for details).
Using a function key
Press the function key to select and activate
a preset voting group.
The programmed group name may now
appear in the display.
The LED glows amber (TM9100 mobiles
only) and the scanning symbol
appears in
the display.
Using the Main menu
You may be able to select a voting group
using the Main menu:
1. Press
Menu and select Channels.
2. Scroll to the group you want and
press
Select.
The LED glows amber and the scanning
symbol appears in the display.
Suspending a channel from a
voting group
You may be able to use the function key
programmed for ‘nuisance delete’ to
temporarily remove one of the channels
from the voting group, if the radio is
continually stopping on an undesired
channel (for instance, if there is interference)
while voting.
To remove a channel from a voting group:
1. Wait until the radio has stopped on the
channel that you want to remove from
the voting group.
2. Press the function key programmed for
nuisance delete.
If the channel has been successfully been
removed, the message
from group
appears in the display.
Channel deleted
The channel remains removed from the
voting group until you either select
another voting group or the radio is
turned off and then on again.
Note: The function key programmed to
activate a voting group may be programmed
so that a short key press activates voting and
a long key press activates nuisance delete.
5 More Information
Refer to your radio provider for more information about this product.
