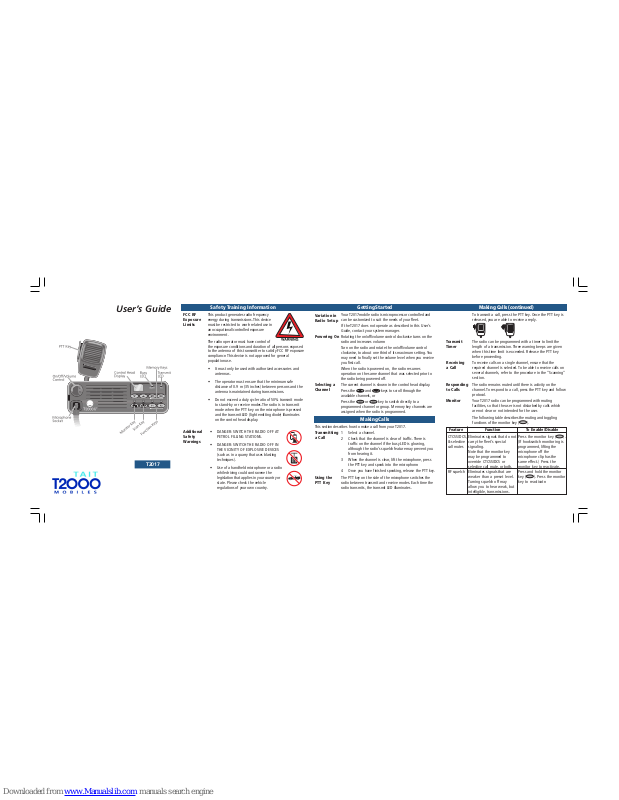

T2017
User’s Guide
The radio can be programmed with a timer to limit the
length of a transmission. Three warning beeps are given
when this time limit is exceeded. Release the PTT key
before proceeding.
To receive calls on a single channel, ensure that the
required channel is selected. To be able to receive calls on
several channels, refer to the procedure in the “Scanning”
section.
The radio remains muted until there is activity on the
channel. To respond to a call, press the PTT key and follow
protocol.
Your T2017 radio can be programmed with muting
facilities, so that the user is not disturbed by calls which
are not clear or not intended for the user.
The following table describes the muting and toggling
functions of the monitor key ( ).
Getting Started
Your T2017 mobile radio is microprocessor controlled and
can be customized to suit the needs of your fleet.
If the T2017 does not operate as described in this User’s
Guide, contact your system manager.
Rotating the on/off/volume control clockwise turns on the
radio and increases volume.
Turn on the radio and rotate the on/off/volume control
clockwise, to about one third of its maximum setting. You
may need to finally set the volume level when you receive
you first call.
When the radio is powered on, the radio resumes
operation on the same channel that was selected prior to
the radio being powered off.
The current channel is shown in the control head display.
Press the and keys to scroll through the
available channels, or
Press the M1 or M2 key to switch directly to a
programmed channel or group. Memory key channels are
assigned when the radio is programmed.
Powering On
Selecting a
Channel
Variation in
Radio Setup
Receiving
a Call
Responding
to Calls
Monitor
• DANGER: SWITCH THE RADIO OFF AT
PETROL FILLING STATIONS.
• DANGER: SWITCH THE RADIO OFF IN
THE VICINITY OF EXPLOSIVE DEVICES
(such as in a quarry that uses blasting
techniques).
• Use of a handheld microphone or a radio
while driving could contravene the
legislation that applies in your country or
state. Please check the vehicle
regulations of your own country.
Additional
Safety
Warnings
Safety Training Information
This product generates radio frequency
energy during transmissions. This device
must be restricted to work-related use in
an occupational/controlled exposure
environment.
The radio operator must have control of
the exposure conditions and duration of all persons exposed
to the antenna of this transmitter to satisfy FCC RF exposure
compliance. This device is not approved for general
population use.
• It must only be used with authorized accessories and
antennas.
• The operator must ensure that the minimum safe
distance of 0.9 m (35 inches) between persons and the
antenna is maintained during transmissions.
• Do not exceed a duty cycle ratio of 50% transmit mode
to stand-by or receive modes. The radio is in transmit
mode when the PTT key on the microphone is pressed
and the transmit LED (light emitting diode) illuminates
on the control head display.
FCC RF
Exposure
Limits
Transmit
Timer
Making Calls (continued)
To transmit a call, press the PTT key. Once the PTT key is
released, you are able to receive a reply.
Feature
CTCSS/DCS,
& selective
call mutes
RF squelch
Function
Eliminates signals that do not
carry the fleet’s special
signaling.
Note that the monitor key
may be programmed to
override CTCSS/DCS or
selective call mute, or both.
Eliminates signals that are
weaker than a preset level.
Turning squelch off may
allow you to hear weak, but
intelligible, transmissions.
To Enable/Disable
Press the monitor key ( ).
(If hookswitch monitoring is
programmed, lifting the
microphone off the
microphone clip has the
same effect.) Press the
monitor key to reactivate.
Press and hold the monitor
key ( ). Press the monitor
key to reactivate.
Using the
PTT Key
Making Calls
This section describes how to make a call from your T2017.
1 Select a channel.
2 Check that the channel is clear of traffic. There is
traffic on the channel if the busy LED is glowing,
although the radio’s squelch feature may prevent you
from hearing it.
3 When the channel is clear, lift the microphone, press
the PTT key and speak into the microphone.
4 Once you have finished speaking, release the PTT key.
The PTT key on the side of the microphone switches the
radio between transmit and receive modes. Each time the
radio transmits, the transmit LED illuminates.
Transmitting
a Call
Scanning
The scan feature is used to monitor groups of channels, searching for
transmissions carrying tones or codes specifically programmed in the radio.
• Scanning halts when valid traffic is detected on a
channel in the scan group. Once activity ceases, the
radio resumes scanning.
• While the radio is scanning, you may lift the
microphone off the microphone clip and make a call. If
the radio is monitoring a busy channel, it remains on
that channel, otherwise it returns to the programmed
home channel.
1 Check that the microphone is on the microphone clip
(although your radio may be programmed to scan
while the microphone is off the clip).
2 Press the scan key ( ) to activate scanning.
3 Use the and keys to scroll through the
available scan groups, or
Press the M1 or M2 key to switch directly to a
programmed scan group. Memory key scan groups are
assigned when the radio is programmed.
4 To cancel scanning, press the scan key or select a non-
scanning channel, using the memory keys.
Scan
Mode
5-Tone Calls
Your T2017 may be programmed for 5-tone selective calls. 5-tone calls can
be made to specific individuals or groups on channels programmed with 5tone. The radio must have a 5-tone module installed and be programmed
appropriately.
To call another party using 5-tone:
1 Select a channel with 5-tone programmed.
2 Check that the channel is free (busy LED off).
3 Press the PTT key, or
press the function key (F1 or F2) programmed for
a preset 5-tone call.
4 When a reply is received, lift the microphone off the
microphone clip, press the PTT and begin speaking.
When a 5-tone call is received, the radio gives a ringing
tone. To accept the call, lift the microphone off the
microphone clip, press the PTT key and begin speaking.
To reject a call, press any key other than the PTT and the
ringing stops.
When a 5-tone group call is received, the radio gives one
ringing tone and the caller broadcasts a message. There is
usually no need to respond to 5-tone group calls.
Sending
a 5-Tone
Call
5-Tone
Group Calls
Receiving a
5-Tone Call
Selecting a
Scan Group
Additional Information
Your T2017 may be programmed for emergency mode.
Emergency mode is activated either by a hidden switch or
by giving a long press of a programmed function key (
F1
or F2). An emergency call is then sent to a predetermined location, such as the dispatcher. The radio must
have either 5-tone or G-STAR signaling installed and be
programmed appropriately.
• During an emergency mode, the radio switches in and
out of transmit mode, so that activity around the radio
can be monitored.
• The radio that receives your emergency call can
transmit a code to return your radio to normal
operation. Alternatively, switching the radio off and
then on resets the radio.
To conserve battery power, the radio may be programmed
to dim or turn off the control head display and the keypad
backlighting, after a preset period of inactivity.
Any valid activity on the selected channel restores the radio
to full operation. The radio is also returned to full operation
by pressing the PTT or any control head key.
If the control head display flashes either 31, 32 or 33, then
an error has occurred in the radio’s signaling module. Press
any key to acknowledge the message and contact your
local dealer for assistance.
Once you have pressed a key to clear the message, you
can now continue to use your radio, but without any
signaling functions. These functions include 5-tone or GSTAR emergency calling, 2-tone decoding, G-STAR
encoding and 5-tone operations.
If none of the control head LEDs illuminate when the radio
is powered on, check all the leads, in-line fuses and
connections between the battery and the radio. If this does
not reveal a fault, contact your local dealer for assistance.
Economy
Mode
Emergency
Mode
Troubleshooting
Error
Messages
G-STAR ID Signaling
Your T2017 can be programmed with G-STAR ID signaling. This allows
individual radio users to be identified by assigning a unique G-STAR ID to
each radio. This ID is sent out each time the radio transmits on a channel
with G-STAR signaling assigned, and is decoded by the dispatcher, giving a
visual identification of the radio in use. Your radio may be programmed to
give a short beep after the G-STAR ID has been sent.
The radio must have a signaling module installed and be programmed
appropriately.
2-Tone Decoding
2-tone decoding is used to selectively call individual or groups of radios. To
decode 2-tone calls, your radio must have a signaling module installed
and be programmed appropriately.
When a 2-tone call is received, the radio gives a beep,
indicating the type of 2-tone call that has been received.
• Individual call: one long beep.
• Group call: two medium beeps.
• Super group call: three short beeps.
To accept the call, lift the microphone off the microphone
clip, press the PTT key, and begin speaking.
Receiving a
2-Tone Call
Copyright © Tait Electronics Ltd March 2002 M2017-NA-000-804
Removing the Radio from the Vehicle
For security, the radio may be removed from the vehicle. The radio can be
released from its cradle using the special cradle key, as follows:
1 Switch the radio off.
2 Insert the cradle key in the slot beside the on/off/
volume control.
3 Holding the radio’s control head by its edges, pull the
radio towards you until it is clear of the cradle.
4 Disconnect the antenna and other cables from the rear
of the radio.
5 Remove the radio.
