Synology DS-106 Series
User’s Guide
Syno106Series_UG_20060519_enu
Copyright Notice
All title, copyright and other intellectual property rights in and to the Software
Product (including but not limited to any relevant media, images, photographs,
animations, video, audio, music, text, and applets incorporated into the Software
Product), the accompanying manuals and other documents, and on-line or
electronic documents, if any, (collectively “Software Product”) are owned by
Synology Inc. Unless otherwise expressly licensed by Synology Inc. in writing,
any provision of the Software Product does not represent any license of any of
the above rights.
Copyright © 2004-2006 Synology Inc.; All rights reserved.
Trademark Notice
Synology and other names of Synology products are trademarks or registered
trademark of Synology Inc.
Microsoft, Windows, Windows 2000, and Windows XP are trademarks of
Microsoft Corporation.
Mac, Mac OS, and Mac OS X are trademarks of Apple Computer, Inc.,
registered in the U.S. and other countries.
Other products and company names mentioned herein are trademarks of their
respective holders.
Limited Warranty
Synology provides limited warranty for its product only to the person or entity
that originally purchased the product from Synology or its authorized distributor
or retailer. Synology guarantees that every hardware portion of the product will
be free from physical defects in material and workmanship for one year from the
date of purchase. If the product proves defective during this warranty period,
contact with the local dealer in order to obtain assistance. Be sure to have your
proof of purchase and a barcode number from the product’s packaging on hand
when asking for assistance. Synology 106 series server is a barebones system
so Synology makes no warranty of the optional hard disk.
Synology provides no warranty or representation, expressed, implied, or
statutory, with respect to its products or the contents or use of this
documentation and all accompanying software, and particularly disclaims its
quality or performance for any purpose.
Synology makes no guarantee that all data stored on Synology 106 series server
is always secure without any risks of data losing. Synology reminds you to back
up the data periodically. Under no circumstances shall Synology be liable in any
way to the user for damages, including any savings, lost profits or other
incidental or consequential damages arising out of the use of, or inability to use
Synology products.
Synology Inc. products are not intended for use in medical, life saving, or life
sustaining applications.
Revisions
Synology reserves all rights to revise or update its products, software, or related
documentation without further notice.
Synology Inc. reserves the right to revise this publication and to make changes
in the content hereof without the obligation to notify any person of such revision
or changes.
1
Index
Safety Warnings and Instructions.............................................................................................. 4
About this User’s Guide............................................................................................................. 5
Getting to know your Synology Server...................................................................................... 6
Introduction ......................................................................................................................... 6
File Server................................................................................................................................6
Backup Server .........................................................................................................................6
FTP Server...............................................................................................................................6
Entertainment Application.......................................................................................................6
USB Printer Server..................................................................................................................7
Specification........................................................................................................................ 7
Limitations........................................................................................................................... 8
Appearance......................................................................................................................... 9
LED Indication Descriptions Table.................................................................................... 10
Managing Synology Server ..................................................................................................... 12
Entering Web Management UI.......................................................................................... 12
Using Setup Utility.................................................................................................................12
Accessing Web Management UI Manually........................................................................14
Managing Synology Server............................................................................................... 15
Joining Windows Domain.................................................................................................. 15
Assigning Access Right for Domain Users........................................................................16
Resetting Administrator Password.................................................................................... 16
Reinstalling Synology Server............................................................................................ 16
Accessing Synology Server Data............................................................................................17
Shared Folders.................................................................................................................. 17
System Built-in.......................................................................................................................17
Administrator-Created...........................................................................................................18
Setting Access Control...................................................................................................... 18
Setting Encoding............................................................................................................... 19
Accessing Shared Folders................................................................................................ 19
Windows User........................................................................................................................19
Mac User.................................................................................................................................21
Through FTP..........................................................................................................................21
Server Backup and PC Backup Solutions............................................................................... 23
Local Backup..................................................................................................................... 23
Network Backup................................................................................................................ 24
Backing up Personal Data................................................................................................. 24
Before starting........................................................................................................................25
Minimum System Requirement...........................................................................................25
Installing Synology Data Replicator II.................................................................................25
Using Synology Data Replicator II......................................................................................26
Backing up Synology Server Settings............................................................................... 26
Synology Server to PC Client..............................................................................................26
Synology Server to another Synology Server...................................................................27
Sharing USB Printer................................................................................................................ 28
Extra Features......................................................................................................................... 29
Multimedia Service............................................................................................................ 29
Download Station .............................................................................................................. 29
Enabling Download St atio n..................................................................................................29
Installing Download Redirector............................................................................................29
Web Station....................................................................................................................... 30
Enabling Web Station and MySQL......................................................................................30
Web Station’s detail description...........................................................................................30
Photo Station..................................................................................................................... 31
Enabling Photo Station .........................................................................................................31
Photo Station’s detail description........................................................................................31
USBCopy .......................................................................................................................... 31
Setting USBCopy Target Location ......................................................................................31
2
Mail Notification................................................................................................................. 32
Firmware Update............................................................................................................... 32
Expanding HDD Capacity........................................................................................................ 34
External HDD.................................................................................................................... 34
External USB HDD................................................................................................................34
External SATA HDD...............................................................................................................34
Replacing Larger Internal HDD......................................................................................... 35
Troubleshooting....................................................................................................................... 36
Appendix.................................................................................................................................. 37
Recommended Peripherals .............................................................................................. 37
Recommended SATA HDD..................................................................................................37
Recommended USB Printer.................................................................................................37
Recommended UPS.............................................................................................................39
Recommended NTP Server.............................................................................................. 39
3
Safety Warnings and Instructions
Please read this safety warnings and instructions carefully before use, and
keep it well for your future reference.
1. Do not place the product in direct sunlight or near chemicals. Make sure
that the environment does not experience abrupt changes in temperature
or humidity.
2. Before cleaning, please unplug the power cord first. Wipe the product with
wet paper towers. Do not use chemical or aerosol cleaners to cle an it.
3. Do not put the product close to any liquid.
4. Do not put the product on a cart, table, or desk, which is not stable to avoid
falling off.
5. Keep the product stand erect. Do not lay it down horizontally.
6. There are ventilation openings on the side covers. To make sure the
product is operating under normal condition, please do not block or cover
the openings to avoid overheating.
7. Take extra care to allow sufficient air circulation or spaces for the product.
8. The connections and equipment which provides electricity to the product
should be capable of operating safely with the maximum power
requirements. In case of a power overload, the supply circuits and supply
wiring should not become hazardous.
9. Do not allow anything to rest on the power cord and do not locate the
product where anyone can walk on the power cord.
10. Do not attempt to repair the product by yourself. Opening or removing the
covers can expose you to dangerous high voltage or other risks. Refer all
service to qualified service personnel.
4
About this User’s Guide
This user's guide covers all the functions of Synology 106 series server. Some of
the functions may only be available on specific models.
5
Getting to know your Synology Server
Introduction
Congratulations on your purchase of Synology 106 series server (“Synology
Server”). Synology Server is specially designed for SOHO and home users with
multiple functions:
File Server
Windows and Mac users can easily share files within Intranet or through Internet.
Unicode language support makes sharing different lan guage files from Synology
Server without problems.
Backup Server
Synology Server provides diverse backup solutions to backup Synology Server
data or backup PC data to Synology Server.
FTP Server
Synology Server provides FTP service with bandwidth restriction and
anonymous login.
Entertainment Application
Personal or corporate website can be easily setup using “Web Station” function.
By integrating with PHP and MySQL, user can also setup online shop.
6
“Photo Station” provides easy and fast method to share your photos online.
“Download St ation” allo ws you to download files from Internet through BitTorrent,
FTP, and HTTP to Synology Server. Moreover, if you have UPnP DMA
connected in the LAN, you can enable “Multimedia Service” and share the
multimedia files on Synology server.
The build-in “Copy” button on the device allows instant copy of photos from the
camera to Synology Server.
USB Printer Server
You can share USB 2.0 Printer through Local Area Network.
Specification
Item DS-106e DS-106
Hard Disk
Interface
Maximum
Capacity
USB 2.0
Ports
LAN Port RJ-45 10/100/1000Mbps RJ-45 10/100/1000Mbps
USB Copy Yes Yes
Windows
User
Mac User Mac OS 9 onward Mac OS 9 onward
Maximum
User
Accounts
Maximum
Group
Accounts
Maximum
Shared
Folder
SATA SATA
500GB 500GB
*3 *3
Windows 98 onward Windows 98 onward
128 128
64 64
100 100
Maximum
Concurrent
Connections
NTP Yes Yes
FTP Yes Yes (+SSL/TLS)
Windows
ADS/NT4
Domain
Language
Localization
32 32
No Yes
English, French, German,
Korean, Italian, S panish,
Traditional Chinese, Simplified
English, French, German,
Korean, Italian, S panish,
Traditional Chinese, Simplified
7
Item DS-106e DS-106
Chinese Chinese
eSATA Port *1 *1
HDD
Hibernation
Event
Notification
Agency
Certifications
Dimension 18.1cm x 21.2cm x 6.0cm 18.1cm x 21.2cm x 6.0cm
Weight 0.5kg (excluding HDD) 0.5kg (excluding HDD)
Power
Consumptio
n
And
Environment
Requirement
s
Yes Yes
Yes Yes
FCC Class B、CE、BSMI、
C-Tick
Line voltage
100V to 240V AC
Frequency
50Hz to 60Hz
Power Consumption
Standby: 14.64W
Working: 17.88W
Hibernation: 6.72W
Operating Temperature
50 to 95∘F (10 to 35∘C)
Storage Temperature
-40 to 185∘F (-10 to 70∘
C)
Relative Humidity
5% to 95% RH
Maximum Operating Altitude
10,000 feet
FCC Class B、CE、BSMI、
C-Tick
Line voltage
100V to 240V AC
Frequency
50Hz to 60Hz
Operating Temperature
50 to 95∘F (10 to 35∘C)
Storage Temperature
-40 to 185∘F (-10 to 70∘
C)
Relative Humidity
5% to 95% RH
Maximum Operating Altitude
10,000 feet
Limitations
1. Supports up to 1 USB printer.
2. Supports up to 3 USB disks.
3. USB Copy function only supports USB disks with F AT32 file system.
4. Some digital cameras are defined as a Still Image Device, such as Canon.
For such devices, Synology Server only supports USB Copy function (No
USB share function).
5. For Mac users, Synology Server supports only USB printers with
PostScript.
8
Appearance
Front View Rear View
USBCopy
Fan
eSATA
port
RESET
button
POWER
button
USB
port
LAN port
DC in 12V
port
(DS-106) (DS-106)
Article Name Location Description
Power Button Front Panel The Power Button is used to turn the Synology
Server On or Off.
1. It will take approximately 30 seconds to 1
minute to turn on Synology Server.
2. To turn Off Synology Server, press the Power
Button until you hear a "beep" and the Power
LED begins blinking. The shutdown process
will complete in 30 seconds.
COPY Button Front Panel The COPY Button lights up when you connect a
USB Device (for example: digital camera, USB flash
disk). Pressing the button will copy the data from the
connected USB device to the Synology Server's
internal HDD.
9
USB Port Front Panel The Synology Server offers 3 USB ports for adding
additional external hard drives, USB printers, or
other USB devices. One at the front, and other two
at the back.
Smart Fan
Ventilation
eSATA Port Back Panel The eSATA port is for connecting with an external
RESET
Button
LAN Port Back Panel The LAN port is where you connect RJ-45 cable to
DC IN 12V
Port
Front Panel The Smart Fan is to exhaust waste heat out of the
Synology Server. The Smart Fan will start
automatically when the internal system temperature
reaches 46 °C. If the fan is malfunctioning, system
will "beep" every five seconds.
SATA HDD.
Back Panel 1. To restore IP, DNS, passwords for the "admin"
account to default value, and reset the “guest”
account to the “enabled” status. (Please refer
Resetting Administrator Password”
to “
chapter.)
2. To reinstall the Synology Server. (Please refer
Reinstalling Synology Server” chapter.)
to “
Synology Server.
Back Panel The DC IN 12V Port is where you connect the AC
Power Adapter .
LED Indication Descriptions Table
LED
Indication
Power BLUE
Status Green/Orange
HDD Green
Color Status Description
Blinking
Solid Light System Ready
Light Off Power Off
Solid Green Light Used HDD Capacity below 85%
Solid Orange
Light
Blinking Orange
Light
Blinking after 5
seconds of Solid
Orange Light
Light Off System Startup/Off
Blinking During Read/Write
Light Off Can not Read/Write
y During System boot-up
y During System shutdown
y Used HDD Capacity between
85% - 95%
y HDD has not been formatted
y Used HDD Capacity over 95%
y HDD status abnormal
y Restoring to default value
No HDD
10
LED Color Status Description
Indication
LAN Green
Blinking Normal operation
Light Off LAN cable not connected
11
Managing Synology Server
Entering Web Management UI
There are two options for you to enter the management UI:
Using Setup Utility
[Windows User]

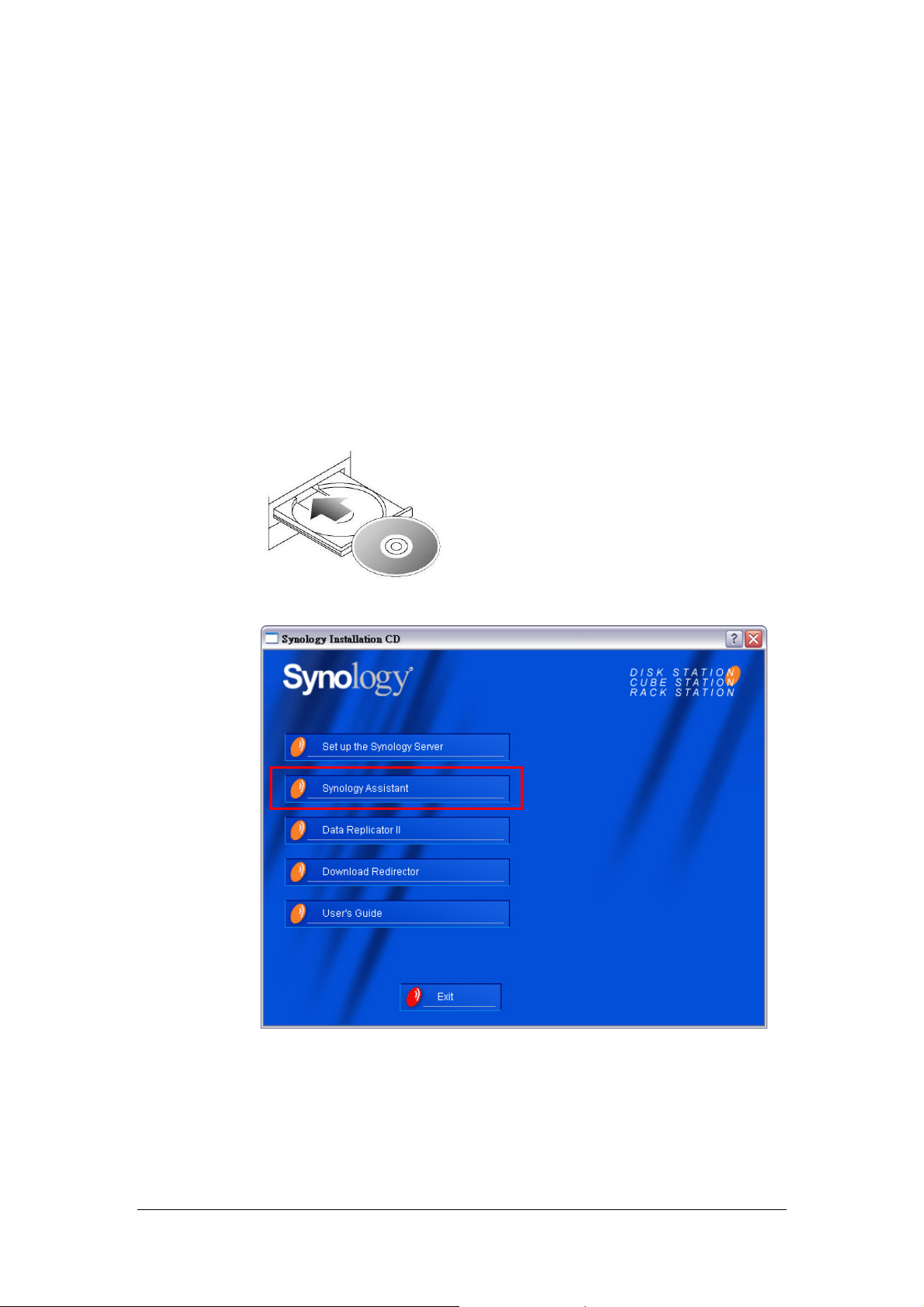

1. Insert the Installation CD into CD/DVD-Rom Drive.
2. Choose “Synology Assistant” at the Autoup Menu.
3. Follow the steps to complete installation.
4. After installation, double click on the desktop icon to execute the program.
12
5. Choose the server you want to manage and click “Manage” to enter the
Web Management UI.
6. Choose “login as system administrator (admin)”, input password and click
“Enter”.
[Mac OSX User]
13
1. Insert the Installation CD into CD/DVD-Rom Drive.
2. Double-Click CD-Rom Drive thumbnail.
3. Double-Click "MacOSX" thumbnail.
4. Double-Click "Synology Assistant-SYNOLOGY.dmg" thumbnail.
5. Double-Click "Synology Assistant" thumbnail to run setup wizard.
6. Choose a Synology Server and click "Manage" to enter the Web
Management UI.
7. Choose "login as system administrator (admin)", input password and click
"Enter".
Please note:
To ensure flawless management process, please use the following browsers:
Client Browser
PC IE 6.0 onward
Mac OS X 10.3.x Safari 1.3 onward
Mac OS X 10.4.x Safari 2.0 onward
Accessing Web Management UI Manually
1. Open web browser.
2. At the address line input “http://Synology_Server_Name:5000/", where
“Synology_Server_Name” is the name you setup for Synology Server
during the setup process.
3. Press “Enter” key on the keyboard.
14
4. Choose "login as system administrator (admin)".
5. Input password for admin.
6. Click “Enter” to access Web Management UI.
Managing Synology Server
You can start managing Synology Server in Web Management UI. Synology
Server Web Management UI provides distinctive and straight forward design for
easy management. You will find an online “Help” button on every page of the
Web Management UI. Click on the “Help” button for further information
whenever you encounter any problem.
Joining Windows Domain
You can add Synology Server to Windows domain and let the domain users
access Synology Server. Synology Server supports both Active Directory
Service (ADS) and NT4 domain. After being added to a Windows domain, the
domain users only need to enter their domain account and password when trying
to access the Synology Server. If the authentication succeeds, access will be
granted.
For the detailed description, please refer to Help on “Network > Win/Mac OS”
page.
15
Assigning Access Right for Domain Users
After adding Synology Server to a Windows domain, you can grant domain
users’ access rights to the sha red folders on Synology server. Please refer to the
Accessing Synology Server Data > Setting Access Control” section for details.
“
Resetting Administrator Password
Pressing the “RESET” button and hold it for about 4 seconds before you heard a
beep sound will restore IP, DNS, passwords for the "admin" account to default
value, and reset the “guest” account to the “enabled” status.
Reinstalling Synology Server
If for any reason you have to reinstall the Synology Server, you can press the
RESET button on the back panel twice, and the Synology Server will be
reinstalled. The data saved on the Synology Server will not be erased during the
reinstallation. However, for security’s reason, we strongly recommend that you
back up the data on the server .
To reinstall the server:
1. Press the “RESET” button and hold it for about 4 seconds. Release the
button when the Synology Server emits a beep sound.
2. Within the next 10 seconds, press the “RESET” button and hold it for about 4
seconds again. Release the button when the Synology Server emits three
beep sounds.
3. Run Synology Assistant, and set up the Synology Server again.
16
Accessing Synology Server Data
File sharing service is Synology Server's major function. Administrator can setup
access rights for users eit her with Windows or Mac to access share d folders.
Shared Folders
System Built-in
Name Description
public After Synology Server is successfully set up, the shared
folder “public” will be available for access instantly.
web The shared folder “web” is for storing web pages. When
Web S tation is enabled, users can browse the
constructed website through browser. For detailed
information, please refer to “
Station
” section.
Extra Features > Web
photo The shared folder “photo” is for storing image files. Files
in “photo” shared folder can be browsed when Photo
Station or Multimedia Service is enabled. For detailed
information, please refer to descriptions of
Multimedia Service.
and
music Music files in “music” shared folder can be browsed
through UPnP DMA when Multimedia Service is enabled.
For detailed information, please refer to descriptions of
Multimedia Service.
video Video files in “video” shared folder can be browsed
through UPnP DMA when Multimedia Service is enabled.
For detailed information, please refer to the page
“Network > Multimedia Service.”
NetBackup The shared folder “NetBackup” is for saving backed up
files using Network Backup. Please refer to the page
“Tools > Network Backup.”
usbshare After you connect external USB HDD to Synology
Server’s USB port, system will automatically create a
shared folder with the prefix “usbshare”. Refer to
Expanding HDD Capacity > External HDD” section for
“
details.
satashare After you connect external SATA HDD to Synology
Server’s eSATA port, system will automatically create
“satashare” shared folder. Refer to “
Capacity
> External HDD” section for details.
Expanding HDD
Photo Station
Please note: Administrator can not delete the shared folders mentioned above.
17
Administrator-Created
Apart from the above system built-in shared folders, Administrator can create
shared folders on the page “System > Shared Folder” of the Web Management
UI. Shared folders created by Administrator can be deleted or renamed at any
time.
Setting Access Control
For security reasons, Administrator can go to the page “System > Shared
Folder” of the Web Management UI and set access rights for different users by
selecting the shared folder and clicking “View/Edit”.
18
Setting Encoding
Synology Server uses Unicode to manage files. The benefit of using Unicode is
to avoid file inaccessibility between users who use different languages. However,
for users without Unicode support on their PC, Administrator can set the
encoding method of the files to overcome the problem. Please go to the page
“Network > Win/Mac OS” of the Web Management UI for the setting.
Accessing Shared Folders
Windows User
Windows users can access the Synology Server’s shared folders by using Setup
Utility to map Network Drive
Synology Assistant, which is included in the Installation CD, not only helps
Administrator manage Synology Server, but also provides users with the
following steps to map Network Drive:
1. Run Synology Assistant.
2. Choose the server to map network drive.
3. Click on the “Map Drive” button on the left.
19
4. Follow the on-screen steps to finish the setup.
5. Upon completion, user can access the mapped shared folder in Windows
Explorer.
20
Mac User
Mac user can use ”Go > Connect to Server” to choose a Synology Server and
access the shared folder on the server.

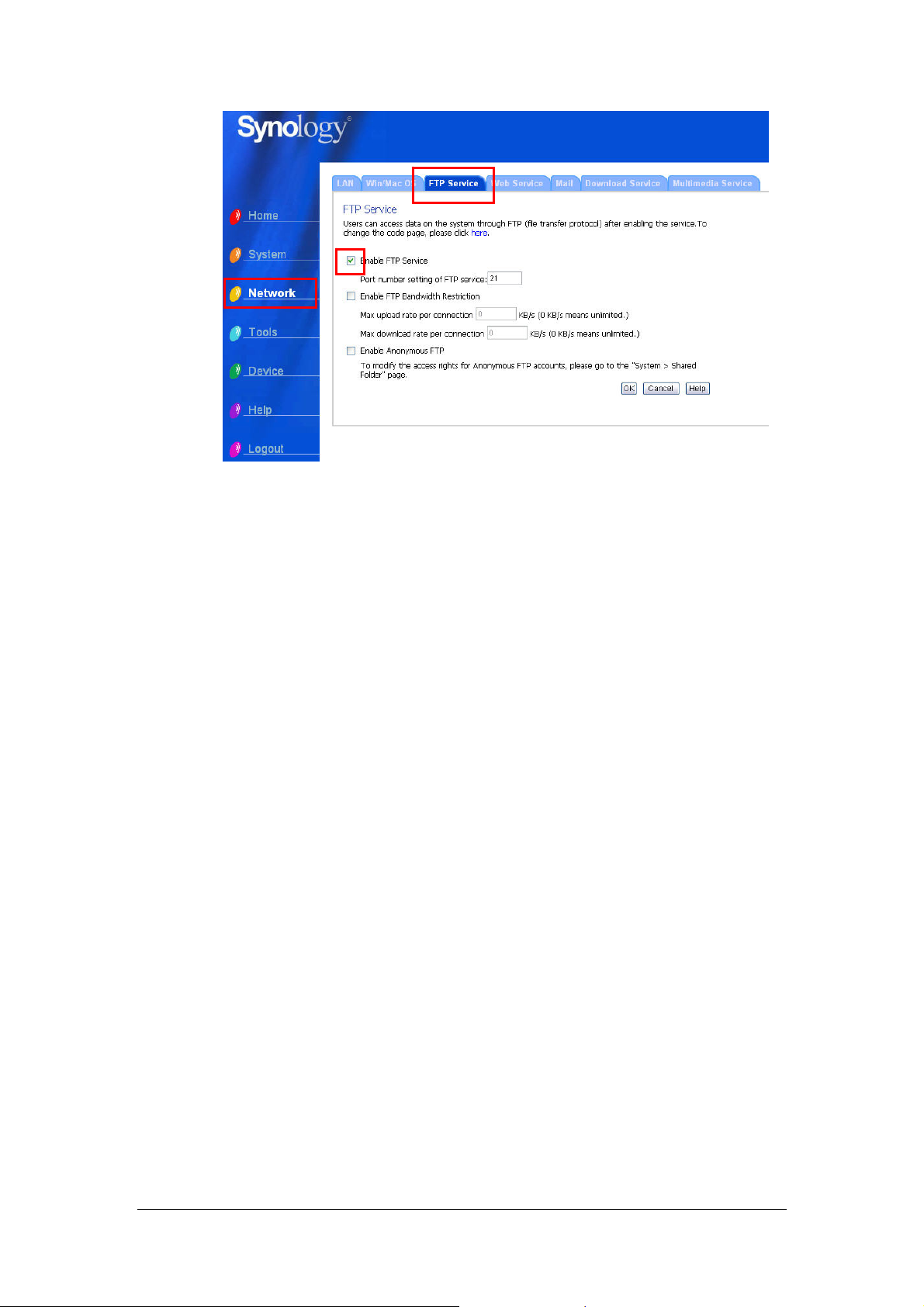

Through FTP
Synology server provides FTP service. Administrator can enable FTP service on
the “Network > FTP Service” page of the Web Management UI. Windows users
and Mac users can thus access data in Synology Server by FTP Protocol. To
prevent data from being access while transferring, users can also use “FTP over
SSL” or “FTP over TLS” to make the data more secure. For the detailed
information of using FTP and its limitation, please refer to Help on “Network >
FTP Service” page.
21
Please Note:
1. Administrator has the option to adjust FTP Bandwidth or enable
Anonymous login.
2. FTP Service does not support Unicode. Before enabling FTP Service,
please go to “Network > Win/Mac OS” page and setup codepage according
to user’s client PC.
22
Server Backup and PC Backup Solutions
Synology Server provides complete backup solutions:
1. By using “Local Backup”, Administrator can backup Synology Server’s data
to external USB or SATA HDD.
2. By using “Network Backup”, Administrator can backup Synology Server’s
data to another Synology Server.
3. By installing Synology Data Replicator II software on the client PC,
Windows users can backup data from PC to Synology Server.
4. Administrator can also backup Synology Server’s User , Group, and Shared
folders (see details below).
Local Backup
Please follow the below steps to perform Local Backup:
1. Connect an external USB HDD or SATA HDD to the corresponding port on
Synology Server.
2. Go to the page “Device > USB Disk” or “Device > SATA Disk” of the Web
Management UI, and format the HDD as “backup purpose”.
3. Go to the page “Tools > Local Backup” to setup your backup task.
23
Network Backup
Network Backup allows Administrator to backup Synology Server’s data to
another Synology Server through network. Please ensure Network Backup
option is enabled on both Target and Client Server before performing the task.
Go to “Tools > Network Backup” page for detail information.
Backing up Personal Data
Windows users can install “Synology Data Replicator II” backup software which
can be found on the installation CD. They can backup client PC data to Synology
Server to maintain a good copy of data whenever needed.
24
Using Synology Data Replicator II, users can:
1. Monitor selected folders on client PC and perform real-time backup when
any modification to the file is made.
2. Adjust backup versions and restore points.
3. Restore backup date on Synology Server to client PC at user’s preference.
Before starting
Before using Synology Data Replicator II, please ensure:
1. Client PC and Synology Server uses the same encoding for backup to
perform adequately.
2. Synology Data Replicator II is the next generation of Synology Data
Replicator. It can only restore backup data on Synology Server generated
by itself. If users have backed up data on Synology Server using Synology
Data Replicator, we recommend restoring data on Synology Server to PC
first before using Synology Data Replicator II.
Minimum System Requirement
1. Free HDD Space: 5MB
2. Operating System: Windows 98/ME/NT/2000/XP
3. Best Screen Resolution: 1024*768 and above
4. Microsoft Networking over TCP/IP enabled and has network connection
with Synology Server.
Installing Synology Data Replicator II
Insert Installation CD into Windows user CD/DVD-Rom drive. Click on “Syn ology
Data Replicator II”, and follow on-screen instructions.
25
Using Synology Data Replicator II
After installation, double click on the software icon to execute the program. Click
on “Help” for detail description.
Backing up Synology Server Settings
There are two options for you to backup Synology Server’s “User”, “Group”,
“Shared Folder” settings for easy maintenance and restoration.
Synology Server to PC Client
Go to the page “System > Backup” of the Web Management UI to backup
settings from Synology Server to PC Client.
26
Synology Server to another Synology Server
The data backed up to another Synology Server using “Network Backup”
automatically includes the “User”, “Group”, “Shared Folder” settings. When you
recover the data, you can choose if you want to recover these settings.
27
Sharing USB Printer
Synology Server supports Windows 98 and above users, and Mac OS 9 and
above users to share USB Printer. For the detailed set tings on dif ferent platform s,
please refer to the page “Device > USB Printer” of the Web Management UI.
28
Extra Features
Multimedia Service
When “Multimedia Service” is enabled, users who have UPnP DMA (Digital
Media Adapter) can browse multimedia files on Synology server. Please go to
“Network > Multimedia Service” page for further setup.
Download Station
Synology server can download files from Internet through BitTorrent, FTP, and
HTTP. PC users and Mac users can install Download Redirector to add
download tasks and manage the download queue.
Before start adding download tasks, you should enable Download Station on the
server and install Download Redirector on PC or Mac.
Enabling Download Station
Go to the “Network > Download Service” page.
Installing Download Redirector
Insert Installation CD into the CD/DVD-Rom drive. Click on “Download
Redirector”, and follow on-screen instructions.
For the detailed description of Download Redirector, please refer to Help on
Download Redirector program window.
29
Web Station
Personal or corporate website can be easily setup using “Web Station.” By
integrating with PHP and MySQL, users can also setup online shop. PHP
support is turned on by default, MySQL requires manually enabling.
Enabling Web Station and MySQL
Go to the “Network > Web Service” page.
Web Station’s detail description
Please click on “Here” link under “Enable Web Station”.
30
Photo Station
“Photo Station” provides easy and fast method to share your photos online.
Access right control can be setup to effectively manage each album.
Enabling Photo Station
Go to the “Network > Web Service” page.
Photo Station’s detail description
Please click on “Here” link under “Enable Photo Station”.
USBCopy
When a USB Device is connected to the USB port at the front panel, by pressing
the “COPY” button all the data in the USB Device will be copied to Synology
Server’s internal HDD.
Setting USBCopy Target Location
You can setup USBCopy target location on the “Device > USBCopy” page of the
Web Management UI. When pressing the “Copy” button from now on, data will
be copied to the target location.
31
Mail Notification
Administrator can enter email address on the page “Network > Mail”. Synology
Server will send email to the address whenever an important event occurs to
notify Administrator.
Firmware Update
To keep your Synology Server up to date, Administrator can go to “Tools >
Update” page to upgrade firmware.
32
33 33
Expanding HDD Capacity
Administrator can expand HDD capacity by connecting external HDD, or
replacing a larger capacity internal HDD.
External HDD
External USB HDD
When connecting an external USB HDD to Synology Server’s USB port,
“usbshare1” shared folder will be created automatically. Upon disconnecting
external USB HDD, the shared folder will be removed. For more than 1 external
USB HDD is connected, “usbshare2”, “usbshare3” will be created accordingly.
To Eject or Format external USB HDD, go to the page “Device > USB Disk” of
the Web Management UI.
External SATA HDD
When connecting an external SATA HDD to Synology Server’s eSATA port,
“satashare” shared folder will be created automatically. Upon disconnecting
External SATA HDD, shared folder will be removed.
To Eject or Format external SATA HDD, go to the page “Device > SATA Disk” of
the Web Management UI.
34
Replacing Larger Internal HDD
When the internal HDD storage is run out, Administrator can follow the steps to
replace a larger HDD and keep using the original data:
1. Replace the original internal HDD with a larger one.
2. Connect the original HDD to the USB port or eSA TA port.
3. Copy the data from the original HDD to the new HDD
4. Remove the original HDD.
35
Troubleshooting
For any questions about managing your Synology Server, please refer to the
“Help” button at every page of the Web Manag ement UI. For any questions other
than that, please visit Synology Inc. website (
assistant.
www.synology.com) for further
36
Appendix
Recommended Peripherals
Recommended SATA HDD
Brand Model Capacity
Seagate ST3120026AS 120G
Seagate ST3300831AS 300G
Seagate ST3500641AS 500G
Seagate ST3400832AS 400G
Hitachi HDS725050KLA360 500G
Hitachi HDS722525VLSA80 250G
Maxtor 6H400F0 400G
Maxtor 6H500F0 500G
Maxtor 6V250F0 250G
Maxtor 6V300F0 300G
Maxtor 7H500R0 500G
Maxtor 7V250F0 250G
Maxtor 7V300F0 300G
Maxtor 6V200E0 200G
Maxtor 6L250S0 250G
Samsung SP2504C 250G
Western Digital WD1200JD 120G
Western Digital WD1600JD 160G
Western Digital WD2500JD 250G
Western Digital WD5000KS 500G
Recommended USB Printer
(Unless specified, this table is based on Windows platform)
Brand Model Remark
EPSON
CC-600PX Printer function only.
E-100 Printer function only.
LP-1500C
37
Brand Model Remark
LP-2500
LP-6100
LP-8800C
LP-9100
LP-9100PS3
PM-3700C
PM-4000PX
PM-760C
PM-970C
PM-D750 Printer function only.
PM-G700
PM-G800
PX-G900
PX-V500
hp
Canon
PX-V600
DESKJET5160
DESKJET5650
DESKJET5850
LaserJet 2300n Also supports Mac
OFFICEJET5510
OFFICEJET6150
PSC1350
PSC2450
PSC2550
Photosmart 1100c Also suppo rts Mac
i320
PIXMA iP 1500
PIXMA iP 3000
HL-2070
Brother
HL-5150D
QL-500
DCP-110C No scanner support
MFC-8840D No scanner/ fax support
38
Recommended UPS
Brand Model Remark
APC Back-UPS Series USB
Recommended NTP Server
The main purpose of Network Time Prot ocol (NTP ) is for synchronizing clo cks of
computer system over data network. We have provided a few recommended
NTP servers. For more information about NTP Server, please visit
http://www.eecis.udel.edu/~mills/ntp/servers.html
Below are few recommended NTP server:
1. time.apple.com
2. time.asia.apple.com
3. time.euro.apple.com
4. time.nist.gov
5. time.windows.com
For more information, please refer to:
http://ntp.isc.org/bin/view/Servers/WebHome
39
Loading...
