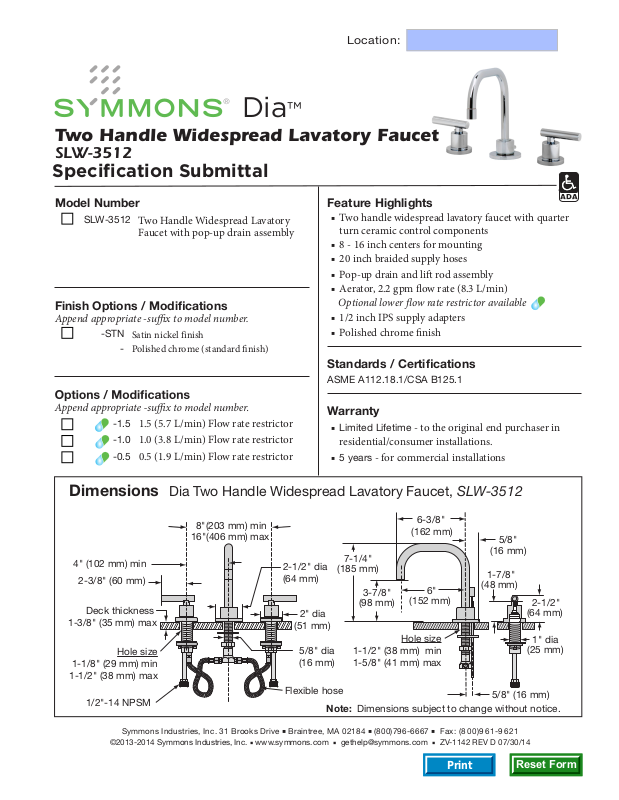

Dia™

Two Handle Widespread Lavatory Faucet

SLW-3512

Specification Submittal

Model Number



SLW-3512

Two Handle Widespread Lavatory
Faucet with pop-up drain assembly

Finish Options / Modifications

Append appropriate -sux to model number.



-STN

Satin nickel finish

-

Polished chrome (standard nish)

Feature Highlights

■ Two handle widespread lavatory faucet with quarter

turn ceramic control components

■ 8 - 16 inch centers for mounting

■ 20 inch braided supply hoses

■ Pop-up drain and li rod assembly

■ Aerator, 2.2 gpm ow rate (8.3 L/min)

Optional lower ow rate restrictor available

■ 1/2 inch IPS supply adapters

■ Polished chrome nish

Standards / Certifications

ASME A112.18.1/CSA B125.1

Warranty

-1.5





1.5 (5.7 L/min) Flow rate restrictor

-1.0

1.0 (3.8 L/min) Flow rate restrictor

-0.5

0.5 (1.9 L/min) Flow rate restrictor

■ Limited Lifetime - to the original end purchaser in

residential/consumer installations.

■ 5 years - for commercial installations

Dimensions Dia Two Handle Widespread Lavatory Faucet, SLW-3512

4" (102 mm) min

2-3/8" (60 mm)

Deck thickness

1-3/8" (35 mm) max

Hole size

1-1/8" (29 mm) min

1-1/2" (38 mm) max

1/2"-14 NPSM

Symmons Industries, Inc. 31 Brooks Drive ■ Braintree, MA 02184 ■ [phone] ■ Fax: [phone]

©2013-2014 Symmons Industries, Inc. ■ www.symmons.com ■ [e-mail] ■ ZV-1142 REV D 07/30/14

8"(203 mm) min

16"(406 mm) max

2-1/2" dia
(64 mm)

2" dia
(51 mm)

5/8" dia
(16 mm)

Flexible hose

Note: Dimensions subject to change without notice.

7-1/4"

(185 mm)

3-7/8"

(98 mm)

Hole size
1-1/2" (38 mm) min
1-5/8" (41 mm) max

6-3/8"

(162 mm)

6"

(152 mm)

5/8"
(16 mm)

1-7/8"

(48 mm)

2-1/2"

(64 mm)

1" dia

(25 mm)

5/8" (16 mm)
