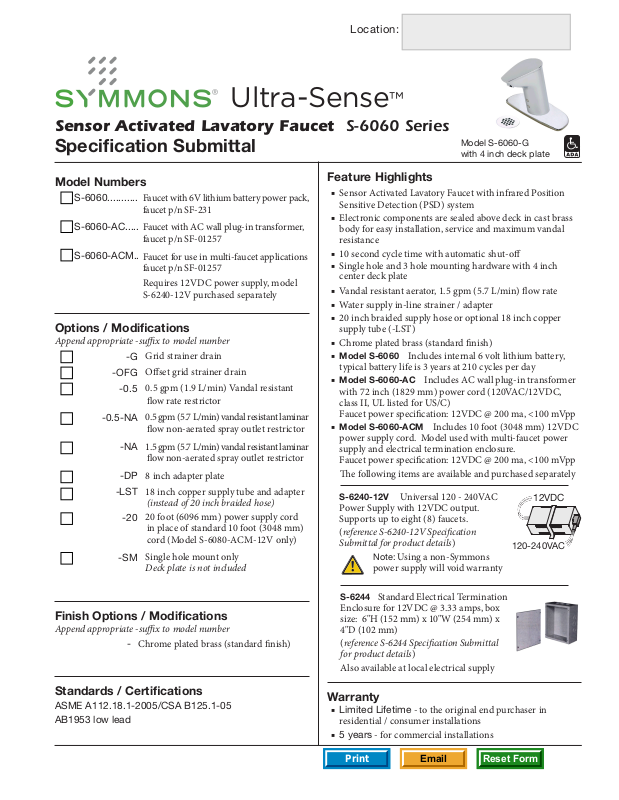

Ultra-Sense™

Sensor Activated Lavatory Faucet S-6060 Series

Specification Submittal

Model S-6060-G
with 4 inch deck plate

Model Numbers

S-6060...........



S-6060-AC.....



S-6060-ACM..



Faucet with 6V lithium battery power pack,
faucet p/n SF-231

Faucet with AC wall plug-in transformer,
faucet p/n SF-01257

Faucet for use in multi-faucet applications
faucet p/n SF-01257

Requires 12VDC power supply, model
S-6240-12V purchased separately

Options / Modifications

Append appropriate -sux to model number

Grid strainer drain
















-G

-OFG

-0.5

-0.5-NA

-NA

-DP

-LST

-20

-SM

Oset grid strainer drain

0.5 gpm (1.9 L/min) Vandal resistant
ow rate restrictor

0.5 gpm (5.7 L/min) vandal resistant laminar
ow non-aerated spray outlet restrictor

1.5 gpm (5.7 L/min) vandal resistant laminar
ow non-aerated spray outlet restrictor

8 inch adapter plate

18 inch copper supply tube and adapter

(instead of 20 inch braided hose)

20 foot (6096 mm) power supply cord

in place of standard 10 foot (3048 mm)
cord (Model S-6080-ACM-12V only)

Single hole mount only

Deck plate is not included

Feature Highlights

■ Sensor Activated Lavatory Faucet with infrared Position
Sensitive Detection (PSD) system

■ Electronic components are sealed above deck in cast brass
body for easy installation, service and maximum vandal
resistance

■ 10 second cycle time with automatic shut-o

■ Single hole and 3 hole mounting hardware with 4 inch
center deck plate

■ Vandal resistant aerator, 1.5 gpm (5.7 L/min) ow rate

■ Water supply in-line strainer / adapter

■ 20 inch braided supply hose or optional 18 inch copper
supply tube (-LST)

■ Chrome plated brass (standard nish)

■ Model S-6060 Includes internal 6 volt lithium battery,
typical battery life is 3 years at 210 cycles per day

■ Model S-6060-AC Includes AC wall plug-in transformer
with 72 inch (1829 mm) power cord (120VAC/12VDC,
class II, UL listed for US/C)
Faucet power specication: 12VDC @ 200 ma, <100 mVpp

■ Model S-6060-ACM Includes 10 foot (3048 mm) 12VDC
power supply cord. Model used with multi-faucet power
supply and electrical termination enclosure.
Faucet power specication: 12VDC @ 200 ma, <100 mVpp

e following items are available and purchased separately

S-6240-12V Universal 120 - 240VAC

Power Supply with 12VDC output.
Supports up to eight (8) faucets.

(reference S-6240-12V Specication
Submittal for product details)

Note: Using a non-Symmons

power supply will void warranty

12VDC

120-240VAC

Finish Options / Modifications

Append appropriate -sux to model number

-

Chrome plated brass (standard nish)

Standards / Certifications

ASME A112.18.1-2005/CSA B125.1-05
AB1953 low lead

S-6244 Standard Electrical Termination

Enclosure for 12VDC @ 3.33 amps, box
size: 6"H (152 mm) x 10"W (254 mm) x
4"D (102 mm)

(reference S-6244 Specication Submittal
for product details)

Also available at local electrical supply

Warranty

■ Limited Lifetime - to the original end purchaser in
residential / consumer installations

■ 5 years - for commercial installations

Dimensions Ultra-Sense Lavatory Faucet, S-6060, S-6060-AC/ACM

Model S-6060, p/n SF-231 ■ Model S-6060-AC/ACM, p/n SF-01257

2-3/8"(60 mm)

2-1/8"(54 mm)

nished deck thickness

1-3/16" (30 mm) max

5-1/4"

(105 mm)

5-1/8"(130 mm)

3-5/8"

(92 mm)

28º

center hole size

1-5/16" (34 mm) min

1-7/16" (37 mm) max

ex hose length

20-1/4" (515 mm)

3-3/8"

(85 mm)

Note: Dimensions subject to
change without notice

strainer / adapter

3/8" compression

Visual Guide Multi-Faucet Conguration with S-6240-12V Power Supply

Model S-6244 (p/n SF-194)
Termination Enclosure

Model S-6240-12V
(p/n SF-01448)

Switching Power Supply
Output: 12VDC
@ 3.33 amps max

Input: 100 - 240VAC
47-63 Hz @ 1.0 amps

+12VDC

– RET (GND)

Power supply supports up

to eight (8) Sensor Faucets

AWG #20

AWG #16

+12VDC

Wire nut,
terminate wires together

AWG #20

AWG #16

– RET (GND)

Wire nut,
terminate wires together

Symmons Industries, Inc. 31 Brooks Drive ■ Braintree, MA 02184 ■ [phone], [phone] ■ Fax: [phone]

©2011 Symmons Industries, Inc. Printed in U.S.A. ■ www.symmons.com ■ [e-mail]

Model S-6060, Part Number SF-231 ■ Models S-6060-AC/ACM, Part Number SF-01257 ■ RevDate 101011

Standard 10 foot cable (optional 20 foot) and
connector assembly included with each faucet
