Technical Specifications A - 3
Table A-1 MC75A Technical Specifications (Continued)
|
Item |
|
|
Description |
|
|
|
||
Wireless WAN Data and Voice Communications |
|
|||
|
|
|||
Wireless Wide Area Network |
MC75A6: GSM: HSDPA (850, 900, 1800, 1900 and 2100 MHz) |
|||
(WWAN) radios |
MC75A8: CDMA: EVDO Rev A (800 and 1900 MHz) |
|||
|
|
|
||
GPS |
|
Integrated Assisted-GPS (A-GPS), autonomous GPS |
||
|
|
|
||
|
DRAFT |
|||
Wireless LAN Data and Voice Communications |
|
|||
Wireless Local Area Network |
Tri-mode IEEE® 802.11a/b/g |
|||
(WLAN) radio |
|
|
|
|
Data Rates Supported |
1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps |
|||
Operating Channels |
Chan 8-169 (5040 – 5845 MHz) |
|||
|
|
Chan 1-13 (2412-2472 MHz) Chan 14 (2484 MHz) Japan only |
||
|
|
Actual operating frequencies depend on regulatory rules and certification |
||
|
|
agency |
|
|
Security |
|
WPA2, WPA, WEP (40 or 128 bit), TKIP, TLS, TTLS (MS-CHAP), TTLS |
||
|
|
(MS-CH |
P v2), TTLS (CH P), TTLS-MD5, TTLS-PAP, PEAP-TLS, PEAP |
|
|
|
(MS-CH |
P v2), |
ES, LE P |
Spreading Technique |
Direct Sequence Spread Spectrum (DSSS) and Orthogonal Frequency Division |
|||
|
|
Multiplexing (OFDM) |
||
Antenna |
|
Internal for WL |
N and Bluetooth |
|
Voice Communication |
Integrated Voice-over-IP ready (P2P, PBX, PTT), Wi-Fi™-certified, IEEE |
|||
|
|
802.11a/b/g direct sequence wireless LAN |
||
|
|
|
||
Wireless PAN Data and Voice Communications |
|
|||
|
|
|||
Bluetooth |
Class II, v 2.1 with EDR; on-board chip antenna. |
|||
|
|
|
|
|
ata Capture Specifications |
|
|
|
|
|
|
|
||
Options |
|
2D imager, 1D linear, color camera |
||
|
|
|
|
|
Linear 1D Scanner (SE950) Specifications |
|
|
||
|
|
|||
Optical Resolution |
0.005 in. minimum element width |
|||
|
|
|
||
Roll |
|
+/- 30° from vertical |
||
|
|
|||
Pitch Angle |
+/- 65° from normal |
|||
|
|
|||
Skew Tolerance |
+/- 60° from normal |
|||
|
|
|||
Ambient Light |
Sunlight: 8,000 ft. candles (86,112 Lux) |
|||
|
|
Artificial Light: 450 ft. candles (4,844 Lux) |
||
|
|
|
|
|
Shock |
|
2,000 +/- 5% G |
|
|
|
|
|
|
|
Note 1: Total output power can be either USB or serial or a combination of both that cannot exceed 200 mA.
A - 4 MC75A Enterprise Digital Assistant User Guide
Table A-1 MC75A Technical Specifications (Continued)
|
Item |
Description |
|
|
|
Scan Rate |
50 (+/- 6) scans/sec (bidirectional) |
|
|
|
|
Scan Angle |
46.5° (typical) |
|
|
|
|
Laser Power |
1.0 mW nominal |
|
|
|
|
2D Imager Engine (SE4500) Specifications |
||
|
|
|
|
DRAFT |
|
Field of View |
Horizontal - 40° |
|
|
|
Vertical - 25° |
Optical Resolution |
752X 480 V pixels (gray scale) |
|
Roll |
|
360° |
Pitch Angle |
+/- 60° from normal |
|
Skew Tolerance |
+/- 60° from normal |
|
Ambient Light |
9,000 ft. candles (96,900 Lux) |
|
Shock |
|
2,000 +/- 5% G |
Focal Distance from Front of |
Near: 5 inches |
|
Engine |
|
Far: 9 inches |
Aiming Element (VLD) |
655 nm +/- 10 nm |
|
Illumination Element (LED) |
625 nm +/- 5 nm |
|
Camera Specifications |
|
|
|
|
|
Resolution |
2 Mega pixel with auto focus and flash |
|
|
|
|
Note 1: Total output power can be either USB or serial or a combination of both that cannot exceed 200 mA.
ata Capture Options
Item |
|
Description |
|
|
|
|
|
Laser ecode Capability |
Code 39 |
Code 128 |
Code 93 |
|
Codabar |
Code 11 |
Discrete 2 of 5 |
|
Interleaved 2 of 5 |
EAN-8 |
EAN-13 |
|
MSI |
UPCA |
UPCE |
|
UPC/EAN supplementals |
Coupon Code |
Trioptic 39 |
|
Webcode |
Chinese 2 of 5 |
GS1 DataBar |
|
GS1 DataBar Truncated |
GS1 DataBar Limited |
GS1 DataBar Stacked |
|
GS1 DataBar Expanded |
GS1 DataBar Expanded Stacked |
|
|
GS1 DataBar Stacked Omni |
|
|
|
|
|
|
Technical Specifications A - 5
Table A-2 Data Capture Options (Continued)
Item |
|
Description |
|
|
|
|
|
Imaging Decode Capability |
Code 39 |
Code 128 |
Code 93 |
|
Codabar |
Code 11 |
Interleaved 2 of 5 |
|
Discrete 2 of 5 |
MSI |
EAN-8 |
|
EAN-13 |
UPCA |
UPCE |
|
UPC/EAN supplementals |
Coupon Code |
Trioptic 39 |
|
Webcode |
TLC39 |
Composite AB |
|
DRAFT |
PDF-417 |
|
|
Composite C |
Micro PDF-417 |
|
|
Macro PDF-417 |
(Macro) Micro PDF-417 |
QR Code |
|
Data Matrix |
Maxi Code |
US Postnet* |
|
US Planet |
UK 4-state |
Australian 4-state |
|
Canadian 4-state |
Japanese 4-state |
Dutch Kix |
|
Chinese 2 of 5 |
USPS 4-state (US4CB) |
Aztec |
|
microQR |
GS1 DataBar |
GS1 DataBar Truncated |
|
GS1 DataBar Limited |
GS1 DataBar Stacked |
GS1 DataBar Expanded |
|
GS1 DataBar Expanded Stacked GS1 DataBar Stacked Omni |
||
Camera Decode Capability |
Code 39 |
Code 128 |
Code 93 |
|
Codabar |
Code 11 |
Interleaved 2 of 5 |
|
Discrete 2 of 5 |
MSI |
EAN-8 |
|
EAN-13 |
UPCA |
UPCE |
|
UPC/E N supplementals |
Coupon Code |
Trioptic 39 |
|
Webcode |
TLC39 |
Composite AB |
|
Composite C |
Micro PDF-417 |
PDF-417 |
|
Macro PDF-417 |
(Macro) Micro PDF-417 |
QR Code |
|
Data Matrix |
Maxi Code |
US Postnet* |
|
US Planet |
UK 4-state |
Australian 4-state |
|
Canadian 4-state |
Japanese 4-state |
Dutch Kix |
|
GS1 DataBar |
GS1 DataBar Truncated |
GS1 DataBar Limited |
|
GS1 DataBar Stacked |
GS1 DataBar Expanded |
GS1 DataBar |
|
Expanded Stacked |
GS1 DataBar Stacked Omni |
|
|
|
|
|
A - 6 MC75A Enterprise Digital Assistant User Guide
MC75A Accessory Specifications
Single Slot USB/Serial Cradle
|
Table A-3 |
Single Slot USB/Serial Cradle Technical Specifications |
|
|
|
|
|
|
|
Feature |
Description |
|
|
|
|
|
|
DRAFT |
|
|
Dimensions |
Length: 14.54 cm (5.72 in.) |
|
|
|
|
Width: 11.05 cm (4.35 in.) |
|
|
|
Height: 9.10 cm (3.58 in.) |
|
Weight |
|
196 g (6.9 oz) |
|
Input Power |
12 VDC |
|
|
Power Consumption |
30 watts |
|
|
Interface |
|
USB, Serial |
|
Operating Temperature |
0°C to 50°C (32°F to 122° ) |
|
|
Storage Temperature |
-40°C to 70°C (-40°F to 158° ) |
|
|
Charging Temperature |
0°C to 40°C (32°F to 104°F) |
|
|
Humidity |
|
5% to 95% non-condensing |
|
Drop |
|
76.2 cm (30.0 in.) drops to vinyl tiled concrete at room temperature |
|
Electrostatic Discharge (ESD) |
+/- 15 kV air |
|
|
|
|
+/- 8 kV contact |
|
|
|
|
Four Slot Ethernet Cradle |
|
||
|
Table A-4 |
Four Slot Ethernet Cradle Technical Specifications |
|
|
|
|
|
|
|
Feature |
Description |
|
|
|
|
|
imensions |
Length: 46.80 cm (18.42 in.) |
|
|
|
|
Width: 10.90 cm (4.29 in.) |
|
|
|
Height: 13.70 cm (5.39 in.) |
|
|
|
|
|
Weight |
|
1079 g (2.38 lb) |
|
|
|
|
|
Input Power |
12 VDC |
|
|
|
|
|
|
Power Consumption |
100 watts |
|
|
|
|
|
|
Interface |
|
Ethernet |
|
|
|
|
|
Operating Temperature |
0°C to 50°C (32°F to 122°F) |
|
|
|
|
|
|
Storage Temperature |
-40°C to 70°C (-40°F to 158°F) |
|
|
|
|
|
Technical Specifications A - 7
|
Table A-4 |
Four Slot Ethernet Cradle Technical Specifications (Continued) |
||
|
|
|
|
|
|
|
Feature |
|
Description |
|
|
|
|
|
|
Charging Temperature |
|
0°C to 40°C (32°F to 104°F) |
|
|
|
|
|
|
|
Humidity |
|
|
5% to 95% non-condensing |
|
|
|
|
|
|
Drop |
|
|
76.2 cm (30.0 in.) drops to vinyl tiled concrete at room temperature |
|
|
|
|
|
|
Electrostatic Discharge (ESD) |
|
+/- 15 kV air |
|
|
|
DRAFT |
||
|
|
|
|
+/- 8 kV contact |
Four Slot Charge Only Cradle |
|
|
||
|
Table A-5 |
Four Slot Charge Only Cradle Technical Specifications |
||
|
|
Feature |
|
Description |
|
Dimensions |
|
Length: 46.80 cm (18.42 in.) |
|
|
|
|
|
Width: 10.90 cm (4.29 in.) |
|
|
|
|
Height: 13.70 cm (5.39 in.) |
|
Weight |
|
|
1079 g (2.38 lb) |
|
Input Power |
|
12 VDC |
|
|
Power Consumption |
|
100 watts |
|
|
Operating Temperature |
|
0°C to 50°C (32°F to 122°F) |
|
|
Storage Temperature |
|
-40°C to 70°C (-40°F to 158°F) |
|
|
|
|
|
|
|
Charging Temperature |
|
0°C to 40°C (32°F to 104°F) |
|
|
|
|
|
|
|
Humidity |
|
|
5% to 95% non-condensing |
|
|
|
|
|
|
rop |
|
|
76.2 cm (30.0 in.) drops to vinyl tiled concrete at room temperature |
|
|
|
|
|
|
Electrostatic ischarge (ES ) |
|
+/- 15 kV air |
|
|
|
|
|
+/- 8 kV contact |
|
|
|
|
|
Four Slot Battery Charger |
|
|
||
|
Table A-6 |
Four Slot Battery Charger Technical Specifications |
||
|
|
|
|
|
|
|
Feature |
|
Description |
|
|
|
||
|
Dimensions |
Length: 21.0 cm (8.27 in.) |
||
|
|
|
Width: 15.50 cm (6.10 in.) |
|
|
|
|
Height: 3.47 cm (1.37 in.) |
|
|
|
|
|
|
|
Weight |
|
386 g (13.6 oz) |
|
|
|
|
||
|
Input Power |
12 VDC |
||
|
|
|
|
|
A - 8 MC75A Enterprise Digital Assistant User Guide
Table A-6 Four Slot Battery Charger Technical Specifications (Continued)
|
Feature |
Description |
|
|
|
Power Consumption |
30 watts |
|
|
|
|
Operating Temperature |
0°C to 50°C (32°F to 122°F) |
|
|
|
|
Storage Temperature |
-40°C to 70°C (-40°F to 158°F) |
|
|
|
|
Charging Temperature |
0°C to 40°C (32°F to 104°F) |
|
|
|
|
Humidity |
DRAFT |
|
|
5% to 95% non-condensing |
|
Drop |
|
76.2 cm (30.0 in.) drops to vinyl tiled concrete at room temperature |
Electrostatic Discharge (ESD) |
+/- 15 kV air |
|
|
|
+/- 8 kV contact |
Magnetic Stripe Reader
Table A-7 Magnetic Stripe Reader (MSR) Technical Specifications
Feature |
Description |
|
|
Dimensions |
Length: 7.87 cm (3.1 in.) |
|
Width: 8.38 cm (3.3 in.) |
|
Height: 3.56 cm (1.4 in.) |
|
|
Weight |
48 g (1.7 oz) |
|
|
Interface |
Serial with baud rate up to 19,200 |
|
|
Format |
ANSI, ISO, AAMVA, CA DMV, user-configurable generic format |
|
|
Swipe Speed |
5 to 50 in. (127 to 1270 mm) /sec, bi-directional |
|
|
ecoders |
Generic, aw Data |
|
|
Mode |
Buffered, unbuffered |
|
|
Track Reading Capabilities |
Tracks 1 and 3: 210 bpi |
|
Track 2: 75 and 210 bpi, autodetect |
|
|
Operating Temperature |
0°C to 50°C (32°F to 122°F) |
|
|
Storage Temperature |
-40°C to 70°C (-40°F to 158°F) |
|
|
Humidity |
5% to 95% non-condensing |
|
|
Drop |
1.22 m (4 ft.) drops to concrete |
|
|
Electrostatic Discharge (ESD) |
+/- 15 kV air |
|
+/- 8 kV contact |
|
|
AppendixDRAFB Keypads T
Introduction
The MC75A offers five types of keypad configurations: Numeric, DSD, QWERTY, AZERTY and QWERTZ.
Numeric Keypad Configuration
The numeric keypad contains application keys, scroll keys, and function keys. The keypad is color-coded to indicate the alternate function key (blue) values. Note that an application can change keypad functions so the MC75A’s keypad may not function exactly as described. See Table B-1 for key and button descriptions and Table B-2 on page B-4 for the keypad’s special functions.
F2

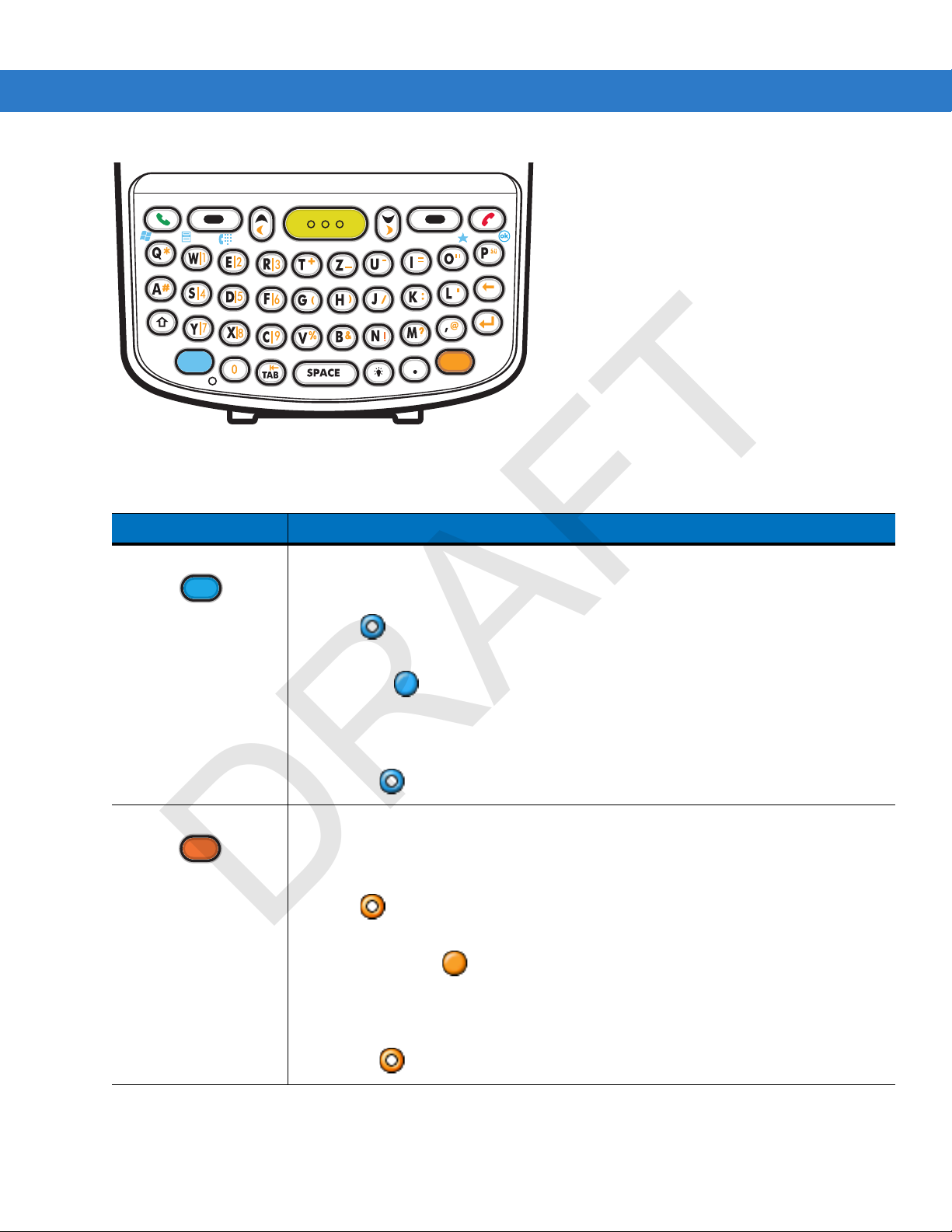

Figure B-1 MC75A Numeric Keypad
B - 2 MC75A Enterprise Digital Assistant User Guide

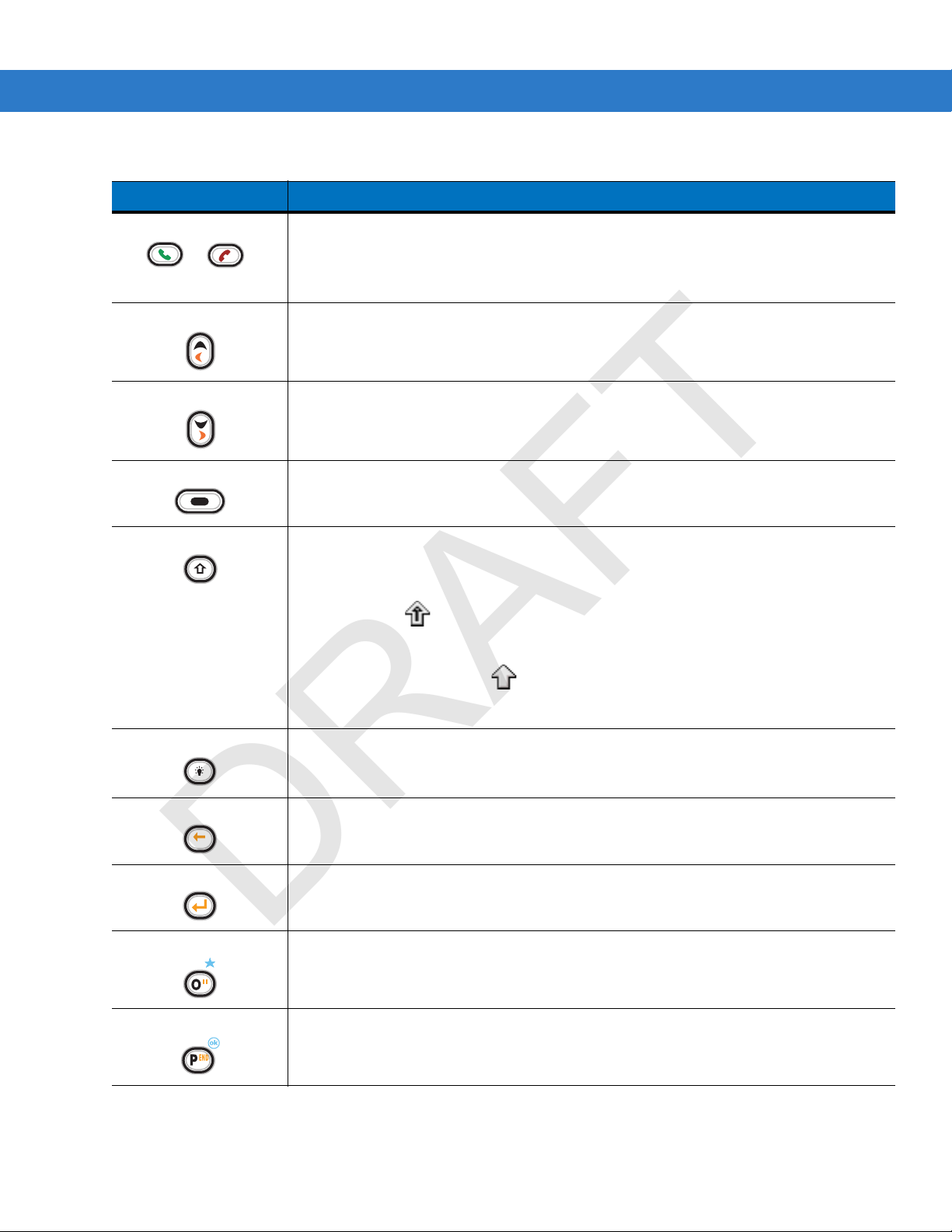

Table B-1 MC75A Numeric Keypad Descriptions
|
Key |
Description |
|
|
|
|
|
Blue Key (left) |
Use this key to launch applications or access items (shown on the keypad in blue). |
||
|
|
|
Press the Blue key once to activate this mode, followed by another key. |
|
|
|
|
|
|
|
A single press displays the following icon at the bottom of the screen, until a second key is |
|
|
|
|
|
|
|
DRAFT |
|
|
|
pressed: |
Orange Key |
Use this key to access the secondary layer of characters and actions (shown on the keypad |
||
|
|
|
in orange). Press the Orange key once to lock the keypad into Alpha state. |
|
|
|
single press displays the following icon at the bottom of the screen: |
|
|
|
Press the Orange key a second time to return to the normal state. |
|
|
|
Press the Orange key, then the Shift key to add a temporary shift (that applies only to the |
|
|
|
next key pressed) to the orange lock state. This displays the following icon at the bottom of |
|
|
|
the screen: |
Talk/End |
|
Talk (Green Phone): press to display the phone keypad window or to dial a phone number |
|
|
|
|
(from the phone keypad window). |
|
|
|
End (Red Phone): press when the phone keypad window displays to stop dialing or end a |
|
|
|
call. |
Scan (yellow) |
Activates the scanner/imager in a scan enabled application. |
||
|
|
|
|
Scroll Up and Down |
Moves up one item. |
||
|
|
|
Moves left one item when pressed with the Orange key. |
|
|
|
|
Scroll Left and Right |
Moves down one item. |
||
|
|
|
Moves right one item when pressed with the Orange key. |
|
|
|
|
Soft Keys |
Accesses the command or menu above it on the screen. |
||
|
|
|
|
Star |
|
|
Produces an asterisk in default state. |
|
|
|
Press and release the blue key, then press the Star key to open the Start menu. |
|
|
|
|
Keypads B - 3
Table B-1 MC75A Numeric Keypad Descriptions (Continued)
|
|
|
|
Key |
Description |
||||
|
|
|
|
|
|
|
|
|
|
Alphanumeric |
In default state, produces the numeric value on the key. |
||||||||
|
|
|
|
|
|
|
|
|
In Alpha state, produces the lower case alphabetic characters on the key. Each key press |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
produces the next alphabetic character in sequence. For example, press and release the |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Orange key and then press the ‘4’ key once to produce the letter ‘g’; press and release the |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Orange key and then press the ‘4’ key three times to produce the letter ‘i’. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Press the SHIFT key in Alpha state to produce the upper case alphabetic characters on the |
|
|
|
|
|
|
|
|
|
DRAFT |
|
|
|
|
|
|
|
|
|
key. For example, press and release the Orange key, press and release the SHIFT key, and |
|
|
|
|
|
|
|
|
|
then press the ‘4’ key once to produce the letter ‘G’; press and release the Orange key, |
|
|
|
|
|
|
|
|
|
press and release the SHIFT key and then press the ‘4’ key three times to produce the letter |
|
|
|
|
|
|
|
|
|
‘I’. |
SPACE |
|
|
|
|
|
Produces a space. |
|||
BACKSPACE |
Produces a backspace. |
||||||||
SHIFT |
|
|
|
|
|
Press and release the SHI T key to activate the keypad alternate SHIFT functions. |
|||
|
|
|
|
|
|
|
|
|
single press displays the following icon at the bottom of the screen, until a second key is |
|
|
|
|
|
|
|
|
|
pressed: |
|
|
|
|
|
|
|
|
|
Press the Orange key, then the Shift key to add a temporary shift (that applies only to the |
|
|
|
|
|
|
|
|
|
next key pressed) to the orange lock state. This displays the following icon at the bottom of |
|
|
|
|
|
|
|
|
|
the screen: |
|
|
|
|
|
|
|
|
|
|
ENT (Enter) |
Executes a selected item or function. |
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Pound |
|
|
|
|
|
Produces a pound/number sign. |
|||
|
|
|
|
|
|
|
|
|
Press and release the blue key, then press the Pound key to produce an OK. |
|
|
|
|
|
|
|
|
|
|
B - 4 MC75A Enterprise Digital Assistant User Guide
Table B-2 |
Numeric Keypad Input Modes |
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
Numeric Mode |
|
Orange Key |
|
Orange + Shift Keys |
||||||
|
(Alpha Lowercase Mode) |
(Alpha Uppercase Mode) |
|||||||||
Key |
|
|
|
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
Blue+ |
SHIFT |
1st |
2nd |
3rd |
4th |
1st |
2nd |
3rd |
4th |
|
|
|
||||||||||
|
|
Key |
+ Key |
Press |
Press |
Press |
Press |
Press |
Press |
Press |
Press |
|
|
|
|
|
|
|
|
|
|
|
|
1 |
1 |
F1 |
! |
* |
* |
* |
* |
* |
* |
* |
* |
|
|
|
|
|
|
|
|
|
|
|
|
2 |
2 |
F2 |
DRAFT |
A |
B |
C |
|
||||
@ |
a |
b |
c |
|
|
||||||
3 |
3 |
F3 |
# |
d |
e |
f |
|
D |
E |
F |
|
4 |
4 |
F4 |
$ |
g |
h |
i |
|
G |
H |
I |
|
5 |
5 |
F5 |
% |
j |
k |
l |
|
J |
K |
L |
|
6 |
6 |
F6 |
^ |
m |
n |
o |
|
M |
N |
O |
|
7 |
7 |
F7 |
& |
p |
q |
r |
s |
P |
Q |
R |
S |
8 |
8 |
F8 |
* |
t |
u |
v |
|
|
U |
V |
|
9 |
9 |
F9 |
( |
w |
x |
y |
z |
W |
X |
Y |
Z |
0 |
0 |
F10 |
) |
. |
|
|
|
> |
|
|
|
Up |
Up |
Up |
Hilight |
Left |
|
|
|
Left |
|
|
|
|
|
|
Up |
|
|
|
|
|
|
|
|
Down |
Down |
Down |
Hilight |
ight |
|
|
|
Right |
|
|
|
|
|
|
Down |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Enter |
Action |
Action |
Action |
Action |
|
|
|
Action |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Note: An application can change the key functions. The keypad may not function exactly as described.
Keypads B - 5
DSD Keypad Configuration
The DSD keypad contains application keys, scroll keys, and function keys. The keypad is color-coded to indicate the alternate function key (blue) values. Note that an application can change keypad functions so the MC75A’s keypad may not function exactly as described. See Table B-3 for key and button descriptions and Table B-4 on page B-7 for the keypad’s special functions.
Figure B-2 |
|
DRAFTEnd (Red Phone): press when the phone keypad window displays to stop dialing or end a |
|
|
MC75A DSD Keypad |
||
Table B-3 MC75A DSD Keypad Descriptions |
|||
|
Key |
Description |
|
Blue Key (left) |
Use this key to launch applications or access items (shown on the keypad in blue). |
||
|
|
|
Press the Blue key once to activate this mode, followed by another key. |
|
|
|
A single press displays the following icon at the bottom of the screen, until a second key is |
|
|
|
pressed: |
Orange Key |
Use this key to access the secondary layer of characters and actions (shown on the keypad |
||
|
|
|
in orange). Press the Orange key once to lock the keypad into Alpha state. |
|
|
|
single press displays the following icon at the bottom of the screen: |
|
|
|
Press the Orange key a second time to return to the normal state. |
|
|
|
Press the Orange key, then the Shift key to add a temporary shift (that applies only to the |
|
|
|
next key pressed) to the orange lock state. This displays the following icon at the bottom of |
|
|
|
the screen: |
Talk/End |
|
Talk (Green Phone): press to display the phone keypad window or to dial a phone number |
|
|
|
|
(from the phone keypad window). |
|
|
|
call. |
Scan (yellow) |
Activates the scanner/imager in a scan enabled application. |
B - 6 MC75A Enterprise Digital Assistant User Guide
Table B-3 MC75A DSD Keypad Descriptions (Continued)
|
|
|
|
Key |
Description |
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Scroll Up |
Moves up one item. |
||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Scroll Left |
Moves left one item. |
||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Scroll Down |
DRAFT |
||||||||||||
Moves down one item. |
|||||||||||||
Scroll Right |
Moves right one item. |
||||||||||||
Alphanumeric |
In default state, produces the numeric value on the key. |
||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
In Alpha state, produces the lower case alphabetic characters on the key. Each key press |
|
|
|
|
|
|
|
|
|
|
|
|
|
produces the next alphabetic character in sequence. or example, press and release the |
|
|
|
|
|
|
|
|
|
|
|
|
|
Orange key and then press the ‘4’ key once to produce the letter ‘g’; press and release the |
|
|
|
|
|
|
|
|
|
|
|
|
|
Orange key and then press the ‘4’ key three times to produce the letter ‘i’. |
|
|
|
|
|
|
|
|
|
|
|
|
|
Press the SHIFT key in lpha state to produce the upper case alphabetic characters on the |
|
|
|
|
|
|
|
|
|
|
|
|
|
key. For example, press and release the Orange key, press and release the SHIFT key, and |
|
|
|
|
|
|
|
|
|
|
|
|
|
then press the ‘4’ key once to produce the letter ‘G’; press and release the Orange key, |
|
|
|
|
|
|
|
|
|
|
|
|
|
press and release the SHIFT key and then press the ‘4’ key three times to produce the letter |
|
|
|
|
|
|
|
|
|
|
|
|
|
‘I’. |
SPACE |
|
|
|
|
|
|
|
|
|
Produces a space. |
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
BACKSPACE |
Produces a backspace. |
||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
ESC |
|
|
|
|
|
|
|
|
|
Cancels an operation or action. |
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
ENT (Enter) |
Executes a selected item or function. |
||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Period |
|
|
|
|
|
|
|
|
|
Produces a period character. |
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Dash |
|
|
|
|
|
|
|
|
|
Produces a dash character. |
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Keypads B - 7
Table B-4 |
DSD Keypad Input Modes |
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
Numeric Mode |
|
Orange Key |
|
Orange + Shift Keys |
||||||
|
(Alpha Lowercase Mode) |
(Alpha Uppercase Mode) |
|||||||||
Key |
|
|
|
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
Blue+ |
SHIFT |
1st |
2nd |
3rd |
4th |
1st |
2nd |
3rd |
4th |
|
|
|
||||||||||
|
|
Key |
+ Key |
Press |
Press |
Press |
Press |
Press |
Press |
Press |
Press |
|
|
|
|
|
|
|
|
|
|
|
|
1 |
1 |
F1 |
! |
* |
* |
* |
* |
* |
* |
* |
* |
|
|
|
|
|
|
|
|
|
|
|
|
2 |
2 |
F2 |
DRAFT |
A |
B |
C |
|
||||
@ |
a |
b |
c |
|
|
||||||
3 |
3 |
F3 |
# |
d |
e |
f |
|
D |
E |
F |
|
4 |
4 |
F4 |
$ |
g |
h |
i |
|
G |
H |
I |
|
5 |
5 |
F5 |
% |
j |
k |
l |
|
J |
K |
L |
|
6 |
6 |
F6 |
^ |
m |
n |
o |
|
M |
N |
O |
|
7 |
7 |
F7 |
& |
p |
q |
r |
s |
P |
Q |
R |
S |
8 |
8 |
F8 |
* |
t |
u |
v |
|
|
U |
V |
|
9 |
9 |
F9 |
( |
w |
x |
y |
z |
W |
X |
Y |
Z |
0 |
0 |
F10 |
) |
. |
|
|
|
> |
|
|
|
. |
. |
. |
. |
|
|
|
|
|
|
|
|
- |
- |
- |
- |
|
|
|
|
|
|
|
|
Up |
Up |
Up |
Hilight |
|
|
|
|
|
|
|
|
|
|
|
Up |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Down |
Down |
Down |
Hilight |
|
|
|
|
|
|
|
|
|
|
|
Down |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Left |
Left |
Left |
Hilight |
|
|
|
|
|
|
|
|
|
|
|
Left |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Right |
Right |
Right |
Hilight |
|
|
|
|
|
|
|
|
|
|
|
Right |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Enter |
Action |
Action |
Action |
Action |
|
|
|
Action |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
ESC |
ESC |
ESC |
ESC |
ESC |
|
|
|
ESC |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Note: An application can change the key functions. The keypad may not function exactly as described.
B - 8 MC75A Enterprise Digital Assistant User Guide
Alpha-numeric Keypad Configurations
The three types of alpha-numeric keypads produce the 26-character alphabet (A-Z, both lowercase and uppercase), numbers (0-9), and assorted characters. The keypad is color-coded to indicate which modifier key to press to produce a particular character or action. The keypad default is alphabetic, producing lowercase letters. See Table B-5 for key and button descriptions and Table B-6 on page B-11 for the keypad’s special functions.
Figure B-3 |
DRAFT |
QWERTY Keypad Configuration |
|
Figure B-4 |
AZERTY Keypad Configuration |
