Sylvania MWD200F, E6161UD Schematic

SERVICE MANUAL

DVD PLAYER

MWD200F

OPEN/CLOSE PLAY STOP STANDBY-ON

IMPORTANT SAFETY NOTICE

Proper service and repair is important to the safe, reliable operation of all
Funai Equipment. The service procedures recommended by Funai and
described in this service manual are effective methods of performing
service operations. Some of these service special tools should be used
when and as recommended.

It is important to note that this service manual contains various CAUTIONS
and NOTICES which should be carefully read in order to minimize the risk
of personal injury to service personnel. The possibility exists that improper
service methods may damage the equipment. It also is important to
understand that these CAUTIONS and NOTICES ARE NOT EXHAUSTIVE.
Funai could not possibly know, evaluate and advice the service trade of all
conceivable ways in which service might be done or of the possible
hazardous consequences of each way. Consequently, Funai has not
undertaken any such broad evaluation. Accordingly, a servicer who uses a
service procedure or tool which is not recommended by Funai must first
use all precautions thoroughly so that neither his safety nor the safe
operation of the equipment will be jeopardized by the service method
selected.

TABLE OF CONTENTS

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-1-1

Laser Beam Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-2-1

Important Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-3-1

Standard Notes for Servicing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-4-1

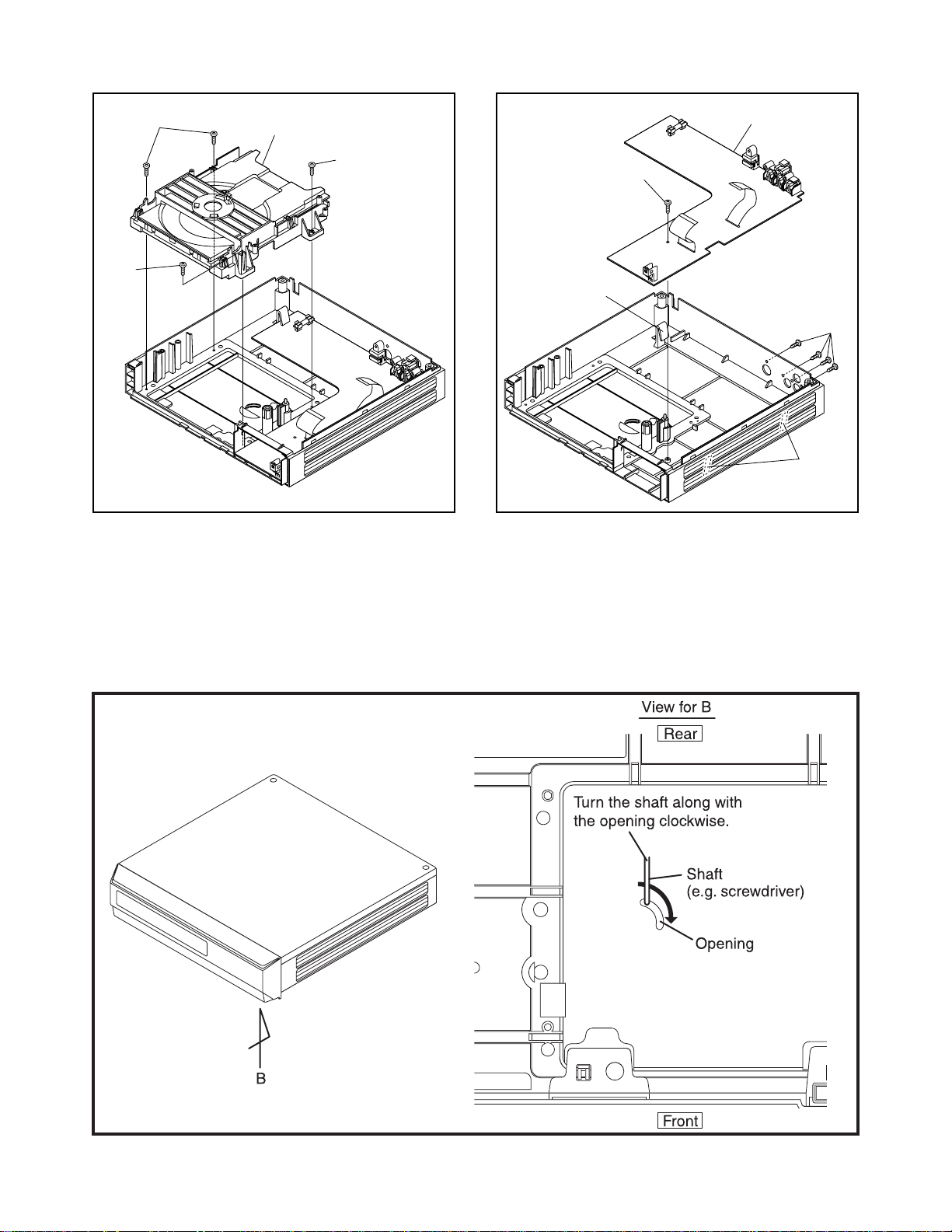

Cabinet Disassembly Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-5-1

How to Initialize the DVD Player . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-6-1

Firmware Renewal Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-7-1

Block Diagrams. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-8-1

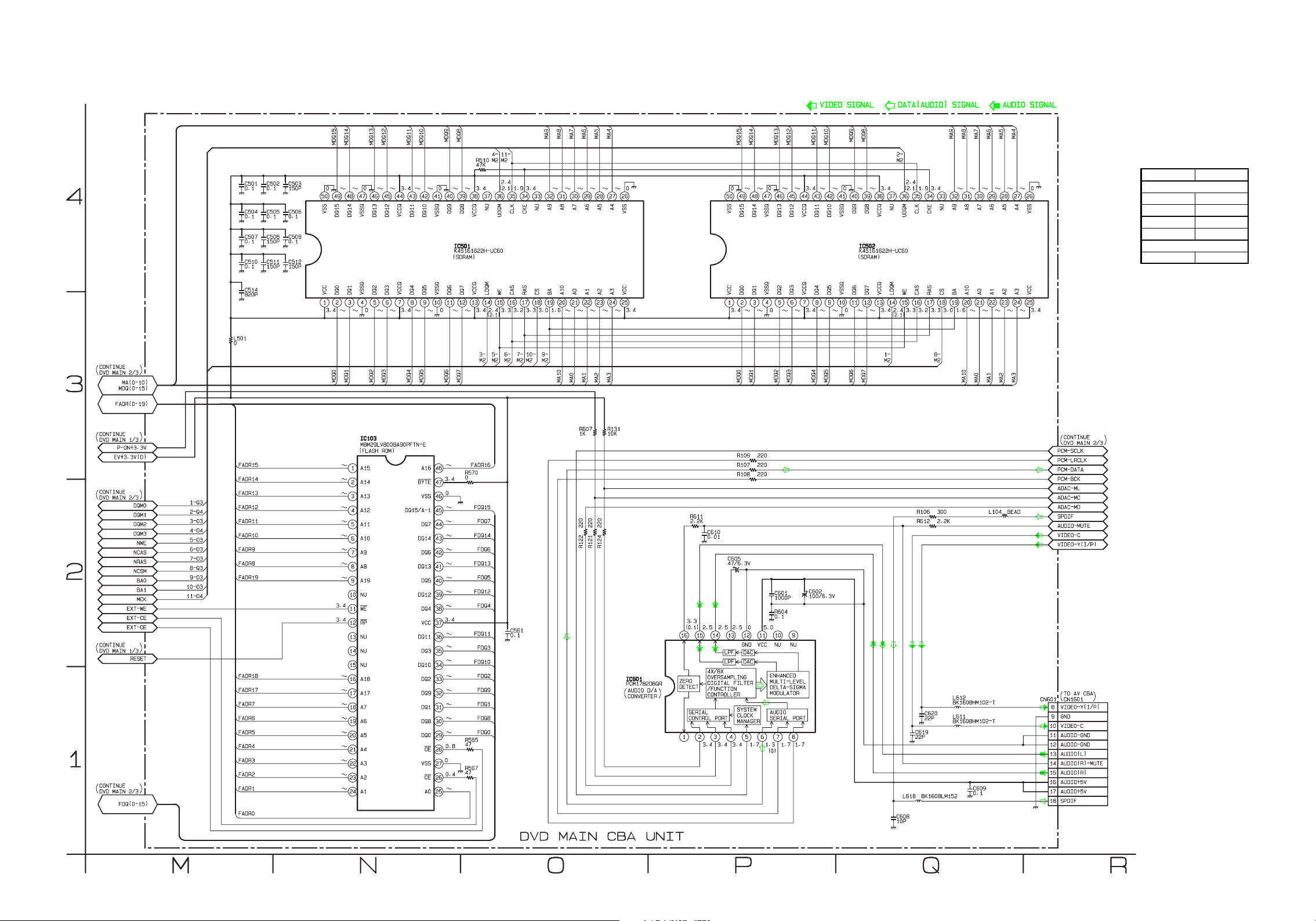

Schematic Diagrams / CBA’s and Test Points. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-9-1

Waveforms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-10-1

Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-11-1

System Control Timing Charts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-12-1

Lead Identifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-13-1

Exploded Views. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-14-1

Mechanical Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-15-1

Electrical Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-16-1

Manufactured under license from Dolby Laboratories.
“Dolby” and the double-D symbol are trademarks of Dolby Laboratories.

SPECIFICATIONS

Item Conditions Unit Nominal Limit

1. Video Output 75 Ω load Vpp 1.0 ± 0.1

2. Coaxial Digital Out 75 Ω load mVpp 500 ± 50

3. Audio (PCM)
3-1. Output Level 1 kHz, 0 dB Vrms 2.0
3-2. S/N dB 120
3-3. Freq. Response
DVD fs = 48 kHz ± 0.5 dB Hz 20 ~ 22 k
CD fs = 44.1 kHz ± 0.5 dB Hz 20 ~ 20 k
3-4. THD+N
DVD 1 kHz, 0 dB % 0.0035
CD 1 kHz, 0 dB % 0.004

Notes:

1. All Items are measured without pre-emphasis unless otherwise specified.

2. Power supply: AC 120 V, 60 Hz

3. Load imp.: 100 kΩ

4. Ambient Temperature: +25 °C

1-1-1 E6161SP

LASER BEAM SAFETY PRECAUTIONS

This DVD player uses a pickup that emits a laser beam.

Do not look directly at t he laser beam coming
from the pickup or allow it to strike against your
skin.

The laser beam is emitte d from the locati on shown in the figu re. When c hecking the l aser diode, be sur e to keep
your eyes at least 30 cm away from the pickup lens when the diode is turned on. Do not look di rectly at the la ser
beam.

CAUTION: Use of controls and adjustments, or doing proce dur es othe r tha n thos e sp ec ified herein, may result in
hazardous radiation exposure.

rive Mecha Assembly

Laser Beam Radiation

Laser Pickup

Turntable

CAUTION

LASER RADIATION

WHEN OPEN. DO NOT

STARE INTO BEAM.

Location: Top of DVD mechanism.

1-2-1 E6NLSP

IMPORTANT SAFETY PRECAUTIONS

Product Safety Notice

Some electrical and mechanical parts have special
safety-related characteristics which are often not
evident from visual inspectio n, nor can the protection
they give necessarily be obtained by replacing them
with components rated for higher voltage, wattage,
etc. Parts that have special safety characteristics are
identified by a # on schematics and in parts lists. Use
of a substitute replacement that does not have the
same safety characteristics as the recommended
replacement part might create shock, fire, and/or other
hazards. The Product’s Safety is under review
continuously and new instructions are issued
whenever appropriate. Prior to shipment from the
factory, our products are carefully inspected to confirm
with the recognized product safety and electrical
codes of the countries in which they are to be sold.
However, in order to maintain such compliance, it is
equally important to implement the following
precauti ons when a set is being serviced.

Precautions during Servicing

A. Parts identified by the # symbol are critical for

safety. Replace only with part number specified.

B. In addition to safety, other parts and assemblies

are specified for conformance with regulations
applying to spurious radiation. These must also be
replaced only with specified replacements.
Examples: RF converters, RF cables, noise
blocking capacitors, and noise blocking filters, etc.

C. Use specified internal wiring. Note especially:

1) Wires covered with PVC tubing

2) Double insulated wires

3) High voltage leads

D. Use specified insulating materials for hazardous

live parts. Note especiall y:

1) Insulation tape

2) PVC tubing

3) Spacers

4) Insulators for transistors

E. When replacing AC primary side components

(transformers, power cord, etc.), wrap ends of
wires securely about the terminals before
soldering.

F. Observe that the wires do not contact heat

producing parts (heat sinks, oxide metal film
resistors, fusible resistors, etc.).

G. Check that replaced wires do not contact sharp

edges or pointed parts.

H. When a power cord has been replaced, check that

5 - 6 kg of force in any direction will not loosen it.

I. Also check areas surrounding repaired locations.
J. Be careful that foreign objects (screws, solder

droplets, etc.) do not remain inside the set.

K. Crimp type wire connector

The power transformer uses crimp type
connectors which conn ect the power cor d and the
primary side of the transformer. When replacing
the transformer, follow these steps carefully and
precisely to prevent shock hazards.
Replacement procedure

1) Remove the old connector by cutting the wires
at a point close to the connector.
Important: Do not re-use a connector.
(Discard it.)

2) Strip about 15 mm of the insulation from the
ends of the wires. If the wires are stranded,
twist the strands to avoid frayed conductors.

3) Align the lengths of the wires to be c onnected.
Insert the wires fully into the connector.

4) Use a crimping tool to crimp the metal sleeve at
its center. Be sure to crimp fully to the complete
closure of the tool.

L. When connecting or disconnecting the internal

connectors, first, disconnect the AC plug from the
AC outlet.

1-3-1 DVDN_ISP

Safety Check after Servici n g

Examine the area sur ro und ing the repai r ed loc ati on for damage o r dete rioration. Obser ve that sc rews, parts, and
wires have been returne d to their or iginal positions. After wards, do the following tests and con firm the specified
values to verify compliance with safety standards.

1. Clearance Distance

When replacing primary circuit components, confirm
specified clearance distance (d) and (d’) between
soldered terminals, and between terminals and
surrounding metallic parts. (See Fig. 1)

Table 1: Ratings for selected area

Chassis or Secondary Conductor

Primary Circuit Terminals

AC Line Voltage Clearance Distance (d), (d’)

120 V ≥ 3.2 mm (0.126 inches)

Note: This table is unofficial and for reference onl y. Be

sure to confirm the precise values.

2. Leakage Current Test

Confirm the specified (or lower) leakage current
between B (ear th ground, power cord p lug prongs) a nd
externally exposed accessible parts (RF terminals,
antenna terminals, video and audio input and output
terminals, microphone jacks, earphone jacks, etc.) is
lower than or equal to the specified value in the table
below.

Measuring Method (Power ON):

Inser t l oad Z be twe en B (ea rth ground, power co rd pl ug
prongs) and exposed accessible parts. Use an AC
voltmeter to measure across the terminals of load Z.
See Fig. 2 and the following table.

dd'

Fig. 1

Exposed Accessible Part

Z

AC V oltmeter
(High Impedance)

Earth Ground

B

Power Cord Plug Prongs

Table 2: Leakage current ratings for selected areas

AC Line Voltage Load Z Leakage Current (i) Earth Ground (B) to:

120 V

Note: This table is unofficial and for reference only. Be sure to confirm the precise values.

0.15 µF CAP. & 1.5 kΩ RES.
Connected in parallel

i ≤ 0.5 mA Peak Exposed accessible parts

1-3-2 DVDN_ISP

Fig. 2

STANDARD NOTES FOR SERVICING

Circuit Board Indications

1. The output pin of the 3 pin Regulator ICs is
indicated as shown.

Top View

Out

2. For other ICs, pin 1 and every fifth pin are
indicated as shown.

Pin 1

3. The 1st pin of every male connector is indicated as
shown.

Pin 1

Input

In

Bottom View

5

10

Pb (Lead) Free Solder

When soldering, be sure to use the Pb free solder.

How to Remove / Install Flat Pack-IC

1. Removal

With Hot-Air Flat Pack-IC Desoldering Machine:

1. Prepare the hot-air flat pack-IC desoldering
machine, then apply hot air to the Flat Pack-IC
(about 5 to 6 seconds). (Fig. S-1-1)

Fig. S-1-1

Instructions for Connectors

1. When you connect or disconnect the FFC (Flexible
Foil Connector) cable, be sure to f irst disconnect
the AC cord.

2. FFC (Flexible Foil Connector) cable should be
inserted parallel into the connector, not at an
angle.

FFC Cable

Connector

CBA

* Be careful to avoid a short circuit.

2. Remove the flat pack-IC with tweezers while
applying the hot air.

3. Bottom of the flat pack-IC is fi xed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)

4. Release the flat pack-IC from the CBA using
tweezers. (Fig. S-1-6)

CAUTION:

1. The Flat Pack-IC shape may differ by models. Use
an appropriate hot-air flat pack-IC desoldering
machine, whose shape matches that of the Flat
Pack-IC.

2. Do not supply hot air to th e chip par ts around the
flat pack-IC for over 6 seconds because damage
to the chip parts may occur. Put masking tape
around the flat pack-IC to pro tect other par ts from
damage. (Fig. S-1-2)

1-4-1 DVDN_SN

3. The flat pack-IC on the CBA is affixed with glue, so
be careful not to br eak or damage the foil of each
pin or the solder lands under the IC when
removing it.

With Soldering Iron:

1. Using desoldering braid, remove the solder from
all pins of the flat pack-IC. When you use solder
flux which is ap plied to all pins of the flat pack-IC,
you can remove it easily. (Fig. S-1-3)

CBA

Masking
Tape

Tweezers

Hot-air
Flat Pack-IC
Desoldering
Machine

Flat Pack-IC

Fig. S-1-2

Flat Pack-IC

Desoldering Braid

Soldering Iron

Fig. S-1-3

2. Lift each lead of the flat pack-IC upward one by
one, using a sharp pi n or wire to which solder will
not adhere (iron wire) . Wh en h eati ng the pin s, use
a fine tip soldering iron or a hot air desoldering
machine. (Fig. S-1-4)

Sharp
Pin

Fine Tip
Soldering Iron

3. Bottom of the flat pack-IC is fi xed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)

4. Release the flat pack-IC from the CBA using
tweezers. (Fig. S-1-6)

Fig. S-1-4

1-4-2 DVDN_SN

With Iron Wire:

1. Using desoldering braid, remove the solder from
all pins of the flat pack-IC. When you use solder
flux which is applied to all pins of the flat pack-IC,
you can remove it easily. (Fig. S-1-3)

2. Affix the wire to a workbench or solid mounting
point, as shown in Fig. S-1-5.

3. While heating the pins using a fine tip soldering
iron or hot air blower, pull up the wire as the solder
melts so as to lift the IC leads from the CBA
contact pads as shown in Fig. S-1-5.

4. Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)

5. Release the flat pack-IC from the CBA using
tweezers. (Fig. S-1-6)

Note: When using a soldering iron, care must be

taken to ensure that the flat pack-IC is not
being held by glue. When the flat pack-IC is
removed from the CBA, handle it gently
because it may be damaged if force is applied.

Hot Air Blower

2. Installation

1. Using desoldering braid, remove the solder from
the foil of each pin of the flat pack-IC on the CBA
so you can install a repl ac em ent fla t pa ck-IC mor e
easily.

2. The “●” mar k on the flat pack-IC indicates pin 1.
(See Fig. S-1-7.) B e sure this mar k matches the 1
on the PCB when posi tioning for inst allati on. Then
presolder the four corners of the fla t pack-IC. (See
Fig. S-1-8.)

3. Solder all pins of the flat pack-IC. Be sure that
none of the pins have solder bridges.

Example :

Pin 1 of the Flat Pack-IC
is indicated by a " " mark.

Fig. S-1-7

To Solid
Mounting Point

CBA

Tweezers

Iron Wire

Soldering Iron

Fig. S-1-5

Fine Tip
Soldering Iron

Flat Pack-IC

or

Presolder

Flat Pack-IC

CBA

Fig. S-1-8

Fig. S-1-6

1-4-3 DVDN_SN

Instructions for Handling Semi­conductors

Electrostatic breakdown of the semi-conductors may
occur due to a potential difference caused by
electrostatic charge during unpacking or repair work.

1. Ground for Human Body

Be sure to wear a grounding band (1 MΩ) that is
properly grounded to remove any static elect ric ity that
may be charged on the body.

2. Ground for Workbench

Be sure to place a conductive sheet or copper plate
with proper grounding (1 MΩ) on the workbench or
other surface, where the semi-conductors are to be
placed. Because the static electricity charge on
clothing will not escape through the body grounding
band, be carefu l to avoid contacting semi-conducto rs
with your clothing.

<Incorrect>

<Correct>

1MΩ

CBA

Grounding Band

1MΩ

CBA

Conductive Sheet or
Copper Plate

1-4-4 DVDN_SN

CABINET DISASSEMBLY INSTRUCTIONS

1. Disassembly Flowchart

This flowchar t in dica tes the disas sembly step s to gai n
access to item (s) t o be se r vic ed. W hen r eassem bling,
follow the steps in reverse order. Bend, route, and
dress the cables as they were originally.

[1] T op Case

[2] Front Assembly

[3] Reinforce Plate

[4] DVD Main CBA Unit

[5] DVD Mecha

[6] AV CBA

2. Disassembly Method

ID/

Loc.

No.

[1] Top Case D1 2(S-1) --­[2]

[3]

[4]

[5] DVD Mecha

Part

Front
Assembly

Reinforce
Plate

DVD Main
CBA Unit

Fig.

No.

D2 *3(L-1), *3(L-2) 1

D3 2(S-2) ---

(S-3A), (S-3B),

D4

*CN201, *CN301,
*CN401, *CN601

D4

4(S-4) 3

D5

Removal

Remove/*Unhook/

Unlock/Release/

Unplug/Desolder

Note

2

About tightening screws

When tightening screws, tighten them with the
following torque.

Screws Torque

(S-1), (S-2), (S-3A), (S-4),
(S-5), (S-6)

(S-3B) 0.38 ± 0.04 N·m

0.45 ± 0.05 N·m

Reference Notes

1. CAUTION 1: Locking Tabs (L-1) and (L-2) are
fragile. Be careful not to break them.

1) Release three Locking Tabs (L-1). Then,

release three Locking Tabs (L-2 ).

2) Remove the Front Assembly.

2. CAUTION 2: Electrostatic breakdown of the laser
diode in the optical system block may occur as a
potential difference caus ed by electr os tati c c har ge
accumulated on cloth, human body etc, during
unpacking or repair work.
To avoid damage of pickup follow next procedures.

1) Shor t the three short la nds of FPC cable with

solder before removing the FFC cable (CN201)
from it. If you disconnect the FFC cable
(CN201), the laser diode of pickup will be
destroy ed. (Fig. D4)

2) Disconnect Con nectors (CN30 1), (CN401) and

(CN601). Remove two Screws (S-3A) and (S­3B) and lift the DVD Main CBA Unit. (Fig. D4)

3. CAUTION 3: When reassembling, confirm the
FFC cable (CN201) is connected completely. Then
remove the solder from the three short lands of
FPC cable. (Fig. D4)

[6] AV CBA D6 (S-5), 4(S-6), *3(L-3) ---

↓

(1)

Note:

(1) Identification (location) No. of parts in the figures
(2) Name of the part
(3) Figure Number for reference
(4) Identification of parts to be removed, unhooked,

unlocked, released, unplugged, unclamped, or
desoldered.
P = Spring, L = Locking Tab, S = Screw,
CN = Connector
* = Unhook, Unlock, Release, Unplug, or Desolder
e.g. 2(S-2) = two Screws (S-2),
2(L-2) = two Locking Tabs (L-2)

(5) Refer to “Reference Notes.”

↓

(2)

↓

(3)

↓

(4)

↓

(5)

(S-1)

[1] T op Case

Push

Fig. D1

1-5-1 E6161DC

CN201

CN301

(S-3B)

(S-3A)

CN601

(S-2)

(L-1)

(L-2)

[2] Front Assembly

(L-1)

(S-2)

[3] Reinforce Plate

Fig. D2

CN401

[4] DVD Main
CBA Unit

A

Short the three short lands by soldering.
(Either of two places.)

Fig. D3

Connector

View for A

Fig. D4

1-5-2 E6161DC

(S-4)

(S-4)

[5] DVD Mecha

(S-4)

[6] AV CBA

(S-5)

(L-3)

(S-6)

(L-3)

Fig. D5

3. How to Eject Manually

1. Turn the unit over.

2. Insert the shaft less than a diameter of 3 mm (e.g. screwdriver) straightly into the opening as shown.

3. Turn the shaft along with the opening clockwise.

4. Repeat steps 2 and 3 until the tray will open.

5. Pull the tray slowly with a hand.

Fig. D6

1-5-3 E6161DC

HOW TO INITIALIZE THE DVD PLAYER

To put the program back at the factory-default,
initialize the DVD player as the following procedure.

1. Press [1], [2], [3], [4], and [DISPLAY] buttons on
the remote control unit in that order.
Fig. a appears on the screen.

"

" differ depending on the models.

*******

MODEL : *******

Version
Region

: *.**

: *

EXIT: POWEREEPROM CLEAR : CLEAR

Fig. a

"

" differ depending on the models.

*******

2. Press [CLEAR] button on the remote control unit.
Fig. b appears on the screen.

MODEL : *******

Version
Region

: *.**

: *

EXIT: POWEREEPROM CLEAR : CLEAR

EEPROM CLEAR : OK

Fig. b

When “OK” appears on the screen, the factory
default will be set. Then the firmware renewal
mode is complete.

3. To exit this mode, press [STANDBY-ON] button.

1-6-1 E6161INT

FIRMWARE RENEWAL MODE

1. Turn the power on and remove the disc on the tray.

2. To put the DVD player into version up mode, press
[9], [8], [7], [6], an d [SEARCH MODE] buttons on
the remote control unit in that orde r. T he tray will
open automatically.
Fig. a appears on the screen.

"

" differ depending on the models.

*******

F/W Version Up Mode Model No : *******

Please insert a DISC

for F/W Version Up.

VERSION : *.**

EXIT: POWER

Fig. a Version Up Mode Screen

The DVD player can also enter the version up
mode with the tray open. In this case, Fig. a will be
shown on the screen while the tray is open.

3. Load the disc for version up.

4. The DVD player enters the F/W version up mode
automatically. Fig. c appears on the screen. If you
enter the F/W for different models, “Disc Error” will
appear on the screen, then the tray will open
automatically.

"

" differ depending on the models.

*******

the checksum in (*2) of Fig. e.

"

" differ depending on the models.

*******

(*2)

F/W Version Up Mode

VERSION : E6********F1.ab6
Completed

SUM : 7ABC

Model No : *******
VERSION : *.**

Fig. e Completed Program Mode Screen

At this time, no buttons are available.

6. Remove the disc on the tray.

7. Unplug the AC cord from the AC outlet. Then plug
it again.

8. Turn the power on by pres sing the [STANDBY-ON]
button and the tray will close.

9. Press [1], [2], [3], [4], and [DISPLAY] buttons on
the remote control unit in that order.
Fig. g appears on the screen.

"

" differ depending on the models.

*******

MODEL : *******

Version
Region

: *.**

: *

(*1)

F/W Version Up Mode Model No : *******

VERSION : E6********F1.ab6
Reading...

VERSION : *.**

Fig. c Programming Mode Screen

The appearance shown in (*1) of Fig. c is
described as follows:

No. Appearance State

1 Reading... Sending files into the memory
2 Erasing... Erasing previous version data
3 Programming... Writing new version data

5. After programming is finished, the tray opens
automatically. Fig. e appears on the screen and

EXIT: POWEREEPROM CLEAR : CLEAR

Fig. g

10. Press [CLEAR] button on the remote control unit.
Fig. h appears on the screen.

"

" differ depending on the models.

*******

MODEL : *******

Version
Region

: *.**

: *

EXIT: POWEREEPROM CLEAR : CLEAR

EEPROM CLEAR : OK

Fig. h

When “OK” appears on the screen, the factory
default will be set. Then the firmware renewal
mode is complete.

11. To exit this mode, press [STANDBY-ON] button.

1-7-1 E6161FW

BLOCK DIAGRAMS

System Control / Servo Block Diagram

IC101

(MICRO CONTROLLER)

ADAC-MD

AUDIO-MUTE

PCM-SCLK

57

88

163

56 ADAC-MC

86 ADAC-ML

IC462

+3.3V

IC461

+3.3V

*1

RESET73

RESET

1 3

RESET

2 1

VREF

(SERVO DRIVE)

IC301

FOCUS DRIVE

FD-OFST

148

146

26

25

27

-

+

-

+

FOCUS

ACTUATOR

DRIVE

15

16

24

TRACKING

DRIVE

TD-OFST

147

139

-

+

-

+

TRACKING

ACTUATOR

DRIVE

14

13

POWER

SW2003

312

SW2002

OPEN/CLOSE

SPDL

76

-

+

-

+

SPINDLE

MOTOR

DRIVE

12

11

STOP

-

MOTOR

CN1001

CN401

SLD75

23

DRIVE

18

PLAY

SW2001

19

18

OPEN/CLOSE

19 POWER

59POWER

60OPEN/CLOSE

82

STOP

IC202

23 REMOTE2222 PLAY2121 STOP2020

67

61

PLAY

REMOTE

(OP AMP)

3

RM2001

SP-ROT

143

1

2

SENSOR

REMOTE

5

SL-ADS

140

7

6

+3.3V

81 SL-AMP

14

13

12

SW2004

645

+

SLED

17

AV C BA

TRAY-IN

66

DVD MAIN CBA UNIT

1 NOTE:

Either IC461 or IC462 is used for DVD MAIN CBA UNIT.

*

AUDIO-MUTE

ADAC-MD

PCM-SCLK

TO

VIDEO/ AUDIO

ADAC-ML

ADAC-MC

BLOCK DIAGRAM

FS(+)

FS(-)

TO DIGITAL SIGNAL

TS(+)

TS(-)

PROCESS BLOCK

DIAGRAM

1-8-1

3SP(+)

4SP(-)

5TRAY-IN

6GND

7SL(-)

CN301

8SL(+)

DRIVE CBA

TRAY-IN

SPINDLE

MOTOR

M

SLED

MOTOR

M

E6161BLS

Digital Signal Process Block Diagram

TO

VIDEO

/AUDIO

BLOCK

DIAGRAM

TO

VIDEO

/AUDIO

BLOCK

DIAGRAM

FLASH

ROM

DATA(AUDIO) SIGNAL

DATA(VIDEO/AUDIO) SIGNAL VIDEO SIGNAL

DATA

RAM

INST.

DSP

DECODER

STREAM

SPDIF

PCM-BCK

PCM-DATA

PCM-LRCLK

177

170

171

169

AUDI O

I/F

ROM

DATA

RAM

INST.

ROM

SERIAL

GENERAL

I/O

I/O

PROCESSOR

CPU

I/F

UMAC

READ

TIMER

INTERRUPT

CONTROLLER

I/F

MEMORY

VIDEO-Y(I/P)

149

Y(I/P)

D/A

NTSC/PAL

VIDEO

WATCH DOG

TIMER

REMOTE

VIDEO-C

158

C

D/A

ENCODER

I/F

CONTROL

32BIT CPU

BCU

DATA

INST

DEBUG

RAM

RAM

IC103 (FLASH ROM)

~

~

1

9

162548

FADR (0-19)

23~51

~

293638

FDQ (0-15)

~

45

SDRAM ADDRESS(0-10)

IC101 (MICRO CONTROLLER)

~

217

238

SDRAM ADDRESS(0-10)

~~

202427

IC501, IC502 (SDRAM)

EXTERNAL

MEMORY

I/F

2

32

SDRAM

DECODER

I/F

ECC

SDRAM DATA(0-15)

~~

1

18

252

SDRAM DATA(0-15)

~

123949

192~212

CPU

I/F

DMA

RF

256

114

115

116

117

~

CN201

DVD/CD

FORMATTER

SIGNAL

PROCESS

132

131

C16

D18

CIRCUIT

134

133

A17

B15

DETECTOR

BCU

129

E14

130

F12

CD/DVD 19

32BIT

CPU

INST.

ROM

126

124

AMP

Q253,Q254

AMP

CN201

CD-LD 10

DVD-LD 8

DATA

RAM

125

123

Q251,Q252

6

5

PD-MONI 7

GND(CD-PD)

GND(DVD-PD)

9

GND(LD)

WATCH DOG

TIMER

TIMER

INTERRUPT

CONTROLLER

CD/DVD

83

TO SYSTEM

CONTROL/SERVO

BLOCK DIAGRAM

6

IC201

(SW)

4

1 3

CD DVD

FS

TS

FS(+)

CN201

FS(+) 2

FS(-)

FS(-) 3

TS(+)

TS(+) 1

TS(-)

DVD MAIN CBA UNIT

TS(-) 4

PICK-UP

UNIT

1-8-2

E6161BLD

Video / Audio Block Diagram

VIDEO OUT

5

WF3

(COMPOSITE)

JK1402

6

DRIVER

7

DRIVER

AUDIO SIGNALDATA(AUDIO) SIGNAL

VIDEO SIGNAL

JK1401

S-VIDEO OUT

2

1

3 4

YC

+5V

D2010

POWER

DIGITAL

JK1202

AMP

Q1351

AUDIO OUT

(COAXIAL)

WF6

(AMP)

IC1201

WF4

CN601 CN1601

JK1201

1

3

17

SPDIF

18

AUDIO(L)-

OUT

2

14

AUDIO(R)

13 12AUDIO(L)

15

AUDIO(R)-

OUT

675

WF5

14 13AUDIO(R)-MUTE

+5V

Q1202

Q1204

Q1201

+3.3V

2dB

AMP

2dB

LPF DRIVER

4dB

AMP

IC1403 (VIDEO DRIVER)

3

WF1

AMP

2dB

LPF

4dB

1

WF2

CN1601

87VIDEO-Y(I/P)

10 9VIDEO-C

CN601

VIDEO-Y(I/P)

VIDEO-C

AMP

AMP

IC601 (AUDIO DAC)

15

L-CH

R-CH

LPF+AMP

DAC

ENHANCED

MULTI-LEVEL

DELTA-SIGMA

4X/8X

/FUNCTION

DIGITAL FILTER

OVERSAMPLING

PORT

AUDIO

SERIAL

768

14

LPF+AMP

DAC

MODULATOR

CONTROLLER

16

ZERO DETECT

SERIAL

432

PORT

CONTROL

CLOCK

SYSTEM

MANAGER

5

DVD MAIN CBA UNIT AV CBA

TO DIGITAL

SIGNAL PROCESS

BLOCK DIAGRAM

1-8-3

SPDIF

TO

DIGITAL

PCM-BCK

PCM-DATA

PCM-LRCLK

SIGNAL

PROCESS

BLOCK

DIAGRAM

ADAC-MD

ADAC-MC

ADAC-ML

TO

SYSTEM

CONTROL

/SERVO

BLOCK

DIAGRAM

PCM-SCLK

AUDIO-MUTE

E6161BLV

Power Supply Block Diagram

NOTE:

The voltage for parts in hot circuit is measured using

hot GND as a common terminal.

"Ce symbole reprèsente un fusible à fusion rapide."

CAUTION !

For continued protection against fire hazard,

replace only with the same type fuse.

ATTENTION : Pour une protection continue les risqes

d'Incele n'utiliser que des fusible de même type.

Risk of fire-replace fuse as marked.

"This symbol means fast operating fuse."

A V

F

EV+5V

P-ON+9V

EV+3.3V

P-ON+5V

EV+1.2V

TO CN401

1,2

EV+3.3V

3,4,5

EV+10V7P-ON+5V6P-ON+3.3V17PWRCON

8,9

COLD

T1001

HOT

15

Q1004

Q1011

16

Q1002 CN1001

2

1

REG.

+1.2V

IC1002

3

3

SCHOTTKY

BARRIER

SCHOTTKY

D1006

11

2

BARRIER

D1008

D1030

RECTIFIER

12

13

14

4

Q1016

312

REG

IC1006

17

18

1

4

IC1001

ERROR

7

6

VOLTAGE DET

2

3

(SHUNT REGULATOR)

HOT CIRCUIT. BE CAREFUL.

CAUTION !

Fixed voltage ( or Auto voltage selectable ) power supply circuit is used in this unit.

If Main Fuse(F1001)is blown , check to see that all components in the power supply

circuit are not defective before you connect the AC plug to the AC power supply.

Otherwise it may cause some components in the power supply circuit to fail.

BRIDGE

RECTIFIER

D1001, D1002

D1004, D1005

LINE

FILTER

L1001

F1001

1A 250V

AC1001

AC CORD

F

SWITCHING

SWITCHING

Q1003 Q1031

A V

CONTROL

1-8-4

AV CBA

E6161BLP

SCHEMATIC DIAGRAMS / CBA’S AND TEST POINTS

Standard Notes

WARNING

Many electrica l and mechanical par ts in this chassis
have special characteristics. These characteristics
often pass unnoticed and the protection afforded by
them cannot necessarily be obtained by using
replacement components rated for higher voltage,
wattage, etc. Replacement parts that have these
special safety characteristics are identified in this
manual and its supplements; electrical components
having such features are identified by the mark “#” in
the schematic diagram and the parts list. Before
replacing any of these component s, read the par ts list
in this manual carefully. The use of substitute
replacement parts that do not have the same safety
characteristics as spec if ied in the parts lis t may create
shock, fire, or other hazards.

Notes:

1. Do not use the part number shown on these
drawings for ordering. The co rrect part numb er is
shown in the parts list, and may be slightly
different or amended since these drawings were
prepared.

2. All resistance values are indicated in ohms
(K = 10

3. Resistor wattages are 1/4W or 1/6W unless
otherwise specified.

4. All capacitance values are indicated in µF
(P = 10

5. All voltages are DC voltages unless otherwise
specified.

3

, M = 106).

-6

µF).

1-9-1 DVDN_SC

LIST OF CAUTION, NOTES, AND SYMBOLS USED IN THE SCHEMATIC DIAGRAMS ON
THE FOLLOWING PAGES:

1. CA UTION:

FOR CONTINUED PROTECTION AGAINST FIRE HAZARD, R EPLACE ONLY WITH THE

F

A V

SAME TYPE FUSE.
ATTENTION: POUR UNE PROTECTION CONTINUE LES RISQES D'INCELE N'UTILISER
QUE DES FUSIBLE DE MÊME TYPE.
RISK OF FIRE-REPLACE FUSE AS MARKED.

This symbol means fast operating fuse.
Ce symbole represente un fusible a fusion rapide.

2. CA UTION:

Fixed Voltage (or Auto voltage selectable) power supply circuit is used in this unit.
If Main Fuse (F1001) is blown, first check to see that all components in the power supply circuit are not
defective before you connect the AC plug to the AC power supply. Otherwise it may caus e s ome co mpo nen ts
in the power supply circuit to fail.

3. Note:

1. Do not use the par t number shown on the drawings for ordering. The correct par t number is shown in the
parts list, and may be slightly different or amended since the drawings were prepared.

2. To maintain original function and re liability of repaired units, use only original replacement par ts which are
listed with their part numbers in the parts list section of the service manual.

4. Voltage indications for PLAY and STOP mode on the schematics are as shown below:

2

1

(Unit: Volt)

The same voltage for
both PLAY & STOP modes

5.0

3

5.0
(2.5)

Indicates that the voltage
is not consistent here.

PLAY mode
STOP mode

5. How to read converged lines

1-D3
Distinction Area

Line Number
(1 to 3 digits)

Examples:

1. "1-D3" means that line number "1" goes to area "D3".

2. "1-B1" means that line number "1" goes to area "B1".

3

AREA D3

2

1

ABCD

AREA B1

1-D3

1-B1

6. Test Point Information

: Indicates a test point with a jumper wire across a hole in the PCB.
: Used to indicate a test point with a component lead on foil side.
: Used to indicate a test point with no test pin.
: Used to indicate a test point with a test pin.

1-9-2 DVDN_SC

DVD Main 1/3 Schematic Diagram

DVD MAIN 1/3

Ref No. P osition

IC201 C-1
IC202 D-4
IC301 D-3
IC461 F-1
IC462 E-1

Q251 C-2
Q252 B-2
Q253 C-2
Q254 B-2

CN201 A-3
CN301 A-1
CN401 F-3

CONNECTORS

ICS

TRANSISTORS

1 NOTE:

*

Either IC461 or IC462 is used for DVD MAIN CBA UNIT.

1-9-3

E6161SCD1

DVD Main 2/3 Schematic Diagram

1-9-4

E6161SCD2

PIN.NO PLAY STOP PIN.NO PLAY STOP PIN.NO PLAY STOP PIN.NO PLAY STOP

129 2.3 2.3 161 3.4 3.4 193 ~ ~ 225 3.4 3.4

130 2.3 2.3 162 0 0 194 ~ ~ 226 ~ ~

131 2.3 2.3 163 1.8 1.8 195 ~ ~ 227 ~ ~

132 2.4 2.3 164 0 0 196 3.4 3.4 228 ~ ~

133 2.4 2.4 165 1.7 1.8 197 ~ ~ 229 0 0

134 2.4 2.4 166 1.7 1.7 198 ~ ~ 230 ~ ~

135 2.3 2.3 167 3.4 3.4 199 ~ ~ 231 3.4 3.4

136 2.3 2.3 168 0 0 200 ~ ~ 232 1.3 1.6

137 2.3 2.3 169 1.8 1.8 201 0 0 233 ~ ~

138 2.3 2.3 170 1.7 1.7 202 3.4 3.4 234 1.9 2.3

139 1.7 1.7 171 1.3 0.1 203 ~ ~ 235 0 0

140 1.7 1.7 172 1.3 1.3 204 ~ ~ 236 1.3 1.3

141 3.4 3.4 173 0 0 205 0 0 237 ----- -----

142 1.3 1.3 174 ----- ----- 206 ~ ~ 238 ~ ~

143 2.1 1.7 175 ----- ----- 207 ~ ~ 239 3.4 3.4

144 2.2 2.2 176 ----- ----- 208 ~ ~ 240 3.4 3.3

145 0 0 177 1.8 1.7 209 3.4 3.4 241 1.9 1.9

146 1.7 1.7 178 3.4 3.5 210 ~ ~ 242 0 0

147 1.8 1.7 179 0 0 211 ~ ~ 243 1.9 1.9

148 1.7 1.7 180 ----- ----- 212 ~ ~ 244 3.4 3.3

149 0.6 0.5 181 ----- ----- 213 0 0 245 3.4 3.4

150 3.4 3.4 182 ----- ----- 214 ----- ----- 246 3.4 3.4

151 ----- ----- 183 ----- ----- 215 ----- ----- 247 0 0

152 ----- ----- 184 ----- ----- 216 3.4 3.4 248 3.3 3.4

153 1.4 1.3 185 ----- ----- 217 ~ ~ 249 3.2 3

154 1.4 1.3 186 ----- ----- 218 0 0 250 0 0

155 2.4 2.4 187 ----- ----- 219 1.3 1.3 251 3.2 3.0

156 3.4 3.4 188 ----- ----- 220 ~ ~ 252 ~ ~

157 0 0 189 ----- ----- 221 ~ ~ 253 0 0

158 0.9 0.9 190 3.4 3.5 222 0 0 254 ~ ~

159 3.4 3.4 191 0 0 223 ~ ~ 255 3.4 3.4

160 0 0 192 ~ ~ 224 ~ ~ 256 ~ ~

~ : Voltage is not consistent ----- : Not used Unit : Volt s

IC101 Voltage Chart

PIN.NO PLAY STOP PIN.NO PLAY STOP PIN.NO PLAY STOP PIN.NO PLAY STOP

1 ~ ~ 33 ~ ~ 65 0 0 97 ----- -----

2 ~ ~ 343.43.4663.43.5983.43.4

3 0 0 35 0 0 673.23.2990.90.8

4 ~ ~36~ ~680 01000 0

5 ~ ~ 37 ~ ~ 69 3.4 3.4 101 2.4 2.4

6 3.4 3.4 38 0.4 0.3 70 3.4 3.4 102 2.2 2.2

7 ~ ~ 39 ~ ~ 71 ----- ----- 103 1.9 1.9

8 ~ ~ 40 ~ ~ 72 1.4 2.7 104 0.4 0.3

9 0 0 41 ~ ~ 73 3.5 3.5 105 0 0

10 ~ ~ 42 ~ ~ 74 0 0 106 1.7 1.7

11 ~ ~ 43 ~ ~ 75 1.7 1.8 107 3.4 3.4

12 3.4 3.4 44 1.3 1.3 76 2.3 1.8 108 ----- -----

13 ~ ~ 45 ~ ~ 77 ----- ----- 109 ----- -----

14 ~ ~ 46 ~ ~ 78 ----- ----- 110 1.9 1.9

15 ~ ~ 47 ~ ~ 79 ----- ----- 111 1.9 1.9

16 0 0 48 3.4 3.4 80 3.4 0 112 1.7 1.7

17 ~ ~ 49 0 0 81 0.1 0.1 113 1.7 1.7

18 ~ ~ 50 ~ ~ 82 2.8 2.8 114 1.7 1.7

19 3.4 3.4 51 ~ ~ 83 0.1 0.1 115 1.7 1.7

20 0 0 52 0.8 0.8 84 3.4 3.4 116 1.7 1.7

21 ----- ----- 53 0 0 85 0.1 0.1 117 1.7 1.7

22 3.4 3.4 54 ----- ----- 86 3.6 3.4 118 3.4 3.4

23 ~ ~ 55 ----- ----- 87 0 0 119 2.0 2.0

24 ~ ~ 56 3.4 3.4 88 3.5 0.1 120 1.7 1.7

25 ~ ~ 57 3.5 3.5 89 1.3 1.3 121 1.5 1.5

26 1.3 1.3 58 3.4 3.4 90 ----- ----- 122 0 0

27 ~ ~ 59 3.4 3.4 91 ----- ----- 123 0.3 0.1

28 3.4 3.4 60 3.4 3.4 92 ----- ----- 124 1.1 0.1

29 0 0 61 3.5 3.5 93 0 0 125 0.3 0.1

30 ~ ~

31 ~ ~

32 ~ ~

62 3.4 3.4

63 0 0
64 0 0

94 ----- ----- 126 0.1 0.1

95 ----- ----- 127 2.3 2.3

96 ----- ----- 128 1.7 1.7

1-9-5

DVD Main 3/3 Schematic Diagram

DVD MAIN 3/3

Ref No. P osition

IC103 N-3
IC501 O-4
IC502 Q-4
IC601 O-1

CN601 R-1

ICS

CONNECTOR

1-9-6

E6161SCD3

AV 1/2 Schematic Diagram

AV 1/2

Ref No. Pos it ion

IC1001 B-2
IC1002 C-2
IC1006 D-4

Q1002 D-2
Q1003 B-2
Q1004 D-3
Q1011 D-2
Q1016 E-2
Q1031 B-3

CN1001 F-4

ICS

TRANSISTORS

CONNECTOR

"Ce symbole reprèsente un fusible à fusion rapide."

CAUTION !

For continued protection against fire hazard,
replace only with the same type fuse.
ATTENTION : Pour une protection continue les risqes
d'Incele n'utiliser que des fusible de même type.
Risk of fire-replace fuse as marked.

"This symbol means fast operating fuse."

A V

F

CAUTION !

Fixed voltage ( or Auto voltage selectable ) power supply circuit is used in this unit.
If Main Fuse(F1001)is blown , check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.

NOTE:

The voltage for parts in hot circuit is measured using
hot GND as a common terminal.

1-9-7

E6161SCAV1

AV 2/2 Schematic Diagram

AV 2/2

Ref No. Pos it ion

IC1201 H-1
IC1403 I -4

Q1201 J-1
Q1202 J-1
Q1204 I-1
Q1351 K-4
Q1352 H-2

CN1601 G-3

ICS

TRANSISTORS

CONNECTOR

1-9-8

E6161SCAV2

AV CBA Top View

NOTE:

The voltage for parts in hot circuit is measured using
hot GND as a common terminal.

"Ce symbole reprèsente un fusible à fusion rapide."

CAUTION !

For continued protection against fire hazard,
replace only with the same type fuse.
ATTENTION : Pour une protection continue les risqes
d'Incele n'utiliser que des fusible de même type.
Risk of fire-replace fuse as marked.

"This symbol means fast operating fuse."

A V

F

CAUTION !

Fixed voltage ( or Auto voltage selectable ) power supply circuit is used in this unit.
If Main Fuse(F1001)is blown , check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.

1-9-9

BE6160F01012

"Ce symbole reprèsente un fusible à fusion rapide."

CAUTION !

For continued protection against fire hazard,
replace only with the same type fuse.
ATTENTION : Pour une protection continue les risqes
d'Incele n'utiliser que des fusible de même type.
Risk of fire-replace fuse as marked.

"This symbol means fast operating fuse."

A V

F

AV CBA Bottom View

CAUTION !

Fixed voltage ( or Auto voltage selectable ) power supply circuit is used in this unit.
If Main Fuse(F1001)is blown , check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.

WF3

C1402
PLUS LEAD

WF1

PIN 7 OF
CN1601

WF2

PIN 9 OF
CN1601

WF4

PIN 12 OF
CN1601

WF5

PIN 14 OF
CN1601

WF6

PIN 17 OF
CN1601

NOTE:

The voltage for parts in hot circuit is measured using
hot GND as a common terminal.

AV CBA

Ref No. Position

ICS
IC1001 D-3
IC1002 C-2
IC1006 D-3
IC1201 D-1
IC1403 D-2

TRANSISTORS
Q1002 B-1
Q1003 D-3
Q1004 B-1
Q1011 C-1
Q1016 C-1
Q1031 E-3
Q1201 E-1
Q1202 E-1
Q1204 D-1
Q1351 E-1
Q1352 C-1

CONNECTORS
CN1001 B-1
CN1601 D-1

1-9-10

BE6160F01012

WAVEFORMS

0.1V

VIDEO-Y

VIDEO-C

0.1V

VIDEO-CVBS

0.5V

AUDIO(L)

1V

0.5ms

AUDIO(R)

1V

0.5ms

SPDIF

1V

0.1

WF1

Pin 7 of CN1601

VIDEO-Y

WF2

Pin 9 of CN1601

2020µ

s0.1V

WF5

Pin 14 of CN1601

AUDIO(R)

WF6

Pin 17 of CN1601

1V

0.5ms

VIDEO-C

WF3

C1402 PLUS LEAD

VIDEO-CVBS

WF4

Pin 12 of CN1601

0.1V

0.5V

2020µ

2020µ

s

s

SPDIF

1V

0.1

µ

s

NOTE:

Input
CD: 1kHz PLAY
(WF4~WF6)
DVD: POWER ON (STOP) MODE
(WF1~WF3)

AUDIO(L)

1V

0.5ms

1-10-1

E6NWF

WIRING DIAGRAM

VIDEO-Y(I/P) 87
GND 98
VIDEO-C 109
AUDIO-GND 1110
AUDIO-GND 1211
AUDIO(L) 1312
AUDIO(R)-MUTE

CN1601

AUDIO(R) 1514
AUDIO+5V 1615
AUDIO+5V 1716
SPDIF 1817

(CN1601 is soldered directly to the PCB.)

CN601

1413

P-ON+5V

CD/DVD

CN201CN301

GND(LD)

DVD-LD

PD-MONI
GND(DVD-PD)
GND(CD-PD)

VREF

GND

CD-LD

TS(-)

FS(-)
FS(+)
TS(+)

20
19

D

18

A

17

C

16

B

15

E

14
13

F

12
11
10

9
8
7
6
5
4
3
2
1

FS

4

DETECTOR

7 9 11 2 3 6 5

PICK UP UNIT

TS

AC CORD

S-VIDEO

DIGITAL

AUDIO OUT

(COAXIAL)

AUDIO(R)-

AUDIO(L)-

VIDEO OUT

OUT

OUT

OUT

(COMPOSITE)

(BE6160F01012)

AV CBA

EV+1.2V 21
EV+1.2V 32
EV+3.3V 43
EV+3.3V 54
EV+3.3V 65
P-ON+3.3V 76
P-ON+5V 87
EV+10V 98
EV+10V 109
GND 1110
GND 1211
GND 1312

CN1001

GND 1413
GND 1514
GND 1615
GND 1716
PWRCON 1817

(CN1001 is soldered directly to the PCB.)

POWER 1918
OPEN/CLOSE 2019
STOP 2120
PLAY 2221
REMOTE

CN401

2322

DVD MAIN CBA UNIT

1-11-1

SL(+)

SL(-)

GND

TRAY-IN

SP(-)

SP(+)

DVD MECHA

M

SLED

MOTORMSPINDLE

8
7
6
5
4
3

MOTOR

DRIVE CBA

TRAY-IN

E6161WI

SYSTEM CONTROL TIMING CHARTS

Tray Close ~ Play / Play ~ Tray Open

Tray IN
(TL221)

Sled Drive
(TP303)

Disc Drive
(TP301)

Focus Drive
(TP304)

Tracking Drive
(TP302)

3.3V

0V

1.65V

0V

1.65V
0V

1.65V

0V

1.65V
0V

Tray
Close

Disc
Rotation

Play

Disc
Stop

Tray
Open

1-12-1 E6NTI

LEAD IDENTIFICATIONS

KTA1266(Y)
KTC3203(Y)

E C B E C B

KIA4558P

8

5

MM1636XWRE

8

KTA1267(Y)
KTC3199(GR,Y)

5

2SK3498

GDS

KIA431-AT

1

LTV-817B-F

A

K

4

C

E

1

LD1117SC-R

123

4

K A R

Note:

A: Anode
K: Cathode
E: Emitter
C: Collector
B: Base
R: Reference
G: Gate
D: Drain
S: Source

1-13-1 E6161LE

Cabinet

2L081

EXPLODED VIEWS

2L011

2L011

2B5

2L021

2L081

2L021

DVD MAIN CBA UNIT

1B1

2L021

2L105

2L031

A16

AC1001

F1001

JK1402

JK1401

JK1201

JK1202

AV CBA

See Electrical Parts List
for parts with this mark.

Some Ref. Numbers are
not in sequence.

A23

A1X

2L041

2L041

A15

A15

A13

A13

A21

A22

A29

1-14-1 E6161CEX

Packing

X2

X4

S4

X5

X10

X1

S2

Unit

S2

A22

S1

1-14-2 E6161PEX

MECHANICAL PARTS LIST

PRODUCT SAFETY NOTE: Products mar ked with a

# have special characteristics important to safety.
Before replacing any of these components, read
carefully the product safety notice in this service
manual. Don't degrade the safety of the product
through improper servicing.

NOTE: Parts that are not assigned part numbers
(---------) are not available.

Ref. No. Description Part No.

A1X FRONT ASSEMBL Y E6 161UD 1VM320598
A13 FOOT(REAR) E5710UD 0VM415007
A15 CHASSIS E6160UD 1VM020018
A16 TOP CASE E6160UD 1VM120047
A21 LABEL,MODEL NO. E6161UD ---------­A22 LABEL, BAR CODE E5900UD ---------­A23 TELEPHONE NO. LABEL H9670UD ---------­A29 LABEL, EAS L0951UB ---------­1B1 DVD MECHA E6160(FG LESS) N79F0JVM N79F0JVM
2B5 REINFORCE PLA TE E6160UD 1VM421017
2L011 SCREW, P-TIGHT 3X10 BIND HEAD+ GBEP3100
2L021 SCREW, P-TIGHT 3X11 BIND HEAD+ GBMP3110
2L031 P-TIGHT SCREW 3X8 BIND + GBMP3080
2L041 SCREW, B-TIGHT M3X8 BIND HEAD + GBKB3080
2L081 SCREW, P-TIGHT M3X8 W ASHER+ GCMP3080
2L105 P-TIGHT SCREW 3X8 BIND + GBMP3080

PACKING

S1 GIFT BOX CART ON E6161UD 1VM320600
S2 SIDE PAD E6160UD 1VM220264
S4 SET BAG E5960UD 1VM420147

ACCESSORIES

X1 REMOTE CONTROL UNIT NB062UD NB062UD
X2 DRY BATTERY R6P/2S XB0M451T0001
X4 ACCESSORY BA G E5700UD 0VM415576
X5 AV CORD TSCKA-Y/R W100 WPZ0102TM015
X10# OWNER' S MANUAL E6161UD 1VMN20372

20041201 1-15-1 E6161CA

ELECTRICAL PARTS LIST

PRODUCT SAFETY NOTE: Products mar ked with a

# have special characteristics important to safety.
Before replacing any of these components, read
carefully the product safety notice in this service
manual. Don't degrade the safety of the product
through improper servicing.

NOTES:

1. Parts that are not a ssigned part numbers (--------- )
are not available.

2. Tolerance of Capacitors and Resistors are noted
with the following symbols.

C.....±0.25% D.....±0.5% F.....±1%

G.....±2% J......±5% K.....±10%

M.....±20% N.....±30% Z.....+80/-20%

DVD MAIN CBA UNIT

Ref. No. Description Part No.

DVD MAIN CBA UNIT N79F1JUP

AV CBA

Ref. No. Description Part No.

AV CBA
Consists of the following:

CAPACITORS

C1001# METALLIZED FI LM CA P. 0.04 7µF/ 250V M CT2E473MS037
C1003 ELECTROLYTIC CAP. 2.2µF/ 250V M CA2E2R2S6009
C1004 ELECTROLYTIC CAPACIT OR

C1005 CERAMIC CAP. CH J 56pF/500V CCD2JJPCH5 60
C1006# SA FETY CA P. 2200pF/2 50V CCD2EMA0E222
C1007 ELECTROLYTIC CAP. 1000µF/ 6.3V M CE0KMASDL102
C1009 ELECTROLYTIC CAP. 1000µF/ 6.3V M CE0KMASDL102
C1010 CERAMIC CAP.(AX) CH J 680pF/50 V CA1J681TU008
C1013 FILM CAP.(P) 0.0033µF/ 50V J CA1J332MS029
C1014 ELECTROLYTIC CAP. 1000µF/ 6.3V M CE0KMASDL102
C1017 CERAMIC CAP.(AX) Y M 0.01µF/ 16V CCA1CMT0Y103
C1022 CHIP CERAMIC CAP.(1608) B K 0.01µF/ 50V CHD1JK30B103
C1029 CERAMIC CAP.(AX) X K 2200pF/16V CCA1CKT0X222
C1034 ELECTROLYTIC CAP. 470µF/ 6.3V M CE0KMASDL471
C1035 ELECTROLYTIC CAP. 1000µF/ 16V M CE1CMASDL102
C1036 CHIP CERAMIC CAP.(1608) B K 0.01µF/ 50V CHD1JK30B103
C1037 CHIP CERAMIC CAP.(1608) F Z 0.1µF/ 50V CHD1JZ30F104
C1038 ELECTROLYTIC CAP. 470µF/ 6.3V M CE0KMASDL471
C1039 CHIP CERAMIC CAP.(1608) F Z 0.1µF/ 50V CHD1JZ30F104
C1047 FILM CAP.(P) 0.01µF/ 100V J CA2A103MS029
C1048 ELECTROLYTIC CAP. 220µF/ 16V M CE1CMASDL221
C1050 ELECTROLYTIC CAP. 220µF/ 6.3V M CE0KMASDL221
C1201 ELECTROLYTIC CAP. 10µF/ 16V M CE1CMASDL100
C1202 ELECTROLYTIC CAP. 10µF/ 16V M CE1CMASDL100
C1205 CHIP CERAMIC CAP. CH J 220pF/50V CHD1JJ3CH221
C1206 CHIP CERAMIC CAP. CH J 220pF/50V CHD1JJ3CH221
C1207 CHIP CERAMIC CAP.(1608) CH J 47pF/50V CHD1JJ3CH470
C1208 CHIP CERAMIC CAP.(1608) CH J 47pF/50V CHD1JJ3CH470
C1221 ELECTROLYTIC CAP. 10µF/ 16V M CE1CMASDL100
C1222 ELECTROLYTIC CAP. 10µF/ 16V M CE1CMASDL100

ZR200TA820M12BB

1VSA10581

CA2D820DYG01

Ref. No. Description Part No.

C1240 CERAMIC CAP.(AX) B K 1000pF/50V CCA1JKT0B102
C1245 CHIP CERAMIC CAP.(1608) F Z 0.1µF/ 50V CHD1JZ30F104
C1246 CHIP CERAMIC CAP.(1608) F Z 0.1µF/ 50V CHD1JZ30F104
C1247 ELECTROLYTIC CAP. 470µF/ 6.3V M CE0KMASDL471
C1249 ELECTROLYTIC CAP. 47µF/ 16V M CE1CMASDL470
C1351 CHIP CERAMIC CAP.(1608) B K 0.1µF/ 25V CHD1EK30B104
C1352 ELECTROLYTIC CAP. 47µF/ 6.3V M H7 CE0KMASSL470
C1354 CHIP CERAMIC CAP.(1608) CH J 100pF/50V CHD1JJ3CH101
C1361 CHIP CERAMIC CAP.(1608) F Z 0.1µF/ 50V CHD1JZ30F104
C1394 ELECTROLYTIC CAP. 47µF/ 10V M CE1AMASDL470
C1402 ELECTROLYTIC CAP. 470µF/ 6.3V M CE0KMASDL471
C1403 CHIP CERAMIC CAP.(1608) B K 0.33µF/ 10V CHD1AK30B334
C1422 CHIP CERAMIC CAP.(1608) B K 0.1µF/ 25V CHD1EK30B104
C1423 CHIP CERAMIC CAP.(1608) B K 0.01µF/ 50V CHD1JK30B103
C1443 ELECTROLYTIC CAP. 1000µF/ 6.3V M CE0KMASDL102
C1524 ELECTROLYTIC CAP. 100µF/ 6.3V M CE0KMASDL101
C1535 CHIP CERAMIC CAP.(1608) B K 0.01µF/ 50V CHD1JK30B103
C1536 ELECTROLYTIC CAP. 22µF/ 6.3V M H7 CE0KMASSL220
C1537 CHIP CERAMIC CAP.(1608) F Z 0.1µF/ 50V CHD1JZ30F104
C2031 ELECTROLYTIC CAP. 100µF/ 6.3V M CE0KMASDL101
C2032 CHIP CERAMIC CAP.(1608) F Z 0.1µF/ 50V CHD1JZ30F104
C2034 CHIP CERAMIC CAP.(1608) CH J 1000pF/50V CHD1JJ3CH102

CONNECTORS

CN1001 22P FFC AV PCB TO MAIN WX1E5900-001
CN1601 11P FFC AV PCB TO MAIN PCB WX1E6160-001

DIODES

D1001 RECTIFIER DIODE 1N4005 NDQZ001N4005
D1002 RECTIFIER DIODE 1N4005 NDQZ001N4005
D1004 RECTIFIER DIODE 1N4005 NDQZ001N4005
D1005 RECTIFIER DIODE 1N4005 NDQZ001N4005
D1006 SCHOTTKY BARRIER DIO DE SB140 NDQZ000SB140
D1008 SCHOTTKY BARRIER DIO DE SB140 NDQZ000SB140
D1011 RECTIFIER DIODE BA157 NDQZ000BA157
D1012 SWITCHING DIODE 1N4148M NDTZ01N4148M
D1018 SWITCHING DIODE 1N4148M NDTZ01N4148M
D1024 SWITCHING DIODE 1N4148M NDTZ01N4148M
D1030 RECTIFIER DIODE FR302 NDWZ000FR302
D1046 ZENER DIODE DZ-5.6BSCT265 NDTC0DZ5R6BS
D1047 ZENER DIODE DZ-5.1BSBT265 NDTB0DZ5R1BS
D1048 ZENER DIODE DZ-13BSBT265 NDTB00DZ13BS
D1053 PCB JUMPER D0.6-P10.0 JW10.0T
D1054 PCB JUMPER D0.6-P10.0 JW10.0T
D1058 SCHOTTKY BARRIER DIO DE SB140 NDQZ000SB140
D1059 PCB JUMPER D0.6-P10.0 JW10.0T
D1073 PCB JUMPER D0.6-P5.0 JW5.0T
D1301 ZENER DIODE DZ-5.6BSBT265 NDTB0DZ5R6BS
D2010 LED(RED) 204HD/E NPQZ00204HDE

ICS

IC1001# PHOTOCOUPLER L TV -817B-F NPEB0L TV817F
IC1002 VOL TAGE REGULATOR LD11 17SC -R NSZBA0TSS229
IC1006 IC:SHUNT REGULAT OR KIA431-AT NSZLA0TJY001
IC1201 IC:OP AMP KIA4558P NSZBA0SJY004
IC1403 DRIVER FOR DVD MM1636XWRE QSZBA0TMM108

COILS

L1001# LIN E FILTER 20MH SA-00911 LLBG00ZSA003
L1007 CHOKE COIL 22µH-K LLBD00PKV006
L1008 CHOKE COIL 22µH-K LLBD00PKV006
L1009 CHOKE COIL 22µH-K LLBD00PKV006
L1011 BEAD CORE B16 RH 3.5X3X1.3 XL03003XM002

20041201 1-16-1 E6161EL

Ref. No. Description Part No.

L1060 PCB JUMPER D0.6-P5.0 JW5.0T
L1350 INDUCTOR(100µHK) LAP02TA1 01K LLAXKA TTU101
L1351 INDUCTOR(0.47µHK) LAP02TAR47K LLAXKATTUR47
L1521 PCB JUMPER D0.6-P5.0 JW5.0T
L2010 PCB JUMPER D0.6-P5.0 JW5.0T
L2031 INDUCTOR(100µHK) LAP02TA1 01K LLAXKA TTU101

TRANSISTORS

Q1002 TRANSISTOR KT A1267(Y) NQSY0KTA1267
Q1003 TRANSISTOR KTC3199(GR) NQS10KTC3199
Q1004 TRANSISTOR KTC3199(Y) NQSY0KTC3199
Q1011 TRANSISTOR KTC3203(Y) NQSY0KTC3203
Q1016 TRANSISTOR KTC3199(GR) NQS10KTC3199
Q1031# FET 2SK3498(T6L1FUNAN Q) QF1Z02SK3498
Q1201 TRANSISTOR KTC3199(GR) NQS10KTC3199
Q1202 TRANSISTOR KTC3199(GR) NQS10KTC3199
Q1204 TRANSISTOR KT A1266(Y) NQSY0KTA1266
Q1351 TRANSISTOR KTC3199(GR) NQS10KTC3199
Q1352 TRANSISTOR KTC3199(GR) NQS10KTC3199

RESISTORS

R1004 METAL OXIDE FILM RES. 1W J 82k Ω RN01823ZU001
R1005 CARBON RES. 1/4W J 2. 7M Ω RCX4JA T Z0275
R1006 CARBON RES. 1/4W J 2. 7M Ω RCX4JA T Z0275
R1008 CARBON RES. 1/4W J 62 0 Ω RCX4JATZ0621
R1010 CARBON RES. 1/6W J 15 k Ω RCX6JA TZ0153
R1011 METAL OXIDE FILM RES. 1W J 1.2 Ω RN011R2ZU001
R1015 CARBON RES. 1/6W J 56 0 Ω RCX6JATZ0561
R1016 CARBON RES. 1/6W J 22 k Ω RCX6JA TZ0223
R1019 CHIP RES. 1/16W F 390 Ω RRXGFR5Z0391
R1020 CHIP RES.(1608) 1/10W J 1.2k Ω RRXAJR5Z0122
R1021 CHIP RES.(1608) 1/10W J 2.7k Ω RRXAJR5Z0272
R1022 CHIP RES.(1608) 1/10W J 820 Ω RRXAJR5Z0821
R1023 CHIP RES.(1608) 1/10W F 2.2k Ω RRXAFR5Z0222
R1025 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R1029 CARBON RES. 1/6W J 47 0k Ω RCX6JATZ0474
R1032 CARBON RES. 1/6W J 3. 3k Ω RCX6JA TZ0332
R1035 CARBON RES. 1/4W J 1k Ω RCX4JATZ0102
R1043 METAL OXIDE FILM RES. 1W J 2.7 Ω RN012R7ZU001
R1044 CHIP RES.(1608) 1/10W J 100k Ω RRXAJR5Z0104
R1059 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R1067 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102
R1068 CARBON RES. 1/6W J 56 0 Ω RCX6JATZ0561
R1069 CARBON RES. 1/6W J 68 0 Ω RCX6JATZ0681
R1072 CHIP RES.(1608) 1/10W J 330 Ω RRXAJR5Z0331
R1073 MET AL RES . 2W J 27 Ω RN02270ZU001
R1074 RECTIFIER DIODE 1N4005 NDQZ001N4005
R1075 CHIP RES. 1/16W F 10 Ω RRXGFR5Z0100
R1076 CHIP RES.(1608) 1/16W F 1k Ω RRXAFR5Z0102
R1077 METAL OXIDE FILM RES. 2W J 12 Ω RN02120ZU001
R1080 CHIP RES.(1608) 1/10W J 22k Ω RRXAJR5Z0223
R1081 CHIP RES. 1/16W F 390 Ω RRXGFR5Z0391
R1091 CHIP RES.(1608) 1/10W J 47 Ω RRXAJR5Z0470
R1092 PCB JUMPER D0.6-P5.0 JW5.0T
R1093 CHIP RES.(1608) 1/10W J 470 Ω RRXAJR5Z0471
R1095 CHIP RES.(2125) 1/8W J 0.1 Ω RRX8R10HH005
R1205 CHIP RES.(1608) 1/16W F 20k Ω RRXGFR5Z0203
R1206 CHIP RES.(1608) 1/16W F 20k Ω RRXGFR5Z0203
R1207 CHIP RES.(1608) 1/10W J 8.2k Ω RRXAJR5Z0822
R1208 CHIP RES.(1608) 1/10W J 8.2k Ω RRXAJR5Z0822
R1209 CHIP RES. 1/16W F 30k Ω RRXGFR5Z0303
R1210 CHIP RES. 1/16W F 30k Ω RRXGFR5Z0303
R1221 CHIP RES.(1608) 1/10W J 100k Ω RRXAJR5Z0104
R1222 CHIP RES.(1608) 1/10W J 100k Ω RRXAJR5Z0104

Ref. No. Description Part No.

R1223 CHIP RES.(1608) 1/10W J 470 Ω RRXAJR5Z0471
R1224 CHIP RES.(1608) 1/10W J 470 Ω RRXAJR5Z0471
R1225 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102
R1226 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102
R1227 CHIP RES.(1608) 1/10W J 220 Ω RRXAJR5Z0221
R1228 CHIP RES.(1608) 1/10W J 220 Ω RRXAJR5Z0221
R1240 CHIP RES.(1608) 1/10W J 100k Ω RRXAJR5Z0104
R1245 CHIP RES.(1608) 1/10W J 10 Ω RRXAJR5Z0100
R1351 CHIP RES.(1608) 1/10W J 2k Ω RRXAJR5Z0202
R1352 CHIP RES.(1608) 1/10W J 2.2k Ω RRXAJR5Z0222
R1353 CHIP RES.(1608) 1/10W J 2.2k Ω RRXAJR5Z0222
R1354 CHIP RES.(1608) 1/10W J 220 Ω RRXAJR5Z0221
R1355 CHIP RES.(1608) 1/10W J 75 Ω RRXAJR5Z0750
R1356 CHIP RES.(1608) 1/10W J 100k Ω RRXAJR5Z0104
R1392 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102
R1396 CHIP RES.(1608) 1/10W J 470 Ω RRXAJR5Z0471
R1397 CHIP RES.(1608) 1/10W J 470 Ω RRXAJR5Z0471
R1402 CHIP RES.(1608) 1/10W J 75 Ω RRXAJR5Z0750
R1403 CHIP RES. 1/10W F 160 Ω RRXAFR5Z0161
R1422 CHIP RES.(1608) 1/10W J 75 Ω RRXAJR5Z0750
R1423 CHIP RES. 1/10W F 160 Ω RRXAFR5Z0161
R1442 CHIP RES.(1608) 1/10W J 75 Ω RRXAJR5Z0750
R2012 CARBON RES. 1/6W J 22 0 Ω RCX6JA TZ 0221
R2031 CHIP RES.(1608) 1/10W J 6.8k Ω RRXAJR5Z0682
R2032 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R2033 CHIP RES.(1608) 1/10W J 22k Ω RRXAJR5Z0223
R2037 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102
R2038 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102
R2039 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102
R2040 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102
R2041 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R2042 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R2043 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R2044 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103

SWITCHES

SW2001 TACT SWITCH KSM0614B SST0101HH013
SW2002 TACT SWITCH KSM0614B SST0101HH013
SW2003 TACT SWITCH KSM0614B SST0101HH013
SW2004 TACT SWITCH KSM0614B SST0101HH013

MISCELLANEOUS

AC1001# AC CORD PB8B2F9110A-055 WAC0162LW004
F1001# FUSE SIC 1A 250V U/C T PAGG20CW3102
FH1001 FUSE HOLDER MSF-015 XH01Z00L Y001
FH1002 FUSE HOLDER MSF-015 XH01Z00L Y001
JK1201 2PIN JACK MSD-242V-01 NI JXRL020L Y067
JK1202 RCA JACK(BLACK) MSP-251V -01 NI JXRL010LY070
JK1401 S TYPE JACK MDC-050V-2.4 JXEL040L Y001
JK1402 1PIN JACK (YELLO W) MSP -251V-02 NI JXRL010LY117
RM2001 REMOTE RECEIVER MIM-93M6DKF USESJRSUNT01
T1001# PULSE TRANS CGS-SW0078A LTT00CPSA175

20041201 1-16-2 E6161EL

MWD200F

E6161UD

2004-12-15
