Sylvania MSD124, E595BUH Schematic

SERVICE MANUAL

DVD PLAYER

MSD124

IMPORTANT SAFETY NOTICE

Proper service and repair is important to the safe, reliable operation of all
Funai Equipment. The service procedures recommended by Funai and
described in this service manual are effective methods of performing
service operations. Some of these service special tools should be used
when and as recommended.

It is important to note that this service manual contains various CAUTIONS
and NOTICES which should be carefully read in order to minimize the risk of
personal injury to service personnel. The possibility exists that improper
service methods may damage the equipment. It also is important to
understand that these CAUTIONS and NOTICES ARE NOT EXHAUSTIVE.
Funai could not possibly know, evaluate and advice the service trade of all
conceivable ways in which service might be done or of the possible
hazardous consequences of each way. Consequently, Funai has not
undertaken any such broad evaluation. Accordingly, a servicer who uses a
service procedure or tool which is not recommended by Funai must first
use all precautions thoroughly so that neither his safety nor the safe
operation of the equipment will be jeopardized by the service method
selected.

TABLE OF CONTENTS

Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1-1

Laser Beam Safety Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2-1

Important Safety Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3-1

Standard Notes for Servicing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-4-1

Cabinet Disassembly Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5-1

Block Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6-1

Schematic Diagrams / CBA’s and Test Points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7-1

Waveforms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-8-1

Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9-1

Firmware Renewal Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-10-1

System Control Timing Charts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-11-1

Lead Identifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-12-1

Exploded Views . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-13-1

Mechanical Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-14-1

Electrical Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-15-1

Manufactured under license from Dolby Laboratories. "Dolby"
and the double-D symbol are trademarks of Dolby Laboratories.

SPECIFICATIONS

ITEM CONDITIONS UNIT NOMINAL LIMIT

1. Video Output 75 ohm load Vpp 1.0 ± 0.1

2. Coaxial Digital Out 75 ohm load mVpp 500 ± 50

3. Audio (PCM)

3-1. Output Level 1 kHz 0 dB Vrms 2.0

3-2. S/N dB 120

3-3. Freq. Response

DVD fs=48kHz ± 0.5dB Hz 20~22 k

CD fs=44.1kHz ± 0.5dB Hz 20~20 k

3-4. THD+N

DVD 1 kHz 0dB % 0.004

CD 1 kHz 0dB % 0.0045

NOTES:

1. All Items are measured without pre-emphasis unless otherwise specified.

2. Power supply : AC120 V 60 Hz

3. Load imp. : 100 k ohm

4. Ambient Temperature : +25

°C

1-1-1 E5900SP

LASER BEAM SAFETY PRECAUTIONS

This DVD player uses a pickup that emits a laser beam.

Do not look directly at the laser beam coming
from the pickup or allow it to strike against your
skin.

The laser beam is emitted from the location shown in the figure. When checking the laser diode, be sure to keep
your eyes at least 30cm away from the pickup lens when the diode is turned on. Do not look directly at the laser
beam.

Caution: Use of controls and adjustments, or doing procedures other than those specified herein, may result in
hazardous radiation exposure.

Drive Mecha Assembly

Laser Beam Radiation

Laser Pickup

Turntable

WHEN OPEN. DO NOT

CAUTION

LASER RADIATION

STARE INTO BEAM.

Location: Top of DVD mechanism.

1-2-1 E5_LASER

IMPORTANT SAFETY PRECAUTIONS

Product Safety Notice

Some electrical and mechanical parts have special
safety-related characteristics which are often not evi­dent from visual inspection, nor can the protection
they give necessarily be obtained by replacing them
with components rated for higher voltage, wattage,
etc. Parts that have special safety characteristics are
identified by a # on schematics and in parts lists. Use
of a substitute replacement that does not have the
same safety characteristics as the recommended
replacement part might create shock, fire, and/or other
hazards. The Product’s Safety is under review contin­uously and new instructions are issued whenever
appropriate. Prior to shipment from the factory, our
products are carefully inspected to confirm with the
recognized product safety and electrical codes of the
countries in which they are to be sold. However, in
order to maintain such compliance, it is equally impor­tant to implement the following precautions when a set
is being serviced.

Precautions during Servicing

A. Parts identified by the # symbol are critical for

safety. Replace only with part number specified.

B. In addition to safety, other parts and assemblies

are specified for conformance with regulations
applying to spurious radiation. These must also be
replaced only with specified replacements.
Examples: RF converters, RF cables, noise block­ing capacitors, and noise blocking filters, etc.

C. Use specified internal wiring. Note especially:

1)Wires covered with PVC tubing

2)Double insulated wires

3)High voltage leads

D. Use specified insulating materials for hazardous

live parts. Note especially:

1)Insulation tape

2)PVC tubing

3)Spacers

4)Insulators for transistors

E. When replacing AC primary side components

(transformers, power cord, etc.), wrap ends of
wires securely about the terminals before solder­ing.

F. Observe that the wires do not contact heat produc-

ing parts (heatsinks, oxide metal film resistors, fus­ible resistors, etc.).

G. Check that replaced wires do not contact sharp

edges or pointed parts.

H. When a power cord has been replaced, check that

5 - 6 kg of force in any direction will not loosen it.

I. Also check areas surrounding repaired locations.
J. Be careful that foreign objects (screws, solder

droplets, etc.) do not remain inside the set.

K. Crimp type wire connector

The power transformer uses crimp type connectors
which connect the power cord and the primary side
of the transformer. When replacing the transformer,
follow these steps carefully and precisely to pre­vent shock hazards.
Replacement procedure

1)Remove the old connector by cutting the wires at a
point close to the connector.

Important: Do not re-use a connector. (Discard it.)

2)Strip about 15 mm of the insulation from the ends
of the wires. If the wires are stranded, twist the
strands to avoid frayed conductors.

3)Align the lengths of the wires to be connected.
Insert the wires fully into the connector.

4)Use a crimping tool to crimp the metal sleeve at its
center. Be sure to crimp fully to the complete clo­sure of the tool.

L. When connecting or disconnecting the internal con-

nectors, first, disconnect the AC plug from the AC
outlet.

1-3-1 DVD_SFN1

Safety Check after Servicing

Examine the area surrounding the repaired location for
damage or deterioration. Observe that screws, parts,
and wires have been returned to their original posi­tions. Afterwards, do the following tests and confirm
the specified values to verify compliance with safety
standards.

1. Clearance Distance

When replacing primary circuit components, confirm
specified clearance distance (d) and (d’) between sol­dered terminals, and between terminals and surround­ing metallic parts. (See Fig. 1)

Table 1: Ratings for selected area

AC Line Voltage Clearance Distance (d), (d’)

Chassis or Secondary Conductor

Primary Circuit Terminals

dd'

120 V

Note: This table is unofficial and for reference only.

Be sure to confirm the precise values.

2. Leakage Current Test

Confirm the specified (or lower) leakage current
between B (earth ground, power cord plug prongs)
and externally exposed accessible parts (RF termi­nals, antenna terminals, video and audio input and
output terminals, microphone jacks, earphone jacks,
etc.) is lower than or equal to the specified value in the
table below.

Measuring Method (Power ON) :

Insert load Z between B (earth ground, power cord
plug prongs) and exposed accessible parts. Use an
AC voltmeter to measure across the terminals of load
Z. See Fig. 2 and the following table.

Table 2: Leakage current ratings for selected areas

AC Line Voltage Load Z Leakage Current (i) Earth Ground (B) to:

120 V

≥ 3.2mm (0.126 inches)

0.15µF CAP. & 1.5kΩ RES.
Connected in parallel

Exposed Accessible Part

Z

1.5k

i≤0.5mA Peak Exposed accessible parts

0.15 F

Earth Ground

B

Power Cord Plug Prongs

AC Voltmeter
(High Impedance)

Fig. 1

Fig. 2

Note: This table is unofficial and for reference only. Be sure to confirm the precise values.

1-3-2 DVD_SFN1

STANDARD NOTES FOR SERVICING

Circuit Board Indications

1. The output pin of the 3 pin Regulator ICs is indi­cated as shown.

Top View

Out

2. For other ICs, pin 1 and every fifth pin are indicated
as shown.

Pin 1

3. The 1st pin of every male connector is indicated as
shown.

Input

In

Bottom View

5

10

Pb (Lead) Free Solder

When soldering, be sure to use the Pb free solder.

How to Remove / Install Flat Pack-IC

1. Removal

With Hot-Air Flat Pack-IC Desoldering Machine:.

(1) Prepare the hot-air flat pack-IC desoldering

machine, then apply hot air to the Flat Pack-IC
(about 5 to 6 seconds). (Fig. S-1-1)

Pin 1

Instructions for Connectors

1. When you connect or disconnect the FFC (Flexible
Foil Connector) cable, be sure to first disconnect
the AC cord.

2. FFC (Flexible Foil Connector) cable should be
inserted parallel into the connector, not at an angle.

FFC Cable

Connector

CBA

* Be careful to avoid a short circuit.

Fig. S-1-1

(2) Remove the flat pack-IC with tweezers while apply-

ing the hot air.

(3) Bottom of the flat pack-IC is fixed with glue to the

CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)

(4) Release the flat pack-IC from the CBA using twee-

zers. (Fig. S-1-6)

Caution:

1. The Flat Pack-IC shape may differ by models. Use
an appropriate hot-air flat pack-IC desoldering
machine, whose shape matches that of the Flat
Pack-IC.

2. Do not supply hot air to the chip parts around the
flat pack-IC for over 6 seconds because damage to
the chip parts may occur. Put masking tape around
the flat pack-IC to protect other parts from damage.
(Fig. S-1-2)

1-4-1 E5STA

3. The flat pack-IC on the CBA is affixed with glue, so
be careful not to break or damage the foil of each
pin or the solder lands under the IC when removing
it.

With Soldering Iron:

(1) Using desoldering braid, remove the solder from all

pins of the flat pack-IC. When you use solder flux
which is applied to all pins of the flat pack-IC, you
can remove it easily. (Fig. S-1-3)

CBA

Masking
Tape

Tweezers

Hot-air
Flat Pack-IC
Desoldering
Machine

Flat Pack-IC

Fig. S-1-2

Flat Pack-IC

Desoldering Braid

Soldering Iron

Fig. S-1-3

(2) Lift each lead of the flat pack-IC upward one by

one, using a sharp pin or wire to which solder will
not adhere (iron wire). When heating the pins, use
a fine tip soldering iron or a hot air desoldering
machine. (Fig. S-1-4)

Sharp
Pin

Fine Tip
Soldering Iron

(3) Bottom of the flat pack-IC is fixed with glue to the

CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)

(4) Release the flat pack-IC from the CBA using twee-

zers. (Fig. S-1-6)

Fig. S-1-4

1-4-2 E5STA

With Iron Wire:

(1) Using desoldering braid, remove the solder from all

pins of the flat pack-IC. When you use solder flux
which is applied to all pins of the flat pack-IC, you
can remove it easily. (Fig. S-1-3)

(2) Affix the wire to a workbench or solid mounting

point, as shown in Fig. S-1-5.

(3) While heating the pins using a fine tip soldering

iron or hot air blower, pull up the wire as the solder
melts so as to lift the IC leads from the CBA contact
pads as shown in Fig. S-1-5.

(4) Bottom of the flat pack-IC is fixed with glue to the

CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)

(5) Release the flat pack-IC from the CBA using twee-

zers. (Fig. S-1-6)

Note:

When using a soldering iron, care must be taken
to ensure that the flat pack-IC is not being held by
glue. When the flat pack-IC is removed from the
CBA, handle it gently because it may be damaged
if force is applied.

Hot Air Blower

2. Installation

(1) Using desoldering braid, remove the solder from

the foil of each pin of the flat pack-IC on the CBA so
you can install a replacement flat pack-IC more
easily.

(2) The “I” mark on the flat pack-IC indicates pin 1.

(See Fig. S-1-7.) Be sure this mark matches the 1
on the PCB when positioning for installation. Then
presolder the four corners of the flat pack-IC. (See
Fig. S-1-8.)

(3) Solder all pins of the flat pack-IC. Be sure that none

of the pins have solder bridges.

Example :

Pin 1 of the Flat Pack-IC
is indicated by a " " mark.

Fig. S-1-7

To Solid
Mounting Point

CBA

Tweezers

Iron Wire

Soldering Iron

Fig. S-1-5

Fine Tip
Soldering Iron

Flat Pack-IC

or

Presolder

Flat Pack-IC

CBA

Fig. S-1-8

Fig. S-1-6

1-4-3 E5STA

Instructions for Handling
Semi-conductors

Electrostatic breakdown of the semi-conductors may
occur due to a potential difference caused by electro­static charge during unpacking or repair work.

1. Ground for Human Body

Be sure to wear a grounding band (1MΩ) that is prop­erly grounded to remove any static electricity that may
be charged on the body.

2. Ground for Workbench

(1) Be sure to place a conductive sheet or copper plate

with proper grounding (1MΩ) on the workbench or
other surface, where the semi-conductors are to be
placed. Because the static electricity charge on
clothing will not escape through the body ground­ing band, be careful to avoid contacting semi-con­ductors with your clothing.

<Incorrect>

<Correct>

1MΩ

CBA

Grounding Band

1MΩ

CBA

Conductive Sheet or
Copper Plate

1-4-4 E5STA

CABINET DISASSEMBLY INSTRUCTIONS

1. Disassembly Flowchart

This flowchart indicates the disassembly steps to gain
access to item(s) to be serviced. When reassembling,
follow the steps in reverse order. Bend, route, and
dress the cables as they were originally.

[1] Top Case

[2] Front Assembly

[3] Reinforce Plate

[4] DVD Main CBA Unit

[5] DVD Mecha

[6] AV CBA

2. Disassembly Method

ID/

LOC.

No.

[1] Top Case D1 2(S-1) -

[2]

[3]

[4]

[5]

[6] AV CBA D6 2(S-5), 4(S-6), *3(L-3) -

↓

(1)

PART

Front
Assembly

Reinforce
Plate

DVD Main
CBA Unit

DVD
Mecha

↓

(2)

Fig.

No.

D2 *3(L-1), *3(L-2)

D3 3(S-2) -

D4

D4,

D5

↓

(3)

REMOVAL

REMOVE/*UNHOOK/
UNLOCK/RELEASE/
UNPLUG/DESOLDER

(S-3A), (S-3B)
*CN201, *CN301,
*CN401, *CN601

4(S-4)

↓

(4)

Note

1
1-1
1-2

2
2-1
2-2

2

3

↓

(5)

(1): Identification (location) No. of parts in the figures
(2): Name of the part
(3): Figure Number for reference
(4): Identification of parts to be removed, unhooked,

unlocked, released, unplugged, unclamped, or
desoldered.
P=Spring, L=Locking Tab, S=Screw,
CN=Connector
*=Unhook, Unlock, Release, Unplug, or Desolder
e.g. 2(S-2) = two Screws (S-2),
2(L-2) = two Locking Tabs (L-2)

(5): Refer to “Reference Notes.”

About tightening screws

When tightening screws, tighten them with the follow­ing torque.

Screws Torque

(S-1), (S-2), (S-3A),
(S-4), (S-5), (S-6)

(S-3B) 0.38 ± 0.04 N·m

0.45 ± 0.05 N·m

Reference Notes

CAUTION 1: Locking Tabs (L-1) and (L-2) are fragile.
Be careful not to break them.

1-1. Release three Locking Tabs (L-1). Then, release

three Locking Tabs (L-2).
1-2. Remove the Front Assembly.
CAUTION 2: Electrostatic breakdown of the laser

diode in the optical system block may occur as a
potential difference caused by electrostatic charge
accumulated on cloth, human body etc, during
unpacking or repair work.

To avoid damage of pickup follow next procedures.
2-1. Short the three short lands of FPC cable with sol-

der before removing the FFC cable (CN201) from

it. If you disconnect the FFC cable (CN201), the

laser diode of pickup will be destroyed. (Fig. D4)
2-2. Disconnect Connectors (CN301), (CN401) and

(CN601). Remove two Screws (S-3A) and (S-3B)

and lift the DVD Main CBA Unit. (Fig. D4)
CAUTION 3: When reassembling, confirm the FFC

cable (CN201) is connected completely. Then remove
the solder from the three short lands of FPC cable.
(Fig. D4)

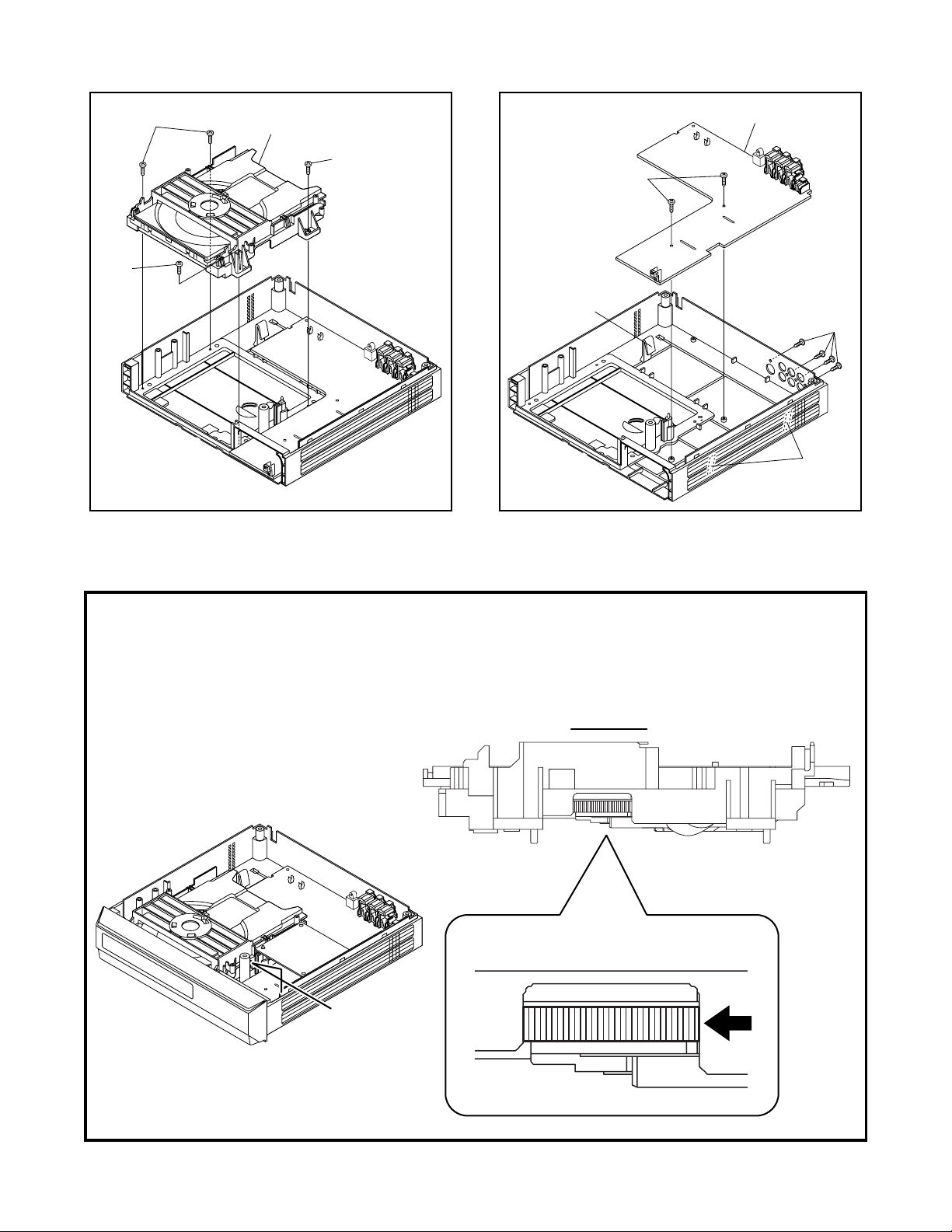

1-5-1 E5950DC

[1] Top Case

(S-1)

Fig. D1

(S-2)

(S-2)

[3] Reinforce Plate

Fig. D3

(L-1)

(L-2)

[2] Front Assembly

(L-1)

Fig. D2

(S-3B)

CN201

CN301

CN401

(S-3A)

CN601

[4] DVD Main
CBA Unit

A

Short the three short lands by soldering.
(Either of two places.)

Connector

View for A

Fig. D4

1-5-2 E5950DC

(S-4)

(S-4)

[5] DVD Mecha

(S-4)

[6] AV CBA

(S-5)

Fig. D5

HOW TO EJECT MANUALLY (Method 1)

1. Remove the Top Case.

2. Remove the Reinforce Plate.

3. Rotate the roulette in the direction of the arrow as shown
below.

(L-3)

(S-6)

(L-3)

Fig. D6

View for A

Rotate this roulette in
the direction of the arrow

A

1-5-3 E5950DC

HOW TO EJECT MANUALLY (Method 2)

1. Turn the unit over.

2. Insert the shaft less than a diameter of 3 mm (e.g. screw­driver) straightly into the opening as shown.

3. Turn the shaft along with the opening clockwise.

4. Repeat steps 2 and 3 until the tray will open.

5. Pull the tray slowly with a hand.

View for B

Rear

Turn the shaft along with
the opening clockwise.

Shaft
(e.g. screwdriver)

Opening

B

Front

1-5-4 E5950DC

BLOCK DIAGRAMS

System Control / Servo Block Diagram

IC101

(MICRO CONTROLLER)

PCM-SCLK

I/P-SW

163

183

ADAC-MD

A-MUTE

57

88

56 ADAC-MC

86 ADAC-ML

IC462

+3.3V

IC461

+3.3V

RESET73

RESET

1 3

RESET

2 1

VREF

(SERVO DRIVE)

IC301

FOCUS DRIVE

FD-OFST

148

146

26

25

27

-

+

-

+

FOCUS

ACTUATOR

DRIVE

15

16

24

TRACKING

DRIVE

TD-OFST

147

139

-

+

-

+

TRACKING

ACTUATOR

DRIVE

14

13

POWER

SW2003

312

SW2002

OPEN/CLOSE

SPDL

76

-

+

-

+

SPINDLE

MOTOR

DRIVE

12

11

STOP

SLD75

23

-

DRIVE

18

CN2002

18

18 POWER

CN401

59POWER

PLAY

SW2001

19

OPEN/CLOSE

60OPEN/CLOSE

82

61

PLAY

STOP

IC202

(OP AMP)

SENSOR

REMOTE

RM2001

22 REMOTE2221 PLAY2120 STOP2019

67

REMOTE

SP-ROT

143

1

2

3

81 SL-AMP

7

14

6

5

+3.3V

13

12

SW2004

645

+

SLED

MOTOR

17

AV C BA

TRAY-IN

66

DVD MAIN CBA UNIT

I/P-SW

PCM-SCLK

A-MUTE

ADAC-MD

TO

VIDEO/ AUDIO

ADAC-MC

BLOCK DIAGRAM

ADAC-ML

FS(+)

FS(-)

TO DIGITAL SIGNAL

TS(+)

TS(-)

PROCESS BLOCK

DIAGRAM

1-6-1

3SP(+)

4SP(-)

5TRAY-IN

6GND

7SL(-)

CN301

8SL(+)

DRIVE CBA

TRAY-IN

SPINDLE

MOTOR

M

SLED

MOTOR

M

E595BBLS

Digital Signal Process Block Diagram

TO

VIDEO

/AUDIO

BLOCK

DIAGRAM

TO

VIDEO

/AUDIO

BLOCK

DIAGRAM

FLASH

ROM

DATA(AUDIO) SIGNAL

DATA(VIDEO/AUDIO) SIGNAL VIDEO SIGNAL

DATA

RAM

DSP

INST.

ROM

DECODER

STREAM

I/F

DATA

RAM

I/O

INST.

ROM

PROCESSOR

SPDIF

PCM-BCK

177

170

PCM-DATA

171

AUDI O

I/F

UMAC

PCM-LRCLK

169

SERIAL

GENERAL

I/O

CPU

I/F

READ

MEMORY

INTERRUPT

VIDEO-Y

149

Y

D/A

CONTROLLER

TIMER

VIDEO-C

158

C

D/A

NTSC/PAL

VIDEO

WATCH DOG

TIMER

VIDEO-Cr/Pr

VIDEO-Cb/Pb

152

Cr/Pr

Cb/Pb

D/A

ENCODER

I/F

REMOTE

CONTROL

151

D/A

32BIT CPU

BCU

DATA

INST

DEBUG

RAM

RAM

IC103 (FLASH ROM)

1

23~51

~

9

FADR (0-19)

~

162548

~

293638

FDQ (0-15)

~

45

SDRAM ADDRESS(0-11)

~

217

238

SDRAM ADDRESS(0-11)

~~

222629

IC503 (SDRAM) IC101 (MICRO CONTROLLER)

EXTERNAL

MEMORY

I/F

1

2

35

SDRAM

DECODER

I/F

ECC

SDRAM DATA(0-15)

~~

18

252

SDRAM DATA(0-15)

~~

134253

256

114

115

DMA

116

DVD/CD

RF

117

132

CN201

C16

FORMATTER

SIGNAL

PROCESS

CIRCUIT

131

D18

192~212

CPU

I/F

BCU

WATCH DOG

5

9

GND(LD)

GND(CD-PD)

TIMER

INTERRUPT

TIMER

CONTROLLER

CD/DVD

83

TO SYSTEM

CONTROL/SERVO

BLOCK DIAGRAM

6

IC201

(SW)

4

1 3

CD DVD

FS

TS

FS(+)

CN201

FS(+) 2

FS(-)

FS(-) 3

TS(+)

TS(+) 1

TS(-)

DVD MAIN CBA UNIT

TS(-) 4

PICK-UP

UNIT

32BIT

CPU

INST.

ROM

DATA

RAM

126

124

125

AMP

Q251,Q252

Q253,Q254

AMP

CN201

CD-LD 10

DVD-LD 8

PD-MONI 7

123

6

GND(DVD-PD)

134

133

129

130

F12

A17

B15

E14

CD/DVD 19

DETECTOR

1-6-2

E595BBLD

Video / Audio Block Diagram

VIDEO-Cb/Pb

VIDEO-Y

OUT

COMPOSITE

VIDEO OUT

JK1401

AUDIO SIGNALDATA(AUDIO) SIGNAL

S-VIDEO OUT

JK1404

2

1

3 4

YC

OUT

VIDEO-Cr/Pr

OUT

+5V

D2023

POWER

D2022

PROGRESSIVE

DIGITAL

JK1202

AMP

Q1351

AUDIO

OUT

COAXIAL

JK1404

(AMP)

IC1201

3

AUDIO-L

OUT

1

2

675

AUDIO-R

OUT

+5V

Q1202

Q1204

Q1201

+3.3V

VIDEO SIGNAL

WF3

13

2dB

AMP

2dB

LPF DRIVER

4dB

AMP

IC1402 (VIDEO DRIVER)

3

WF1

14

DRIVER

AMP

WF2

15

2dB

AMP

LPF DRIVER

4dB

AMP

1

11

2dB

AMP

LPF DRIVER

4dB

AMP

6

CN1601

10

2dB

AMP

LPF DRIVER

4dB

AMP

8

MUTE

WF4

Q1353

5

7

L-CH

LPF+AMP

DAC

ENHANCED

MULTI-LEVEL

WF6

1

I/P-SW
2

CN601 CN1601

8

R-CH

LPF+AMP

DAC

MODULATOR

DELTA-SIGMA

18

SPDIF
19

15

AUDIO-R

14 13AUDIO-L

16

WF5

15 14A-R-MUTE

13 12A-MUTE

11

ZERO DETECT

16

SYSTEM CLOCK

DVD MAIN CBA UNIT AV CBA

87VIDEO-Y

CN601

VIDEO-Y

65VIDEO-Cb/Pb

10 9VIDEO-C

VIDEO-C

VIDEO-Cb/Pb

VIDEO-Cr/Pr

TO DIGITAL

SIGNAL PROCESS

BLOCK DIAGRAM

43VIDEO-Cr/Pr

1-6-3

IC601 (AUDIO DAC)

4X/8X

DIGITAL FILTER

OVERSAMPLING

SERIAL

123

PCM-BCK

SPDIF

PCM-DATA

TO

DIGITAL

SIGNAL

PROCESS

/FUNCTION

CONTROLLER

PORT

PCM-LRCLK

BLOCK

DIAGRAM

ADAC-MD

I/P-SW

SERIAL

131415

ADAC-MC

ADAC-ML

CONTROL

PCM-SCLK

A-MUTE

TO

SYSTEM

CONTROL

/SERVO

BLOCK

DIAGRAM

E595BBLV

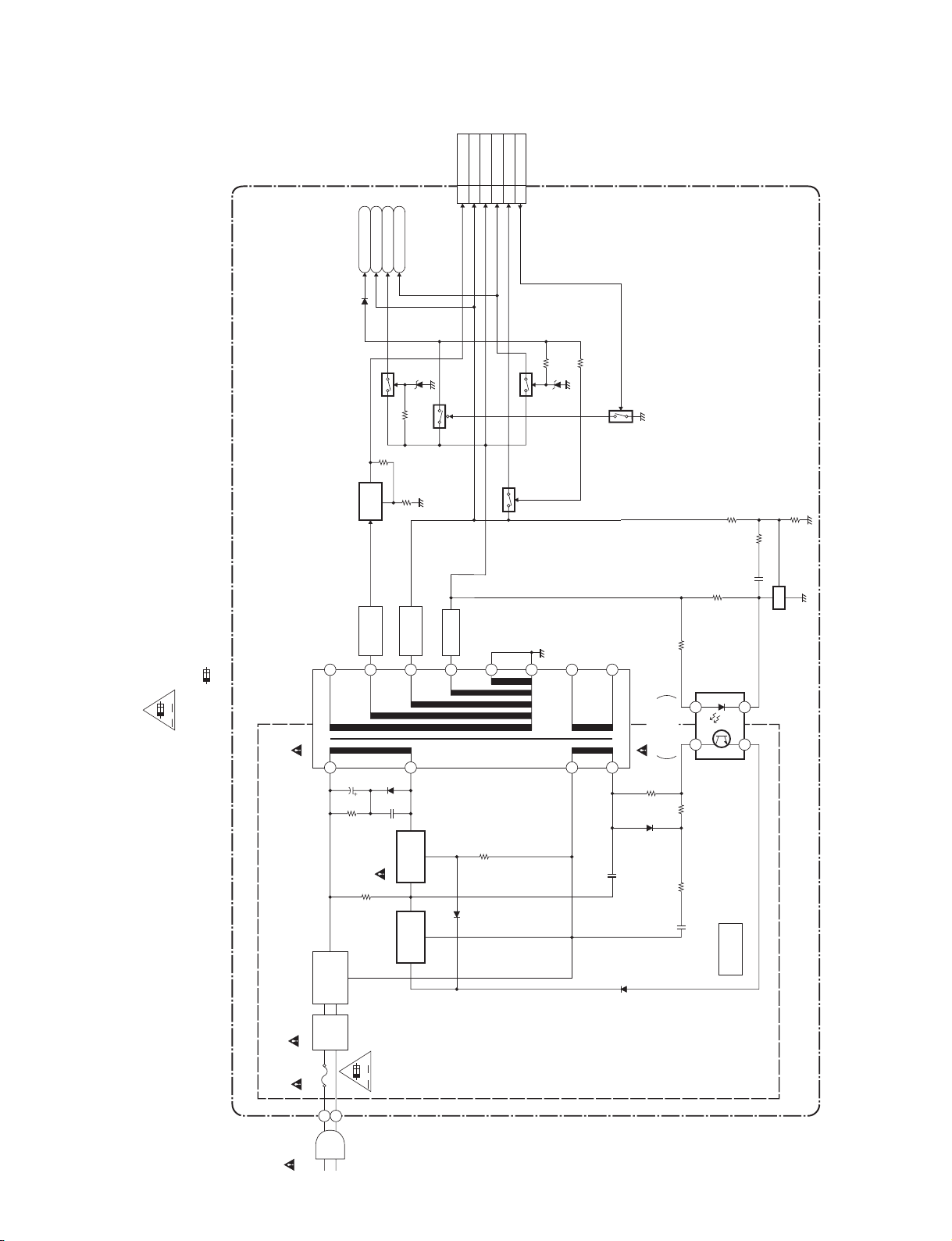

Power Supply Block Diagram

P-ON+10V

EV+3.3V

The voltage for parts in hot circuit is measured using

hot GND as a common terminal.

NOTE :

Q1014

EV+5V

P-ON+5V

TO CN401

7 P-ON+5V

6 P-ON+3.3V

8,9 EV+11V

3,4,5 EV+3.3V

17 PWRCON

Q1004

Q1016

1,2 EV+1.2V

Q1002 CN2002

+1.2V

IC1002

-REPLACE FUSE AS MARKED.

SCHOTTKY

T1001

11

2

BRIDGE

RECTIFIER

D1006

12

"Ce symbole reprèsente un fusible à fusion rapide."

"This symbol means fast operating fuse."

CAUTION

FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,

REPLACE ONLY WITH THE SAME TYPE FUSE.

ATTENTION : POUR UNE PROTECTION CONTINUE LES RISQES

D'INCELE N'UTILISER QUE DES FUSIBLE DE MÊME TYPE.

RISK OF FIRE

F

A V

D1001, D1002

D1004, D1005

REG.

BARRIER

D1008

Q1003 Q1031

SCHOTTKY

BARRIER

131514

4

SWITCHING

CONTROL

SWITCHING

D1030

RECTIFIER

Q1011

REG

IC1006

16

17

18

1

4

IC1001

ERROR

7

6

VOLTAGE DET

2

3

(SHUNT REGULATOR)

AV CBA

HOT

LINE

FILTER

L1001

F

F1001

CAUTION !

Fixed voltage ( or Auto voltage selectable ) power supply circuit is used in this unit.

If Main Fuse (F1001) is blown, check to see that all components in the power supply

circuit are not defective before you connect the AC plug to the AC power supply.

Otherwise it may cause some components in the power supply circuit to fail.

HOT CIRCUIT. BE CAREFUL.

1A 250V

AC1001

AC CORD

A V

1-6-4

E595BBLP

SCHEMATIC DIAGRAMS / CBA’S AND TEST POINTS

Standard Notes

WARNING

Many electrical and mechanical parts in this chassis
have special characteristics. These characteristics
often pass unnoticed and the protection afforded by
them cannot necessarily be obtained by using replace­ment components rated for higher voltage, wattage,
etc. Replacement parts that have these special safety
characteristics are identified in this manual and its
supplements; electrical components having such fea­tures are identified by the mark " # " in the schematic
diagram and the parts list. Before replacing any of
these components, read the parts list in this manual
carefully. The use of substitute replacement parts that
do not have the same safety characteristics as speci­fied in the parts list may create shock, fire, or other
hazards.

Notes:

1. Do not use the part number shown on these draw­ings for ordering. The correct part number is
shown in the parts list, and may be slightly different
or amended since these drawings were prepared.

2. All resistance values are indicated in ohms

3

(K=10

3. Resistor wattages are 1/4W or 1/6W unless other­wise specified.

4. All capacitance values are indicated in µF
(P=10

5. All voltages are DC voltages unless otherwise
specified.

, M=106).

-6

µF).

1-7-1 SC_FN1

LIST OF CAUTION, NOTES, AND SYMBOLS USED IN THE SCHEMATIC DIAGRAMS ON THE FOLLOWING
PAG ES:

1. CAUTION:

FOR CONTINUED PROTECTION AGAINST FIRE HAZARD, REPLACE ONLY WITH THE
SAME TYPE FUSE.

F

A V

ATTENTION: POUR UNE PROTECTION CONTINUE LES RISQES D'INCELE N'UTILISER QUE
DES FUSIBLE DE MÊME TYPE.
RISK OF FIRE-REPLACE FUSE AS MARKED.

This symbol means fast operating fuse.
Ce symbole represente un fusible a fusion rapide.

2. CAUTION:

Fixed Voltage (or Auto voltage selectable) power supply circuit is used in this unit.
If Main Fuse (F1001) is blown, first check to see that all components in the power supply circuit are not defective
before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the
power supply circuit to fail.

3. Note:

(1) Do not use the part number shown on the drawings for ordering. The correct part number is shown in the parts

list, and may be slightly different or amended since the drawings were prepared.

(2) To maintain original function and reliability of repaired units, use only original replacement parts which are

listed with their part numbers in the parts list section of the service manual.

4. Voltage indications for PLAY and STOP mode on the schematics are as shown below:

The same voltage for
both PLAY & STOP modes

5. How to read converged lines

1-D3
Distinction Area

Line Number

(1 to 3 digits)

Examples:

1. "1-D3" means that line number "1" goes to area "D3".

2. "1-B1" means that line number "1" goes to area "B1".

6. Test Point Information

: Indicates a test point with a jumper wire across a hole in the PCB.
: Used to indicate a test point with a component lead on foil side.
: Used to indicate a test point with no test pin.

(Unit: Volt)

5.0

2

3

5.0
(2.5)

Indicates that the voltage
is not consistent here.

PLAY mode
STOP mode

3

1-B1

1

AREA D3

2

1

AREA B1

1-D3

ABCD

: Used to indicate a test point with a test pin.

1-7-2 SC_FN2

DVD Main 1/3 Schematic Diagram

DVD MAIN 1/3

Ref No. Position

IC201 C-1
IC202 D-4
IC301 D-3
IC461 F-1
IC462 E-1

Q251 C-2
Q252 B-2
Q253 C-2
Q254 B-2

CN201 A-3
CN301 A-1
CN401 F-3

CONNECTORS

ICS

TRANSISTORS

DATA(VIDEO+AUDIO)

A4

A3

B4

B3

C4

C3

D3

E4

E3

F4

F3

A2

A1

B2

B1

1-7-3 1-7-4

C2

C1

D2

D1

E2

E1

F2

F1

E595BSCD1

DVD Main 2/3 Schematic Diagram

DVD MAIN 2/3

Ref No. Position

IC101 G-4

IC

DATA(VIDEO+AUDIO)
VIDEO SIGNAL

DATA (AUDIO)

G4

G3

H4

H3

I4

I3

J4

J3

K4

K3

L4

L3

G2

G1

1-7-5

H2

H1

I2

I1

J2

J1

K2

K1

1-7-6

L2

L1

E595BSCD2

IC101 VOLTAGE CHART

PIN.NO PLAY STOP PIN.NO PLAY STOP PIN.NO PLAY STOP PIN.NO PLAY STOP

129 2.3 2.3 161 3.4 3.4 193 ~ ~ 225 3.4 3.4
130 2.3 2.3 162 0 0 194 ~ ~ 226 ~ ~
131 2.3 2.3 163 1.8 1.8 195 ~ ~ 227 ~ ~
132 2.4 2.3 164 0 0 196 3.4 3.4 228 ~ ~
133 2.4 2.4 165 1.7 1.8 197 ~ ~ 229 0 0
134 2.4 2.4 166 1.7 1.7 198 ~ ~ 230 ~ ~
135 2.3 2.3 167 3.4 3.4 199 ~ ~ 231 3.4 3.4
136 2.3 2.3 168 0 0 200 ~ ~ 232 1.3 1.6
137 2.3 2.3 169 1.8 1.8 201 0 0 233 ~ ~
138 2.3 2.3 170 1.7 1.7 202 3.4 3.4 234 1.9 2.3
139 1.7 1.7 171 1.3 0.1 203 ~ ~ 235 0 0
140 ----- ----- 172 1.3 1.3 204 ~ ~ 236 1.3 1.3
141 3.4 3.4 173 0 0 205 0 0 237 ~ ~
142 1.3 1.3 174 ----- ----- 206 ~ ~ 238 ~ ~
143 2.1 1.7 175 ----- ----- 207 ~ ~ 239 3.4 3.4
144 2.2 2.2 176 ----- ----- 208 ~ ~ 240 3.4 3.3
145 0 0 177 1.8 1.7 209 3.4 3.4 241 1.9 1.9
146 1.7 1.7 178 3.4 3.5 210 ~ ~ 242 0 0
147 1.8 1.7 179 0 0 211 ~ ~ 243 1.9 1.9
148 1.7 1.7 180 ----- ----- 212 ~ ~ 244 3.4 3.3
149 0.6 0.5 181 ----- ----- 213 0 0 245 3.4 3.4
150 3.4 3.4 182 ----- ----- 214 ----- ----- 246 3.4 3.4
151 0.5 0.6 183 3.5 3.5 215 ----- ----- 247 0 0
152 0.5 0.4 184 ----- ----- 216 3.4 3.4 248 3.3 3.4
153 1.4 1.3 185 ----- ----- 217 ~ ~ 249 3.2 3
154 1.4 1.3 186 ----- ----- 218 0 0 250 0 0
155 2.4 2.4 187 ----- ----- 219 1.3 1.3 251 3.2 3.0
156 ----- ----- 188 ----- ----- 220 ~ ~ 252 ~ ~
157 0 0 189 ----- ----- 221 ~ ~ 253 0 0
158 0.9 0.9 190 3.4 3.5 222 0 0 254 ~ ~
159 3.4 3.4 191 0 0 223 ~ ~ 255 3.4 3.4
160 0 0 192 ~ ~ 224 ~ ~ 256 ~ ~

PIN.NO PLAY STOP PIN.NO PLAY STOP PIN.NO PLAY STOP PIN.NO PLAY STOP

1 ~ ~ 33 ~ ~ 65 0 0 97 ----- ----­2 ~ ~ 343.43.4663.43.5983.43.4
3 0 0 35 0 0 673.23.2990.90.8
4 ~ ~36~ ~680 01000 0
5 ~ ~ 37 ~ ~ 69 ----- ----- 101 2.4 2.4
6 3.4 3.4 38 0.4 0.3 70 3.4 3.4 102 2.2 2.2
7 ~ ~ 39 ~ ~ 71 ----- ----- 103 1.9 1.9
8 ~ ~40~ ~721.42.71040.40.3

90041~~733.43.410500
10 ~ ~ 42 ~ ~ 74 0 0 106 1.7 1.7
11 ~ ~ 43 ~ ~ 75 1.7 1.8 107 3.4 3.4
12 3.4 3.4 44 1.3 1.3 76 2.3 1.8 108 ----- ----­13 ~ ~ 45 ~ ~ 77 ----- ----- 109 ----- ----­14 ~ ~ 46 ~ ~ 78 ----- ----- 110 1.9 1.9
15 ~ ~ 47 ~ ~ 79 ----- ----- 111 1.9 1.9
16 0 0 48 3.4 3.4 80 3.4 0.1 112 1.7 1.7
17 ~ ~ 49 0 0 81 0.1 0.1 113 1.7 1.7
18 ~ ~ 50 ~ ~ 82 2.8 2.8 114 1.7 1.7
19 3.4 3.4 51 ~ ~ 83 0.1 0.1 115 1.7 1.7
20 0 0 52 0.8 0.8 84 3.4 3.4 116 1.7 1.7
21 0.9 0.1 53 0 0 85 0.1 0.1 117 1.7 1.7
22 3.5 3.5 54 ----- ----- 86 3.6 3.4 118 3.4 3.4
23 ~ ~ 55 ----- ----- 87 0 0 119 2.0 2.0
24 ~ ~ 56 3.4 3.4 88 3.5 0.1 120 1.7 1.7
25 ~ ~ 57 3.5 3.5 89 1.3 1.3 121 1.5 1.5
26 1.3 1.3 58 ----- ----- 90 ----- ----- 122 0 0
27 ~ ~ 59 3.4 3.4 91 ----- ----- 123 0.3 0.1
28 3.4 3.4 60 3.4 3.4 92 ----- ----- 124 1.2 0.1
29 0 0 61 3.5 3.5 93 0 0 125 0.3 0.1
30 ~ ~ 62 3.4 3.4 94 ----- ----- 126 0.1 0.1
31 ~ ~ 63 0 0 95 ----- ----- 127 2.3 2.3
32 ~ ~ 64 0 0 96 ----- ----- 128 1.7 1.7

1-7-7 1-7-8

DVD Main 3/3 Schematic Diagram

DVD MAIN 3/3

Ref No. Position

IC103 N-3
IC503 O-4
IC601 O-1

CN601 R-2

ICS

CONNECTOR

DATA (AUDIO)VIDEO SIGNAL

AUDIO SIGNAL

M4

M3

N4

N3

O4

O3

P4

P3

Q4

Q3

R4

R3

M2

M1

1-7-9

N2

N1

O2

O1

P2

P1

Q2

Q1

1-7-10

R2

R1

E595BSCD3

AV 1/2 Schematic Diagram

AV 1/2

Ref No. Position

IC1001 B-2
IC1002 D-4
IC1006 C-2

Q1002 D-3
Q1003 B-2
Q1004 D-3
Q1011 D-2
Q1014 E-3
Q1016 E-2
Q1031 B-3
Q1353 D-1

CN2002 F-4

ICS

TRANSISTORS

CONNECTOR

CAUTION !

Fixed voltage ( or Auto voltage selectable ) power supply circuit is used in this unit.
If Main Fuse (F1001) is blown, check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.

F

A V

CAUTION

FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,
REPLACE ONLY WITH THE SAME TYPE FUSE.
ATTENTION : POUR UNE PROTECTION CONTINUE LES RISQES
D'INCELE N'UTILISER QUE DES FUSIBLE DE MÊME TYPE.
RISK OF FIRE-REPLACE FUSE AS MARKED.

"This symbol means fast operating fuse."
"Ce symbole reprèsente un fusible à fusion rapide."

NOTE :
The voltage for parts in hot circuit is measured
using hot GND as a common terminal.

A4

A3

B4

B3

C4

C3

D4

D3

E4

E3

F4

F3

A2

A1

B2

B1

1-7-11

C2

C1

D2

D1

E2

E1

1-7-12

F2

F1

E595BSCAV1

AV 2/2 Schematic Diagram

AV 2/2

Ref No. Position

IC1201 H-1
IC1402 I-3

Q1201 J-1
Q1202 J-1
Q1204 I-1
Q1351 K-4
Q1352 H-2

CN1601 G-3

ICS

TRANSISTORS

CONNECTOR

DATA (AUDIO)VIDEO SIGNAL

AUDIO SIGNAL

G4

G3

H4

H3

I4

I3

J4

J3

K4

K3

L4

L3

G2

G1

1-7-13

H2

H1

I2

I1

J2

J1

K2

K1

1-7-14

L2

L1

E595BSCAV2

AV CBA Top View

CAUTION !

Fixed voltage ( or Auto voltage selectable ) power supply circuit is used in this unit.
If Main Fuse (F1001) is blown, check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.

F

A V

CAUTION

FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,
REPLACE ONLY WITH THE SAME TYPE FUSE.
ATTENTION : POUR UNE PROTECTION CONTINUE LES RISQES
D'INCELE N'UTILISER QUE DES FUSIBLE DE MÊME TYPE.
RISK OF FIRE-REPLACE FUSE AS MARKED.

"This symbol means fast operating fuse."
"Ce symbole reprèsente un fusible à fusion rapide."

NOTE :
The voltage for parts in hot circuit is measured
using hot GND as a common terminal.

1-7-15

1-7-16

BE5950F01011

AV CBA Bottom View

AV CBA

Ref No. Position

IC1001 D-3
IC1002 C-1
IC1006 D-3
IC1201 D-1
IC1402 E-2

Q1002 B-2
Q1003 D-3
Q1004 C-1
Q1011 C-2
Q1014 C-1
Q1016 B-1
Q1031 D-3
Q1201 E-1
Q1202 E-1
Q1204 E-1
Q1351 D-1
Q1352 C-1
Q1353 A-1

CN1601 D-1
CN2002 B-1

ICS

TRANSISTORS

CONNECTORS

CAUTION !

Fixed voltage ( or Auto voltage selectable ) power supply circuit is used in this unit.
If Main Fuse (F1001) is blown, check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.

F

A V

CAUTION

FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,
REPLACE ONLY WITH THE SAME TYPE FUSE.
ATTENTION : POUR UNE PROTECTION CONTINUE LES RISQES
D'INCELE N'UTILISER QUE DES FUSIBLE DE MÊME TYPE.
RISK OF FIRE-REPLACE FUSE AS MARKED.

"This symbol means fast operating fuse."
"Ce symbole reprèsente un fusible à fusion rapide."

NOTE :
The voltage for parts in hot circuit is measured
using hot GND as a common terminal.

WF3

C1402
PLUS LEAD

WF1

PIN 7 OF
CN1601

WF2

PIN 9 OF
CN1601

WF4

PIN 13 OF
CN1601

WF5

PIN 15 OF
CN1601

WF6

PIN 18 OF
CN1601

1-7-17

1-7-18

BE5950F01011

WAVEFORMS

SPDIF

1V

0.1

AUDIO-L

1V

0.5ms

AUDIO-R

1V

0.5ms

VIDEO-Y

0.2V

20

VIDEO-C

0.2V

20

VIDEO-CVBS

0.5V

20

WF1

Pin 7 of CN1601

VIDEO-Y

WF2

Pin 9 of CN1601

0.2V

20

µ

s

WF5

WF6

Pin 15 of CN1601

AUDIO-R

Pin 18 of CN1601

1V

0.5ms

VIDEO-C

WF3

WF4

0.2V

C1402 PLUS LEAD

VIDEO-CVBS

0.5V

Pin 13 of CN1601

20

µ

s

SPDIF

1V

0.1

µ

s

NOTE:

Input
CD: 1kHz PLAY
(WF4~WF6)

20

µ

s

DVD: POWER ON (STOP) MODE
(WF1~WF3)

AUDIO-L

1V

0.5ms

1-8-1

E5950WF

AC CORD

WIRING DIAGRAM

SPDIF 1819
AUDIO+5V 1718
AUDIO+5V 1617
AUDIO-R 1516
A-R-MUTE 1415
AUDIO-L 1314
A-MUTE 1213
AUDIO-GND 1112
AUDIO-GND 1011
VIDEO-C 910
GND 89

CN1601

(CN1601 is soldered directly to the PCB.)

VIDEO-Y 78
GND 67
VIDEO-Cb/Pb 56
GND 45
VIDEO-Cr/Pr 34
ASPECT(NU) 23
I/P-SW 12

CN601

CN201CN301

20

P-ON+5V

19

CD/DVD

18

D

17

A

16

C

15

B

14

E

13

VREF

12

F

11

GND
CD-LD

10

9

GND(LD)

8

DVD-LD

7

PD-MONI

6

GND(DVD-PD)

5

GND(CD-PD)

4

TS(-)

3

FS(-)
FS(+)

2
1

TS(+)

4

DETECTOR

7 9 11 2 3 6 5

PICK UP UNIT

FS

TS

S-VIDEO

DIGITAL

AUDIO OUT

AUDIO-R

AUDIO-L

VIDEO

VIDEO-Cr/Pr

VIDEO-Cb/Pb

VIDEO-Y

OUT

COAXIAL

OUT

OUT

OUT

OUT

OUT

OUT

(BE5950F01011)

AV CBA

2222

CN2002

(CN1001 is soldered directly to the PCB.)

REMOTE
FP-DOUT 2121
FP-STB 2020
FP-DIN 1919
FP-CLK 1818
PWRCON 1717
GND 1616
GND 1515
GND 1414
GND 1313
GND 1212
GND 1111
GND 1010
EV+11V 99
EV+11V 88
P-ON+5V 77
P-ON+3.3V 66
EV+3.3V 55
EV+3.3V 44
EV+3.3V 33
EV+1.2V 22
EV+1.2V 11

CN401

DVD MAIN CBA UNIT

SL(-)
GND
TRAY-IN
SP(-)
SP(+)

DVD MECHA

M

SLED

MOTORMSPINDLE

8 SL(+)
7
6
5
4
3

MOTOR

DRIVE CBA

TRAY-IN

1-9-1

E595BWI

FIRMWARE RENEWAL MODE

1. Turn the power on and remove the disc on the tray.

2. To put the DVD player into version up mode, press
[9], [8], [7], [6], and [SEARCH MODE] buttons on
the remote control unit in that order. The tray will
open automatically.
Fig. a appears on the screen.

"

" differ depending on the models.

*******

F/W Version Up Mode Model No : *******

Please insert a DISC

for F/W Version Up.

VERSION : *.**

EXIT: POWER

Fig. a Version Up Mode Screen

The DVD player can also enter the version up
mode with the tray open. In this case, Fig. a will be
shown on the screen while the tray is open.

3. Load the disc for version up.

4. The DVD player enters the F/W version up mode
automatically. Fig. c appears on the screen. If you
enter the F/W for different models, “Disc Error” will
appear on the screen, then the tray will open auto­matically.

"

" differ depending on the models.

*******

F/W Version Up Mode Model No : *******

VERSION : E5****_****.ab5
Reading...(*2)

VERSION : *.**

5. After programming is finished, the tray opens auto­matically. Fig. e appears on the screen and the
checksum in (*3) of Fig. e.

"

" differ depending on the models.

*******

F/W Version Up Mode

VERSION : E5****_****.ab5
Completed

SUM : 7ABC (*3)

Model No : *******
VERSION : *.**

Fig. e Completed Program Mode Screen

At this time, no buttons are available.

6. Remove the disc on the tray.

7. Unplug the AC cord from the AC outlet. Then plug it
again.

8. Turn the power on by pressing the [POWER] button
and the tray will close.

9. Press [1], [2], [3], [4], and [DISPLAY] buttons on the
remote control unit in that order.
Fig. g appears on the screen.

"

" differ depending on the models.

*******

MODEL : *******

Version
Region

: *.**

: *

Fig. c Programming Mode Screen

The appearance shown in (*2) of Fig. c is
described as follows:

AppearanceNo. State

Reading... Sending files into the memory

1

Erasing... Erasing previous version data

2

Programming...

3 Writing new version data

EXIT: POWEREEPROM CLEAR : CLEAR

Fig. g

10.Press [CLEAR] button on the remote control unit.
Fig. h appears on the screen.

"

" differ depending on the models.

*******

MODEL : *******

Version
Region

: *.**

: *

EXIT: POWEREEPROM CLEAR : CLEAR

EEPROM CLEAR : OK

Fig. h

When “OK” appears on the screen, the factory
default will be set. Then the firmware renewal mode
is complete.

11.To exit this mode, press [POWER] button.

1-10-1 E5960TEST

SYSTEM CONTROL TIMING CHARTS

Tray Close ~ Play / Play ~ Tray Open

Tray IN
(TL221)

Sled Drive
(TP303)

Disc Drive
(TP301)

Focus Drive
(TP304)

3.3V

0V

1.65V

0V

1.65V

0V

1.65V

0V

Tr ay
Close

Disc
Rotation

Play

Disc
Stop

Tr ay
Open

Tracking Drive
(TP302)

1.65V

0V

1-11-1 E5TI

LEAD IDENTIFICATIONS

2SA1015-Y(TPE2)
2SC1815-Y(TPE2)
2SC2120-Y(TPE2)
KTA1266(Y)
KTC3203(Y)

E C B E C B

NJM4558D
KIA4558P

8

5

MM1637XVBE

16

9

2SC2785(H)
KTA1267(Y)
KTC3199(GR)

2SK3498

GDS

FAN431AZXA
KIA431-AT

1

LTV-817B-F
LTV-817C-F
PS2561A-1(Q,W)

A

K

4

C

E

1

PQ070XZ5MZP

8

123345

1: Vin
2: Vc
3: Vo
4: Vadj
5: GND

K A R

Note:

A: Anode
K: Cathode
E: Emitter
C: Collector
B: Base
R: Reference
G: Gate
D: Drain
S: Source

1-12-1 E595BLE

Cabinet

2L081

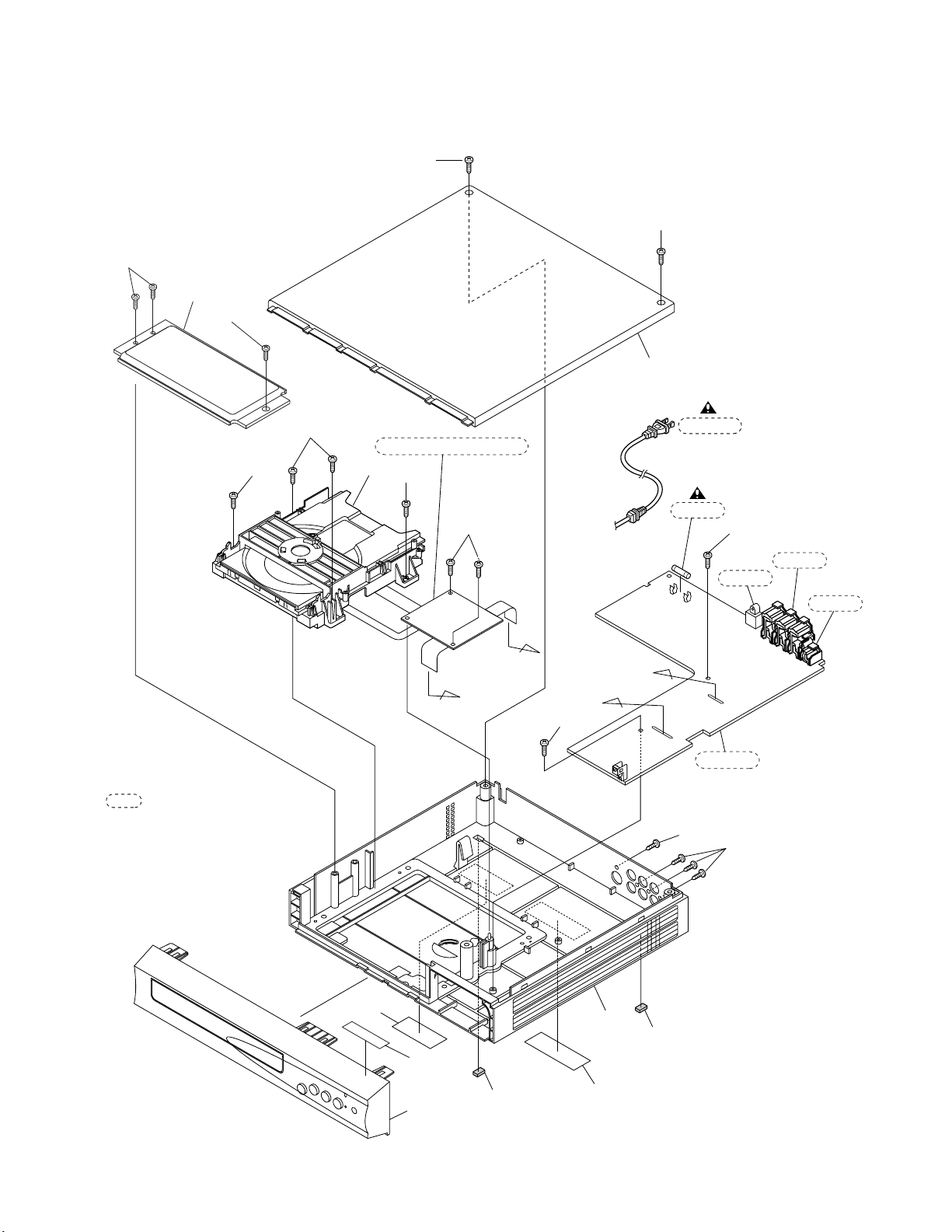

EXPLODED VIEWS

2L011

2L011

2B5

2L081

A16

2L021

See Electrical Parts List
for parts with this mark.

Some Ref. Numbers are
not in sequence.

2L021

DVD MAIN CBA UNIT

1B1

2L021

2L105

A

AC1001

F1001

2L031

JK1404

JK1401

JK1202

B

B

A

2L031

AV CBA

2L041

2L041

A21

A15

A13

A23

A22

A1X

A13

1-13-1 E595BEX

Packing

X2

X4

X5

S4

X10

X16

X1

S2

Unit

S2

A22

S1

1-13-2 E595BEX

MECHANICAL PARTS LIST

PRODUCT SAFETY NOTE: Products marked with a #

have special characteristics important to safety. Before
replacing any of these components, read carefully the
product safety notice in this service manual. Don't
degrade the safety of the product through improper ser­vicing.

NOTE:
Parts that are not assigned part numbers (---------) are
not available.

Ref. No. Description Part No.

A1X FRONT ASSEMBLY E5950UD 1VM220013
A13 FOOT(REAR) E5710UD 0VM415007
A15 CHASSIS E5950UD 0VM204677
A16 CASE, TOP E5 PLASTIC 0VM101381
A21 LABEL,MOBEL NO. E5951UH ---------­A22 LABEL, BAR CODE E5900UD or ----------

LABEL,BAR CODE E5951UH ---------­A23 TELEPHONE NO. LABEL H9670UD ---------­1B1 DVD MECHA(FG LESS) 0838 VCZL0500 N79F0HVM
2B5 REINFORCE PLATE E5960UD 1VM320140
2L011 SCREW, P-TIGHT 3X10 BIND HEAD+ GBEP3100
2L021 SCREW, P-TIGHT 3X11 BIND HEAD+ GBMP3110
2L031 P-TIGHT SCREW 3X8 BIND + GBMP3080
2L041 SCREW, B-TIGHT M3X8 BIND HEAD + GBKB3080
2L081 SCREW, P-TIGHT M3X8 WASHER+ GCMP3080
2L105 P-TIGHT SCREW 3X8 BIND + GBMP3080

PACKING

S1 GIFT BOX,CARTON E5950UD 1VM320094
S2 SIDE PAD E5950UD 1VM120015
S4 SET BAG E5960UD 1VM420147

ACCESSORIES

X1 REMOTE CONTROL UNIT DVD 0842 VCZF05EE or NB002UD

REMOTE CONTROL UNIT DVD 0842 VCZF05EE NB052UD
X2 DRY BATTERY R6P/2S or XB0M451T0001

DRY BATTERY ES-GR6M-C XB0M571GLP01
X4 ACCESSORY BAG E5700UD 0VM415576
X5 AV CORD TSCKA-Y/RW100 or WPZ0102TM015

AV CORD RCA(M*2)TO RCA(M*2) WPZ0102LTE01
X10! OWNER'S MANUAL E5950UD 1VMN20121
X16 ADDENDUM SHEET E5950UD 1VMN20211

20040519 1-14-1 E595BCA

ELECTRICAL PARTS LIST

PRODUCT SAFETY NOTE: Products marked with a #

have special characteristics important to safety. Before
replacing any of these components, read carefully the
product safety notice in this service manual. Don't
degrade the safety of the product through improper ser­vicing.

NOTES:

1. Parts that are not assigned part numbers (---------)
are not available.

2. Tolerance of Capacitors and Resistors are noted
with the following symbols.

C.....±0.25% D.....±0.5% F.....±1%

G.....±2% J......±5% K.....±10%

M.....±20% N.....±30% Z.....+80/-20%

DVD MAIN CBA UNIT

Ref. No. Description Part No.

DVD MAIN CBA UNIT N79F8HUP

AV CBA

Ref. No. Description Part No.

AV C BA
Consists of the followings

CAPACITORS

C1001# METALLIZED FILM CAP. 0.047µF/250V M or CT2E473MS037
# METALLIZED FILM CAP. 0.047µF/250V K CT2E473DC011

C1003 ELECTROLYTIC CAP. 2.2µF/250V M or CA2E2R2S6009

ELECTROLYTIC CAP. 2.2µF/250V M(105C) CE2EMASTH2R2

C1004 ELECTROLYTIC CAP. 82µF/200V M or CA2D820S6014

ELECTROLYTIC CAP. 82µF/200V M CA2D820NC002
C1005 CERAMIC CAP. CH J 56pF/500V CCD2JJPCH560
C1006# SAFETY CAP. 2200pF/250V or CCD2EMA0E222

# SAFETY CAP. 2200pF/250V or CCG2EMA0F222
# SAFETY CAP. 2200pF/125V CCG2BMA0E222

C1007 ELECTROLYTIC CAP. 1000µF/6.3V M CE0KMASDL102
C1009 ELECTROLYTIC CAP. 2200µF/6.3V or CE0KMASDL222

ELECTROLYTIC CAP. 2200µF/6.3V M CE0KMASTL222
C1010 CERAMIC CAP.(AX) CH J 680pF/50V CA1J681TU008
C1013 FILM CAP.(P) 0.0033µF/50V J or CMA1JJS00332

FILM CAP.(P) 0.0033µF/50V J CA1J332MS029
C1014 ELECTROLYTIC CAP. 1000µF/6.3V M CE0KMASDL102
C1017 CERAMIC CAP.(AX) Y M 0.01µF/16V CCA1CMT0Y103
C1022 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C1029 CERAMIC CAP.(AX) X K 2200pF/16V CCA1CKT0X222
C1034 ELECTROLYTIC CAP. 100µF/6.3V M CE0KMASDL101
C1035 ELECTROLYTIC CAP. 1000µF/16V M or CE1CMASDL102

ELECTROLYTIC CAP. 1000µF/16V M CE1CMASTL102
C1036 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C1037 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104
C1038 ELECTROLYTIC CAP. 470µF/6.3V M CE0KMASDL471
C1039 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104
C1047 FILM CAP.(P) 0.01µF/100V J or CMA2AJS00103

FILM CAP.(P) 0.01µF/100V J CA2A103MS029
C1048 ELECTROLYTIC CAP. 220µF/16V M CE1CMASDL221

1VSA10548

Ref. No. Description Part No.

C1050 ELECTROLYTIC CAP. 220µF/6.3V M CE0KMASDL221
C1201 ELECTROLYTIC CAP. 10µF/16V M CE1CMASDL100
C1202 ELECTROLYTIC CAP. 10µF/16V M CE1CMASDL100
C1205 CHIP CERAMIC CAP. CH J 220pF/50V CHD1JJ3CH221
C1206 CHIP CERAMIC CAP. CH J 220pF/50V CHD1JJ3CH221
C1207 CHIP CERAMIC CAP.(1608) CH J 47pF/50V CHD1JJ3CH470
C1208 CHIP CERAMIC CAP.(1608) CH J 47pF/50V CHD1JJ3CH470
C1221 ELECTROLYTIC CAP. 10µF/16V M CE1CMASDL100
C1222 ELECTROLYTIC CAP. 10µF/16V M CE1CMASDL100
C1223 CHIP CERAMIC CAP.(1608) CH J 1000pF/50V CHD1JJ3CH102
C1224 CHIP CERAMIC CAP.(1608) CH J 1000pF/50V CHD1JJ3CH102
C1245 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104
C1246 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104
C1247 ELECTROLYTIC CAP. 470µF/6.3V M CE0KMASDL471
C1249 ELECTROLYTIC CAP. 47µF/16V M H7 CE1CMASSL470
C1351 CHIP CERAMIC CAP.(1608) B K 0.1µF/25V CHD1EK30B104
C1352 ELECTROLYTIC CAP. 47µF/6.3V M H7 or CE0KMASSL470

ELECTROLYTIC CAP. 47µF/6.3V M CE0KMASDL470
C1354 CHIP CERAMIC CAP.(1608) CH J 100pF/50V CHD1JJ3CH101
C1355 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
C1394 ELECTROLYTIC CAP. 47µF/10V M CE1AMASDL470
C1395 ELECTROLYTIC CAP. 1000µF/6.3V M CE0KMASDL102
C1402 ELECTROLYTIC CAP. 470µF/6.3V M CE0KMASDL471
C1422 CHIP CERAMIC CAP.(1608) B K 0.1µF/25V CHD1EK30B104
C1423 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C1441 CHIP CERAMIC CAP.(1608) B K 0.33µF/10V CHD1AK30B334
C1442 ELECTROLYTIC CAP. 1000µF/6.3V M CE0KMASDL102
C1461 ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL010
C1462 ELECTROLYTIC CAP. 470µF/6.3V M CE0KMASDL471
C1481 ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL010
C1482 ELECTROLYTIC CAP. 470µF/6.3V M CE0KMASDL471
C1522 ELECTROLYTIC CAP. 10µF/16V M CE1CMASDL100
C1524 ELECTROLYTIC CAP. 100µF/6.3V M CE0KMASDL101
C1531 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C1532 ELECTROLYTIC CAP. 22µF/6.3V M H7 or CE0KMASSL220

ELECTROLYTIC CAP. 22µF/6.3V M CE0KMASDL220
C1533 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104
C1534 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104
C2031 ELECTROLYTIC CAP. 100µF/6.3V M CE0KMASDL101
C2032 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104
C2034 CHIP CERAMIC CAP.(1608) CH J 1000pF/50V CHD1JJ3CH102
C2101 CHIP CERAMIC CAP.(1608) B K 1000pF/50V CHD1JK30B102

CONNECTORS

CN1601 18P FFC AV PCB TO MAIN WX1E5950-001
CN2002 22P FFC AV PCB TO MAIN WX1E5900-001

DIODES

D1001 RECTIFIER DIODE 1N4005 or NDQZ001N4005

RECTIFIER DIODE 1N4005 NDWZ001N4005
D1002 RECTIFIER DIODE 1N4005 or NDQZ001N4005

RECTIFIER DIODE 1N4005 NDWZ001N4005
D1004 RECTIFIER DIODE 1N4005 or NDQZ001N4005

RECTIFIER DIODE 1N4005 NDWZ001N4005
D1005 RECTIFIER DIODE 1N4005 or NDQZ001N4005

RECTIFIER DIODE 1N4005 NDWZ001N4005
D1006 SCHOTTKY BARRIER DIODE SB140 or NDQZ000SB140

SCHOTTKY BARRIER DIODE SB140 or NDWZ000SB140

SCHOTTKY BARRIER DIODE ERA81-004 QDPZERA81004

20040519 1-15-1 E595BEL

Ref. No. Description Part No.

D1008 SCHOTTKY BARRIER DIODE SB140 or NDQZ000SB140

SCHOTTKY BARRIER DIODE SB140 or NDWZ000SB140
SCHOTTKY BARRIER DIODE ERA81-004 QDPZERA81004

D1011 RECTIFIER DIODE BA157 or NDQZ000BA157

RECTIFIER DIODE BA157 or NDWZ000BA157
FAST RECOVERY DIODE ERA18-04 QDPZ0ERA1804

D1012 SWITCHING DIODE 1N4148M or NDTZ01N4148M

SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

D1018 SWITCHING DIODE 1N4148M or NDTZ01N4148M

SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

D1024 SWITCHING DIODE 1N4148M or NDTZ01N4148M

SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

D1030 RECTIFIER DIODE FR202-B/P or NDQZ000FR202

FAST RECOVERY DIODE FR202 or NDWZ000FR202
FAST RECOVERY DIODE ERB32-01L3 QDQZ0ERB3201

D1046 ZENER DIODE DZ-5.6BSCT265 or NDTC0DZ5R6BS

ZENER DIODE MTZJT-775.6C QDTC0MTZJ5R6

D1047 ZENER DIODE DZ-5.6BSBT265 or NDTB0DZ5R6BS

ZENER DIODE MTZJT-775.6B QDTB0MTZJ5R6

D1048 ZENER DIODE DZ-15BSAT265 or NDTA00DZ15BS

ZENER DIODE MTZJT-7715A QDTA00MTZJ15

D1051 ZENER DIODE DZ-6.2BSBT265 or NDTB0DZ6R2BS

ZENER DIODE MTZJT-776.2B QDTB0MTZJ6R2
D1053 PCB JUMPER D0.6-P10.0 JW10.0T
D1054 PCB JUMPER D0.6-P10.0 JW10.0T
D1058 SCHOTTKY BARRIER DIODE SB140 or NDQZ000SB140

SCHOTTKY BARRIER DIODE SB140 or NDWZ000SB140

SCHOTTKY BARRIER DIODE ERA81-004 QDPZERA81004
D1059 PCB JUMPER D0.6-P10.0 JW10.0T
D1073 PCB JUMPER D0.6-P5.0 JW5.0T
D1301 ZENER DIODE DZ-5.6BSBT265 or NDTB0DZ5R6BS

ZENER DIODE MTZJT-775.6B QDTB0MTZJ5R6
D2022 LED(GREEN) 204-10GD/S957 NPQZ10GDS957
D2023 LED(RED) 204HD/E NPQZ00204HDE

ICS

IC1001# PHOTOCOUPLER LTV-817B-F or NPEB0LTV817F
# PHOTOCOUPLER LTV-817C-F or NPEC0LTV817F
# PHOTOCOUPLER PS2561A-1(W) or QPEWPS2561A1
# PHOTOCOUPLER PS2561A-1(Q) QPEQPS2561A1

IC1002 VOLTAGE REGULATOR PQ070XZ5MZP QSZBA0TSH034
IC1006 IC:SHUNT REGULATOR KIA431-AT or NSZLA0TJY001

VOLTAGE REGULATOR FAN431AZXA NSZBA0TF3102
IC1201 IC:OP AMP KIA4558P or NSZBA0SJY004

IC:OP AMP NJM4558D QSZBA0SJR006
IC1402 DRIVER FOR DVD MM1637XVBE QSZBA0TMM102

COILS

L1001# LINE FILTER 20MH SA-00911 or LLBG00ZSA003
# LINE FILTER 20MH 03905 or LLBG00ZKT008
# LINE FILTER 20MH MUV105-1126/M0021A LLBG00ZMMT01

L1007 CHOKE COIL 22µH-K or LLBD00PKV006

CHOKE COIL 22µH-K LLBD00PKT002
L1008 CHOKE COIL 22µH-K or LLBD00PKV006

CHOKE COIL 22µH-K LLBD00PKT002
L1009 CHOKE COIL 22µH-K or LLBD00PKV006

CHOKE COIL 22µH-K LLBD00PKT002
L1011 BEAD CORE B16 RH 3.5X3X1.3 XL03003XM002
L1043 BEAD CORE B16 RH 4X3X2 XL03003XM001
L1060 BEAD CORE B16 RH 3.5X3X1.3 XL03003XM002
L1350 INDUCTOR(100µH K) LAP02TA101K LLAXKATTU101
L1351 INDUCTOR(0.47µH K) LAP02TAR47K LLAXKATTUR47

Ref. No. Description Part No.

L1401 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
L1421 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
L1441 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
L1442 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
L1461 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
L1481 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
L1521 CHOKE COIL 22µH-K or LLBD00PKV006

CHOKE COIL 22µH-K LLBD00PKT002
L1522 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
L2020 PCB JUMPER D0.6-P5.0 JW5.0T
L2031 INDUCTOR(100µH K) LAP02TA101K LLAXKATTU101

TRANSISTORS

Q1002 TRANSISTOR KTA1267(Y) or NQSY0KTA1267

TRANSISTOR 2SA1015-Y(TPE2) QQSY02SA1015
Q1003 TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR 2SC2785(H) QQSH02SC2785
Q1004 TRANSISTOR KTC3199(Y) or NQSY0KTC3199

TRANSISTOR 2SC1815-Y(TPE2) QQSY02SC1815
Q1011 TRANSISTOR KTC3203(Y) or NQSY0KTC3203

TRANSISTOR 2SC2120-Y(TPE2) QQSY02SC2120
Q1014 TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR 2SC2785(H) QQSH02SC2785
Q1016 TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR 2SC2785(H) QQSH02SC2785
Q1031# FET 2SK3498(T6L1FUNANQ QF1Z02SK3498
Q1201 TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR 2SC2785(H) QQSH02SC2785
Q1202 TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR 2SC2785(H) QQSH02SC2785
Q1204 TRANSISTOR KTA1266(Y) or NQSY0KTA1266

TRANSISTOR 2SA1015-Y(TPE2) QQSY02SA1015
Q1351 TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR 2SC2785(H) QQSH02SC2785
Q1352 TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR 2SC2785(H) QQSH02SC2785
Q1353 TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR 2SC2785(H) QQSH02SC2785

RESISTORS

R1004 METAL OXIDE FILM RES. 1W J 82k Ω or RN01823ZU001

METAL OXIDE FILM RES. 1W J 82k Ω or RN01823DP003

METAL OXIDE FILM RES. 1W J 82k Ω RN01823KE009
R1005 CARBON RES. 1/4W J 2.7M Ω RCX4JATZ0275
R1006 CARBON RES. 1/4W J 2.7M Ω RCX4JATZ0275
R1008 CARBON RES. 1/4W J 620 Ω RCX4JATZ0621
R1010 CARBON RES. 1/6W J 15k Ω or RCX6JATZ0153

CARBON RES. 1/4W J 15k Ω RCX4JATZ0153
R1011 METAL OXIDE FILM RES. 1W J 1.2 Ω or RN011R2ZU001

METAL OXIDE FILM RES. 1W J 1.2 Ω or RN011R2DP003

METAL OXIDE FILM RES. 1W J 1.2 Ω RN011R2KE009
R1015 CARBON RES. 1/6W J 560 Ω or RCX6JATZ0561

CARBON RES. 1/4W J 560 Ω RCX4JATZ0561
R1016 CARBON RES. 1/6W J 22k Ω or RCX6JATZ0223

CARBON RES. 1/4W J 22k Ω RCX4JATZ0223
R1019 CHIP RES.(1608) 1/16W F 680 0HM RRXGFR5Z0681
R1020 CHIP RES.(1608) 1/10W J 820 Ω RRXAJR5Z0821
R1021 CHIP RES.(1608) 1/10W J 2.7k Ω RRXAJR5Z0272
R1022 CHIP RES.(1608) 1/10W J 820 Ω RRXAJR5Z0821
R1023 CHIP RES.(1608) 1/16W F 2.2k Ω RRXGFR5Z0222
R1025 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R1029 CARBON RES. 1/6W J 470k Ω or RCX6JATZ0474

20040519 1-15-2 E595BEL

Ref. No. Description Part No.

CARBON RES. 1/4W J 470k Ω RCX4JATZ0474

R1032 CARBON RES. 1/6W J 3.3k Ω or RCX6JATZ0332

CARBON RES. 1/4W J 3.3k Ω RCX4JATZ0332
R1035 CARBON RES. 1/4W J 1k Ω RCX4JATZ0102
R1043 METAL OXIDE FILM RES. 1W J 2.7 Ω or RN012R7ZU001

METAL OXIDE FILM RES. 1W J 2.7 Ω or RN012R7DP003

METAL OXIDE FILM RES. 1W J 2.7 Ω RN012R7KE009
R1044 CHIP RES.(1608) 1/10W J 100k Ω RRXAJR5Z0104
R1059 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R1067 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102
R1068 CARBON RES. 1/6W J 820 Ω or RCX6JATZ0821

CARBON RES. 1/4W J 820 Ω RCX4JATZ0821
R1069 CARBON RES. 1/6W J 560 Ω or RCX6JATZ0561

CARBON RES. 1/4W J 560 Ω RCX4JATZ0561
R1071 PCB JUMPER D0.6-P15.0 JW15.0T
R1072 CHIP RES.(1608) 1/10W J 330 Ω RRXAJR5Z0331
R1073 METAL RESISTOR 2W J 39 Ω or RN02390ZU001

METAL OXIDE FILM RES. 2W J 39 Ω or RN02390DP004

METAL OXIDE FILM RES. 2W J 39 Ω RN02390KE010
R1074 RECTIFIER DIODE 1N4005 or NDQZ001N4005

RECTIFIER DIODE 1N4005 NDWZ001N4005
R1075 CHIP RES. 1/16W F 10 Ω RRXGFR5Z0100
R1076 CHIP RES. 1/16W F 1k Ω RRXGFR5Z0102
R1077 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R1080 CHIP RES.(1608) 1/10W J 22k Ω RRXAJR5Z0223
R1081 CHIP RES. 1/16W F 82 Ω RRXGFR5Z0820
R1082 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R1092 PCB JUMPER D0.6-P5.0 JW5.0T
R1095 CHIP RES.(2125) 1/8W J 0.1 Ω or RRX8R10HH005

CHIP RES.(2125) 1/4W J 0.1 Ω RTCR100KE003
R1098 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102
R1205 CHIP RES.(1608) 1/16W F 20k Ω RRXGFR5Z0203
R1206 CHIP RES.(1608) 1/16W F 20k Ω RRXGFR5Z0203
R1207 CHIP RES.(1608) 1/10W J 8.2k Ω RRXAJR5Z0822
R1208 CHIP RES.(1608) 1/10W J 8.2k Ω RRXAJR5Z0822
R1209 CHIP RES. 1/16W F 30k Ω RRXGFR5Z0303
R1210 CHIP RES. 1/16W F 30k Ω RRXGFR5Z0303
R1211 PCB JUMPER D0.6-P5.0 JW5.0T
R1212 PCB JUMPER D0.6-P5.0 JW5.0T
R1221 CHIP RES.(1608) 1/10W J 100k Ω RRXAJR5Z0104
R1222 CHIP RES.(1608) 1/10W J 100k Ω RRXAJR5Z0104
R1223 CHIP RES.(1608) 1/10W J 470 Ω RRXAJR5Z0471
R1224 CHIP RES.(1608) 1/10W J 470 Ω RRXAJR5Z0471
R1225 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102
R1226 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102
R1227 CHIP RES.(1608) 1/10W J 220 Ω RRXAJR5Z0221
R1228 CHIP RES.(1608) 1/10W J 220 Ω RRXAJR5Z0221
R1236 CHIP RES.(1608) 1/10W J 2.2k Ω RRXAJR5Z0222
R1238 CHIP RES.(1608) 1/10W J 2.2k Ω RRXAJR5Z0222
R1240 CHIP RES.(1608) 1/10W J 100k Ω RRXAJR5Z0104
R1245 CHIP RES.(1608) 1/10W J 10 Ω RRXAJR5Z0100
R1351 CHIP RES.(1608) 1/10W J 2k Ω RRXAJR5Z0202
R1352 CHIP RES.(1608) 1/10W J 2.2k Ω RRXAJR5Z0222
R1353 CHIP RES.(1608) 1/10W J 2.2k Ω RRXAJR5Z0222
R1354 CHIP RES.(1608) 1/10W J 220 Ω RRXAJR5Z0221
R1355 CHIP RES.(1608) 1/10W J 75 Ω RRXAJR5Z0750
R1356 CHIP RES.(1608) 1/10W J 100k Ω RRXAJR5Z0104
R1392 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102
R1396 CHIP RES.(1608) 1/10W J 470 Ω RRXAJR5Z0471
R1397 CHIP RES.(1608) 1/10W J 470 Ω RRXAJR5Z0471
R1402 CHIP RES.(1608) 1/10W J 75 Ω RRXAJR5Z0750

Ref. No. Description Part No.

R1421 CHIP RES. 1/10W F 160 Ω RRXGFR5Z0161
R1422 CHIP RES.(1608) 1/10W J 75 Ω RRXAJR5Z0750
R1441 CHIP RES. 1/10W F 160 Ω RRXGFR5Z0161
R1442 CHIP RES.(1608) 1/10W J 75 Ω RRXAJR5Z0750
R1443 CHIP RES.(1608) 1/10W J 75 Ω RRXAJR5Z0750
R1461 CHIP RES. 1/16W F 75 Ω RRXGFR5Z0750
R1462 CHIP RES.(1608) 1/10W J 75 Ω RRXAJR5Z0750
R1481 CHIP RES. 1/16W F 75 Ω RRXGFR5Z0750
R1482 CHIP RES.(1608) 1/10W J 75 Ω RRXAJR5Z0750
R2012 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102
R2013 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102
R2014 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102
R2015 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102
R2016 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R2017 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R2018 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R2019 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R2023 CARBON RES. 1/6W J 220 Ω or RCX6JATZ0221

CARBON RES. 1/4W J 220 Ω RCX4JATZ0221
R2031 CHIP RES.(1608) 1/10W J 6.8k Ω RRXAJR5Z0682
R2032 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R2033 CHIP RES.(1608) 1/10W J 22k Ω RRXAJR5Z0223
R2034 CARBON RES. 1/6W J 150 Ω or RCX6JATZ0151

CARBON RES. 1/4W J 150 Ω RCX4JATZ0151
R2035 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103

SWITCHES

SW2001 TACT SWITCH KSM0614B or SST0101HH013

TACT SWITCH SKQSAF001A or SST0101AL041

TACT SWITCH TC-1104(H=9.5) SST0101DNG01
SW2002 TACT SWITCH KSM0614B or SST0101HH013

TACT SWITCH SKQSAF001A or SST0101AL041

TACT SWITCH TC-1104(H=9.5) SST0101DNG01
SW2003 TACT SWITCH KSM0614B or SST0101HH013

TACT SWITCH SKQSAF001A or SST0101AL041

TACT SWITCH TC-1104(H=9.5) SST0101DNG01
SW2004 TACT SWITCH KSM0614B or SST0101HH013

TACT SWITCH SKQSAF001A or SST0101AL041

TACT SWITCH TC-1104(H=9.5) SST0101DNG01

MISCELLANEOUS

AC1001# AC CORD PB8B2F9110A-055 WAC0162LW004
F1001# FUSE 1A/250V or PAGA20CW3102

# FUSE SIC 1A 250V U/C T or PAGG20CW3102
# FUSE 1A/250V PAGG20CAG102

FH1001 FUSE HOLDER MSF-015 XH01Z00LY001
FH1002 FUSE HOLDER MSF-015 XH01Z00LY001
J1603 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
JK1202 RCA JACK(BLACK) MSP-251V-01 NI or JXRL010LY070

RCA JACK(BLACK) AV1-28A-1 JXRL010RP024
JK1401 S TYPE JACK MDC-050V-2.4 JXEL040LY001
JK1404 RCA JACK MSP-246V34-65NI-FELF or JXRL060LY082

RCA JACK MSD-246V-65NI/PBSN JXRL060LY069
RM2001 REMOTE RECEIVER MIM-93M6DKF or USESJRSUNT01

REMOTE RECEIVER PIC-37042LU USESJRSKK033
SA1001# SURGE ABSORBER 470V+-10PER or NVQZ10D471KB
# SURGE ABSORBER CNR-10D471K NVQZR10D471K
T1001# PULSE TRANS CGS-SW0005A or LTT00CPSA155
# PULSE TRANS 04715 LTT00CPKT128

20040519 1-15-3 E595BEL

MSD124

E595BUH

2004-06-14
