Swann 4-4350, 8-4350 Quick Start Manual
1

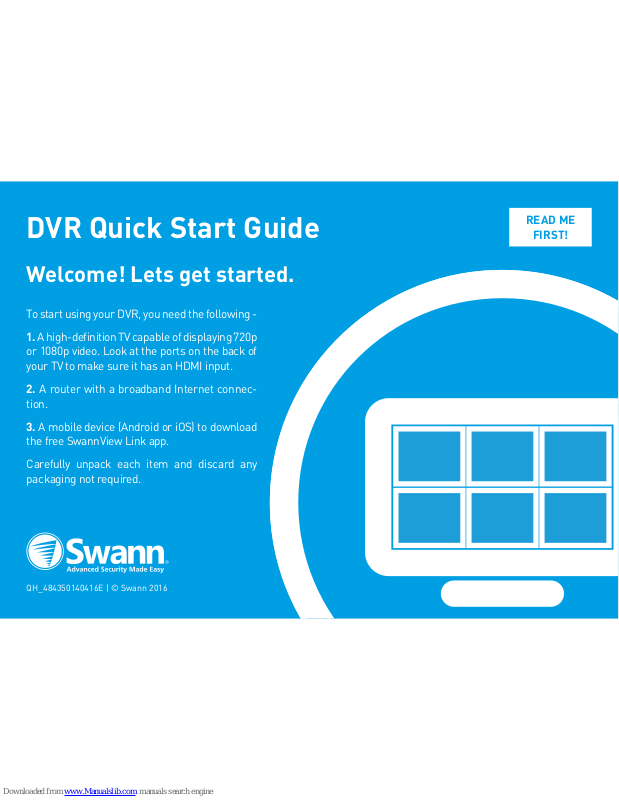

DVR Quick Start Guide
QH_484350140416E | © Swann 2016
Welcome! Lets get started.
READ ME
FIRST!
To start using your DVR, you need the following -
1. A high-definition TV capable of displaying 720p
or 1080p video. Look at the ports on the back of
your TV to make sure it has an HDMI input.
2. A router with a broadband Internet connection.
3. A mobile device (Android or iOS) to download
the free SwannView Link app.
Carefully unpack each item and discard any
packaging not required.
2
Congratulations on the purchase of your Swann DVR. This quick start guide will assist you on getting your DVR up and
running as soon as possible. We recommend that you connect everything and give it a try before you do a permanent
installation, to make sure nothing was damaged during shipping. On the other side is a detailed connection map which
illustrates the various connections on the DVR.
Getting to know your DVR
1) Camera Inputs
2) HDMI Port
3) VGA Port
4) Audio In Port
5) Audio Out Port
6) Ethernet Port
7) USB Ports
8) Power Port
9) Power LED
10) Hard Drive
LED
11) Network LED
VIDEO IN VGA AUDIO LAN & USB
12V
ININININ
OUT
1234567
8
1 2 3 5 7 8
4 6
PWR HDD
8 Channel Digital Video Recorder
NET
9
10
11
Look out for the light bulb icon, as
this provides tips on the operation of
your DVR.
Your DVR is designed to ventilate air to
keep it at an optimal temperature. Keep
your DVR free from obstructions to allow
it to ventilate properly.
3
What does this mean?
1) Camera Inputs - Connect your cameras here. Twist the
video connection to lock it in place.
3) HDMI Port - Connect this to your TV with a HDMI input
(HDMI cable supplied).
2) VGA Port - Connect this to your monitor with a VGA
input (VGA cable not supplied). This is not required when
using the HDMI port.
4) Audio In Port - For connecting a microphone (the
microphone must have its own power source).
5) Audio Out Port - For connecting to a stereo or amplifier.
This is not required when using the HDMI port.
6) Ethernet Port - Connect this to your router so your DVR
can connect to the Internet.
7) USB Ports - Connect the mouse here. You can also
connect a storage device such as a USB flash drive to copy
recorded events or to perform a firmware upgrade.
8) Power Port - Connect the DC 12V power adapter here.
9) Power LED - Indicates your DVR has power.
10) Hard Drive LED - Flashes when the hard drive is active.
11) Network LED - Flashes when there is network activity.
As your DVR is designed to be always on, there is no
power button. To turn off your DVR, use the Shutdown
function then disconnect the power adapter.
