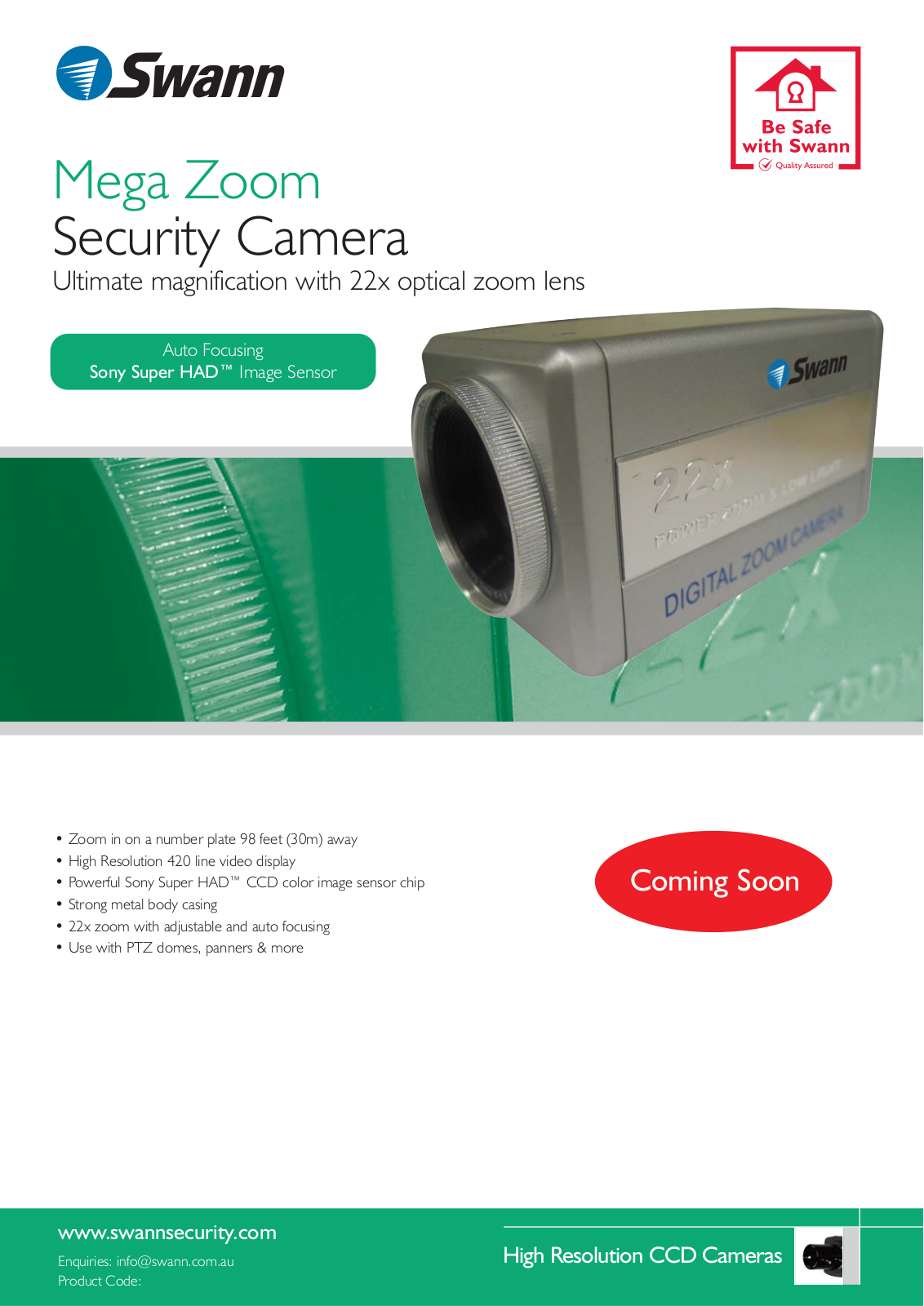

Swann 22x Zoom CCD Camera Specification
• Zoom in on a number plate 98 feet (30m) away
• High Resolution 420 line video display
• Powerful Sony Super HAD™ CCD color image sensor chip
• Strong metal body casing
• 22x zoom with adjustable and auto focusing
• Use with PTZ domes, panners & more
Mega Zoom
Security Camera
Ultimate magnification with 22x optical zoom lens
Coming Soon
High Resolution CCD Cameras
www.swannsecurity.com
Enquiries: info@swann.com.au
Product Code:
Auto Focusing
Sony Super HAD™ Image Sensor

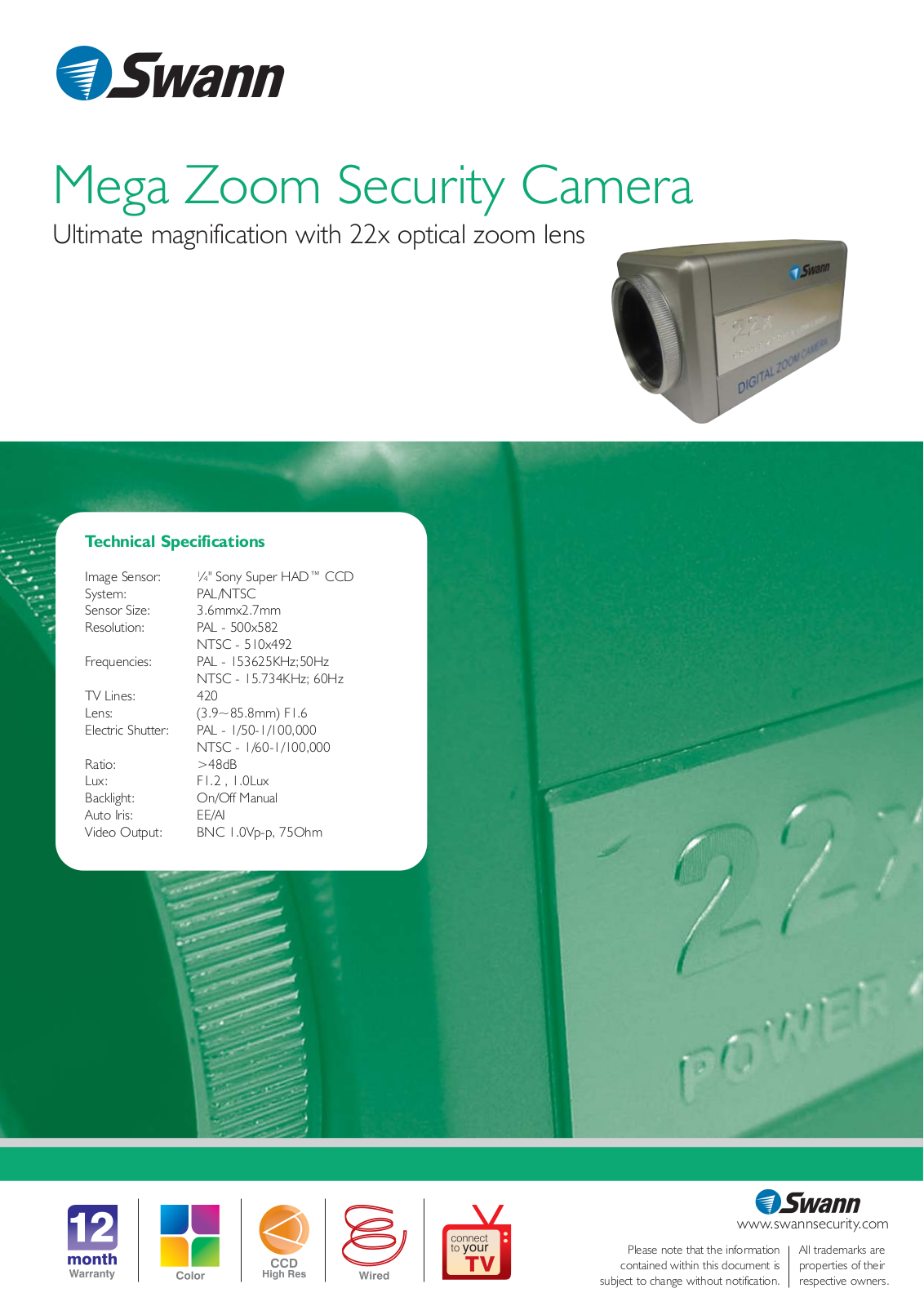

Technical Specifications
Image Sensor: ¼" Sony Super HAD™ CCD
System: PAL/NTSC
Sensor Size: 3.6mmx2.7mm
Resolution: PAL - 500x582
NTSC - 510x492
Frequencies: PAL - 153625KHz;50Hz
NTSC - 15.734KHz; 60Hz
TV Lines: 420
Lens: (3.9~85.8mm) F1.6
Electric Shutter: PAL - 1/50-1/100,000
NTSC - 1/60-1/100,000
Ratio: >48dB
Lux: F1.2 , 1.0Lux
Backlight: On/Off Manual
Auto Iris: EE/AI
Video Output: BNC 1.0Vp-p, 75Ohm
Mega Zoom Security Camera
Ultimate magnification with 22x optical zoom lens
Please note that the information
contained within this document is
subject to change without notification.
All trademarks are
properties of their
respective owners.
www.swannsecurity.com
