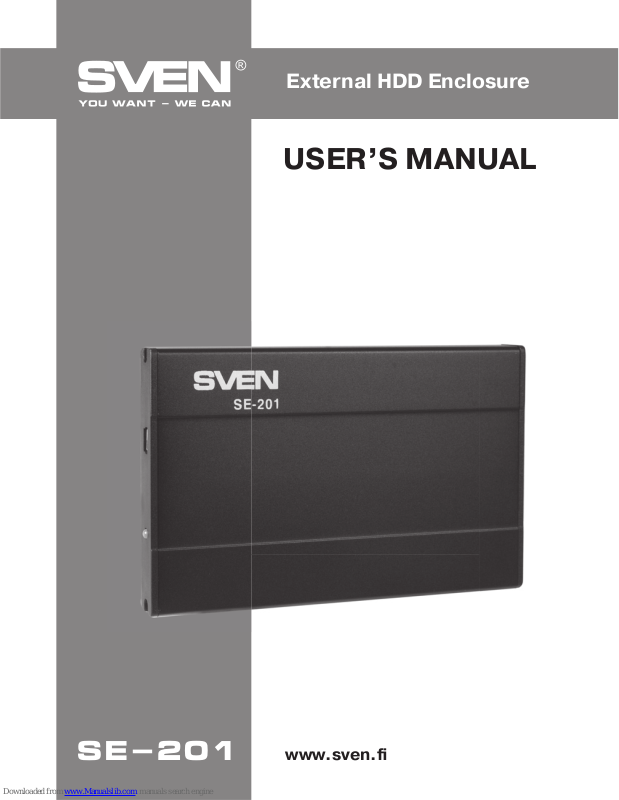

Page 1
www.sven.fi
USER’S MANUAL
External HDD Enclosure
SE-201
Page 2
Congratulations on your purchase of the Sven external HDD enclosure!
Please read this User’s Manual before using the unit and retain this User’s
Manual in a safe place for future reference.
COPYRIGHT
© 2014. SVEN PTE. LTD. Version 1.0 (V 1.0).
This Manual and information contained in it are copyrighted. All rights
reserved.
TRADEMARKS
All trademarks are the property of their legal holders.
NOTICE OF RESPONSIBILITY RESTRICTION
Despite the exerted efforts to make this Manual more exact, some
discrepancies may occur. The information of this Manual is given on “as is”
terms. The author and the publisher do not bear any liability to a person or
an organization for loss or damage which has arisen from the information
contained in this Manual.
UNPACKING
Unpack the device carefully. Make sure there are no accessories left in the
box. Check up the device for damage; if the product was damaged during
transportation, address the firm which carried out the delivery; if the product
functions incorrectly, address the dealer at once.
SAFETY PRECAUTIONS
• Do not put foreign objects inside the holes of the device.
• Protect the device from humidity, dust and heating.
• Do not use gasoline, alcohol or other solvents when cleaning, since they
may damage the surface. Clean the device with dry soft cloth only.
1
User’s Manual
ENG
SE-201
Page 3
2
ENG
External HDD Enclosure
• Do not perform repairs by yourself.
• For extra protection during a thunderstorm, disconnect the device from a USB
port and switch off your computer.
PACKAGE CONTENTS
• Alluminium case – 1 pc
• USB cable – 1 pc
• Screws & screwdriver – 1 set
• Bag – 1 рс
• User’s Мanual – 1 pc
• Warranty card – 1 pc
SPECIAL FEATURES
• Installation tools included
• Alluminium case for shock protection and heat removal
• Power and HDD activity LED
• Additional disk fixation
• Bag for carrying and storage
SYSTEM REQUIREMENTS
• PC/laptop with a USB port
• ОS: Windows XP/Vista/7/8
INSTALLATION AND OPERATION GUIDE
Hardware Installation
• Open the case cover. Insert the disk tightly and close the cover using the
screwdriver and screws (included) (Fig.1).
• Connect the external HDD enclosure to your PC with the USB cable
(included). The installation is complete (Fig. 2).
Page 4
Software Installation
• Software installation is not
required for Windows XP/
Vista/7/8 OS. During the
first connection to a USB
port, the system will detect
the device and install the
necessary drivers automatically. After the HDD is
detected, a Safely Remove
Device icon will appear on
the taskbar in the bottom
right corner of your screen.
Windows XP/Vista/7/8
Partitioning and Formatting
• To partition and format your
HDD, please refer to relative
documents. We strongly recommend that this should be done by
qualified experts.
• If you still decide to do it yourself, connect your external HDD
to your PC. Right click on the My
Computer icon, select Manage,
then Disc Management, and
select your external HDD for artitioning and formatting.
Attention! Please be careful in selecting the disk to be partitioned
and formatted!
Fig. 2. Connection
Fig. 1. Hardware installation
diagram
3
ENG
User’s Manual
SE-201
Page 5
4
ENG
External HDD Enclosure
Parameter, measurement unit
Form factor, inch
Interface
OS required
USB cable length, m
Dimensions, mm
Weight (without HDD), g
Value
2.5
external – USB 2.0,
internal – SATA
Windows XP/Vista/7/8
0.8
128 × 78 × 13
96
Technical support is on www.sven.fi
TECHNICAL SPECIFICATIONS
Notes:
• Technical specifications given in this table are supplemental information and cannot give occasion to claims.
• Technical specifications are subject to change without notice due to
improvement of SVEN production.
LED light
TROUBLESHOOTING
In case of malfunction, make sure that your HDD is properly inserted into the
external HDD enclosure, that the USB cable is connected to a PC or laptop
USB port and the PC or laptop is on.
LED Light Color Status
Green Light Powered, but inactive
Red Light Reading or writing data
Page 6
Модель: 3E-201
Импортер в России: ООО «СКАНДИТРЕЛ»,
111024, РФ, г. Москва, ул. Авиамоторная, д. 65,
стр. 1. Уполномоченная организация в России:
ООО «РТ-Ф», 105082, г. Москва, ул. Фридриха
Энгельса, д. 75, стр. 5. Условия гарантийного
обслуживания смотрите в гарантийном талоне
или на сайте www.sven.fi
Гарантийный срок: 12 мес. Срок службы: 2 года.
Производитель: «СВЕН ПТЕ. Лимитед»,
176 Джу Чиат Роуд, № 02-02, Сингапур, 427447.
Произведено под контролем «Свен Скандинавия
Лимитед», 48310, Финляндия, Котка,
Котолахдентие, 15. Сделано в Китае.
Manufacturer: SVEN PTE. LTD, 176 Joo Chiat Road,
№ 02-02, Singapore, 427447. Produced under the
control of Oy Sven Scandinavia Ltd. 15, Kotolahdentie,
Kotka, Finland, 48310. Made in China.
® Registered Trademark of Oy SVEN
Scandinavia Ltd. Finland.
SE-201
External HDD Enclosure
