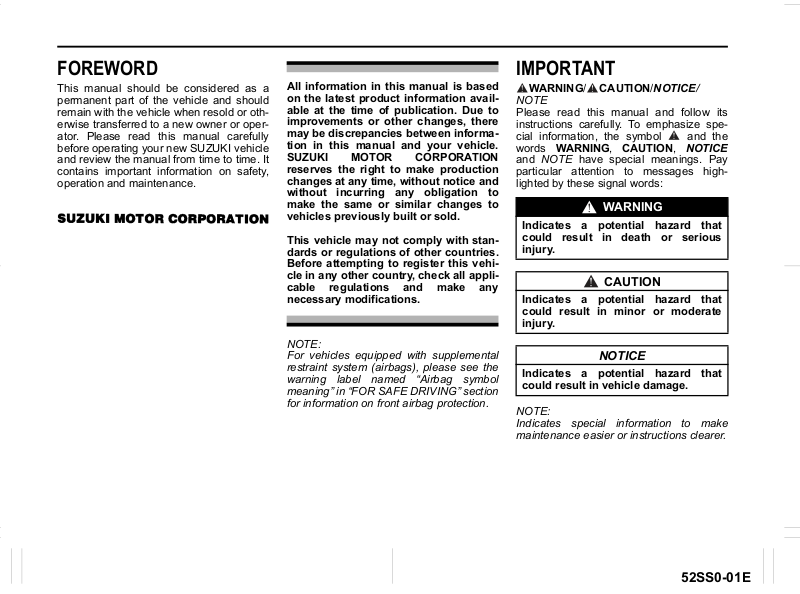

FOREWORD
This manual should be considered as a permanent part of the vehicle and should remain with the vehicle when resold or oth­erwise transferred to a new owner or oper­ator. Please read this manual carefully before operating your new SUZUKI vehicle and review the manual from time to time. It contains important information on safety, operation and maintenance.
All information in this manual is based on the latest product information avail­able at the time of publication. Due to improvements or other changes, there may be discrepancies between informa­tion in this manual and your vehicle. SUZUKI MOTOR CORPORATION reserves the right to make production changes at any time, without notice and without incurring any obligation to make the same or similar changes to vehicles previously built or sold.
This vehicle may not comply with stan­dards or regulations of other countries. Before attempting to register this vehi­cle in any other country, check all appli­cable regulations and make any necessary modifications.
NOTE: For vehicles equipped with supplemental restraint system (airbags), please see the warning label named “Airbag symbol meaning” in “FOR SAFE DRIVING” section for information on front airbag protection.
IMPORTANT
WARNING/ CAUTION/NOTICE/
NOTE
Please read this manual and follow its instructions carefully. To emphasize spe­cial information, the symbol and the words WARNING, CAUTION, NOTICE and NOTE have special meanings. Pay particular attention to messages high­lighted by these signal words:
WARNING
Indicates a potential hazard that could result in death or serious injury.
CAUTION
Indicates a potential hazard that could result in minor or moderate injury.
NOTICE
Indicates a potential hazard that could result in vehicle damage.
NOTE: Indicates special information to make maintenance easier or instructions clearer.
52SS0-01E
Page 2
MODIFICATION WARNING
WARNING
Do not modify this vehicle. Modifica­tion could adversely affect safety, handling, performance, or durability and may violate governmental regula­tions. In addition, damage or perfor­mance problems resulting from modification may not be covered under warranty.
NOTICE
The diagnostic connector of your vehicle is prepared only for the spe­cific diagnostic tool for inspection and service purpose. Connecting any other tool or device may interfere with electronic parts operations and cause running out of batteries.
75F135
The circle with a slash in this manual means “Do not do this” or “Do not let this happen”.
NOTICE
Improper installation of mobile com­munication equipment such as cellu­lar telephones, CB (Citizen’s Band) radios or any other wireless transmit­ters may cause electronic interfer­ence with your vehicle’s ignition system or any other electrical sys­tems, resulting in vehicle perfor­mance problems. Consult a SUZUKI dealer or a qualified workshop for advice.
52SS0-01E
Page 3
INTRODUCTION
Thank you for choosing SUZUKI product and welcome to our growing family. Your choice was a wise one; SUZUKI products have great value that will give you driving pleasure for years.
This owner’s manual was prepared to give you a safe, enjoyable, and trouble-free experience with your SUZUKI vehicle. In this manual, you will learn about the vehicle’s operation, its safety features and maintenance requirements. Please read the manual carefully before operating your vehicle. Afterwards, keep this manual in the glove box for further reference.
Should you resell the vehicle, please leave this manual with it for the next owner.
In addition to the owner’s manual, the other booklets provided with your SUZUKI vehicle explain the vehicle’s warranties. We recom­mend you read them as well to familiarize yourself with this important information.
When planning the regular scheduled maintenance of your SUZUKI, we recommend you visit your local SUZUKI dealership. Their fac­tory-trained technicians will provide the best possible service and use only genuine SUZUKI parts and accessories.
NOTE: The illustrations in this manual represent a typical variation, which may differ from your vehicle.
“SUZUKI dealer” means an Authorized Suzuki Dealer and an Authorized Suzuki Service Workshop.
52SS0-01E
Page 4
VEHICLE DATA RECORDINGS
There are certain components of your vehicle incorporating data storage modules or memories, which temporarily or permanently store the technical data below listed. These data are exclusively technical and serve for (i) identifying and correcting faults occurred in the Vehicle and/or (ii) optimizing functions of the Vehicle.
Recorded data
• Malfunctions, faults, and errors in important system components. (e.g. lights, brakes)
• Reactions of the Vehicle in certain situations (e.g. inflation of SRS airbags, activation of stability control system).
• Operating conditions of system components (e.g. filling levels).
• Status messages of the Vehicle and its individual components (e.g. vehicle speed, acceleration, deceleration, lateral acceleration).
• Ambient conditions (e.g. outside temperature).
Recorded data vary depending on vehicle model or grade.
52SS0-01E
Page 5
RECOMMENDATION OF GENUINE SUZUKI PARTS AND ACCESSORIES USE
SUZUKI strongly recommends the use of genuine SUZUKI parts and accessories. Genuine SUZUKI parts and accessories are built to the highest standards of quality and performance, and are designed to fit your vehicle’s exact specifications.
A wide variety of non-genuine replacement parts and accessories for SUZUKI vehicles are currently available in the market. Using these parts and accessories can affect the vehicle performance and shorten its useful life. Therefore, installation of non-genuine SUZUKI parts and accessories is not covered under warranty.
Non-genuine SUZUKI parts and accessories
Some parts and accessories may be approved by certain authorities in your country. Some parts and accessories are sold as SUZUKI-authorized replacement parts and accessories. Some genuine SUZUKI parts and accessories are sold as re-use parts and accessories. These parts and accessories are non-genuine SUZUKI parts and accessories and use of these parts is not covered under warranty.
Re-use of genuine SUZUKI parts and accessories
The resale or re-use of the following items which could cause hazards for users is expressly forbidden:
• Airbag components and all other pyrotechnic items, including their components (e.g. cushion, control devices and sensors)
• Seat belt system, including their components (e.g. webbing, buckles and retractors)
The airbag and seat belt pretensioner components contain explosive chemicals. These components should be removed and disposed of properly by SUZUKI-authorized service shop or scrap yard to avoid unintended explosion before scrapping.
52SS0-01E
Page 6

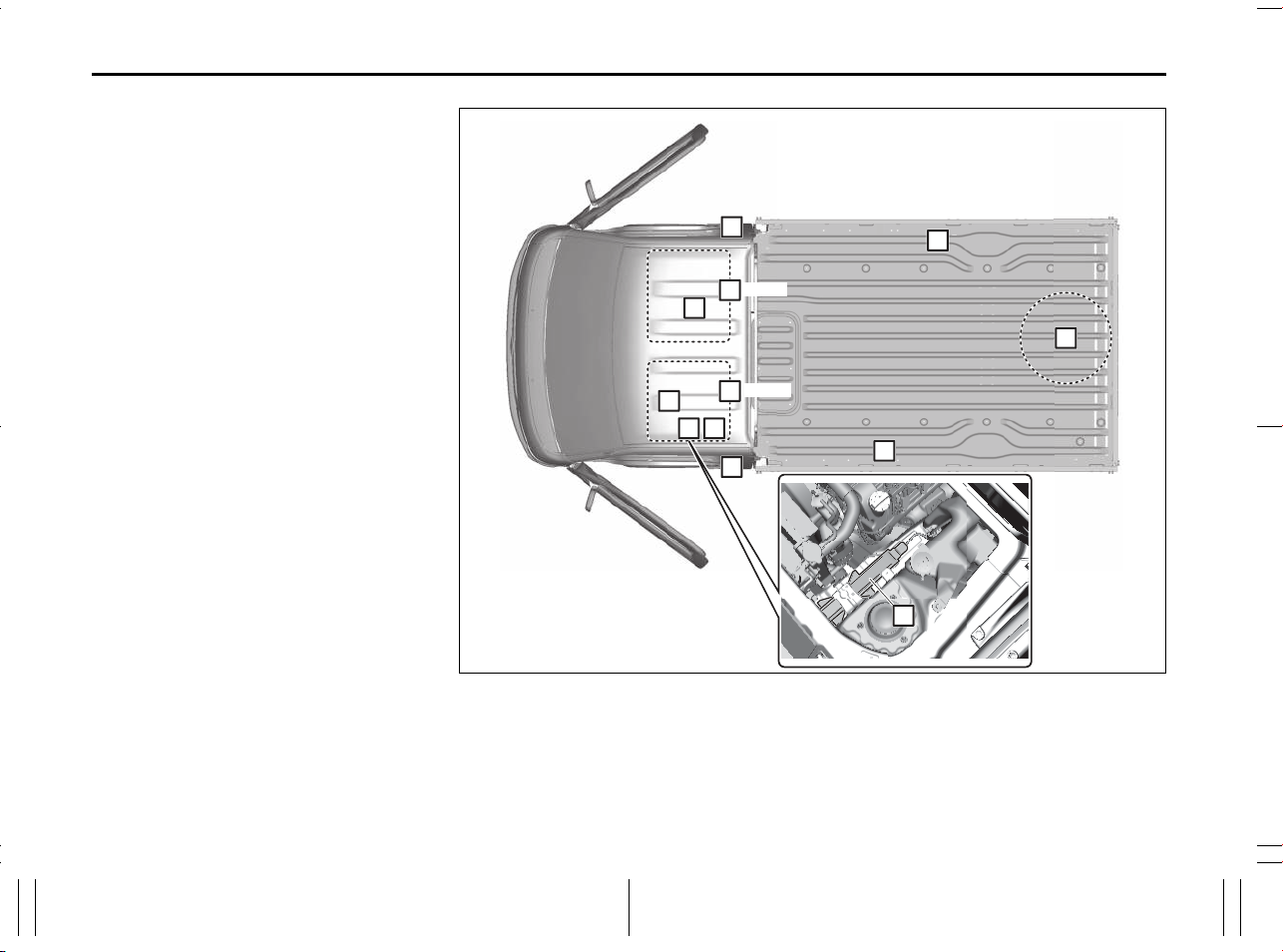

SERVICE STATION GUIDE
(RHD)
(LHD)
(RHD)
(LHD)
1. Engine Oil Dipstick <Yellow> (see section 6)
2. Tyre Pressure (see Tyre Information Label on Driver’s Door Lock Pillar)
3. Fuel (see section 9)
4. Spare Tyre (see section 7)
5. Battery (see section 6)
6. Windshield Washer Fluid (see section 6)
7. Tyre Changing Tools (see section 7)
8. Engine Coolant (see section 6)
2
3
7
1
4
LHD : Left hand drive RHD : Right hand drive
8
7
6
7
5
2
7
52SS0004E
52SS0-01E
Page 7
TABLE OF CONTENTS
FOR SAFE DRIVING 1
BEFORE DRIVING 2
OPERATING YOUR VEHICLE 3
DRIVING TIPS 4
OTHER CONTROLS AND EQUIPMENT 5
INSPECTION AND MAINTENANCE 6
EMERGENCY SERVICE 7
APPEARANCE CARE 8
SPECIFICATIONS 9
SUPPLEMENT 10
INDEX 11
52SS0-01E
Page 8

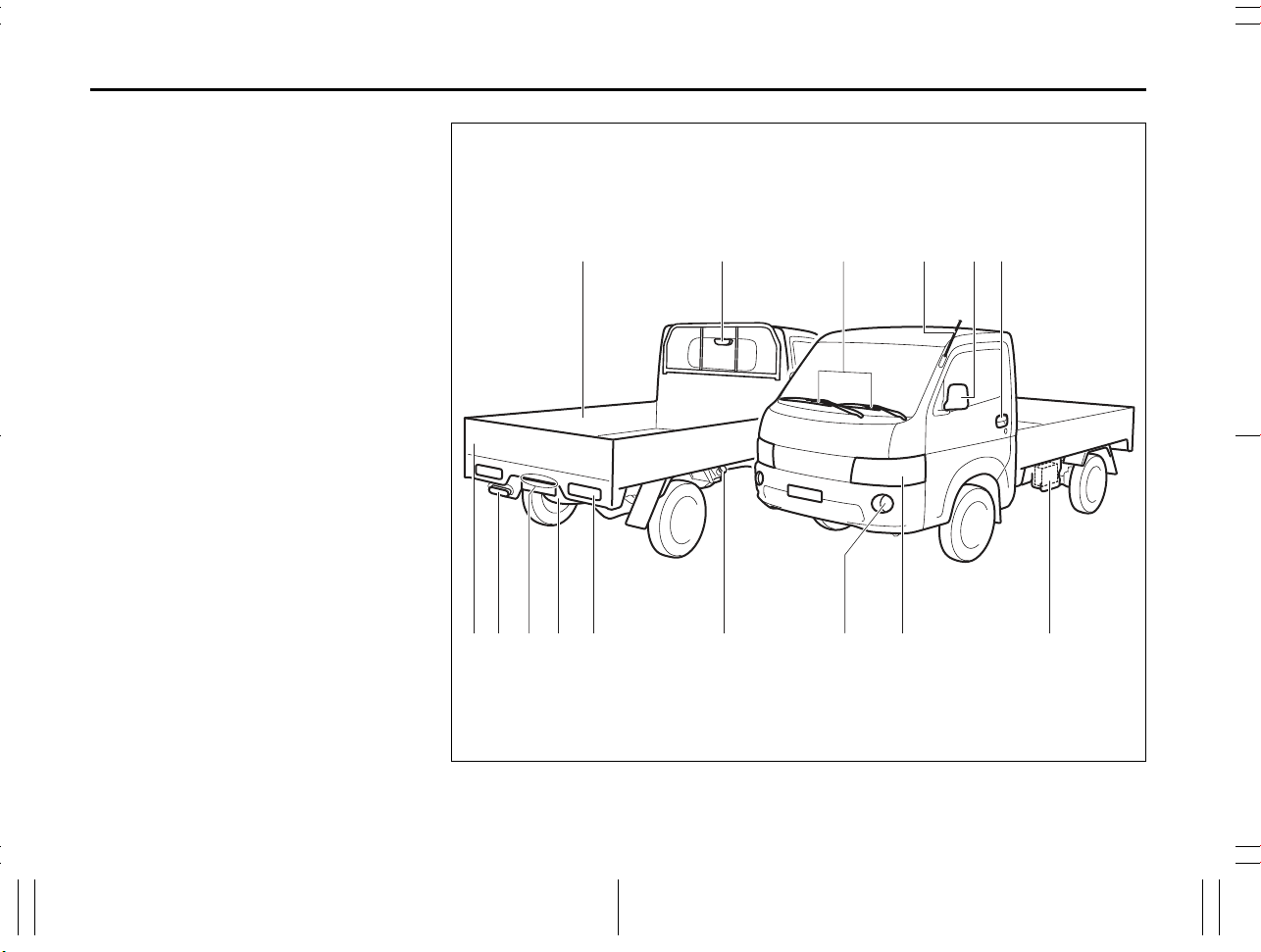

ILLUSTRATED TABLE OF CONTENTS
32456
1
7981011 12 151413
EXTERIOR

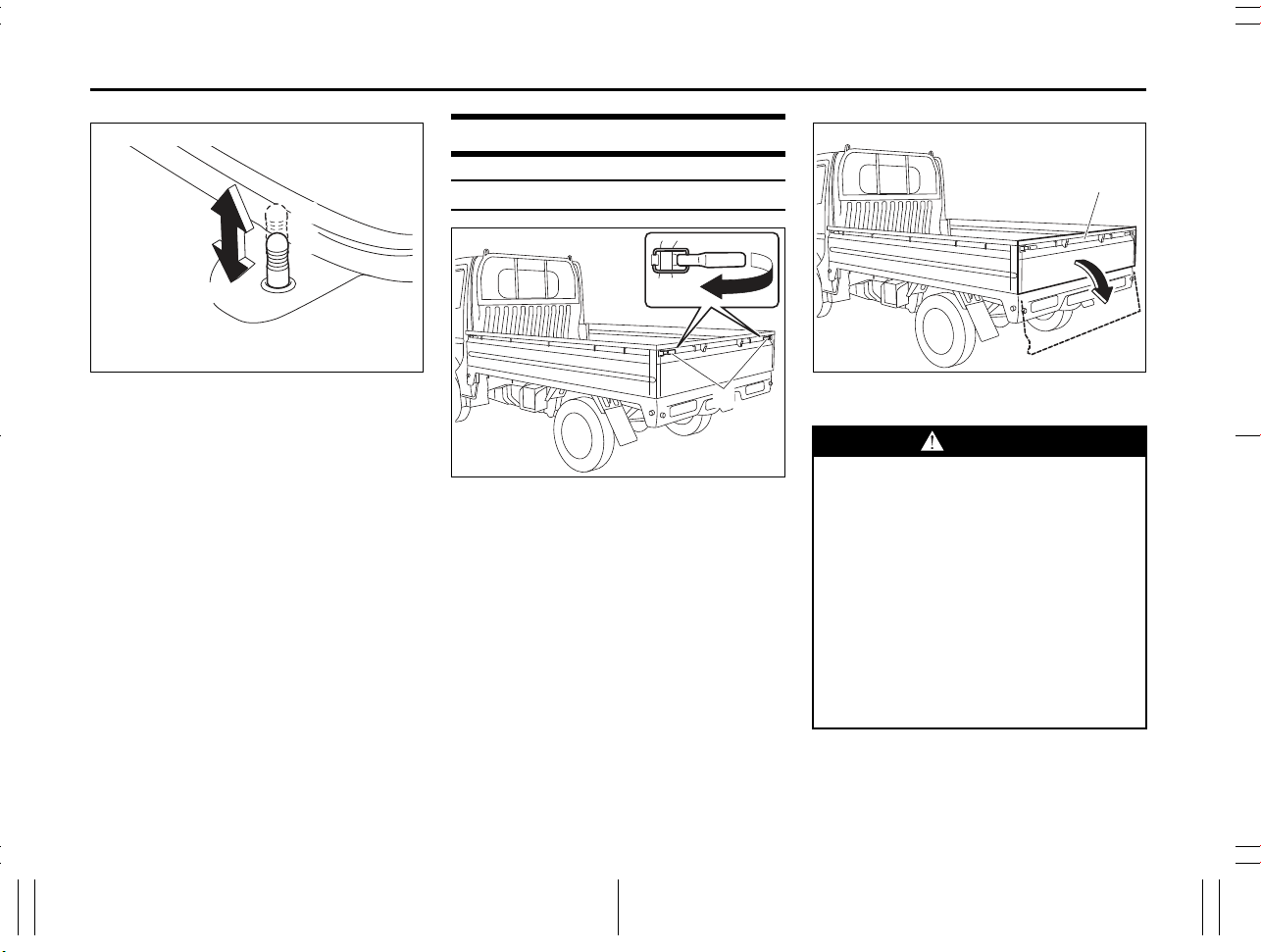

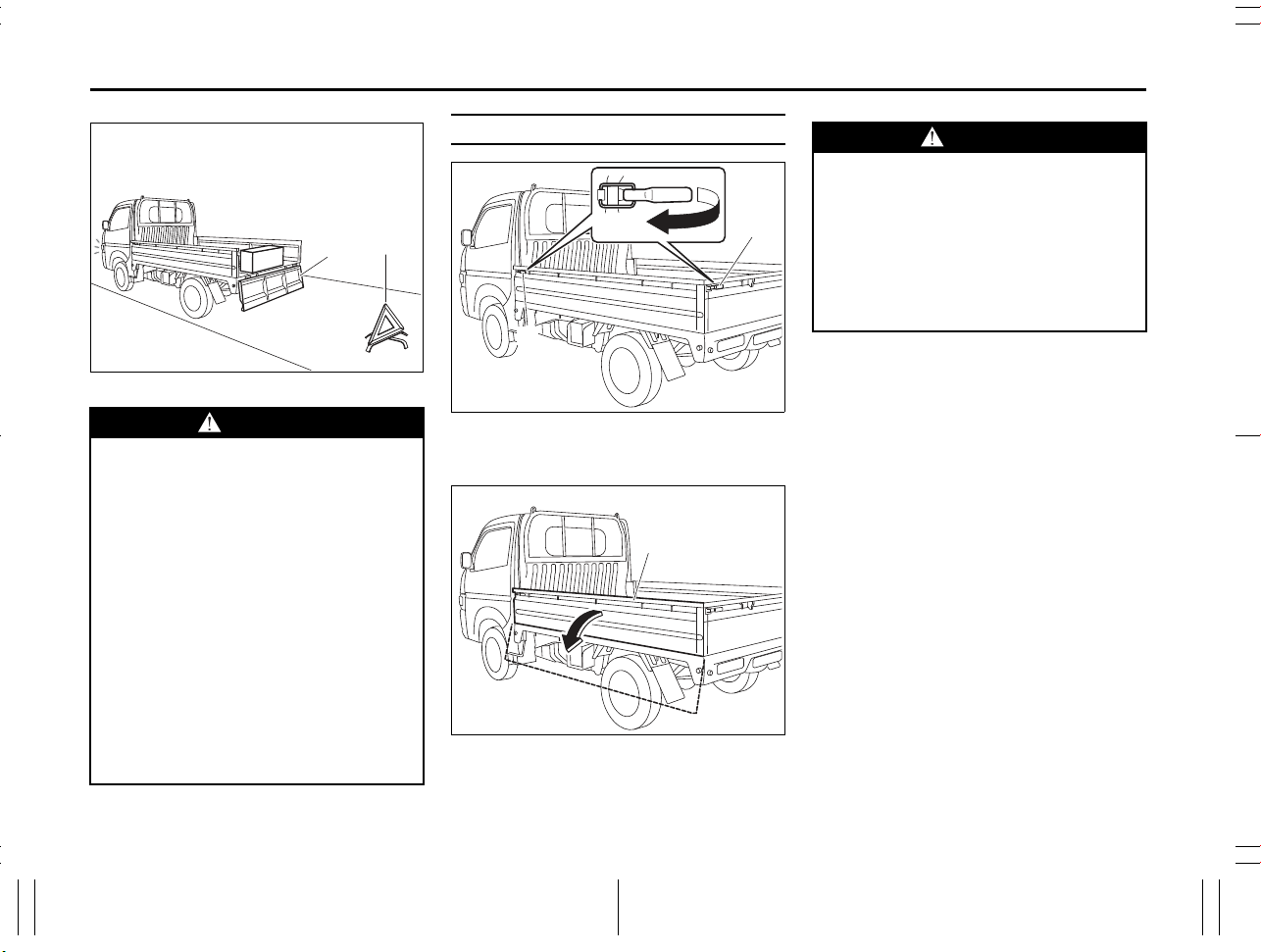

1. Side Gate (if equipped) (P.2-4)
2. High-mount Stop Light (if equipped) (P.6-42)
3. Windshield Wiper (P.2-30, 6-43)
4. Radio Antenna (P.5-9)
5. Outside Rearview Mirror (P.2-5)
6. Door Locks (P.2-2)
7. Tailgate (P.2-3)
8. Rear Fog Light (P.2-25, 6-40)
9. License Plate Light (P.6-41)
10. Spare Tyre (P.7-1)
11. Rear Combination Light (P.6-40)
12. Fuel Filler Cap (P.5-37)
13. Daytime Running Light (if equipped) (P.6-39)
14. Headlight (P.2-20, 6-36)
15. Battery (P.6-29)
52SS0001E
52SS0-01E
Page 9

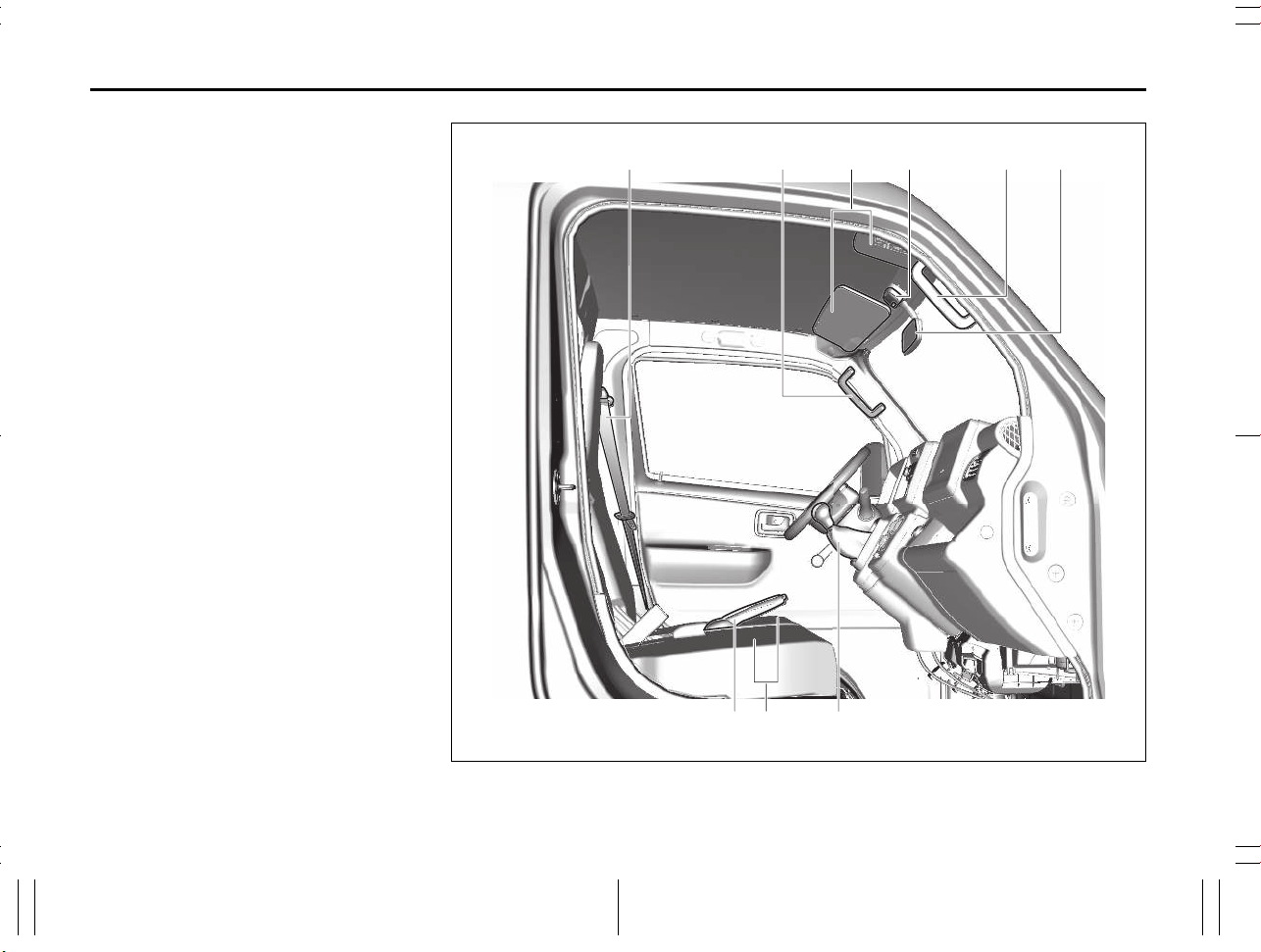

INTERIOR
12 234 5
67 8
1. Seat Belts (P.1-2)
2. Ride-in Assist Grip (P.5-42)
3. Sun Visor (P.5-40)
4. Interior Light (P.5-41, 6-43)
5. Inside Rearview Mirror (P.2-5)

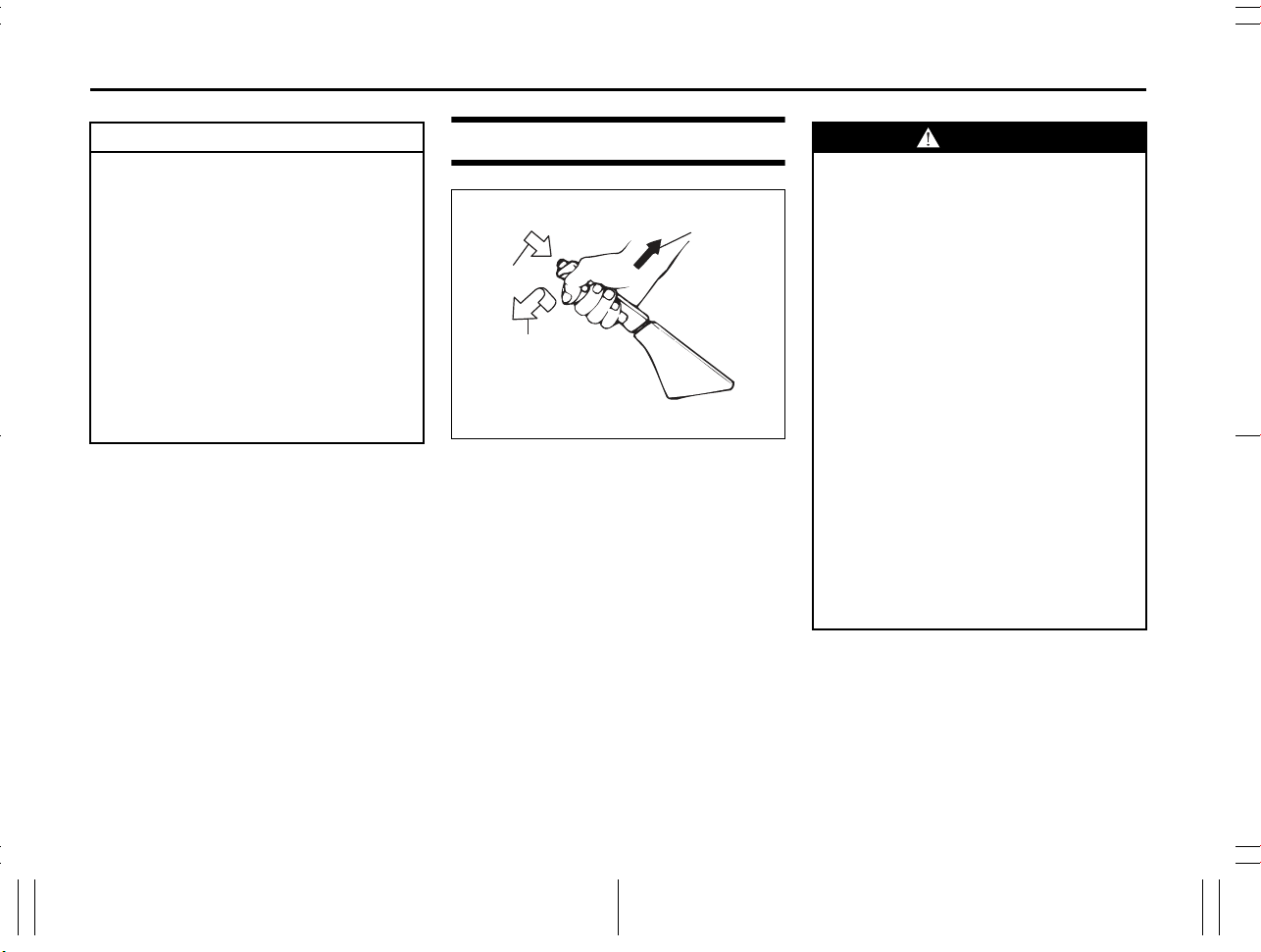

6. Parking Brake Lever (P.3-4)
7. Seats (P.1-1)

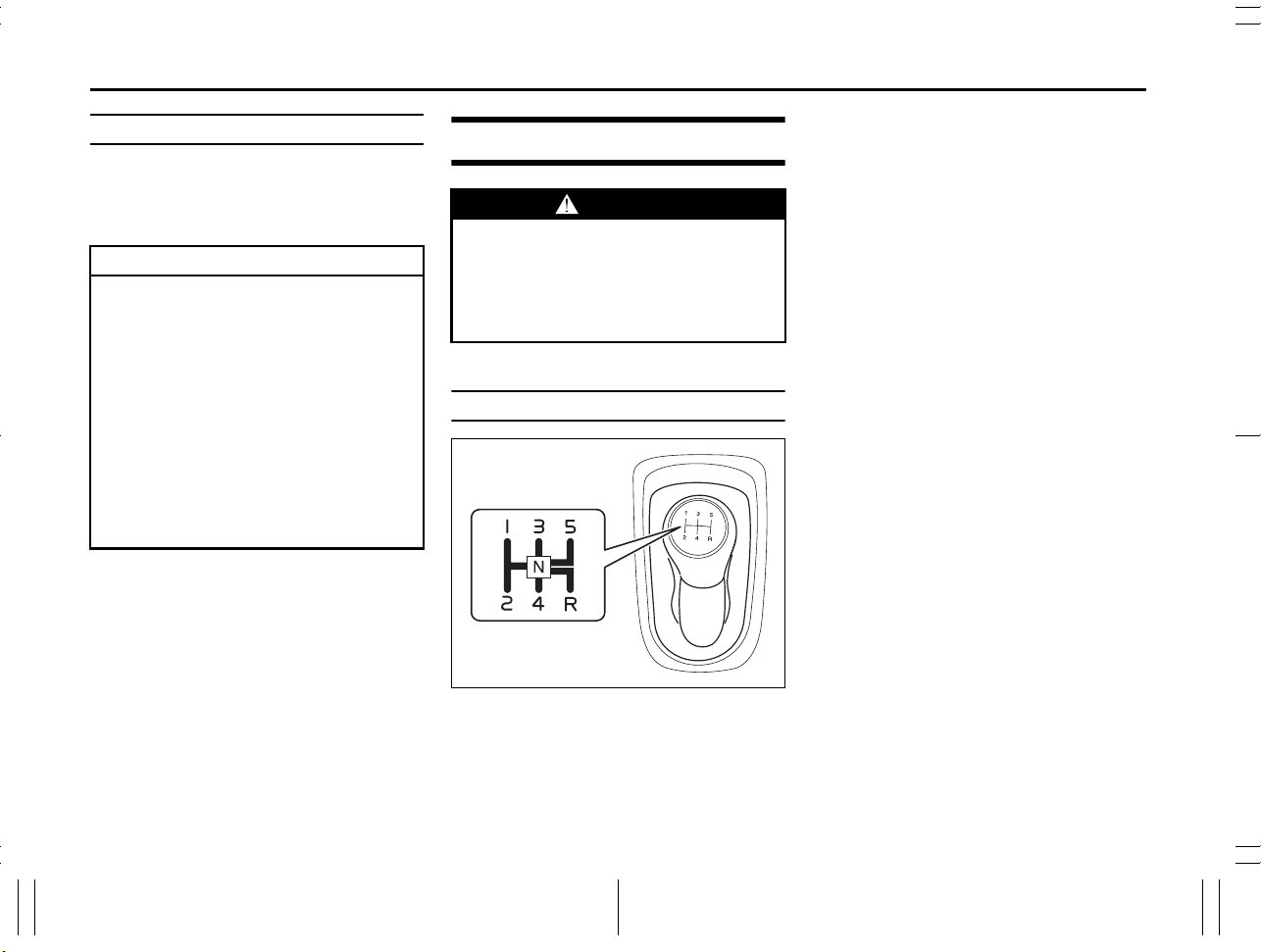

8. Gearshift Lever (P.3-7)
ILLUSTRATED TABLE OF CONTENTS
52SS0002E
52SS0-01E
Page 10
ILLUSTRATED TABLE OF CONTENTS
142 35 76
8 8910 11 12
13 14

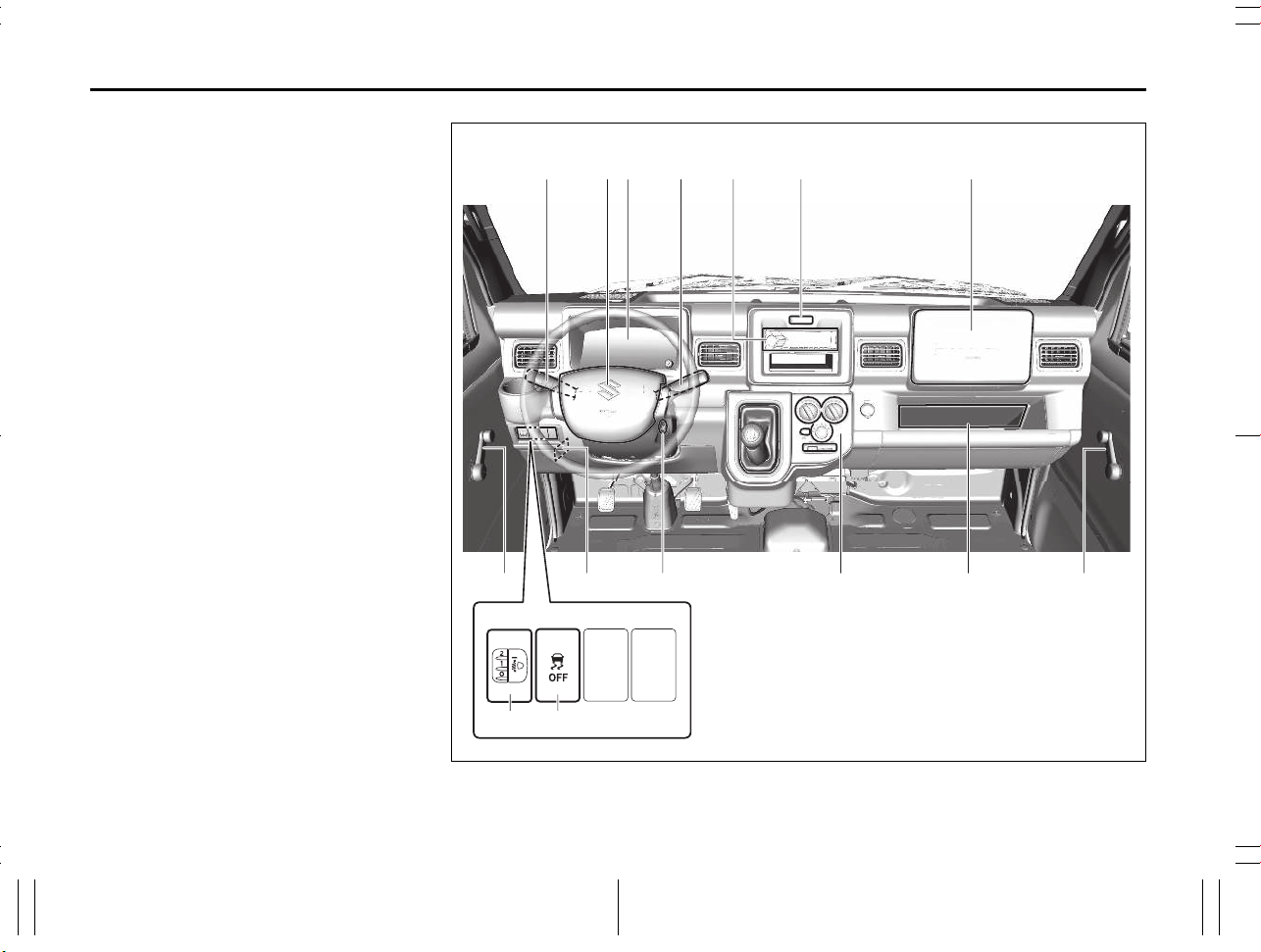

INSTRUMENT PANEL

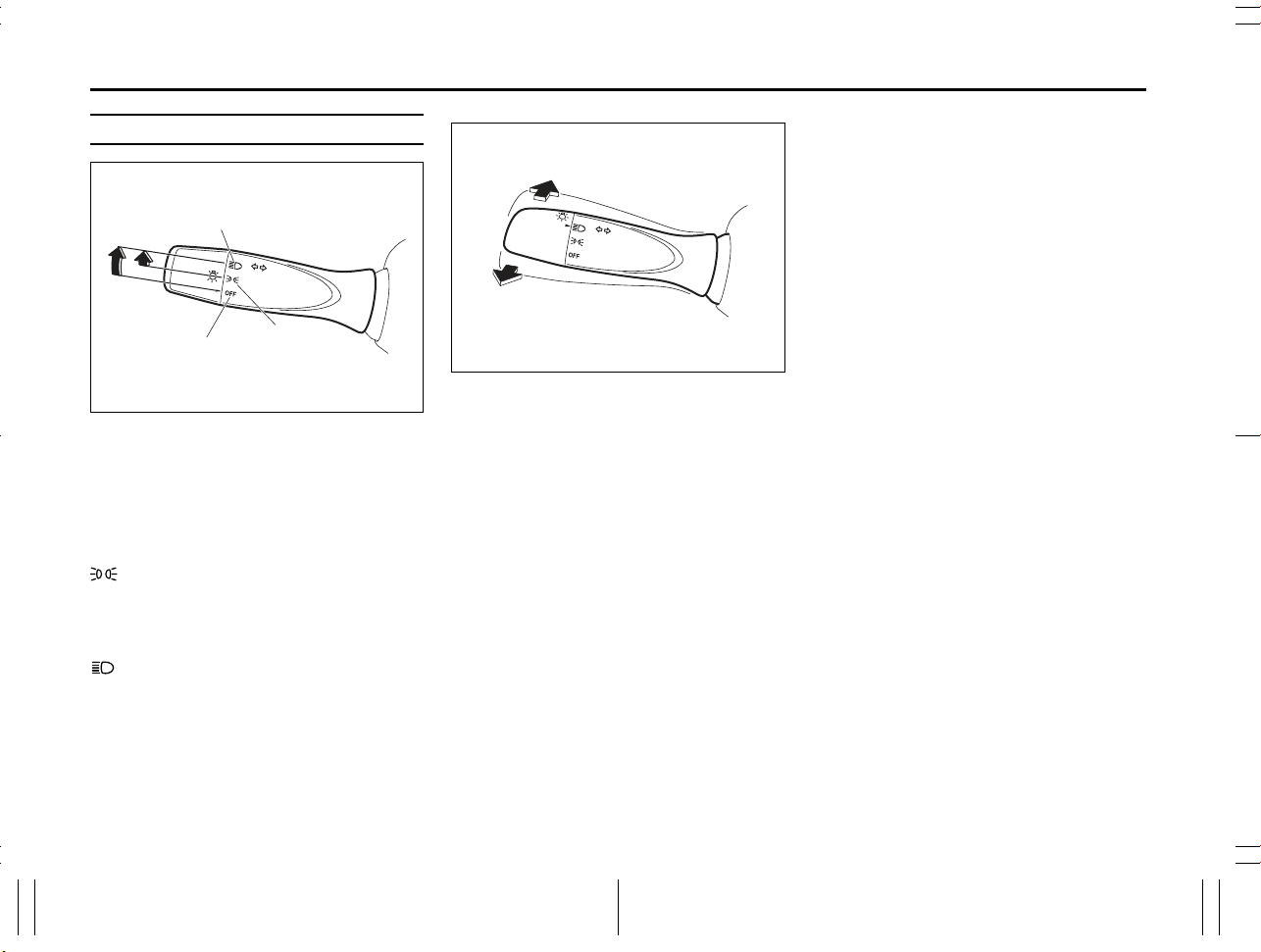

1. Lighting Control Lever (P.2-20)/ Turn Signal Control Lever (P.2-29)
2. Driver’s Front Airbag (if equipped) (P.1-11)
3. Instrument Cluster (P.2-6)

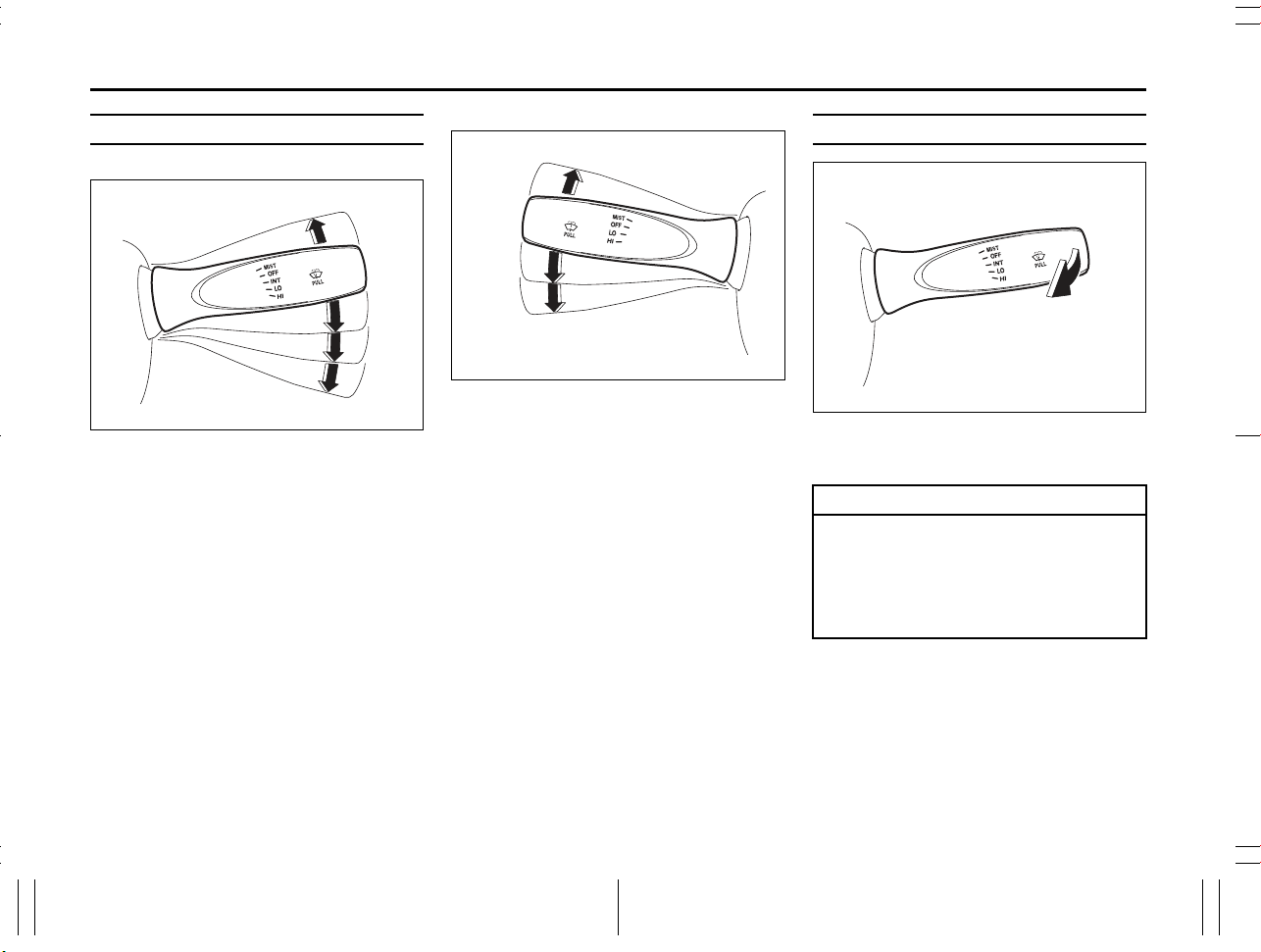

4. Windshield Wiper and Washer Lever (P.2-30)
5. Audio (if equipped) (P.5-9)
6. Hazard Warning Switch (P.2-30)
7. Passenger’s Front Airbag (if equipped) (P.1-11)
8. Manual Window Control (P.2-5)
9. Fuse Box (P.6-33)
10. Ignition Switch (P.3-2)

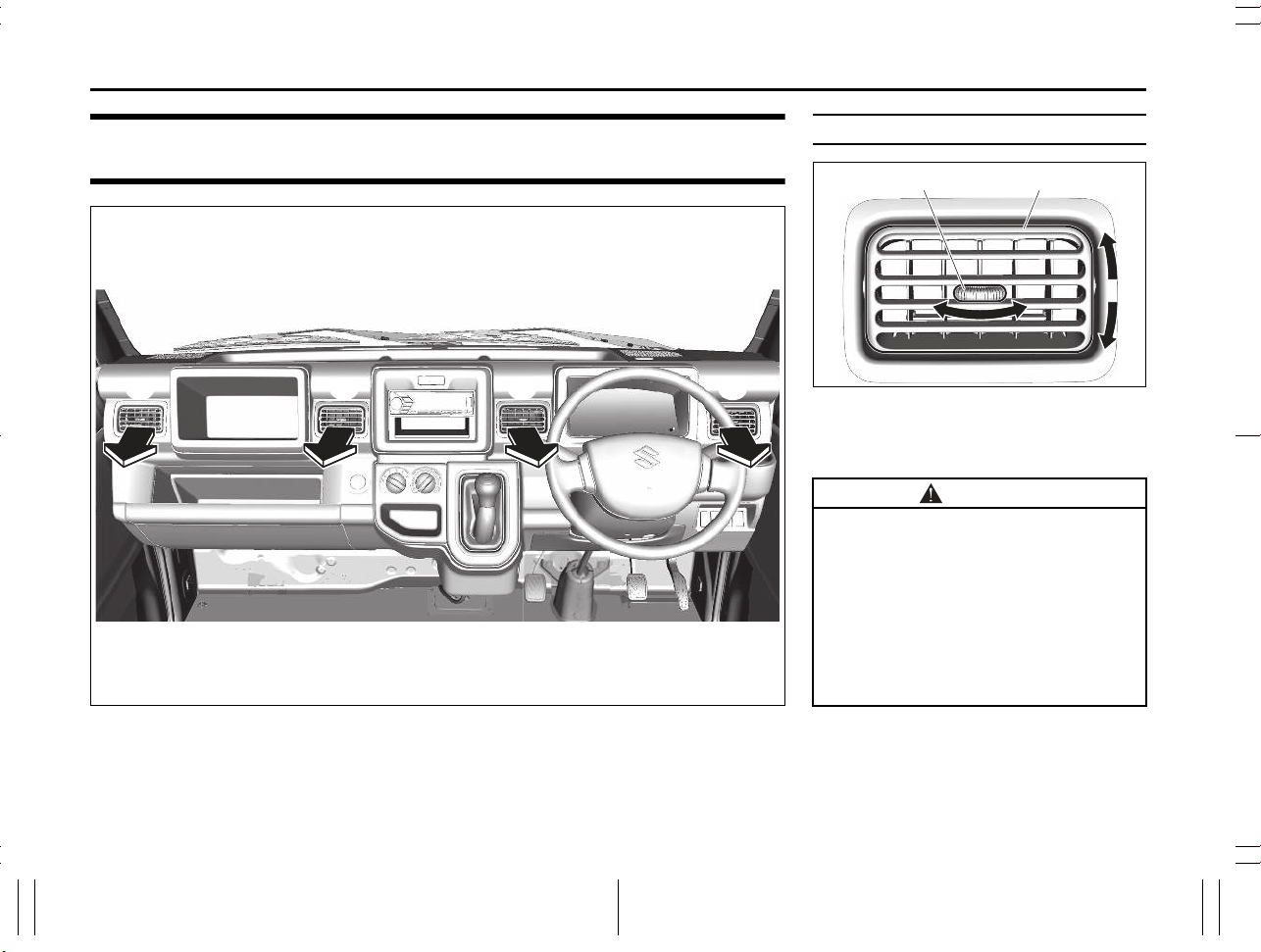

11. Air Conditioning System (if equipped) (P.5-1, 5-7)
12. Instrument Panel Lower Box (P.5-43)
13. Headlight Leveling Switch (if equipped) (P.2-29)
®

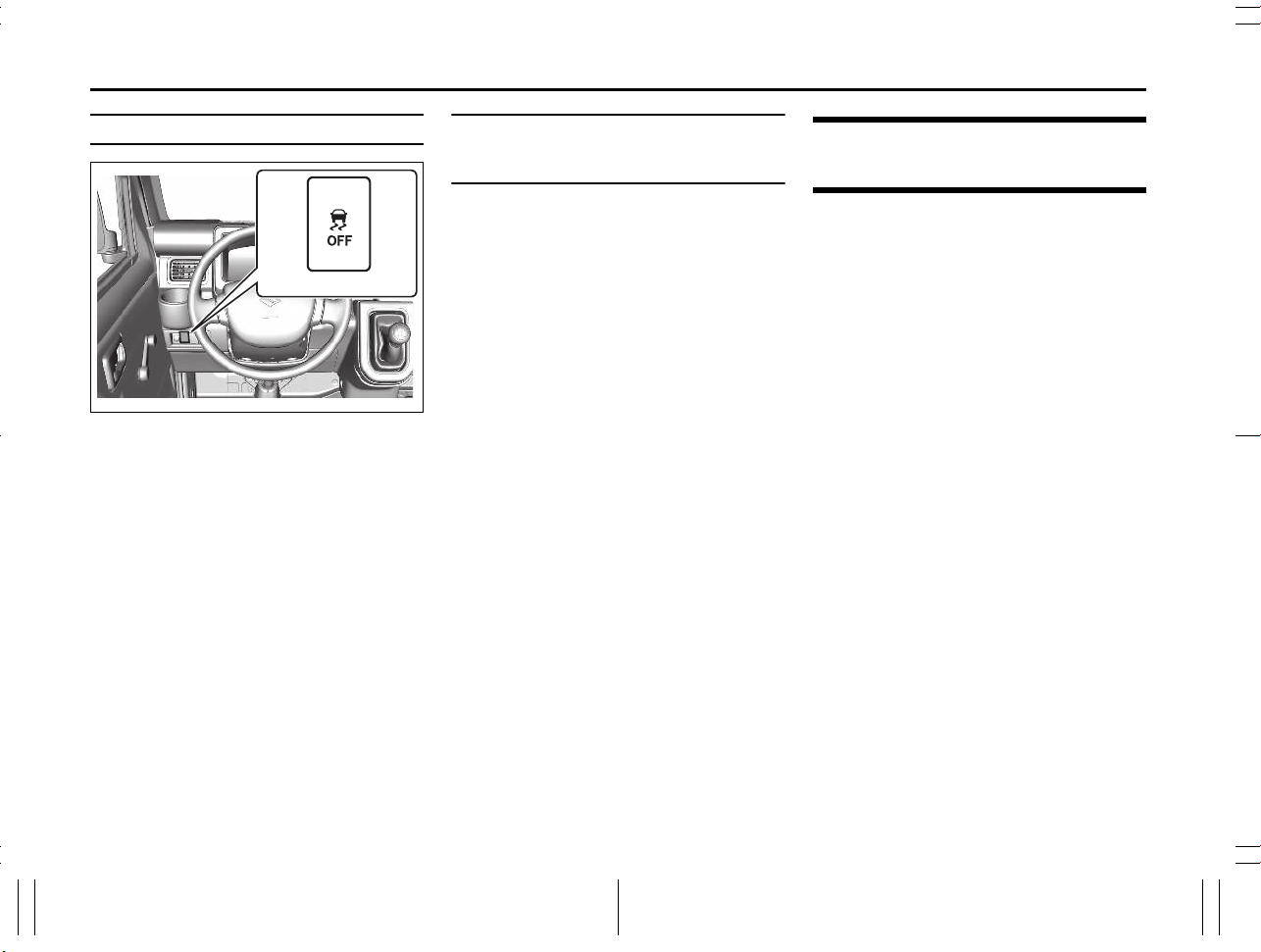

14. ESP
OFF Switch (if equipped) (P.3-14)
52SS0003E
52SS0-01E
Page 11
FOR SAFE DRIVING
65D231S
FOR SAFE DRIVING
Floor Mats (if equipped) ..................................................... 1-1
Seats ..................................................................................... 1-1
Seat Belts ............................................................................. 1-2
Supplemental Restraint System
(Airbags) (if equipped) ........................................................ 1-10

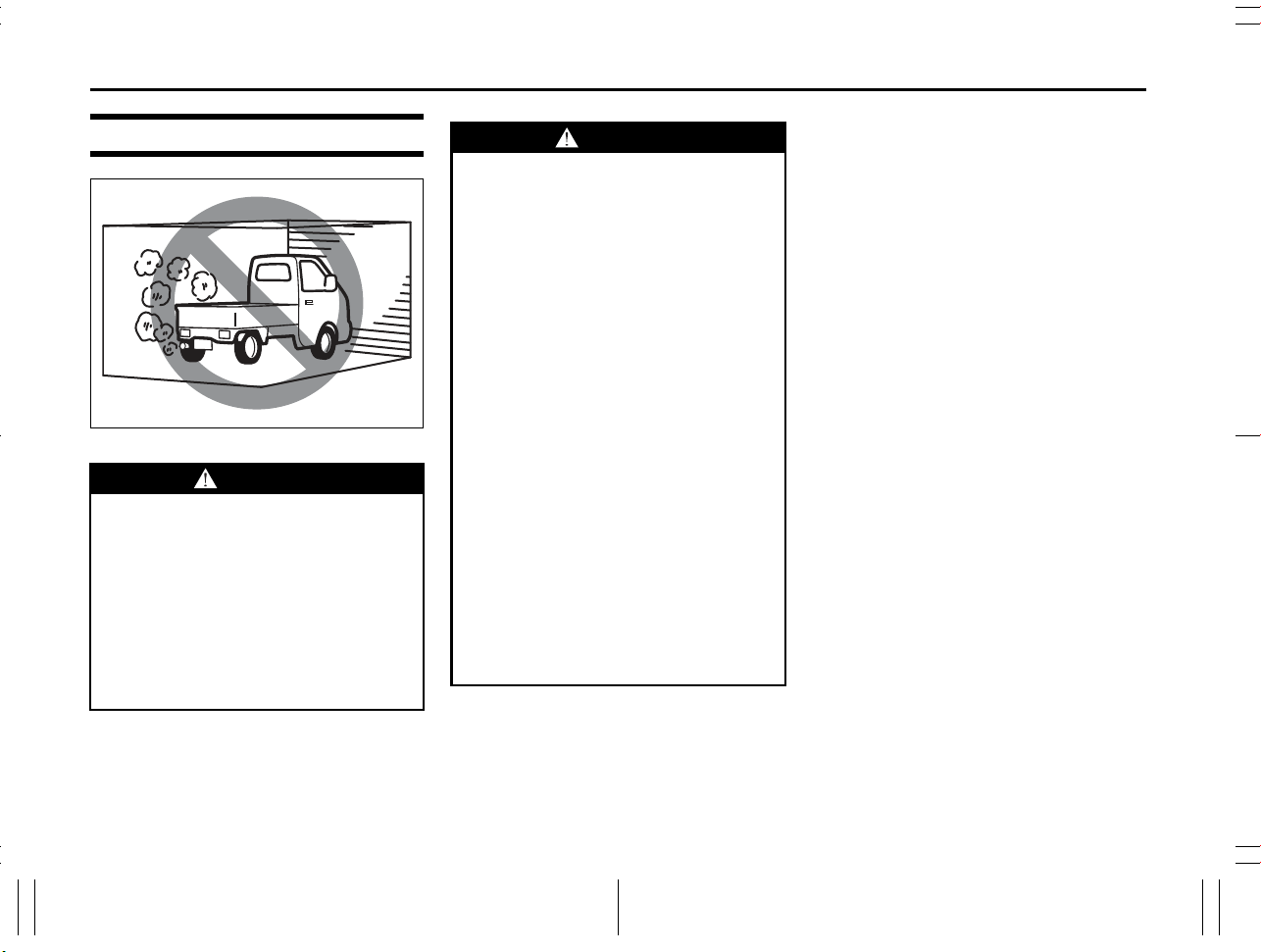

Exhaust Gas Warning ......................................................... 1-18
1
52SS0-01E
Page 12
FOR SAFE DRIVING

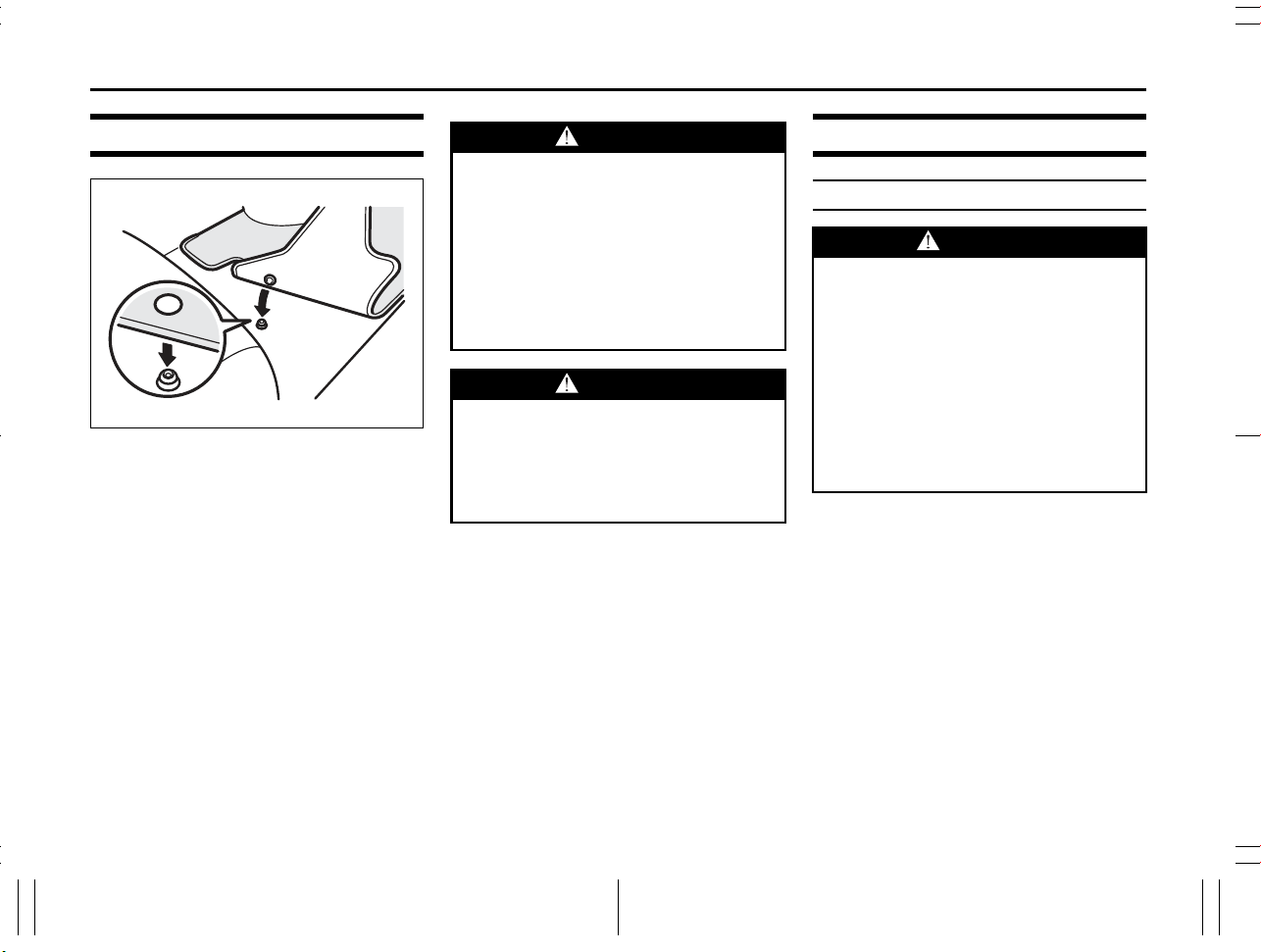

Floor Mats (if equipped)
64P0010
To prevent the driver’s side floor mat from sliding forward and possibly interfering with the operation of the pedals, genuine SUZUKI floor mats are recommended. Whenever you put the driver’s side floor mat back in the vehicle after it has been removed, be sure to hook the floor mat grommets to the fasteners and position the floor mat properly in the footwell.
When you replace the floor mats in your vehicle with a different type such as all­weather floor mats, we highly recommend using genuine SUZUKI floor mats for proper fitting.
WARNING
Failure to take the following precau­tions may result in the driver’s side floor mat interfering with the pedals and causing a loss of vehicle control or an accident.
• Make sure that the floor mat grom­mets are hooked to the fasteners.
• Never stack floor mats.
• Never use a floor mat which does not fit the floor contours.
WARNING
Do not leave cigarette lighters or spray cans on the floor. If a cigarette lighter or spray can is on the floor, it may light accidentally when luggage or objects are loaded on the floor, causing a fire.
Seats
Seat Adjustment (Driver’s seat)
WARNING
• Never attempt to adjust the driver’s seat while driving. The seat could move unexpectedly, causing loss of control. Make sure that the driver’s seat are properly adjusted before you start driving.
• To avoid excessive seat belt slack, which reduces the effectiveness of the seat belts as a safety device, make sure that the seats are adjusted before the seat belts are fastened.
1-1
52SS0-01E
Page 13

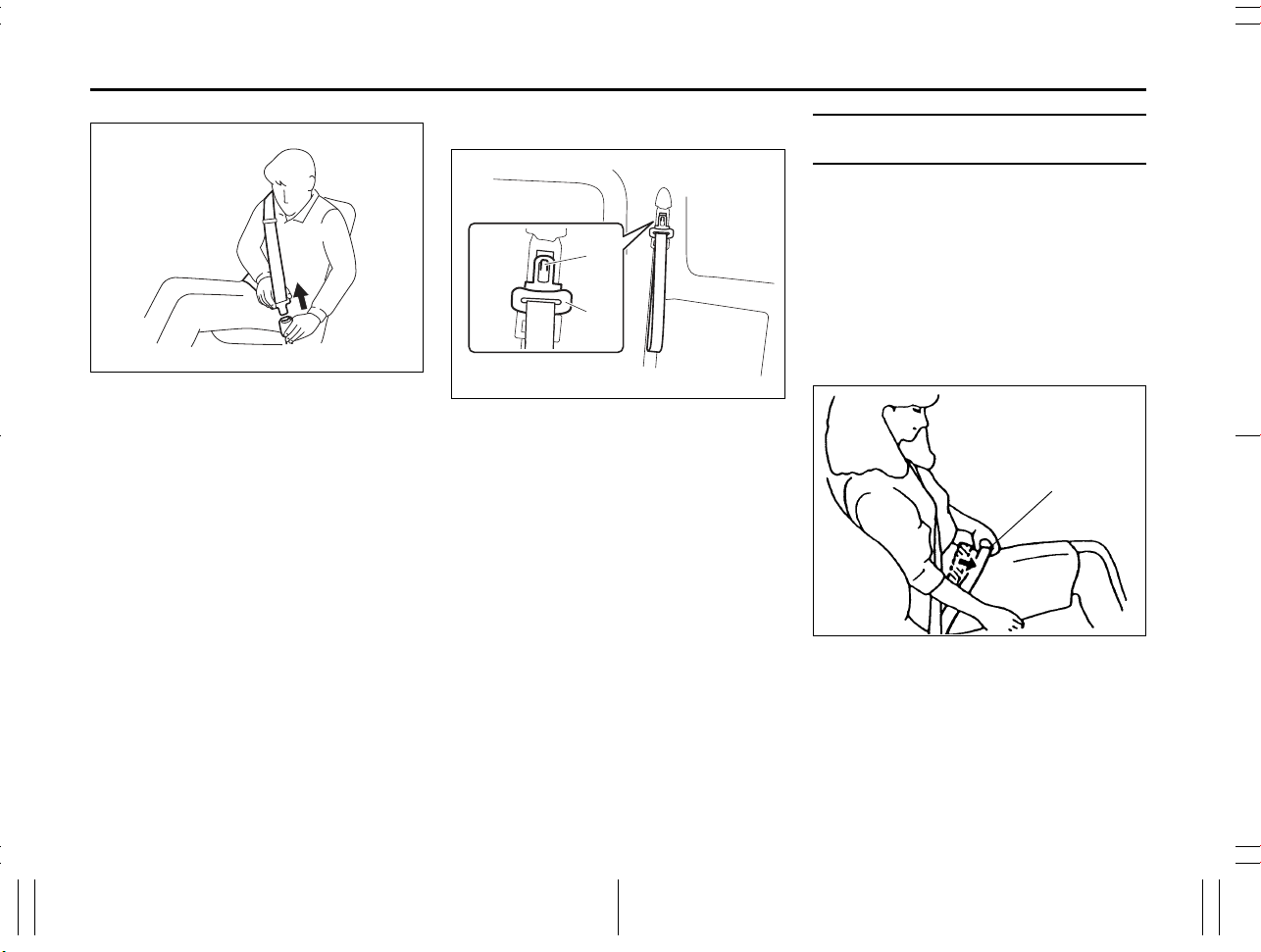

FOR SAFE DRIVING
(1)

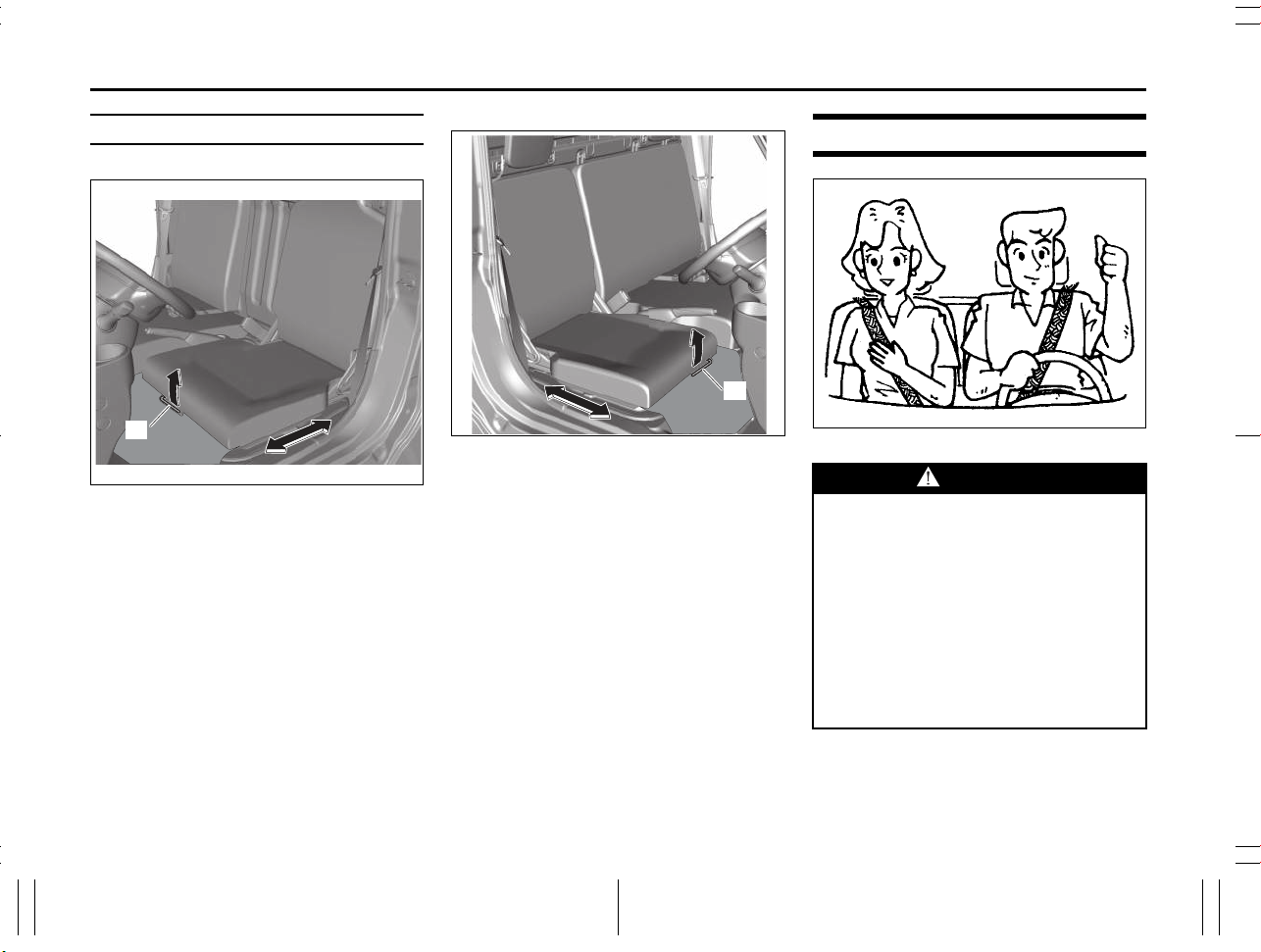

Adjusting Seat Position
Left hand drive vehicle
52SS1018E
Right hand drive vehicle
(1)
52SS1020E
Pull the lever (1) up and slide the seat. After adjustment, try to move the seat for­ward and rearward to ensure that it is securely latched.
Seat Belts
65D231S
WARNING
• Wear Your Seat Belts at All Times.
• An airbag supplements, or adds to, the frontal collision protection offered by seat belts. The driver and all passengers must be prop­erly restrained by wearing seat belts at all times, whether or not an airbag is mounted at their seating position, to minimize the risk of severe injury or death in the event of a collision.
(Continued)
1-2
52SS0-01E
Page 14
FOR SAFE DRIVING

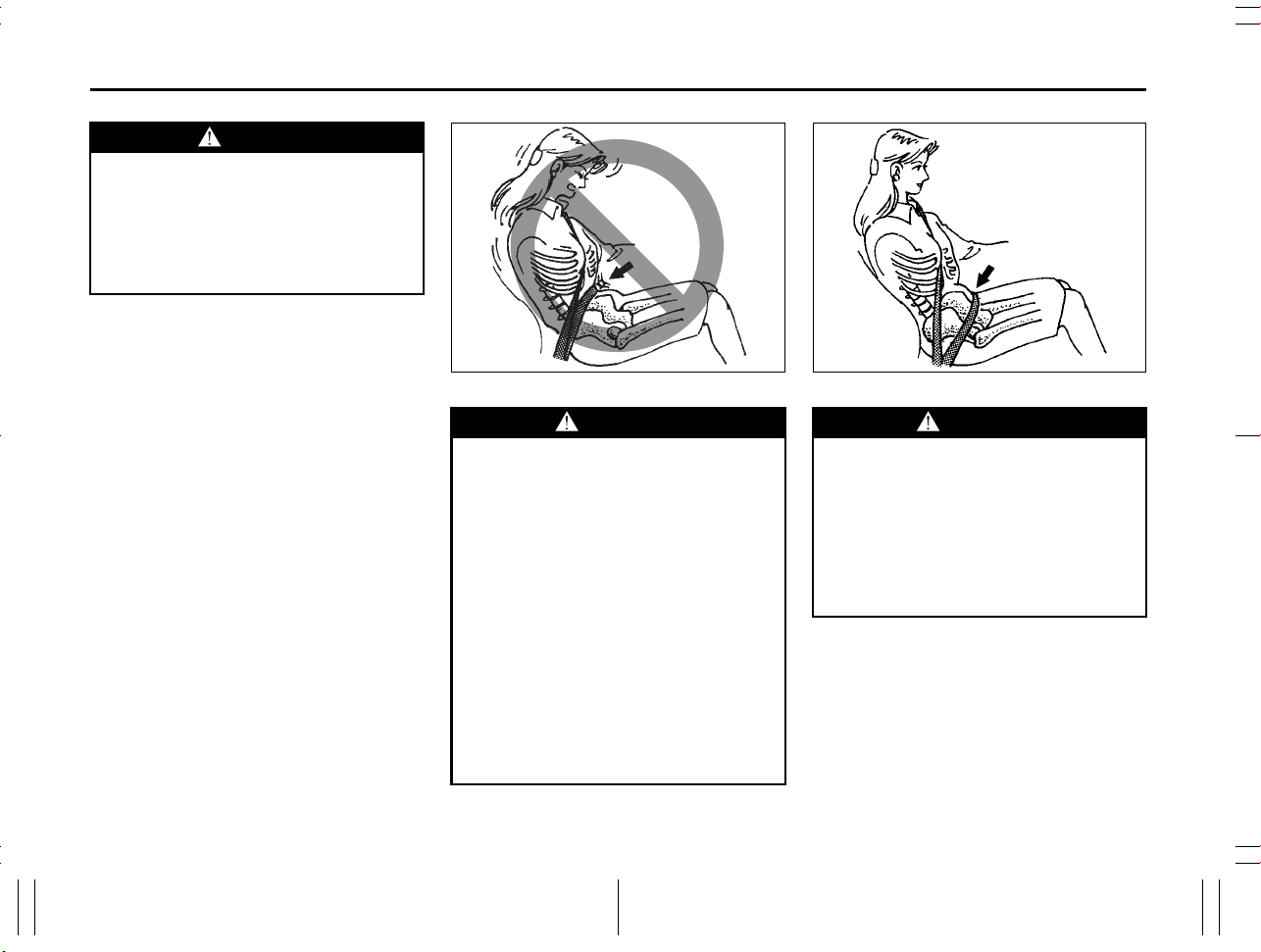

Above the pelvis
Across the pelvis
WARNING
(Continued)
• Do not modify, remove, disassem­ble seat belts. Doing so may pre­vent them from functioning properly and cause the risk of severe injury or death in the event of a collision.
65D606 65D201
1-3
WARNING

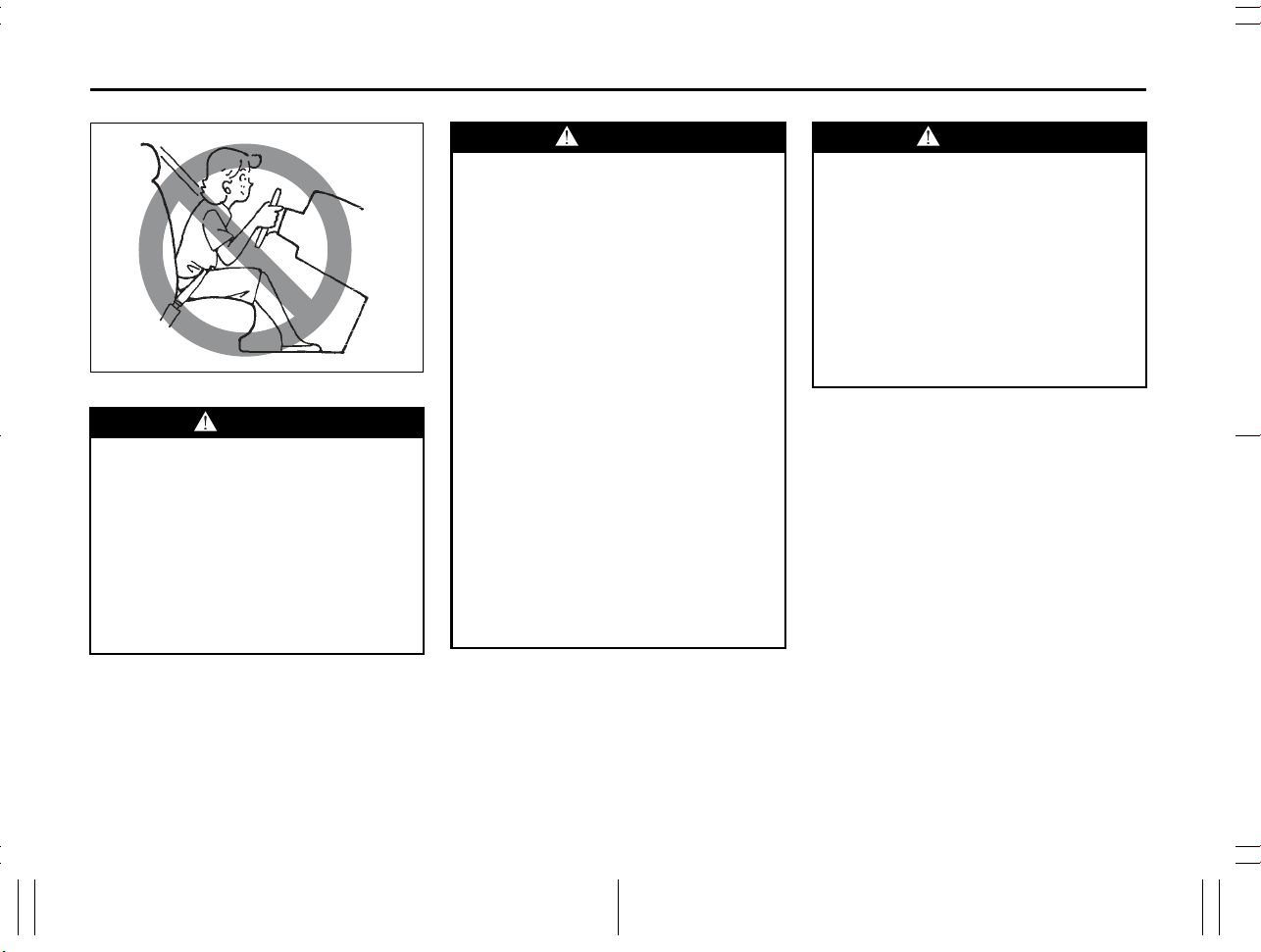

• Never allow persons to ride in the cargo area of a vehicle. In the event of an accident, there is a much greater risk of injury for persons who are not riding in a seat with their seat belt securely fastened.
• Seat belts should always be adjusted as follows: – the lap portion of the belt should
be worn low across the pelvis, not across the waist.
– the shoulder straps should be
worn on the outside shoulder only, and never under the arm.
– the shoulder straps should be
away from your face and neck, but not falling off your shoulder.
(Continued)
WARNING
(Continued)
• Seat belts should never be worn with the straps twisted and should be adjusted as tightly as is com­fortable to provide the protection for which they have been designed. A slack belt will provide less pro­tection than one which is snug.
(Continued)
52SS0-01E
Page 15
FOR SAFE DRIVING
as low as possible across the hips
65D199
WARNING
(Continued)

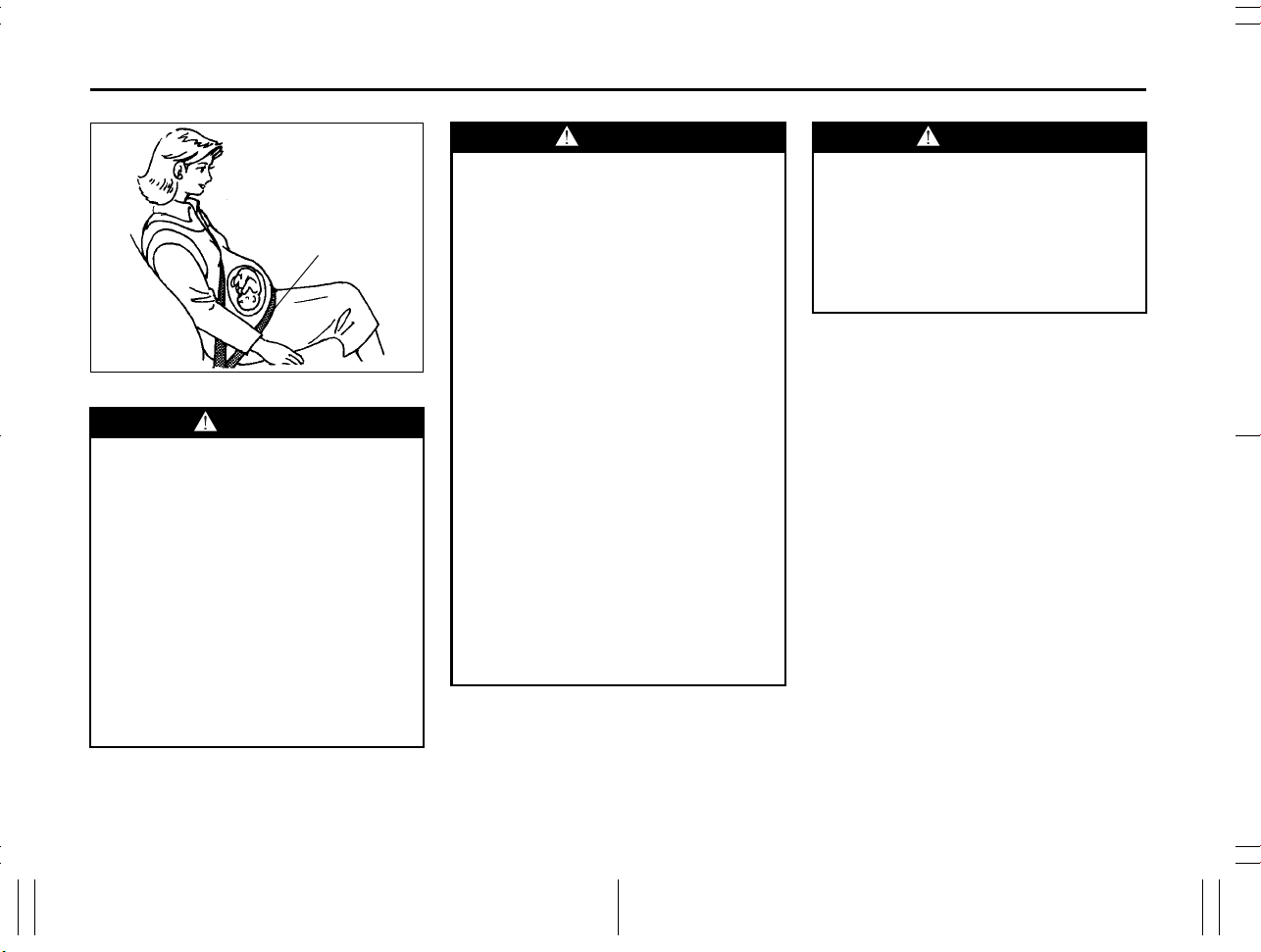

• Pregnant women should use seat belts, although specific recommen­dations about driving should be made by the woman’s medical advi­sor. Remember that the lap portion of the belt should be worn as low as possible across the hips, as shown in the diagram.
• Do not wear your seat belt over hard or breakable objects in your pockets or on your clothing. If an accident occurs, objects such as glasses, pens, etc. under the seat belt can cause injury.
(Continued)
WARNING
(Continued)
• Never use the same seat belt on more than one occupant and never attach a seat belt over an infant or child being held on an occupant’s lap. Such seat belt use could cause serious injury in the event of an accident.
• Periodically inspect seat belt assemblies for excessive wear and damage. Seat belts should be replaced if webbing becomes frayed, contaminated, or damaged in any way. It is essential to replace the entire seat belt assembly after it has been worn in a severe impact, even if damage to the assembly is not obvious.
• For children, if the shoulder belt irritates the neck or face, move the child closer to the centre of the vehicle.
• Avoid contamination of seat belt webbing by polishes, oils, chemi­cals, and particularly battery acid. Cleaning may safely be carried out using mild soap and water.
(Continued)
WARNING
(Continued)
• Do not insert any items such as coins, clips, etc. into the seat belt buckles, and be careful not to spill liquids into these parts. If foreign materials get into a seat belt buckle, the seat belt may not work properly.
1-4
52SS0-01E
Page 16
FOR SAFE DRIVING
(1)
TO TIGHTEN
(2)
TO LOOSEN
Seat Belts (for Vehicles without
Emergency Locking Retractor (ELR))

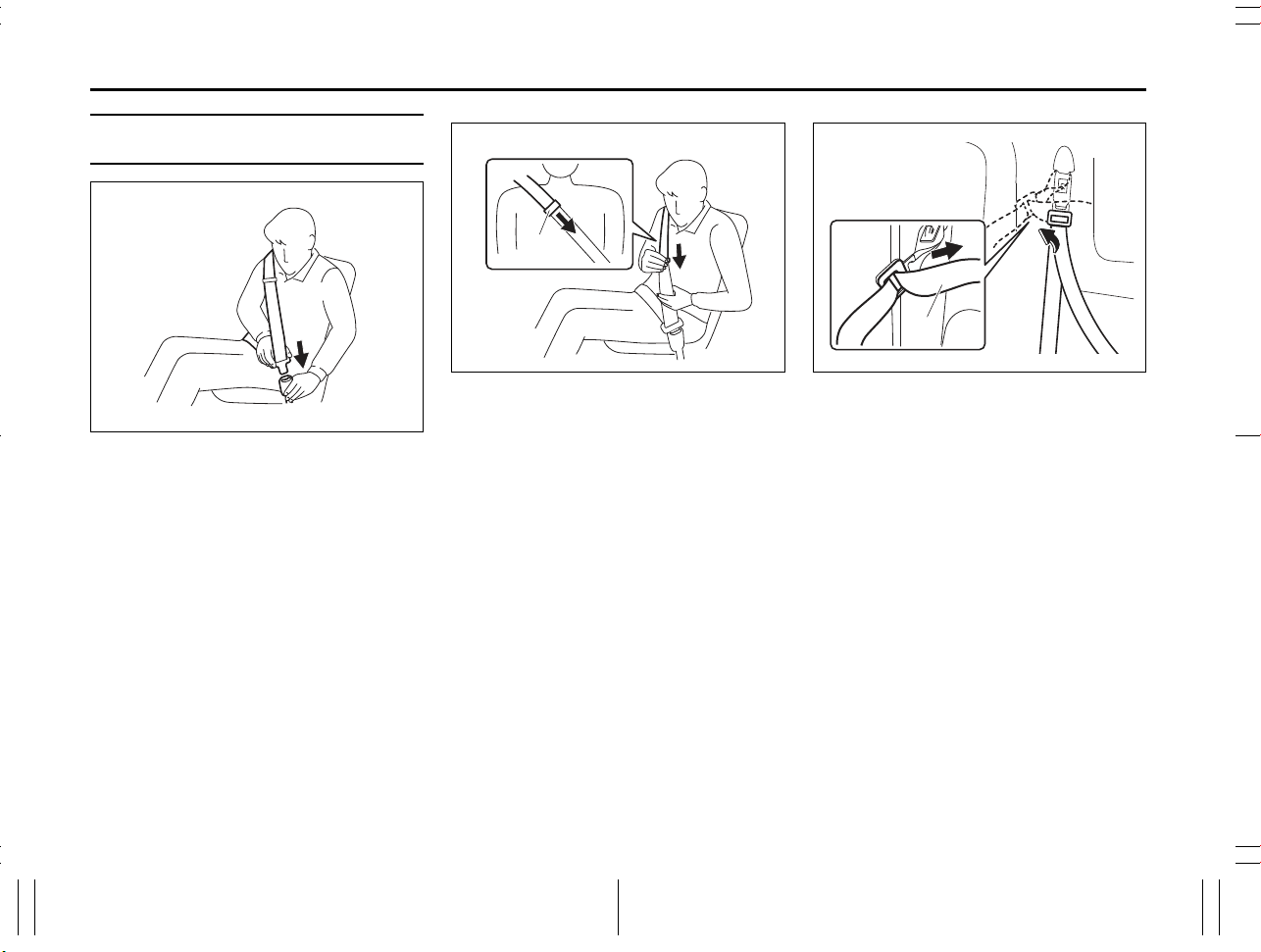

To fasten the seat belt, sit up straight and well back in the seat, pull the latch plate attached to the seat belt across your body and press it straight into the buckle until you hear a “click”.
1-5
52SS10020
52SS10030
To tighten the belt, pull the free end of the belt (1) across alongside the lap strap.
52SS10040
To lengthen, release the latch plate from the buckle, turn the belt inside out and then pull the belt (2) to the direction of the arrow. The latch plate should be then refit­ted into the buckle and the belt tightened as previously described.
52SS0-01E
Page 17
FOR SAFE DRIVING
(1)
(2)
Sit up straight and fully back
Low on hips
52SS10050
To unfasten the seat belt, push the button on the buckle.
Stowing driver’s and passenger’s seat belt
52SS10060
To stow the seat belt, hook the latch plate (1) to the hanger (2) of the seat belt.
Seat Belts (for Vehicles with
Emergency Locking Retractor (ELR))
Emergency locking retractor (ELR)
The seat belt has an emergency locking retractor (ELR), which is designed to lock the seat belt only during a sudden stop or impact. It also may lock if you pull the belt across your body very quickly. If this hap­pens, let the belt go back to unlock it, and then pull the belt across your body more slowly.
Safety reminder
60A038
1-6
52SS0-01E
Page 18
FOR SAFE DRIVING

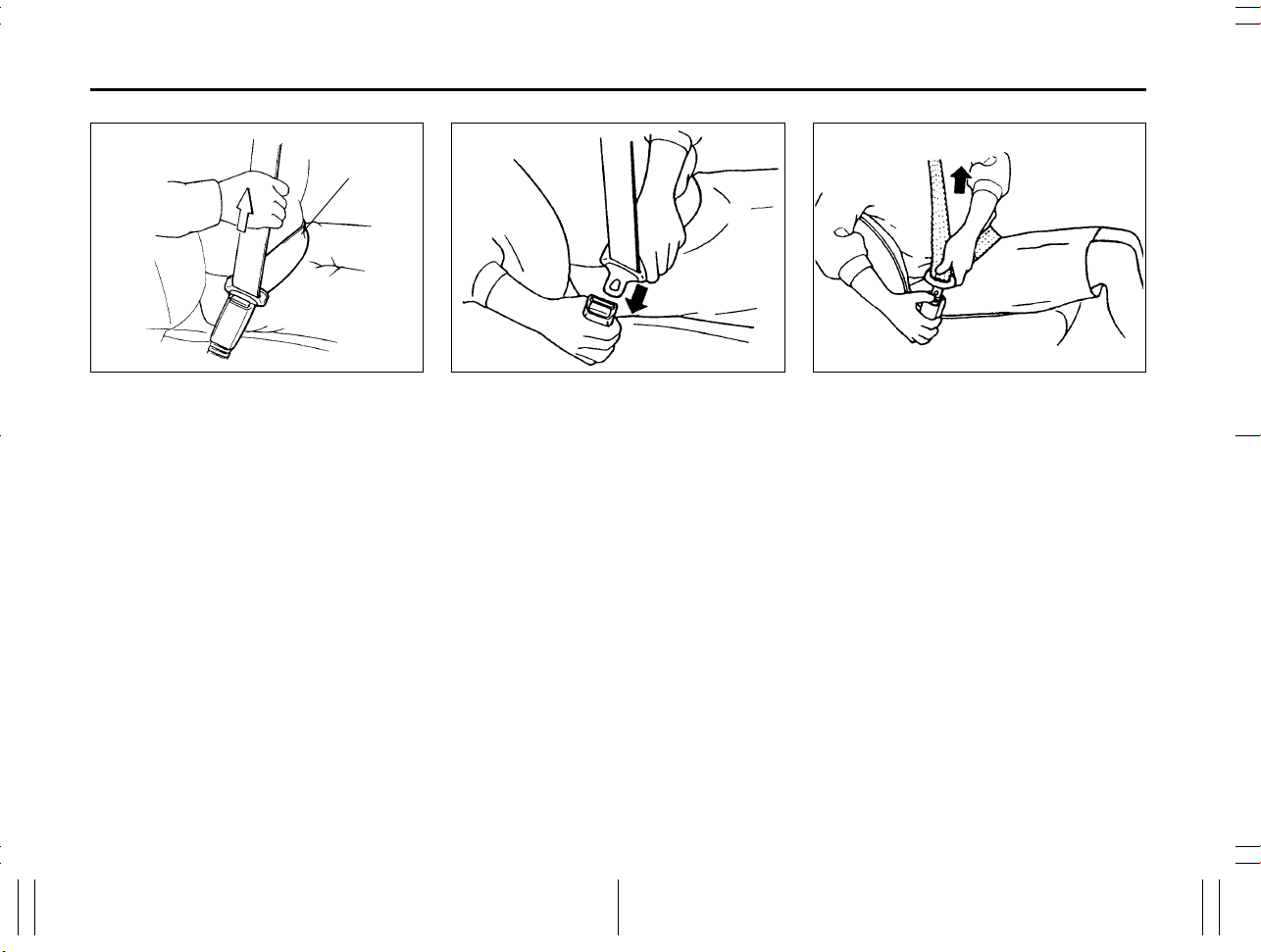

Low on hips
60A040
To reduce the risk of sliding under the belt during a collision, position the lap portion of the belt across your lap as low on your hips as possible and adjust it to a snug fit by pulling the shoulder portion of the belt upward through the latch plate. The length of the diagonal shoulder strap adjusts itself to allow freedom of movement.
1-7
52SS10020
To fasten the seat belt, sit up straight and well back in the seat, pull the latch plate attached to the seat belt across your body and press it straight into the buckle until you hear a “click”.
52SS10040
To unfasten the seat belt, push the button on the buckle and retract the belt slowly while attaching a hand to the belt and/or the latch plate.
52SS0-01E
Page 19
FOR SAFE DRIVING

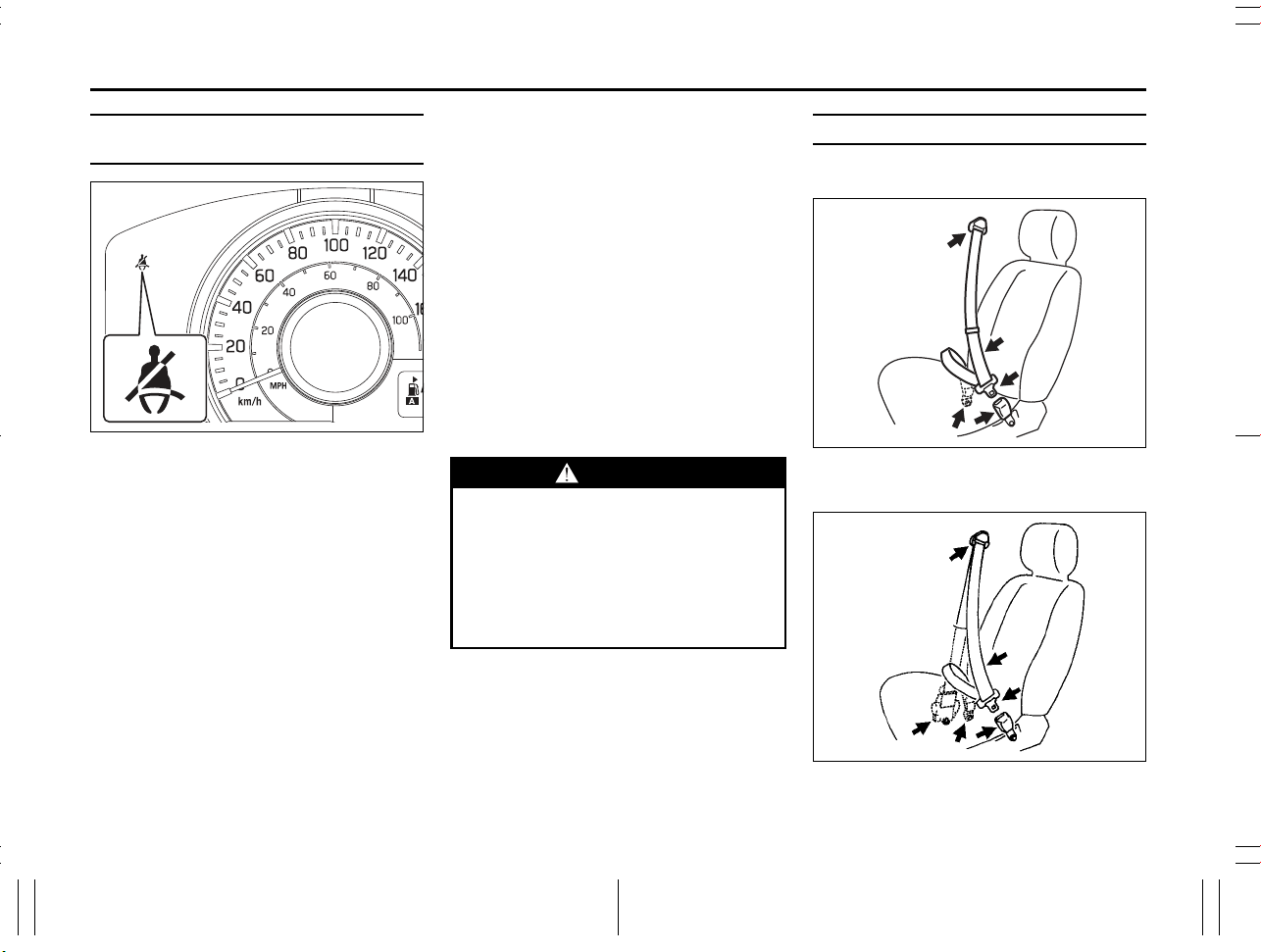

Driver’s Seat Belt Reminder Light (if equipped)
52SS1001E
When the driver does not fasten his or her seat belt, the seat belt reminder light will come on or brink and a buzzer will sound to remind the driver to fasten his or her seat belt. For more details, refer to the explanation below.
If the driver’s seat belt remains unbuckled when the ignition switch is turned “ON”, the reminder works as follows:
1) The driver’s seat belt reminder light will come on.
2) After the vehicle’s speed has reached about 15 km/h (10 mph), the driver’s seat belt reminder light will blink and a buzzer will sound for about 95 seconds.
3) After step 2) has finished, the reminder light will remain on until the driver’s seat belt is buckled.
If the driver has buckled his or her seat belt and later unbuckled the seat belt, the reminder system will be activated from step 1) or step 2) according to the vehicle’s speed. When the vehicle’s speed is below about 15 km/h (10 mph), the reminder will start from step 1). When the vehicle’s speed is above about 15 km/h (10 mph), the reminder will start from step 2).
The reminder will be automatically can­celed when the driver’s seat belt is buckled or the ignition switch is turned off.
WARNING
It is absolutely essential that the driver fasten his or her seat belts at all times. Persons who are not fasten­ing seat belts have a much greater risk of injury if an accident occurs. Make a regular habit of buckling your seat belt before putting the key in the ignition.
Seat Belt Inspection
For vehicles without emergency lock-
ing retractor (ELR)
52SS10070
For vehicles with emergency locking
retractor (ELR)
65D209S
1-8
52SS0-01E
Page 20
FOR SAFE DRIVING
Periodically inspect the seat belts to make sure they work properly and are not dam­aged. Check the webbing, buckles, latch plates, retractors (for vehicles with emer­gency locking retractor (ELR)), anchor­ages, and guide loops. Replace any seat belts which do not work properly or are damaged.
WARNING
Inspect all seat belt assemblies after any collision. Any seat belt assembly which was in use during a collision (other than a very minor one) should be replaced, even if damage to the assembly is not obvious.
1-9
52SS0-01E
Page 21

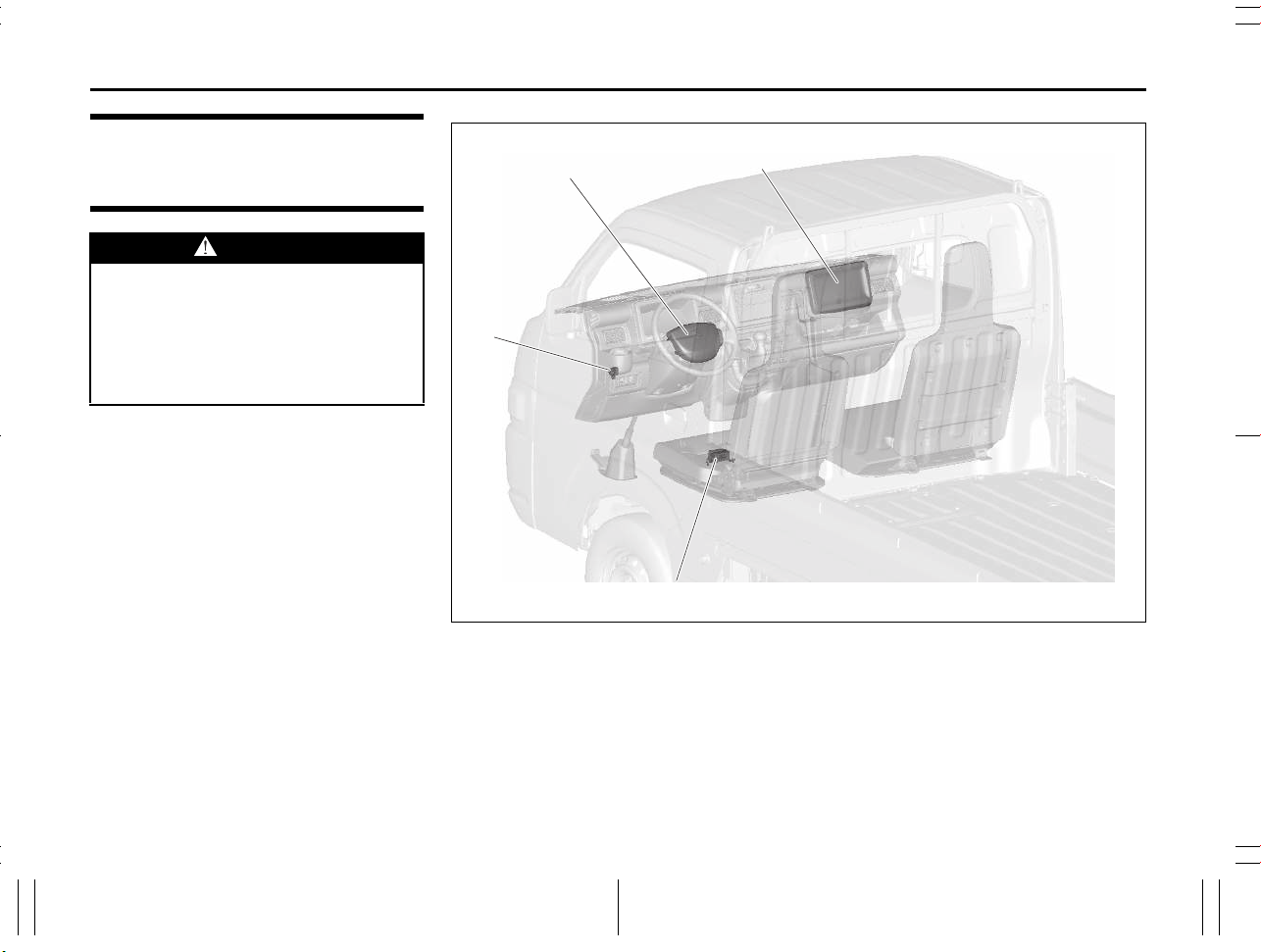

Supplemental Restraint System (Airbags) (if equipped)
WARNING
This section describes the protection provided by your SUZUKI vehicle’s supplemental restraint system (air­bags). Read and follow all instruc­tions carefully to minimize your risk of severe injury or death in the event of a collision.
Your vehicle is equipped with a supple­mental restraint system consisting of the following components in addition to a lap­shoulder belt at each front seating position.
2
1
4
1. Forward collision sensor
2. Driver’s front airbag module
3. Passenger’s front airbag module
4. Airbag controller
FOR SAFE DRIVING
3
52SS1002E
1-10
52SS0-01E
Page 22
FOR SAFE DRIVING

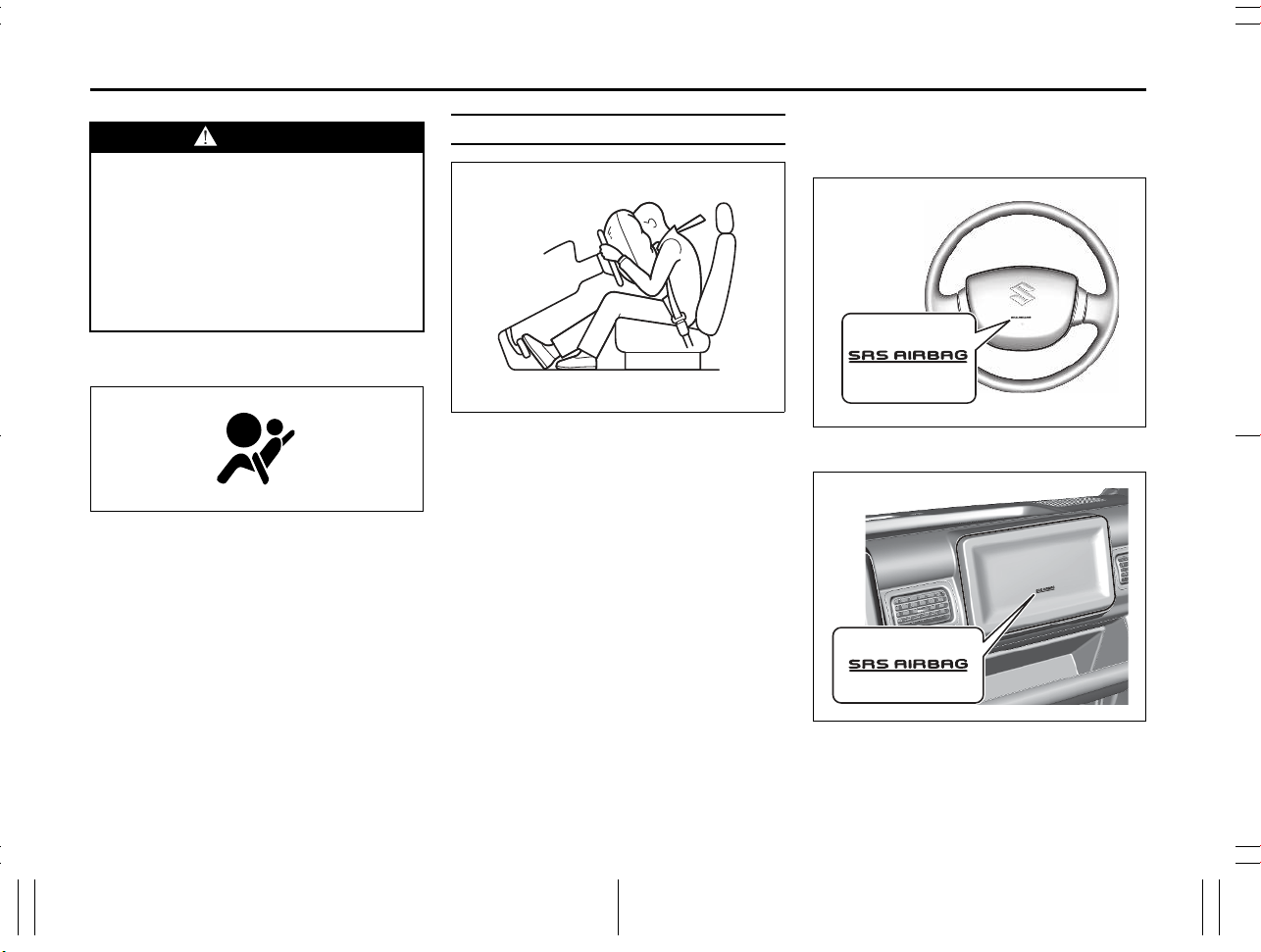

WARNING
An airbag supplements or adds to the collision protection offered by seat belts. The driver and all passengers must be properly restrained by fas­tening seat belts at all times, whether or not an airbag is mounted at their seating position, to minimize the risk of severe injury or death in the event of a collision.
AIRBAG light
63J030
If the AIRBAG light on the instrument clus­ter does not blink or come on when the ignition switch is first turned to the “ON” position, or the AIRBAG light stays on, or comes on while driving, the airbag system may not work properly. Have the airbag system inspected by a SUZUKI dealer or a qualified workshop as soon as possible.

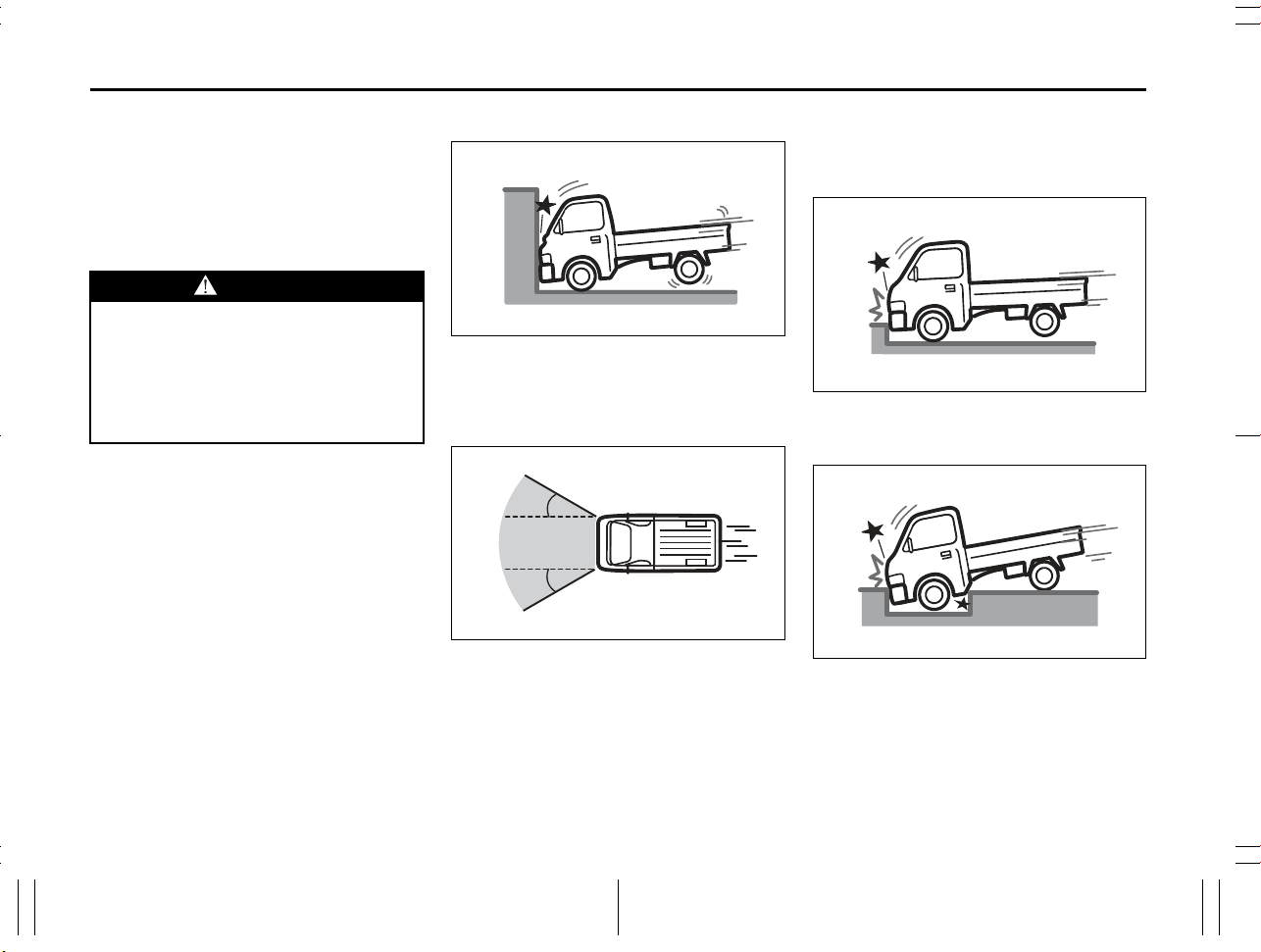

Front Airbags
63J113
Front airbag is designed to inflate in severe frontal collisions when the ignition switch is in “ON” position.
Front airbag is not designed to inflate in rear impacts, side impacts, rollovers or minor frontal collisions, since they would offer no protection in those types of acci­dents. Remember, since an airbag deploys only one time during an accident, seat belts are needed to restrain occupants from further movements during the acci­dent.
Therefore, an airbag is not a substitute for seat belts. To maximize your protection, always fasten your seat belts. Be aware
that no system can prevent all possible injuries that may occur in an accident.
Driver's front airbag
52SS1003E
Passenger’s front airbag
52SS1004E
1-11
52SS0-01E
Page 23
FOR SAFE DRIVING
(1)
(1)
The driver’s front airbag is located behind the centre pad of the steering wheel and the passenger’s front airbag is located behind the passenger’s side of the instru­ment panel. The words “SRS AIRBAG” are molded into the airbag covers to identify the location of the airbags.
WARNING
If the airbag stored place is damaged or cracked, the airbag system may not work properly, which could result in serious injury in the event of a col­lision. Have your vehicle inspected by a SUZUKI dealer or a qualified workshop.
Front airbags deploy (inflate)
52SS1005E
• Frontal collision with a fixed wall that
does not move or deform at more than about 25 km/h (15 mph)
52SS1006E
• Strong impact equivalent to frontal colli-
sion such as above at left and right angles of about 30 degrees (1) or less from the front of your vehicle
Front airbags may inflate
Receiving a strong impact to the lower body of your vehicle, the front airbags may inflate.
52SS1007E
• Hitting a curb or medial strip
52SS1008E
• Falling into a deep hole or ditch
1-12
52SS0-01E
Page 24
FOR SAFE DRIVING

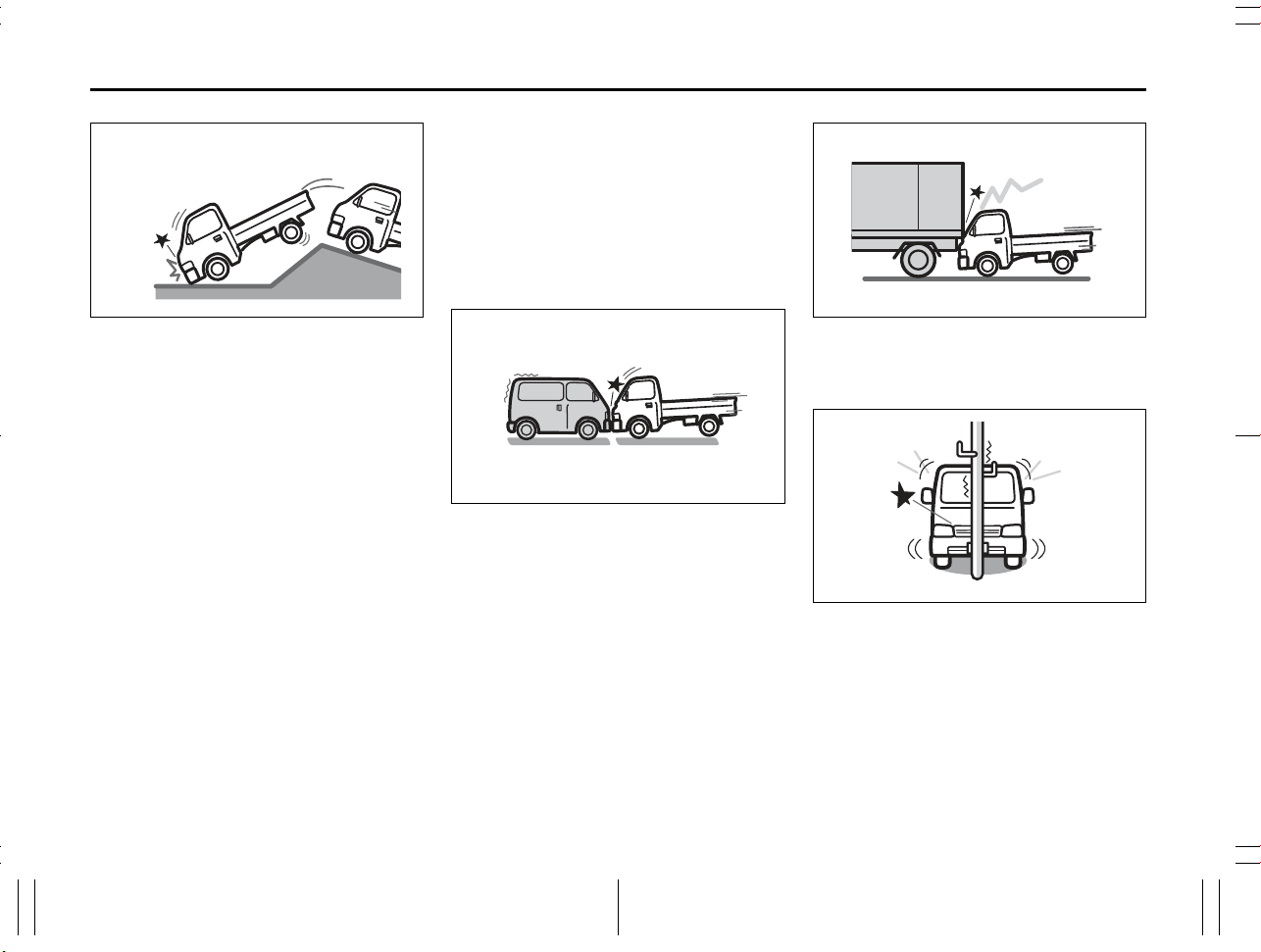

Front airbags may not inflate
The front airbags may not inflate when a strong impact has not occurred since the collision object was easy to be deformed or moved, or the collided portion of your vehicle was easy to be deformed. Also, front airbags may not inflate in many cases when the collision angle is greater than about 30 degrees at left and right angles from the front of your vehicle.
• Landing hard or falling
1-13
52SS1009E
52SS1011E
• Collision that the front of your vehicle goes under the bed of a truck etc.
52SS1010E
• Frontal collision to a stopped vehicle at less than about 50 km/h (30 mph)
52SS1012E
• Collision with a utility pole or stumpage
52SS0-01E
Page 25
(1)
FOR SAFE DRIVING

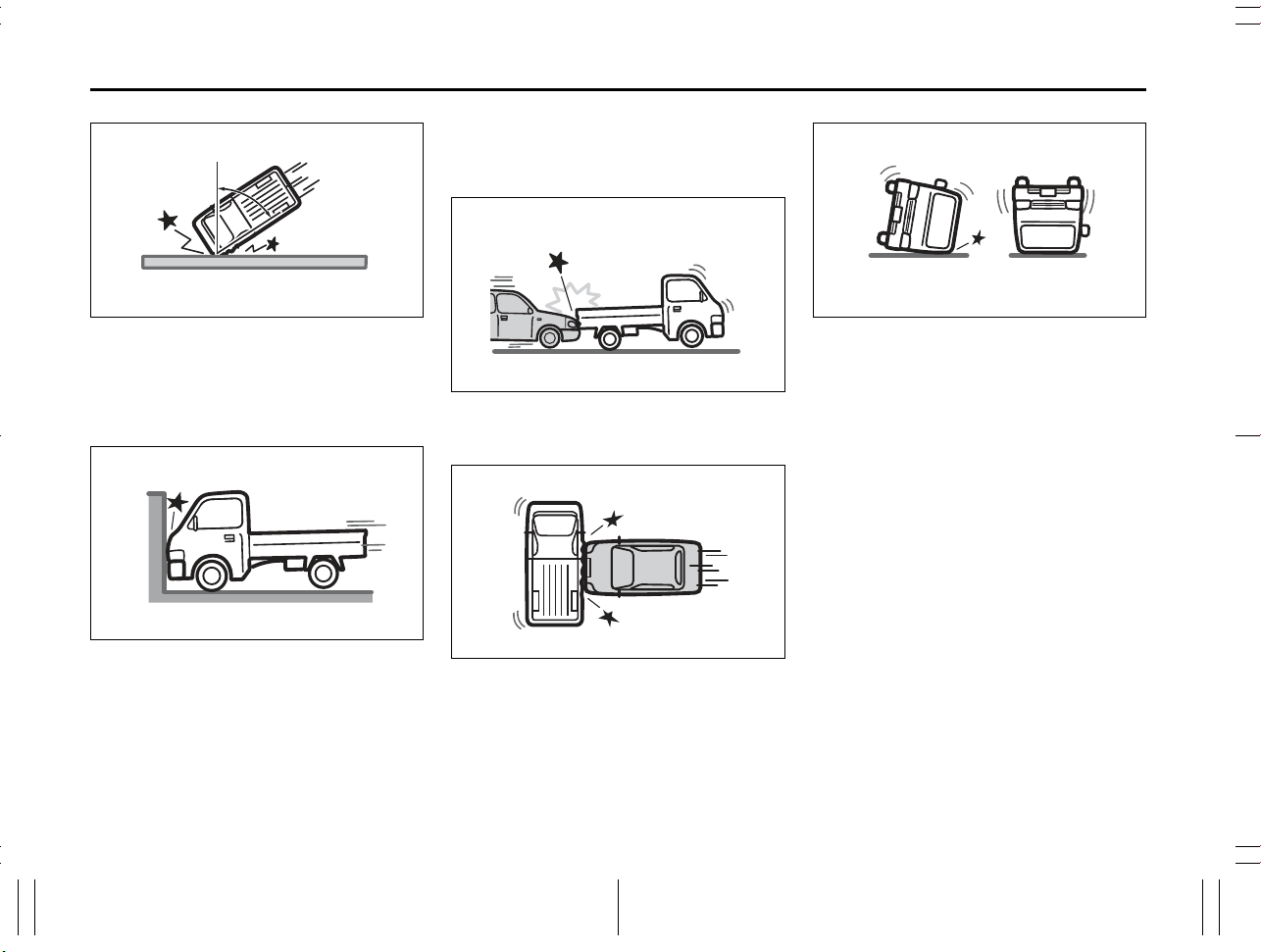

Front airbags do not inflate
Front airbags do not inflate in rear impacts, side impacts or rollovers, etc. However, these might inflate in a strong impact.
52SS1013E
• Collision with a fixed wall or guardrail at left and right angles of greater than about 30 degrees (1) from the front of your vehicle
52SS1014E
• Frontal collision with a fixed wall that does not move or deform at less than about 25 km/h (15 mph)
52SS1017E
• Vehicle rollover
52SS1015E
• Impact from the rear
52SS1016E
• Impact from the side
1-14
52SS0-01E
Page 26
FOR SAFE DRIVING

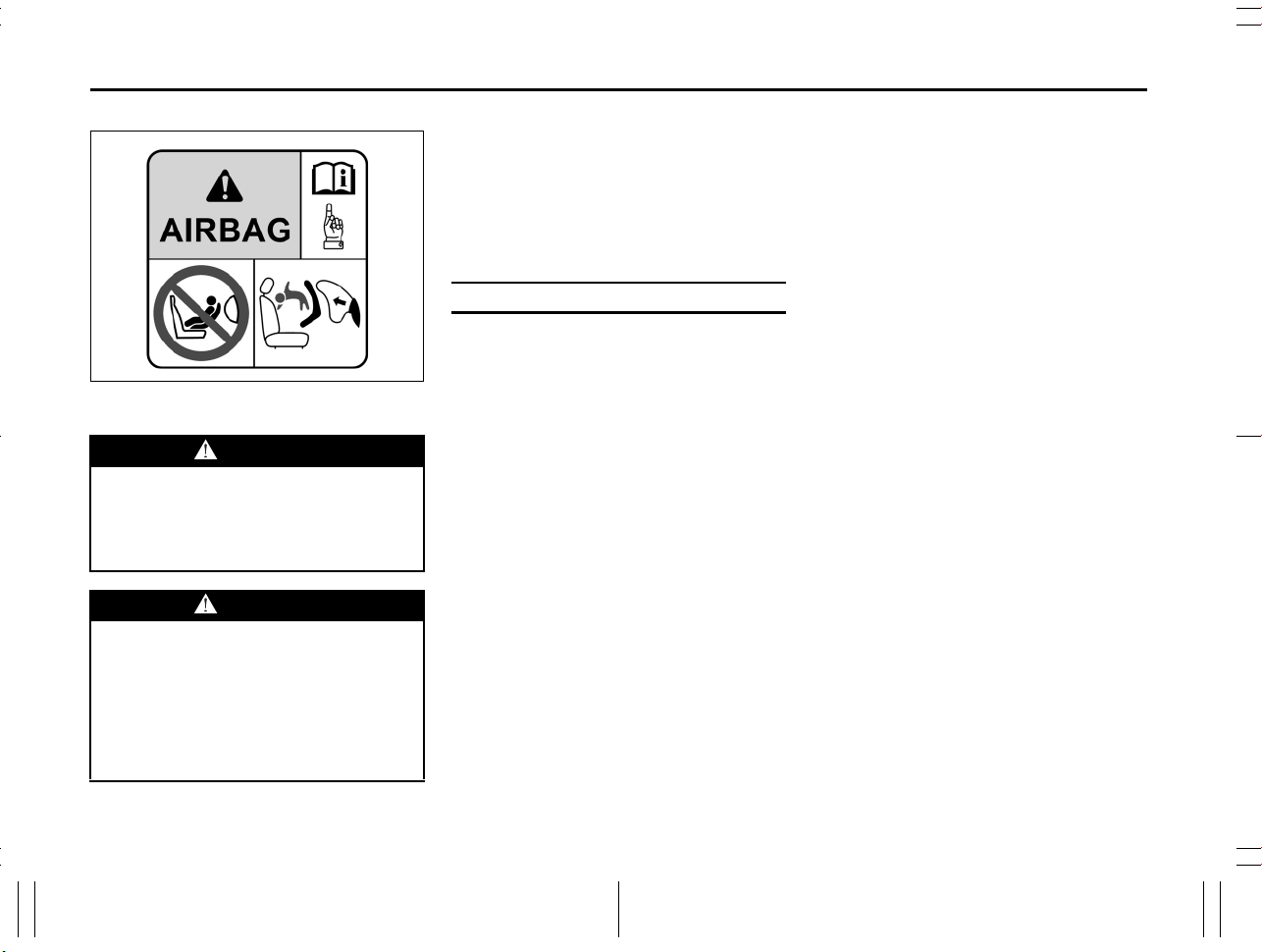

Airbag symbol meaning
72M00150
You may find this label on the sun visor.
WARNING
NEVER use a rearward facing child restraint on a seat protected by an ACTIVE AIRBAG in front of it, DEATH or SERIOUS INJURY to the CHILD can occur.
WARNING
If the AIRBAG light in the instrument cluster ever comes on and stays on, it means that something may be wrong with the airbag system. If this ever happens, have the vehicle ser­viced immediately, because the air­bags may not offer the protection for which they were designed.
NOTE:
• For the label of GCC Countries’ models, refer to “For GCC Countries” in the “SUPPLEMENT” section.
• For the label of Taiwan models, refer to “For Taiwan” in the “SUPPLEMENT” section.
How the System Works
In a frontal collision, the collision sensors will detect rapid deceleration, and if the controller judges that the deceleration rep­resents a severe frontal collision, the con­troller will trigger the inflators. The inflators inflate the appropriate airbags with nitro­gen or argon gas. The inflated airbags pro­vide a cushion for your head and upper body. The airbag inflates and deflates so quickly that you may not even realize that it has activated. The airbag will neither hin­der your view nor make it harder to exit the vehicle.
Airbags must inflate quickly and forcefully in order to reduce the chance of serious or fatal injuries. However, an unavoidable consequence of the quick inflation is that the airbag may irritate bare skin, such as the facial area against a front airbag. Wash off any residue as soon as possible to pre­vent skin irritation. Also, upon inflation, a loud noise will occur and some powder and smoke will be released. These condi­tions are not harmful and do not indicate a fire in the vehicle. Be aware, however, that some airbag components may be hot for a while after inflation. A seat belt helps keep you in the proper position for maximum protection when an airbag inflates. Adjust your seat as far back as possible while still maintaining control of the vehicle. Sit fully back in your seat; sit up straight; do not lean over the steering wheel or instrument panel. Please refer to the “Seat Adjustment (Driver’s seat)” and “Seat Belts (for Vehicles with Emergency Locking Retractor (ELR))” sec­tion for details on proper seat and seat belt adjustments.
1-15
52SS0-01E
Page 27
FOR SAFE DRIVING
65D610
WARNING

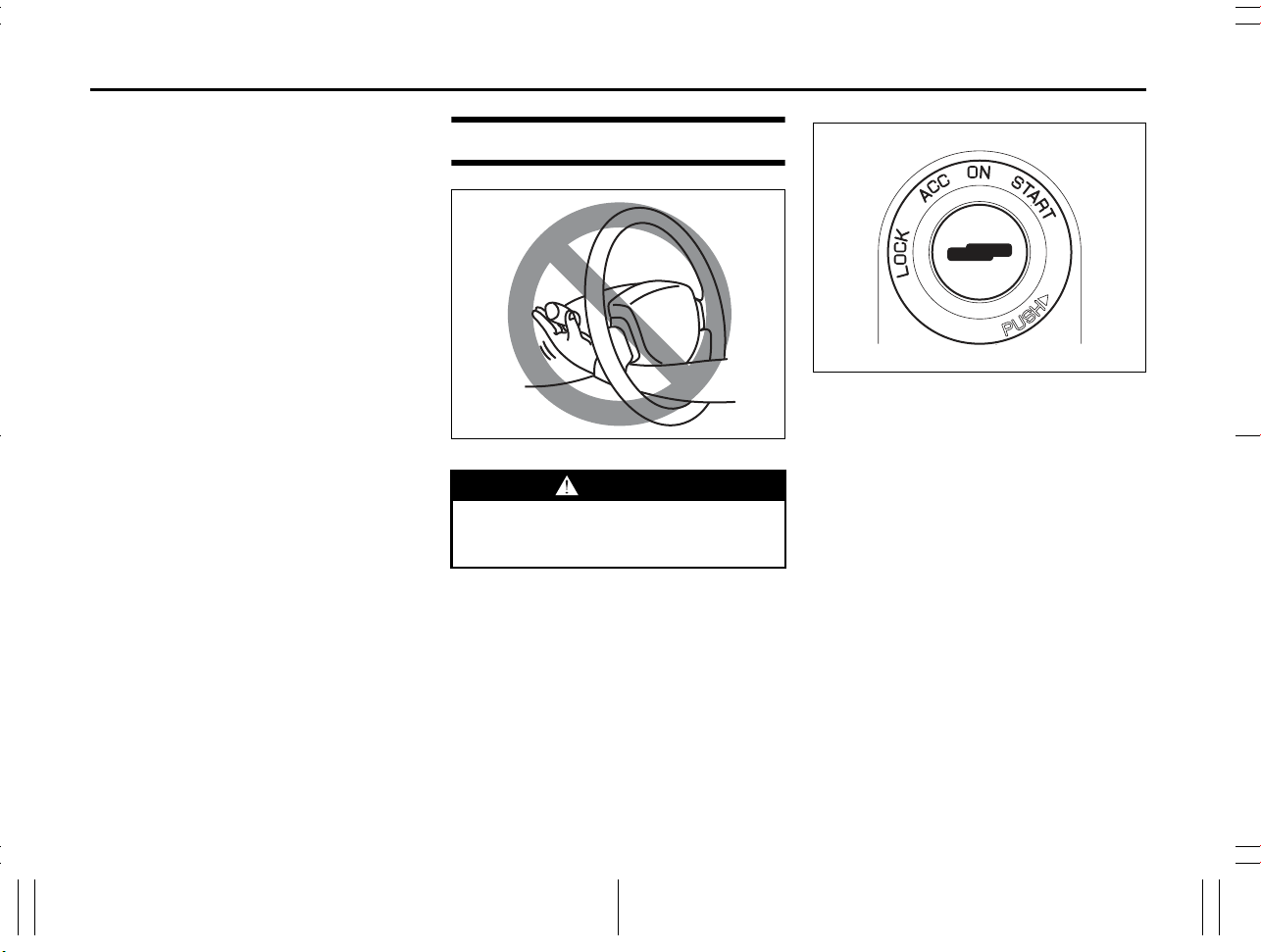

• The driver should not lean over the steering wheel. The front passen­ger should not rest his or her body against the instrument panel, or otherwise get too close to the instrument panel. In these situa­tions, the out-of-position occupant would be too close to an inflating airbag, and may suffer severe injury.
(Continued)
WARNING
(Continued)
• Do not attach any objects to, or place any objects over, the steering wheel or instrument panel. Do not place any objects between the air­bag and the driver or front passen­ger. These objects may interfere with airbag operation or may be propelled by the airbag in the event of a collision. Also, these objects may move when you start moving vehicle or while vehicle is moving, they may interfere with driver’s view or safe driving. In each condi­tions may cause severe injury.
• Do not strike or apply significant levels of impact to the airbag com­ponent areas. It can cause the air­bags to malfunction.
• Do not modify the system in any way including replacing the steer­ing wheel, placing stickers on the steering wheel pad, painting the steering wheel, or covering the steering wheel with a cover.
(Continued)
WARNING
(Continued)
• Do not place stickers on or paint the instrument panel. Do not install and set up accessories, air fresh­eners, ETC readers, or portable navigation systems. Do not stand umbrellas or similar in front of air­bags.
• Excluding genuine SUZUKI parts, do not attach accessories to the front windshield or the rearview mirror.
Note that even though your vehicle may be moderately damaged in a collision, the col­lision may not have been severe enough to trigger the airbags to inflate. If your vehicle sustains any front-end or side damage, have the airbag system inspected by a SUZUKI dealer or a qualified workshop to ensure it is in proper working order.
Your vehicle is equipped with a diagnostic module which records information about the airbag system if the airbags deploy in a collision. The module records information about overall system status, which sensors activated the deployment, and for a certain vehicle only, whether the driver’s seat belt was in use.
1-16
52SS0-01E
Page 28
FOR SAFE DRIVING
Servicing the airbag system
If the airbags inflate, have the airbags and related components replaced by a SUZUKI dealer or a qualified workshop as soon as possible.
If your vehicle ever gets in deep water and the driver’s floor is submerged, the airbag controller could be damaged. If this hap­pens, have the airbag system inspected by the SUZUKI dealer or a qualified workshop as soon as possible.
Special procedures are required for servic­ing or replacing an airbag. For that reason, only a SUZUKI dealer or a qualified work­shop should be allowed to service or replace your airbags. Please remind any­one who services your SUZUKI vehicle that it has airbags.
Service on or around airbag components or wiring must be performed only by a SUZUKI dealer or a qualified workshop. Improper service could result in unin­tended airbag deployment or could render the airbag inoperative. Either of these two conditions may result in severe injury.
To prevent damage or unintended inflation of the airbag system, be sure the battery is disconnected and the ignition switch has been in the “LOCK” position for at least 90 seconds before performing any electrical service work on your SUZUKI vehicle. Do not touch airbag system components or wires. The wires are wrapped with yellow tape or yellow tubing, and the couplers are yellow for easy identification.
Scrapping a vehicle that has an uninflated airbag can be hazardous. Ask your dealer, body repair shop or scrap yard for help with disposal.
1-17
52SS0-01E
Page 29
FOR SAFE DRIVING
Exhaust Gas Warning
52SS10220
WARNING
Avoid breathing exhaust gases. Exhaust gases contain carbon mon­oxide, a potentially lethal gas that is colorless and odorless. Since carbon monoxide is difficult to detect by itself, be sure to take the following precautions to help prevent carbon monoxide from entering your vehicle.
• Do not leave the engine running in garages or other confined areas.
(Continued)
WARNING
(Continued)
• Do not park with the engine run­ning for a long period of time, even in an open area. For left hand drive vehicle with air conditioning sys­tem, if it is necessary to sit for a short time in a parked vehicle with the engine running, make sure the air intake selector is set to FRESH AIR and the blower is at high speed.
• For left hand drive vehicle with air conditioning system, To allow proper operation of your vehicle’s ventilation system, keep the air inlet grille in front of the windshield clear of snow, leaves or other obstructions at all times.
• Keep the exhaust tailpipe area clear of snow and other material to help reduce the buildup of exhaust gases under the vehicle. This is particularly important when parked in blizzard conditions.
• Have the exhaust system inspected periodically for damage and leaks. Any damage or leaks should be repaired immediately.
1-18
52SS0-01E
Page 30
FOR SAFE DRIVING

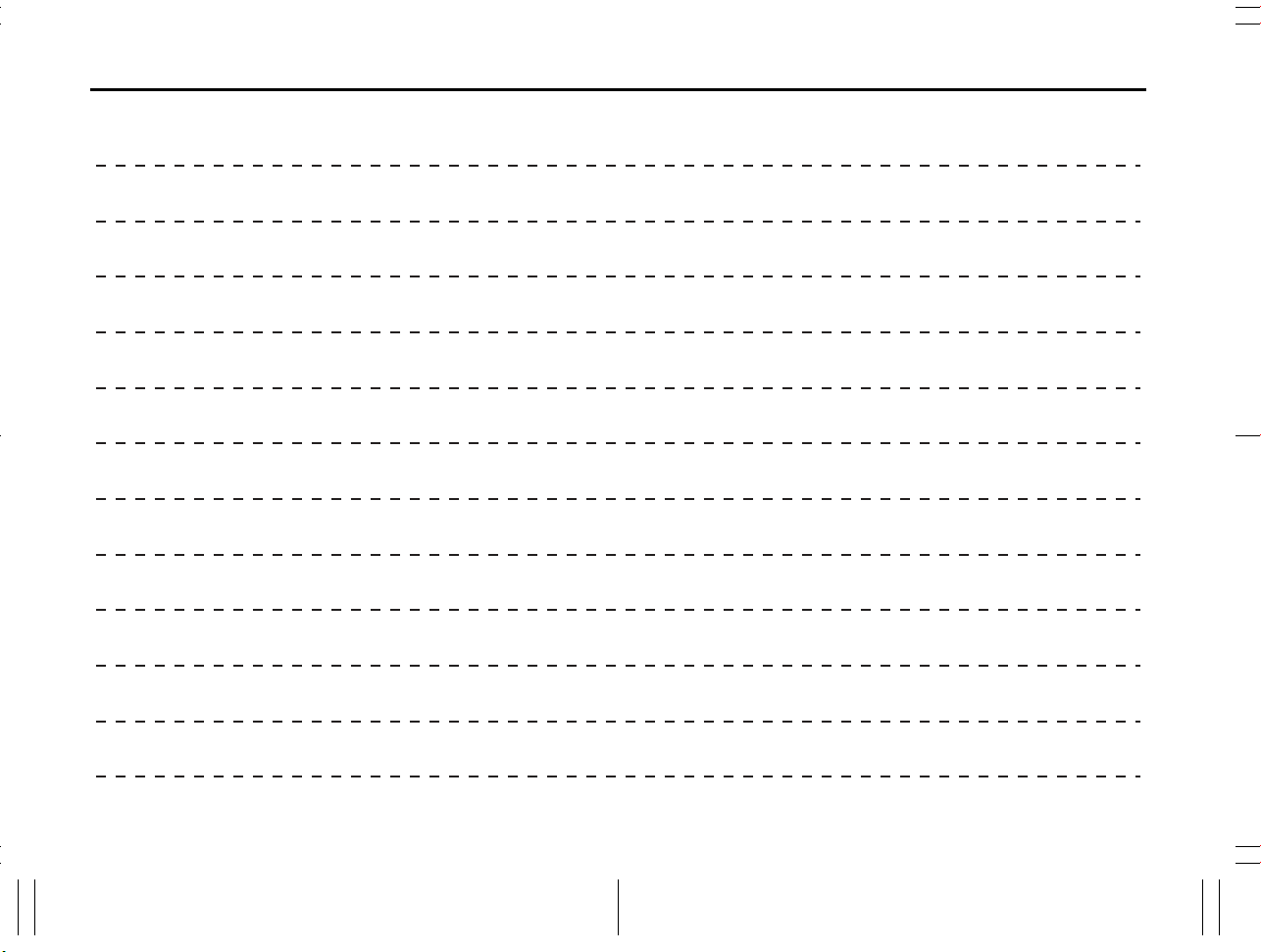

MEMO
1-19
52SS0-01E
Page 31
60G404
BEFORE DRIVING
BEFORE DRIVING
Keys ...................................................................................... 2-1
Door Locks .......................................................................... 2-2
Tailgate and Side Gate ........................................................ 2-3
Windows .............................................................................. 2-5
Mirrors .................................................................................. 2-5
Instrument Cluster .............................................................. 2-6
Warning and Indicator Lights ............................................ 2-7
Speedometer ....................................................................... 2-16
Information Display ............................................................. 2-16

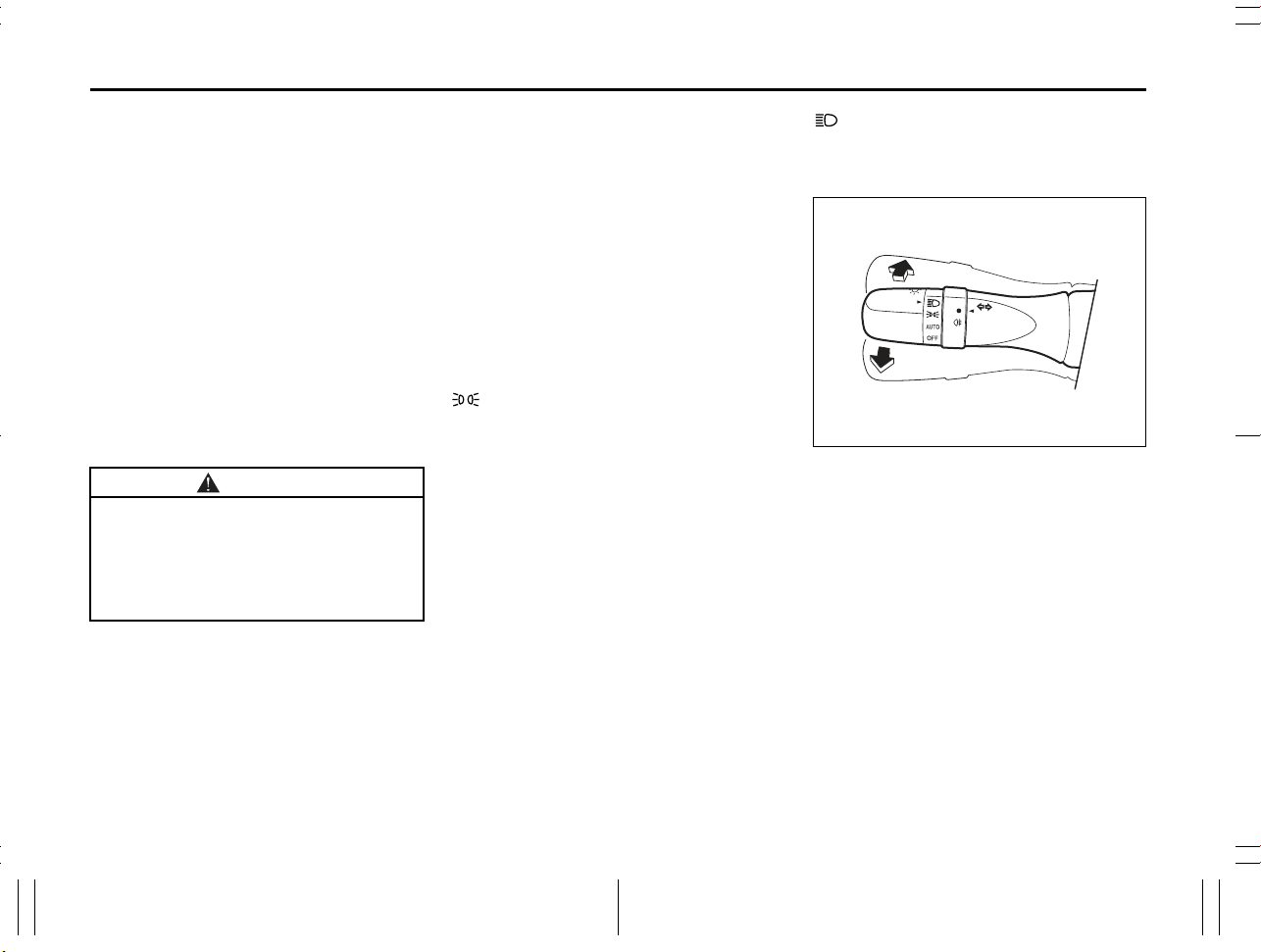

Lighting Control Lever ........................................................ 2-20

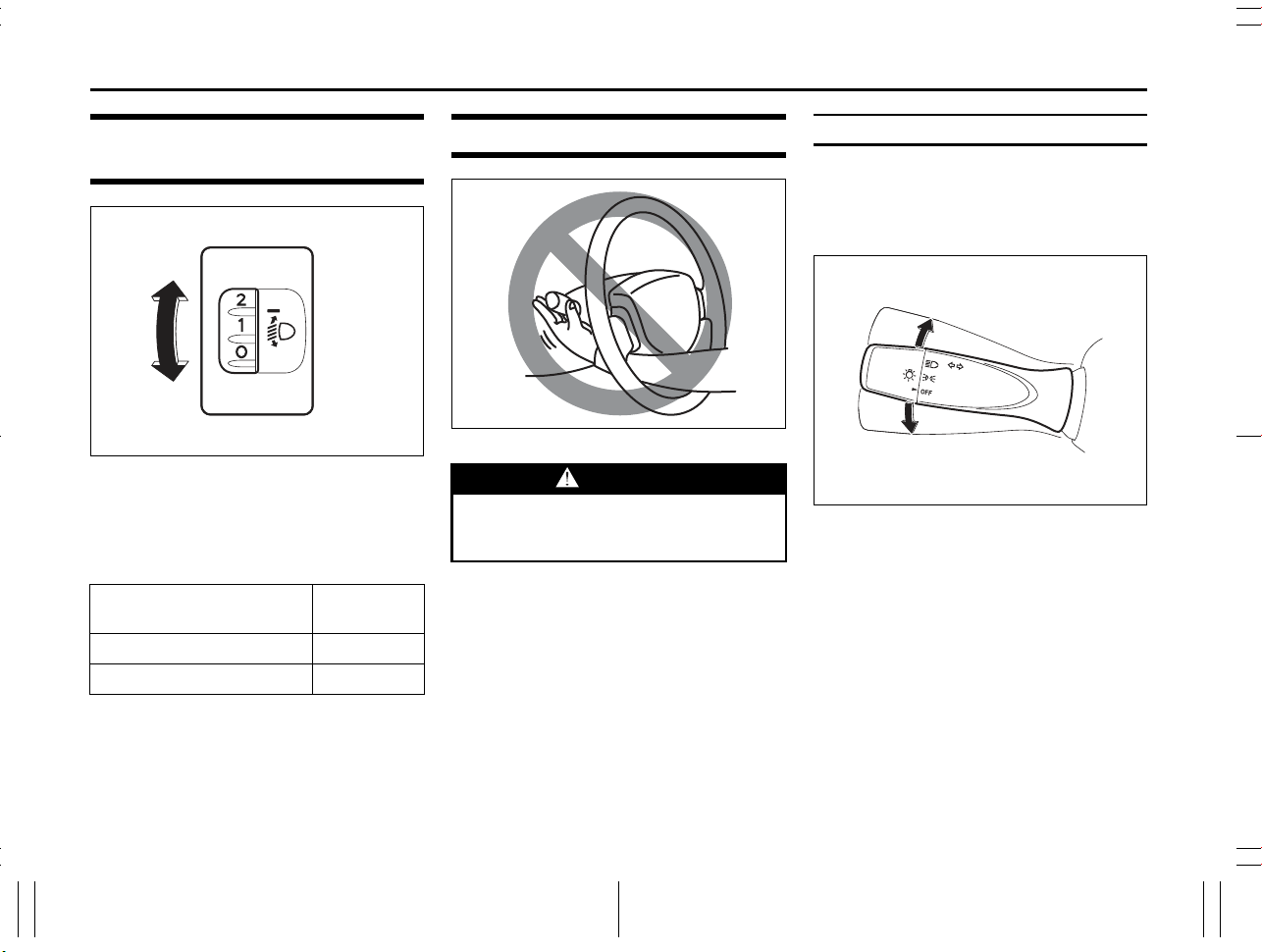

Headlight Leveling Switch (if equipped) ........................... 2-29
Turn Signal Control Lever .................................................. 2-29
Hazard Warning Switch ...................................................... 2-30
Windshield Wiper and Washer Lever ................................ 2-30

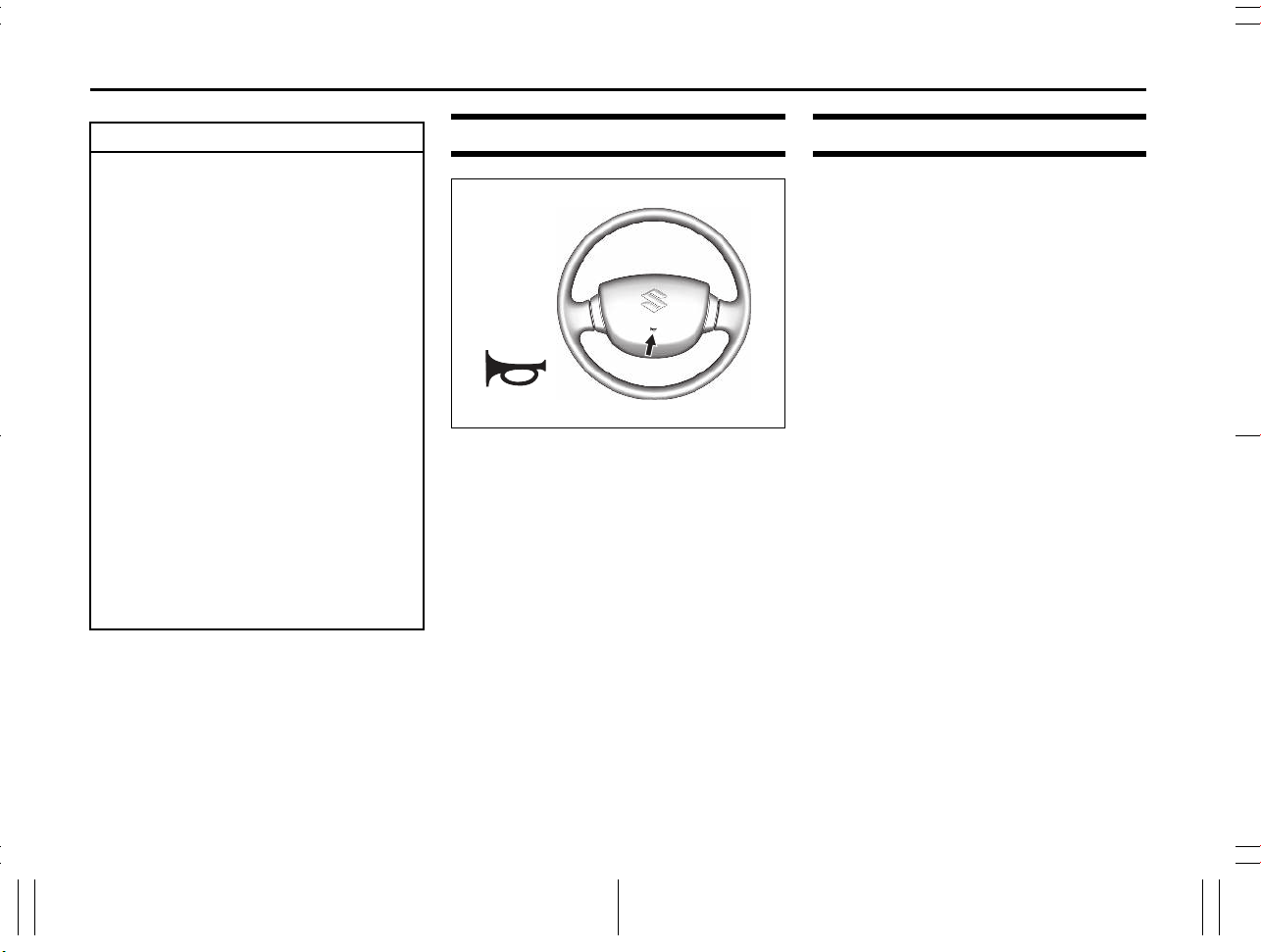

Horn ...................................................................................... 2-32
Vehicle Loading ................................................................... 2-32
Trailer Towing ...................................................................... 2-33
2
52SS0-01E
Page 32
BEFORE DRIVING
Keys
73R0130
Your vehicle comes with a pair of identical keys. Keep the spare key in a safe place. One key can open all of the locks on the vehicle.
The key identification number is stamped on a metal tag provided with the keys or on the keys. Keep the tag (if equipped) in a safe place. If you lose your keys, you will need this number to have new keys made. Write the number below for your future ref­erence.
KEY NUMBER:
Immobilizer System
This system is designed to help prevent vehicle theft by electronically disabling the engine starting system. The engine can be started only with your vehicle’s original immobilizer ignition key, which has an electronic identification code programmed in it. The key communicates the identification code to the vehicle when the ignition switch is turned “ON”. If you need to make spare keys, see a SUZUKI dealer or a qualified workshop. The vehicle must be programmed with the correct iden­tification code for the spare. A key made by an ordinary locksmith will not work.
80JM122
If the immobilizer system warning light blinks when the ignition switch is in “ON” position, the engine will not start.
If this light blinks, turn the ignition switch to “LOCK” position, and then turn it back to “ON” position. If the light still blinks after the ignition switch is turned back to “ON” position, there may be something wrong with your key or with the immobilizer system. Ask a SUZUKI dealer or a qualified workshop to have the system inspected.
NOTE:
• If you lose your immobilizer ignition key, ask a SUZUKI dealer or a qualified work­shop as soon as possible to deactivate the lost one and to make a new key.
• If you own other vehicles with immobi­lizer keys, keep those keys away from the ignition switch when using your SUZUKI vehicle. Otherwise, the engine may not be started because they may interfere with your SUZUKI vehicle’s immobilizer system.
• If you attach any metal objects to the immobilizer key, it may not start the engine.
NOTICE
The immobilizer key is sensitive elec­tronic instrument. To avoid damaging it:
• Do not expose it to impacts, mois­ture or high temperature such as on the instrument panel under direct sunlight.
• Keep it away from magnetic objects.
Do not modify or remove the immobi­lizer system. If modified or removed, the system cannot be properly operated.
This immobilizer system is maintenance­free.
2-1
52SS0-01E
Page 33
BEFORE DRIVING
(2)
(1)
(3)
(4)
(5)
(6)
(2)
(1)
(3)
(4)

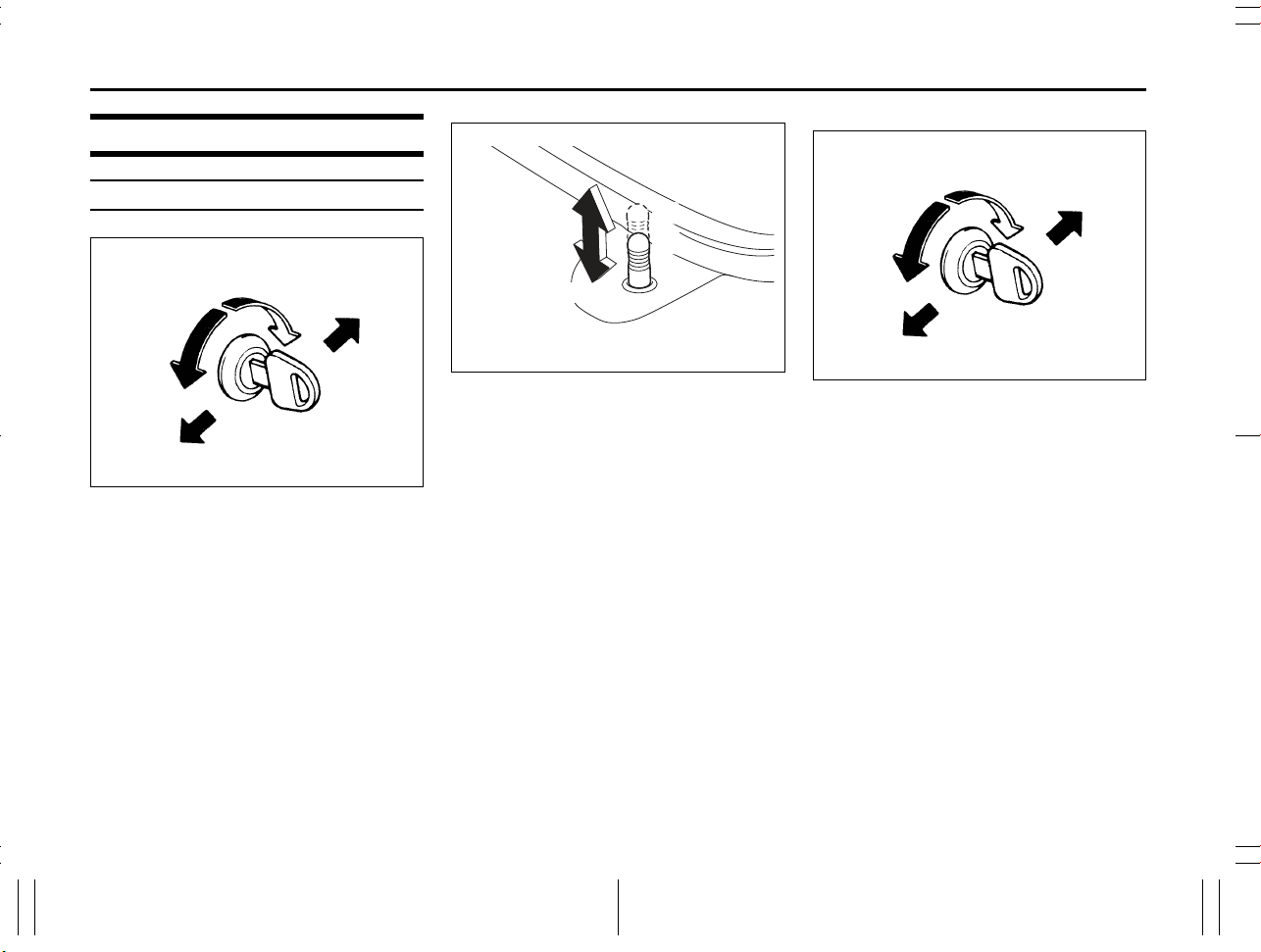

Door Locks
Side Door Locks
Left hand drive vehicle
For driver’s door
(1) UNLOCK (2) LOCK (3) Backward (4) Forward
For passenger’s door
(1) LOCK (2) UNLOCK (3) Forward (4) Backward
60B008
52SS20220
(5) LOCK (6) UNLOCK
To lock a door from outside the vehicle:
• Insert the key and turn the top of the key backward of the vehicle.
• Push the lock knob down, then pull and hold the door handle as you close the door.
To unlock a door from outside the vehicle, insert the key and turn the top of the key forward of the vehicle.
Right hand drive vehicle
60B008
For driver’s door
(1) LOCK (2) UNLOCK (3) Forward (4) Backward
For passenger’s door
(1) UNLOCK (2) LOCK (3) Backward (4) Forward
2-2
52SS0-01E
Page 34
BEFORE DRIVING
(5)
(6)
(1)
(2)
Tailgate and Side Gate
Tailgate
52SS20220
(5) LOCK (6) UNLOCK
To lock a door from outside the vehicle:
• Insert the key and turn the top of the key backward of the vehicle.
• Push the lock knob down, then pull and hold the door handle as you close the door.
To unlock a door from outside the vehicle, insert the key and turn the top of the key forward of the vehicle.
2-3
1) Pull the lock handles (1).
52SS20010
52SS20180
2) Open the tailgate (2) slowly.
WARNING
• Driving with the tailgate opened will allow it to swing and hit others, causing personal injury or even death.
• The opened tailgate will hinder other drivers from finding the tail­lights, causing an accidents. Make sure the tailgate is closed and locked firmly before driving.
• Always make sure that the tailgate is closed and locked firmly to pre­vent the things from being thrown from the vehicle in the event of an accident.
52SS0-01E
Page 35
BEFORE DRIVING
(3)
(2)
(1)
(2)
(3)
52SS20210
WARNING
• If the loading and unloading is done while tailgate (2) is in fully open position, rear combination lights are covered by the tailgate. A warning triangle (3) (commercially available) must be placed on the road in visible manner to alert other users about the presence of the vehicle. Otherwise your vehicle may be crashed by other vehicles.
• When you load or unload cargoes on the roadside, park your vehicle in the allowed area which does not disturb other drivers and pedestri­ans. Otherwise your vehicle may be crashed by other vehicles.
Side Gate (if equipped)
1) Pull the lock handles (1) and (2).
2) Open the side gate (3) slowly.
WARNING
• Driving with the side gates opened will allow them to swing and hit others, causing personal injury or even death.
• Always make sure that the side gates are closed and locked firmly to prevent the things from being thrown from the vehicle in the event of an accident.
52SS20190
52SS20200
2-4
52SS0-01E
Page 36
BEFORE DRIVING

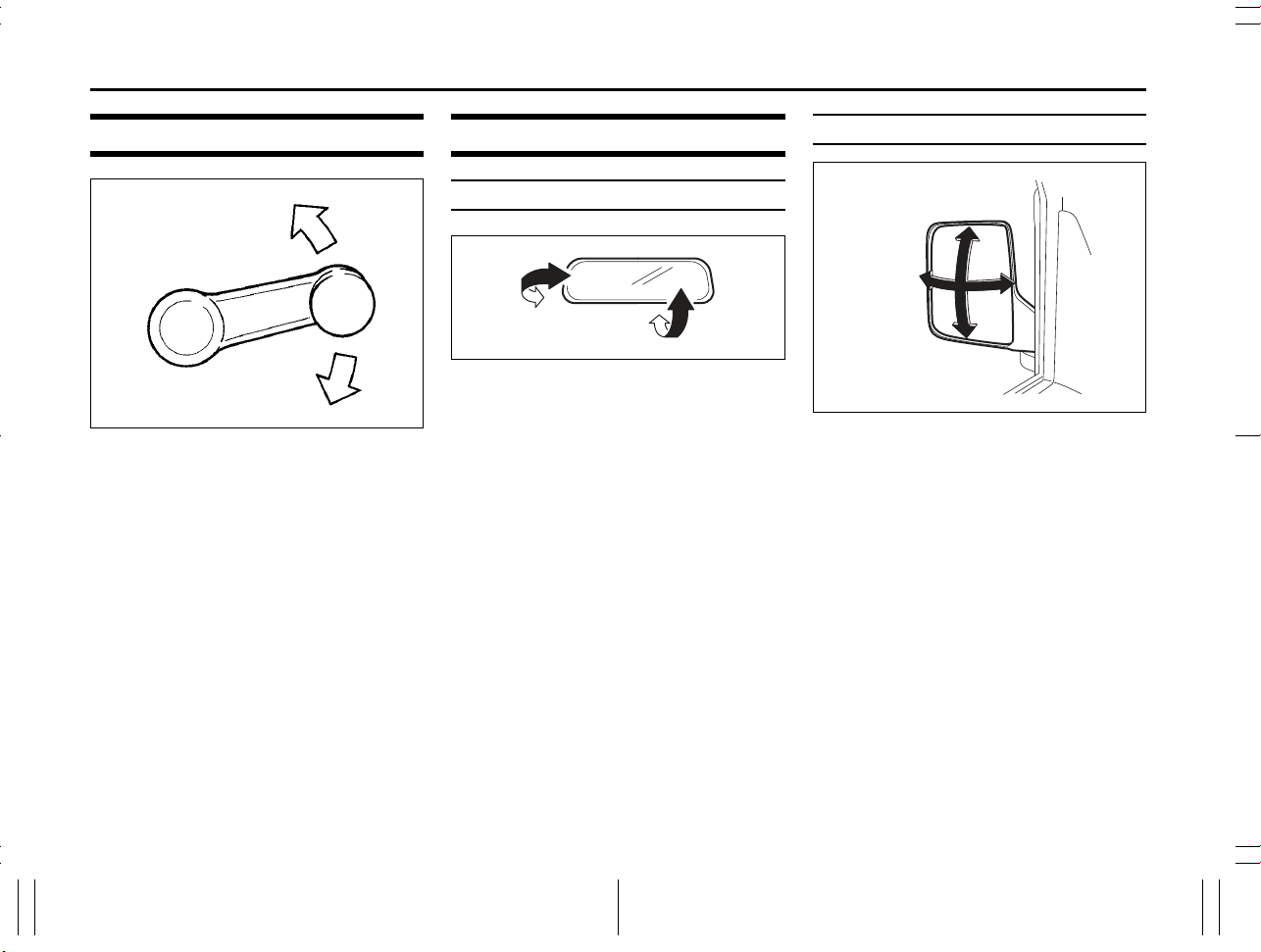

Windows
60G010
Raise or lower the door windows by turning the handle located on the door panel.
Mirrors

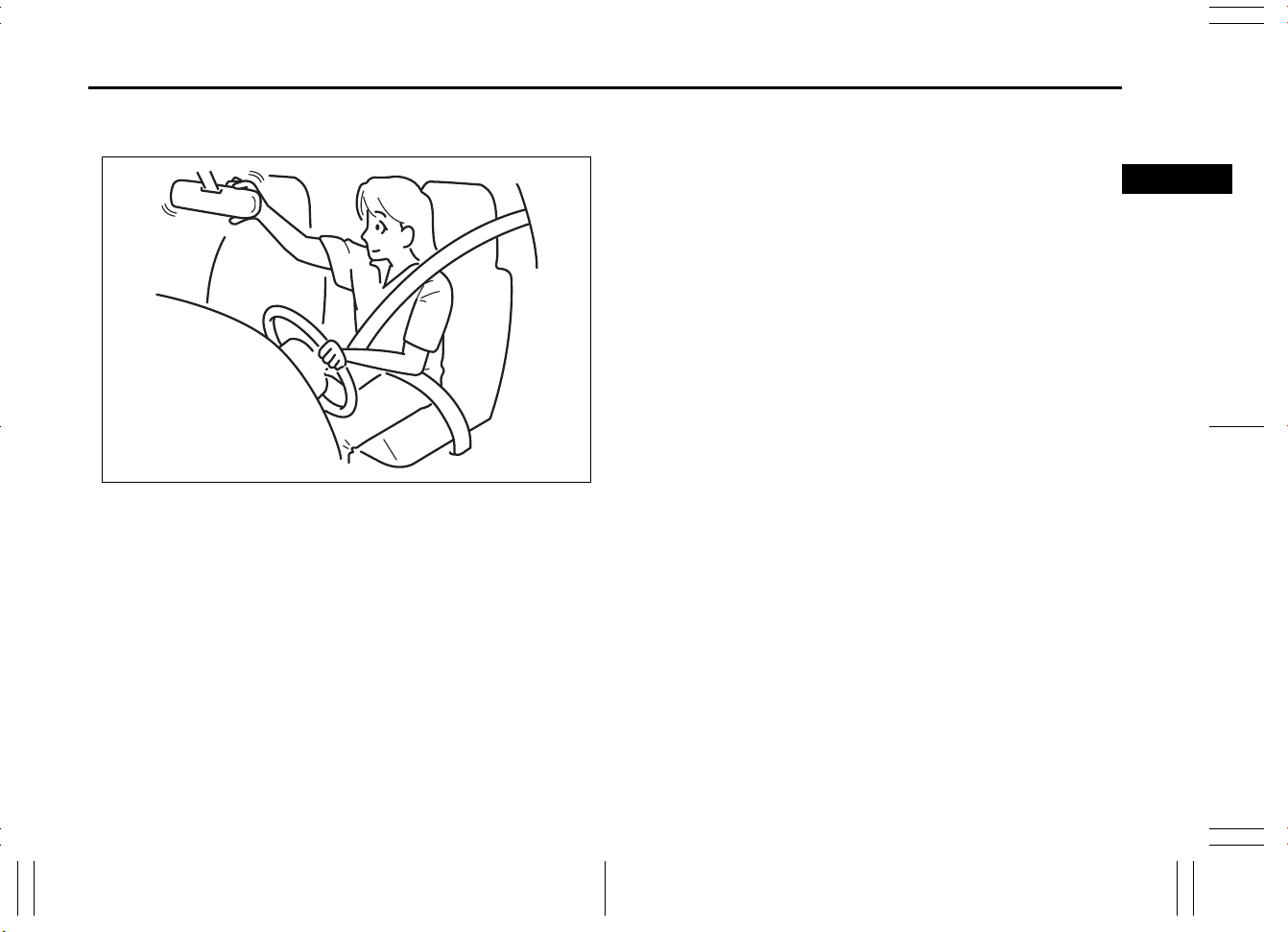

Inside Rearview Mirror
74LHT0235
You can adjust the inside rearview mirror by hand so as to see the rear of your vehi­cle in the mirror.
Outside Rearview Mirrors
77PS004
You can adjust the outside rearview mir­rors by hand so as to see the sides of your vehicle in the mirrors.
NOTE: Be careful when judging the size or dis­tance of a vehicle or other object seen in the side convex mirror. Be aware that objects look smaller and appear farther away than when seen in a flat mirror.
2-5
52SS0-01E
Page 37

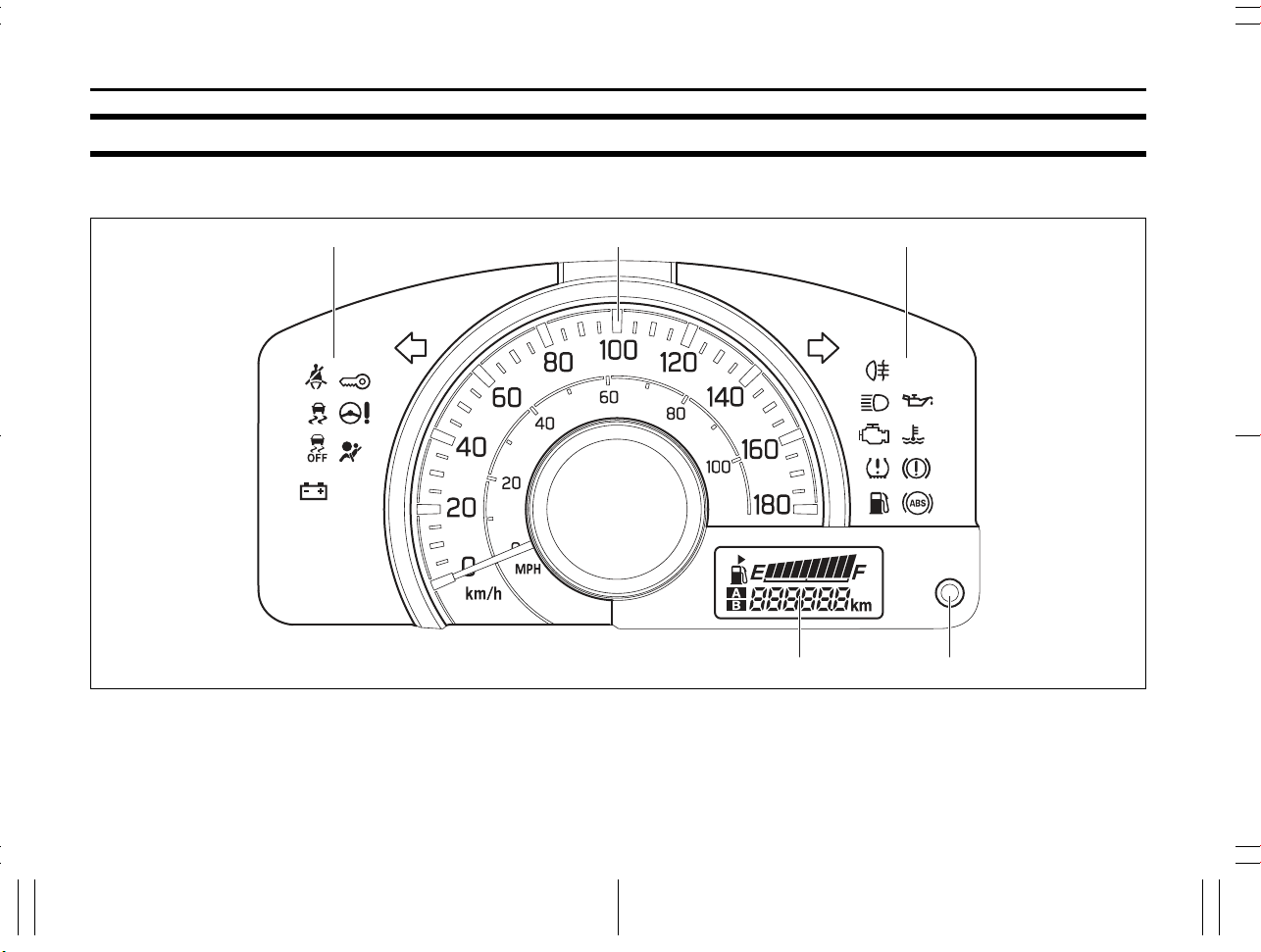

Instrument Cluster
12341
BEFORE DRIVING
1. Warning and indicator lights
2. Speedometer
3. Trip meter selector knob
4. Information display
52SS2001E
2-6
52SS0-01E
Page 38
BEFORE DRIVING
Warning and Indicator Lights

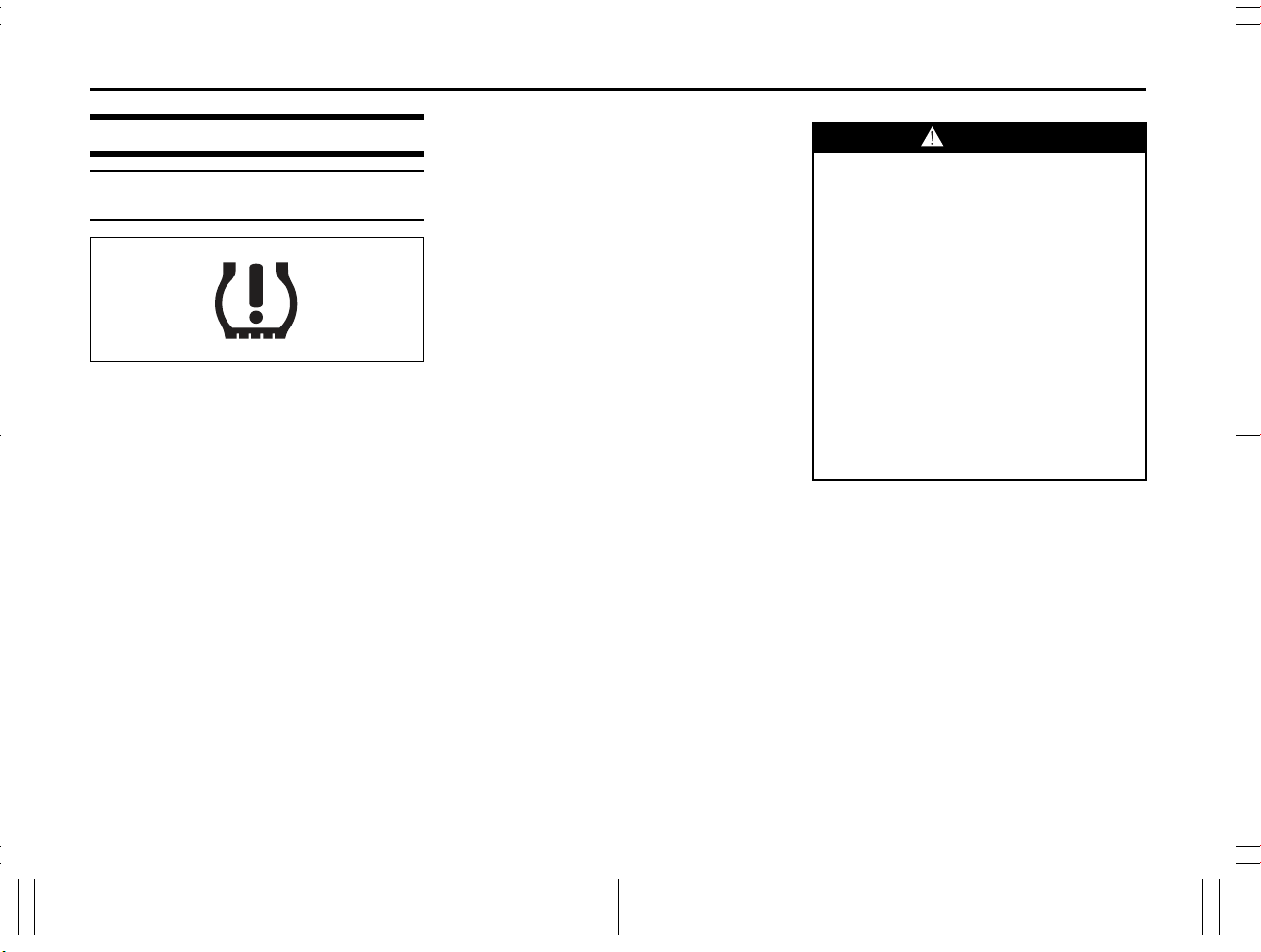

Low Tyre Pressure Warning Light (if equipped)
52D305
As an added fuel efficiency feature, your vehicle is equipped with a tyre pressure monitoring system (TPMS) that uses a low tyre pressure warning light to inform you when one or more of your tyres is signifi­cantly under-inflated.
When the ignition switch is turned “ON”, this light comes on briefly so you can check that the light is working.
When the low tyre pressure warning light is lit, one or more of your tyres is significantly under-inflated. You should stop and check your tyres as soon as possible, and inflate them to the proper pressure as indicated on the vehicle’s tyre information placard. Driving on a significantly under-inflated tyre causes the tyre to overheat and can lead to tyre failure. Under-inflation also reduces fuel efficiency and tyre tread life, and may affect the vehicle’s handling and stopping ability. Each tyre, including the spare, should be checked at least once a month when cold and set to the recom­mended inflation pressure as specified in the vehicle placard.
The low tyre pressure warning light is also used to inform you of a TPMS malfunction. When the system detects a malfunction, this light will blink for about 75 seconds and then remain continuously illuminated. This sequence will be repeated after the ignition switch is turned “ON” as long as the malfunction exists.
NOTE: The low tyre pressure warning light may not come on immediately if you have a sudden loss of air pressure.
WARNING
• Failure to take corrective action when the low tyre pressure warn­ing light is not working or when it comes on and blinks while driving can lead to an accident. If the low tyre pressure warning light does not come on for 2 sec­onds after the ignition switch is turned “ON”, or the light comes on and blinks while driving, have your vehicle inspected by a SUZUKI dealer. Even if the light turns off after blinking, indicating that the monitoring system has recovered, you should still have the system checked by a SUZUKI dealer.
(Continued)
2-7
52SS0-01E
Page 39
WARNING
(Continued)
• The load-carrying capacity of your tyres is reduced at lower inflation pressures. If your tyres are even moderately under-inflated, the load on the tyres may exceed the load­carrying capacity of the tyres, which could lead to tyre failure. The low tyre pressure warning light will not alert you to this condition, because it only comes on when one or more of your tyres becomes significantly under-inflated. Check and adjust your tyre pres­sure at least once a month. Refer to “Tyres” in “INSPECTION AND MAINTENANCE” section.
(Continued)
WARNING
(Continued)
• Continuing to drive with the low tyre pressure warning light on can lead to an accident, resulting in severe injury or death. If the low tyre pressure warning light comes on and stays on, reduce your speed and avoid abrupt steering and braking. Be aware that driving on a signifi­cantly under-inflated tyre can cause the tyre to overheat and can lead to tyre failure, and may affect steering control and brake effec­tiveness. Stop the vehicle in a safe place as soon as possible and check your tyres. – If you have a flat tyre, replace it
with the spare tyre. Refer to “Jacking Instructions” in “EMER­GENCY SERVICE” section for the tyre replacement method. Also refer to “Replacing tyres and/or wheels” for instructions on how to restore normal operation of the TPMS after you have had a flat tyre.
– If one or more of your tyres is
under-inflated, adjust the infla­tion pressure of all tyres to the recommended inflation pressure as soon as possible.
BEFORE DRIVING
For additional details on the tyre pressure monitoring system, refer to “Tyres” in “INSPECTION AND MAINTENANCE” sec­tion for information on maintaining proper tyre pressure.
Brake System Warning Light
82K170
Three different types of operations exist depending on the vehicle’s specification.
• The light comes on briefly when the igni­tion switch is turned “ON”.
• The light comes on when the parking brake is engaged with the ignition switch in “ON” position.
• The light comes on under either or both of above two conditions.
The light also comes on when the fluid in the brake fluid reservoir falls below the specified level.
The light should go out after starting the engine and fully releasing the parking brake, if the fluid level in the brake fluid reservoir is adequate.
2-8
52SS0-01E
Page 40
BEFORE DRIVING

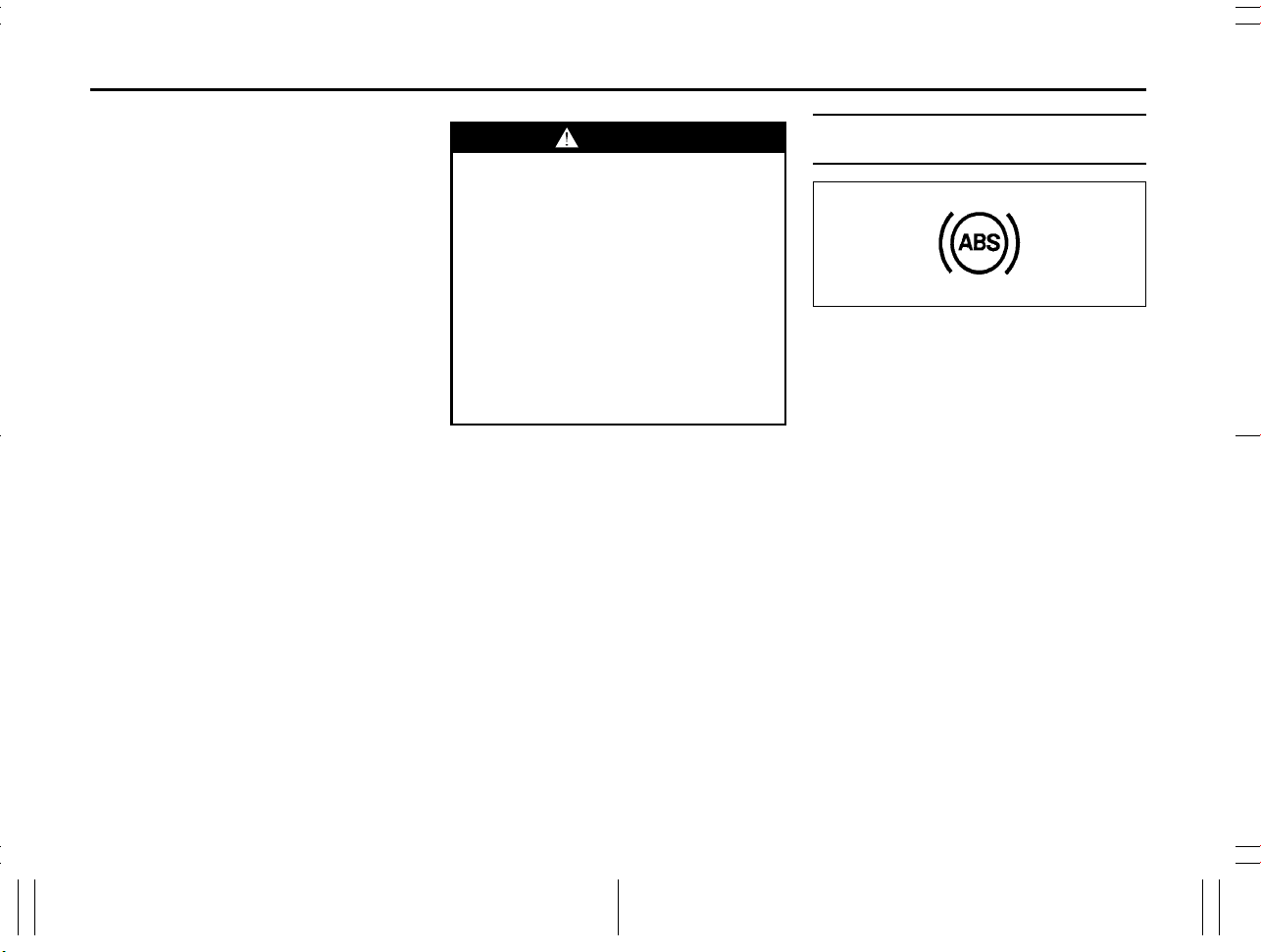

The light also comes on together with the ABS warning light when the rear brake force control function (proportioning valve function) of the ABS system fails. If the brake system warning light comes on while you are driving the vehicle, it may mean that there is something wrong with the vehicle’s brake system. If this happens, you should:
1) Pull off the road and stop carefully.
NOTE: Remember that stopping distance may be longer, you may have to push harder on the pedal, and the pedal may go down far­ther than normal.
2) Test the brakes by carefully starting and stopping the vehicle on the shoulder of the road.
3) If you determine that it is safe, drive the vehicle cautiously at low speed or tow the vehicle to the nearest SUZUKI dealer or qualified workshop for repairs.
WARNING
If any of the following conditions occur, you should immediately ask a SUZUKI dealer or a qualified work­shop to inspect the brake system.
• If the brake system warning light does not go out after the engine has been started and the parking brake has been fully released.
• If the brake system warning light does not come on when the igni­tion switch is turned “ON”.
• If the brake system warning light comes on at any time during vehi­cle operation.
NOTE: Because the brake system is self-adjust­ing, the fluid level will drop as the brake pads become worn. Replenishing the brake fluid reservoir is considered normal periodic maintenance.
NOTE: (Parking Brake Reminder Buzzer) A buzzer sounds intermittently to remind you to release the parking brake if you start the vehicle without releasing the park­ing brake. Make sure that the parking brake is fully released and the brake sys­tem warning light turns off.
Anti-lock Brake System (ABS) Warning Light (if equipped)
65D529
When the ignition switch is turned “ON”, the light comes on briefly so you can check that the light is working. If the light stays on or comes on when driv­ing, there may be something wrong with the ABS.
If this happens:
1) Pull off the road and stop carefully.
2) Turn the ignition switch to “LOCK” and then start the engine again.
If the warning light comes on briefly then turns off, the system is normal. If the warn­ing light still stays on, the system will be something wrong.
2-9
52SS0-01E
Page 41
BEFORE DRIVING
If the light and the brake system warning light stay on or come on simultaneously when driving, your ABS system is equipped with the rear brake force control function (proportioning valve function) and there may be something wrong with both the rear brake force control function and anti-lock function of the ABS system.
If one of the above occurs, have the sys­tem inspected by a SUZUKI dealer or a qualified workshop. If the ABS becomes inoperative, the brake system will function as an ordinary brake system that does not have this ABS sys­tem.
For details of ABS system, refer to “Anti­lock Brake System (ABS)” in “OPERATING YOUR VEHICLE” section.

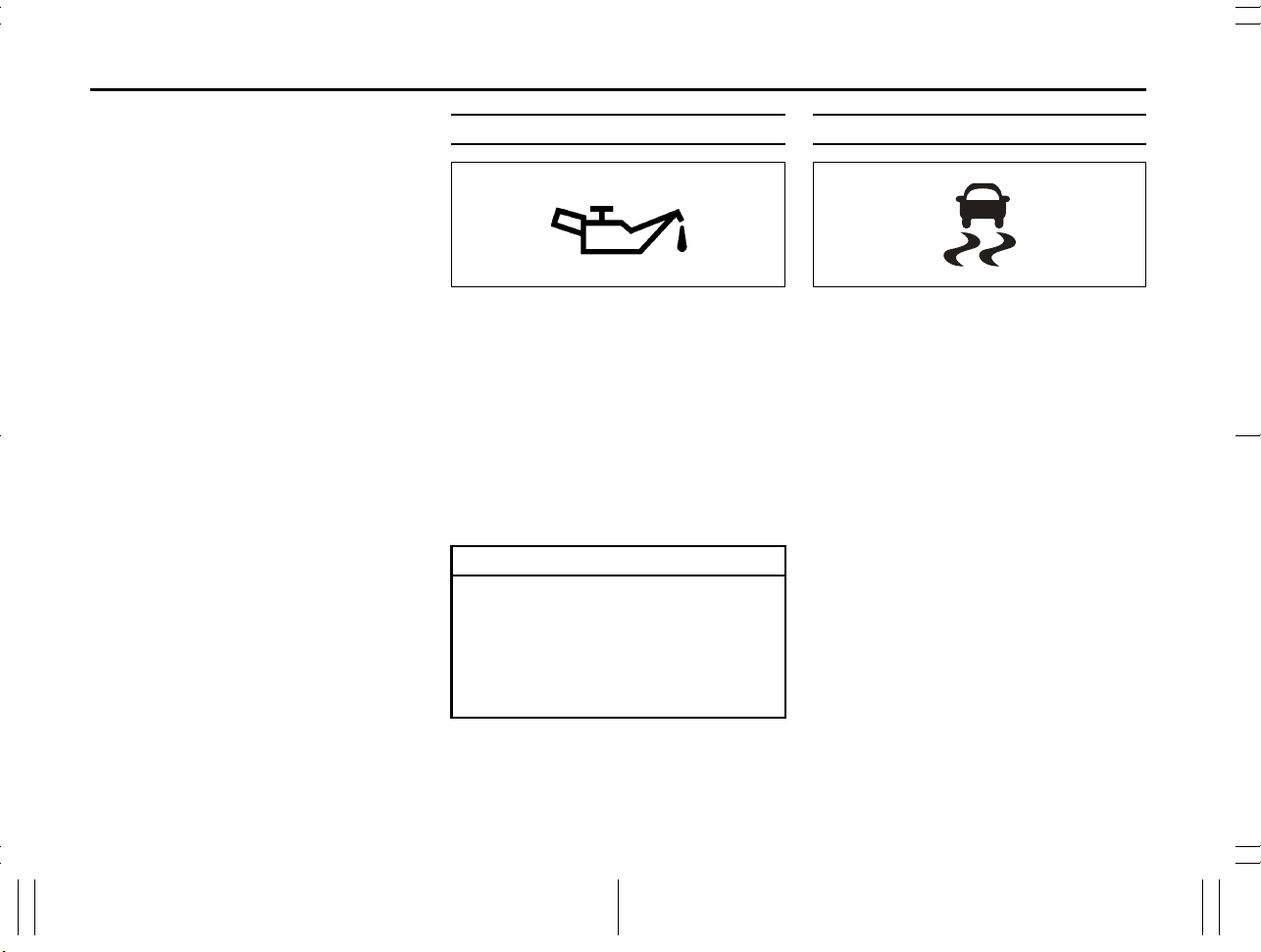

Oil Pressure Warning Light
50G051
When the ignition switch is turned “ON”, this light comes on. When the engine is started, the light goes out. The light will come on and remain on if there is insuffi­cient oil pressure. If the light comes on when driving, pull off the road as soon as you can and stop the engine. Check the oil level and add oil if necessary. If there is enough oil, the lubrication sys­tem should be inspected by a SUZUKI dealer or a qualified workshop before you drive the vehicle again.
NOTICE
• If you operate the engine with this light on, severe engine damage can result.
• Do not rely on the oil pressure warning light to indicate the need to add oil. Periodically check the engine oil level.

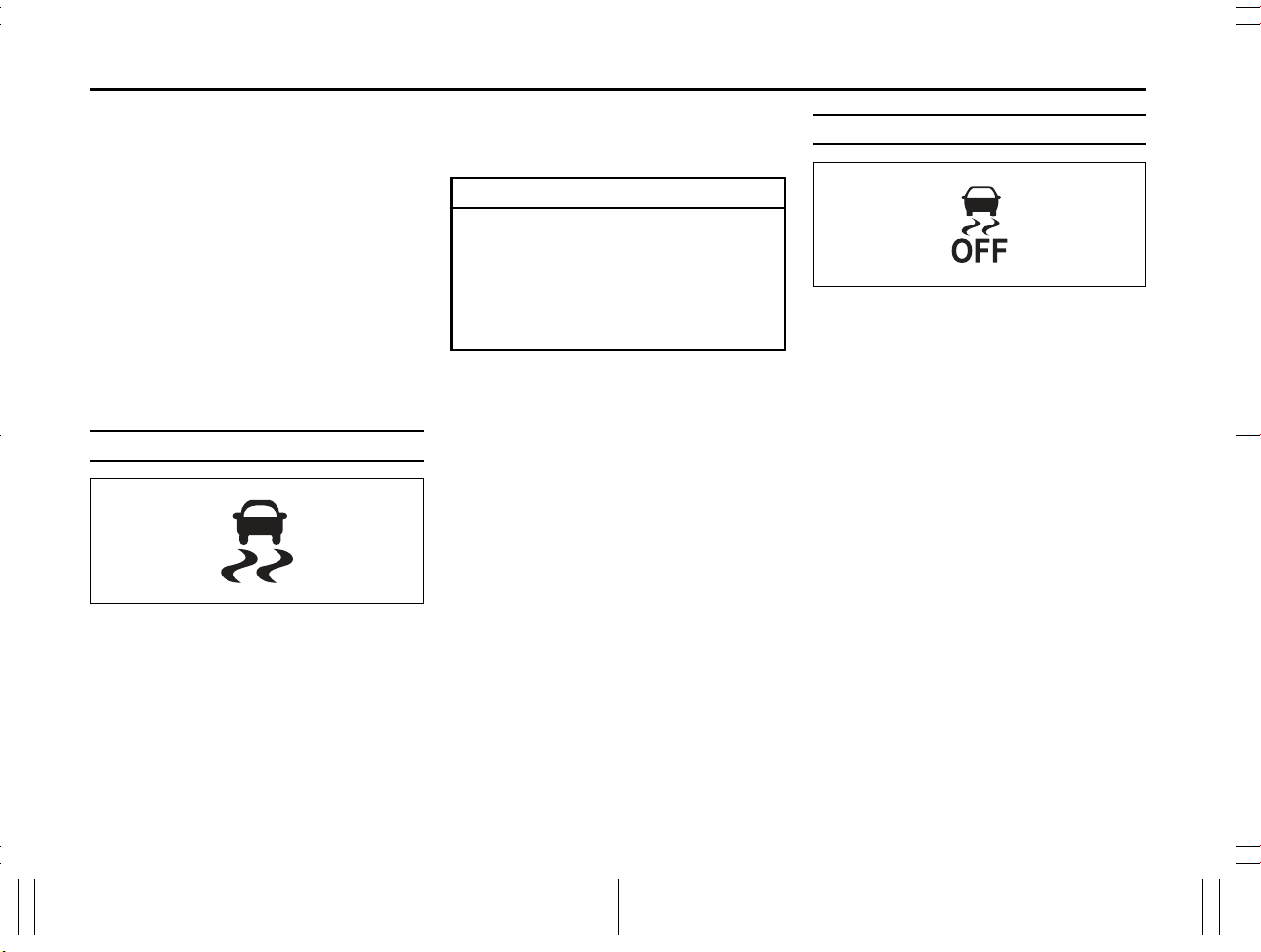

ESP® Warning Light (if equipped)
52KM133
ESP® is a registered trademark of Daimler AG.
This light blinks 5 times per second when one of the following systems is activated.
• Stability control system
• Traction control system
If this light blinks, drive carefully.
When the ignition switch is turned “ON”, the light comes on briefly so you can check that the light is working. If the light stays on or comes on when driving, there may be something wrong with the ESP (other than ABS). You should have the system inspected by a SUZUKI dealer or a qualified workshop.
For details of the ESP® systems, refer to “Electronic Stability Program (ESP®) (if equipped)” in “OPERATING YOUR VEHI­CLE” section.
®
systems
2-10
52SS0-01E
Page 42
BEFORE DRIVING
WARNING
The ESP® systems cannot prevent accidents. Always drive carefully.

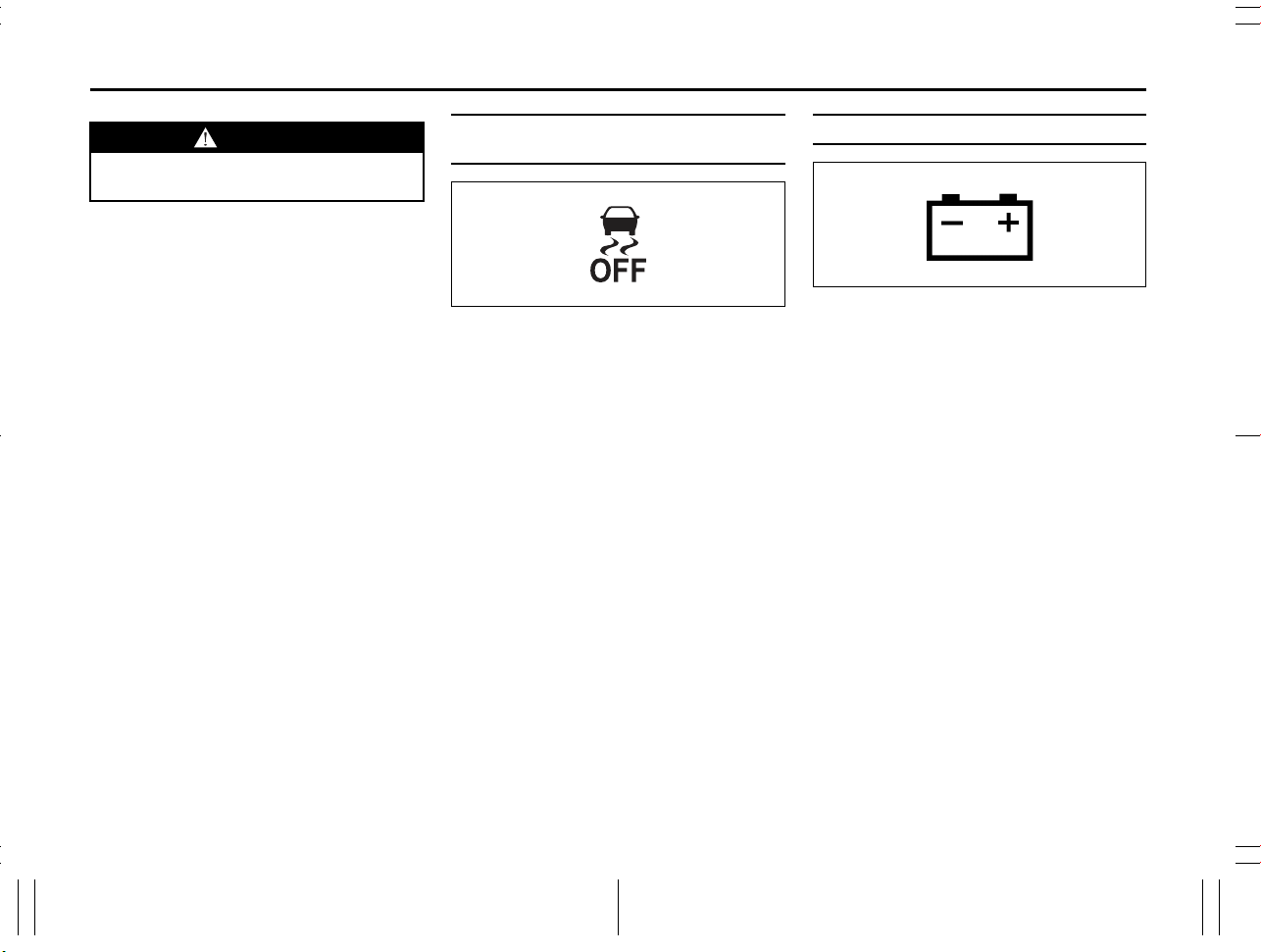

ESP® OFF Indicator Light (if equipped)
73R0196
When the ignition switch is turned “ON”, this light comes on briefly so you can check that the light is working.
When the ESP turn off the ESP® systems (other than ABS), the ESP® OFF indicator light comes on and stays on.
For details of the ESP “Electronic Stability Program (ESP®) (if equipped)” in “OPERATING YOUR VEHI­CLE” section.
NOTE: If the vehicle speed is greater than approx­imately 30 km/h (19 mph), the ESP tems (other than ABS) will be activated automatically and the light will go out.
®
OFF switch is pushed to
®
systems, refer to
®
sys-
Charging Light
50G052
When the ignition switch is turned “ON”, this light comes on. When the engine is started, the light goes out. The light will come on and remain on if there is some­thing wrong with the battery charging sys­tem. If the light comes on when the engine is running, the charging system should be inspected immediately by a SUZUKI dealer or a qualified workshop.
2-11
52SS0-01E
Page 43
BEFORE DRIVING

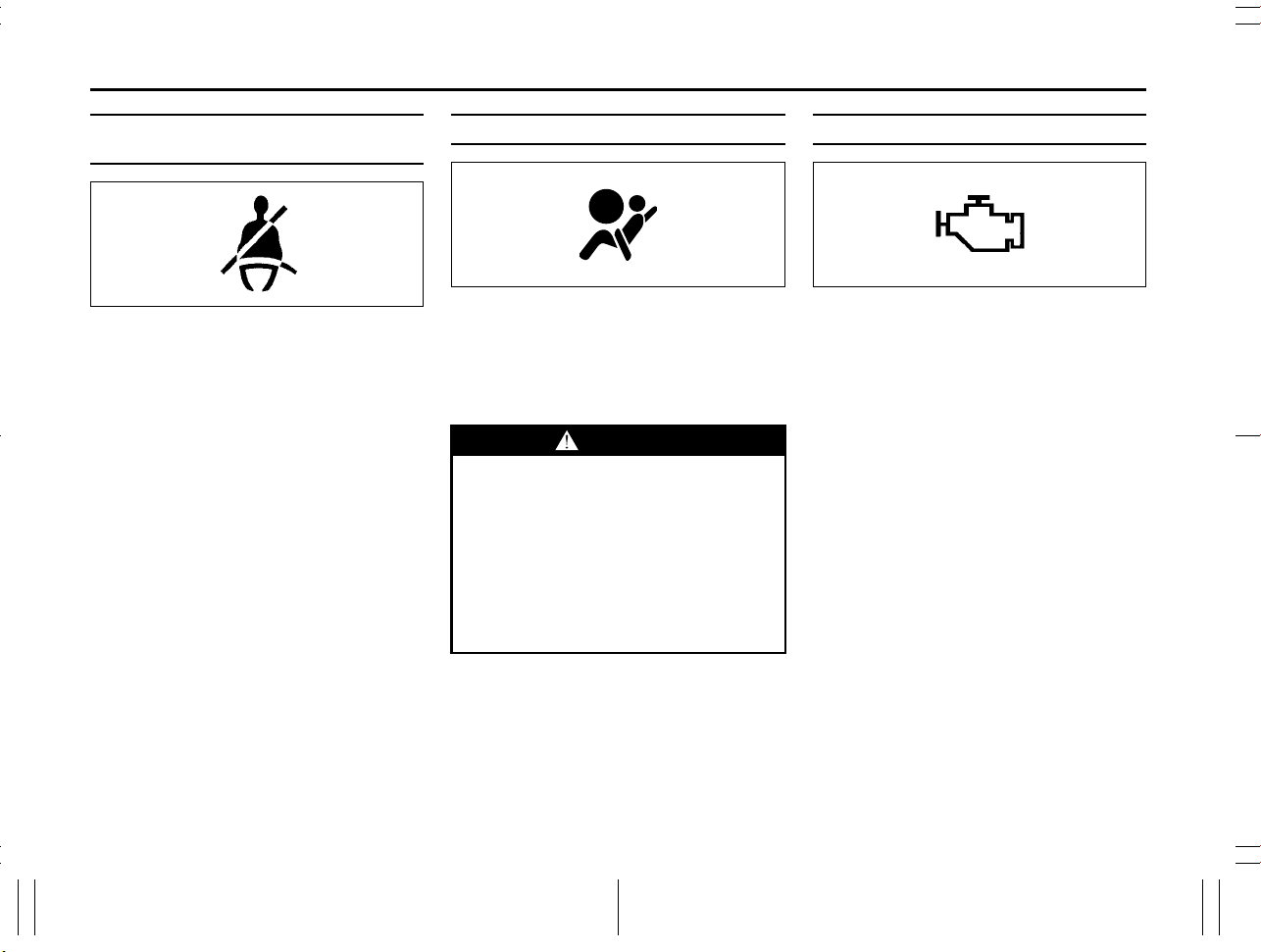

Driver’s Seat Belt Reminder Light (if equipped)
60G049
When the driver does not buckle his or her seat belt, this light will come on and/or blink. For details of the seat belt reminder, refer to “Seat Belts (for Vehicles with Emer­gency Locking Retractor (ELR))” in “FOR SAFE DRIVING” section.
AIRBAG Light (if equipped)
63J030
When the ignition switch is turned “ON”, this light comes on for several seconds so you can check that the light is working.
The light will come on and stay on if there is a problem in the airbag system.
WARNING
If AIRBAG light does not blink or come on briefly when the ignition switch is turned “ON”, stays on for more than 10 seconds, or comes on while driving, the airbag system may not work properly, which could result in serious injury in the event of a col­lision. Have the airbag systems inspected by a SUZUKI dealer or a qualified workshop.
Malfunction Indicator Light
65D530
Your vehicle has a computer-controlled emission control system. A malfunction indicator light is provided on the instrument cluster to indicate when it is necessary to have the emission control system serviced. When the ignition switch is turned “ON”, this light comes on. When the engine is started, the light goes out.
If the malfunction indicator light comes on or blinks when the engine is running, there is a damage in the emission control sys­tem. Bring the vehicle to a SUZUKI dealer or a qualified workshop to have the damage fixed.
2-12
52SS0-01E
Page 44
BEFORE DRIVING
CAUTION

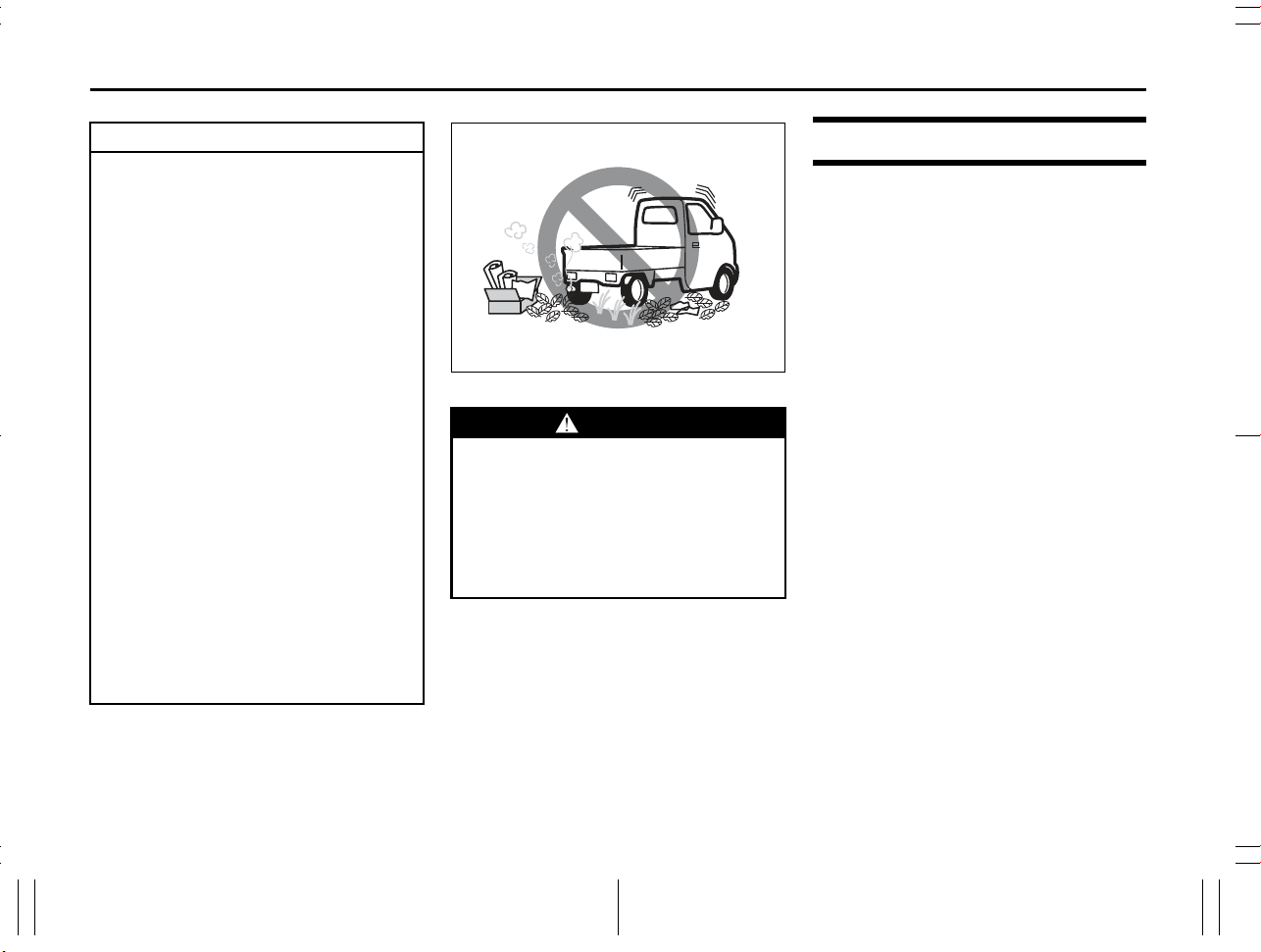

If this light blinks, stop your vehicle immediately in a safe place to avoid catalyst's melting problem since there may be a misfire in the engine.
• Do not drive or stop over such as withered grasses.
• Drive slowly if required to move the vehicle.
NOTICE
Continuing to drive the vehicle when the malfunction indicator light is on or blinking can cause permanent damage to the vehicle’s emission control system, and can affect fuel economy and driveability.

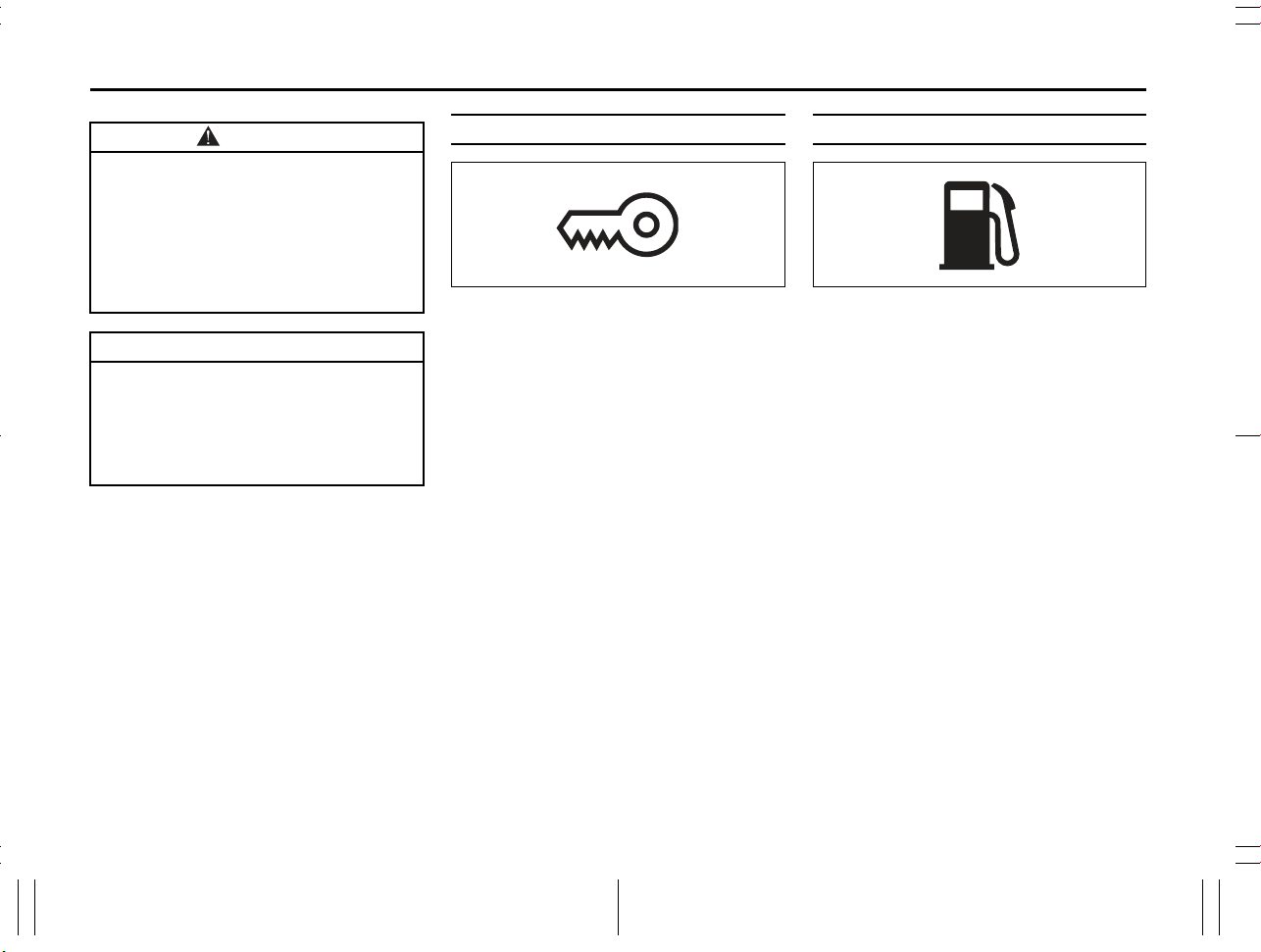

Immobilizer System Warning Light
80JM122
When the ignition switch is turned “ON”, this light comes on briefly so you can check that the light is working.
If this light blinks with the ignition switch is turned “ON”, there may be something wrong with the immobilizer system. Ask a SUZUKI dealer or a qualified workshop to have the system inspected.
Low Fuel Warning Light
54G343
If this light comes on, refuel the fuel tank as soon as possible.
When this light comes on, a ding sounds once to remind you to refuel. If you do not refuel, a ding sounds every time when the ignition switch is turned “ON”.
NOTE: The activation point of this light varies depending on road conditions (for exam­ple, slope or curve) and driving conditions because of fuel movement in the tank.
2-13
52SS0-01E
Page 45
BEFORE DRIVING

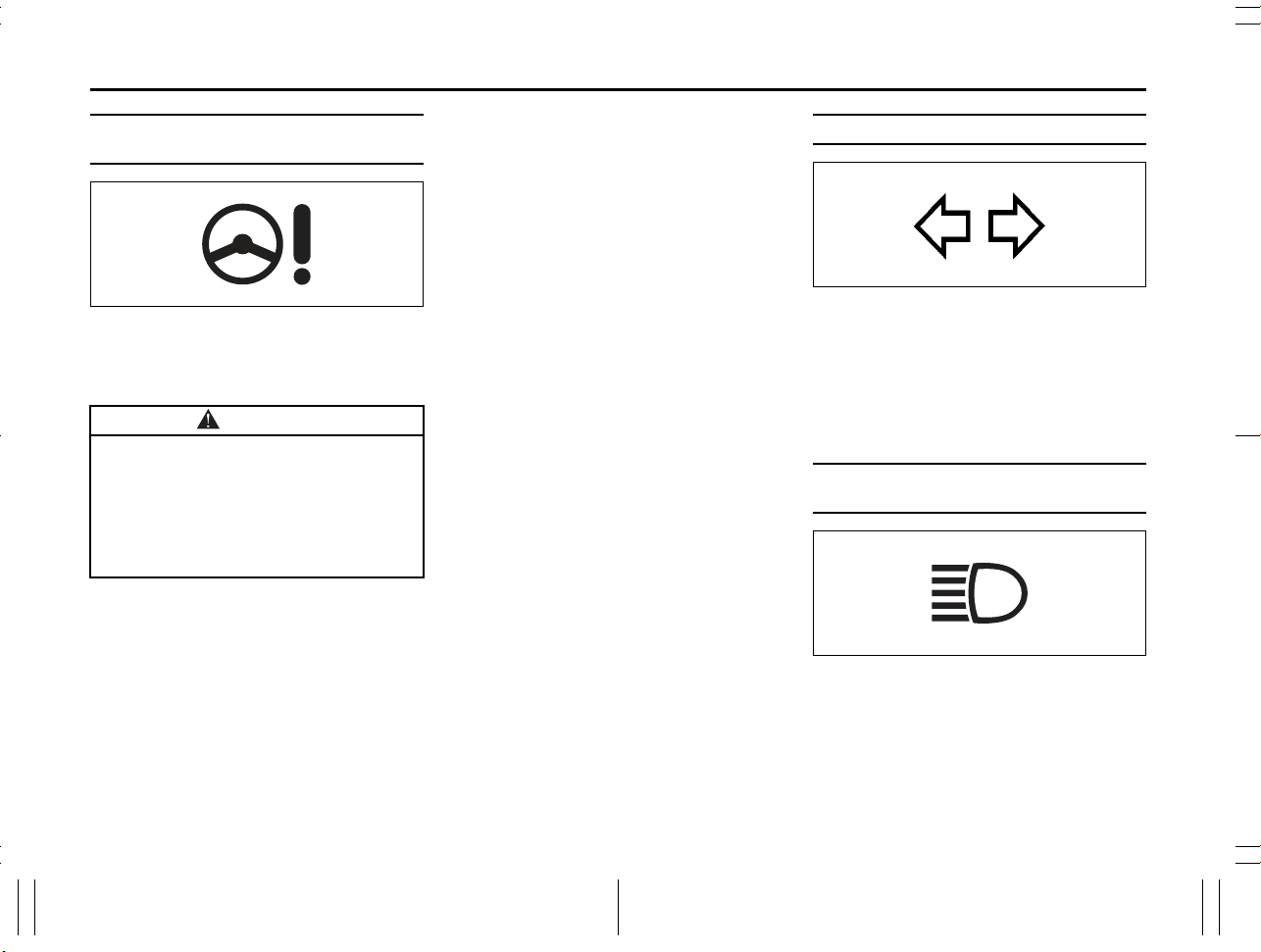

Electric Power Steering Light (if equipped)
79J039
When the ignition switch is turned “ON”, this light comes on. When the engine is started, the light goes out.
CAUTION
If this light stays or comes on while driving, the power steering system may not work properly. As a result, it may require greater steering effort. Have the system inspected by a SUZUKI dealer or a qualified work­shop.
NOTE: The following steering wheel operations may gradually take more effort while park­ing or driving at a very low speed. This is not a malfunction of the steering system, but the power steering control system lim­its the power assist in order to prevent it from overheating.
• The steering wheel is operated very often.
• The steering wheel is kept in a fully turned position for a long while.
When the power steering control system cools down, the power steering system will return to its original condition. However, repeating these operations could cause damage to the power steering sys­tem.
NOTE: If the power steering system does not work properly, it will require greater effort to steer but you still will be able to steer.
NOTE: If the steering is operated, you may hear a noise caused by electric power steering operation. This is normal and indicates that the power steering system works properly.
Turn Signal Indicators
50G055
When you turn on the left or right turn sig­nal, the corresponding green arrow on the instrument panel will flash along with the respective turn signal lights. When you turn on the hazard warning switch, both arrows will flash along with all of the turn signal lights.
Main Beam (high beam) Indicator Light
55S20032
This indicator comes on when headlight main beams (high beams) are turned on.
2-14
52SS0-01E
Page 46
BEFORE DRIVING

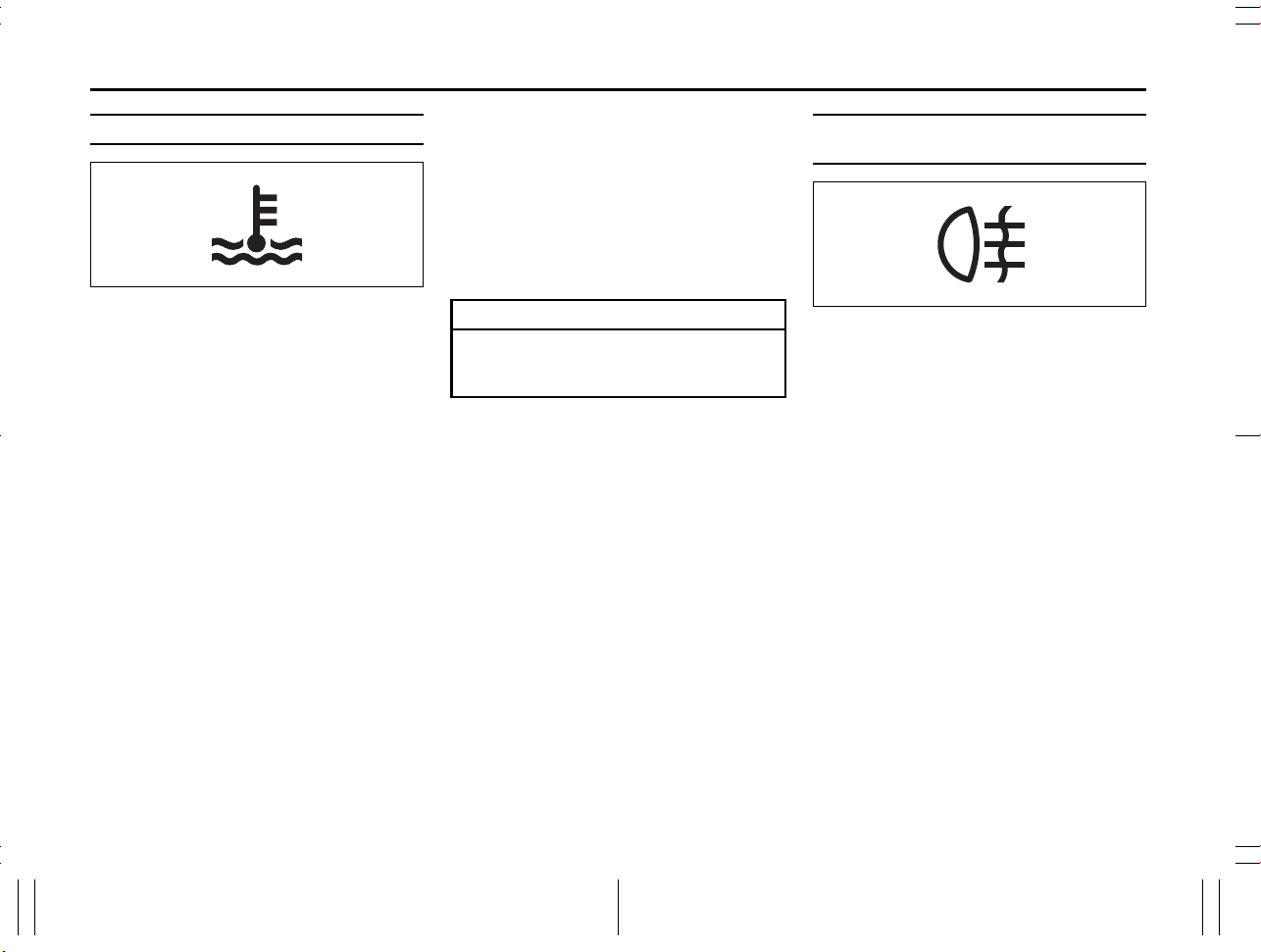

Engine Coolant Temperature Light
54G344
When the ignition switch is turned “ON”, this light comes on briefly so you can check that the light is working.
This indicator has the following two func­tions.
Low engine coolant temperature light (blue color)
This light stays on while the engine is still cold and goes off when the engine has warmed up.
If this light blinks, there is a problem with the system. Have your vehicle inspected by a SUZUKI dealer or a qualified work­shop.
High engine coolant temperature warn­ing light (red color)
If this light blinks while driving, it means the engine is running hot. Avoid driving condi­tions that may lead to actual overheating. If the light stays on without blinking, then the engine is overheating. Follow the instruc­tions in “Engine Trouble: Overheating” of “EMERGENCY SERVICE” section.
NOTICE
Continuing to drive the vehicle when engine overheating is indicated can result in severe engine damage.
Rear Fog Light Indicator Light (if equipped)
54G491
The rear fog light indicator light comes on when the rear fog light operates.
2-15
52SS0-01E
Page 47
BEFORE DRIVING
(A) (B)
(1) (2)
(1)
(2)

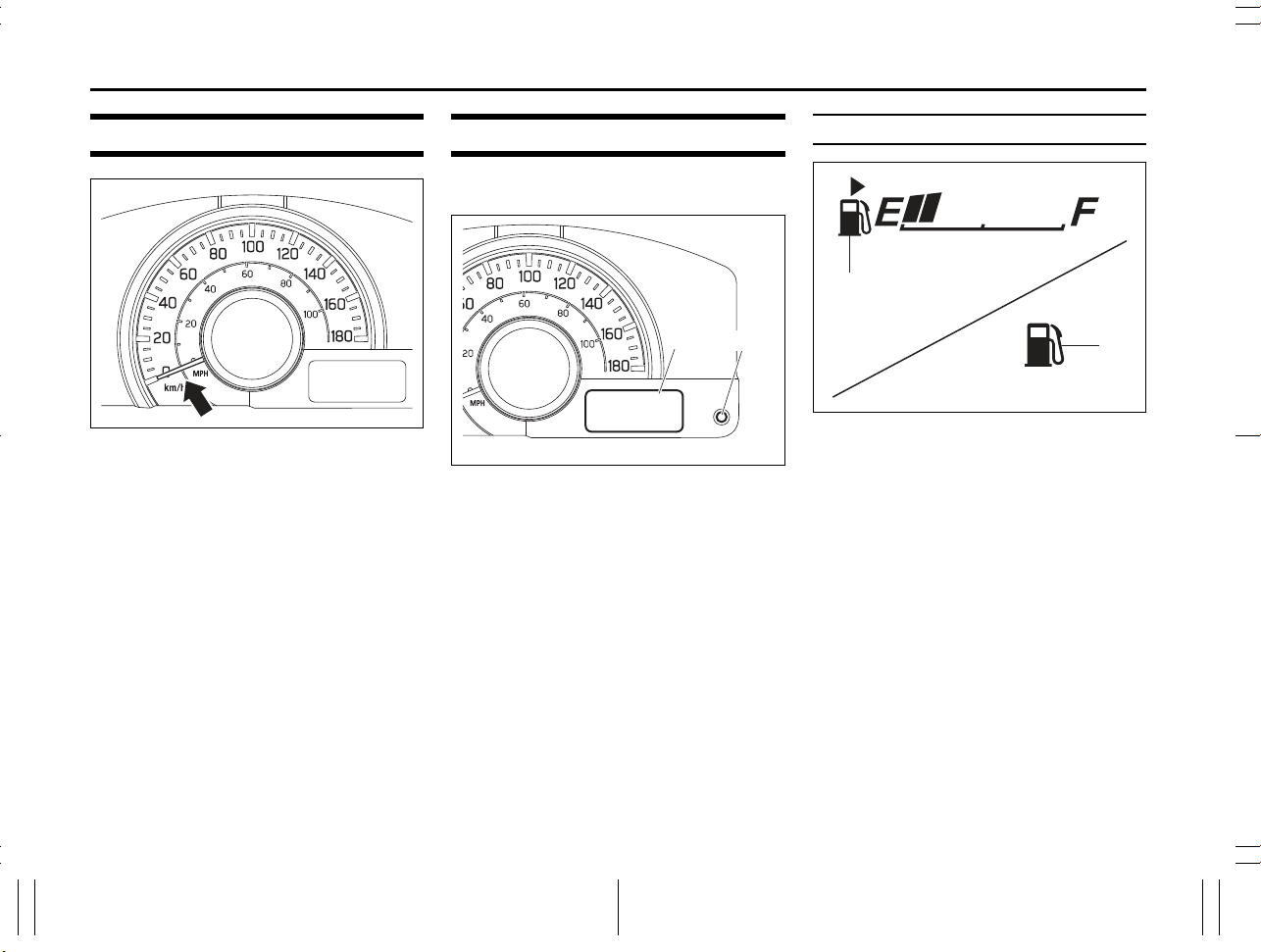

Speedometer
52SS2011E
The speedometer indicates vehicle speed.
NOTE: For models of GCC countries, a buzzer will sound when the vehicle speed exceeds about 120 km/h. This buzzer does not indi­cate a vehicle malfunction. If you slow down to about 118 km/h, the buzzer will stop.
Information Display
Information display is shown when the igni­tion switch is turned “ON”.
52SS2012E
(1) Information display (2) Trip meter selector knob
The information display shows the follow­ing information.
Display (A)
Fuel gauge
Display (B)
Odometer / Trip meter
Fuel Gauge
52SS20030
When the ignition switch is in “ON” posi­tion, this gauge gives a rough indication of the amount of fuel in the fuel tank. “F” stands for full and “E” stands for empty.
If the fuel meter indicator shows only one segment to “E”, refill the tank as soon as possible.
NOTE: If the last segment blinks, it means that the fuel is almost empty.
If the low fuel warning light (1) comes on, refill the fuel tank immediately.
2-16
52SS0-01E
Page 48
BEFORE DRIVING
NOTE: The activation point of the low fuel warning light (1) varies depending on road condi­tions (for example, slope or curve) and driving conditions because of fuel move­ment in the tank.
Refer to “Low Fuel Warning Light” in “Warning and Indicator Lights” in this sec­tion for details.
The mark (2) indicates that the fuel filler cap is located on the right side of the vehi­cle.

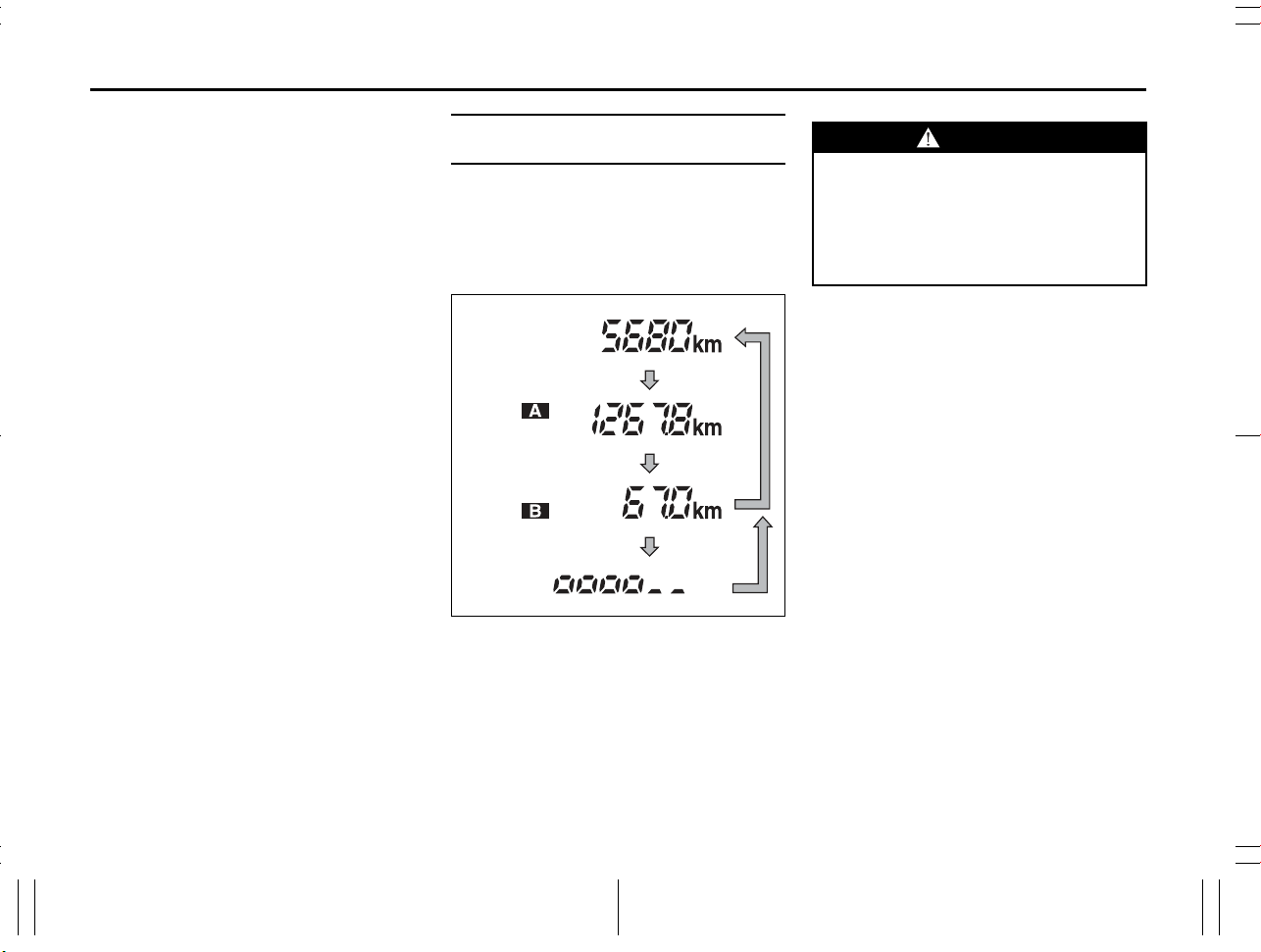

Odometer / Trip meter / Brightness Control
The display (B) shows one of the following indications; Odometer, trip meter A, trip meter B.
To switch the display indication (B), push the trip meter selector knob (2) quickly.
(a)
(b)
(c)
(d)
52SS20070
(a) Odometer (b) Trip meter A (c) Trip meter B (d) Brightness control*
* The brightness control will appear when
the position lights and/or headlights are on.
WARNING
If you attempt to adjust the display while driving, you could lose control of the vehicle, which could result in an unexpected accident.
Do not attempt to adjust the display while driving.
NOTE:
• Indications will change when you push and release a knob.
• The display shows estimated values. Indications may not be the same as actual values.
2-17
52SS0-01E
Page 49
Odometer
(Brightest)
(Initial setting)
(Dimmest)
The odometer records the total distance the vehicle has been driven.
Trip meter
The trip meter can be used to measure the distance traveled on short trips or between fuel stops. You can use the trip meter A or trip meter B independently.
To reset the trip meter, push and hold the trip meter selector knob (2) until the display shows 0.0.
NOTE: The indicated maximum value of the trip meter is 9999.9. When you run past the maximum value, the indicated value will return to 0.0.

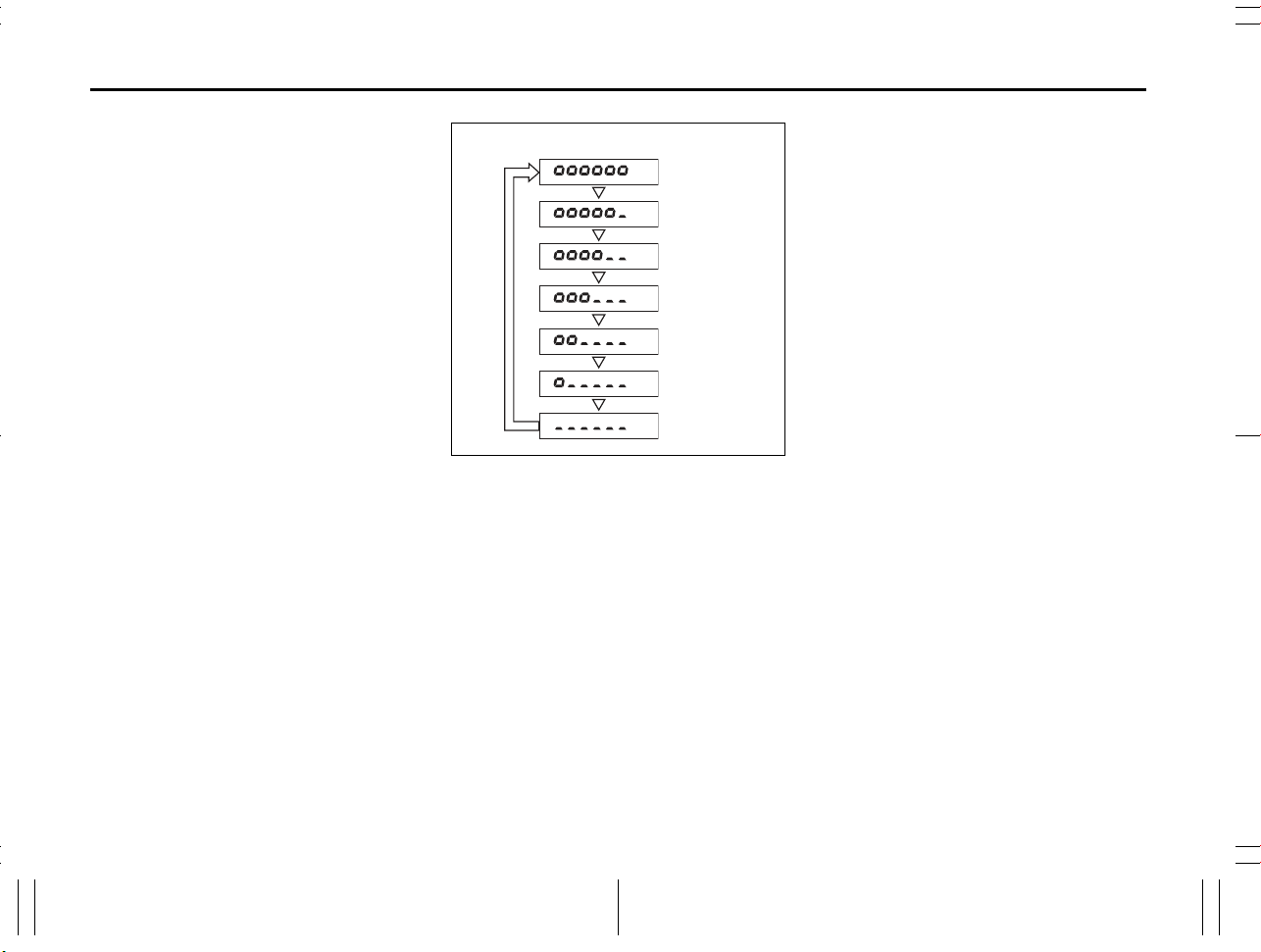

Brightness control
When the position lights and/or headlights are ON, you can control the meter illumina­tion intensity.
To change the brightness of the instrument panel lights, push and hold the trip meter selector knob (2).
BEFORE DRIVING
52SS20080
NOTE:
• If you do not push the brightness control knob within several seconds of activat­ing the brightness control display, the brightness control display will be can­celed automatically.
• When you reconnect the battery, the brightness of the instrument panel lights will be reinitialized. Readjust the bright­ness according to your preference.
2-18
52SS0-01E
Page 50
BEFORE DRIVING

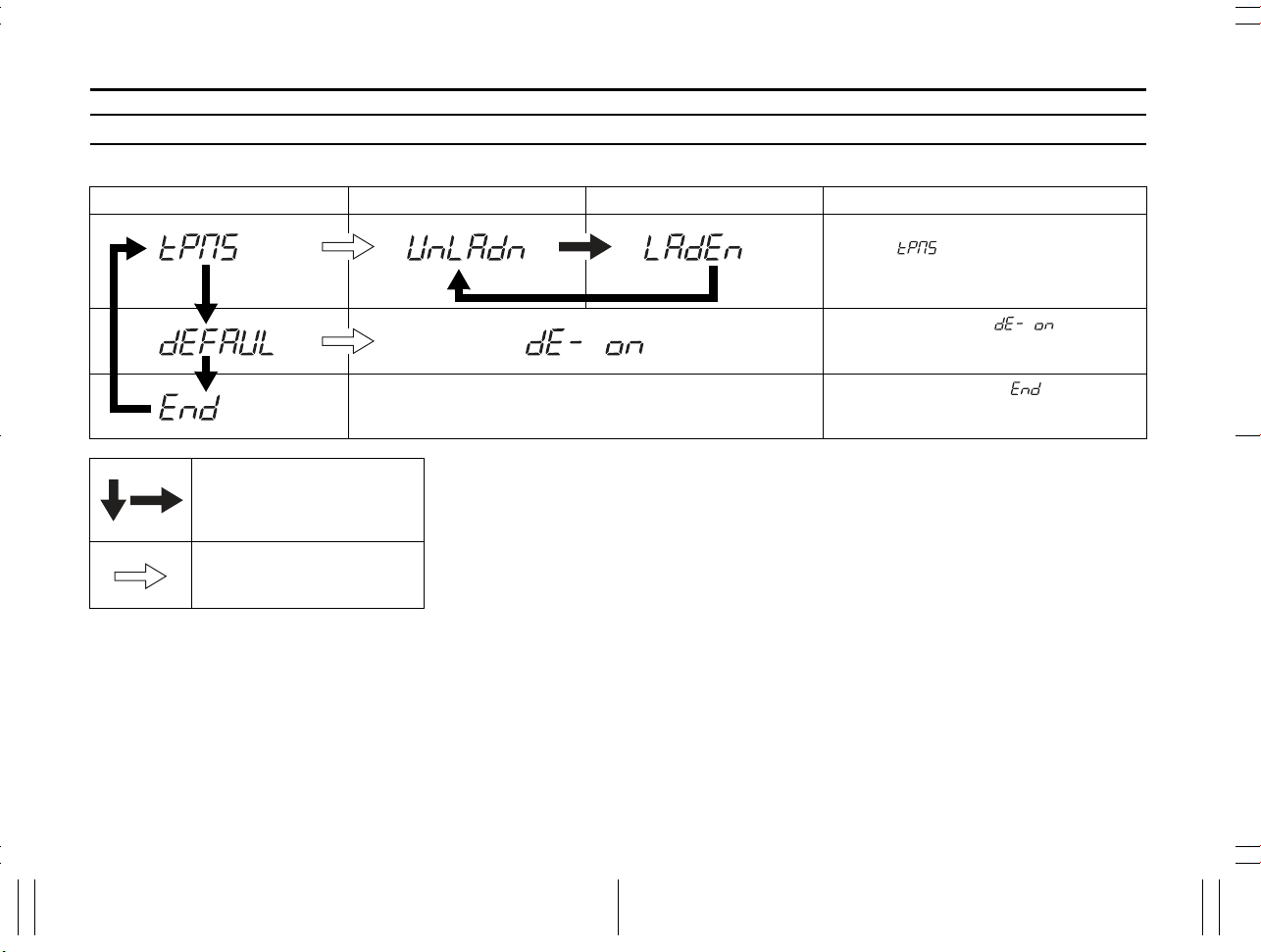

Setting Mode (for Vehicles with Tyre Pressure Monitoring System (TPMS))
In the setting mode, you can set up and customize the following functions.
Indication Default setting Changed setting Functions
Push the trip meter selec­tor knob (2).
Push and hold the trip meter selector knob (2).
Tyre pressure monitoring system setting “
Initialization setting “
Exit the setting mode “
2-19
52SS0-01E
Page 51
BEFORE DRIVING
(a)
(b)
(c)
How to use the setting mode:
1) When the ignition switch is in “ON” position and the vehicle is stationary, push the trip meter selector knob (2) to switch the information display indication to the odometer.
2) Push and hold the trip meter selector knob (2) until the display shows “”.
3) Push the trip meter selector knob (2) to select a function that you want to set up according to the chart in the previous page.
4) Push and hold the trip meter selector knob (2) to register settings of the fol­lowing functions.
NOTE:
• As shown in the illustration, “ ” and “ ” indicates on the display of currently setting item.
• To go back to the higher level display during operation, push the trip meter selector knob (2) to display “ ” or “ ” and then push and hold the trip meter selector knob (2).

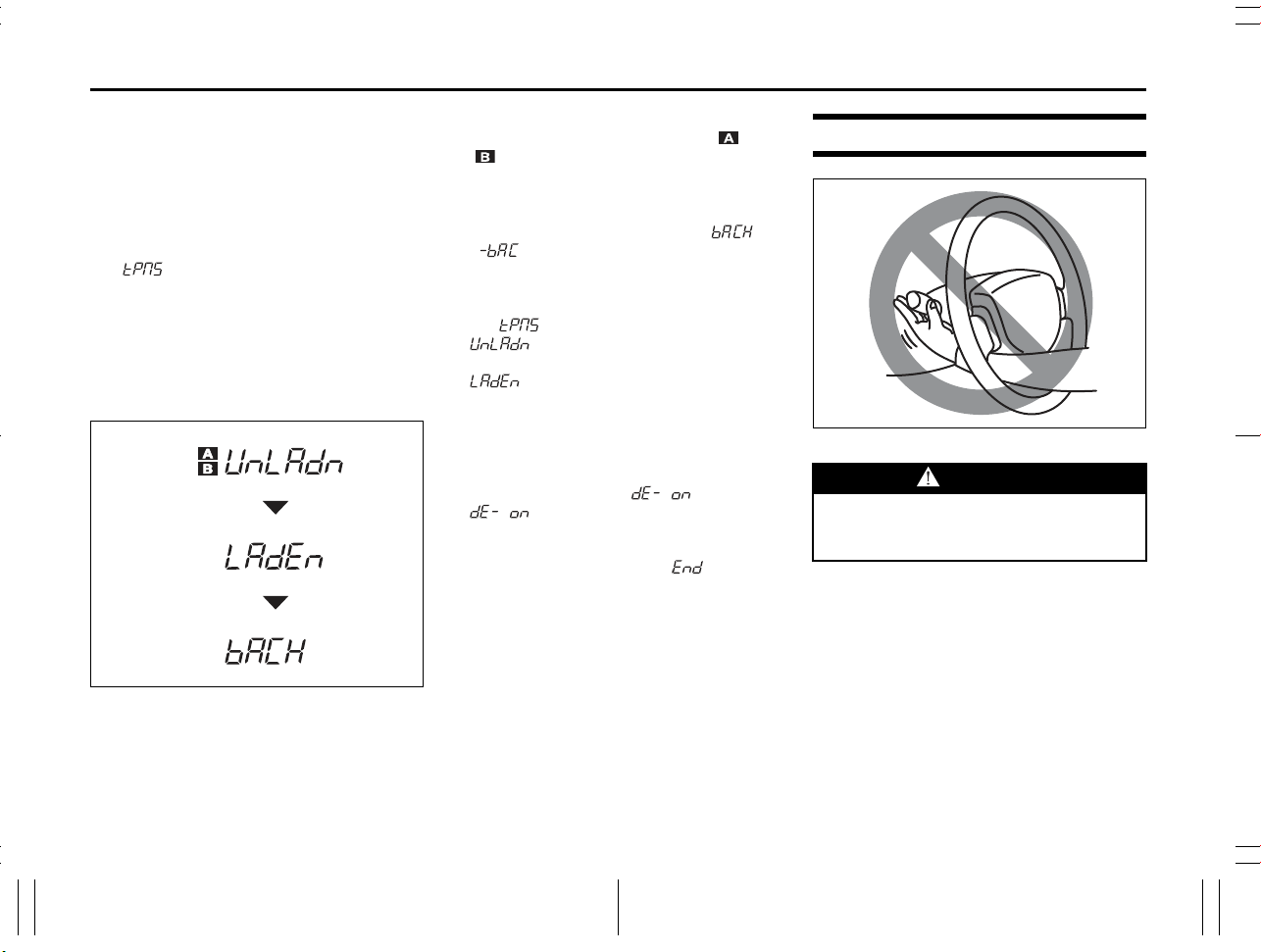

Tyre pressure monitoring system set­ting “ ”:
: Comfort Mode (default set-
ting)
: Load Mode
Refer to “Tyre Pressure Monitoring System (TPMS) (if equipped)” in “OPERATING YOUR VEHICLE” section for details.
Initialization setting “ ”:
: Initialize all settings
How to exit the setting mode:
Switch the display to show “ ” and then push and hold the trip meter selector knob (2).
Lighting Control Lever
55S20025
WARNING
To avoid possible injury, do not oper­ate controls by reaching through the steering wheel.
(a) Comfort Mode setting indication
(default setting) (b) Load Mode setting indication (c) Back indication
52SS2015E
2-20
52SS0-01E
Page 52
BEFORE DRIVING
(3)
(2)
(1)
Lighting Operation
52SS2013E
To turn the lights on or off, twist the knob on the end of the lever. There are three positions:
OFF (1)
All lights are off.
(2)
Front position lights, tail lights, license plate light and instrument lights are on, but headlights are off.
52SS2014E

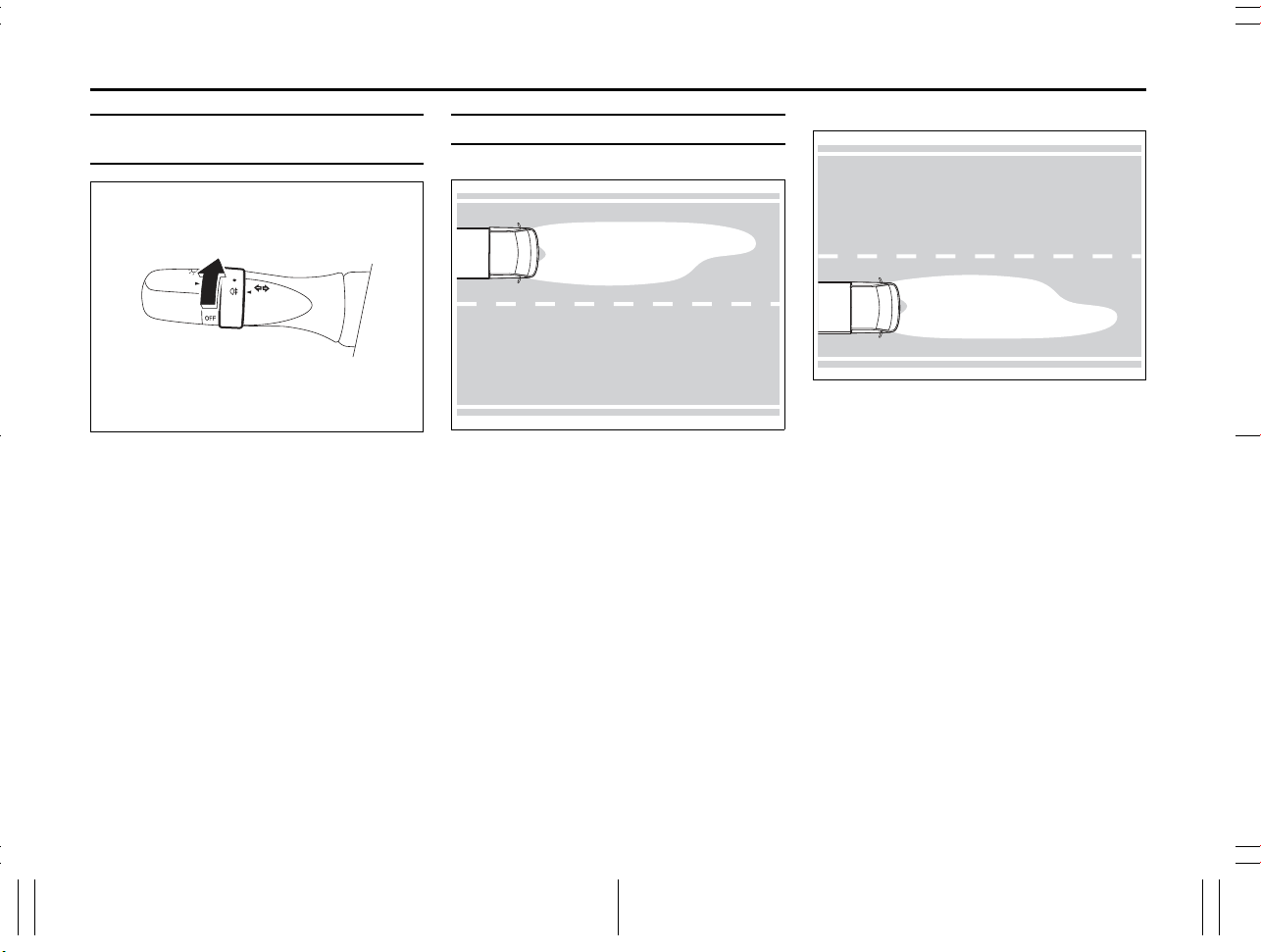

With the headlights on, push the lever for­ward to switch to the high beams (main beams) or pull the lever toward you to switch to the low beams. When the high beams (main beams) are on, a light on the instrument cluster will come on. To momentarily activate the high beams (main beams) as a passing signal, pull the lever slightly toward you and release it when you have completed the signal.
(3)
Front position lights, tail lights, license plate light, instrument lights and headlights are on.
2-21
52SS0-01E
Page 53
BEFORE DRIVING
(1)
(2)
(3)
(4)
(5)

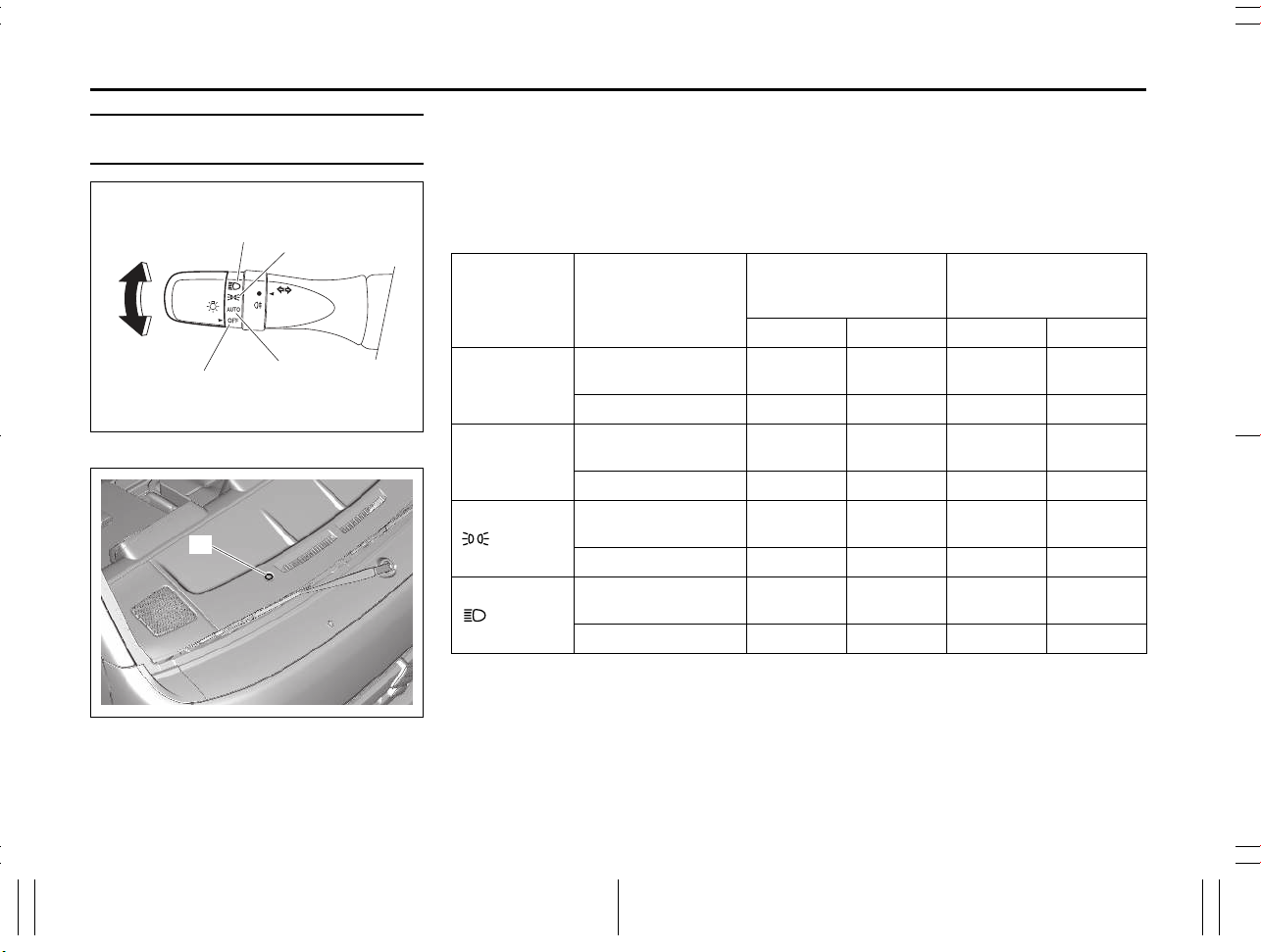

Automatic Light Operation (if equipped)
52SS2016E
Your vehicle’s lighting system is controlled by two main systems: the lighting switch and the auto-on headlight system (when the lighting switch is in “AUTO” position). The two systems work together to operate your lights as shown in the following chart:
ON: Lights ON LIGHT: When it is light around the light sensor (5). DARK: When it is dark around the light sensor (5).
Lighting switch position
OFF (1)
AUTO (2)
(3)
(4)
Ignition switch in the
Main lights to be operated
Position lights, Tail lights
Headlights
Position lights, Tail lights
Headlights ON
Position lights, Tail lights
Headlights
Position lights, Tail lights
Headlights ONONONON
“LOCK” or “ACC”
position
LIGHT DARK LIGHT DARK
––––
–––ON
ON ON ON ON
ON ON ON ON
Ignition switch in the
“ON” position
52SS2017E
2-22
52SS0-01E
Page 54
BEFORE DRIVING
To turn the lights on or off, twist the knob on the end of the lever. There are four positions:
OFF (1)
All lights are off.
AUTO (2)
This function works when the ignition switch is turned “ON”. The headlights and position lights are turned on and off auto­matically according to the amount of out­side light detected by a sensor. They go out automatically when you turn the igni­tion switch to “ACC” or “LOCK” position.

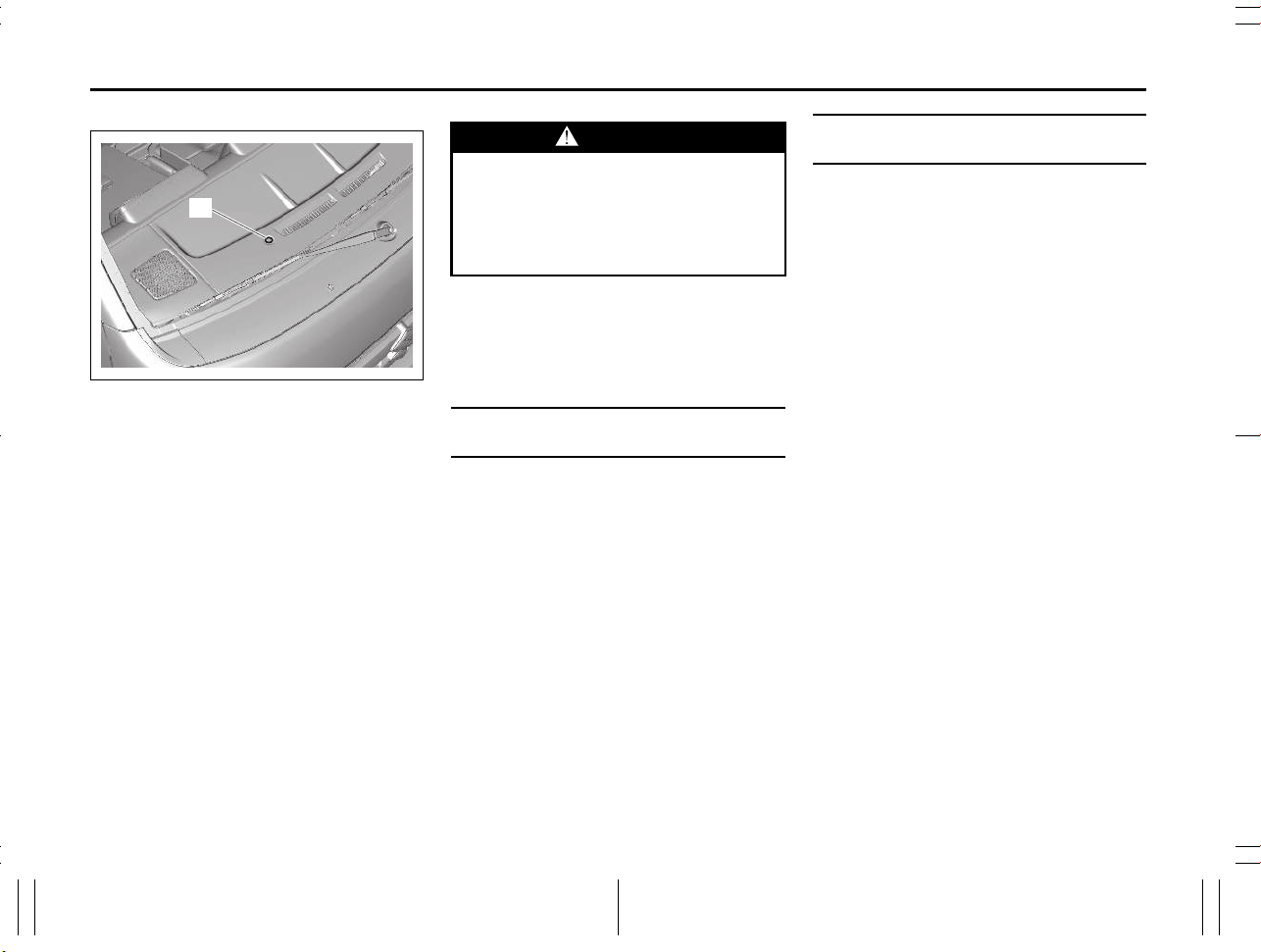

The light sensor (5) for sensing the amount of outside light is installed on the passen­ger's seat side of instrument panel.
CAUTION
If the light sensor area of the wind­shield is covered with mud, ice, or other similar substances, the head­lights and position lights may be turned on even when it is still light outside.
NOTE:
• Avoid covering the light sensor area of the windshield with a sticker. The sticker may impair the performance of the sen­sor and make the system unable to con­trol operation of the lights correctly.
• If you turned the ignition switch to “ON” position and “AUTO” position remains selected, the headlights and position lights come on automatically as it gets dark outside, even with the engine not running. Leaving the lights lit for a long time may lead to a completely dis­charged battery.
(3)
Front position lights, tail lights, license plate light and instrument lights are on, but headlights are off.
(4)
Front position lights, tail lights, license plate light, instrument lights and headlights are on.
52SS2018E
With the headlights on, push the lever for­ward to switch to the high beams (main beams) or pull the lever toward you to switch to the low beams. When the high beams (main beams) are on, a light on the instrument cluster will come on. To momentarily activate the high beams (main beams) as a passing signal, pull the lever slightly toward you and release it when you have completed the signal.
2-23
52SS0-01E
Page 55
BEFORE DRIVING
Auto-on headlight system
(5)
52SS2017E
The auto-on headlight system automati­cally turns on all lights that are operated by the lighting control lever on the steering column, when the following three condi­tions are all met.
Conditions for auto-on headlight system operation:
• It is dark around the light sensor (5).
• The lighting control lever is in “AUTO” position.
• You turn the ignition switch to “ON” posi­tion.
This system is activated by a signal from the light sensor (5) on the passenger’s seat side of instrument panel. Do not cover the sensor (5). Otherwise, the system will not work correctly.
WARNING
It takes about 5 seconds for the light sensor to react to a change in light­ing conditions. To help avoid an acci­dent due to reduced visibility, turn on your headlights before driving into a tunnel, parking structure, etc.
NOTE: The light sensor reacts even to infrared rays, so it may operate incorrectly when there are strong infrared rays.
Light Reminder Buzzer (if equipped)
The interior buzzer continuously beeps if you open the driver’s door without turning off the headlights and position lights. This function is triggered under the following condition: The headlights and/or position lights are on even after the ignition switch is turned off.
The buzzer stops sounding when you turn off the headlights and position lights.
Daytime Running Light (D.R.L.) System (if equipped)
When the engine is started, the daytime running lights are turned on by this system.
Conditions for D.R.L. system operation:
• The engine is running.
• Headlights is off.
NOTE: Brightness of the daytime running lights is different from the brightness of the position lights, but it is not a malfunction.
2-24
52SS0-01E
Page 56
BEFORE DRIVING
Rear Fog Light Switch (if equipped)
52SS20110
To turn the rear fog light on, twist the knob as shown in the illustration with the head­lights on. When the rear fog light is on, an indicator light on the instrument cluster will come on. If you twist the knob to the mark of rear fog light, the rear fog light will turn on and an indicator light on the instrument cluster will come on.
Adjusting headlight pattern
Headlight pattern, left hand traffic
52SS2019E
Headlight pattern, right hand traffic
52SS2020E
The headlight pattern must be adjusted to avoid dazzling oncoming motorists and can be set for right or left hand traffic.
The light pattern may not be as good. You should readjust the light pattern by masking the headlight lens.
2-25
52SS0-01E
Page 57
BEFORE DRIVING
(1)
(2)
(3)
(1)
(2)
(3)

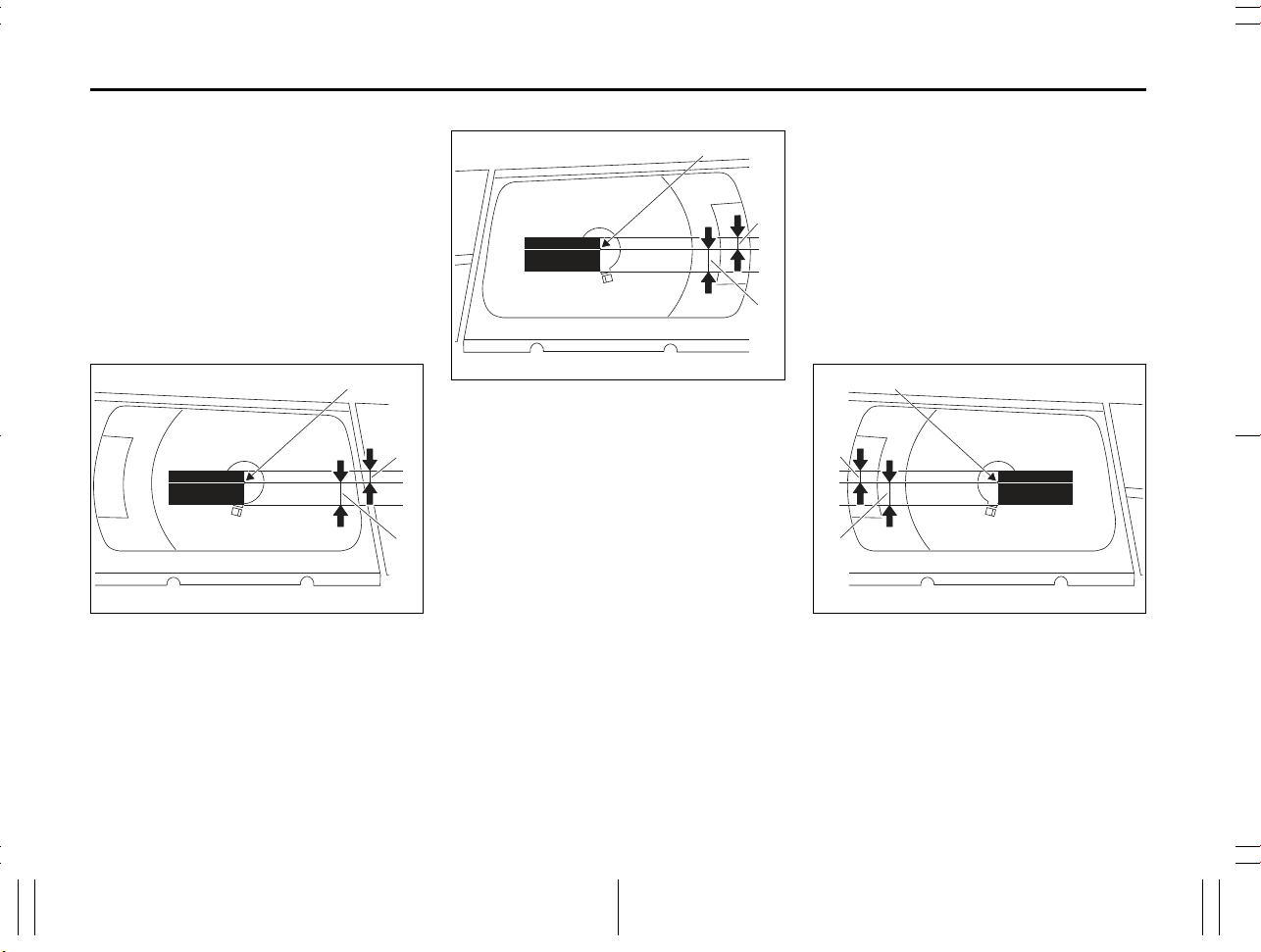

Left hand drive vehicle
To readjust the light pattern by masking the headlight lens;
1) Copy the template as shown later in
this section.
2) Transfer the template to a self-adhesive
waterproof material and cut it out.
3) Position the cutout tape at the right dis-
tance from the center mark of the head­light lens. Refer to the dimensions in the following illustrations.
Right side headlight
52SS2021E
(1) Vertical line: approximately
10.0 mm (0.3 in.)
(2) Vertical line: approximately
20.0 mm (0.7 in.)
(3) Center mark
Left side headlight
(1) Vertical line: approximately
10.0 mm (0.3 in.)
(2) Vertical line: approximately
20.0 mm (0.7 in.)
(3) Center mark
(3)
(1)
(2)
52SS2022E
Right hand drive vehicle
To readjust the light pattern by masking the headlight lens;
1) Copy the template as shown later in this section.
2) Transfer the template to a self-adhesive waterproof material and cut it out.
3) Position the cutout tape at the left dis­tance from the center mark of the head­light lens. Refer to the dimensions in the following illustrations.
Right side headlight
52SS2023E
(1) Vertical line: approximately
10.0 mm (0.3 in.)
(2) Vertical line: approximately
20.0 mm (0.7 in.)
(3) Center mark
2-26
52SS0-01E
Page 58
BEFORE DRIVING

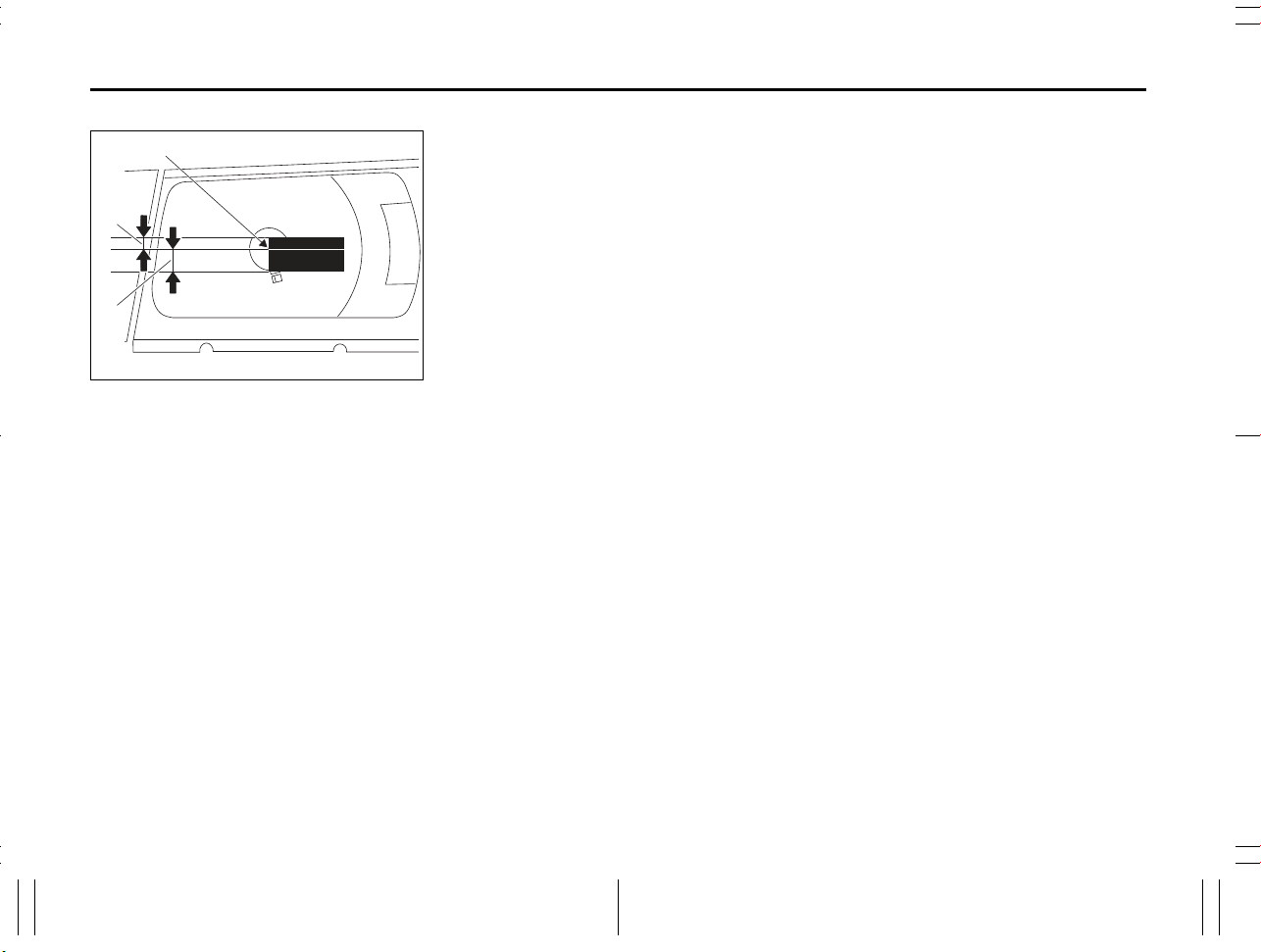

Left side headlight
(3)
(1)
(2)
(1) Vertical line: approximately
10.0 mm (0.3 in.)
(2) Vertical line: approximately
20.0 mm (0.7 in.)
(3) Center mark
52SS2024E
2-27
52SS0-01E
Page 59

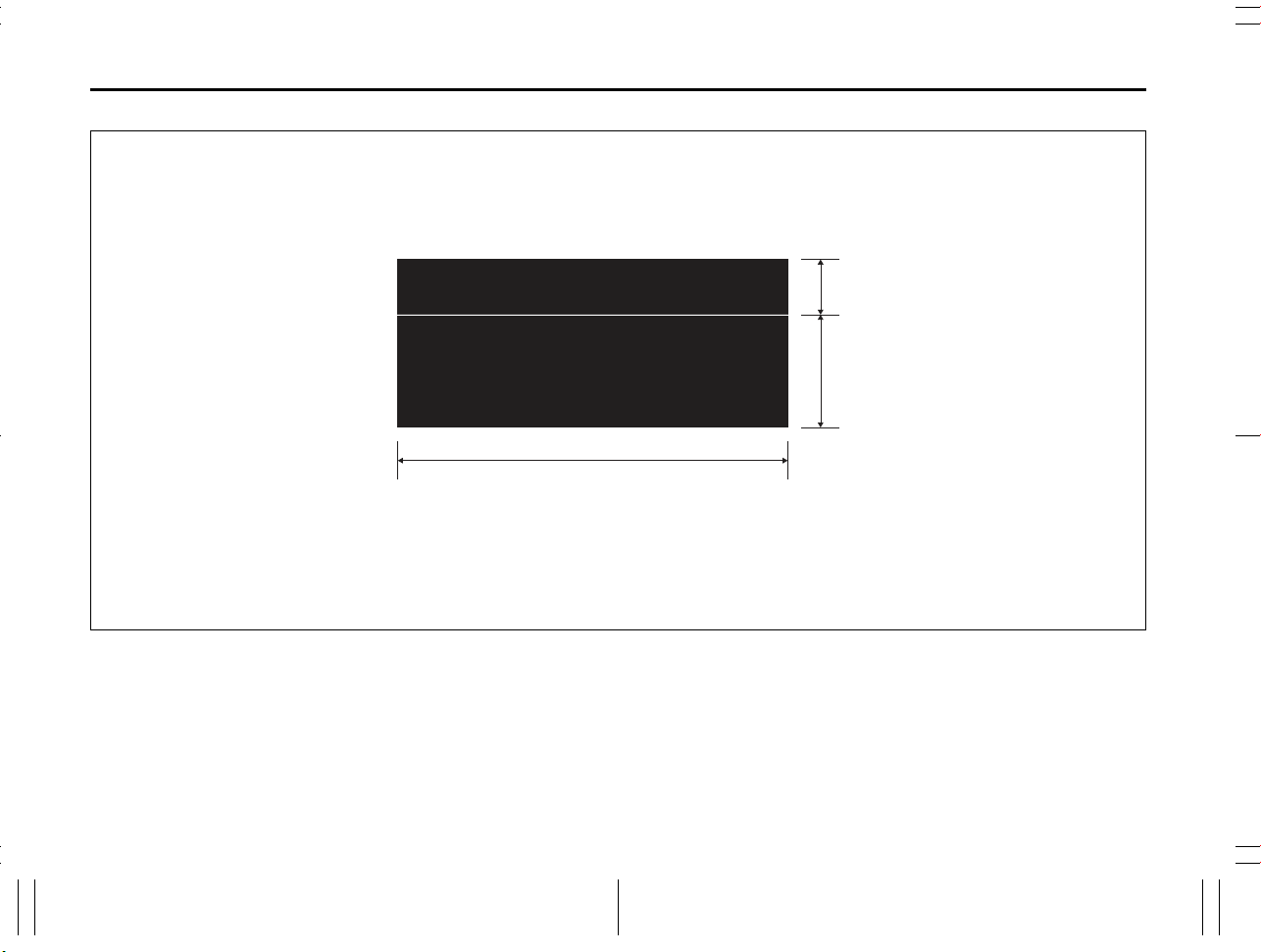

Templates for headlights
(a)
(b)
(c)
(a) 10 mm (0.3 in.) (b) 20 mm (0.7 in.) (c) 70 mm (2.7 in.)
BEFORE DRIVING
52SS2025E
2-28
52SS0-01E
Page 60
BEFORE DRIVING
Headlight Leveling Switch (if equipped)
75RM008
Level the headlight beam according to the load condition of your vehicle by turning this switch. The chart shows the appropri­ate switch position for different vehicle load conditions.
Vehicle Load Condition
Driver only 0
Driver + full cargo 3.5
Switch
Position
Turn Signal Control Lever
55S20025
WARNING
To avoid possible injury, do not oper­ate controls by reaching through the steering wheel.
Turn Signal Operation
With the ignition switch in “ON” position, move the lever upward or downward to activate the right or left turn signals.
Normal turn signal
52SS2007E
Move the lever all the way upward or downward to signal. When the turn is com­pleted, the signal will cancel and the lever will return to its normal position.
2-29
52SS0-01E
Page 61
BEFORE DRIVING

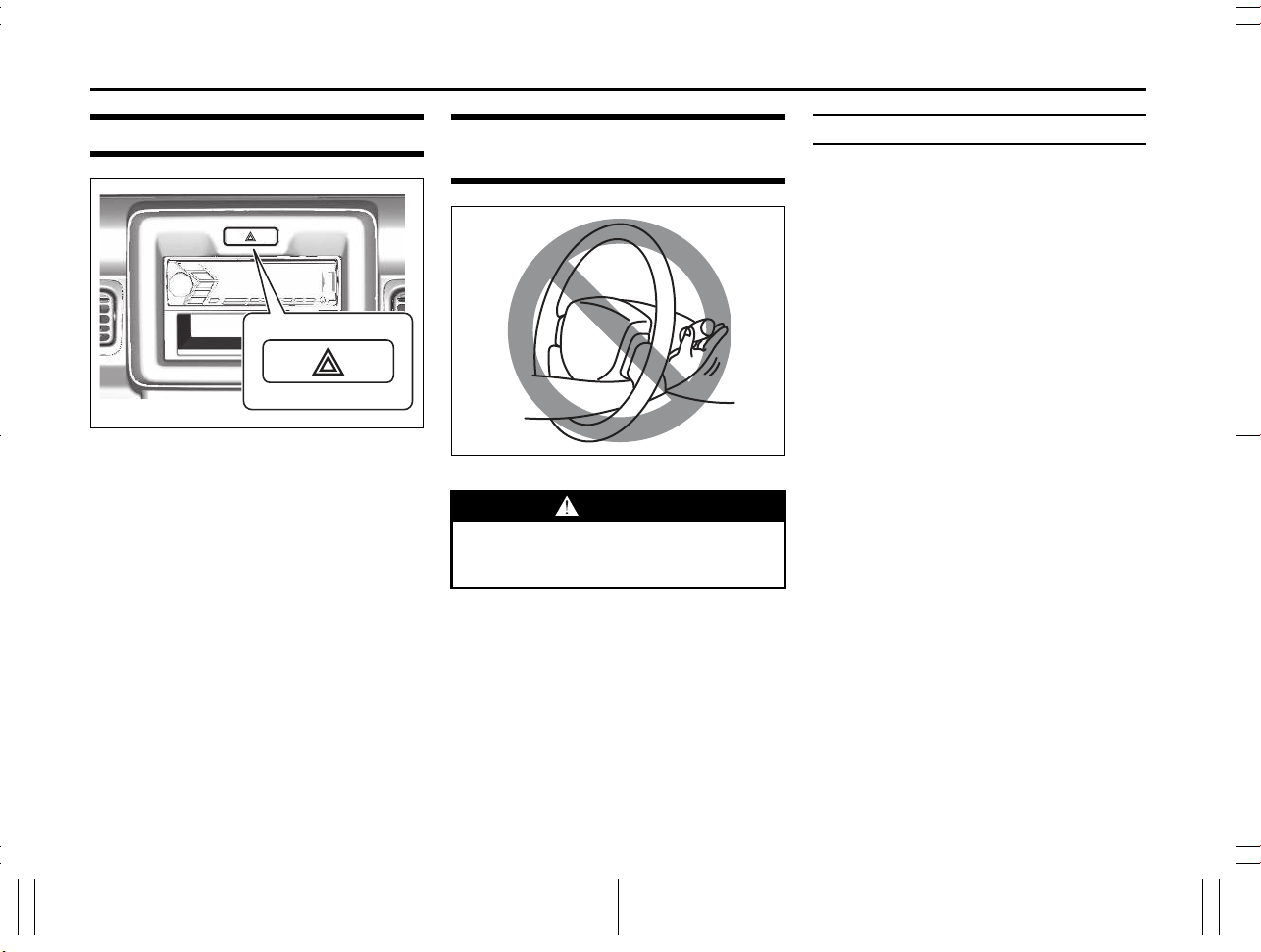

Hazard Warning Switch
52SS20140
Push the hazard warning switch to activate the hazard warning lights. All turn signal lights and both turn signal indicators will flash simultaneously. To turn off the lights, push the switch again. Use the hazard warning lights to warn other drivers of possible risk of traffic haz­ard when you park your vehicle in case of emergency.
Windshield Wiper and Washer Lever
52SS30040
WARNING
To avoid possible injury, do not oper­ate controls by reaching through the steering wheel.
Wiper and Washer Operation
When the ignition switch is in “ON” posi­tion, you can use the wiper/washer lever or switch.
When the wipers are under heavy load such as covered by snow, the breaker will be activated and the wipers will stop oper­ating to protect the wiper motor from over­heating.
If the wiper stops during operation, do the following methods.
1) Stop the vehicle in a safe place, and turn the engine off.
2) Move the wiper lever and switch to “OFF” position.
3) Remove obstacles such as snow on the wipers.
4) After a while, when the temperature of the wiper motor becomes low enough, the breaker will be reset automatically and you will be able to use the wipers.
If you cannot use the wipers after a while, there may be another problem. Ask a SUZUKI dealer or a qualified workshop to have the wipers inspected.
2-30
52SS0-01E
Page 62
BEFORE DRIVING
Windshield Wipers
Left hand drive vehicle
MIST
OFF
INT
LO
HI
52SS2009E
To turn the windshield wipers on, move the lever down to one of the three operating positions. In “INT” position, the wipers operate intermittently. The “INT” position is very convenient for driving in mist or light rain. In “LO” position, the wipers operate at a steady low speed. In “HI” position, the wipers operate at a steady high speed. To turn off the wipers, move the lever back to “OFF” position. Move the lever up and hold it to “MIST” position, the windshield wipers will turn on continuously at low speed.
Right hand drive vehicle
MIST
OFF
LO
HI
52SS20150
To turn the windshield wipers on, move the lever down to one of the two operating positions. In “LO” position, the wipers oper­ate at a steady low speed. In “HI” position, the wipers operate at a steady high speed. To turn off the wipers, move the lever back to “OFF” position. Move the lever up and hold it to “MIST” position, the windshield wipers will turn on continuously at low speed.
Windshield Washer
52SS2010E
To spray windshield washer fluid, pull the lever toward you.
NOTICE
Do not use radiator antifreeze solu­tion in the windshield washer reser­voir. This can severely impair visibility when sprayed on the wind­shield, and also damage your vehi­cle’s paint.
2-31
52SS0-01E
Page 63
BEFORE DRIVING
NOTICE
To help prevent damage to the wind­shield wiper and washer system components, you should take the fol­lowing precautions:
• Do not continue to hold in the lever when there is no windshield washer fluid being sprayed or the washer motor can be damaged.
• Do not attempt to remove dirt from a dry windshield with the wipers or you can damage the windshield and the wiper blades. Always wet the windshield with washer fluid before operating the wipers.
• Clear ice or packed snow from the wiper blades before using the wip­ers.
• Check the washer fluid level regu­larly. Check it often when the weather is bad.
• Only fill the washer fluid reservoir 3/4 full during cold weather to allow room for expansion if the tempera­ture falls low enough to freeze the solution.
Horn
52SS20170
Press the horn button of the steering wheel to sound the horn. The horn will sound with the ignition switch in any position.
Vehicle Loading
Your vehicle was designed for specific weight capacities. The weight capacities of your vehicle are indicated by the Gross Vehicle Weight Rating (GVWR) and the Permissible maximum Axle Weight (PAW, front and rear). The GVWR and PAW (front and rear) are listed in “SPECIFICATIONS” section.
GVWR – Maximum permissible overall weight of the fully loaded vehicle (including all the occupants, accessories and cargo plus the trailer nose weight if towing a trailer). PAW – (Front and Rear) Maximum permis­sible weight on an individual axle.
Actual weight of the loaded vehicle and actual loads at the front and rear axles can only be determined by weighing the vehi­cle. Compare these weights to the GVWR and PAW (front and rear). If the gross vehi­cle weight or the load on either axle exceeds these ratings, you must remove enough weight to bring the load down to the rated capacity.
2-32
52SS0-01E
Page 64
BEFORE DRIVING
WARNING
• Never overload your vehicle. The gross vehicle weight (sum of the weights of the vehicle, all the occu­pants, accessories, cargo plus trailer nose weight if towing a trailer) must never exceed the Gross Vehicle Weight Rating (GVWR). In addition, never distrib­ute a load so that the weight on either the front or rear axle exceeds the Permissible maximum Axle Weight (PAW).
• Always distribute cargo evenly. To avoid personal injury or damage to your vehicle, always secure cargo to prevent it from shifting if the vehicle moves suddenly. Place heavier objects on the floor and as far forward in the cargo area as possible. Never pile cargo higher than the top of the seatbacks.
Trailer Towing
Your SUZUKI vehicle was originally designed to carry people and a normal amount of cargo, not to tow a trailer.
2-33
52SS0-01E
Page 65
60G408
OPERATING YOUR VEHICLE
OPERATING YOUR VEHICLE
Daily Inspection Checklist .................................................. 3-1
Engine Oil Consumption .................................................... 3-1
Ignition Switch ..................................................................... 3-2
Parking Brake Lever ........................................................... 3-4
Pedal ..................................................................................... 3-5
Starting the Engine ............................................................. 3-6
Using the Transmission ..................................................... 3-7
Braking ................................................................................. 3-8
Electronic Stability Program (ESP®) (if equipped) .......... 3-11
Tyre Pressure Monitoring System
(TPMS) (if equipped) ........................................................... 3-14
3
52SS0-01E
Page 66
OPERATING YOUR VEHICLE
Daily Inspection Checklist
Before Driving
60A187S
1) Make sure that windows, mirrors, lights and reflectors are clean and unobstructed.
2) Visually check the tyres for the follow­ing points:
– the depth of the tread groove – abnormal wear, cracks and damage – loose wheel nuts – existence of foreign material such as
nails, stones, etc. Refer to “Tyres” in “INSPECTION AND MAINTENANCE” section for details.
3) Look for fluid and oil leakage.
NOTE: It is normal for water to drip from the air conditioning system while and after use.
4) Make sure the hood is fully closed and latched.
5) Check the headlights, turn signal lights, brake lights and horn for proper operation.
6) Check the brake pedal feeling and the adjustment condition for the parking brake lever or pedal. Refer to “Brakes” in “INSPECTION AND MAINTENANCE” section for details.
7) Adjust the mirrors.
8) Make sure that you and all passengers have properly fastened the seat belts.
9) Make sure that all warning lights come on as the ignition switch is turned to “ON” position.
10) Check all gauges.
11) Make sure that the brake system warning light turns off when the park­ing brake is released.
Once a week, or each time you fill your fuel tank, perform the following under-hood checks:
1) Engine oil level
2) Coolant level
3) Brake fluid level
4) Battery fluid (acid) level
5) Windshield washer fluid level
Once a month, or each time you fill your fuel tank, check the tyre pressure using a tyre pressure gauge. Also check the tyre pressure of the spare tyre.
Engine Oil Consumption
It is normal for the engine to consume some engine oil during normal vehicle operation. The amount of engine oil consumption depends on viscosity and quality of the oil and your driving conditions. More oil is consumed during high-speed driving and when there is frequent acceler­ation and deceleration. Under high loads, your engine also will consume more oil. A new engine also consumes more oil, since its pistons, piston rings and cylinder walls have not yet become conditioned. New engines reach the normal level of oil consumption only after approximately 5000 km (3000 miles) driving.
Oil consumption: Max. 1.0 L per 1000 km (1 Qt. per 600 miles)
When judging the amount of oil consump­tion, note that the oil may become diluted and it is difficult to judge the accurate oil level.
3-1
52SS0-01E
Page 67
As an example, if a vehicle is used for repeated short trips, and consumes a nor­mal amount of oil, the dipstick may not show any drop in the oil level at all, even after 1000 km (600 miles) or more of driv­ing. This is because the oil is gradually becoming diluted with fuel or moisture, making it appear that the oil level has not changed. You should also be aware that the diluting ingredients evaporate out when the vehicle is subsequently driven at high speeds, such as on an expressway, making it appear that oil is excessively consumed after high-speed driving.

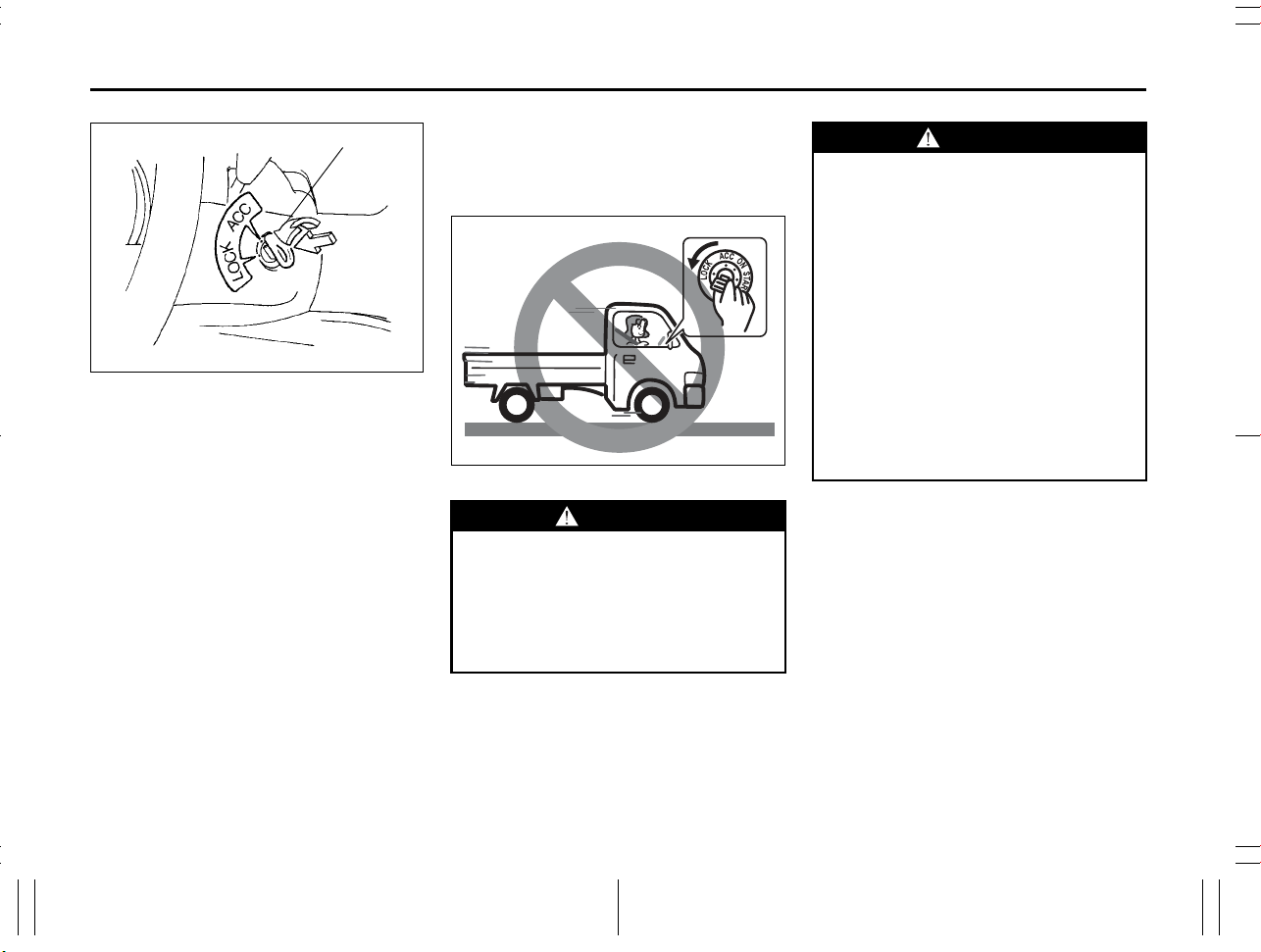

Ignition Switch
55S20025
WARNING
To avoid possible injury, do not oper­ate controls by reaching through the steering wheel.
OPERATING YOUR VEHICLE
68PH00310
The ignition switch has the following four positions:
LOCK
This is the normal parking position. It is the only position in which the key can be removed.
3-2
52SS0-01E
Page 68
OPERATING YOUR VEHICLE
Turn to “LOCK”
Push
60G033
You must push in the key to turn it to “LOCK” position. It locks the ignition, and prevents normal use of the steering wheel after the key is removed.
To release the steering lock, insert the key and turn it clockwise to one of the other positions. If you have trouble turning the key to unlock the steering wheel, try turn­ing the steering wheel slightly to the right or left while turning the key.
ACC
Accessories such as the radio can oper­ate, but the engine is off.
START
This is the position for starting the engine using the starter motor. The key should be released from this position as soon as the engine starts.
52SS30030
WARNING
• Never return the ignition switch to the “LOCK” position and remove the ignition key while the vehicle is moving. The steering wheel will lock and you will not be able to steer the vehicle.
(Continued)
WARNING
(Continued)
• Always return the ignition switch to “LOCK” position and remove the ignition key when leaving the vehi­cle even only for a short time. Also do not leave children alone in a parked vehicle. Unattended chil­dren may be able to start the vehi­cle or shift the transmission into “N” (Neutral), which could result in an accident. There is also a danger that children may injure them­selves by playing with the moving features of the vehicle. In addition, heat build-up or extremely cold temperatures inside the vehicle can be fatal to children.
ON
This is the normal operating position. All electrical systems are on.
3-3
52SS0-01E
Page 69
OPERATING YOUR VEHICLE
(2)
(3)
(1)
NOTICE
• For protection of a lead-acid bat­tery and a starter motor, do not use the starter motor by turning the key to “START” for more than 12 sec­onds at a time. If the engine dose not start, turn the key to “LOCK” position and wait for more than 30 seconds before trying again. If the engine does not start after several attempts, consult a SUZUKI dealer or a qualified workshop.
• Do not leave the ignition switch in “ON” position if the engine is not running as the battery will dis­charge.
Parking Brake Lever
54G039
(1) To set (2) To release (3) To release
The parking brake lever is located between the front seats. To set the parking brake, depress the brake pedal and pull the park­ing brake lever all the way up. To release the parking brake, depress the brake pedal and pull up slightly on the parking brake lever, push the button on the end of the lever with your thumb, and lower the lever to its original position.
WARNING
• Never drive your vehicle with the parking brake on: rear brake effec­tiveness can be reduced from over­heating, brake life may be shortened, or permanent brake damage may result.
• If the parking brake does not hold the vehicle securely or does not fully release, have your vehicle inspected immediately by a SUZUKI dealer or a qualified work­shop.
• When parking on an uphill, turn the steering wheel so that the front wheels point to the centre of the road.
• When parking on a downhill, turn the steering wheel so that the front wheels point to the curb.
• Whenever parking, make sure the gearshift lever is in 1st gear or “R” (Reverse). Remember, even though the transmission is in gear, you must set the parking brake fully.
(Continued)
3-4
52SS0-01E
Page 70
OPERATING YOUR VEHICLE
WARNING
(Continued)
When parking the vehicle in extremely cold weather, the follow­ing procedure should be used:
1)Set the parking brake.
2)Turn off the engine, then shift into “R” (Reverse) or 1st gear. Get out of the vehicle and put chocks under the wheels.
3)Release the parking brake. When you return to your vehicle, you must remember to first set the parking brake, then remove the wheel chocks.
WARNING
Do not leave cigarette lighters, spray cans, soft drink cans or plastic arti­cles (such as glasses, CD cases, etc.) in sun-heated vehicle. The tempera­ture inside the vehicle may cause as follows:
• Gas may leak from a cigarette lighter or spray can and may lead to a fire.
• The glasses, plastic cards or CD cases, etc. may deform or crack.
• Soft drink cans may fracture.
Parking Brake Reminder Buzzer
A buzzer sounds intermittently to remind you to release the parking brake if you start the vehicle without fully releasing the parking brake. Make sure that the parking brake is fully released and the brake sys­tem warning light turns off.

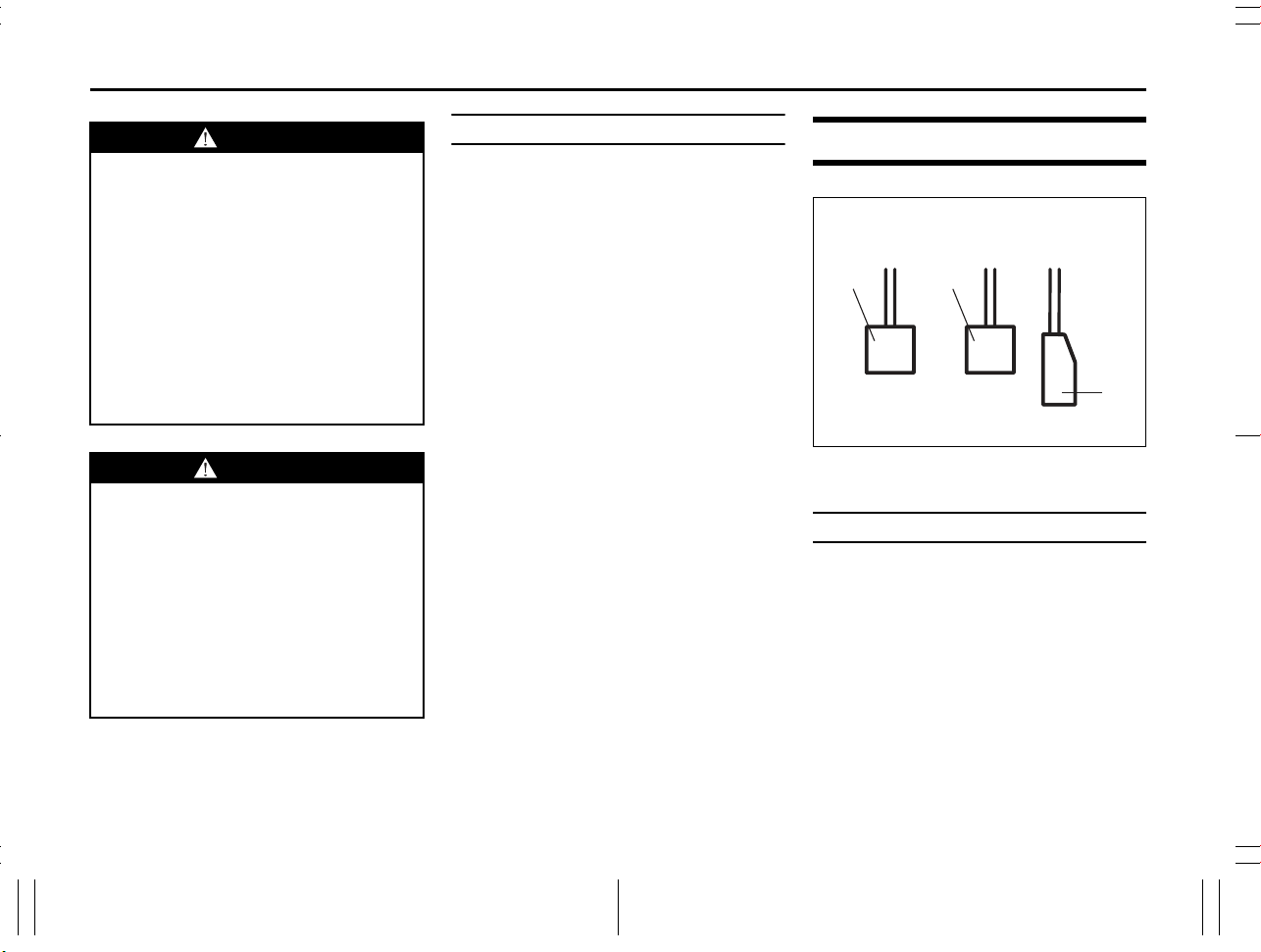

Pedal
(2)(1)
(3)
80J2121
Clutch Pedal (1)
A clutch pedal is used to disengage the driving force to the wheels when starting the engine, stopping, or shifting the gear­shift lever. Depressing the pedal disen­gages the clutch.
3-5
52SS0-01E
Page 71
OPERATING YOUR VEHICLE
WARNING
Do not drive with your foot resting on the clutch pedal. It could result in excessive clutch wear, clutch dam­age, or unexpected loss of engine braking.
Brake Pedal (2)
Your vehicle is equipped with front disc brakes and rear drum brakes. Depressing the brake pedal applies both sets of brakes.
You may hear occasional brake squeal when you apply the brakes. This is a nor­mal condition caused by environmental factors such as temperature, humidity or dust, etc.
WARNING
• If brake squeal is excessive and occurs each time the brakes are applied, you should have the brakes checked by a SUZUKI dealer or a qualified workshop.
(Continued)
WARNING
(Continued)
• Do not apply brakes continuously or rest your foot on the brake pedal. This will result in overheat­ing of the brakes which could cause unpredictable braking action, longer stopping distances, or permanent brake damage.
Accelerator Pedal (3)
An accelerator pedal controls the speed of the engine. Depressing the accelerator pedal increases power output and speed.

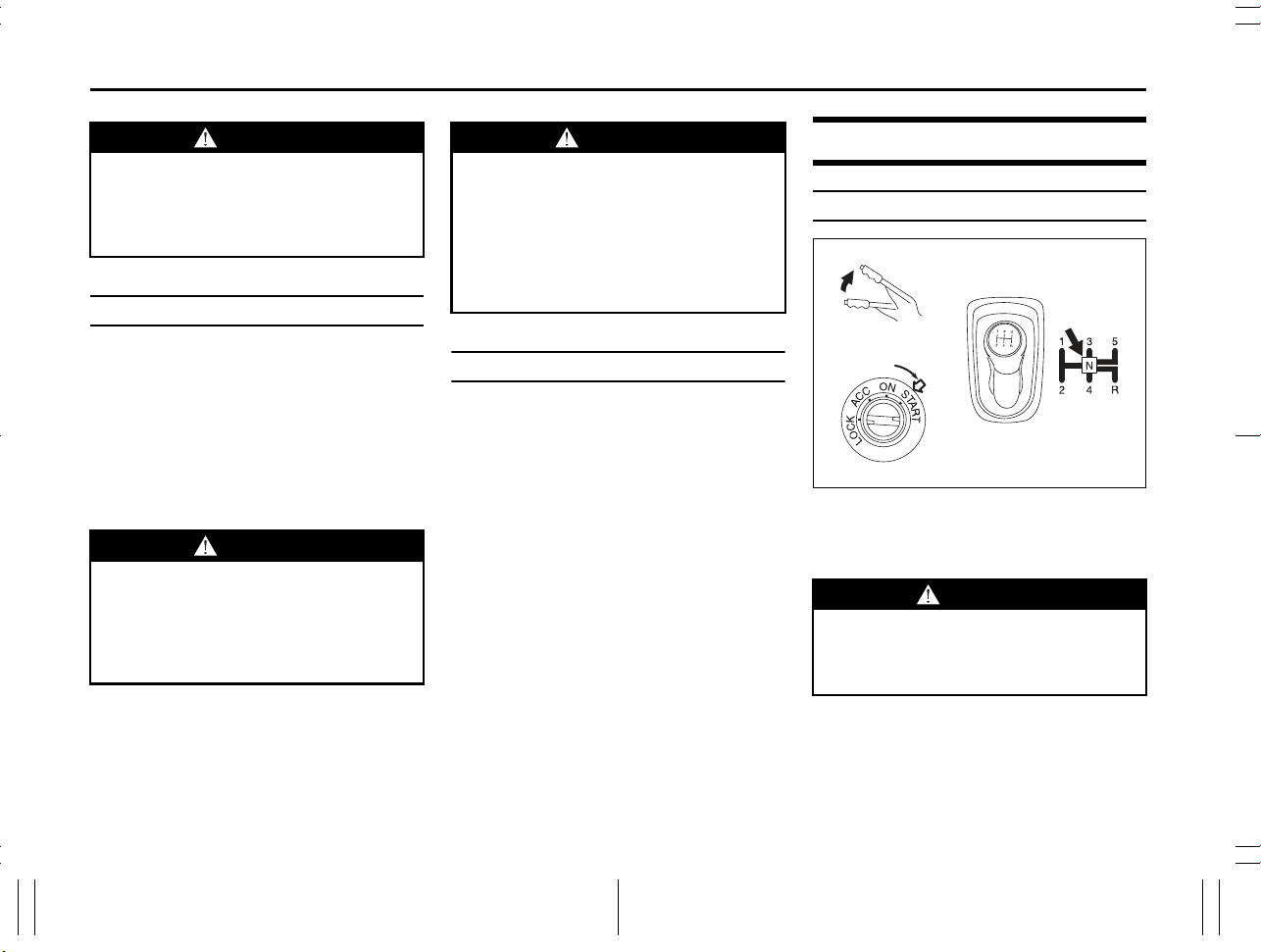

Starting the Engine
Before Starting Engine
52SS30010
1) Make sure the parking brake is set fully.
2) Shift into “N” (Neutral). Hold the clutch pedal and brake pedal fully depressed.
WARNING
Make sure that the parking brake is set fully and the transmission is in Neutral before attempting to start the engine.
3-6
52SS0-01E
Page 72
OPERATING YOUR VEHICLE
Starting a Cold and Warm Engine
With your foot taken off the accelerator pedal, crank the engine by turning the igni­tion key to “START”. Release the key when the engine starts.
NOTICE
• Stop turning the starter immedi­ately after the engine has started or the starter system can be damaged.
• For protection of a lead-acid bat­tery and a starter motor, do not use the starter motor by turning the key to “START” for more than 12 sec­onds at a time. If the engine does not start, turn the key to “LOCK” position and wait for more than 30 seconds before trying again. If the engine does not start after several attempts, consult a SUZUKI dealer or a qualified workshop.
Using the Transmission
WARNING
Do not hang any items on the gear­shift lever and do not use the gear­shift lever as a handrest. Otherwise, it could prevent proper operation of the gearshift lever and cause its mal­function, resulting in an accident.
Manual Transmission
Starting off
To start off, depress the clutch pedal all the way to the floor and shift into 1st or 2nd gear. After releasing the parking brake, gradually release the clutch pedal. When you hear a change in the engine’s sound, slowly press the accelerator while continu­ing to gradually release the clutch pedal.
NOTE: Starting the vehicle in 2nd gear helps con­serve fuel. However, use 1st gear when starting in a loaded or upslope condition.
Shifting
All forward gears are synchronized, which provides for quiet and easy shifting. Always depress the clutch pedal all the way to the floor before shifting gears.
3-7
52SS30020
52SS0-01E
Page 73

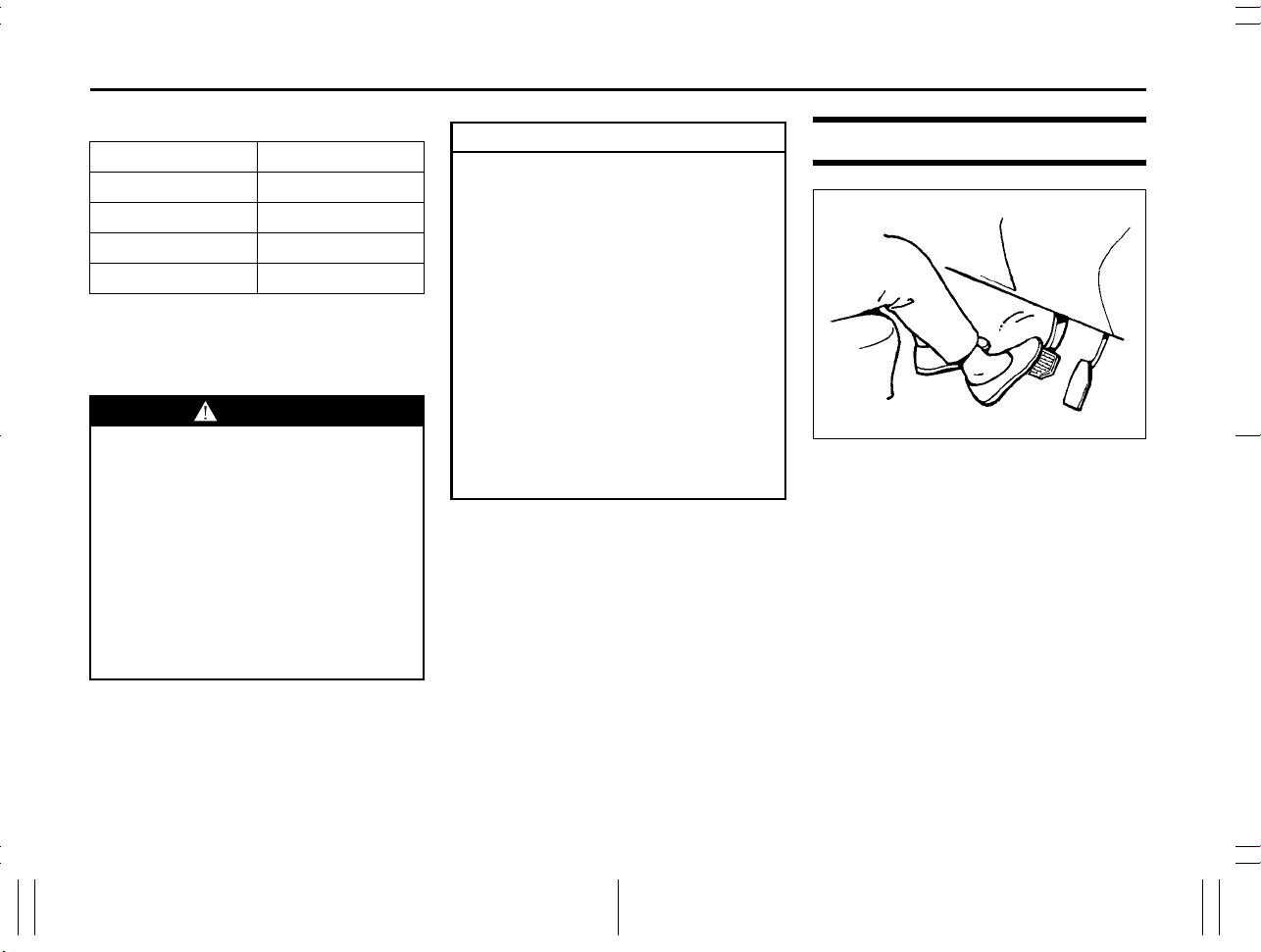

Downshifting maximum allowable speeds
Downshifting km/h (mph)
2nd to 1st 15 (10)
3rd to 2nd 60 (35)
4th to 3rd 85 (50)
5th to 4th 130 (80)*
*NOTE: You may not accelerate to the maximum allowable speed because of the driving sit­uation and/or the vehicle condition.
WARNING
• Reduce your speed and downshift to a lower gear before going down a long or steep hill. A lower gear will allow the engine to provide braking. Avoid riding the brakes or they may overheat, resulting in brake failure.
• When driving on slippery roads, slow down before downshifting. Excessive and/or sudden changes in engine speed may cause loss of traction, which could cause you to lose control.
NOTICE
• Do not downshift to a lower gear at the speed faster than the maximum allowable speeds for the next lower speed, or severe damage to engine and transmission can result.
• Make sure that the vehicle is com­pletely stationary before you shift into “R” (Reverse).
• To help avoid clutch damage, do not use the clutch pedal as a foot­rest while driving or use the clutch to keep the vehicle stationary on a slope. Depress the clutch fully when shifting.
• When shifting or starting off, do not race the engine. Racing the engine can shorten engine life and cause negative effect to smooth shifting.
OPERATING YOUR VEHICLE
Braking
60G165S
The distance needed to bring any vehicle to a halt increases with the speed of the vehicle. The braking distance needed, for example, at 60 km/h (37 mph) will be approximately 4 times greater than the braking distance needed at 30 km/h (19 mph). Start to depress the brake pedal when there is plenty of distance between your vehicle and the stopping point, and slow down gradually.
3-8
52SS0-01E
Page 74
OPERATING YOUR VEHICLE
WARNING
If water gets into the brake devices, brake performance may become poor and unpredictable. After driving through water or washing the under­side of the vehicle, test the brakes while driving at a slow speed to see if they have maintained their normal effectiveness. If the brakes are less effective than normal, dry them by repeatedly applying the brakes while driving slowly until the brakes have regained their normal effectiveness.
Power-assisted Brakes
Your vehicle has power-assisted brakes. If power assistance is lost due to a stalled engine or other failures, the system is still fully operational on reserve power and you can bring the vehicle to a complete stop by pressing the brake pedal once and holding it down. The reserve power is partly used up when you depress the brake pedal and reduces each time the pedal is pressed. Apply smooth and even pressure to the pedal. Do not pump the pedal.
WARNING
Even without reserving power in the brake system, you can still stop the vehicle by pressing the brake pedal harder than normally required. How­ever, the stopping distance may be longer.
Brake Assist System (if equipped)
When you slam the brakes on, the brake assist system determines it to be an emer­gency stop and provides more powerful braking for a driver who cannot hold down the brake pedal firmly.
NOTE: If you quickly and forcefully depress the brakes, you may hear a clicking sound in the brake pedal. This is normal and indi­cates that the brake assist system is acti­vated properly.
3-9
52SS0-01E
Page 75
OPERATING YOUR VEHICLE
(1) (2)
Anti-lock Brake System (ABS) (if equipped)
ABS will help you avoid skidding by elec­tronically controlling braking pressure. It will also help you maintain steering control when braking on slippery surfaces or when braking hard. The ABS works automatically, so you do not need any special braking technique. Just push the brake pedal down without pumping. The ABS will operate whenever it senses that the wheels are locking up. You may feel the brake pedal pulsates while the ABS is operating.
NOTE:
• The ABS will not work if vehicle speed is under about 9 km/h (6mph).
• If the ABS system is activated, you may hear a clunking noise and/or feel pulsat­ing in the brake pedal. This is normal and indicates that the brake fluid pres­sure is being controlled properly.
• You may hear an operation sound when you start the engine or after the vehicle begins to move. This means that the above systems are in the self-check mode. This sound does not indicate a malfunction.
WARNING
• On some types of loose surfaces (such as gravel, snow-covered roads, etc.), the stopping distance required for a vehicle with ABS may be slightly greater than the one required for a comparable vehi­cle with a conventional brake sys­tem. With a conventional brake system, skidding tyres are able to plow the gravel or snow layer, shortening the stopping distance. ABS minimizes this resistance effect. Allow for extra stopping dis­tance when driving on loose sur­faces.
• On regular paved roads, some driv­ers may be able to obtain slightly shorter stopping distances with conventional brake systems than with ABS.
• In both of the above conditions, ABS will still offer the advantage of helping you maintain directional control. However, remember that ABS will not compensate for bad road or weather conditions or poor driver judgment. Use good judg­ment and do not drive too fast.
54MN069
(1) ABS warning light (2) Brake system warning light
WARNING
• If the ABS warning light (1) on the instrument cluster comes on and stays on while driving, there may be a problem with the ABS system. Ask a SUZUKI dealer or a qualified workshop to inspect the ABS sys­tem immediately. If the ABS system becomes inoperative, the brake system will function as an ordinary brake system that has no ABS.
(Continued)
3-10
52SS0-01E
Page 76
OPERATING YOUR VEHICLE
WARNING
(Continued)
• If the ABS warning light (1) and the brake system warning light (2) on the instrument panel simultane­ously stay on or come on while driving, both anti-lock function and rear brake force control function (proportioning valve function) of the ABS system may have failed. If so, the rear wheels may easily skid or the vehicle can even spin in the worst case when braking on a slip­pery road or when hard braking even on a dry paved road. Ask a SUZUKI dealer or a qualified work­shop to inspect the ABS system immediately. Drive carefully, avoid­ing hard braking as much as possi­ble.
How the ABS Works
A computer continuously monitors wheel speed. The computer compares the changes in wheel speed when braking. If the wheels slow suddenly, indicating a skidding situation, the computer will change braking pressure several times each second to prevent the wheels from locking. When you start your vehicle or when you accelerate after a hard stop, you may hear a momentary motor or clicking noise as the system resets or checks itself.
WARNING
The ABS may not work properly if tyres or wheels other than those specified in the owner’s manual are used. This is because the ABS works by comparing changes in wheel speed. When replacing tyres or wheels, use only the size and type specified in this owner’s manual.
Electronic Stability Program (ESP®) (if equipped)
ESP® is a registered trademark of Daimler AG.
The Electronic Stability Program (ESP®) helps to control the vehicle during corner­ing if front wheels or rear wheels skid. It also assists you in maintaining traction while accelerating on loose or slippery road surfaces. It does this by regulating the engine’s output, and by selectively applying the brakes. In addition, ESP helps to avoid skidding by controlling brak­ing pressure.
WARNING
The ESP® cannot enhance the vehi­cle’s driving stability in all situations and does not control your vehicle’s entire braking system. The ESP® can­not prevent accidents, including those resulting from excessive speed in turns, or hydroplaning. Only safe and attentive drive can prevent acci­dents. The capabilities of an ESP®­equipped vehicle must never be used as a substitute for careful driving.
®
3-11
52SS0-01E
Page 77
OPERATING YOUR VEHICLE
The ESP® totally manages the following four systems, to help enhance vehicle sta­bility in response to various driving condi­tions;
Stability Control System
The vehicle stability control system helps provide integrated control of systems such as anti-lock brakes, traction control, engine control, etc. This system automatically controls the brakes and engine to help pre­vent the vehicle from skidding when cor­nering on a slippery road surface or when turning the steering wheel abruptly.
Traction Control System
The traction control system automatically helps prevent the spinning of wheels when the vehicle is started or accelerated on slippery road surfaces. The system oper­ates only if it senses that some of the wheels are spinning or beginning to lose traction. When this happens, the system operates the front or rear brakes and reduces engine power to limit wheel spin.
NOTE: You may hear an operation sound when you start the engine or after the vehicle begins to move. This means that the above systems are in the self-check mode. This sound does not indicate a malfunc­tion.
Anti-lock Brake System (ABS)
Refer to “Anti-lock Brake System (ABS) (if equipped)” in “Braking” section.
Brake Assist System
Refer to “Brake Assist System (if equipped)” in “Braking” section.
WARNING
• The ESP® may not work properly if tyres or wheels other than those specified in the owner’s manual are used. When replacing tyres or wheels, use only the size and type specified in this owner’s manual.
• The ESP® may not work properly if tyres are not inflated to the recom­mended tyre pressure.
• The ESP® may not work properly if tyres are fitted with snow chains.
• The ESP® may not work properly if the tyres are excessively worn. Replace tyres when the tread wear indicators in the grooves appear on the tread surface.
• The ESP® is not a substitute for winter tyres or snow chains on a snow-covered road.
• The ESP® may not work properly if engine related parts such as the muffler are not equivalent to stan­dard equipment or are extremely deteriorated.
• Do not modify the vehicle’s sus­pension since the ESP® may not work properly.
3-12
52SS0-01E
Page 78
OPERATING YOUR VEHICLE
NOTE:
• If the ESP® system is activated, you may hear a clunking noise and/or feel pulsat­ing in the brake pedal. This is normal and indicates that the brake fluid pres­sure is being controlled properly.
• You may hear an operation sound when you start the engine or after the vehicle begins to move. This means that the above systems are in the self-check mode. This sound does not indicate a malfunction.
The lights related to ESP
®
system are
described below:
ESP® Warning Light
52KM133
This light blinks 5 times per second when one of the following systems is activated.
• Stability control system
• Traction control system
If this light blinks, drive carefully.
When the ignition switch is turned “ON”, this light comes on briefly so you can check that the light is working.
NOTICE
If the ESP® warning light comes on and stays on while driving, there may be a malfunction of the ESP® sys­tems (other than ABS). You should have the systems inspected by a SUZUKI dealer or a qualified work­shop.
NOTE: When the ESP® warning light comes on and stays on while driving, indicating a malfunction of the ESP® systems (other than ABS), the brake system will function as an ordinary ABS with no additional ESP® functions.
ESP® OFF Indicator Light
73R0196
You should turn the ESP® on during your ordinary driving, so that you have the ben­efits of all of the ESP
It may be required to turn the ESP® sys­tems (other than ABS) off if your vehicle is stuck in sand, mud or snow, where wheel spin is necessary.
NOTE: If the vehicle speed is greater than approx­imately 30 km/h (19 mph), the ESP tems (other than ABS) will be activated automatically and the light will go out.
®
systems.
®
sys-
3-13
52SS0-01E
Page 79
OPERATING YOUR VEHICLE
(1)
ESP® OFF Switch
52SS300
(1) ESP® OFF switch
When the ESP® OFF switch located at the instrument panel is pushed and held to turn off the ESP® systems (other than ABS), the ESP® OFF indicator light in the instrument cluster comes on. When you have turned the ESP® systems (other than ABS) off, turn them back on before resuming ordinary driving. When you push the ESP® OFF switch again, the ESP® OFF indicator light will go out and all of the ESP® systems will be activated.
Anti-lock Brake System (ABS) Warning Light / Brake System Warning Light
See “Braking” in this section.
Tyre Pressure Monitoring System (TPMS) (if equipped)
The tyre pressure monitoring system is designed to alert you when one or more of the tyres on your vehicle is significantly under-inflated. The tyre pressure monitor­ing system (TPMS) sensor containing a unique identification code is mounted on each wheel. The TPMS sensors transmit tyre pressure signals to the receiver of the tyre pressure monitoring system controller. When the inflation pressure of one or more tyres indicates significant under-inflation, the low tyre pressure warning light comes on.
NOTE: The word “telltale” in this section, means an indicator.
3-14
52SS0-01E
Page 80
OPERATING YOUR VEHICLE
Low Tyre Pressure Warning Light
52D305
Each tyre should be checked monthly when cold and inflated to the inflation pres­sure recommended by the vehicle manu­facturer on the vehicle placard or tyre pressure label. (If your vehicle has tyres of a different size than the size indicated on the vehicle placard or tyre pressure label, you should determine the proper tyre pres­sure for those tyres.) As an added fuel efficiency feature, your vehicle has been equipped with a tyre pressure monitoring system (TPMS) that illuminates a low tyre pressure telltale when one or more of your tyres is signifi­cantly under-inflated. Accordingly, when the low tyre pressure telltale illuminates, you should stop and check your tyres as soon as possible, and inflate them to the proper pressure. Driving on a significantly under-inflated tyre causes the tyre to overheat and can lead to tyre failure. Under-inflation also reduces fuel efficiency and tyre tread life, and may affect the vehicle’s handling and stopping ability.
Please note that the TPMS is not a substi­tute for proper tyre maintenance, and it is the driver’s responsibility to maintain cor­rect tyre pressure, even if under-inflation has not reached the level to trigger illumi­nation of the TPMS low tyre pressure tell­tale.
WARNING
• Relying only on the tyre pressure monitoring system to determine when it is necessary to add air to the tyres can result in loss of con­trol or an accident.
• Check tyre pressures monthly when the tyres are cold. If neces­sary, adjust them to the recom­mended inflation pressure as specified on the vehicle’s tyre information placard and in this owner’s manual. Refer to “Tyres” in “INSPECTION AND MAINTE­NANCE” section.
(Continued)
WARNING
(Continued)
• Failure to take corrective action when the low tyre pressure warn­ing light is not working or when it comes on and blinks while driving can lead to an accident.
• If the low tyre pressure warning light does not come on for 2 sec­onds after the ignition switch is turned to “ON” position, or comes on and blinks while driving, have your vehicle inspected by a SUZUKI dealer. Even if the light turns off after blinking, indicating that the monitoring system has recovered, you should still have the system checked by a SUZUKI dealer.
(Continued)
3-15
52SS0-01E
Page 81
WARNING
(Continued)
• The load-carrying capacity of your tyres is reduced at lower inflation pressures. If your tyres are even moderately under-inflated, the load on the tyres may exceed the load­carrying capacity of the tyres, which could lead to tyre failure. The low tyre pressure warning light will not alert you to this condition, because it only comes on when one or more of your tyres becomes significantly under-inflated.
Check and adjust your tyre pres­sure at least once a month. Refer to “Tyres” in “INSPECTION AND MAINTENANCE” section.
(Continued)
WARNING
(Continued)
• Continuing to drive with the low tyre pressure warning light on can lead to an accident, resulting in severe injury or death.
• If the low tyre pressure warning light comes on and stays on, reduce your speed and avoid abrupt steering and braking. Be aware that driving on a signifi­cantly under-inflated tyre can cause the tyre to overheat and can lead to tyre failure, and may affect steering control and brake effec­tiveness. Stop in a safe place as soon as possible and check your tyres. – If you have a flat tyre, replace it
with the spare tyre. Refer to “Jacking Instructions” in “EMER­GENCY SERVICE” section for the tyre replacement method. Also refer to “Replacing Tyres and/or Wheels” for instructions on how to restore normal operation of the TPMS after you have had a flat tyre.
– If one or more of your tyres is
under-inflated, adjust the infla­tion pressure in all of your tyres to the recommended inflation pressure as soon as possible.
OPERATING YOUR VEHICLE
The low tyre pressure warning light can come on due to normal causes such as natural air leakage and pressure changes caused by changes in temperature or atmospheric pressure. Adjusting the air pressure in the tyres to the pressure shown on the tyre information placard should cause the low tyre pressure warn­ing light to turn off.
To make the low tyre pressure warning light go off, adjust the tyre pressures when the tyres are cold, and drive the vehicle for about 10 minutes.
NOTICE
If the low tyre pressure warning light does not go off even when you drive for more than 10 minutes after adjust­ing the cold tyre pressure, there may be a problem with the TPMS. Have your vehicle inspected by a SUZUKI dealer.
If the light turns on again shortly after adjusting the pressure in your tyres, you may have a flat tyre. If you have a flat tyre, replace it with the spare tyre. Refer to “Jacking Instructions” in “EMER­GENCY SERVICE” section. Refer to “Replacing Tyres and/or Wheels” for instructions on how to restore normal oper­ation of the tyre pressure monitoring sys­tem after you have had a flat tyre.
3-16
52SS0-01E
Page 82
OPERATING YOUR VEHICLE
TPMS Limitations
The tyre pressure monitoring system may not function properly under certain circum­stances. In the following situations, the low tyre pressure warning light may come on and remain on or may blink.
• When you replace a flat tyre with the spare tyre.
• When you include a spare tyre during a tyre rotation.
• When the TPMS sensor is damaged during a tyre replacement or liquid seal­ants are used to repair a flat tyre.
• When the electronic signal of TPMS sen­sor is disturbed in one of the following ways: – Electric devices or facilities using simi-
lar radio wave frequencies are nearby.
– A metallic film that may cause radio
wave interference is attached on the window.
– A lot of snow or ice covers the vehicle,
in particular, around the wheels or wheel housings.
– Snow tyres that are not installed with
genuine TPMS sensors or snow chains are used.
• When you use non-genuine SUZUKI wheels or tyres.
• When the pressure of any tyre is too high.
• When there is a problem with the receiver of the TPMS controller.
TPMS Setting
You can set one of the initial value of tyre pressure below that is indicated on the tyre information label.
• Comfort Mode
• Load Mode
For details on how to set the mode, refer to “Setting Mode (for Vehicles with Tyre Pres­sure Monitoring System (TPMS))” in “BEFORE DRIVING” section.
WARNING
If the loading weight has changed, adjust the tyre pressure according to the tyre information label and set the initial value via the information dis­play. If the loading weight, tyre pres­sure and initial value do not match, the tyre pressure monitoring system will not function properly.
Replacing Tyres and/or Wheels
If you got a flat tyre and replaced it with the spare tyre, SUZUKI recommends that you have a SUZUKI dealer mount a new tyre on the wheel that had the flat tyre. The TPMS is already set up to recognize the ID code of the original wheel, and normal TPMS operation will be restored.
If you need to replace any wheels on your vehicle, a SUZUKI dealer must check that TPMS sensors are installed in the new wheels and must set up the TPMS to rec­ognize the new sensors.
NOTE: A TPMS sensor is not installed in the spare tyre. You should use the spare tyre only in an emergency situation, and should replace the spare tyre as soon as possible to restore normal TPMS operation.
WARNING
Use of tyres or wheels not recom­mended by SUZUKI can result in fail­ure of the TPMS. When replacing tyres and wheels, use only tyres and wheels recom­mended by SUZUKI as standard or optional equipment for your vehicle. Refer to “Tyres” in “INSPECTION AND MAINTENANCE” section for additional information.
3-17
52SS0-01E
Page 83
60G409
DRIVING TIPS
DRIVING TIPS
Running-in ........................................................................... 4-1
Catalytic Converter ............................................................. 4-1
Improving Fuel Economy ................................................... 4-2
Highway Driving .................................................................. 4-3
Driving on Hills .................................................................... 4-4
Driving on Slippery Roads ................................................. 4-5
Off-road Driving ................................................................... 4-6
When Encountering a Flooded Area ................................. 4-7
4
52SS0-01E
Page 84

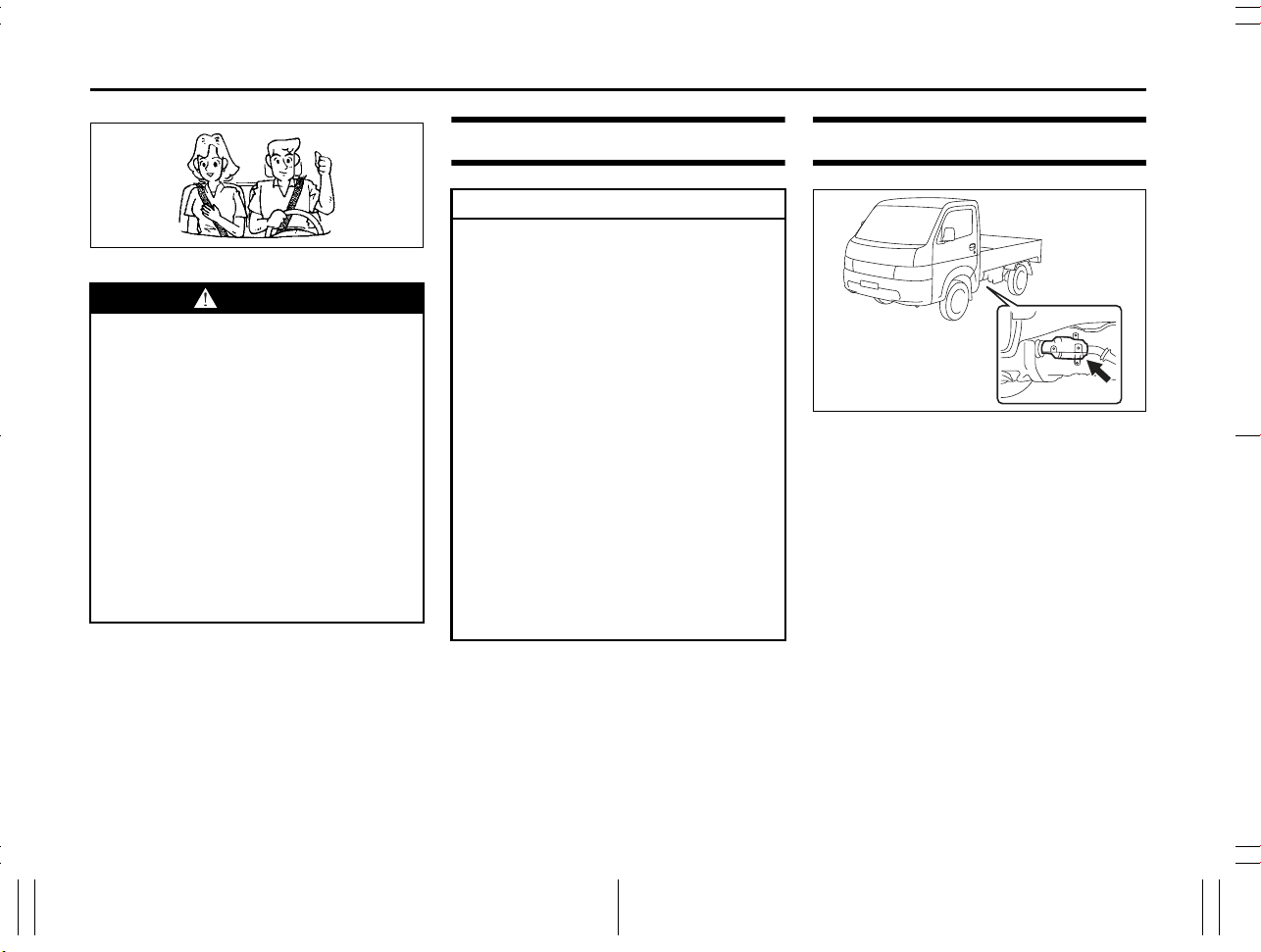

DRIVING TIPS
52D078S
WARNING
• Fasten Your Seat Belts at All Times. The driver and all passengers should be properly restrained at all times, using the seat belts pro­vided. Refer to “Seat Belts” section for instructions on proper use of the seat belts.
• Never drive under the influence of alcohol or other drugs. Alcohol and drugs can seriously impair your ability to drive safely, greatly increasing the risk of injury to yourself and others. You should also avoid driving when you are tired, sick, irritated, or under stress.
Running-in Catalytic Converter
NOTICE
The future performance and reliabil­ity of the engine depends on the care and restraint exercised during its early life. It is especially important to observe the following precautions during the first 960 km (600 miles) of vehicle operation.
• After starting, do not race the engine. Warm it up gradually.
• Avoid prolonged vehicle operation at a constant speed. Moving parts will break in better if you vary your speed.
• Start off from a stop slowly. Avoid full throttle starts.
• Avoid hard braking, especially during the first 320 km (200 miles) of driving.
• Do not drive slowly with the trans­mission in a high gear.
• Drive the vehicle at moderate engine speeds.
The purpose of the catalytic converter is to minimize the amount of harmful pollutants in your vehicle’s exhaust. Use of leaded fuel in vehicles equipped with catalytic converters is prohibited, because lead deactivates the pollutant-reducing compo­nents of the catalyst system.
The converter is designed to last the life of the vehicle under normal usage and when unleaded fuel is used. No special mainte­nance is required on the converter. How­ever, it is very important to keep the engine properly tuned. Engine misfiring, which can result from an improperly tuned engine, may cause overheating of the catalytic converter. This may result in permanent heat damage to the catalytic converter and other vehicle components.
52SS40010
4-1
52SS0-01E
Page 85
DRIVING TIPS
NOTICE
To minimize the possibility of cata­lytic converter or other vehicle dam­age:
• Maintain the engine in the proper operating condition.
• In the event of an engine malfunc­tion, particularly one involving engine misfiring or other apparent loss of performance, have the vehi­cle serviced promptly.
• Do not turn off the engine or inter­rupt the ignition when the transmis­sion is in gear and the vehicle is in motion.
• Do not try to start the engine by pushing or towing the vehicle, or coasting down a hill.
• Do not idle the engine with any spark plug wires disconnected or removed, such as during diagnos­tic testing.
• Do not idle the vehicle for pro­longed periods if idling seems rough or there are other malfunc­tions.
• Do not allow the fuel tank to get near the empty level.
• Avoid driving your vehicle at excessively high engine speed.
52SS40020
WARNING
Be careful where you park and drive; the catalytic converter and other exhaust components can get very hot. As with any vehicle, do not park or operate this vehicle in areas where combustible materials such as dry grass or leaves can come in contact with a hot exhaust system.
Improving Fuel Economy
The following instructions will help you improve fuel economy.
Avoid excessive idling
If you park your vehicle for more than one minute, stop the engine and start it again later. When warming up a cold engine, do not allow the engine to idle or apply full throttle until the engine has reached oper­ating temperature. Allow the engine to warm up by driving.
Avoid fast starts
Fast starts away from lights or stop signs will consume fuel unnecessarily and shorten engine life. Start off slowly.
Avoid unnecessary stops
Avoid unnecessary deceleration and stop­ping. Try to maintain a moderate, steady speed whenever possible. Slowing down and then accelerating again uses more fuel.
Keep a steady cruising speed
Drive at a constant speed that road and traffic conditions will permit.
4-2
52SS0-01E
Page 86

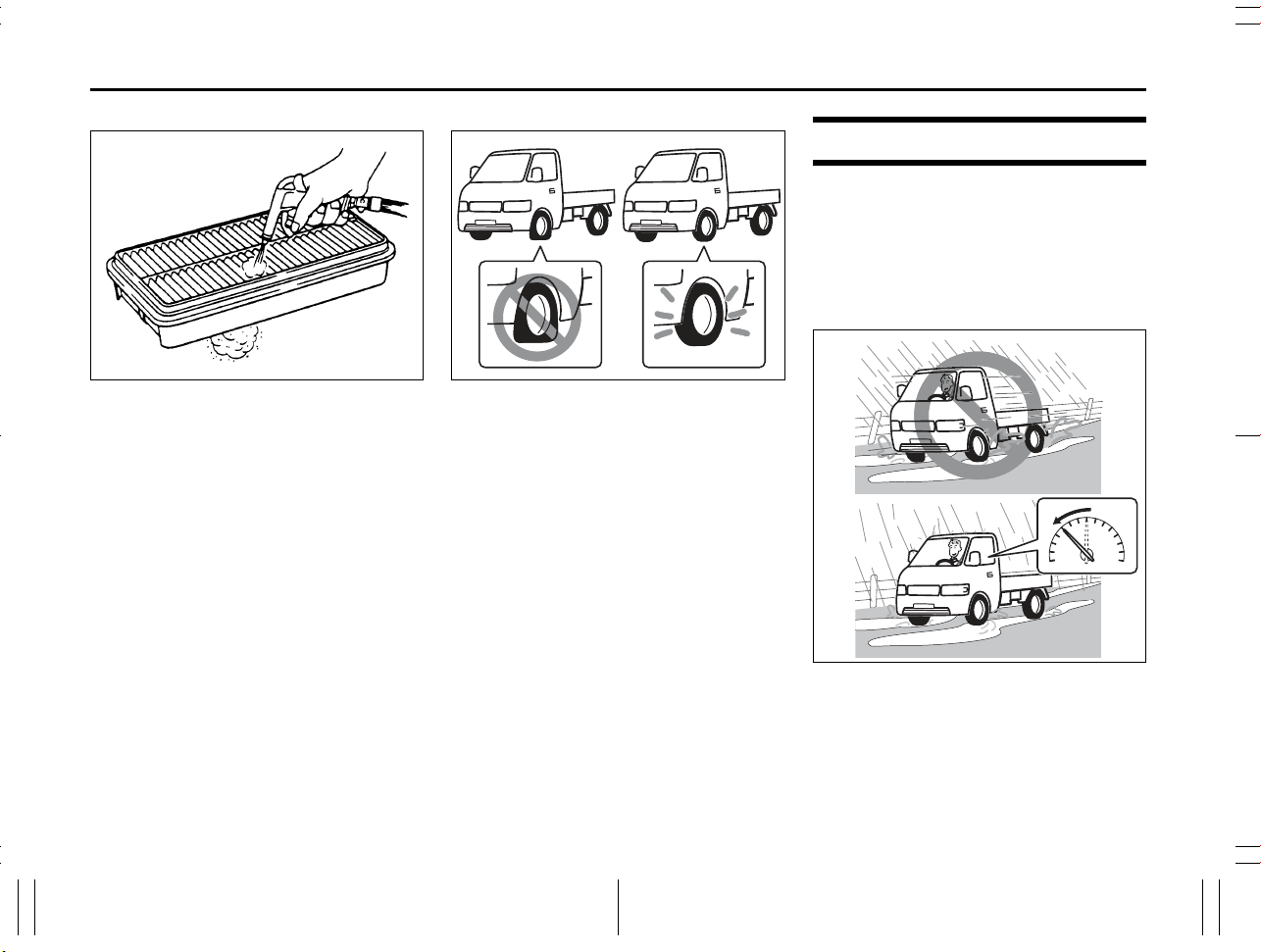

DRIVING TIPS
Keep the air cleaner clean
60A183S
If the air cleaner is clogged with dust, there will be greater intake resistance, resulting in decreased power output and increased fuel consumption.
Keep weight to a minimum
The heavier the load is, the more fuel the vehicle consumes. Unload any unneces­sary luggage or cargo.
Keep tyre pressures correct
Highway Driving
When driving at highway speeds, pay attention to the following:
• Stopping distance progressively increases with vehicle speed. Apply the brakes far enough ahead of the stopping point to allow for the extra stopping dis­tance.
52SS40070
Under-inflation of the tyres can waste fuel due to increased rolling resistance of the tyres. Keep your tyres inflated to the cor­rect pressure shown in the label on driver’s door lock pillar.
52SS4001E
• On rainy days, hydroplaning can occur. Hydroplaning is the loss of direct contact between the road surface and the vehi­cle’s tyres due to a water film forming between them. Steering or braking the
4-3
52SS0-01E
Page 87
vehicle during hydroplaning can be very difficult, and loss of control can occur. Keep speed down when the road sur­face is wet.

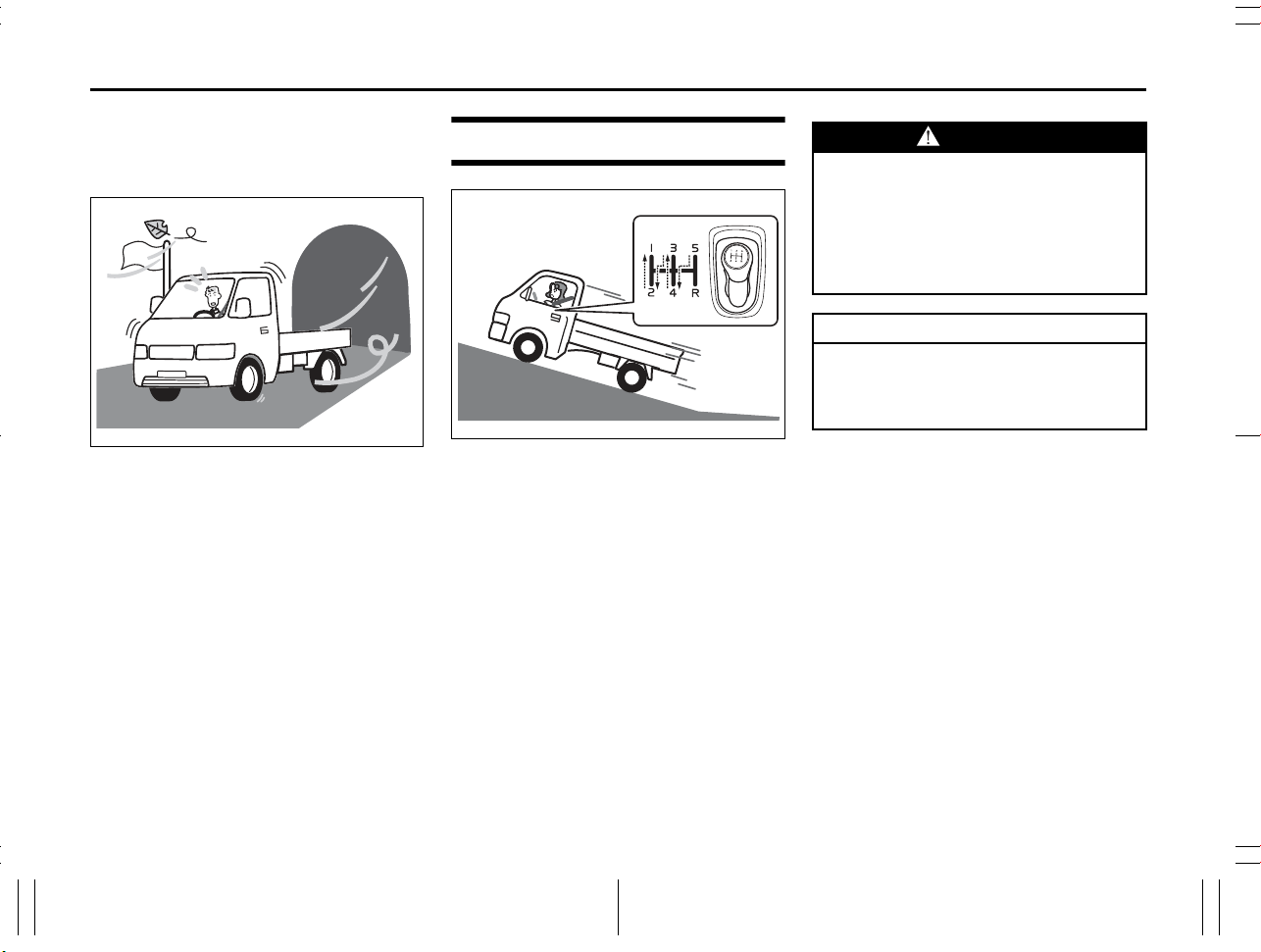

52SS4002E
• At high speeds, the vehicle may be affected by side winds. Therefore, reduce speed and be prepared for unex­pected buffeting, which can occur at the exits of tunnels, when passing by a cut of a hill, or when being overtaken by large vehicles, etc.
Driving on Hills
52SS40030
• When climbing steep hills, the vehicle may begin to slow down and show a lack of power. If this happens, you should shift to a lower gear so that the engine will again be operating in its higher power range. Shift rapidly to prevent the vehicle from losing momentum.
• When driving down a hill, the engine should be used for braking by shifting to the next lower gear.
DRIVING TIPS
WARNING
Do not hold the brake pedal down too long or too often while going down a steep or long hill. This could cause the brakes to overheat, resulting in reduced braking efficiency. Failure to take this precaution could result in loss of vehicle control.
NOTICE
When descending a downhill, Never turn the ignition key to “LOCK” posi­tion. Emission control system dam­age may result.
4-4
52SS0-01E
Page 88
DRIVING TIPS

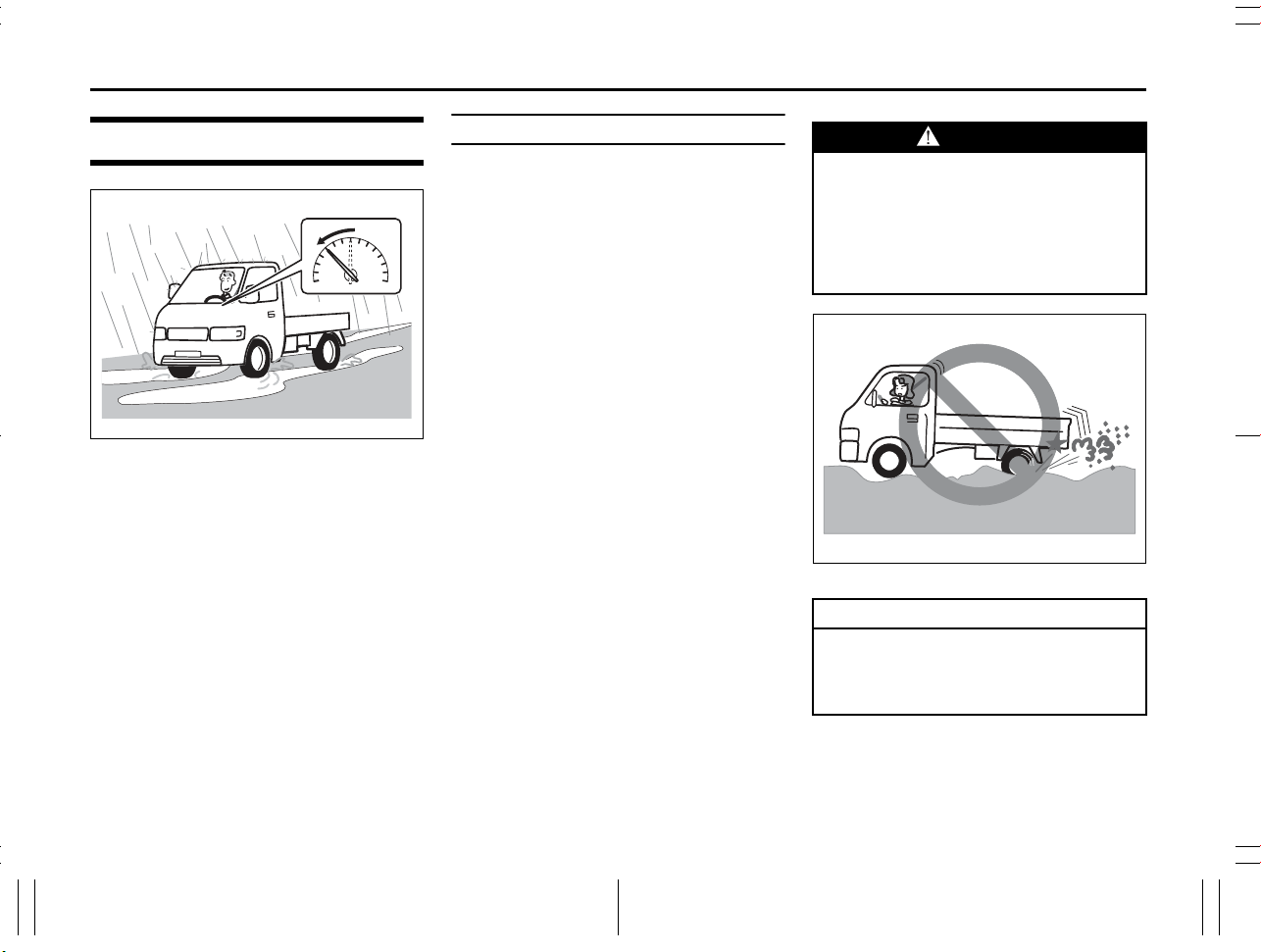

Driving on Slippery Roads
52SS4003E
On wet roads, you should drive at a lower speed than you do on dry roads due to possible slippage of tyres during braking. When driving on icy, snow-covered, or muddy roads, reduce your speed and avoid sudden acceleration, abrupt braking, or sharp steering movements.
Stuck Vehicle
If your vehicle gets stuck in snow, mud, or sand, follow the directions below:
1) Shift the transmission back and forth
between a forward range (or 1st gear) and “R” (Reverse). This will create a rocking motion which may give you enough momentum to free the vehicle. Press gently on the accelerator to keep wheel spinning to a minimum wheel rpm. Remove your foot from the accel­erator while shifting. Do not race the engine. Excessive wheel spin will cause the tyres to dig deeper, making it more difficult to free the vehicle.
NOTE: If your vehicle is equipped with the ESP®, you may have to turn the ESP® system off in order to allow spinning the wheels.
2) If your vehicle remains stuck after a few
minutes of rocking, we recommend you to consult a SUZUKI dealer or a quali­fied workshop or a roadside assistance service. If a towing service is not avail­able in an emergency, your vehicle may be temporarily towed by other vehicle with a towing cable or chain secured to the towing eye either on the front of the vehicle or on the rear of the vehicle. Refer to “Frame Hook” in “OTHER CONTROLS AND EQUIPMENT” sec­tion.
WARNING
Do not allow anyone to stand near the vehicle when you are rocking it, and do not spin the wheels faster than an indicated 40 km/h (25 mph) on the speedometer. Personal injury and/or vehicle damage may result from spinning the wheels too fast.
52SS40090
NOTICE
Do not continue rocking the vehicle for more than a few minutes. Pro­longed rocking can cause engine overheating or transmission damage.
4-5
52SS0-01E
Page 89
DRIVING TIPS

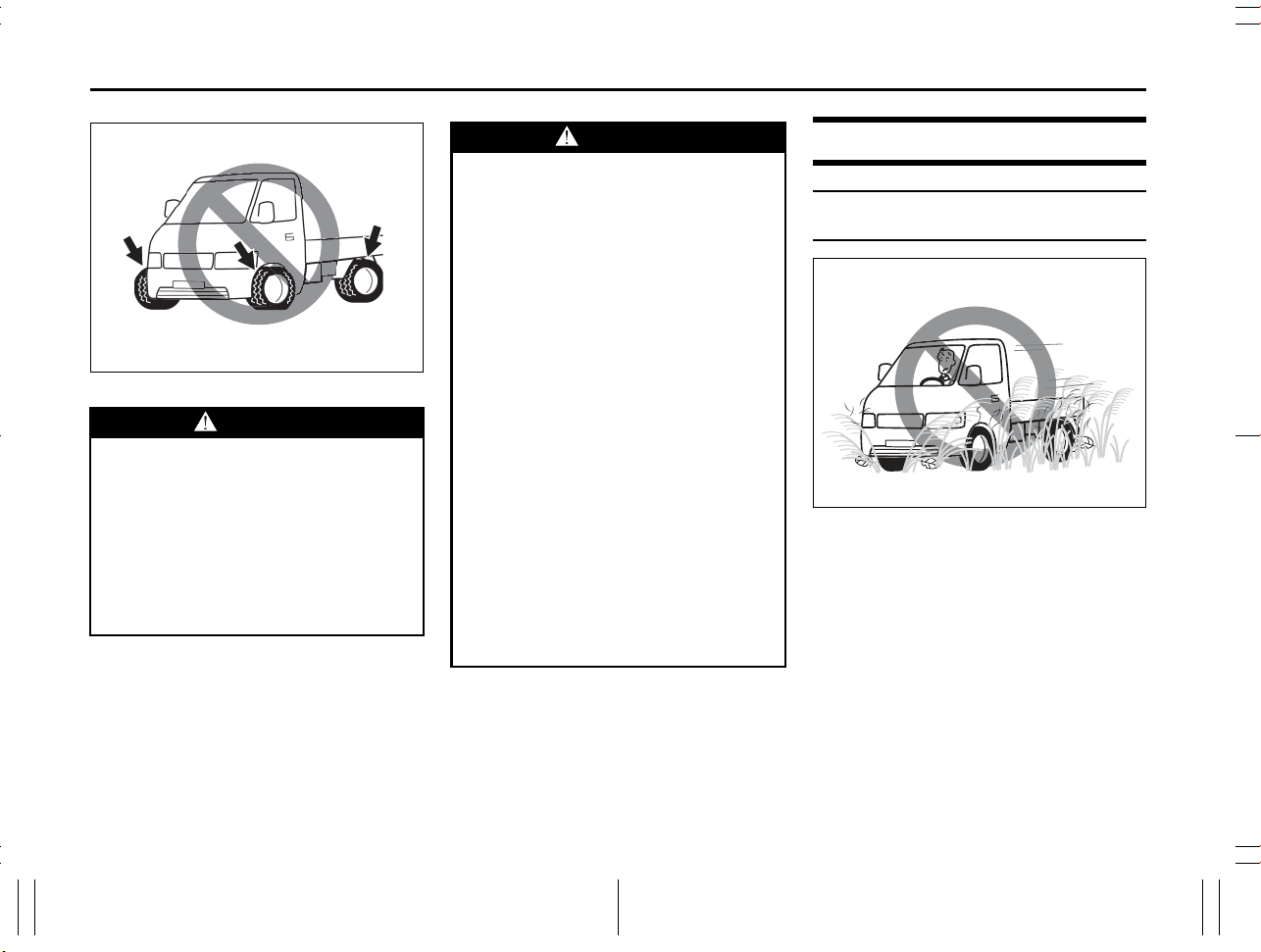

52SS40050
WARNING
In addition to following the driving tips in this section, it is important to observe the following precautions.
• Make sure your tyres are in good condition and always maintain the specified tyre pressure. Refer to “Tyres” in “INSPECTION AND MAINTENANCE” section for details.
(Continued)
WARNING
(Continued)
• Do not use tyres other than those specified by SUZUKI. Never use dif­ferent sizes or types of tyres on the front and rear wheels. For informa­tion regarding the specified tyres, refer to the tyre information label located on the driver’s door lock pillar.
• Never use oversized tyres or spe­cial shock absorbers and springs to raise (jack up) your vehicle. This will change the handling character­istics. Oversized tyres may also rub against the fender over bumps, causing vehicle damage or tyre fail­ure.
• After driving through water, test the brakes while driving at a slow speed to see if they have main­tained their normal effectiveness. If the brakes are less effective than normal, dry them by repeatedly applying the brakes while driving slowly until the brakes have regained their normal effective­ness.
Off-road Driving
Do Not Drive in the Field Covered with Grown Grass
52SS4004E
If you drive in the field covered with grass, it may cause accident or vehicle damage by getting caught in grown grass.
4-6
52SS0-01E
Page 90
DRIVING TIPS

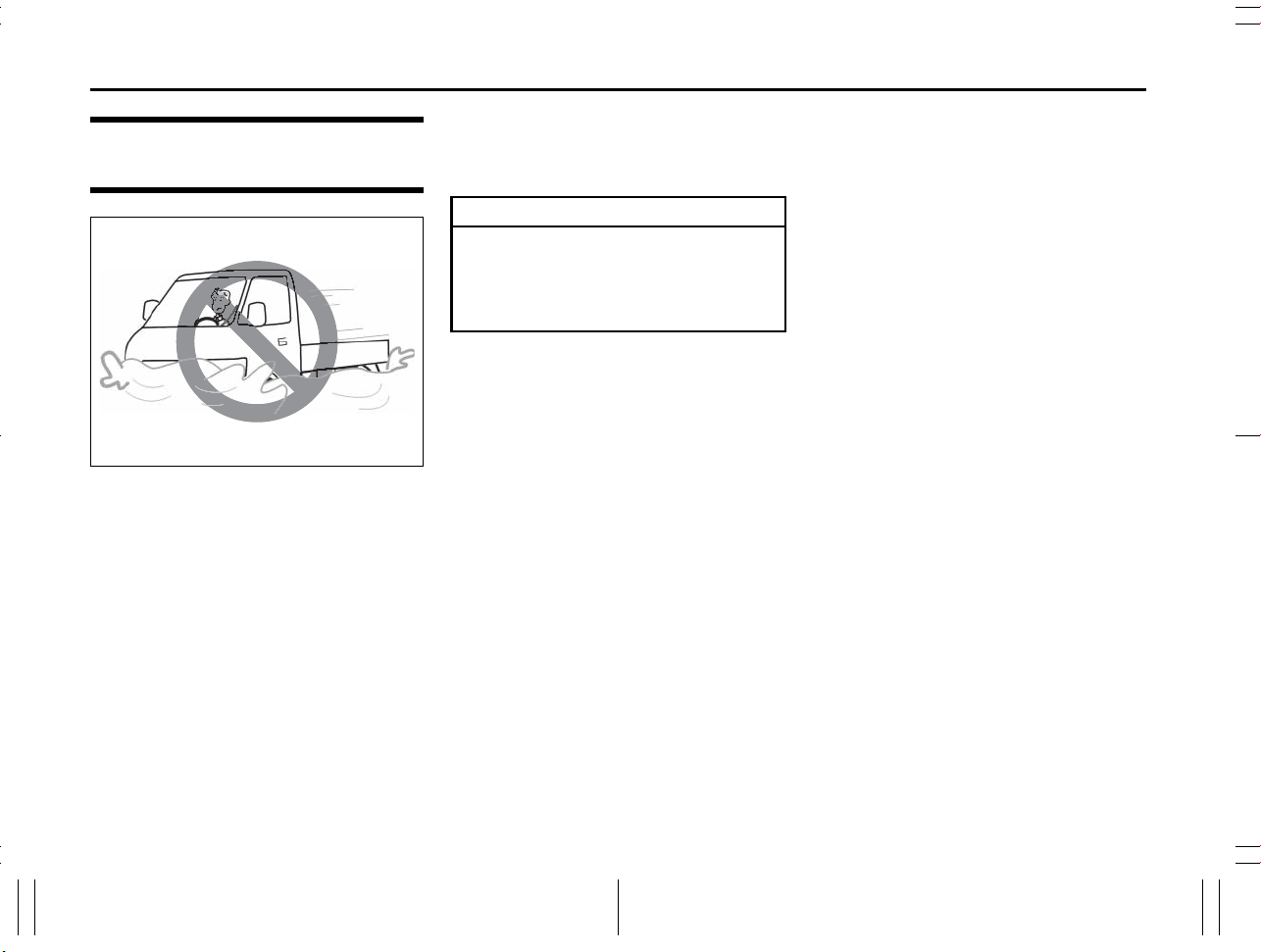

When Encountering a Flooded Area
52SS4005E
Avoid driving in a flooded area or a deep puddle. If driving in a flooded area is unavoidable, go slowly in the lowest gear. In case that you have driven in a flooded area, stop the vehicle in a safe place while checking the brake effectiveness. Then, ask a SUZUKI dealer or a qualified work­shop to check the following inspection items.
• Function of brake
• Function of electrical components
• Changes of oil level and quality for engine, transmission and differential. In case that the oil is turbid whitely, water
has been mixed in the oil and an oil change is required.
• Lubricant condition of the bearings, sus­pension joints, etc.
NOTICE
Avoid driving in a flooded area or a deep puddle. It may cause an engine stall, short in electrical components, engine and transmission damages, etc.
4-7
52SS0-01E
Page 91
60G407
OTHER CONTROLS AND EQUIPMENT
OTHER CONTROLS AND EQUIPMENT
Heating and Air Conditioning System
(Left hand drive vehicle) ..................................................... 5-1
Air Conditioning System
(Right hand drive vehicle) (if equipped) ............................ 5-7
Radio Antenna (if equipped) .............................................. 5-9
Installation of radio frequency transmitters ..................... 5-9
Audio System (if equipped) ................................................ 5-9
Fuel Filler Cap ..................................................................... 5-37
Engine Compartment .......................................................... 5-38
Sun Visor (if equipped) ....................................................... 5-40
Interior Light ........................................................................ 5-41
Accessory Socket (if equipped) ......................................... 5-41
Ride-in Assist Grip .............................................................. 5-42
Cup Holder and Storage Area ............................................ 5-42
Frame Hook ......................................................................... 5-45
5
52SS0-01E
Page 92
OTHER CONTROLS AND EQUIPMENT
(1)

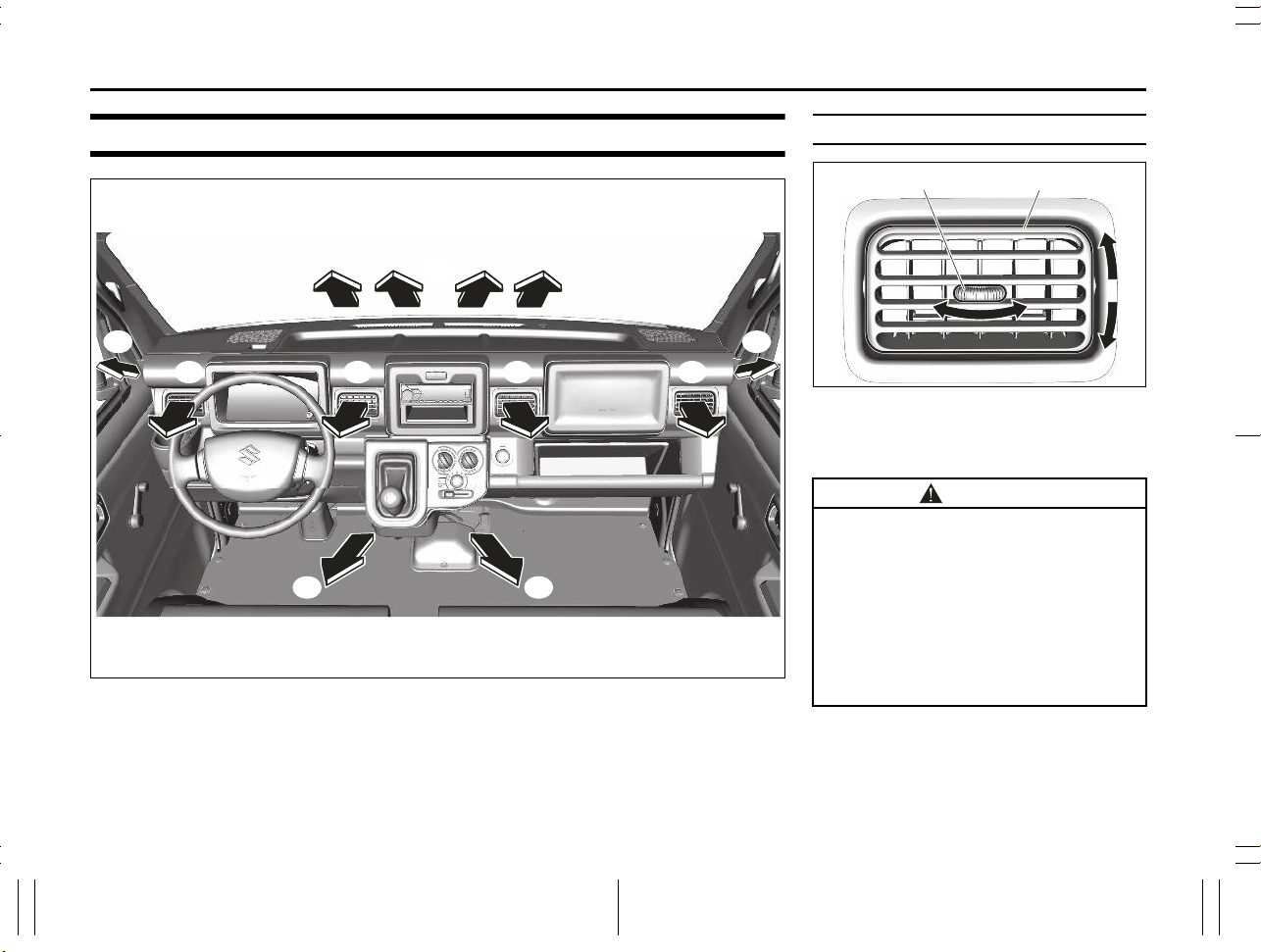

Heating and Air Conditioning System (Left hand drive vehicle)
1
252
3 3
1. Windshield defroster outlet
2. Side defroster outlet
3. Side outlet
4. Centre outlet
5. Floor outlet
44
5
52SS5001E
Air Outlet
(1)
(1)
2
Move the knob (1) horizontally or the case (2) vertically to adjust the direction of air flow as desired.
(2)
52SS50020
CAUTION
Prolonged exposure to hot air from the heater or air conditioner could result in low temperature burns. All vehicle occupants, particularly chil­dren, the elderly, those with special needs, individuals with delicate skin, and sleeping individuals, should maintain sufficient distance from the air outlets to prevent prolonged exposure to hot airflow.
5-1
52SS0-01E
Page 93
OTHER CONTROLS AND EQUIPMENT
(6)
(4)

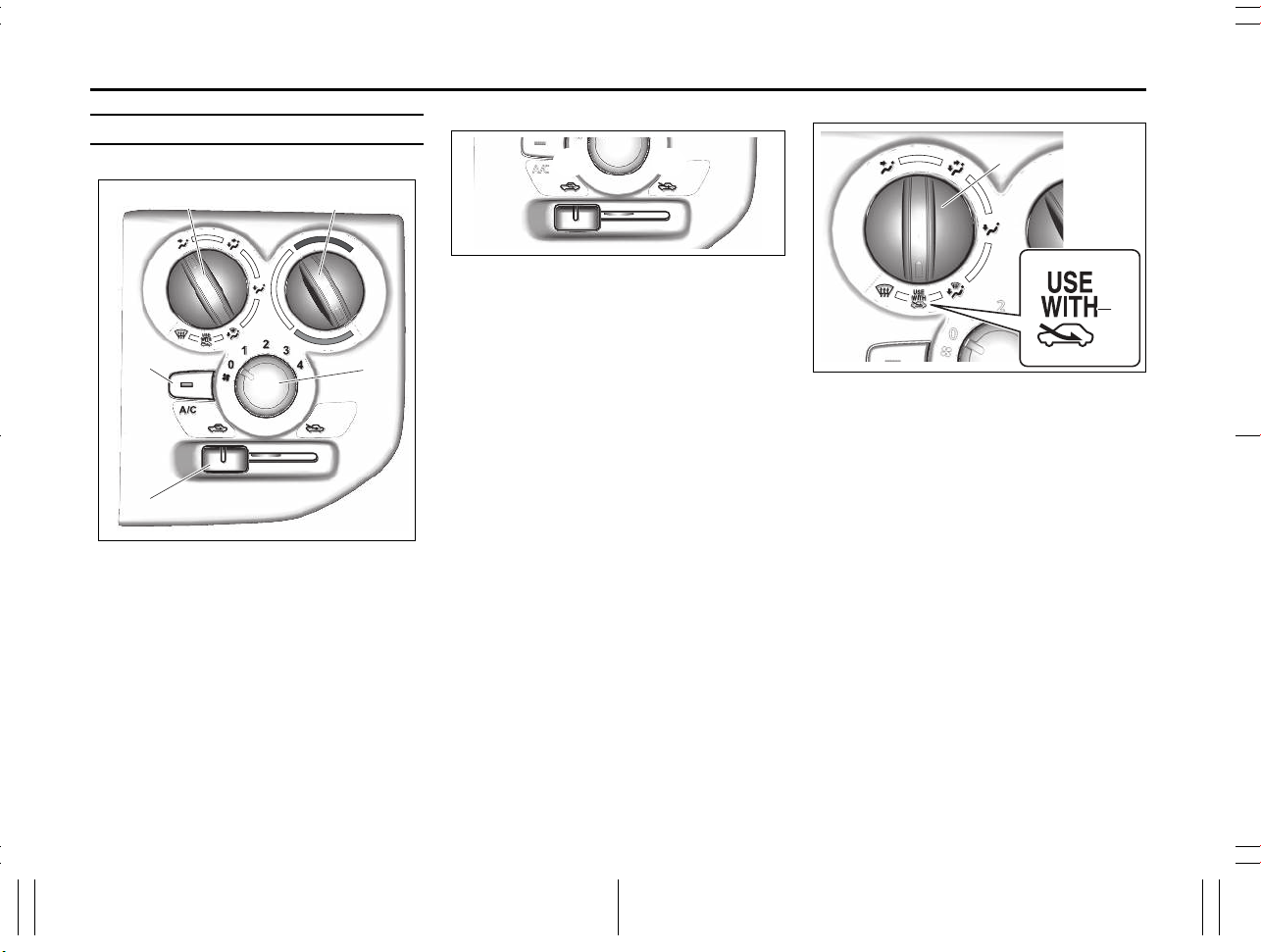

Air Conditioning System
Description of controls
(4)
(5) (2)
(3)
(1) Temperature selector (2) Blower speed selector (3) Air intake selector (4) Air flow selector (5) Air conditioning switch
Temperature selector (1)
This is used to adjust the temperature.
Blower speed selector (2)
This is used to turn on the blower and to select blower speed.
(1)
52SS5002E
Air intake selector (3)
(a)
(b)
52SS5003E
This is used to select the following modes.
RECIRCULATED AIR (a)
When this mode is selected by moving the lever to the position of (a) in the above illustration, outside air is shut out and inside air is recirculated. This mode is suit­able when driving through dusty or polluted air such as in a tunnel, or when attempting to quickly cool down or warm up the inte­rior.
FRESH AIR (b)
When this mode is selected by moving the lever to the position of (b) in the above illustration, outside air comes in.
NOTE: If you select RECIRCULATED AIR for an extended period of time, the air in the vehi­cle can become contaminated and the win­dows tend to get misted. Therefore, you should select FRESH AIR whenever possi­ble.
52SS5004E
NOTE: The mark of “USE WITH” (6) To clear fog on the windshield and/or the side windows quickly, set the air flow selector (4) to HEAT & DEFROST or DEFROST and air intake selector (3) to FRESH AIR. These positioning will clear the fogged windshield and/or the side win­dows faster than the RECIRCULATED AIR.
5-2
52SS0-01E
Page 94
OTHER CONTROLS AND EQUIPMENT
(c)
(g)
(d)
(f)
(e)

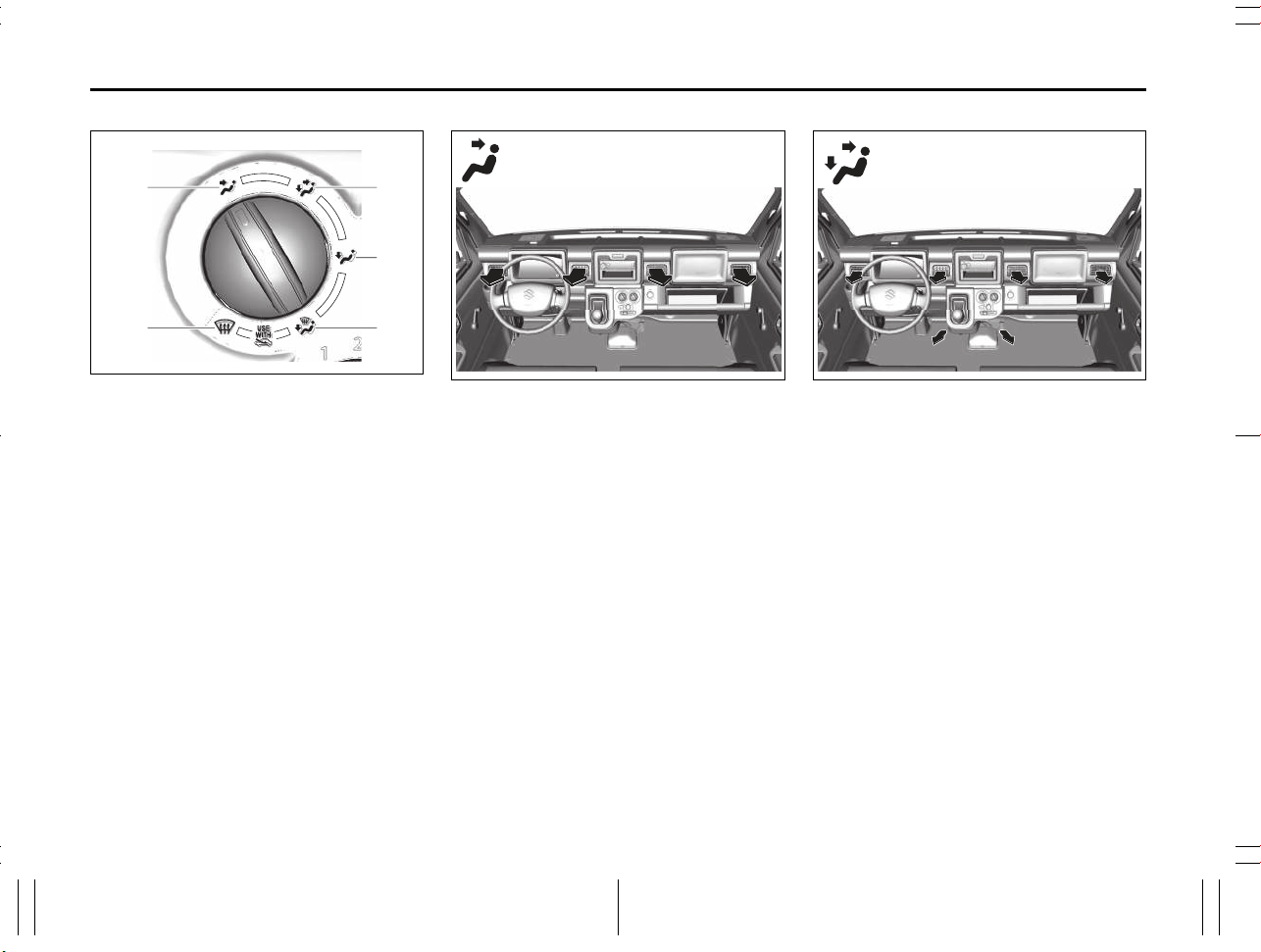

Air flow selector (4)
52SS5005E
This is used to select one of the following functions.
VENTILATION (c)
52SS5006E
Temperature-controlled air comes out of the centre and side outlets.
BI-LEVEL (d)
52SS5007E
Temperature-controlled air comes out of the floor outlets and cooler air comes out of the centre and side outlets. When the temperature selector (1) is in the fully cold position or fully hot position, however, the air from the floor outlets and the air from the centre and side outlets will be the same temperature.
5-3
52SS0-01E
Page 95
OTHER CONTROLS AND EQUIPMENT

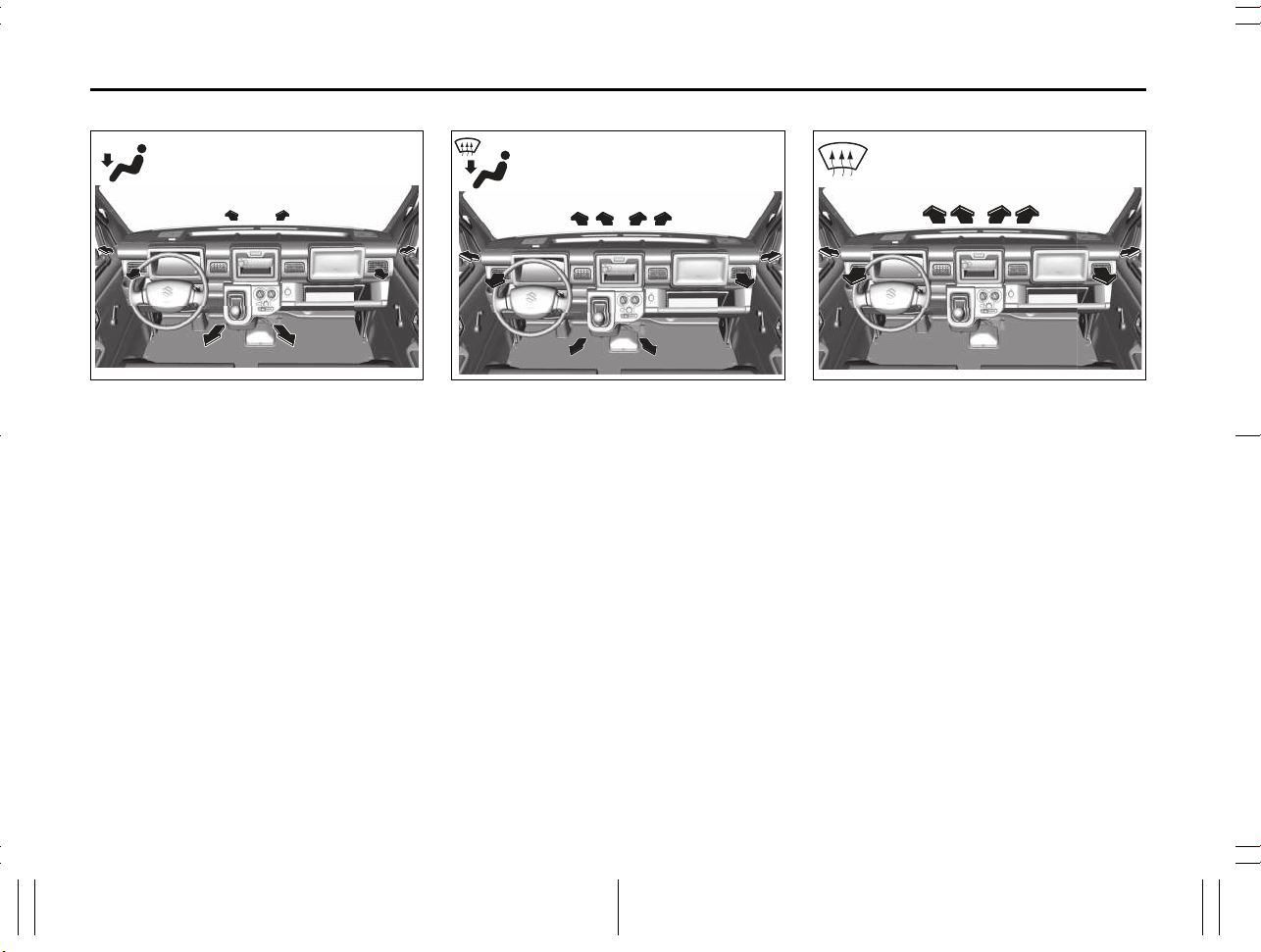

HEAT (e)
52SS5008E
Temperature-controlled air comes out of the floor outlets and the side outlets, also comes out of the windshield defroster out­lets and also comes slightly out of the side defroster outlets.
HEAT & DEFROST (f)
52SS5009E
Temperature-controlled air comes out of the floor outlets, the windshield defroster outlets, the side defroster outlets and the side outlets.
DEFROST (g)
52SS5010E
Temperature-controlled air comes out of the windshield defroster outlets, the side defroster outlets and the side outlets.
5-4
52SS0-01E
Page 96
OTHER CONTROLS AND EQUIPMENT
Air conditioning switch (5)
To turn on the air conditioning system, set the blower speed selector to a position other than off and push in “A/C” switch. With this “A/C” switch operation, a indica­tor light will come on when the air condi­tioning system is working. To turn off the air conditioning system, push “A/C” switch again.
During operation of the air conditioner, you may notice slight changes in engine speed. These changes are normal, the system is designed so that the compressor turns on or off to maintain the desired tem­perature.
Less operation of the compressor results in better fuel economy.
System Operating Instructions
Natural ventilation
Select VENTILATION and FRESH AIR, the temperature selector to the desired tem­perature position, and the blower speed selector to off. Fresh air will flow through the vehicle during driving.
Forced ventilation
The base settings are the same as for nat­ural ventilation except you set the blower speed selector to a position other than off.
Normal heating (using outside air)
Select HEAT and FRESH AIR, the tem­perature selector to the desired tempera­ture position and the blower speed selector to the desired blower speed position. Set­ting the blower speed selector to a higher blower speed position increases heating efficiency.
Quick heating (using recirculated air)
The base settings are the same as for nor­mal heating except you select RECIRCU­LATED AIR. If you use this heating method for an extended period of time, the air in the vehicle can become contaminated and the windows can become misty. Therefore, use this method only for quick heating and change to the normal heating method as soon as possible.
Head cooled/Feet warmed heating
Select BI-LEVEL and FRESH AIR, the temperature selector to the desired tem­perature position, and the blower speed selector to the desired blower speed posi­tion. Unless the temperature selector is in the fully cold position or fully hot position, the air that comes out of the centre and side outlets will be cooler than the air that comes out of the floor outlets.
Normal cooling
Set the air flow selector to VENTILATION, the temperature selector to the desired tem­perature position and the blower speed selector to the desired blower speed posi­tion, and turn on “A/C” switch. Setting the blower speed selector to a higher blower speed position increases cooling efficiency.
You can switch the air intake selector to either FRESH AIR or RECIRCULATED AIR as you desire. Choosing RECIRCU­LATED AIR increases cooling efficiency.
5-5
52SS0-01E
Page 97

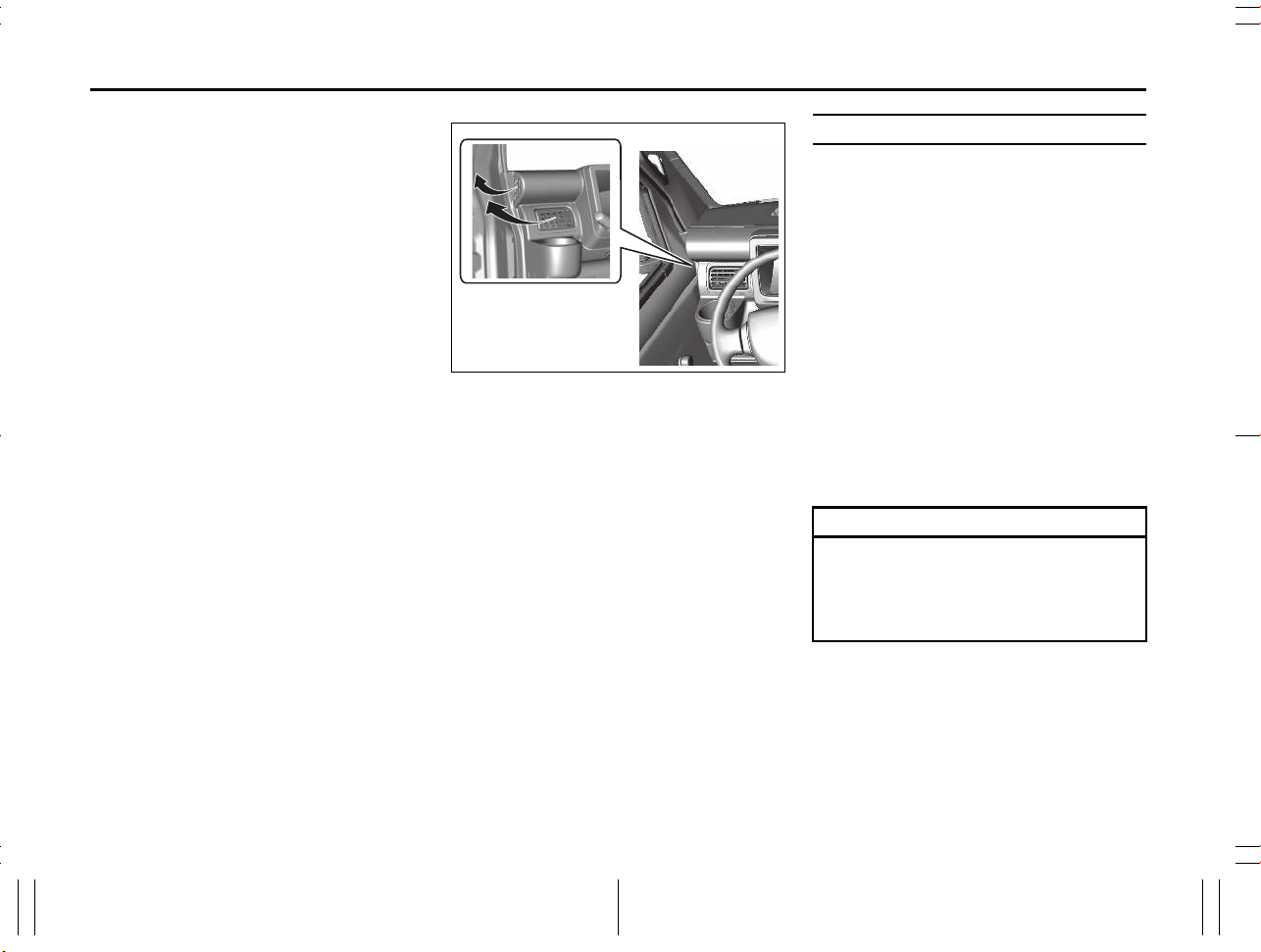

OTHER CONTROLS AND EQUIPMENT
Quick cooling (using recirculated air)
The base settings are the same as for nor­mal cooling except you select RECIRCU­LATED AIR and the highest blower speed.
NOTE:
• If you select RECIRCULATED AIR for an extended period of time, the air in the vehicle can become contaminated and the windows tend to get misted. There­fore, you should select FRESH AIR whenever possible.
• If your vehicle has been left in the sun with the windows closed, it will cool faster if you open the windows briefly while you operate the air conditioner with the air intake selector at FRESH AIR and the blower at high speed.
Dehumidifying
Set the air flow selector to a desired air flow selector position, the temperature selector to the desired temperature posi­tion and the blower speed selector to the desired blower speed position. Also select FRESH AIR and turn on “A/C” switch.
NOTE: Because the air conditioner dehumidifies the air, turning it on will help keep the win­dows clear, even when blowing heated air using DEFROST or HEAT & DEFROST functions.
52SS5011E
NOTE: If you need maximum defrosting:
• select DEFROST and FRESH AIR,
• set the blower speed selector to high,
• adjust the temperature selector to the hot end,
• turn on “A/C” switch, and
• adjust the side outlets so the air blows on the side windows.
Maintenance
If you do not use the air conditioner for a long period, such as during winter, it may not give the best performance when you start using it again. To help maintain opti­mum performance and durability of your air conditioner, it needs to be run periodically. Operate the air conditioner at least once a month for one minute with the engine idling. This circulates the refrigerant and oil and helps protect the internal components.
NOTE: Your vehicle uses the air conditioning refrig­erant HFC-134a, commonly called R-134a. R-134a replaced R-12 around 1993 for automotive applications. Other refrigerants are available, including recycled R-12, but only R-134a should be used in your vehicle.
NOTICE
Using the wrong refrigerant may damage your air conditioning sys­tem. Use R-134a only. Do not mix or replace the R-134a with other refrig­erants.
5-6
52SS0-01E
Page 98
OTHER CONTROLS AND EQUIPMENT
1221
(1)
Air Conditioning System (Right hand drive vehicle) (if equipped)
1. Side outlet
2. Centre outlet
Air Outlet
(1)
(1)
Move the knob (1) horizontally or the case (2) vertically to adjust the direction of air flow as desired.
(2)
52SS50020
CAUTION
Prolonged exposure to hot air from the heater or air conditioner could result in low temperature burns. All vehicle occupants, particularly chil­dren, the elderly, those with special
52SS5030E
needs, individuals with delicate skin, and sleeping individuals, should maintain sufficient distance from the air outlets to prevent prolonged exposure to hot airflow.
5-7
52SS0-01E
Page 99
OTHER CONTROLS AND EQUIPMENT
(2)(1)

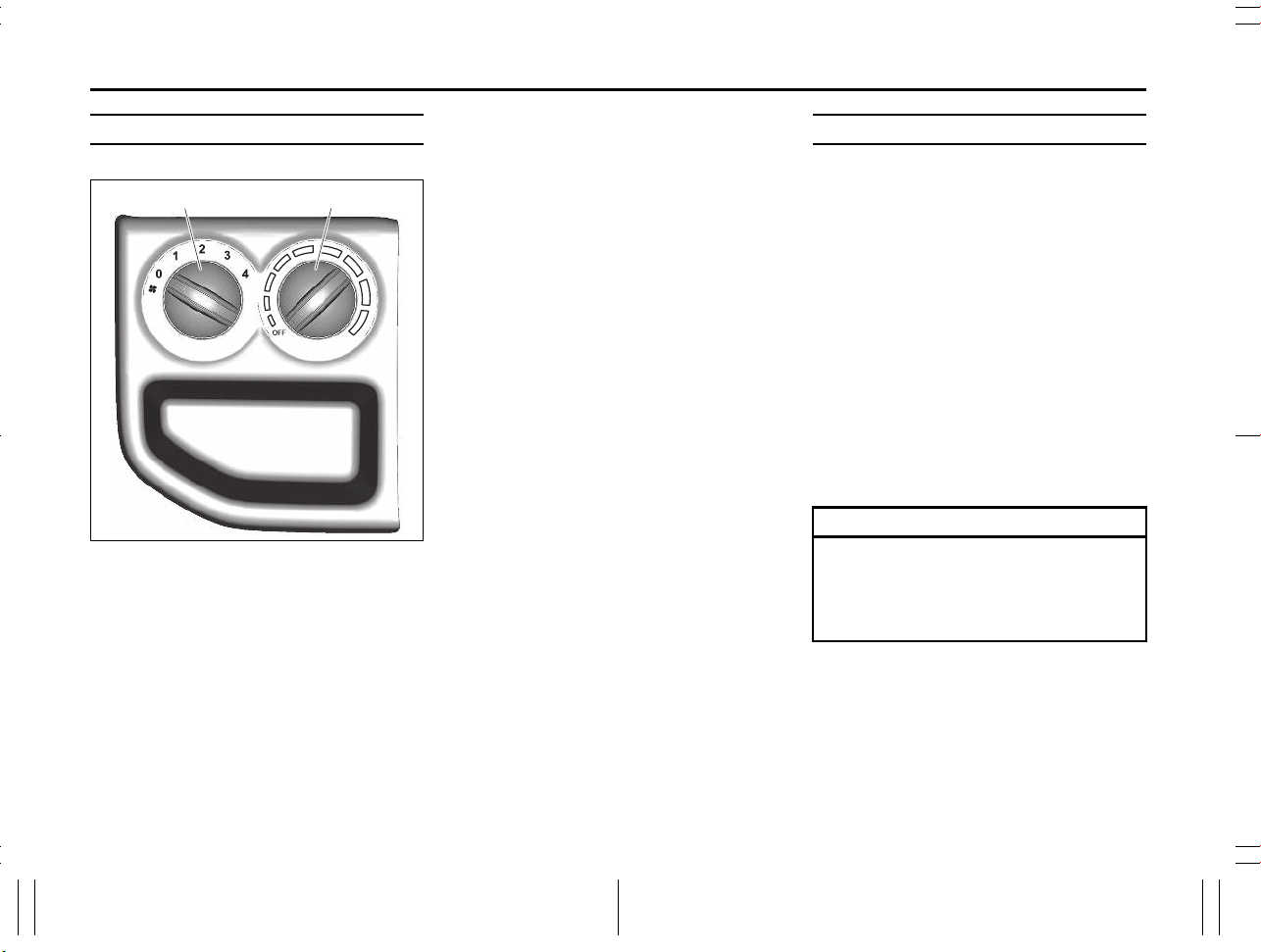

Air Conditioning System
Description of controls
52SS50030
(1) Temperature selector with air condi-
tioning switch
(2) Blower speed selector
Temperature selector with air condition­ing switch (1)
This is used to adjust the temperature. Also, this is used to turn on and off the air conditioning system by turning the selec­tor. To turn on the air conditioning system, turn the selector to a position other than “OFF”. When this selector is in “OFF”, the air conditioning system will not turn on.
Blower speed selector (2)
This is used to turn on the blower and to select blower speed.
NOTE: During operation of the air conditioner, you may notice slight changes in engine speed. These changes are normal, the system is designed so that the compressor turns on or off to maintain the desired tem­perature.
Less operation of the compressor results in better fuel economy.
Maintenance
If you do not use the air conditioner for a long period, such as during winter, it may not give the best performance when you start using it again. To help maintain opti­mum performance and durability of your air conditioner, it needs to be run periodically. Operate the air conditioner at least once a month for one minute with the engine idling. This circulates the refrigerant and oil and helps protect the internal components.
NOTE: Your vehicle uses the air conditioning refrig­erant HFC-134a, commonly called R-134a. R-134a replaced R-12 around 1993 for automotive applications. Other refrigerants are available, including recycled R-12, but only R-134a should be used in your vehicle.
NOTICE
Using the wrong refrigerant may damage your air conditioning sys­tem. Use R-134a only. Do not mix or replace the R-134a with other refrig­erants.
5-8
52SS0-01E
Page 100
OTHER CONTROLS AND EQUIPMENT

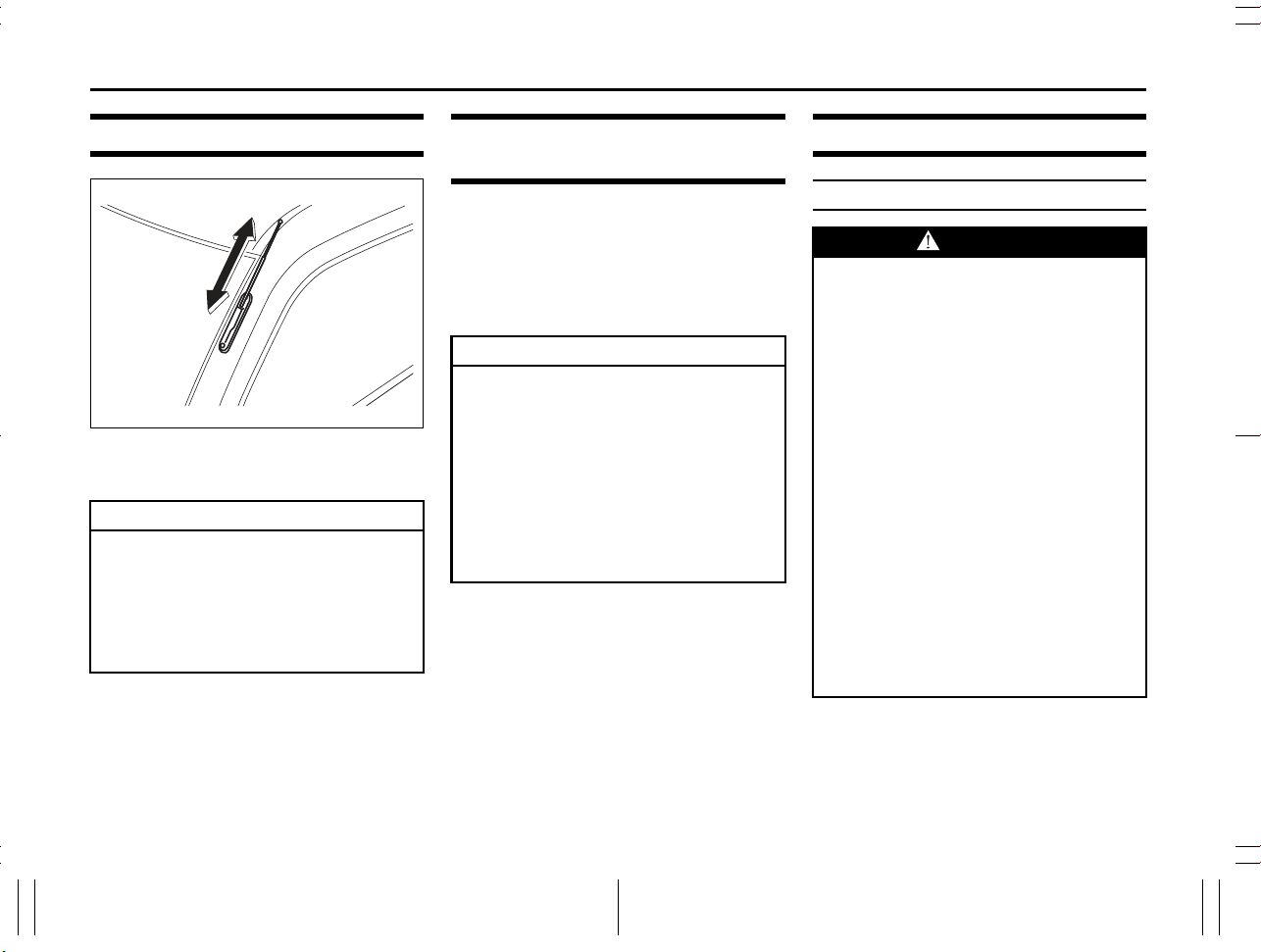

Radio Antenna (if equipped)
52SS5014E
The radio antenna can be inserted into the body or pulled out.
NOTICE
To avoid damage to the radio antenna, insert the antenna into the body in below cases.
• Using an automatic car wash.
• The antenna hits anything such as a low ceiling in a parking garage.
• Putting a car cover over your car.
Installation of radio frequency transmitters
NOTE: When you intend to use Radio Frequency (RF) transmitting equipment in your vehi­cle, refer to “Installation of Radio Fre­quency (RF) Transmitting Equipment” in the end of this book.
NOTICE
Improper installation of mobile com­munication equipment such as cellu­lar telephones, CB (Citizen’s Band) radios or any other wireless transmit­ters may cause electronic interfer­ence with your vehicle’s ignition system or any other electrical sys­tems resulting in vehicle perfor­mance problems. Consult a SUZUKI dealer or qualified service technician for advice.
Audio System (if equipped)
Safety Information
WARNING
If you pay too much attention to oper­ating the audio system or watching the audio system display while driv­ing, an accident can occur. If you set the sound volume too loud, it could prevent you from being aware of road and traffic conditions.
• Keep your eyes on the road and your mind on the drive. Avoid pay­ing too much attention to operating the audio system or watching the audio system display.
• Familiarize yourself with the audio system controls and operation of the audio system before driving.
• Preset your favorite radio stations before driving so that you can quickly tune to them using the pre­sets.
• Set the sound volume to a level that will allow you to continue to be aware of surrounding road and traf­fic conditions while driving.
5-9
52SS0-01E
Loading...
