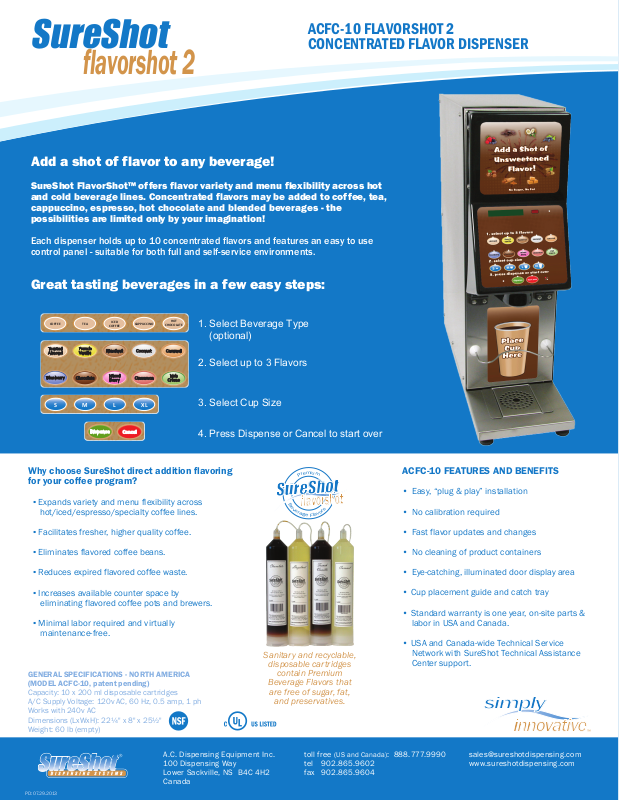

ACFC-10 FLAVORSHOT 2
SureShot
2
B
e
v
e
r
a
g
e
F
l
a
v
o
r
s
P
r
e
m
i
u
m
SureShot
flavorshot
CONCENTRATED FLAVOR DISPENSER
flavorshot
Add a shot of flavor to any beverage!
SureShot FlavorShot™ offers flavor variety and menu flexibility across hot
and cold beverage lines. Concentrated flavors may be added to coffee, tea,
cappuccino, espresso, hot chocolate and blended beverages - the
possibilities are limited only by your imagination!
Each dispenser holds up to 10 concentrated flavors and features an easy to use
control panel - suitable for both full and self-service environments.
Great tasting beverages in a few easy steps:
COFFEE
ICED
TEA
COFFEE
CAPPUCCINO
HOT
CHOCOLATE
1. Select Beverage Type
(optional)
Toasted
Almond
French
Vanilla
Hazelnut
Coconut
Caramel
2. Select up to 3 Flavors
Blueberry
Chocolate
Mixed
Berry
MS L XL
Dispense
Cancel
Cinnamon
Irish
Crème
3. Select Cup Size
4. Press Dispense or Cancel to start over
Why choose SureShot direct addition flavoring
for your coffee program?
▪ Expands variety and menu flexibility across
hot/iced/espresso/specialty coffee lines.
▪ Facilitates fresher, higher quality coffee.
▪ Eliminates flavored coffee beans.
▪ Reduces expired flavored coffee waste.
▪ Increases available counter space by
eliminating flavored coffee pots and brewers.
▪ Minimal labor required and virtually
maintenance-free.
GENERAL SPECIFICATIONS - NORTH AMERICA
(MODEL ACFC-10, patent pending)
Capacity: 10 x 200 ml disposable cartridges
A/C Supply Voltage: 120v AC, 60 Hz, 0.5 amp, 1 ph
Works with 240v AC
Dimensions (LxWxH): 22¼" x 8" x 25½"
Weight: 60 lb (empty)
Sanitary and recyclable,
disposable cartridges
contain Premium
Beverage Flavors that
are free of sugar, fat,
and preservatives.
ACFC-10 FEATURES AND BENEFITS
• Easy, “plug & play” installation
• No calibration required
• Fast flavor updates and changes
• No cleaning of product containers
• Eye-catching, illuminated door display area
• Cup placement guide and catch tray
• Standard warranty is one year, on-site parts &
labor in USA and Canada.
• USA and Canada-wide Technical Service
Network with SureShot Technical Assistance
Center support.
PD: 07.29.2013
A.C. Dispensing Equipment Inc.
100 Dispensing Way
Lower Sackville, NS B4C 4H2
Canada
toll free (US and Canada): 888.777.9990
tel 902.865.9602
fax 902.865.9604
sales@sureshotdispensing.com
www.sureshotdispensing.com
