Model 307R
607R
Para-Ordnance Tactical Light
Users Manual
Para-Ordnance Pistols
.45 caliber
Protected by US. Patents 4,777,754, 4,856,218 & 5,654,594
Revision N/C 9_1_2000
Model 307R & 607R Tactical Light
Introduction
The Model 307R & 607R Tactical Lights provide a rugged and reliable source of high intensity light mounted below the barrel of the weapon. There are two switches that can be used to activate the light. Press on the Slimline Switch on the hand grip and the light will come ON and stay ON as long as pressure is applied. Operate the ON/OFF Switch on the left side of the Housing and the light will come and stay ON until the OFF switch is pressed.
Kit Contents

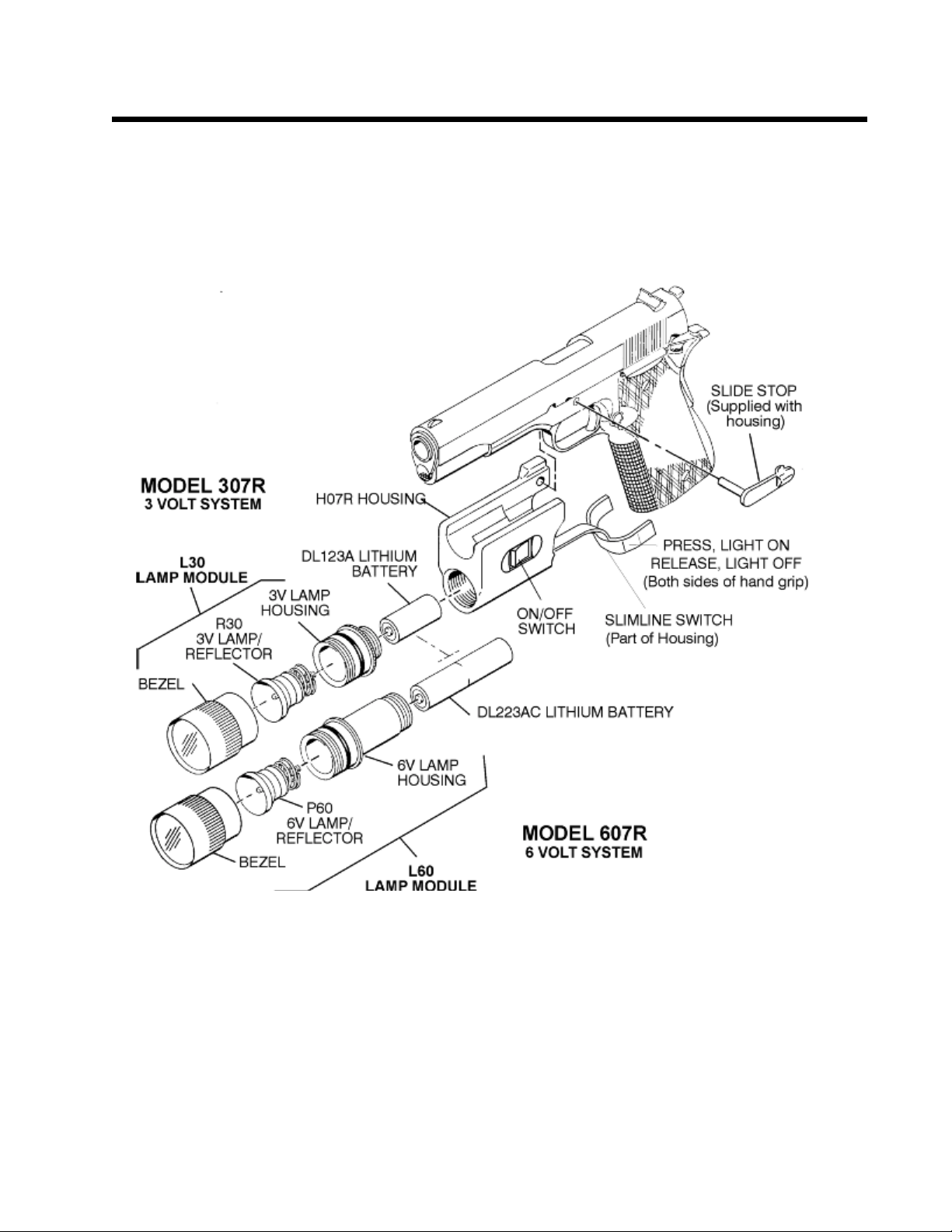

!H07R Housing & Slide Stop
!L30 or L60 Lamp Module
!DL123A or DL223AC Battery
!Users Manual
Installation
1.Remove the magazine from the weapon and inspect the weapon to be certain it is not loaded.
2.Disassemble weapon far enough to remove slide stop.
3.Position H07R Housing on the frame so that hole in the side is aligned with slide stop hole on the frame. At the same time place the SlimLine Switch on the hand grip. The connector between the SlimLine Switch and the Housing is spring loaded to hold the switch in place on the hand grip. The spring also serves to eliminate play between the housing and the weapon.
4.Install new Slide Stop.
5.Reassemble weapon.
Lamp Replacement
1.Unscrew Bezel from Lamp Module. Lift Lamp assembly out of Bezel.
2.Install replacement Lamp Assembly in Bezel and reassemble by screwing onto Lamp Housing until it is fully seated.
Battery Replacement
1.Unscrew Lamp Module from Housing and shake out old battery.
2.Install new battery with the + terminal facing out.
3.Reinstall Lamp Module
WARNING
Lithium batteries can explode or cause burns if disassembled, shorted, recharged or exposed to fire or high temperatures. Please handle with care.
