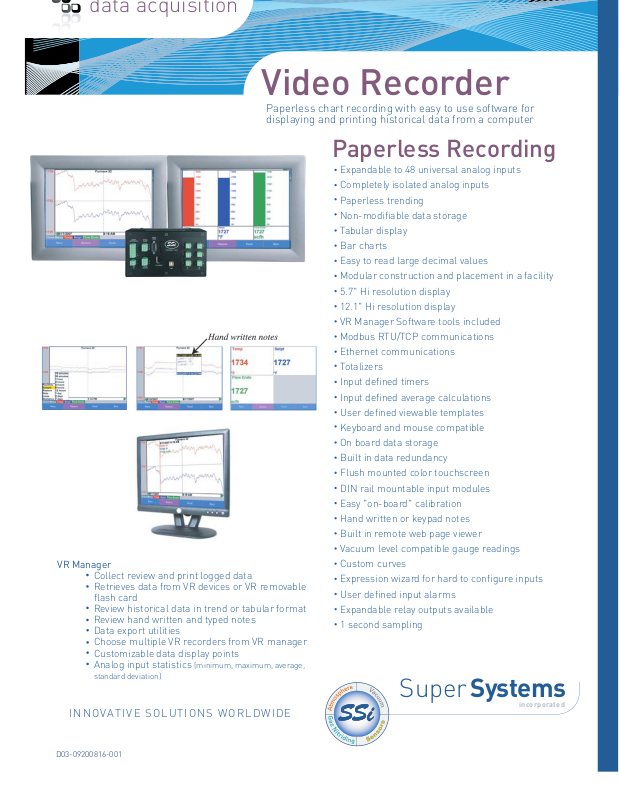

Super System VR12 User Manual
data acquisition
Video Recorder
Paperless chart recording with easy to use software for
displaying and printing historical data from a computer
VR Manager
Collect review and print logged data
Retrieves data from VR devices or VR removable
flash card
Review historical data in trend or tabular format
Review hand written and typed notes
Data export utilities
Choose multiple VR recorders from VR manager
Customizable data display points
Analog input statistics (minimum, maximum, average,
standard deviation)
Paperless Recording
Expandable to 48 universal analog inputs
Completely isolated analog inputs
Paperless trending
Non-modifiable data storage
Tabular display
Bar charts
Easy to read large decimal values
Modular construction and placement in a facility
5.7" Hi resolution display
12.1" Hi resolution display
VR Manager Software tools included
Modbus RTU/TCP communications
Ethernet communications
Totalizers
Input defined timers
Input defined average calculations
User defined viewable templates
Keyboard and mouse compatible
On board data storage
Built in data redundancy
Flush mounted color touchscreen
DIN rail mountable input modules
Easy "on-board" calibration
Hand written or keypad notes
Built in remote web page viewer
Vacuum level compatible gauge readings
Custom curves
Expression wizard for hard to configure inputs
User defined input alarms
Expandable relay outputs available
1 second sampling
I N N O VA T I V E S O L U T I O N S W O R L D W I D E
D03-09200816-001
Super
Systems
in corp ora ted
Data Acquisition (DAQ) Module
Remote
Satellite
Units (SR)
RS 485
DAQ units used for
creating digital data
from analog inputs.
The compact footprint
and modular design
make it a simple cost
effective solution for
continuous data logging
back to a SCADA system.
Remote
Satellite
Units (SR)
PC Running
VR Manager
RS 485
Ethernet
Analog Inputs
SCADA
System
DAQ Units
Modbus RTU/TCP
(Ethernet or RS 485)
Remote
Satellite
Units (SR)
Analog to Digital Data
RS 485
Super
Systems
inco rpora ted
Cost effective solution for digitally capturing analog inputs
Completely isolated universal analog inputs
No HMI (video screen) required
Direct connection to SCADA software
Available with up to 15 inputs in one DAQ Module
Expandable to 48 inputs maximum
Software configuration utilities
Removable terminal blocks for easy wiring
Satellite (SR) Module
Available in multiple universal analog input configurations up
to 15 points
Small footprint allows easy placement in control panels
Remote mounting for ease of termination
Completely isolated analog inputs
24Vdc powered module
RS485 Communications to the main unit
7 2 0 5 E d i n g t o n D ri v e
C i n c in n a t i , O H 45 2 4 9
5 1 3 . 77 2 . 0 0 6 0
5 1 3 . 77 2 . 9 4 6 6
p h o n e
f a x
w w w. s u p er s y s te m s . co m 8 0 0. 6 6 6 .4 3 3 0
