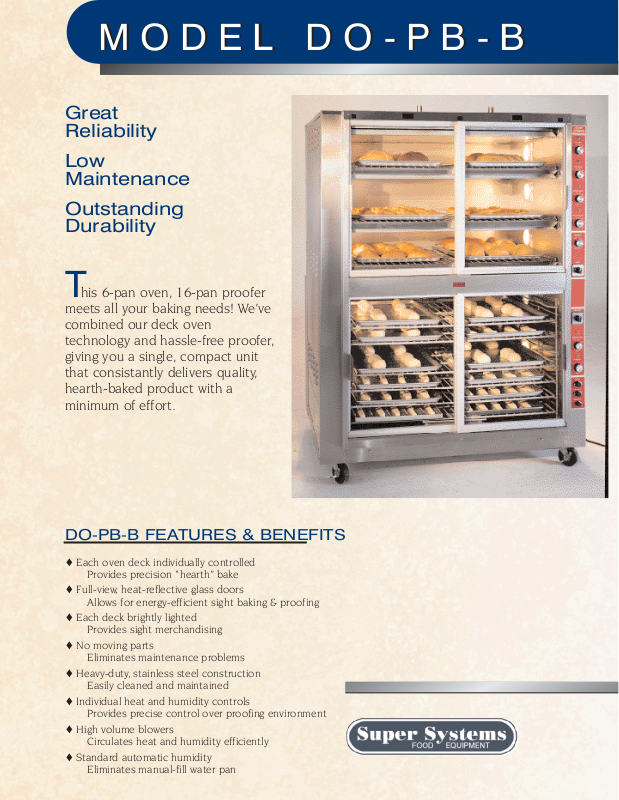

Super System DO-PB-B User Manual
MODEL DO-PB-B
MODEL DO-PB-B
Great
Reliability
Low
Maintenance
Outstanding
Durability
his 6-pan oven, 16-pan proofer
meets all your baking needs! We’ve
combined our deck oven
technology and hassle-free proofer,
giving you a single, compact unit
that consistantly delivers quality,
hearth-baked product with a
minimum of effort.
T
DO-PB-B FEATURES & BENEFITS
x Each oven deck individually controlled
Provides precision “hearth” bake
x Full-view, heat-reflective glass doors
Allows for energy-efficient sight baking & proofing
x Each deck brightly lighted
Provides sight merchandising
x No moving parts
Eliminates maintenance problems
x Heavy-duty, stainless steel construction
Easily cleaned and maintained
x Individual heat and humidity controls
Provides precise control over proofing environment
x High volume blowers
Circulates heat and humidity efficiently
x Standard automatic humidity
Eliminates manual-fill water pan
VOLTS PHASE WIRE** AMPS WATTS HERTZ
120/208 1 3 72 15,200 60
120/208 3 4 51 15,200 60
120/240 1 3 65 15,200 60
120/240 3 4 46 15,200 60
CAPACITY
Oven accommodates:
• 6 18" x 26" sheet pans
• 12 4-strapped 1 lb. bread pans
• 9 4-strapped 1.5 lb. bread pans
• 36 nine-inch pies
• any combination of the above
• maximum oven temp. 550Þ
Proofer accommodates:
• 8 nylon-coated wire racks
(6 furnished)
• 16 standard 18" x 26" sheet pans
• 16 4-strapped 1 lb. bread pans
• 12 4-strapped 1.5 lb. bread pans
• any combination of the above
OPTIONS
Oven Section: High Volume Steam Injection.
(See steam specification sheet for additional
electrical requirements.
Proofer section: Manual-fill water pan.
Several Door Styles Available: Please specify
DO-PB-B for bypass doors,
DO-PB-G for individual doors, or
DO-PB for dutch doors.
SHIPPING INFORMATION
• Shipping weight: 1,100 lbs.
• Cubic feet: 94.43
• Freight class: 85
• Crated dimension: 78.5H x 60.5W x 45D
MODEL DO-PB-B
MODEL DO-PB-B
ELECTRICAL*
© 1998 Super Systems. All rights reserved.
Printed in USA. Form RO6-898-1M
Interior Dimensions: Oven - 29.5"H x 45"W x 30"D , 6.5-8.5" between decks
Proofer - 27"H x 45"W x 30"D, racks adjustable every 3"
*Installation should be made by licensed electrician. Check local codes for vent hood
requirements.
** Number of wires does not include ground.
The Piper-Doyon Group, Inc.
300 S. 84th Avenue
Wausau, WI 54401
Phone: 800-558-5880
715-842-2724
Fax: 715-842-3125
Web site: www.pdgi.com
LIMITED WARRANTY
SUPER SYSTEMS warrants to the original purchaser parts and labor for a period of twelve (12) months from the date of installation. See
manufacturer’s complete warranty for details.
It is our policy to build equipment which is design certified by ETL or UL and NSF. However, a continuing program of
product improvement makes it necessary to submit new models to the agencies as they are developed.
Consequently, all models may not bear the appropriate labels at all times. Specifications subject to change,
information not for design purposes.
NSF
®
