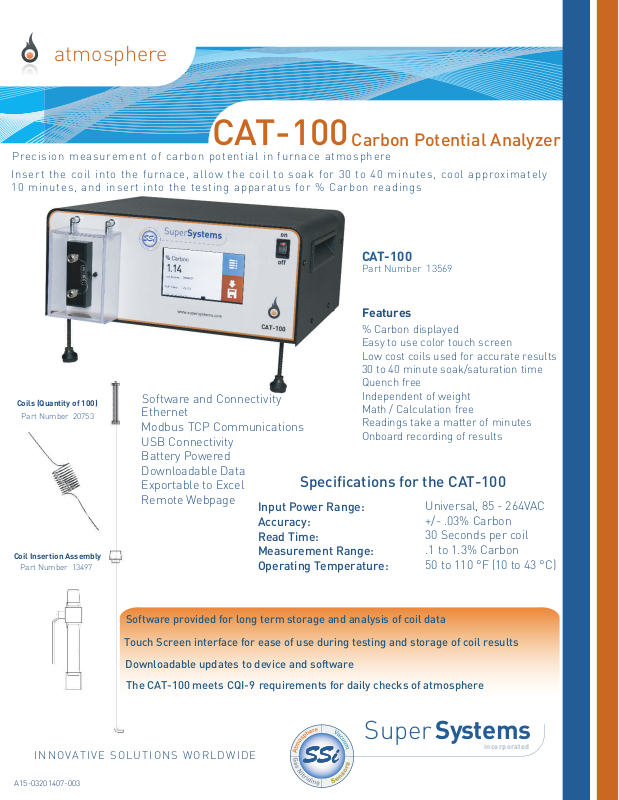

Super System CAT-100 User Manual

atmosphere

CAT-100

Precision measuremen t of carbon potential in furnace atmosphere

Insert the coil into the furnace, allow the coil to soak for 3 0 to 40 minutes, cool approximately

Carbon Potential Analyzer

10 minutes, and insert into the te sting apparatus for % Carbon read ings

CAT-100

Part Number 13569

Coils (Quantity of 100)

Part Number 20753

Coil Insertion Assembly

Part Number 13497

Software and Connectivity
Ethernet
Modbus TCP Communications
USB Connectivity
Battery Powered
Downloadable Data

Measured Gas

Exportable to Excel

CO H

Remote Webpage

Specifications for the CAT-100

Input Power Range:
Accuracy:
Read Time:
Measurement Range:
Operating Temperature:

Features

% Carbon displayed
Easy to use color touch screen
Low cost coils used for accurate results
30 to 40 minute soak/saturation time
Quench free
Independent of weight
Math / Calculation free
Readings take a matter of minutes
Onboard recording of results

Universal, 85 - 264VAC
+/- .03% Carbon
30 Seconds per coil
.1 to 1.3% Carbon
50 to 110 °F (10 to 43 °C)

Software provided for long term storage and analysis of coil data

Touch Screen interface for ease of use during testing and storage of coil results

Downloadable updates to device and software

The CAT-100 meets CQI-9 requirements for daily checks of atmosphere
