Supermicro A1SRi-2758F User Manual

A1SAi-2550F

A1SAi-2750F A1SRi-2358F A1SRi-2558F A1SRi-2758F

USER’S MANUAL

Revision 1.0c

The information in this user’s manual has been carefully reviewed and is believed to be accurate. The vendor assumes no responsibility for any inaccuracies that may be contained in this document, and makes no commitment to update or to keep current the information in this manual, or to notify any person or organization of the updates. Please Note: For the most up-to-date version of this

manual, please see our website at www.supermicro.com.

Super Micro Computer, Inc. ("Supermicro") reserves the right to make changes to the product described in this manual at any time and without notice. This product, including software and documentation, is the property of Supermicro and/or its licensors, and is supplied only under a license. Any use or reproduction of this product is not allowed, except as expressly permitted by the terms of said license.

IN NO EVENT WILL SUPER MICRO COMPUTER, INC. BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL, SPECULATIVE OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OR INABILITY TO USE THIS PRODUCT OR DOCUMENTATION, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN PARTICULAR, SUPER MICRO COMPUTER, INC. SHALL NOT HAVE LIABILITY FOR ANY HARDWARE, SOFTWARE, OR DATA STORED OR USED WITH THE PRODUCT, INCLUDING THE COSTS OF REPAIRING, REPLACING, INTEGRATING, INSTALLING OR RECOVERING SUCH HARDWARE, SOFTWARE, OR DATA.

Any disputes arising between the manufacturer and the customer shall be governed by the laws of Santa Clara County in the State of California, USA. The State of California, County of Santa Clara shall be the exclusive venue for the resolution of any such disputes. Supermicro's total liability for all claims will not exceed the price paid for the hardware product.

FCC Statement: This equipment has been tested and found to comply with the limits for a Class A digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the manufacturer’s instruction manual, may cause harmful interference with radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case you will be required to correct the interference at your own expense.

California Best Management Practices Regulations for Perchlorate Materials: This Perchlorate warning applies only to products containing CR (Manganese Dioxide) Lithium coin cells. “Perchlorate Material-special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate”.

WARNING: Handling of lead solder materials used in this product may expose you to lead, a chemical known to the State of California to cause birth defects and other reproductive harm.

Manual Revision 1.0c

Release Date: May 5, 2016

Unless you request and receive written permission from Super Micro Computer, Inc., you may not copy any part of this document.

Information in this document is subject to change without notice. Other products and companies referred to herein are trademarks or registered trademarks of their respective companies or mark holders.

Printed in the United States of America

Preface

This manual is written for system integrators, IT technicians and

knowledgeable end users. It provides information for the installation and use of the

A1SAi-2750F(-2550F)/A1SRi-2758F(-2558F, -2358F) Series motherboard.

About This Motherboard

The A1SAi & A1SRi Series motherboard supports a next-generation Intel®

C2000 SoC (System-on-a-Chip) processor in an FCBGA package. With a C2000 Se-

ries processor built in, the A1SAi/A1SRi Series motherboard supports all-purpose,

cutting-edge technology such as ECC SODIMM, up to 64GB memory capacity, In-

tel's Virtualization Technology, Turbo Boost Technology, or QuickAssist Technology,

offering unprecedented enhancements to data integrity, internet security, network

communication, system performance, power efciency and scalability. This mother-

board is optimized for network applications, web hosting, dedicated storage/server,

and cloud computing. It is ideal for communications systems, embedded solutions,

server or storage platforms. Please refer to our website at (http://www.supermicro.

com/products/) for processor and memory support updates. This product is intended

to be installed and serviced by professional technicians.

Preface

Manual Organization

Chapter 1 describes the features, specications and performance of the moth-

erboard, and provides detailed information on the Intel C2000 Series processor.

Chapter 2 provides hardware installation instructions. Read this chapter when in-

stalling the processor, memory modules and other hardware components into the

system. If you encounter any problems, see Chapter 3, which describes trouble-

shooting procedures for video, memory and system setup stored in the CMOS.

Chapter 4 includes an introduction to the BIOS, and provides detailed information

on running the CMOS Setup utility.

Appendix A provides BIOS Error Beep Codes.

Appendix B lists software program installation instructions.

Appendix C contains UEFI BIOS Recovery instructions.

iii

A1SAi & A1SRi Series Motherboard User’s Manual

Conventions Used in the Manual:

Special attention should be given to the following symbols for proper installation and

to prevent damage done to the components or injury to yourself:

Warning: Critical information to prevent damage to the components or injury to your-

self.

Important: Important information given to ensure proper system installa-

tion or to relay safety precautions.

Note: Additional Information given to differentiate various models or to

provide instructions for correct system setup.

Contacting Supermicro

Headquarters

Address: Super Micro Computer, Inc.

980 Rock Ave.

San Jose, CA 95131 U.S.A.

Tel: +1 (408) 503-8000

Fax: +1 (408) 503-8008

Email: marketing@supermicro.com (General Information)

support@supermicro.com (Technical Support)

Website: www.supermicro.com

Europe

Address: Super Micro Computer B.V.

Het Sterrenbeeld 28, 5215 ML

's-Hertogenbosch, The Netherlands

Tel: +31 (0) 73-6400390

Fax: +31 (0) 73-6416525

Email: sales@supermicro.nl (General Information)

support@supermicro.nl (Technical Support)

rma@supermicro.nl (Customer Support)

Website: www.supermicro.nl

Contacting Supermicro

Asia-Pacic

Address: Super Micro Computer, Inc.

3F, No. 150, Jian 1st Rd.

Zhonghe Dist., New Taipei City 235

Taiwan (R.O.C)

Tel: +886-(2) 8226-3990

Fax: +886-(2) 8226-3992

Email: support@supermicro.com.tw

Website: www.supermicro.com.tw

A1SAi & A1SRi Series Motherboard User’s Manual

Table of Contents

Preface

About This Motherboard ................................................................................................ iii

Manual Organization .....................................................................................................iii

Conventions Used in the Manual: .................................................................................iv

Contacting Supermicro ...................................................................................................v

Chapter 1 Introduction

1-1 Overview ......................................................................................................... 1-1

Checklist .......................................................................................................... 1-1

Motherboard Features ..................................................................................... 1-7

1-2 Processor Overview ..................................................................................... 1-10

1-3 Special Features ............................................................................................1-11

Recovery from AC Power Loss ......................................................................1-11

1-4 PC Health Monitoring .....................................................................................1-11

Environmental Temperature Control ..............................................................1-11

System Resource Alert ..................................................................................1-11

1-5 ACPI Features ............................................................................................... 1-12

1-6 Power Supply ................................................................................................ 1-12

Chapter 2 Installation

2-1 Standardized Warning Statements ................................................................. 2-1

Battery Handling .............................................................................................. 2-1

Product Disposal ............................................................................................. 2-3

2-2 Static-Sensitive Devices .................................................................................. 2-4

Precautions ..................................................................................................... 2-4

Unpacking ....................................................................................................... 2-4

2-3 Memory Support .............................................................................................. 2-5

Memory Population Guidelines ....................................................................... 2-5

Populating Memory Modules........................................................................... 2-6

Installing DIMM Memory Modules ................................................................... 2-6

Removing Memory Modules ........................................................................... 2-6

2-4 Motherboard Installation .................................................................................. 2-8

Tools Needed .................................................................................................. 2-8

Location of Mounting Holes ............................................................................ 2-8

Installing the Motherboard .............................................................................. 2-9

2-5 Connectors/IO Ports ...................................................................................... 2-10

I/O Back Panel .............................................................................................. 2-10

Serial Ports ................................................................................................2-11

Table of Contents

Ethernet Ports ...........................................................................................2-11

Universal Serial Bus (USB) ...................................................................... 2-12

Unit Identier Switch ................................................................................ 2-13

VGA .......................................................................................................... 2-13

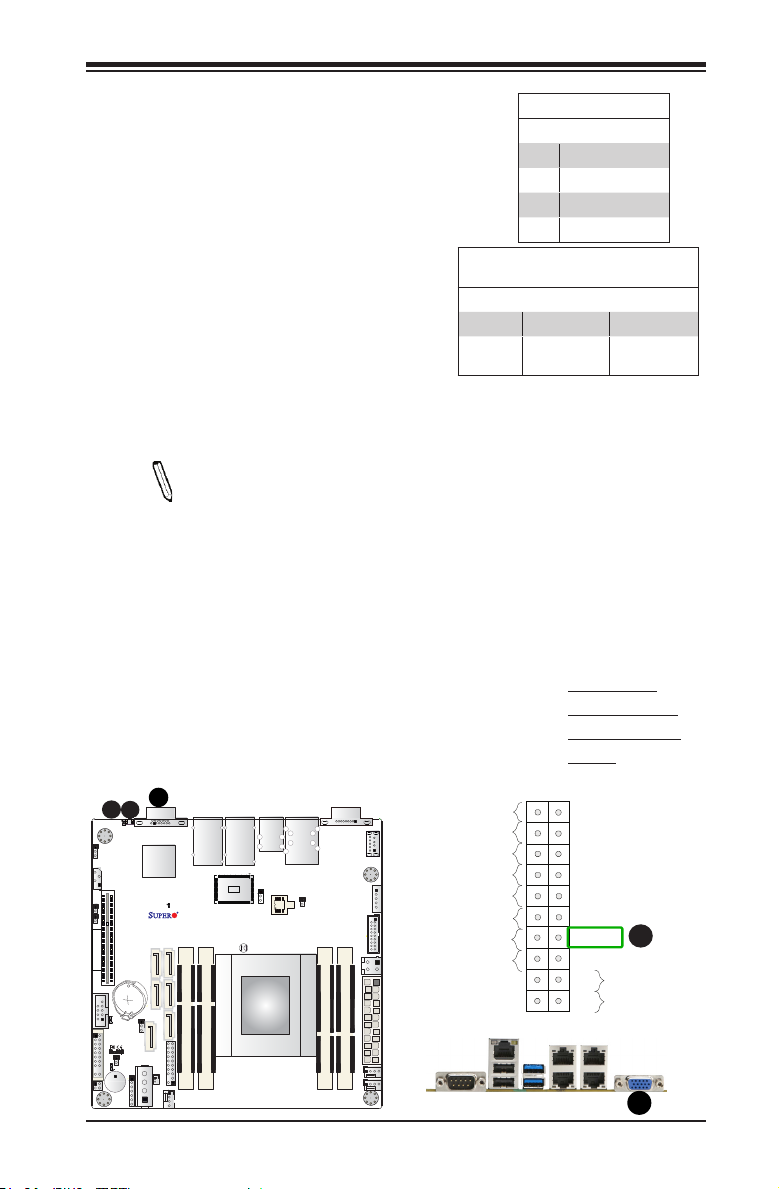

Front Control Panel ....................................................................................... 2-14

Front Control Panel Pin Denitions............................................................... 2-15

NMI Button ............................................................................................... 2-15

Power LED .............................................................................................. 2-15

HDD LED .................................................................................................. 2-16

NIC1/NIC2 (LAN1/LAN2) .......................................................................... 2-16

Overheat (OH)/Fan Fail/PWR Fail/UID LED ............................................ 2-17

Power Fail LED ........................................................................................ 2-17

Reset Button ........................................................................................... 2-18

Power Button ........................................................................................... 2-18

2-6 Connecting Cables ........................................................................................ 2-19

ATX PWR, DC PWR and HDD PWR Connectors (JPW1, J1, J3) .......... 2-19

Fan Headers (Fan 1 ~ Fan 3) .................................................................. 2-20

Chassis Intrusion (JL1) ........................................................................... 2-20

Internal Buzzer (SP1) ............................................................................... 2-21

Power LED/Speaker ................................................................................. 2-21

DOM PWR Connector (JSD1) .................................................................. 2-22

Overheat LED Header .............................................................................. 2-22

TPM Header/Port 80 Header ................................................................... 2-23

LAN3/LAN4 Activity LED Header ............................................................. 2-23

Power SMB (I2C) Connector .................................................................... 2-24

System Management Bus Header ........................................................... 2-24

2-7 Jumper Settings ............................................................................................ 2-25

Explanation of Jumpers ................................................................................ 2-25

LAN Ports Enable/Disable ........................................................................ 2-25

CMOS Clear ............................................................................................. 2-26

PCI-E Slot SMB Enable (I2C1/I2C2) ......................................................... 2-26

Watch Dog Timer Enable ......................................................................... 2-27

VGA Enable .............................................................................................. 2-27

2-8 Onboard Indicators ........................................................................................ 2-28

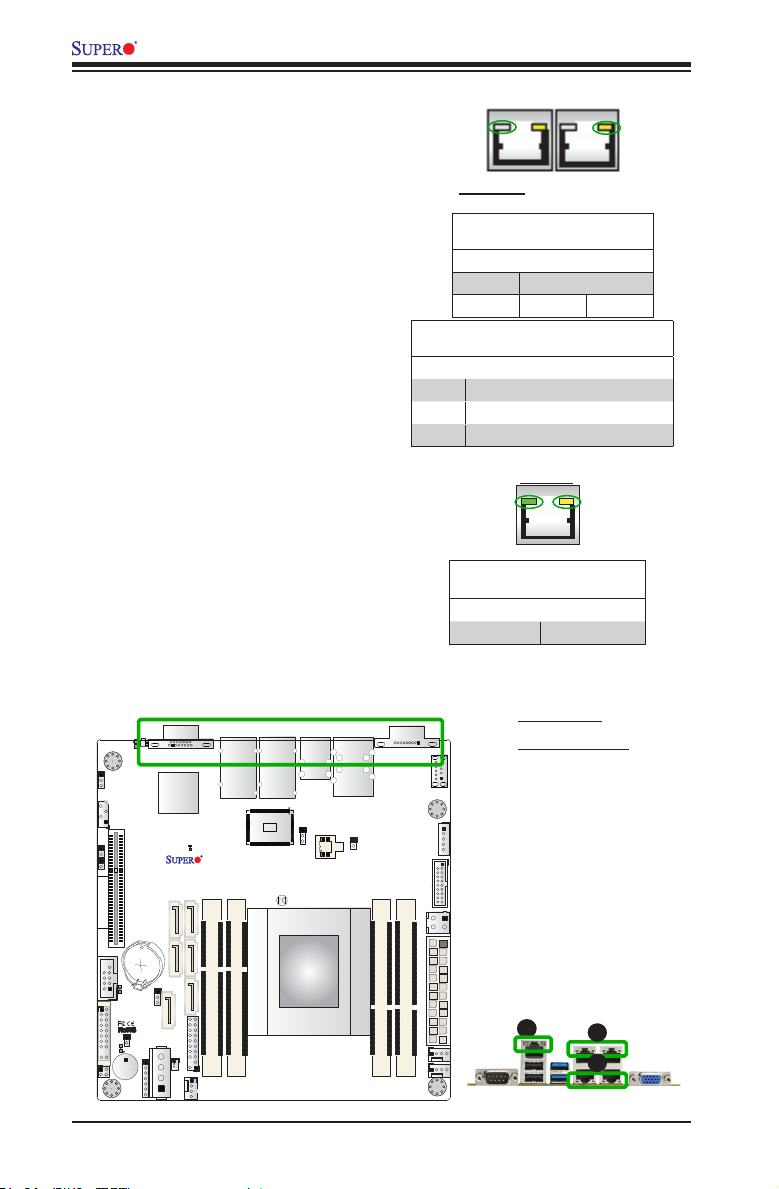

GbE LAN LEDs ........................................................................................ 2-28

IPMI Dedicated LAN LEDs ....................................................................... 2-28

Onboard Power LED ............................................................................... 2-29

Overheat/PWR Fail/Fan Fail LED ............................................................ 2-29

Unit Identication LED .............................................................................. 2-30

vii

A1SAi & A1SRi Series Motherboard User’s Manual

2-9 SATA Connections ......................................................................................... 2-31

Serial ATA Ports........................................................................................ 2-31

Chapter 3 Troubleshooting

3-1 Troubleshooting Procedures ........................................................................... 3-1

Before Power On ............................................................................................ 3-1

No Power ........................................................................................................ 3-1

No Video ......................................................................................................... 3-1

Memory Errors ............................................................................................... 3-2

Losing the System’s Setup Conguration ....................................................... 3-2

3-2 Technical Support Procedures ........................................................................ 3-3

3-3 Frequently Asked Questions ........................................................................... 3-4

3-4 Battery Removal and Installation .................................................................... 3-5

Battery Removal .............................................................................................. 3-5

Proper Battery Disposal .................................................................................. 3-5

Battery Installation ........................................................................................... 3-5

3-5 Returning Merchandise for Service................................................................. 3-6

Chapter 4 BIOS

4-1 Introduction ...................................................................................................... 4-1

4-2 Main Setup ...................................................................................................... 4-3

4-3 Advanced Setup Congurations...................................................................... 4-4

4-4 IPMI ............................................................................................................... 4-29

4-6 Boot ............................................................................................................... 4-33

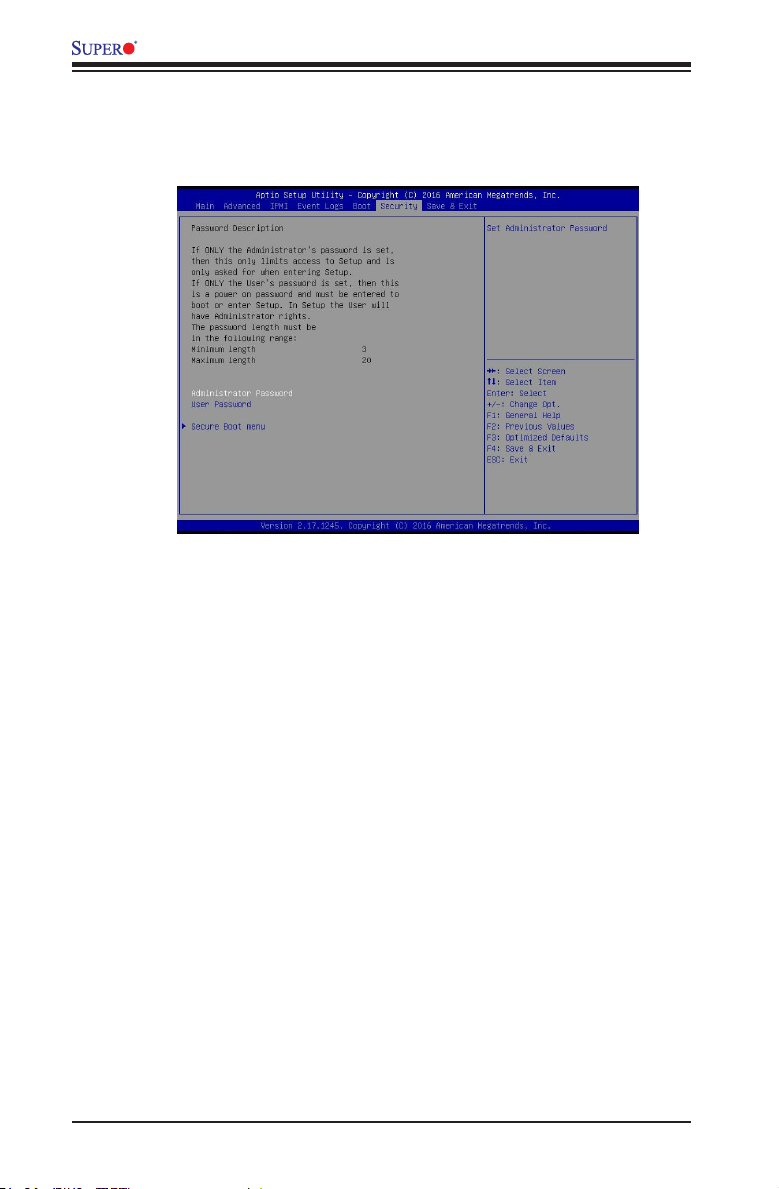

4-7 Security ......................................................................................................... 4-34

4-8 Save & Exit ................................................................................................... 4-37

Appendix A BIOS Error Beep Codes

A-1 BIOS Error Beep Codes .................................................................................A-1

Appendix B Software Installation Instructions

B-1 Installing Software Programs ..........................................................................B-1

B-2 Installing SuperDoctor5 ...................................................................................B-2

Appendix C UEFI BIOS Recovery Instructions

C-1 An Overview to the UEFI BIOS ......................................................................C-1

C-2 How to Recover the UEFI BIOS Image (the Main BIOS Block) .....................C-1

C-3 To Recover the Main BIOS Block Using a USB-Attached Device..................C-1

viii

Chapter 1: Introduction

Chapter 1

Introduction

1-1 Overview

Checklist

Congratulations on purchasing your computer motherboard from an acknowledged

leader in the industry. Supermicro boards are designed with the utmost attention to

detail to provide you with the highest standards in quality and performance.

Please check that the following items have all been included with your motherboard.

If anything listed here is damaged or missing, contact your retailer.

The following items are included in the retail box:

• One (1) Supermicro Motherboard

• Six (6) SATA cables (four (4) for A1SRi-2358F)

• One (1) I/O shield

• One (1) Quick Reference Guide

Note: For your system to work properly, please follow the links below to

download all necessary drivers/utilities and the user's manual for your

motherboard.

SMCI product manuals: http://www.supermicro.com/support/manuals/

Product Drivers and utilities: ftp://ftp.supermicro.com/

If you have any questions, please contact our support team at support@supermicro.

com.

1-1

A1SAi & A1SRi Series Motherboard User’s Manual

A1SAi & A1SRi Series Motherboard Image

Note 1: All graphics shown in this manual were based upon the latest PCB Revision

available at the time of publishing of the manual. The motherboard you've received

may or may not look exactly the same as the graphics shown in this manual.

Note 2: I-SATA4/5 and DIMMB1/B2 are not available on A1SRi-2358F.

1-2

Chapter 1: Introduction

LAN3/4 LED

A1SAi & A1SRi Series Motherboard Layout

JPG1

JI2C1

JI2C2

Bar Code

JF1

JIPMB1

FP CTRL

JPK1

PCI-E 2.0 X8

COM2

LED8

LED3

SP1

LED7

JUIDB1

VGA

BMC

I-SATA1

I-SATA2

I-SATA3

Battery

JOH1

I-SATA4

JWD1

I-SATA5

JTPM1

JD1

JSD1

FAN2

LAN2/LAN4

LED2

A1SAi/A1SRi Series Motherboard

Rev. 1.00

I-SATA0

DIMMB1

LAN1/LAN3

Marvell PHY

JBT1

DIMMB2

USB3.0-0/1

JPL1

CPU

USB2.0-0/1

COM1

USB 3.0-3

IPMI_LAN

BIOS

JL1

DIMMA2

JPI2C1

USB 3.0-2

JPW1

FAN3

FAN1

DIMMA1

Important Notes to the User

1. See Chapter 2 for detailed information on jumpers, I/O ports and JF1 front

panel connections.

2. " " indicates the location of "Pin 1". Jumpers not indicated are for testing

only.

3. I-SATA4/5 and DIMMB1/B2 are not available on A1SRi-2358F.

4. When LED3 (Onboard Power LED Indicator) is on, system power is on.

Unplug the power cable before installing or removing any components.

5. The A1SRi Series motherboard supports Intel® QuickAssist technology to

enhance network routing and internet security for communications systems.

6. The A1SAi Series motherboard supports Turbo Boost Technology, offering

turbo-boost capabilities to maximize system performance for server plat-

forms. Refer to the Model Variation table on page 1-6 for more details.

1-3

A1SAi & A1SRi Series Motherboard User’s Manual

LAN3/4 LED

Mothrboard Model Name

A1SAi-2750F

A1SAi-2550F A1SRi-2758F A1SRi-2558F A1SRi-2358F

SoC Code Name

Avoton

Rangeley

Rangeley Rangeley

Processor Number C2750 C2550 C2758 C2558 C2358

# of Cores 8 4 8 4 2

# of Threads 8 4 8 4 2

Clock Speed 2.4 GHz 2.4 GHz 2.4 GHz 2.4 GHz 1.7 GHz

Max Turbo Frequency 2.6 GHz 2.6 GHz N/A N/A 2.0 GHz

Intel® QuickAssist Technology No No Yes Yes Yes

Instruction Set 64-bit 64-bit 64-bit 64-bit 64-bit

Embedded Options Available No No Yes Yes Yes

SoC Max TDP 20 W 14 W 20 W 15 W 7W

# of Memory Channels 2 2 2 2 1

Intel® Turbo Boost Technology Yes Yes No No Yes

Intel® Virtualization Technology (VT-x) Yes Yes Yes Yes Yes

AES New Instructions Yes Yes Yes Yes Yes

Intel® Hyper-Threading Technology No No No No No

Intel® QuickAssist Technology No No Yes Yes Yes

A1SAi & A1SRi Series Motherboard Quick Reference

LED7

JPG1

JIPMB1

JI2C1

JI2C2

Bar Code

JF1

JPK1

FP CTRL

PCI-E 2.0 X8

COM2

LED8

LED3

SP1

JOH1

JUIDB1

Battery

VGA

BMC

I-SATA0

I-SATA1

I-SATA2

I-SATA3

I-SATA4

JWD1

I-SATA5

JTPM1

JD1

JSD1

FAN2

LAN2/LAN4

LED2

A1SAi/A1SRi Series Motherboard

Rev. 1.00

DIMMB2

DIMMB1

LAN1/LAN3

Marvell PHY

JBT1

USB3.0-0/1

JPL1

CPU

BIOS

USB2.0-0/1

IPMI_LAN

JL1

COM1

USB 3.0-3

JPI2C1

USB 3.0-2

JPW1

FAN3

DIMMA2

FAN1

DIMMA1

A1SAi/A1SRi Series Motherboard Model Variation Table

1-4

Chapter 1: Introduction

Jumpers

Jumper Description Default

JBT1 CMOS Clear Off (Normal)

JI2C1/JI2C2 SMB to PCI-Exp. Slots Off (Disabled)

JPG1 VGA Enable Pins 1-2 (Enabled)

JPL1 Ethernet LAN Ports Enable Pins 1-2 (Enabled)

JWD1 Watch Dog Enable Pins 1-2 (Reset)

Headers/Connectors

Connector Description

Battery Onboard Battery (JBAT1)

COM1/COM2 COM1/COM2 Port Headers

FAN1-FAN3 CPU/System Cooling Fans

J1* 4-pin 12V DC Power Connector (to provide alternative power to embedded

devices such as SC101i, when the 24-pin ATX power is not in use)

J3 4-pin Power Connector for HDD use (to provide power from the motherboard

to onboard HDD devices)

JD1 Power LED/Speaker Header(Pins 1-3: Power LED, Pins 6-7: Internal

Buzzer, Pins 4-7: External Speaker)

JF1 Front Panel Control Header

JIPMB1 4-pin External SMbus I2C Header (for an IPMI Card)

JL1 Chassis Intrusion Header

JOH1 Overheat LED Header

JPI2C1 Power Supply System Management Bus (SMBus) I2C Header

JPK1 LAN3/LAN4 LED Indication Header

JPW1* 24-pin ATX Power Connector

JSD1 SATA DOM (Device_On_Module) Power Connector

JTPM1 Trusted Platform Module (TPM)/Port 80 Connector

JUID1 Unit Identier (UID) Switch

LAN1/LAN3, LAN2/LAN4 Gigabit Ethernet (RJ45) Ports

PCI-E Slot PCI-E 2.0 x 8 Slot

I-SATA0-I-SATA5 Intel Serial ATA Ports 0-5 (Ports 4/5 not available on the A1SRi-2358F)

SP1 Internal Speaker/Buzzer

USB 2.0 0/1 USB 2.0 Ports on the Rear I/O Panel

USB 3.0 0/1 USB 3.0 Ports on the Rear I/O Panel

USB 3.0 2/3 One USB 3.0 Port via Header + One USB 3.0 Port via Type-A

VGA Backpanel VGA Port

(*Do not use the 4-pin DC power at J1 when the 24-pin ATX Power at JPW1 is connected to the power supply. Do not plug in both J1 and JPW1 at the same time.)

1-5

A1SAi & A1SRi Series Motherboard User’s Manual

Mothrboard Model Name

A1SAi-2750F

SoC Code Name

Avoton

Rangeley

Rangeley Rangeley

Processor Number C2750 C2550 C2758 C2558 C2358

# of Cores 8 4 8 4 2

# of Threads 8 4 8 4 2

Clock Speed 2.4 GHz 2.4 GHz 2.4 GHz 2.4 GHz 1.7 GHz

Max Turbo Frequency 2.6 GHz 2.6 GHz N/A N/A 2.0 GHz

Intel® QuickAssist Technology No No Yes Yes Yes

Instruction Set 64-bit 64-bit 64-bit 64-bit 64-bit

Embedded Options Available No No Yes Yes Yes

SoC Max TDP 20 W 14 W 20 W 15 W 7W

# of Memory Channels 2 2 2 2 1

Intel® Turbo Boost Technology Yes Yes No No Yes

Intel® Virtualization Technology (VT-x) Yes Yes Yes Yes Yes

AES New Instructions Yes Yes Yes Yes Yes

Intel® Hyper-Threading Technology No No No No No

Intel® QuickAssist Technology No No Yes Yes Yes

LED Indicators

LED Description Color/State Status

LED2 BMC Heartbeat LED Green: Blinking BMC: Normal

LED3 Power LED Green: On System PWR On

LED7 UID Switch LED Blue: On Unit Identied

LED8 Overheat/PWR Fail/Fan Fail LED Red: Solid on/Blinking

Note: The A1SRi Series motherboard supports Intel QuickAssist technol-

ogy to enhance network routing and internet security for communications

systems. The A1SAi Series motherboard supports Turbo Boost Technology,

offering turbo boost capabilities to maximize system performance for server

platforms. Refer to the Model Variation table below for details.

A1SAi/A1SRi Series Motherboard Model Variation Table

A1SAi-2550F A1SRi-2758F A1SRi-2558F A1SRi-2358F

Solid On: Overheat, Blinking: PWR Fail or Fan Fail

1-6

Chapter 1: Introduction

Motherboard Features

CPU Single Intel® C2000 Tri-Gate 22nm SoC in the FCBGA

1283 package (Formerly Avoton Rangeley)

Each SoC supports 2, 4, or 8 Cores

Refer to the Model Variation table on page 1-4 or 1-6 for

SoC support on each MB SKU

Memory A1SAi-2550F/2750F + A1SRi-2558F/2758F

Four (4) DIMMs memory slots support up to 64 GB of

SO-DDR3 Unbuffered ECC 1600/1333 MHz (1.5V, 1.35V)

memory; populate identical memory (of the same type/

speed/size) in all slots

A1SRi-2358F

Two (2) slots support up to 16GB of SO-DDR3 Unbuffered

ECC 1333MHz. (Some 1600MHz memory can be used,

but they will operate at 1333MHz.)

Dual-Channel memory or Single-Channel w/x8 data width,

Single or Dual Rank memory

DIMM sizes

DIMMs 2 GB, 4GB, 8GB, and 16GB ECC SODIMM

(16GB not suppoted on A1SRi-2358F)

Expansion Slot One (1) PCI Express 2.0 x8 slot

Network Connections C2000 Series SoC I354 built-in Quad-port GbE control-

I/O Devices SATA Connections

lers (MACs) w/Marvell 88E1543 Transceiver

Four (4) RJ-45 rear I/O panel connectors with Link and Activity LEDs

One (1) Dedicated IPMI LAN Port (Realtek 8211E-PHY)

SATA 3.0

(6Gb/s)

SATA 2.0

(3Gb/s)

USB Devices

Two (2) USB 3.0 ports on the rear I/O panel (USB 3.00/1) One (1) USB 3.0 port on Type-A connector One (1) USB 3.0 port via internal header

Two (2) USB 2.0 on the rear I/O panel (USB2.0-0/1)

Two (2) SATA 3.0 (I-SATA 0/1)

Four (2) SATA 2.0 (I-SATA 2-5) Two (2) on A1SRi-2358F

1-7

A1SAi & A1SRi Series Motherboard User’s Manual

Serial (COM) Ports

One (1) COM port on the rear I/O panel (COM1) One (1) front accessible COM port header (COM2)

IPMI 2.0

IPMI 2.0 supported by Aspeed AST2400 BMC (Baseboard Management Controller)

VGA (Graphics Display)

One (1) VGA Port on the rear I/O panel supported by the Aspeed AST2400 VGA Controller

BIOS 64 Mb AMI BIOS® SPI EEPROM BIOS

Plug and Play, DMI 2.0, PCI 2.3, ACPI 5.0, USB Keyboard, SMBIOS 2.7, and UEFI 2.3.1

Power Conguration ACPI/ACPM Power Management (S0 and S5 only)

Main Switch Override Mechanism

Power-on mode for AC power recovery

PC Health Monitoring Onboard Voltage Monitoring

VCCP, VDIMM, 12V, 5VCC, 3.3VCC, VBAT, 5V, Dual, and

3.3V AUX

CPU 1+1-phase switching voltage regulator

CPU/System overheat LED and control

CPU Thermal Trip support

SoC Thermal Control Circuit (TCC) mechanism

Thermal Monitor Support

Fan Control

Low noise fan speed control

BMC Health Monitoring

BMC Fan control and thermal alert by sensors monitoring, including CPU, memory and motherboard ambient temperatures

System Management PECI (Platform Environment Conguration Interface) 3.0

System resource alert via SuperDoctor® 5

SuperDoctor® 5, Watch Dog, NMI

Chassis Intrusion header and detection

CD Utilities Download from www.supermicro.com

Other ROHS (Full Compliance, Lead Free)

Operating Temperature 00-600C

Dimensions Mini iTX form factor (6.75" x 6.75") (171.45 mm x 171.45

Note: Please refer to Note 5 and Note 6 on page 1-3 for Intel® QuickAssist

technology and Turbo Boost technology support.

mm)

1-8

GbE LAN

DIMMB1/B2 not available on A1SRi-2358F

REAR

RJ45

RTL8211E

VGA

FAN x 3

0Ohm NI

Chapter 1: Introduction

A1SAi & A1SRi Series motherboard Block Diagram

SO - DIMM

CHB

CHACHB

SO - DIMM

CHA

C2000 SOC

SATA 3.0

PEG [7]

SATA GEN3

SATA GEN2

PCIE x 1

SGMII x 4

TPM HDR

A1SAi-2550F/2750F (Four SATA 2.0) A1SRi-2358F (Two SATA 2.0 only)

SATA 2.0

Renesas 720201

Marvell 88E1543

HEADER

10BASE-T/100BASE-T/1000BASE-T

LAN3 LAN1

FLASH 64Mb

PCIE 2.0 x 8 SLOT

USB 2.0 X 2

AST2400

TX/RX

(debug)

UART1 UART2

COM1

SPI

PCIE x 8

PEG [8..15]

USB [0:1]

PCIE x 1

PEG [3]

USB [2:3]

LPC

COM2

USB 3.0 X 4

USB

TYPE-A

LAN4 LAN2

REAR

System Block Diagram

Note: This is a general block diagram and may not exactly represent

the features on your motherboard. See the Motherboard Features

pages for the actual specications of each motherboard.

1-9

A1SAi & A1SRi Series Motherboard User’s Manual

1-2 Processor Overview

The A1SAi/A1SRi Series motherboard supports a 2nd-generation 64-bit, Intel

Atom™ C2000 Tri-Gate SoC (System-on-a-Chip) processor based on low-power

Silvermont microarchitecture in an FCBGA 1283 package. Built upon the func-

tionality and capability of the C2000 Series processor in the low-power 22nm

microarchitecture, the A1SAi/A1SRi Series motherboard provides unprecedented

enhancements to network routing, internet security, system performance, and power

efciency.

The C2000 SoC Series processor features an Out-of-Order Execution Engine and

offers new multi-core and system fabric architecture capable of utilizing up to eight

CPU cores to achieve improved single-thread performance. This new SoC proces-

sor also provides an operating range with wider dynamic power and enhanced

power management. In addition, the A1SRi Series motherboard supports the Intel

QuickAssist Technology, which provides hardware acceleration to help enhance

cryptographic performance, secure internet trafc, and boost network routing,

freeing up processor resources for application processing, while the A1SAi Series

motherboard supports the Intel Turbo Boost Technology, which offers turbo-boost

capabilities to maximize system performance.

Intel® C2000 Series Processor Features

The C2000 Series processor offers the following features:

• Up to 64GB ECC memory support (up to 16GB for A1SRi-2358F)

• Enterprise Class I354 Quad GbE LAN Controller

• Four SATA2 ports and two SATA3 ports (Two SATA2 and two SATA3 for A1SRi-

2358F)

• SSE Extensions

• AES-NI

• Highly-Optimized Power Management Unit

• Server-Class Reliability, Availability and Serviceability (RAS)

• Intel Virtualization Technology (VTx)

• Intel QuickAssist Technology (A1SRi Series only)

• Intel Turbo Boost Technology (A1SAi Series + A1SRi-2358F only)

1-10

Chapter 1: Introduction

1-3 Special Features

Recovery from AC Power Loss

Basic I/O System (BIOS) provides a setting for you to determine how the system will

respond when AC power is lost and then restored to the system. You can choose

for the system to remain powered off, (in which case you must press the power

switch to turn it back on), or for it to automatically return to a power-on state. See

the Advanced BIOS Setup section to change this setting. The default setting is

Last State.

1-4 PC Health Monitoring

This section describes the PC health monitoring features of the board. All have

an onboard System Hardware Monitoring chip that supports PC health monitoring.

An onboard voltage monitor will scan these onboard voltages continuously: VCCP,

VDIMM, 12V, 5VCC, 3.3VCC, VBAT, 5V, Dual, and 3.3V AUX. Once a voltage be-

comes unstable, a warning is given, or an error message is sent to the screen. The

user can adjust the voltage thresholds to dene the sensitivity of the voltage monitor.

Environmental Temperature Control

This motherboard comes with a built-in passive heatsink. Please follow the instruc-

tions given in your system design guide or your system user manual to provide

proper/adequate airow to your system. The onboard BaseBoard Management

Controller (BMC) monitors CPU, memory and motherboard environment tempera-

tures for fan control and PC health management.

Note: To avoid possible system overheating, please be sure to provide

adequate airow to your system.

System Resource Alert

This feature is available when the system is used with SuperDoctor® 5 in the

Windows OS environment or used with SuperDoctor II in Linux. SuperDoctor

is used to notify the user of certain system events. For example, you can also

congure SuperDoctor to provide you with warnings when the system temperature,

CPU temperatures, voltages and fan speeds go beyond predened thresholds.

1-11

A1SAi & A1SRi Series Motherboard User’s Manual

1-5 ACPI Features

ACPI stands for Advanced Conguration and Power Interface. The ACPI specica-

tion denes a exible and abstract hardware interface that provides a standard

way to integrate power management features throughout a PC system, including

its hardware, operating system and application software. This enables the system

to automatically turn on and off peripherals such as CD-ROMs, network cards, hard

disk drives and printers.

In addition to enabling operating system-directed power management, ACPI also

provides a generic system event mechanism for Plug and Play, and an operating

system-independent interface for conguration control. ACPI leverages the Plug and

Play BIOS data structures, while providing a processor architecture-independent

implementation that is compatible with Windows 7, Windows 8, and Windows 2008

Operating Systems. A1SAi/A1SRi Series motherboards support S0 and S5 only.

1-6 Power Supply

As with all computer products, a stable power source is necessary for proper and

reliable operation. It is even more important for processors that have high CPU

clock rates.

Note 1: The A1SAi and A1SRi Series motherboard alternatively supports

a 4-pin 12V DC input power supply for embedded applications. The 12V

DC input is limited to 12A by design. It provides up to 144W power input

to the motherboard. Please keep onboard power use within the power

limits specied above. Over-current DC power use may cause damage

to the motherboard!

Note 2: Do not use the 4-pin DC power at J1 when the 24-pin ATX Power

at JPW1 is connected to the power supply. Do not plug in both J1 and

JPW1 at the same time.

It is strongly recommended that you use a high quality power supply that meets ATX

power supply Specication 2.02 or above. It must also be SSI compliant. (For more

information, please refer to the website at http://www.ssiforum.org/). Additionally, in

areas where noisy power transmission is present, you may choose to install a line lter

to shield the computer from noise. It is recommended that you also install a power

surge protector to help avoid problems caused by power surges.

1-12

Chapter 2: Installation

Chapter 2

Installation

2-1 Standardized Warning Statements

The following statements are industry-standard warnings, provided to warn the user

of situations which have the potential for bodily injury. Should you have questions or

experience difculty, contact Supermicro's Technical Support department for assis-

tance. Only certied technicians should attempt to install or congure components.

Read this section in its entirety before installing or conguring components in the

Supermicro chassis.

Battery Handling

Warning!

There is a danger of explosion if the battery is replaced incorrectly. Replace the

battery only with the same or equivalent type recommended by the manufacturer.

Dispose of used batteries according to the manufacturer's instructions

電池の取り扱い

電池交換が正しく行われなかった場合、破裂の危険性があります。交換する電池はメーカーが推奨する型、または同等のものを使用下さい。使用済電池は製造元の指示に従って処分して下さい。

警告

电池更换不当会有爆炸危险。请只使用同类电池或制造商推荐的功能相当的电池更

换原有电池。请按制造商的说明处理废旧电池。

警告

電池更換不當會有爆炸危險。請使用製造商建議之相同或功能相當的電池更換原有

電池。請按照製造商的說明指示處理廢棄舊電池。

Warnung

Bei Einsetzen einer falschen Batterie besteht Explosionsgefahr. Ersetzen Sie die

Batterie nur durch den gleichen oder vom Hersteller empfohlenen Batterietyp.

Entsorgen Sie die benutzten Batterien nach den Anweisungen des Herstellers.

2-1

A1SAi & A1SRi Series Motherboard User’s Manual

Attention

Danger d'explosion si la pile n'est pas remplacée correctement. Ne la remplacer

que par une pile de type semblable ou équivalent, recommandée par le fabricant.

Jeter les piles usagées conformément aux instructions du fabricant.

¡Advertencia!

Existe peligro de explosión si la batería se reemplaza de manera incorrecta. Re-

emplazar la batería exclusivamente con el mismo tipo o el equivalente recomen-

dado por el fabricante. Desechar las baterías gastadas según las instrucciones

del fabricante.

!הרהזא

תנכס תמייקץוציפ .הניקת אל ךרדב הפלחוהו הדימב הללוסה לש ףילחהל שי

גוסב הללוסה תא מ םאותה תרבחלמומ ןרציתצ.

תוללוסה קוליס תושמושמה עצבל שי .ןרציה תוארוה יפל









경고!

배터리가 올바르게 교체되지 않으면 폭발의 위험이 있습니다. 기존 배터리와 동일 하거나 제조사에서 권장하는 동등한 종류의 배터리로만 교체해야 합니다. 제조사 의 안내에 따라 사용된 배터리를 처리하여 주십시오.

Waarschuwing

Er is ontplofngsgevaar indien de batterij verkeerd vervangen wordt. Vervang de

batterij slechts met hetzelfde of een equivalent type die door de fabrikant aan-

bevolen wordt. Gebruikte batterijen dienen overeenkomstig fabrieksvoorschriften

afgevoerd te worden.

2-2

Chapter 2: Installation

Product Disposal

Warning!

Ultimate disposal of this product should be handled according to all national laws

and regulations.

製品の廃棄

この製品を廃棄処分する場合、国の関係する全ての法律・条例に従い処理する必要が

あります。

警告本产品的废弃处理应根据所有国家的法律和规章进行。

警告本產品的廢棄處理應根據所有國家的法律和規章進行。

Warnung

Die Entsorgung dieses Produkts sollte gemäß allen Bestimmungen und Gesetzen

des Landes erfolgen.

¡Advertencia!

Al deshacerse por completo de este producto debe seguir todas las leyes y regla-

mentos nacionales.

Attention

La mise au rebut ou le recyclage de ce produit sont généralement soumis à des

lois et/ou directives de respect de l'environnement. Renseignez-vous auprès de

l'organisme compétent.

רצומה קוליס

!הרהזא

ו תויחנהל םאתהב תויהל בייח הז רצומ לש יפוס קוליס.הנידמה יקוח

2-3

A1SAi & A1SRi Series Motherboard User’s Manual

 

경고!

이 제품은 해당 국가의 관련 법규 및 규정에 따라 폐기되어야 합니다.

Waarschuwing

De uiteindelijke verwijdering van dit product dient te geschieden in overeenstemming

met alle nationale wetten en reglementen.

2-2 Static-Sensitive Devices

Electrostatic-Discharge (ESD) can damage electronic com ponents. To avoid dam-

aging your system board, it is important to handle it very carefully. The following

measures are generally sufcient to protect your equipment from ESD.

Precautions

• Use a grounded wrist strap designed to prevent static discharge.

• Touch a grounded metal object before removing the board from the antistatic

bag.

• Handle the board by its edges only; do not touch its components, peripheral

chips, memory modules or gold contacts.

• When handling chips or modules, avoid touching their pins.

• Put the motherboard and peripherals back into their antistatic bags when not in

use.

• For grounding purposes, make sure your computer chassis provides excellent

conductivity between the power supply, the case, the mounting fasteners and

the motherboard.

• Use only the correct type of onboard CMOS battery. Do not install the onboard

battery upside down to avoid possible explosion.

Unpacking

The motherboard is shipped in antistatic packaging to avoid static damage. When

unpacking the board, make sure that the person handling it is static protected.

2-4

Chapter 2: Installation

DIMMA1

DIMMA2

DIMMB2

DIMMB1

CPU

2-3 Memory Support

The A1SAi & A1SRi Series motherboard supports up to 64GB of DDR3 ECC

Unbuffered SODIMM 1600/1333 MHz in four memory slots. The A1SRi-2358F

supports up to 16GB at 1333MHz in two slots: DIMMA1 and DIMMA 2. Populating

these DIMM modules with a pair of memory modules of the same type and same

size will result in interleaved memory, which will improve memory performance.

Note: Check the Supermicro website for recommended memory modules.

CAUTION

Exercise extreme care when installing or removing DIMM

modules to prevent any possible damage.

Memory Population Guidelines

Please follow the table below when populating the motherboard.

Unbuffered DDR3 ECC SODIMM Population

DIMMA1 Slot DIMMB1 Slot DIMMA2 Slot DIMMB2 Slot Total System Memory

4GB 4GB 8GB

4GB 4GB 4GB 4GB 16GB

8GB 8GB 16GB

8GB 8GB 8GB 8GB 32GB

16GB 16GB 16GB 16GB 64GB

Note: Some 1600MHz modules can be used with the A1SRi-2358F, but

they will operate as 1333MHz.

DIMMA1

DIMMA2

Towards the CPU

DIMMB2

DIMMB1

2-5

A1SAi & A1SRi Series Motherboard User’s Manual

Populating Memory Modules

Note 1: Install the desired number of DIMMs into the memory slots, starting

with DIMMA1, then DIMMB1, then DIMMA2, then DIMMB2. Pay attention

to the notch along the bottom of the module to prevent incorrect DIMM

module installation. DIMMB1/B2 are not available on A1SRi-2358F.

Note 2: The motherboard will support one, two, or four DIMM modules.

However, for best memory performance, please install DIMM modules in

pairs.

Note 3: Insert only identical memory modules of the same part number

into the memory slots to ensure that only memory modules of the same

type, same frequency, same speed and same capacity are used on the

same motherboard.

Installing DIMM Memory Modules

1. Align the key on the bottom of the DIMM module against the receptive point

on the memory slot. Take note of the notches on the side of the DIMM mod-

ule, and of the locking clips on the socket to avoid causing damage.

Module Notch

Module Key

Socket Key

2. Install the DIMMs module straight down into the socket until it is securely

seated in the socket. The side clips will automatically lock the module into

place.

Side Clips

Removing Memory Modules

Use your thumbs to gently push the side clips near both ends away from the module

to release it from the socket. Once the module is loosened from the socket, pull

the DIMMs module upwards.

2-6

Note: Due to memory allocation to system devices, the amount of mem-

ory that remains available for operational use will be reduced when 4 GB

of RAM is used. The reduction in memory availability is disproportional.

See the following table for details.

Possible System Memory Allocation & Availability

System Device Size Physical Memory

Firmware Hub ash memory (System BIOS) 1 MB 3.99

Local APIC 4 KB 3.99

Area Reserved for the chipset 2 MB 3.99

I/O APIC (4 Kbytes) 4 KB 3.99

PCI Enumeration Area 1 256 MB 3.76

PCI Express (256 MB) 256 MB 3.51

PCI Enumeration Area 2 (if needed) -Aligned on 256-MB boundary-

VGA Memory 16 MB 2.85

TSEG 1 MB 2.84

Memory available to OS and other applications 2.84

512 MB 3.01

Chapter 2: Installation

Remaining (-Available)

(4 GB Total System

Memory)

2-7

A1SAi & A1SRi Series Motherboard User’s Manual

2-4 Motherboard Installation

All motherboards have standard mounting holes to t different types of chassis.

Make sure that the locations of all the mounting holes for both motherboard and

chassis match. Although a chassis may have both plastic and metal mounting fas-

teners, metal ones are highly recommended because they ground the motherboard

to the chassis. Make sure that the metal standoffs click in or are screwed in tightly.

Then use a screwdriver to secure the motherboard onto the motherboard tray.

Tools Needed

Philips Screwdriver

(1)

Philips Screws (4)

Location of Mounting Holes

LED7

JUIDB1

VGA

JPG1

Battery

BMC

LED2

A1SAi/A1SRi Series Motherboard

Rev. 1.00

I-SATA0

I-SATA1

I-SATA2

I-SATA3

I-SATA4

JWD1

I-SATA5

JTPM1

JD1

JSD1

DIMMB1

FAN2

JI2C1

JI2C2

Bar Code

JF1

LAN3/4 LED

JIPMB1

FP CTRL

JPK1

COM2

LED8

LED3

SP1

PCI-E 2.0 X8

JOH1

LAN2/LAN4

DIMMB2

LAN1/LAN3

Marvell PHY

Standoffs (4)

Only if Needed

USB2.0-0/1

COM1

USB 3.0-3

USB3.0-0/1

IPMI_LAN

DIMMA1

JPI2C1

USB 3.0-2

JPW1

FAN3

FAN1

BIOS

JPL1

JBT1

JL1

CPU

DIMMA2

Caution: 1) To avoid damaging the motherboard and its components, please do

not use a force greater than 8 lb/inch on each mounting screw during motherboard

installation. 2) Some components are very close to the mounting holes. Please take

precautionary measures to avoid damaging these components when installing the

motherboard to the chassis.

2-8

Chapter 2: Installation

Installing the Motherboard

1. Install the I/O shield into the back of the chassis.

2. Locate the mounting holes on the motherboard. (See the previous page.)

3. Locate the matching mounting holes on the chassis. Align the mounting holes

on the motherboard against the mounting holes on the chassis.

4. Install standoffs in the chassis as needed.

5. Install the motherboard into the chassis carefully to avoid damaging other

motherboard components.

6. Using the Phillips screwdriver, insert a Phillips head #6 screw into a mounting

hole on the motherboard and its matching mounting hole on the chassis.

7. Repeat Step 5 to insert #6 screws into all mounting holes.

8. Make sure that the motherboard is securely placed in the chassis.

Note: Images displayed are for illustration only. Your chassis or compo-

nents might look different from those shown in this manual.

2-9

A1SAi & A1SRi Series Motherboard User’s Manual

2-5 Connectors/IO Ports

The I/O ports are color coded in conformance with the industry standards. See the

gure below for the colors and locations of the various I/O ports.

I/O Back Panel

JPG1

JI2C1

JI2C2

Bar Code

JF1

LAN3/4 LED

JIPMB1

FP CTRL

JPK1

PCI-E 2.0 X8

COM2

LED8

LED3

SP1

LED7

JOH1

JUIDB1

Battery

USB2.0-0/1

VGA

BMC

I-SATA0

I-SATA1

I-SATA2

I-SATA3

LAN2/LAN4

LED2

A1SAi/A1SRi Series Motherboard

Rev. 1.00

LAN1/LAN3

Marvell PHY

USB3.0-0/1

IPMI_LAN

BIOS

JPL1

JBT1

JL1

COM1

USB 3.0-3

JPI2C1

USB 3.0-2

CPU

DIMMA1

JPW1

FAN3

FAN1

I-SATA4

JWD1

I-SATA5

JTPM1

JD1

JSD1

DIMMB2

DIMMB1

FAN2

DIMMA2

I/O Back Panel

A. COM1 G. LAN1

B. USB Port 2.0-0 H. LAN3

C. USB Port 2.0-1 I. LAN2

D. IPMI LAN J. LAN4

E. USB Port 3.0-0 K. VGA

F. USB Port 3.0-1

2-10
