RETAIN THESE INSTRUCTIONS
FOR FUTURE REFERENCE
INSTALLATION
INSTRUCTIONS
STANDARD SERIES
36" B-VENTED GAS APPLIANCES
P/N 700,003M REV. H 05/2004
This appliance may be installed in an aftermarket permanently located, manufactured
home (USA only) or mobile home, where not
prohibited by local codes. This appliance is
only for use with the type of gas indicated on
the rating plate. This appliance is not convertible for use with other gases, unless a certified kit is used.
WARNING: IF THE INFORMATION IN THIS MANUAL
IS NOT FOLLOWED EXACTLY, A FIRE OR EXPLOSION MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE.
FOR YOUR SAFETY: Do not store or use gasoline
or other flammable vapors or liquids in the vicinity of this or any other appliance.
FOR YOUR SAFETY: What to do if you smell gas:
• DO NOT light any appliance.
• DO NOT touch any electrical switches.
• DO NOT use any phone in your building.
• Immediately call your gas supplier from a
neighbor’s phone. Follow your gas suppliers
instructions.
• If your gas supplier cannot be reached, call the
fire department.
Installation and service must be performed by a
qualified installer, service agency or the gas
supplier.
WH Report No. J20006722
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
MODELS
Millivolt Models Electronic Models
B-40RMN B-40REN
B-40RMP B-40REP
AVERTISSEMENT: ASSUREZ-VOUS DE BIEN SUIVRE
LES INSTRUCTIONS DONNÉ DANS CETTE NOTICE POUR
RÉDUIRE AU MINIMUM LE RISQUE D'INCENDIE OU
POUR ÉVITER TOUT DOMMAGE MATÉRIEL, TOUTE
BLESSURE OU LA MORT.
POUR VOTRE SÉCURITÉ: Ne pas entreposer ni utiliser
d'essence ni d'autre vapeurs ou liquides inflammables
dans le voisinage de cet appareil ou de tout autre
appareil.
POUR VOTRE SÉCURITÉ: Que faire si vous sentez une
odeur de gaz:
• Ne pas tenter d'allumer d'appareil.
• Ne touchez à aucun interrupteur. Ne pas vous servir
des téléphones se trouvant dans le batiment où
vous vous trouvez.
• Evacuez la piéce, le bâtiment ou la zone.
• Appelez immédiatement votre fournisseur de gaz
depuis un voisin. Suivez les instructions du
fournisseur.
• Si vous ne pouvez rejoindre le fournisseur de gaz,
appelez le service dos incendies.
L'installation et service doit être exécuté par un qualifié
installeur, agence de service ou le fournisseur de gaz.
1
TABLE OF CONTENTS
Introduction ..................................... page 2
General Information......................... page 2
Location .......................................... page 3
Clearances ....................................... page 3
Appliance Specifications .................. page 4
Gas Vent Rule .................................. page 4
Framing Specifications .................... page 5
Typical Installation Sequence .......... page 5
Installation ....................................... page 5
Vent System Installation .................. page 6
Field Wiring ..................................... page 7
Connecting Gas Line........................ page 7
Outside Air Kit Installation ............... page 8
Log and Rockwool Installation ........ page 9
Appliance Operation ........................ page 9
Manual Llimit Switch ....................... page 9
Millivolt Appliance Checkout............ page 10
Electronic Appliance Checkout......... page 10
Adjustments .................................... page 10
Finishing Requirements ................... page 11
Cold Climate Insulation.................... page 11
Installation Accessories ................... page 11
Gas Conversion Kits.................. page 12
The electronic appliances are designed to operate on either natural or propane gas. An
electronic direct intermittent pilot system provides safe, efficient operation. External electrical power is required to operate these units.
These appliances comply with National Safety
Standards and are tested and listed by Warnock Hersey (Report No. J20006722) to ANSI
Z21.50 - 2000 (in Canada, CSA 2.22 - 2000),
and CAN/CGA-2.17-M91 in both USA and
Canada, as vented gas fireplaces.
Installation must conform to local codes. In the
absence of local codes, installation must comply with the current National Fuel Gas Code,
ANSI Z223.1 (NFPA 54). (In Canada, the current CAN/CGA B149 installation code.) Electrical wiring must comply with local codes. In the
absence of local codes, installation must be in
accordance with the National Electrical Code,
NFPA 70 - (latest edition). (In Canada, the
current CSA C22.1 Canadian Electric Code.)
DO NOT ATTEMPT TO ALTER OR MODIFY
THE CONSTRUCTION OF THE APPLIANCE OR
ITS COMPONENTS. ANY MODIFICATION OR
ALTERATION MAY VOID THE WARRANTY,
CERTIFICATION AND LISTINGS OF THIS UNIT.
WARNING: IMPROPER INSTALLATION,
ADJUSTMENT, ALTERATION, SERVICE
OR MAINTENANCE CAN CAUSE INJURY
OR PROPERTY DAMAGE. REFER TO THIS
MANUAL. FOR ASSISTANCE OR ADDITIONAL INFORMATION CONSULT A
QUALIFIED INSTALLER, SERVICE
AGENCY OR THE GAS SUPPLIER.
GENERAL INFORMATION
WARNING: THESE FIREPLACES ARE
VENTED DECORATIVE GAS APPLIANCES.
DO NOT BURN WOOD OR OTHER MATERIAL IN THESE APPLIANCES.
These appliances are designed to operate on
natural or propane gas only. The use of other
fuels or combination of fuels will degrade
the performance of this system and may be
dangerous.
Input of appliance is 15,000 BTU/HR.
Gas Orifice
Type Size Elevation
Natural
Propane
Nominal operating pressures for the manifold
side of the gas control system are; 3.5 inches
water column (0.87 kPa) for natural gas models
and 10 inches water column (2.49 kPa) for
propane gas models.
Do not use these appliances if any part has been
under water. Immediately call a qualified, professional service technician to inspect the appliance and to replace any parts of the control
system and any gas control which have been
under water.
Ne pas se servir de cet appareil s'il a été plongé
dans l'eau, complètement ou en partie. Appeler
un technicien qualifié pour inspecter l'appareil
et remplacer toute partie du système de contrôle
et toute commande qui ont été plongés dans
l'leau.
#49
(.073)
(.045)
0 - 4500'
(0 - 1370 m)
0 - 4500'
(0 - 1370 m)
This installation manual will help you obtain a
safe, efficient, dependable installation for your
appliance and vent system.
Please read and understand these
instructions before beginning your
installation.
INTRODUCTION
The millivolt appliances are designed to operate on either natural or propane gas. A millivolt
gas control valve with piezo ignition system
provides safe, efficient operation.
2
Note: Installation and repair should be per-
formed by a qualified service person. The appliance should be inspected annually by a qualified professional service technician. More frequent inspections and cleanings may be required due to excessive lint from carpeting,
bedding material, etc. It is imperative that the
control compartment, burners and circulating
air passage ways of the appliance be kept clean.
S'assurer que le brùleur et le compartiment des
commandes sont propres. Voir les instructions d'installation et d'utilisation qui
accompagnent l'apareil.
Provide adequate clearances around air openings and adequate accessibility clearance for
service and proper operation. Never obstruct
the front openings of the appliance.
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
This appliance may be installed in an aftermarket permanently located, manufactured home (USA only) or mobile home,
where not prohibited by local codes. This
appliance is only for use with the type of
gas indicated on the rating plate. This appliance is not convertible for use with other
gases, unless a certified kit is used.Cet
appareil peut être installé dans un maison
préfabriquée (É.-U. seulement) ou mobile
déjà installée à demeure si les réglements
locaux le permettent.
Cet appareil doit être utilisé uniquement
avec les types de gaz indiqués sur la plaque
signalétique. Ne pas l'utiliser avec d'autres
gaz sauf si un kit de conversion certifié est
installé.
Millivolt appliances may be fitted at time of
manufacture with either a Honeywell millivolt
gas control valve or as SIT millivolt gas control
valve. Both valves have been tested with and
approved for use with these appliances and are
listed accordingly.
Test gage connections are provided on the
front of the millivolt gas control valve (identified IN for the inlet and OUT for the manifold side). A ¹⁄₈" NPT test gage connection is
provided at the inlet and outlet side of
the electronic gas control valve.
Minimum inlet gas pressure to the appliance is
5.0 inches water column (1.24 kPa) for natural
gas and 11 inches water column (2.74 kPa) for
propane for the purpose of input adjustment.
Maximum inlet gas supply pressure to the
appliance is 10.5 inches water column (2.61
kPa) for natural gas and 13.0 inches water
column (3.23 kPa) for propane.
The appliance must be isolated from the gas
supply piping system (by closing its individual manual shut-off valve) during any
pressure testing of the gas supply piping
system at test pressures equal to or less
than ¹⁄₂ psig (3.5 kPa).
The appliance and its individual shut-off
valve must be disconnected from the gas
supply piping system during any pressure
testing of that system at pressures in excess
of ¹⁄₂ psig (3.5 kPa).
Carbon Monoxide Poisoning: Early signs of
carbon monoxide poisoning are similar to the
flu with headaches, dizziness and/or nausea. If
you have these signs, obtain fresh air immediately. Turn off the gas supply to the appliance
and have it serviced by a qualified professional, as it may not be operating correctly.
WARNING: B-VENT APPLIANCES ARE NOT
DESIGNED TO OPERATE IN NEGATIVELY
PRESSURED ENVIRONMENTS (PRESSURE
WITHIN THE HOME IS LESS THAN PRESSURES OUTSIDE). SIGNIFICANT NEGATIVELY PRESSURED ENVIRONMENTS
CAUSED BY WEATHER, HOME DESIGN,
OR OTHER DEVICES MAY IMPACT THE
OPERATION OF THESE APPLIANCES.
NEGATIVE PRESSURES MAY RESULT IN
POOR FLAME APPEARANCE, SOOTING,
DAMAGE TO PROPERTY AND/OR SEVERE
PERSONAL INJURY. DO NOT OPERATE
THESE APPLIANCES IN NEGATIVELY PRESSURED ENVIRONMENTS.
WARNING: CHILDREN AND ADULTS
SHOULD BE ALERTED TO THE HAZARDS
OF HIGH SURFACE TEMPERATURES. USE
CAUTION AROUND THE APPLIANCE TO
AVOID BURNS OR CLOTHING IGNITION.
YOUNG CHILDREN SHOULD BE CAREFULLY SUPERVISED WHEN THEY ARE IN
THE SAME ROOM AS THE APPLIANCE.
These appliances are equipped with an integral combustion air door and actuator arm.
Combustion air kits are optional and must be
installed before removing the securing screw
allowing the movement of the combustion air
actuator arm
Figure 1
(see Step 7).
Typical Locations
LOCATION
In selecting the location, the aesthetic and
functional use of the appliance are primary
concerns. However, vent system routing to
the exterior and access to the fuel supply are
also important. Due to high temperatures the
appliance should be located out of traffic and
away from furniture and draperies. Consideration should be given to traffic ways, furniture,
draperies, etc., due to elevated surface temperatures. The location should also be free of
electrical, plumbing or other heating/air conditioning ducting.
These appliances must not be connected to a
chimney or flue serving a separate solid fuel
burning appliance.
Do not place clothing or other materials on or
near this appliance.
WARNING: FAILURE TO COMPLY WITH
THE INSTALLATION AND OPERATING INSTRUCTIONS PROVIDED IN THIS DOCUMENT WILL RESULT IN AN IMPROPERLY
INSTALLED AND OPERATING APPLIANCE, VOIDING ITS WARRANTY. ANY
CHANGE TO THIS APPLIANCE AND/OR
ITS OPERATING CONTROLS IS DANGEROUS. IMPROPER INSTALLATION OR USE
OF THIS APPLIANCE CAN CAUSE SERIOUS INJURY OR DEATH FORM FIRE,
BURNS, EXPLOSION OR CARBON MONOXIDE POISONING.
WARNING: DO NOT PLACE CLOTHING
OR OTHER FLAMMABLE MATERIALS
ON OR NEAR THIS APPLIANCE.
AVERTISSEMENT: SURVEILLER LES
ENFANTS. GARDER LES VÊTEMENTS,
LES MEUBLES, L'ESSENCE OU AUTRES
LIQUIDES À VAPEUR INFLAMMABLES
LOIN DE L'APPAREIL.
WARNING: THIS APPLIANCE MAY ONLY
BE FITTED WITH DOORS CERTIFIED FOR
USE WITH THE APPLIANCE.
AVERTISSEMENT: POUR UTILISATION
UNIQUEMENT AVEC LES PORTES EN
VERRE CERTIFIÊES AVEC L'APPAREIL.
The appliance should be mounted on a fully
supported base extending the full width and
depth of the unit. The appliance may be located
on or near conventional construction materials. However, if installed on combustible materials, such as carpeting, vinyl tile, etc., a
metal or wood barrier covering the entire bottom surface must be used.
These appliances may be used for bedroom
installations in the United States and are listed
accordingly. These units may not be installed
in bedrooms in Canada.
CLEARANCES
Minimum clearance to combustibles for the
appliance is as follows: sides and back - 0" (0
mm), floor - 0" (0 mm), adjacent wall - 0" (0
mm), ceiling - 64" (1626 mm).
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
3
APPLIANCE SPECIFICATIONS
Venting
5"
(127 mm)
2"
(51 mm)
5 ³⁄₄"
(146 mm)
Appliance Top
Spacer
6 ¹⁄₄"
(159 mm)
Junction Box
Left Side
Alternate Gas
14"
(356 mm)
(102 mm)
20 ¹⁄₄"
(514 mm)
2 ¹⁄₂"
(64 mm)
Line Access
4"
(851 mm)
33 ¹⁄₂"
36"
(914 mm)
38"
(965 mm)
Front
Combustion
Air Inlet
9 ⁵⁄₁₆"
(238 mm)
6 ¹⁄₄"
(159 mm)
1"
(25 mm)
7 ¹⁄₄"
(184 mm)
6"
(152 mm)
(235 mm)
(64 mm)
Gas Line
Access
14"
(356 mm)
Right Side
33 ¹⁄₂"
(851 mm)
9 ¹⁄₄"
2 ¹⁄₂"
32"
(813 mm)
Gas Vent Rule – Gas vent caps are not permit-
ted within 8 feet (2.4 mm) of a vertical wall or
similar obstruction. Gas vent caps that are
located 8' or more from a portion of a building
which extends at an angle greater than 45°
upward from the horizontal may terminate in
accordance with Table 1
(Figure 3 )
, provided
that in no case shall any discharge opening on
the cap be less than 2' (610 mm) horizontally
from the roof surface (National Fuel Gas Code
ANSI Z223.1 (NFPA 54) 7.6.2) (CAN/CGA
B149).
X
12
Roof Pitch is X/12
Minimum Height from Roof
to Lowest Discharge Opening
Figure 3
Minimum Height
Roof Slope
from Roof to Lowest
Discharge Opening
Feet Meters
Flat to 6/12 1' 0" 0.3
Over 7/12 to 9/12 2' 0" 0.6
Over 10/12 to 12/12 4' 0" 1.2
Over 13/12 to 16/12 6' 0" 1.8
Over 17/12 to 21/12 8' 0" 2.4
4
Figure 2
Appliance
Top Spacer
4 ⁵⁄₈"
(118 mm)
28 ³⁄₁₆"
(716 mm)
38"
(965 mm)
Top View
14"
(356 mm)
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
Note: Venting terminals shall not be recessed
into a wall or siding.
Table 1
Multiple Terminations – These appliances may
vent adjacent to and at the same level with any
other gas appliances (including direct-vent
appliances) provided that there is at least 2 ft.
(0.6m) between the proximal edges of the vent
caps. These appliances may be vented adjacent to a chimney vent servicing a solid fuel
fireplace provided the B-vent cap is at least 2
ft. (0.6m) away from the nearest point of the
chimney opening.
FRAMING SPECIFICATIONS
Header
H
Corner Installation
Back Wall of Chase/Enclosure
Including Finishing Materials
D
C
A
E
if any
G
Rough
Framing Face
(Unfinished Shown)
PRE-INSTALLATION NOTES
The fireplace may be installed directly on a
combustible floor or raised on a platform of an
appropriate height. Do not place fireplace on
carpeting, vinyl or other soft floor coverings. It
F
may, however, be placed on flat wood, plywood, particle board or other hard surfaces. Be
sure fireplace rests on a solid continuous floor
or platform with appropriate framing for support and so that no cold air can enter the room
from under the fireplace.
Figure 4
Figure 5
Rough
Framing Face
(Unfinished Shown)
Figure 6
B
A
Fireplace Framing
Back Wall of Chase/Enclosure
Including Finishing Materials
C
A
Inside Chase
Back Wall of Chase/Enclosure
Including Finishing Materials
C
A
if any
(Unfinished Shown)
if any
Outside Chase
G
Rough
Framing Face
G
Figure 7
Framing Dimensions
A 38 ¹⁄₂" 978 mm
B 33 ³⁄₄" 857 mm
C 28 ³⁄₁₆" 716 mm
D 14" 356 mm
E 55" 1397 mm
F 27 ¹⁄₂" 699 mm
G 13 ¹⁄₂" 343 mm
H 38 ⁷⁄₈" 987 mm
Note: All framing dimensions calculated for 1/2"
dry wall at the appliance face. If sheathing the
chase or finishing with other thickness materials,
calculations will need to be made.
TYPICAL INSTALLATION SEQUENCE
The typical sequence of installation follows,
however, each installation is unique resulting in
variations to those described.
1. Construct the appliance framing.
2. Route gas supply line to appliance location.
3. Install nailing flanges and position the appli-
ance.
4. Install the vent system and exterior termination.
5. Field wire and install operating control switch.
6. Make connection to gas supply.
The fireplace may be positioned and then the
framing built around it, or the framing may be
constructed and the fireplace positioned into
the opening.
Usually, no special floor support is needed for
the fireplace, however, to be certain:
1. Estimate the total weight of the fireplace
system and surround materials such as brick,
stone, etc., to be installed.
2. Measure the square footage of the floor
space to be occupied by the system, surrounds
and hearth extensions.
3. Note the floor construction, i.e. 2 x 6’s, 2 x
8’s or 2 x 10’s, single or double joists, type and
thickness of floor boards.
4. Use this information and consult your local
building code to determine if you need additional support.
If you plan to raise the fireplace and hearth
extension, build the platform assembly then
position fireplace and hearth extension on top.
Secure the platform to the floor to prevent
possible shifting.
INSTALLING THE FIREPLACE
Step 1. Frame appliance enclosure as illus-
trated in
Note: The framed depth, 13
a framed wall, must always be measured from
a finished surface. If a wall covering such as
drywall is to be attached to the rear wall, then
the 13
the drywall surface. It is important that this
dimension be exact.
Figures 4 through 7 on page 5
¹⁄₂
" (343 mm) from
¹⁄₂
" (343 mm) must be measured from
.
7.
Install (optional) outside Air Kit.
8. Check log position.
9. Checkout appliance operation.
10. Adjust burner to ensure proper flame ap-
pearance.
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
If the appliance is to be elevated above floor
level, a solid continuous platform must be
constructed.
The header may rest on the top metal spacers,
but must not be notched to fit around them.
Consult all local codes.
5
Step 2. Route gas line
(Figure 8)
using techniques and materials prescribed by local and/
or national codes. It is recommended that a
gas line of ¹⁄₂" or greater diameter be used to
allow full gas volume to the fireplace. Undue
pressure loss will occur if the pipe is too small.
The appliance, as set up at the factory, is best
suited for use with a gas line routed from the
right side. The gas line may however be alternately routed from the left side.
When rigid pipe is used, an ANSI approved
manual shut-off valve and union must be installed upstream of the fireplace.
Ensure that a sediment trap is installed in the
existing gas line, if not, install a sediment trap
upstream to prevent moisture and contaminants
from passing through trap to the appliance controls and burners. Failure to do so could prevent
the appliance from operating reliably.
An external regulator must be used on all propane (L.P.G.) heaters to reduce the supply tank
pressure to 13" w.c. (maximum). Any copper
tubing used to supply propane (L.P.G.) from
the tank must be internally tinned.
IMPORTANT: HOLD GAS VALVE SECURELY
TO PREVENT MOVEMENT WHEN CONNECTING TO INLET GAS LINE
WARNING: CONNECTING DIRECTLY TO
AN UNREGULATED PROPANE (L.P.G.)
TANK MAY CAUSE AN EXPLOSION.
All appliances are equipped with a gas flex line
and shutoff valve attached directly to the gas
control valve. To quickly and easily complete
the gas line routing, use the gas flex line kit.

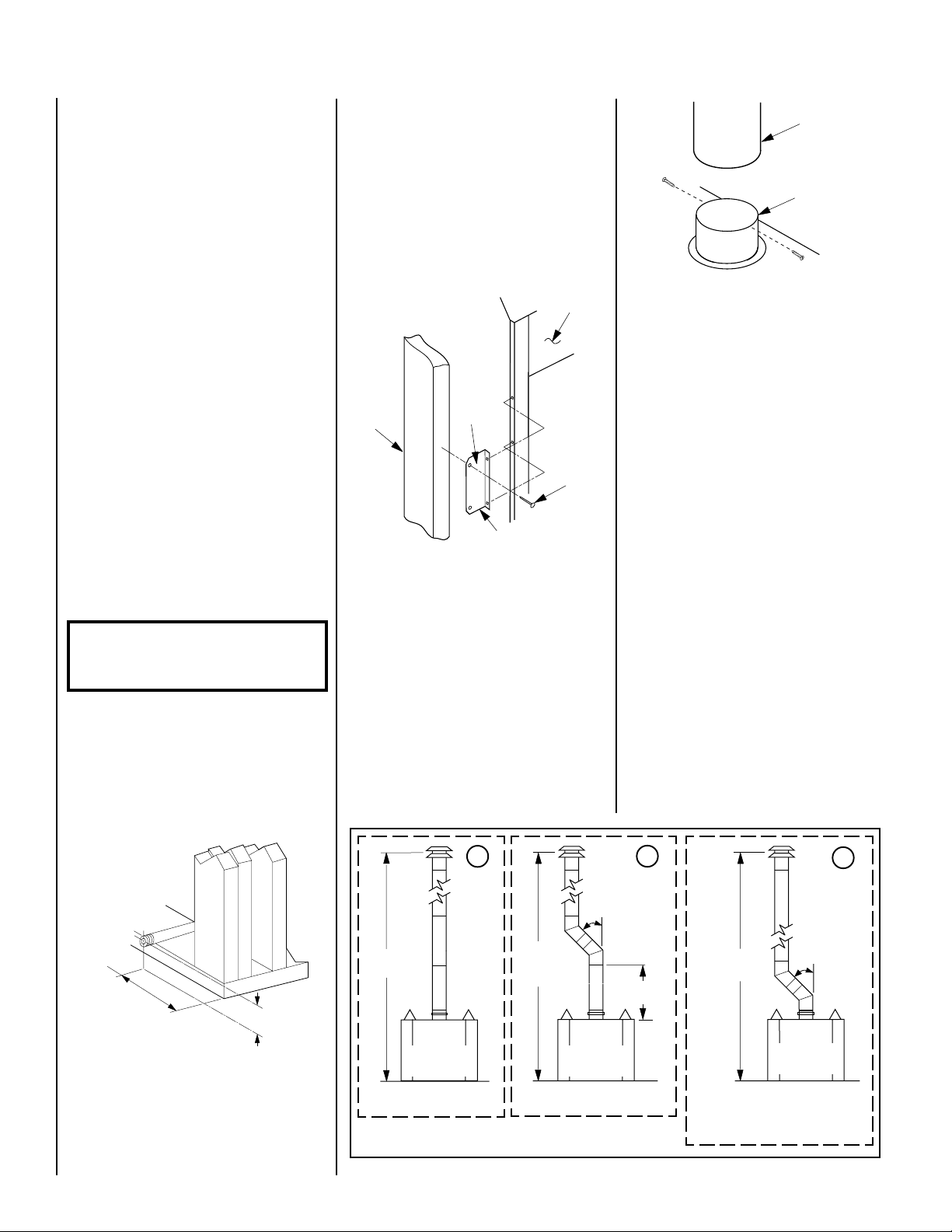

Step 3. Slide the fireplace into prepared framing or position fireplace in its final position and
frame later.
IMPORTANT: UNDER NO CIRCUMSTANCES CAN
THE FIREPLACE TOP SPACERS (
FIGURE 2
) BE
REMOVED OR MODIFIED, NOR MAY YOU NOTCH
THE HEADER TO FIT AROUND OR BE INSTALLED
LOWER THAN THE SPACERS. THE HEADER MAY
BE IN DIRECT CONTACT WITH THE TOP SPACERS BUT MAY NOT BE SUPPORTED BY THEM.
Fireplace should be secured to side framing
members using provided nailing flanges. Use
8d nails
Framing
(see Figure 9 )
.
Appliance
Louver
8d Nail
Nailing Flange
Figure 9
Note: The nailing tabs and the area directly
behind the nailing tabs are exempt from the
clearances described on the fireplace clearance label.
Step 4. Install the Vent System and Exterior
Termination A - Connect a 4" (102 mm) Type B vent system
to the appliance flue collar with two (2) No. 8
sheet metal screws
(Figure 10 )
and install the
remainder of the Type B vent to the outside.
B - The following venting configurations may
be installed
(see Figure 11):
4” Type B
Vent
Flue Outlet
Collar
Figure 10
1 - Vertical - Minimum overall height of the vent
system and appliance without an offset must be
12' (3.66 m)
2 - With Offset - Minimum overall height of the
vent system and appliance must be 15' (4.57 m)
when an offset up to 60 degrees from the vertical
is used. There must be a minimum vertical vent
height of 2 ft. (0.6 m) above the appliance collar
before the offset can be applied.
3 - With Offset, when using the optional, 36GEP
or 36GEP-BB, non-operable glass doors -
Minimum overall height of the vent system and
appliance must be 12' (3.66 m) when an offset
up to 60 degrees from the vertical is used. The
lower part of the offset may start at the appliance flue collar.
Maximum overall height of the vent system and
appliance should not exceed 40 feet (12.19 m).
Install the B-vent system in accordance with
the vent manufacturer's instructions.
CAUTION: THIS APPLIANCE CANNOT BE
VENTED HORIZONTALLY.
Note: Refer to the vent manufacturers installa-
tion instructions for variations of venting techniques. If common venting of several units is
contemplated, it should be discussed with an
architect and the local Building Department.
RIGHT
SIDE
5 ³⁄₄"
(146 mm)
Figure 8
Refer to fireplace drawings and specifications
on
pages 4 and 5
for framing dimensions and
details. Framing header may be positioned directly on the fireplace top spacers.
6
2 ¹⁄₄"
(57 mm)
1
12 ft.
Minimum
Back View
Of Appliance
15 ft.
Minimum
With Any
Offset
Figure 11
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
degrees
Maximum
Back View
Of Appliance
2
60
2 ft.
Minimum
To Offset
3
12 ft.
Minimum
Back View
Of Appliance
*This Vent Configuration Allowable
Only WithThe Following Optional
Non-Operable Glass Doors installed:
36GEP or 36GEP-BB
60*
degrees
Maximum
Step 5. Field Wiring – Refer to Section A for
millivolt appliances and Section B for electronic
appliances.
Note: Optional wall switch not supplied. If the
optional wall switch is not installed, the ends of
the 15' (4.5m) coiled wire must be connected
with a wire nut (not supplied) for the appliance
A. Millivolt Wiring – Units may be fitted at the
to operate.
factory with either a Honeywell millivolt gas
control valve or an SIT millivolt gas control
valve. Both valves have been tested with and
approved for use with these appliances and are
listed accordingly. Refer to
wiring of Honeywell systems and
Figure 12
Figure 13
for
for
wiring of SIT systems.
B. Electronic Wiring – The electronic appliance
must be connected to the main power supply.
To install:
1. Route a 3-wire 120V 60Hz power supply to
the appliance junction box and ground.
Figures 14 and 16 ).
The gas valve has been set in place and has
been pre-wired at the factory. No additional
wiring is required unless the optional wall
switch or optional remote control kit is to be
installed. Locate the optional wall switch or
2. Locate and install a low voltage (24V) wall
switch (not supplied) in the desired location.
Connect the low voltage wire to this switch
Figure 14 )
optional remote control in the desired location and connect the millivolt wire
ures 12 and 13 )
.
(see Fig-
3. After wiring is complete, replace the appli-
ance junction box cover and secure with the hex
head screws previously removed.
CAUTION: DO NOT CONNECT THE WALL
SWITCH TO A 120V POWER SUPPLY.
Honeywell Millivolt Wiring Diagram
If any of the original wire as supplied must be replaced,
it must be replaced with Type AWM 105°C – 18 GA. wire.
WHT
TH
TPTH
TP
TH
TP
TP
Thermopile
* For Wall Switch Attachment Only.
BK
TH
*
Limit
Switch
BK
BK
IMPORTANT: Ground lead must be connected
to the green screw located on the outlet box.
See
Figure 14
a potential safety hazard. The appliance must
be electrically grounded in accordance with
local codes or, in the absence of local codes,
the National Electrical Code, ANSI/NFPA 70(latest edition). (In Canada, the current CSA
C22-1 Canadian Electrical Code.)
Electronic Wiring Diagram (Honeywell)
1. If any of the original wire as supplied must be replaced,
1. it must be replaced with Type AWM 105°C – 18 GA.
wire.
2. 120V, 60Hz – Less than 3 amps.
CONTROL
BK
R
Figure 12
SIT Millivolt Wiring Diagram
If any of the original wire as supplied must be replaced, it
must be replaced with Type AWM 105°C – 18 GA. wire.
Limit Switch
BK
TH
BK
Thermopile
BK
*
WHT
* For Wall Switch Attachment Only.
TP
TP
TH
BK
WHT
Figure 13 Figure 14
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
.
. Failure to do so will result in
(Optional ON/OFF Switch Wiring)
Gas Valve
IGNITER
BL
OPTIONAL
ON/OFF SWITCH
OR
WALL SWITCH
Factory Wired
W
BK
PILOT
ASSEMBLY
G
B
BL
R
OPT. ACCESSORY
To Opposite Side
Junction Box
G
BK
SWITCH
LIMIT
SWITCH
Break
Off Tab
Transf.
120 V.
24 V
Field Wired

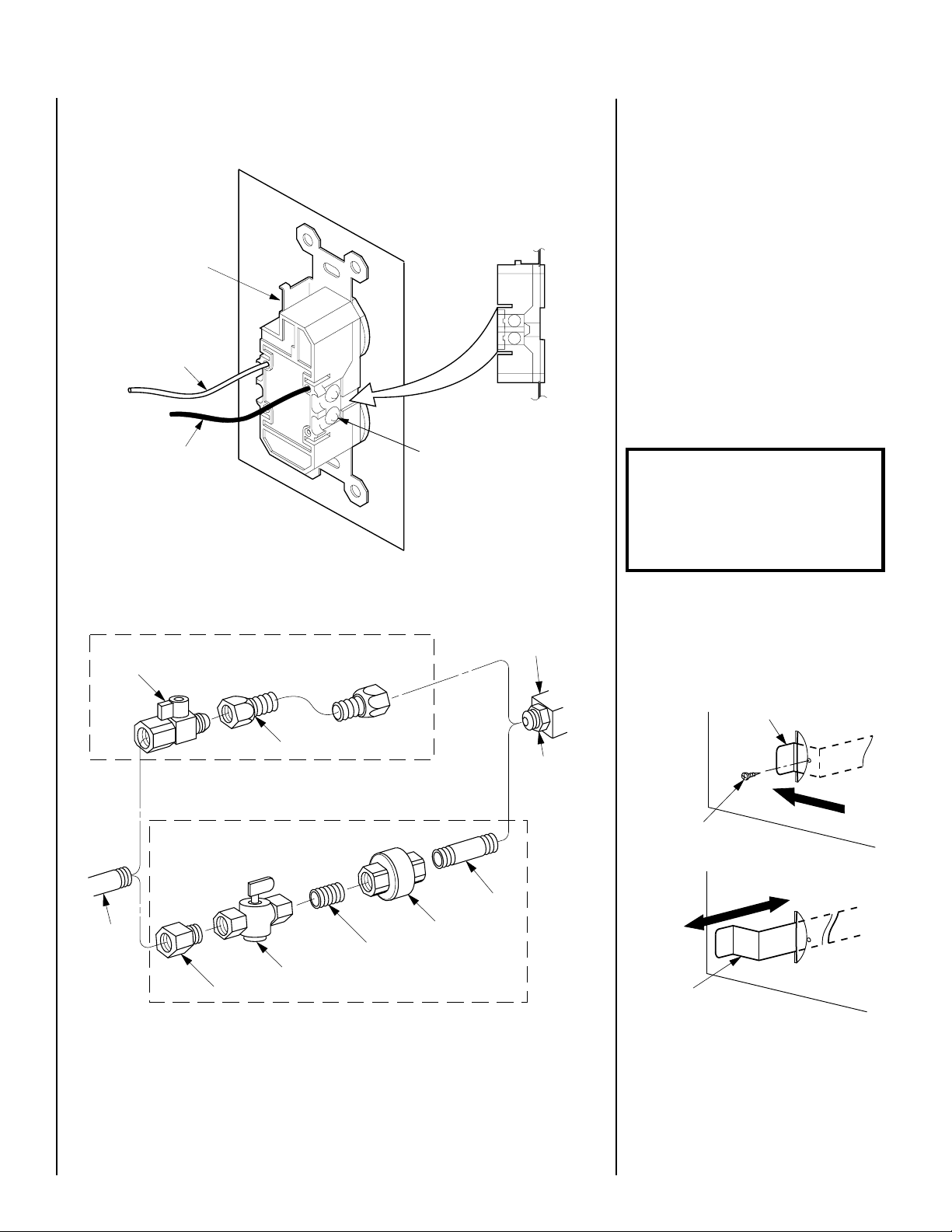

Step 6. Connecting Gas Line – Make gas line
connections. All codes require a shut-off valve
mounted in the supply line.
Figure 17
illustrates two methods for connecting the gas
supply. The flex-line method is acceptable in
the U.S., however, Canadian requirements vary
depending on locality. Installation must be in
compliance with local codes.
The gas control valve is located in the lower
control compartment. To access the valve re-
(See
move the removable access panel and set aside
(Figure 15 ).
Note: To provide increased access to the lower
control compartment, you may choose to re-
(see
move the front log. To do so, undo the twists
in the wires securing the log from below to each
of the grate tines. After removal of the log cut
the wires off closely to the log before reinstalling it. These are only required for shipping.
The millivolt control valve has a ³⁄₈"
(10 mm) NPT thread inlet port. The electronic
control valve has a ¹⁄₂" (13 mm) NPT thread inlet
port and is fitted with a ¹⁄₂" x ³⁄₈" (13 mm x
10 mm) NPT fitting. Both the millivolt and electronic models are fitted with a gas flex line and
shutoff valve, ³⁄₈" NPT. Plan the connections
accordingly.
Gas Controls
on Valve
Removable
BK
120
W
VAC.
G
Access Panel
SIT Valve Shown
Figure 15
Secure all joints tightly using appropriate tools
and sealing compounds (ensure propane resistant compounds are used in propane applications). Turn on gas supply and test for gas leaks
using a soapy water solution. Never use an
open flame to check for leaks.
A. Mix a 50% dish soap, 50% water solution.
BK
B. Light the appliance (refer to the lighting
instructions provided in the Homeowner's Care
and Operation Instructions).
C. Brush all joints and connections with the
soapy water solution to check for leaks. If
bubbles are formed, or gas odor is detected,
turn the gas control knob to the “OFF” position.
Either tighten or refasten the leaking connection and retest as described above.
7
Note: Supply wires may be alternatively connected to the outlet using the screw terminals, however
the black supply wire must be wired to a terminal that is opposite (across the outlet) the point where
the white supply wire is connected.
Ground Wire
Connection
D. When the gas lines are tested and leak free,
observe the individual tongues of flame on the
burner. Make sure all ports are open and producing flame evenly across the burner. If any
ports are blocked, or partially blocked, clean
out the ports.
Step 7. Installing Outside Air Kit – These appliances are equipped with an outside (make-up)
air door and integral actuator arm. If the appliance is to be installed with an outside air vent
system, use only FireCraft Models FAOK-4 or
FAOK-4LD Combustion Air Kits.
Figure 16
¹₂" x ³₈" Flare
Shut-Off Valve
White
(Supply)
120 Vac
60 Hz
Black
(Supply)
Gas Flex Line (provided)
³₈" Flex Tubing
(may be required in some areas, consult local codes.)
Alternate “Hard Piping”
Bipolar
Terminal
Screw
Gas Valve
(Millivolt or
Electronic)
³₈" NPT Flare
Fitting (Remove
Before Hard
Piping)
After completing the installation of the optional
combustion air vent system the actuator arm
must be put in service and tested to ensure
proper operation before completing any enclosure around the firebox. Failure to do so may
result in extensive and costly rework.
WARNING: DO NOT REMOVE THE ACTUATOR ARM LOCKING SCREW UNLESS
THE COMPLETE OUTSIDE AIR VENT SYSTEM HAS BEEN INSTALLED IN ACCORDANCE WITH THE DETAILED INSTRUCTIONS PROVIDED WITH THE KIT.
Locate the actuator arm along the right side
of the appliance firebox opening and refer to
Figure 18.
of the Outside Combustion Air Kit remove
and discard the actuator arm locking screw.
Remove Locking Screw
and “Pop” Actuator to the
Left Before Initial Use
After completing the installation
Outside Air
Actuator
8
Gas Stub
Figure 17
³₈" Close Nipple
³₈" Shut-Off Valve
¹₂" x ³₈" Reducer
Note: ¹₂" NPT At Inlet Of Gas Valve For Electronic Models.
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
³₈" Nipple
³₈" Union
Pull Forward to Open,
Push Back to Close
Figure 18
To operate, push the end of the actuator to the
left as shown in
Figure 18
, until it "pops" free
of its "locked" position. Pull the actuator
forward to open the combustion air door, and
push it back to close. To "lock" the combustion
air door closed, ensure the actuator is pushed
all the way back then push the end of the
actuators to the right until the step in the
actuator moves behind the appliance front
face within the slotted opening.
Operate the actuator through several cycles
including the "lock" position. Ensuring proper
operation and freedom of movement. Return
the actuator arm to the locked position.
Step 8. Log Placement – This appliance is
equipped with two concrete logs wired and
shipped in place
(see Figure 19 )
. As located
at the factory the log set will require no adjustment before the appliance is placed in service.
Ensure logs are unbroken and located as shown.
To provide increased access to the lower control compartment, you may chose to remove
the front log. To do so, undo the twists in the
wires securing the log from below to each of the
grate tines. After removal of the log, cut the
wires off closely to log before reinstalling it.
These wires are only required for shipping. To
place the front log, position it, centered, on the
log rack in the cradel area provided.
Piezo Ignitor
Piezo Ignitor
SIT Valve
Honeywell Valve
Figure 20
When first lighting the appliance, it will take a
few minutes for the line to purge itself of air.
Once purging is complete, the pilot and burner
will light and operate as indicated in the instruction manual.
Subsequent lightings of the appliance will not
require such purging. Inspect the pilot flame
(remove logs, if necessary, handling carefully).
MANUALLY-RESET BLOCKED FLUE SAFETY
SWITCH
This appliance is equipped with a manuallyreset blocked flue safety switch. Refer to
Figure 21
for its location. If during appliance
operation, the flame goes out (independently
of the burner on/off wall switch), it may be due
to the operation of this safety limit switch.
First allow the appliance to cool. Then reset
the safety switch by pushing the red reset
button on the back of the switch.
To access the blocked flue safety switch, remove the limit switch bracket, with switch and
low voltage wires attached. Push the red reset
button and then reinstall limit switch bracket.
The appliance should then relight and remain
lit. If this does not occur, turn off the appli-
ance and call a qualified service technician.
Figure 19
APPLIANCE OPERATION
Step 9. Checking the System – With gas line
installed run initial system checkout before
closing up the front of the unit. Follow the pilot
lighting instructions provided in the
Homeowner's Care and Operation Instructions.
For piezo ignitor location see
Figure 20
(milli-
volt appliances only).
Note: Instructions are also found on the pull
out labels attached to the gas control valve.
Manual
Reset
Limit
Switch
Figure 21
Lintel Extension
Limit
Switch
Bracket
Bracket Screw
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
9

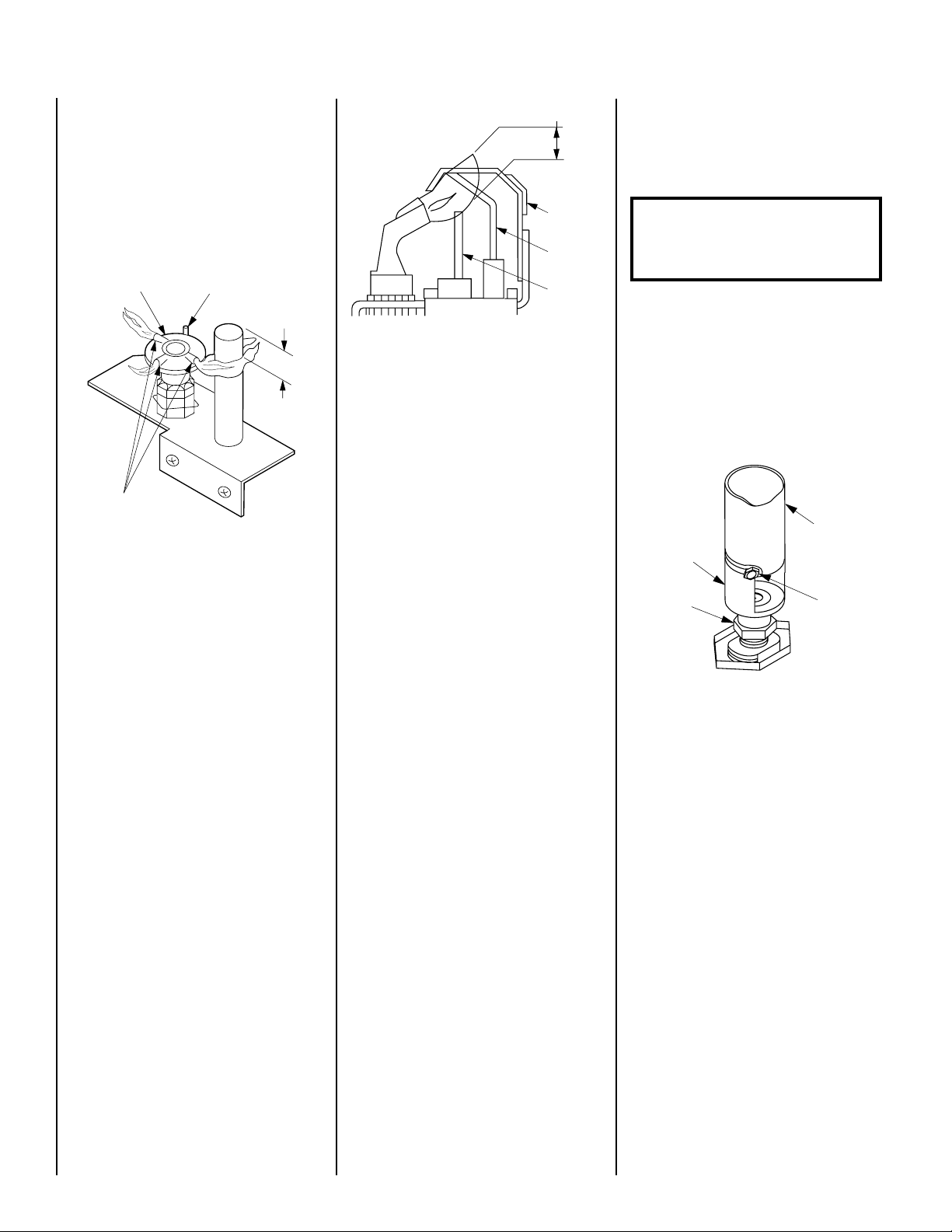

Millivolt Appliance Checkout
The pilot flame should be steady, not lifting or
floating. Flame should be blue in color with
traces of orange at the outer edge.
The top ³⁄₈" (9 mm) at the pilot generator
(thermopile) should be engulfed in the pilot
flame. The flame should project 1" (25 mm)
beyond the hood at all three ports
Hood
Pilot
Nozzels
Ignitor Rod
(Figure 22 )
³⁄₈" Min
(9 mm)
Figure 22
Replace the front log if removed for pilot
inspection.
To light the burner; turn “ON” the remote wall
switch and rotate the gas valve control knob
counterclockwise to the “ON” position (“ON”
will be to the left hand side of the valve).
Electronic Appliance Checkout
To light the burner, turn ‘ON’ the optional
remote wall switch and turn the gas control
switch to the “ON” position. Ensure the ignitor
lights the pilot. The pilot flame should engulf
the flame rod as shown in
Figure 23.
(9 mm to 13 mm)
Proper Flame
Adjustment
.
Figure 23
Step 10. Adjustments – The following para-
graphs address adjustment concerns and procedures.
Flame Appearance and Sooting
Proper flame appearance is a matter of taste.
Generally most people prefer the warm glow of
a yellow to orange flame. Appliances operated
with air shutter openings that are too large, or
with long vertical vent runs, will exhibit flames
that are blue and transparent. These weak, blue
and transparent flames are termed anemic.
If the air shutter opening is too small sooting
may develop. Sooting is indicated by black
puffs developing at the tips of very long orange
flames. Sooting results in black deposits forming on the logs, appliance inside surfaces and
on exterior surfaces adjacent to the vent termination. Sooting is caused by incomplete combustion in the flames and a lack of combustion
air entering the air shutter opening.
To achieve a warm yellow to orange flame with
an orange body that does not soot, the shutter
opening must be adjusted between these two
extremes.
3/8 To 1/2 Inch
Ground
Electrode
Flame Rod
Hot Surface
Igniter
No smoke or soot should be present. If sooting
conditions exist, the air shutter opening on the
main burner can be adjusted. Normally, the
more offsets in the vent system, the greater the
need for the air shutter to be opened further.
WARNING: AIR SHUTTER ADJUSTMENT SHOULD ONLY BE PERFORMED
BY A QUALIFIED PROFESSIONAL SERVICE TECHNICIAN.
Adjustment
To adjust the flame, position the air shutter to
the nominal setting
burner to operate for at least 30 minutes.
Observe the flame continuously. If it appears
weak or sooty as previously described, adjust
the air shutter open or closed until desired
effect is achieved.
Air Shutter
Orifice
Nominal Air Shutter Settings
Natural Gas - ¹⁄₁₆" (1.59 mm) Open
Propane Gas - ¹⁄₄" (6.35 mm) Open
Figure 24
When satisfied that the appliance operates properly, proceed to finish the installation. Leave the
control knob/lever in “ON” position and turn the
remote switch “OFF.” Replace the refractory
access panel.
(Figure 24 )
. Allow the
Burner Tube
Adjusting
Set Screw
10
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
FINISHING REQUIREMENTS
Wall Details and Combustible Mantels
Complete finished interior wall. To install the
appliance facing flush with the finished wall,
position framework to accommodate the thickness of the finished wall
figure also indicates vertical installation clearances to combustible mantels.
shows an example of a combustible mantel
shelf projecting a maximum of 12" (305 mm)
from the wall, and which must be installed a
minimum distance of 15 ³⁄₄" (400 mm) from
the top of the firebox opening.
A hearth extension is not required with this
appliance. Any hearth extension used is for
appearance only and does not have to conform
to standard hearth extension installation requirements.
Note: Combustible wall finish materials and/or
surround materials must not be allowed to
encroach the area defined by the appliance
front face (black sheet metal). Never allow
combustible materials to be positioned in front
of or overlapping the appliance front face.
Min. Height of Mantel
(Figure 25 )
15³⁄₄
15
14
13
12
11
10
9
Opening
8
7
Above Fireplace
6
Figure 26
. This
also
Combustible
Mantel Clearances
Inches
0" (0 mm) Clearance
to Combustible
Side Wall
Max. Projection 12" (305 mm)
Combustible
Mantel
15 ³⁄₄ " Min.
(400 mm)
64"
(1626 mm)
Min. to
Ceiling
Figure 26
COLD CLIMATE INSULATION
If you live in a cold climate, seal all cracks
around your appliance with noncombustible
material and wherever cold air could enter the
room. It is especially important to insulate
outside chase cavity between studs and under
floor on which appliance rests, if floor is above
ground level.
Finished
Wall
Header
Spacer
INSTALLATION ACCESSORIES
The following accessory items are available for
use in the installation of this appliance.
Outside Air Kits Models FOAK-4 and FOAK-4LD
Outside Air kits are available with duct (FOAK-4)
and without duct (FOAK-4LD) for use if outside
combustion air is required or desired. If model
FOAK-4LD is used it must be used in conjunction
with locally purchased, non-combustible Class 1
or Class 0 flexible duct.
Outside Combustion Air Kits
(with duct) 81L87 FOAK-4
(without duct) 81L88 FOAK-4LD
Wall Switch Kit 85L87 FWSK
Figure 25
0
12
1011
Three mantels are shown (dark gray elongated rectangles)-
one, 1¹⁄₂ in. long at a min. of 6 in. above the fireplace opening;
the second, 8 in. long at a min. of 12 in. above the fireplace opening;
the third, 12 in. long at a min. of 15 ³⁄₄ in. above the fireplace opening;
for any mantels between these three in length, they must be located
Max.Length of Mantels
within the lighter gray shaded area.
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
123456789
1¹⁄₂
0
Fireplace
Opening
11

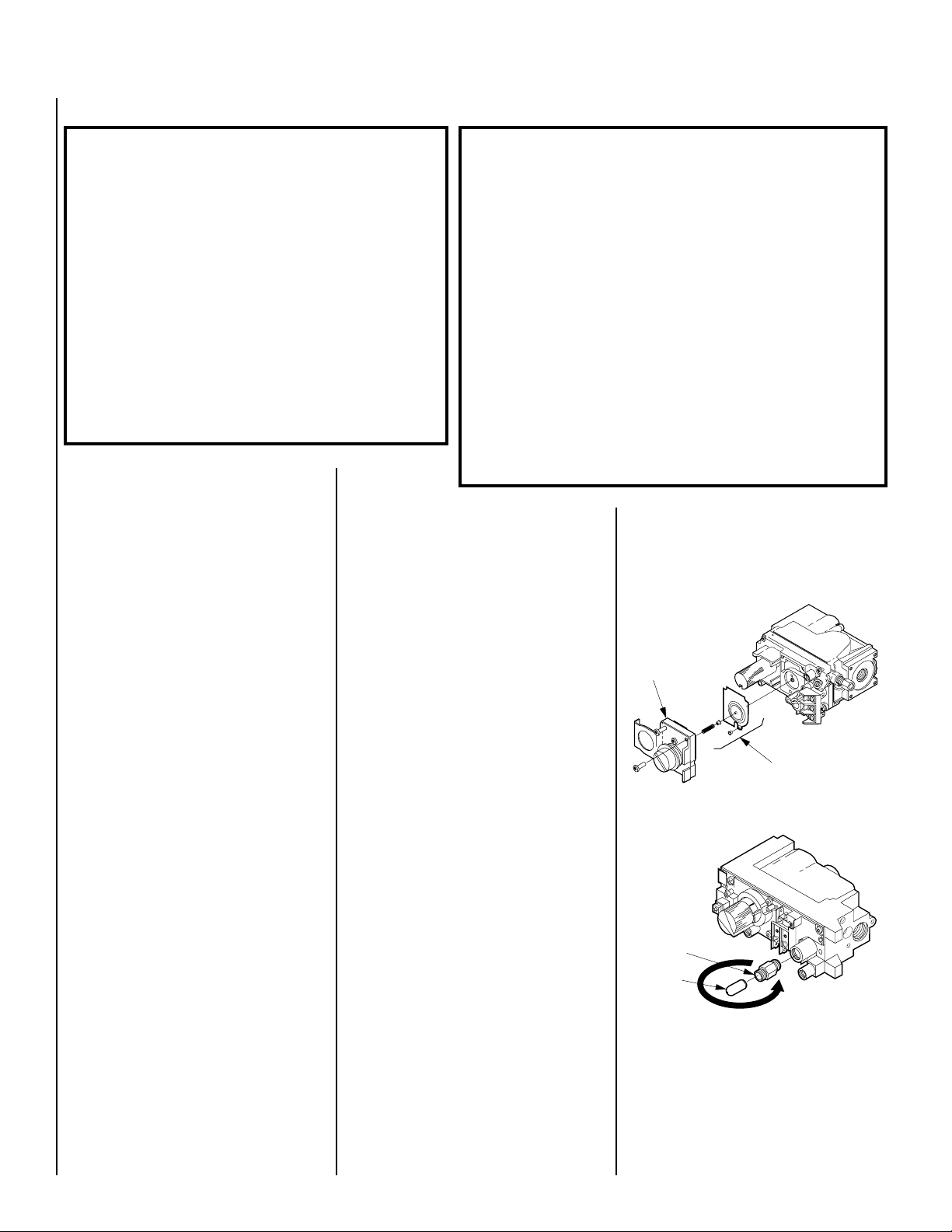

Gas Conversion Kits
Pressure
Regulator
Remove
These
Components
Flip Cap
Thread
Protector
WARNING: THIS CONVERSION KIT SHALL BE INSTALLED BY A QUALIFIED SERVICE AGENCY IN
ACCORDANCE WITH THE MANUFACTURER'S INSTRUCTIONS AND ALL APPLICABLE CODES AND
REQUIREMENTS OF THE AUTHORIZED AGENCY HAVING JURISDICTION. IF THE INFORMATION IN THESE
INSTRUCTIONS IS NOT FOLLOWED EXACTLY, A
FIRE, EXPLOSION OR PRODUCTION OF CARBON
MONOXIDE MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE. THE
INSTALLATION IS NOT PROPER AND COMPLETE
UNTIL THE OPERATION OF THE CONVERTED APPLIANCE IS CHECKED AS SPECIFIED IN THE OWNER
INSTRUCTIONS SUPPLIED WITH THE KIT.
In Canada
THE CONVERSION SHALL BE CARRIED OUT
IN ACCORDANCE WITH THE REQUIREMENTS
OF THE PROVINCIAL AUTHORITIES HAVING
JURISDICTION AND IN ACCORDANCE WITH
THE REQUIREMENTS OF THE CAN1-B149.1
AND .2 INSTALLATION CODE.
LA CONVERSION DEVRA ÊTRE EFFECTUÉE
CONFORMÉMENT AUX RECOMMANDATIONS
DES AUTORITÉS PROVINCIALES AYANT
JURIDICTION ET CONFORMÉMENT AUX
EXIGENCES DU CODE D'INSTALLATION CAN1B149.1 ET.2.
Gas conversion kits are available to adapt your
appliance from the use of one type of gas to the
use of another. These kits contain all the necessary components needed to complete the
task including labeling that must be affixed to
ensure safe operation.
Kit part numbers are listed below and the following steps detail the conversion procedure.
Millivolt Conversion Kits
Honeywell
75L28 — Natural to Propane
75L27 — Propane to Natural
SIT
H2021 — Natural to Propane
H2022 — Propane to Natural
Electronic Conversion Kits
Step 1. Turn off the gas supply to the appliance.
Remove the front glass door/frame (if used) from
the appliance.
Step 2. Carefully remove the front log. Exercise
care as not to break the log.
Step 3. Remove the access panel. Locate the
screws securing the burner (tray) to the appliance. Remove the burner and retain the securing screws.
Millivolt Appliances
Step 4. SIT Systems - See
instructions provided with the kit. Using a Torx
T20, remove and discard the three pressure
regulator mounting screws. Remove the pressure regulator, spring, poppet, diaphragm and
bushing. Discard all removed components.
Ensure the rubber gasket installed on the back
of the replacement pressure regulator is properly positioned and install the new pressure
regulator using the new screws supplied with
the kit. Tighten screws to 25 In. lb. torque.
Step 5. Honeywell Systems - See
and the instructions provided with the kit.
Remove the black thread-protecting cap. Remove the conversion flip cap by turning it
counterclockwise.
AVERTISSEMENT: CET ÉQUIPEMENT DE CONVERSION
SERA INSTALLÉ PAR UNE AGENCE QUALIFIÉE DE SERVICE
CONFORMÉMENT AUX INSTRUCTIONS DU FABRICANT ET
TOUTES EXIGENCES ET CODES APPLICABLES DE
L'AUTORISÉS AVOIR LA JURIDICTION. SI L'INFORMATION
DANS CETTE INSTRUCTION N'EST PAS SUIVIE
EXACTEMENT, UN FEU, EXPLOSION OU PRODUCTION DE
PROTOXYDE DE CARBONE PEUT RÉSULTER LE DOMMAGES
CAUSER DE PROPRIÉTÉ, PERTE OU BLESSURE
PERSONNELLE DE VIE. L'AGENCE QUALIFIÉE DE SERVICE
EST ESPONSABLE DE L'INSTALLATION PROPRE DE CET
ÉQUIPMENT. L'INSTALLATION N'EST PAS PROPRE ET
COMPLÉTE JUSQU'À L'OPÉRATION DE L'APPAREIL
CONVERTI EST CHÉQUE SUIVANT LES CRITÈRES ÉTABLIS
DANS LES INSTRUCTIONS DE PROPRIÉTAIRE
PROVISIONNÉES AVEC L'ÉQUIPEMENT.
Invert the flip cap so that the letters associated
with the desired gas type are positioned closest to
the valve body. NG is for natural gas and LP is for
propane. Tighten the flip cap by turning it clockwise. Replace the black thread-protecting cap.
Figure 27
and the
Figure 27
Figure 28
Figure 28
12
75L29 — Natural to Propane
75L26 — Propane to Natural
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
Pilot
Orifice

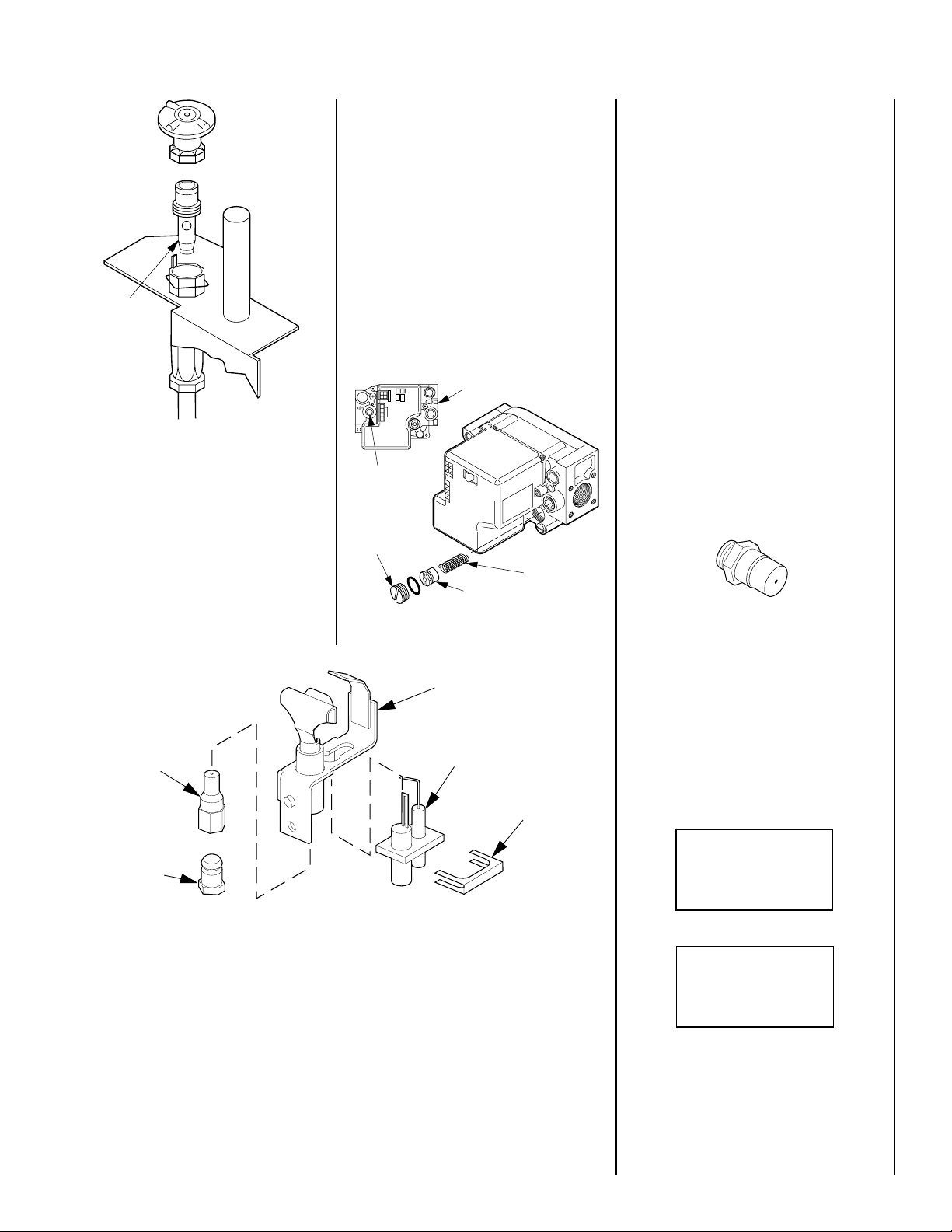

Figure 29
Step 6. All Millivolt Systems – Attach ma-
nometer to the manifold side pressure test
fitting and verify manifold pressure reads 3.5
inches water column (0.87 kPa) for natural
gas, and 10.0 inches water column (2.49 kPa)
for propane gas.
Step 7. Refer to
Figure 29
and remove the
pilot hood assembly to access the hexed pilot
orifice. Remove and replace the orifice with
the one provided with the kit.
Pilot
Orifice
Flare Nut
Electronic Appliances
Step 8. Honeywell Electronic Valves - See
Figure 31
and the instructions provided with
the kit. Remove the slotted cap screw, o-ring,
pressure-regulating adjusting screw and
spring. Retain all parts for possible later use.
Install new components from the kit. Black
cap and red spring for propane gas units.
Silver cap and stainless steel spring fro natural
gas units. Before installing the cap, attach
manometer to the manifold side pressure test
fitting and adjust screw until pressure reads
3.5 inches water column (0.87 kPa) for natural
gas, and 10.0 inches water column (2.49 kPa)
for propane gas.
I
G
N
I
T
E
Manifold
Pressure
Test Port
Slotted
Cap
CONTROL
OFFION
Inlet Pressure Test Port
I
S
P
Adjusting
Screw
Spring
Figure 31
Pilot
Assembly
Ignitor
Assembly
Retaining
Clip
See
Figure 30
and replace the pilot orifice as
follows: Remove the ignitor assembly retainer
clip, and carefully remove the ignitor assembly.
Exercise extreme care to prevent damage to
or breakage of the ignitor assembly. Remove
the screw securing the pilot assembly to its
mounting bracket. Back off the flare nut at the
end of the pilot gas line to free the pilot assembly from the gas line. Remove the pilot orifice
and replace it with the one provided with the
conversion kit. Reinstall the pilot assembly by
reversing the steps detailed here.
When reinstalling the ignitor assembly, use
extreme care to prevent damage and breakage. Do not apply any leverage to the ignitor
assembly while restoring the retainer clip to
its original position.
All Models
Step 9. Unscrew the orifice from the manifold
and replace it with the one provided with the kit,
#49 (0.073) for natural gas units and (0.045)
for propane
(Figure 32 )
.
Figure 32
Step 10. Reassemble all removed compo-
nents by reversing the procedures outlined in
the preceding steps. Use pipe joint compound
or Teflon tape on all pipe fittings before installing (ensure propane resistant compounds are
used in propane applications, do not use pipe
joint compounds on flare fittings).
Step 11. Attach apropriate conversion kit label
(Figure 33 )
to the rating plate on the appliance.
THIS APPLIANCE HAS BEEN CONVERTED TO:
NATURAL GAS
INPUT BTU/HR – 15,000
MANIFOLD PRESSURE – 3.5"
ORIFICE SIZE – #49 (0.073)
Figure 30
Note: If the ignitor assembly is damaged, a replacement kit is available,
order Catalog Number 87L54.
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
THIS APPLIANCE HAS BEEN CONVERTED TO:
PROPANE/LPG
INPUT BTU/HR – 15,000
MANIFOLD PRESSURE – 10"
ORIFICE SIZE – (0.045)
Figure 33
Step 12. Turn on gas supply and test for gas
leaks.
13
14
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
15
The manufacturer reserves the right to make changes at any time, without notice, in design, materials, specifications, prices and also to discontinue colors, styles and products.
Consult your local distributor for fireplace code information.
Printed in U.S.A. © 2002 by Lennox Hearth Products
P/N 700,003M REV. H 05/2004
16
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
LHP
1110 West Taft Avenue • Orange, CA 92865
Loading...
