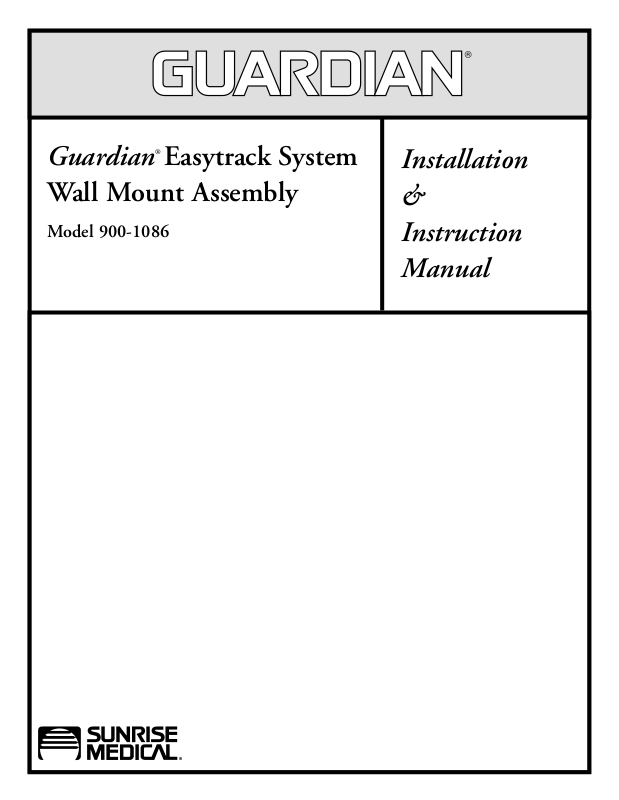

Installation
&
Instruction
Manual
Guardian
®
Easytrack System
Wall Mount Assembly
Model 900-1086
Wall Mount Assembly
2
Introduction
TABLE OF CONTENTS
Introduction .......................................................................................... 2
Important Safeguards.............................................................................. 3
Requirements ......................................................................................... 4
Before You Begin.................................................................................... 4
Kit Contents & Part Numbers .................................................................... 5
Assembly of Wall Mount Assembly ............................................................. 5
Maintenance .......................................................................................... 6
Warranty ............................................................................................... 7
This manual contains important safety and maintenance instructions. Please read
it carefully before using your Easytrack System and refer to it as often as needed
for safe and efficient use.
If you have questions regarding the safe use and/or assembly, maintenance or specifications of your
Easytrack System, you should call Customer Service at 800-333-4000, 303-218-4600 or from Canada at
800-263-3390.
For service and repair, remember your authorized Sunrise supplier is able to provide the assistance you
need.
Save this manual for future reference.
SUNRISE LISTENS
Thank you for choosing a Guardian Easytrack System. We want to hear your questions or
comments about this manual, the safety and reliability of your Easytrack System and the
service you receive from your Sunrise Medical Supplier. Please feel free to write or call us at
the address and telephone number below:
Sunrise Medical
Customer Service Department
7477 East Dry Creek Parkway
Longmont, Colorado 80503
(303) 218-4600 or (800) 333-4000
FOR ANSWERS TO YOUR QUESTIONS
Your authorized supplier knows your Easytrack System best and can answer most of your
questions about its safety, use and maintenance. For future reference, fill in the following:
Supplier: ___________________________________________________________________
Address:____________________________________________________________________
Telephone: __________________________________________________________________
Serial #: ____________________________________________________________________
Date Purchased: _____________________________________________________________
Wall Mount Assembly
IMPORTANT SAFEGUARDS
Do not operate this equipment without first reading and understanding this manual.
Should you be unable to understand the warnings, cautions and instructions,
contact our technical support or your local dealer before attempting to use this
equipment– otherwise injury or damage may result.
Important information is highlighted by these terms:
WARNING– Notices as used in the manual apply to hazards or unsafe practices which
could result in serious bodily harm.
CAUTION– Notices as used in this manual apply to hazards or unsafe practices, which
could result in minor personal injury or property damage.
NOTES– Highlight procedures and contain information which assist the operator in
understanding the information contained in this manual.
NOTE– The information contained in this document is subject to change without notice.
SAVE THESE INSTRUCTIONS AND KEEP WITH EASYTRACK AT ALL TIMES.
The Easytrack System and its accessories are intended to be used as an assistive
device for transferring a person between the posts. The Easytrack system is only
to be used with the Guardian Voyager Portable lift.
USE ONLY AS INTENDED - This product may cause serious injury if not installed and
operated according to the instruction manual.
Failure to observe warnings listed below could result in serious injury.
This instruction manual is for the installation of the Easytrack Wall Mount only. For more
information about the Easytrack system, please refer to the Easytrack user manual.
Before you Install the Easytrack Wall Mount
• If you are unsure of the strength or stability of your wall, do not install the wall
mount; consult you local supplier.
• Do not install on a wall with water damage.
• Do not drop product; may cause breakage.
• Do not completely submerge in water.
• Do not attempt to over-extend the rail past the locking point.
When the Easytrack is in Use
• Do not use the Easytrack system as a swing.
• Refrain from swinging patient sideways of rail.
Important Safeguards
3
ASSEMBLY INSTRUCTIONS
REQUIREMENTS
Failure to meet requirements listed below could result in serious bodily harm.
• Wall mount should be installed by a skilled tradesperson. Installation of the wall
mount by someone unskilled will void Sunrise warranty and may cause serious injury
or damage.
• Every month a maintenance check should be done to ensure the rail is level (see
“Maintenance” in this manual).
• Protect the Easytrack System and its accessories during transport.
•
Wall Requirements:
WOOD STRUCTURE – minimum 2” X 3” Studs
CONCRETE STRUCTURE
• Do no install if wall does not meet requirements.
• Do not install on a wall with a steel structure.
BEFORE YOU BEGIN
Read “Requirements” and “Important Safeguards” before attempting to assemble
the Easytrack System.
1. Survey the room where you plan to install the Easytrack Wall Mount. Make sure the
room meets all the specifications outlined in “Requirements”.
2. Use the measurements below to determine the best place to put the Easytrack System:
a. Over a bed – approx. 36-40” (915-1020 mm) from the head of the bed (
Figure 1).
b. Over a tub – approx. 16-18” (400-460 mm) from the end of the tub (
Figure 1).
c. Allow 36” (915 mm) of open area for transfer working space (
Figure 2).
d. Allow a minimum of 53” (1340 mm) from the bottom of the rail to the top of any
object to be transferred over (
Figure 3).
3. Transfers should only take place under the Easytrack rail (
Figures 4 & 5).
4. The Wall Mount may be installed on either a concrete wall or wood-framed wall. For
wood, the wall mount must be attached to a minimum of three (3) 2" X 3" studs. DO
NOT attempt to install the wall mount on less than 3 studs (
Figure 6).
5. Wall Mount must be positioned on the wall to ensure the angle between the wall and
the rail will be more than 30° (
Figure 7).
Wall Mount Assembly
4
Assembly Instructions
1
2
3
4
5
6
studs
wall mount plate
7
30°
30°
Maximum angle
36-40"
(915-1020mm)
53"
(1340mm)
80.2-130"
(2040-3300mm)
84.8-134.5"
(2155-3415mm)
20"
(510mm)
84-108"
(2130-2745mm)
16-18"
(400-460mm)
Wall Mount Assembly
EASYTRACK WALL MOUNT KIT
CONTENTS & PART NUMBERS (Figure 8)
Description Part # Qty
1 Wall mount plate 900-1085 1
2 Pivoting rail
attachment 900-1087 1
Includes:
3 Round blue cap 900-1072 1
4 Pivot wall mount N/A 1
5 Fixation wall mount N/A 1
6 Back plate N/A 1
7 M 10 X025 screw 900-0409 1
ASSEMBLY OF WALL MOUNT ASSEMBLY
Tools required:
• Step ladder
• Tape measure
• 6 concrete 3/8” anchors or 6 3/8” lag bolts
• Drill
• Wrench with a 9/16” socket
• Someone to assist you
• Stud finder
1. Refer to
Figures 9A and 9B for the distance required between the ceiling and where
the top of the wall mount must be installed. Please note that when the wall bracket
will have the pivoting rail of a 3 post system attached, the mounting point must be
lower than with a standard rail.
2. Insert the pivoting rail attachment into the wall plate. Refer to
Figure 10 to insure
that the bracket is placed properly.
3. Install the wall plate on the wall. The wall plate must be installed on a concrete wall
with six (6) 3/8 in. concrete anchors or on three (3) 2x3 (minimum size) wooded studs
with two (2) 3/8" diameter (M10), 4 in. long lag bolts on each stud (
Figure 11).
Wood studs– Use a stud finder to find the center of each stud. It is necessary to pre-
drill holes into each stud before screwing the lag bolt to prevent the wood from
cracking.
NOTE– Make sure the rail is level before securing wall mount to wall.
Follow drill size recommendation for lag bolt:
LAG BOLT M10 3/8 "
PRE-DRILL SIZE 6.5 mm 1/4 "
Pre-drilled holes must be in the center of the stud. If holes are not properly
centered, serious damage or injury may occur.
DO NOT install into steel stud, reinforcement may be required.
CAUTION– Avoid drilling close to any electrical wiring or plumbing. Please, make sure you know what
is behind the wall you are drilling in before doing any modifications to it. Failure to do so
may cause serious injury.
4. See “Before you start” for suggested position. Slide the pivoting rail attachment into its
final position. For the 3 post assembly, the bracket must be placed in a way that the rail
won’t, when turning, generate an angle beyond the maximum allowed (
Figure 12).
5. Tighten the four bolts on pivoting rail attachment. The rail can now be attached to
wall mount.
Assembly Instructions
5
8
9a
9b
10
11
12
standard rail
pivoting rail
1
2
3
4
5
6
7
ceiling
bottom
30°
30°
Maximum angle
1 1/8"
(28mm)
5 1/4"
(133mm)
MAINTENANCE
Failure to follow maintenance instructions below when indicated could result in
injury or damage.
Periodic inspection should be performed by a person who is suitably and properly qualified
and well acquainted with the design, use and care of the Easytrack System. Contact your
local dealer/distributor.
Inspection should be carried out both routinely (at least as often as specified) and, as necessary. If any damage to the system is detected through routine inspections, do not use
the system and immediately contact your supplier.
Upon receipt of your Easytrack Wall Bracket:
1. Make sure you received all components listed in Figure 8.
2. Inspect all parts for possible damage in transit.
3. Ensure all components are in working order.
4. Repair/replacement of any faulty parts.
5. Keep a log of any repair/replacement required.
Before each time you use the Easytrack Wall Bracket:
1. Clean the outside and inside of the rail and wipe out any water in the rail. Failure to
do so for a long period of time can cause corrosion that will weaken the rail.
2. Check that the rail is secure in place. Press the rail upwards to make sure that the
rail is locked onto the post.
3. Check if there is any appearance of damage. If there is any appearance of damage,
do not use the Easytrack System.
Every month:
1. Clean inside of rail with a damp cloth to ensure there is no dust or grease build-up
inside of rail.
2. Check to ensure you still have all your original parts. If any parts are missing they
should be replaced before using the Easytrack Wall Bracket again.
3. Check for the appearance of rust. If rust is starting to appear, simply scrub the piece
clean.
4. Examine all joints and pieces for wear and fatigue. Replace any part that looks damaged or worn. Document inspection and any repairs.
Follow guidelines in your portable lift manual for maintenance and procedures on
the lift.
Wall Mount Assembly
6
Maintenance
Wall Mount Assembly
WARRANTY
This warranty is extended only to the original purchaser/user of Sunrise products.
Sunrise Medical Inc. warrants its products to be free from defects in material under normal
use and service and will, within the periods stated below, from the date of purchase. If
within such warranty period any such product shall be proven to be defective, such product
shall be repaired or replaced at Sunrise Medical's option. This warranty does not include
any labor or shipping charges incurred in replacement part installation or repair of any such
product. Sunrise Medical's sole obligation and your exclusive remedy under this warranty
shall be limited to such repair and/or replacement.
Lifter including hydraulics 1 year
Accessories on Lifter 1 year
Slings 1 year
Batteries 3 months
Easytrack System 1 year
For warranty service, please contact the provider from whom you purchased the Sunrise
Medical product. In the event that you do not receive satisfactory warranty service, please
contact Sunrise Medical customer service at 1-800-333-4000.
Do not return products to our factory without prior authorization. Sunrise Medical will issue
a Return Merchandise Authorization (RMA) Number. C.O.D. shipments will be refused; all
shipments to Sunrise Medical must be prepaid. For this warranty to be valid, the purchaser
must present its original proof of purchase at the moment of the claim. The defective unit,
assembly or part must be returned to Sunrise Medical for inspection. The part or components repaired or replaced are guaranteed for the remaining period of the initial warranty.
Limitations and Exclusions:
The above warranty does not apply to serial numbered products if the serial number has
been removed or defaced.
No warranty claim shall apply where the product or any other part thereof has been altered,
varied, modified, or damaged; either accidentally or through improper or negligent use and
storage. Warranty does not apply to products modified without Sunrise Medical's express
written consent, (including but not limited to products modified with unauthorized parts or
attachments); products damaged by reason of repairs made to any component without the
specific consent of Sunrise Medical, or to products damaged by circumstances beyond
Sunrise Medical's control. Evaluation of warranty claim will be solely determined by Sunrise
Medical. The warranty does not apply to problems arising from normal wear or failure to
adhere to the instructions in this manual. Sunrise Medical Inc. slings are void of warranty
if not laundered as per instructions on the Sling Label.
Sunrise Medical Inc. shall not be liable for damages losses or inconveniences caused by a
carrier.
This warranty replaces any other warranty expressed or implicit and constitutes Sunrise
Medical Inc.'s only obligation towards the purchaser. Sunrise Medical shall not be liable for
any consequential or incidental damages whatsoever.
Warranty
7
Manufactured for:
Sunrise Medical
7477 East Dry Creek Parkway
Longmont, Colorado 80503
(800) 333-4000
In Canada (800) 263-3390
Printed in Canada
© 2002 Sunrise Medical 5.02
900-0690 Rev. A
Loading...
