Sungale AA850 User Manual

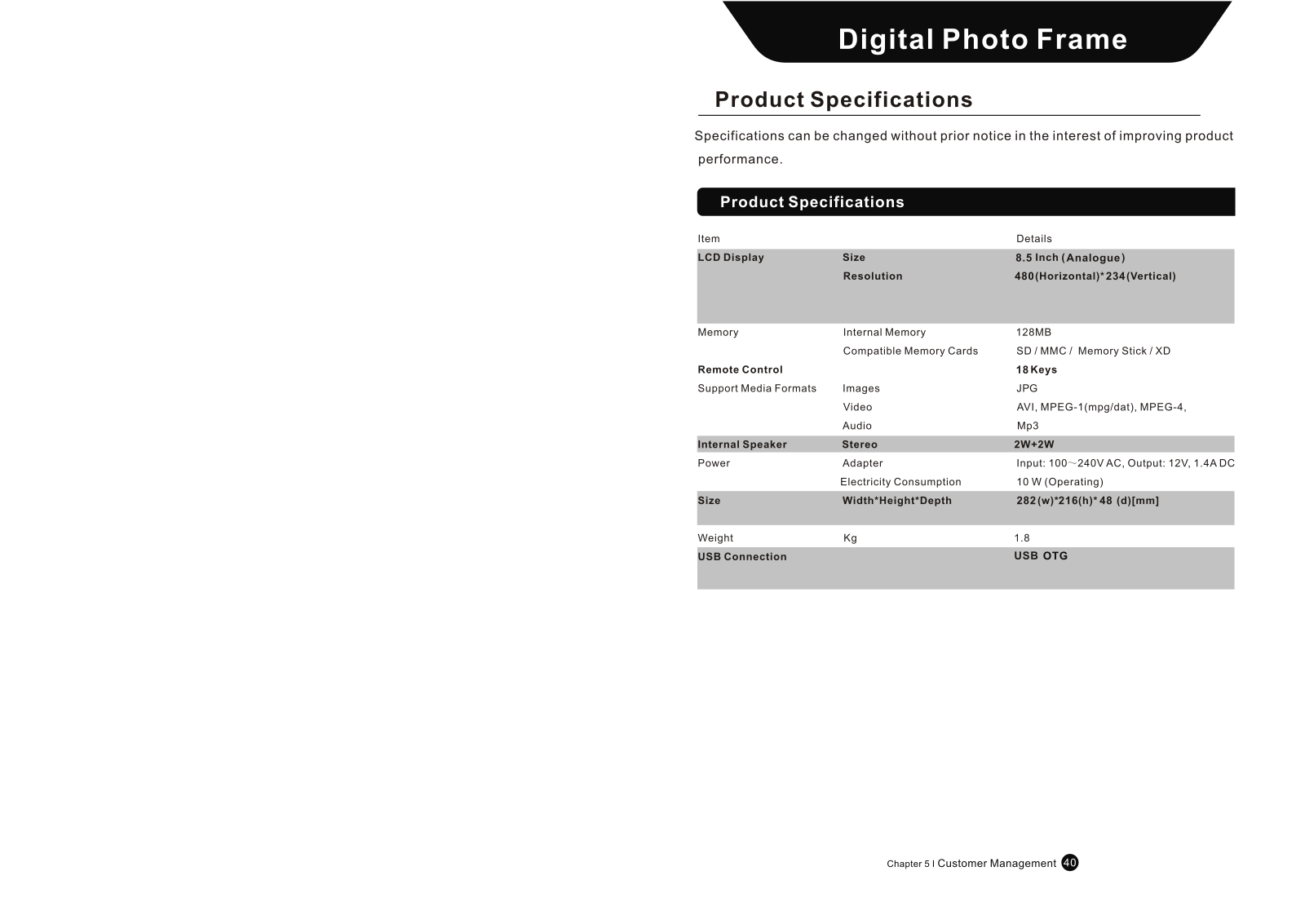

Specifications and Main Features
- Display: 8.5 Inches (Analog).
- Resolution: 480(x) 234(y).
- Memory: 128MB (ROM) and accommodates SD, MMC, Memory stick and XD cards.
- Remote Control: 18 buttons.
- Supported Media Formats:
- Images: jpg
- Video: AVI MPEG-1(mpg/dat), MPEG-4
- Audio: MP3
- Speaker: Internal stereo 2w*2w.
- Power supply: AC from 100~240V. DC 12V 1.4ADC.
- Electricity Consumption: 10 W (Operating).
- Dimensions: 282 (w) x 216 (h) x 48 (d) [mm].
- Mass: 1.8 Kg.
- USB: USB OTG.

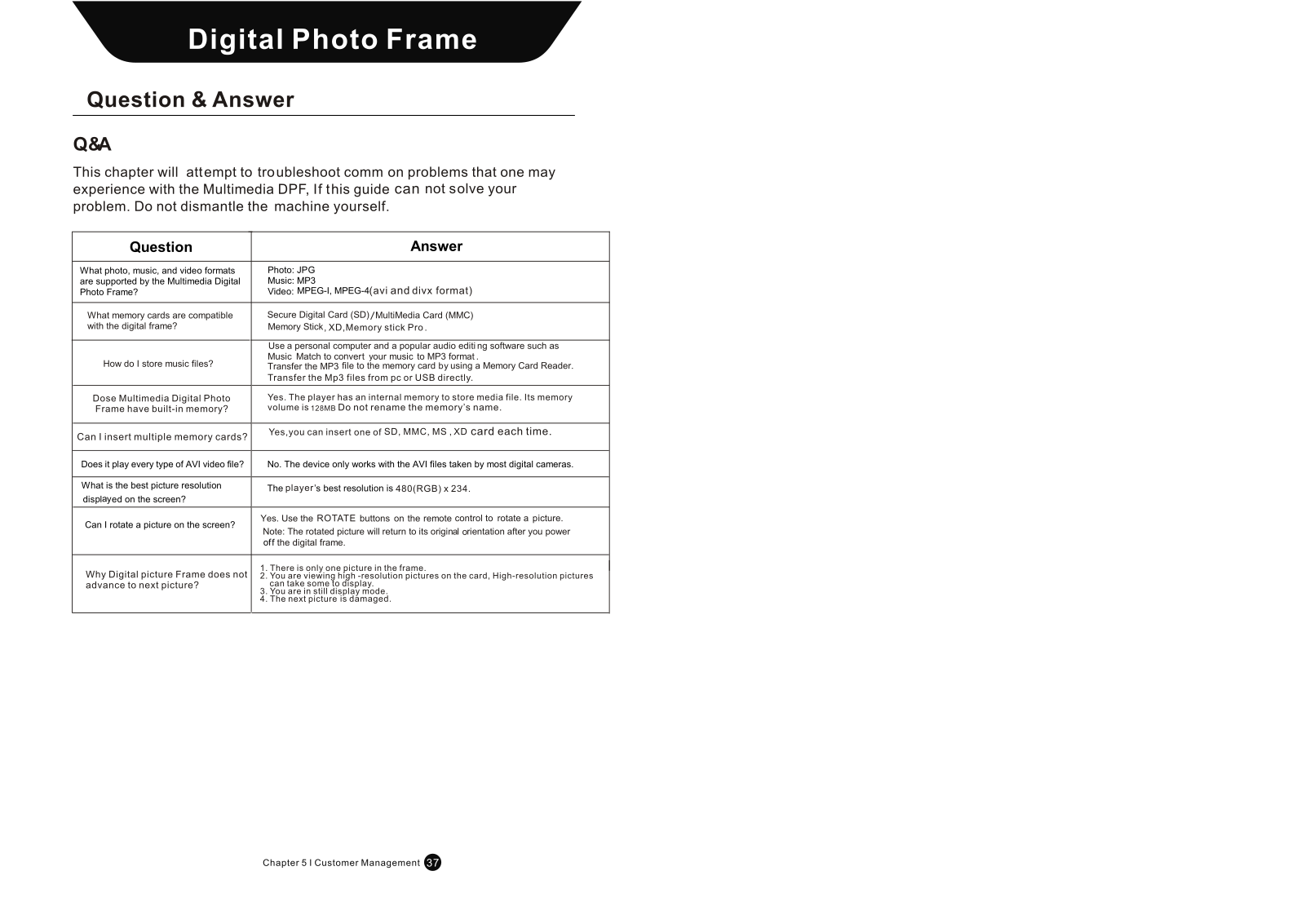

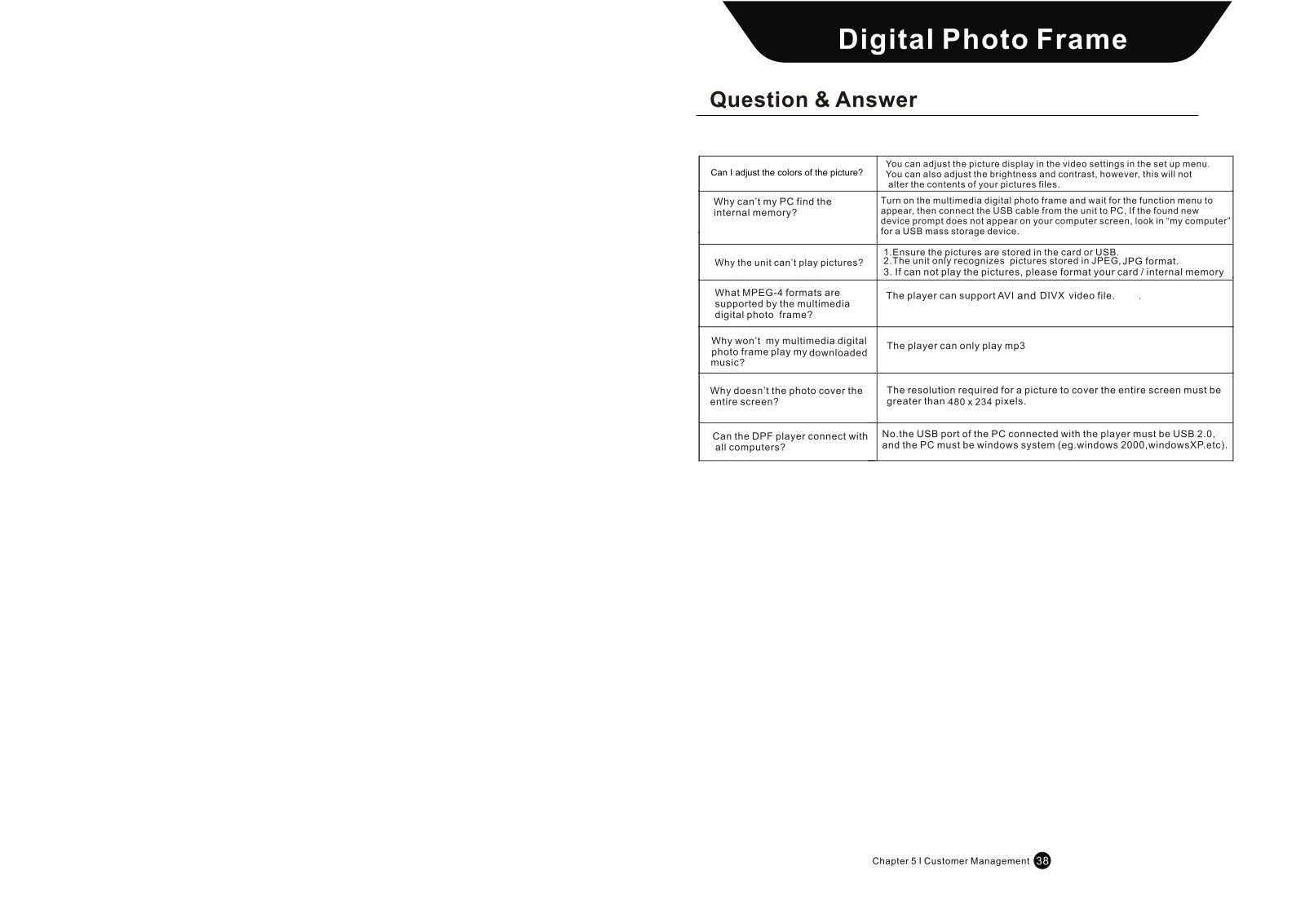

Frequently Asked Questions
Q: What photo, music and video formats are supported with Multimedia Digital Photo Frame?
A: Photo format: JPG, Music format: MP3, Video formats supported: MPEG-1, MPEG-4 (avi and divx).

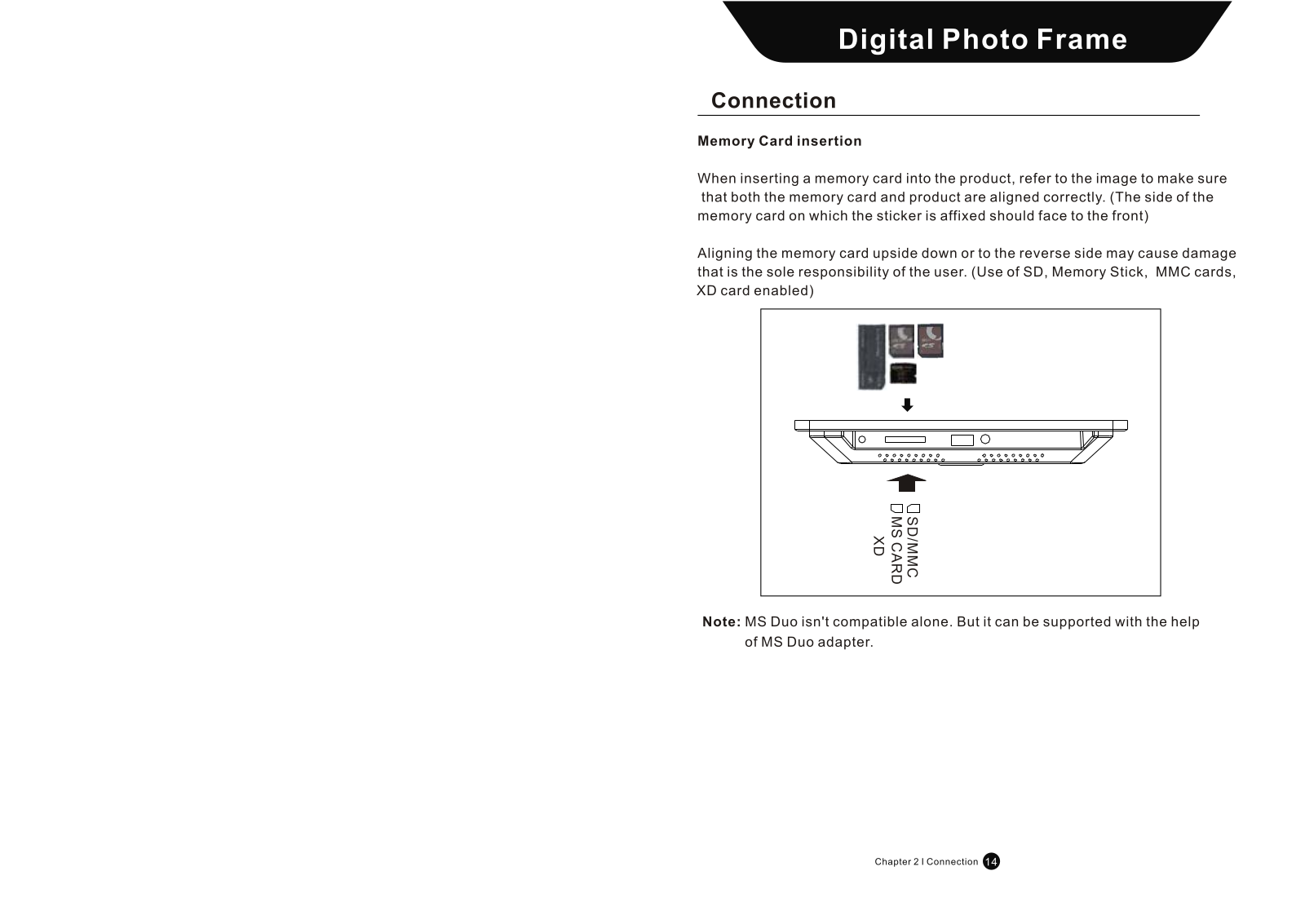

Q: The digital frame has which compatible memory card types?
A: SD - Secure Digital Card, MMC - MultiMedia Card, Memory Stick and XD.
Q: Is there built in RAM in the device Multimedia digital photo frame?
A: Yes, the device contains 128MB which is said to be internal storage for media files.

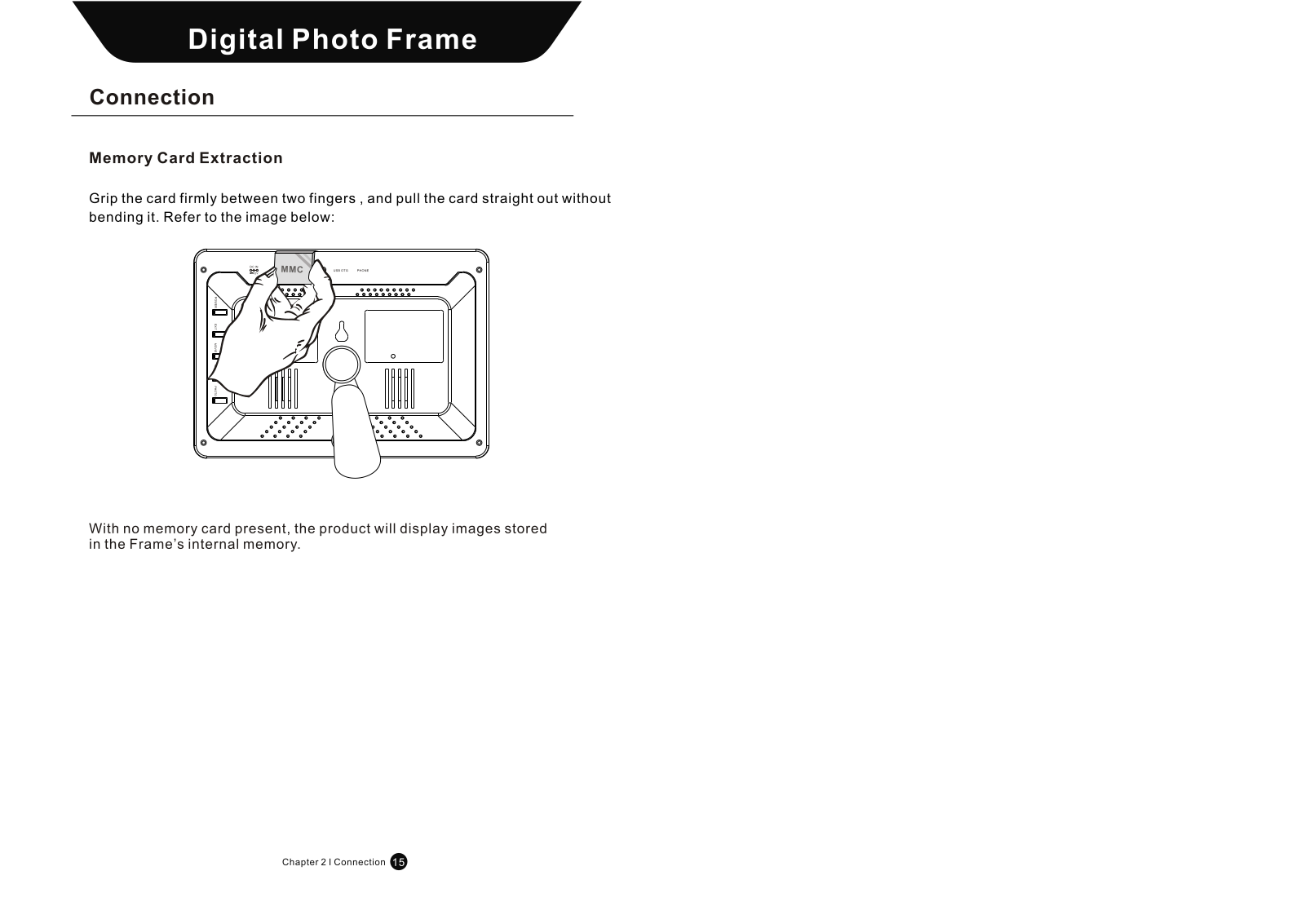

Q: Can I insert many memory cards at the same time?
A: Yes, a maximum of one SD, MMC, MS and XD card can be inserted at the same time.

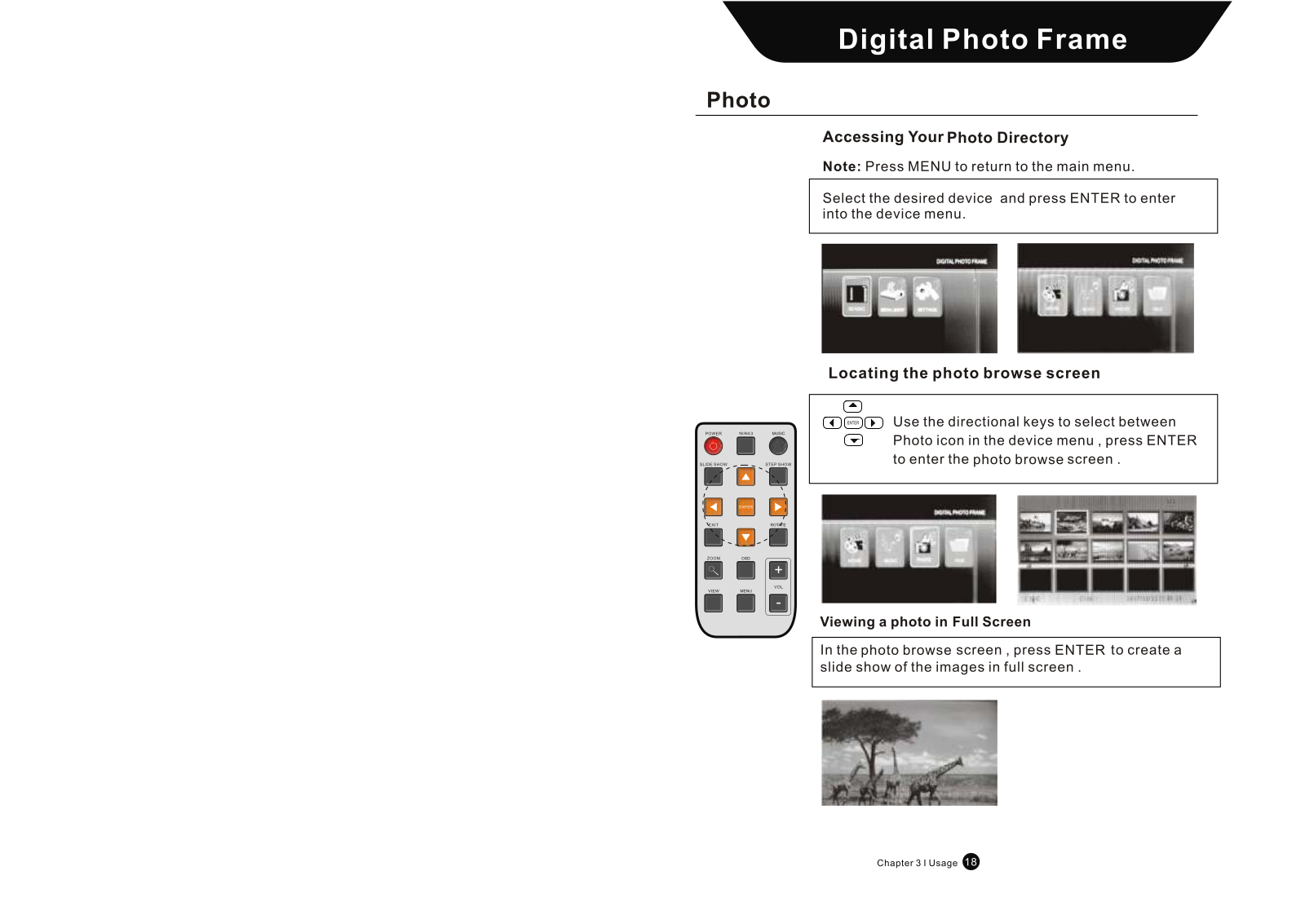

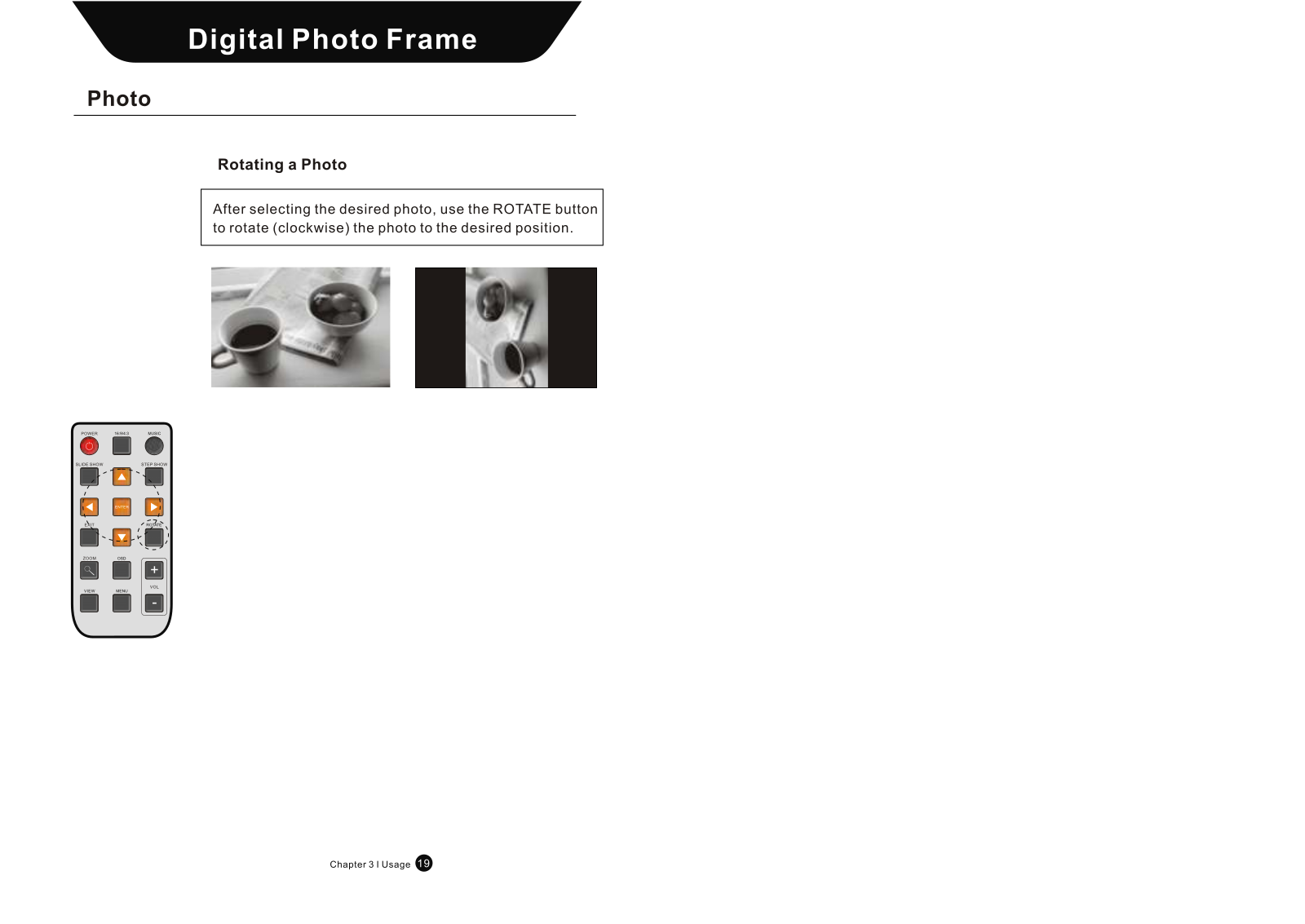

Q: Is it possible to rotate an image displayed on the screen?
A: You are able to utilize the ROTATE button on your remote controller in order to rotate an image as desired.
Q: What is preventing the photo from being maximized on the display?
A: The pixel density set to make a photo full display should always be above the 480 x 234 metric.

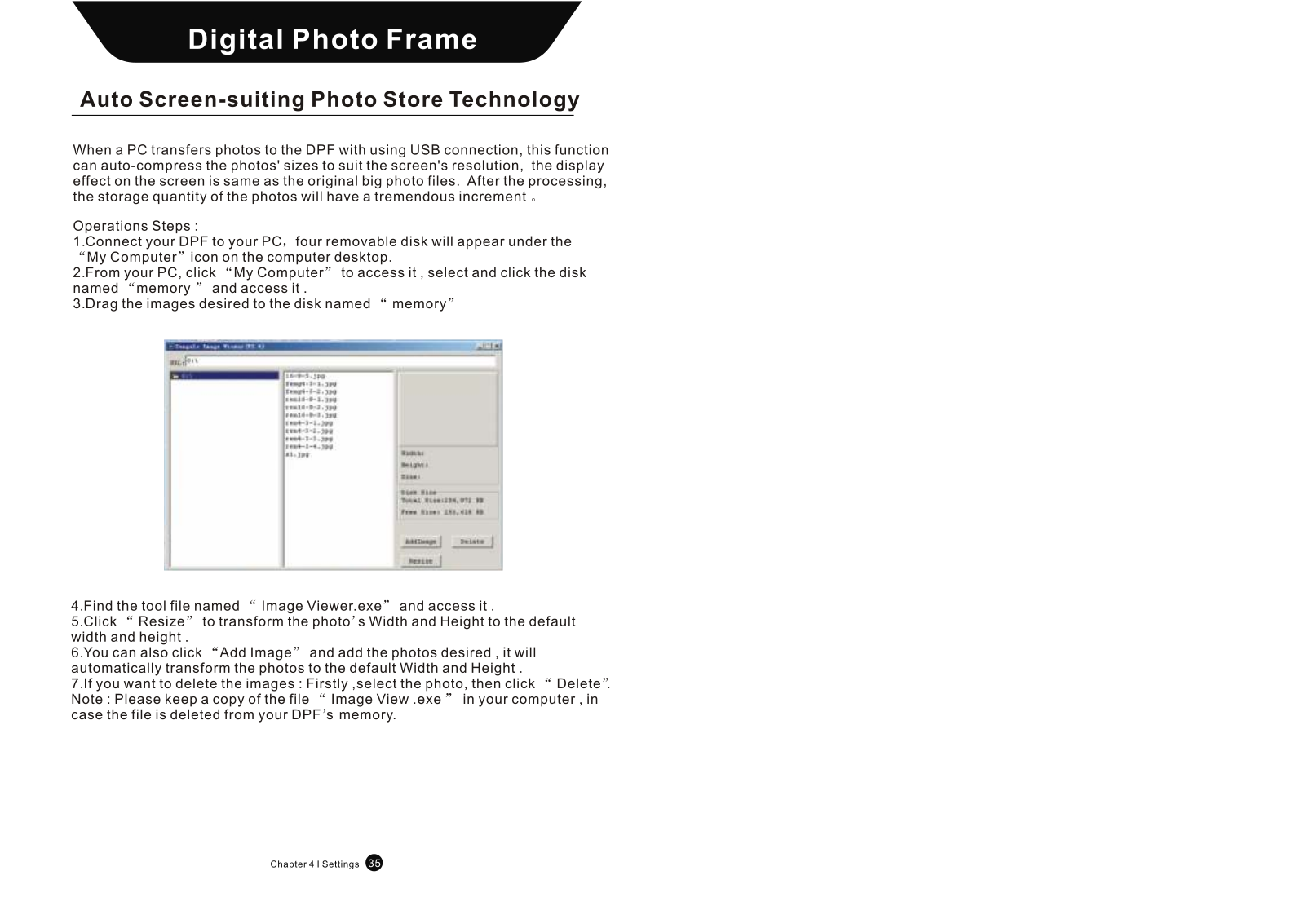

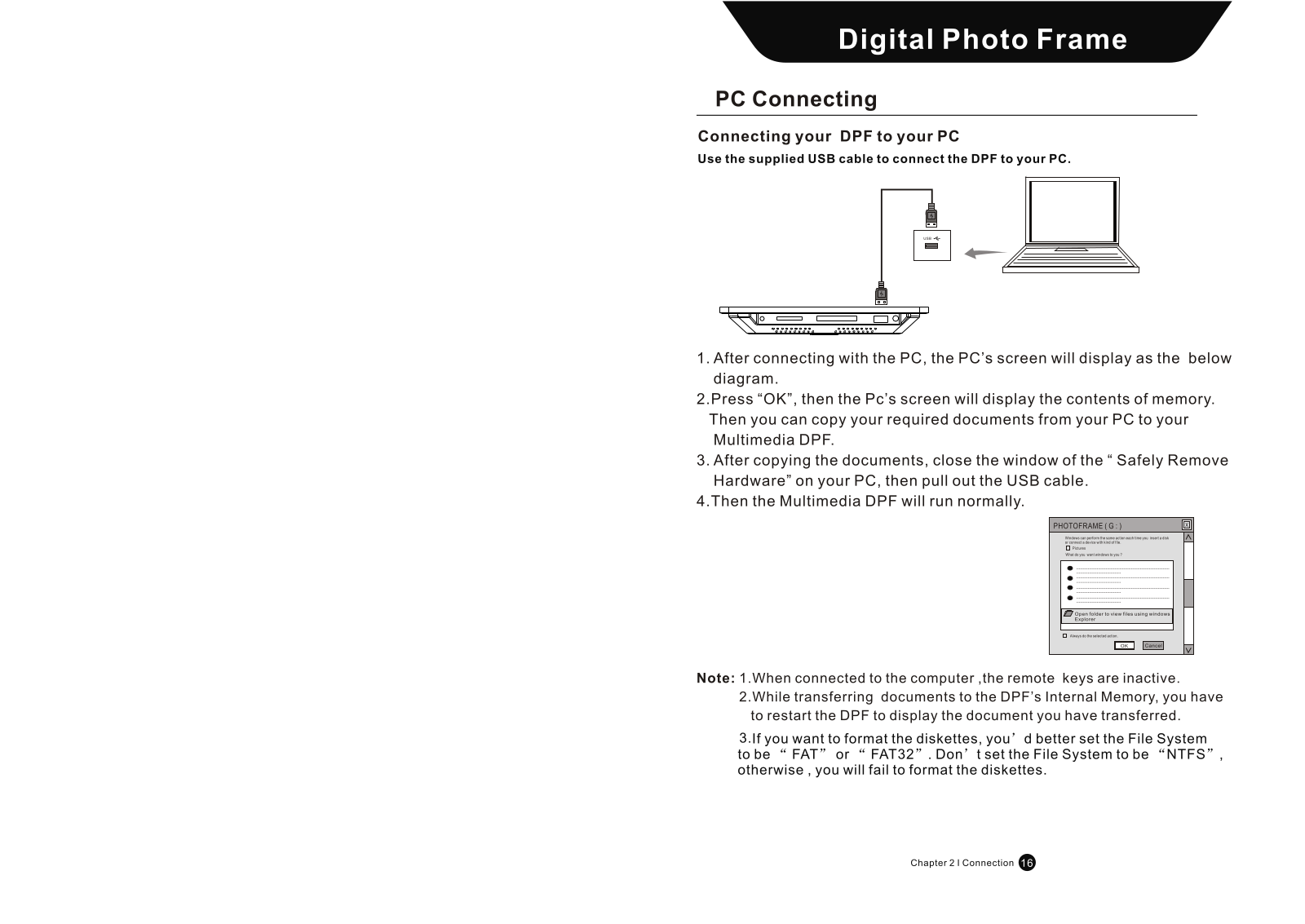

Q: How come my computer does not detect internal device memory?
A: Switch on the multimedia digital photo frame first and allow a few minutes for the function menu to load before attaching the USB to the computer.
Q: Multimedial नहि फोटोग्राफिक मिश्रण मइकीक डकम जतन गद सज यन्क सि तरह कि फति अळन मिक्स व मजीلم नसीथा क milions m {\''S ymृ नपरदोता प प्रशन ना t भारतीय.

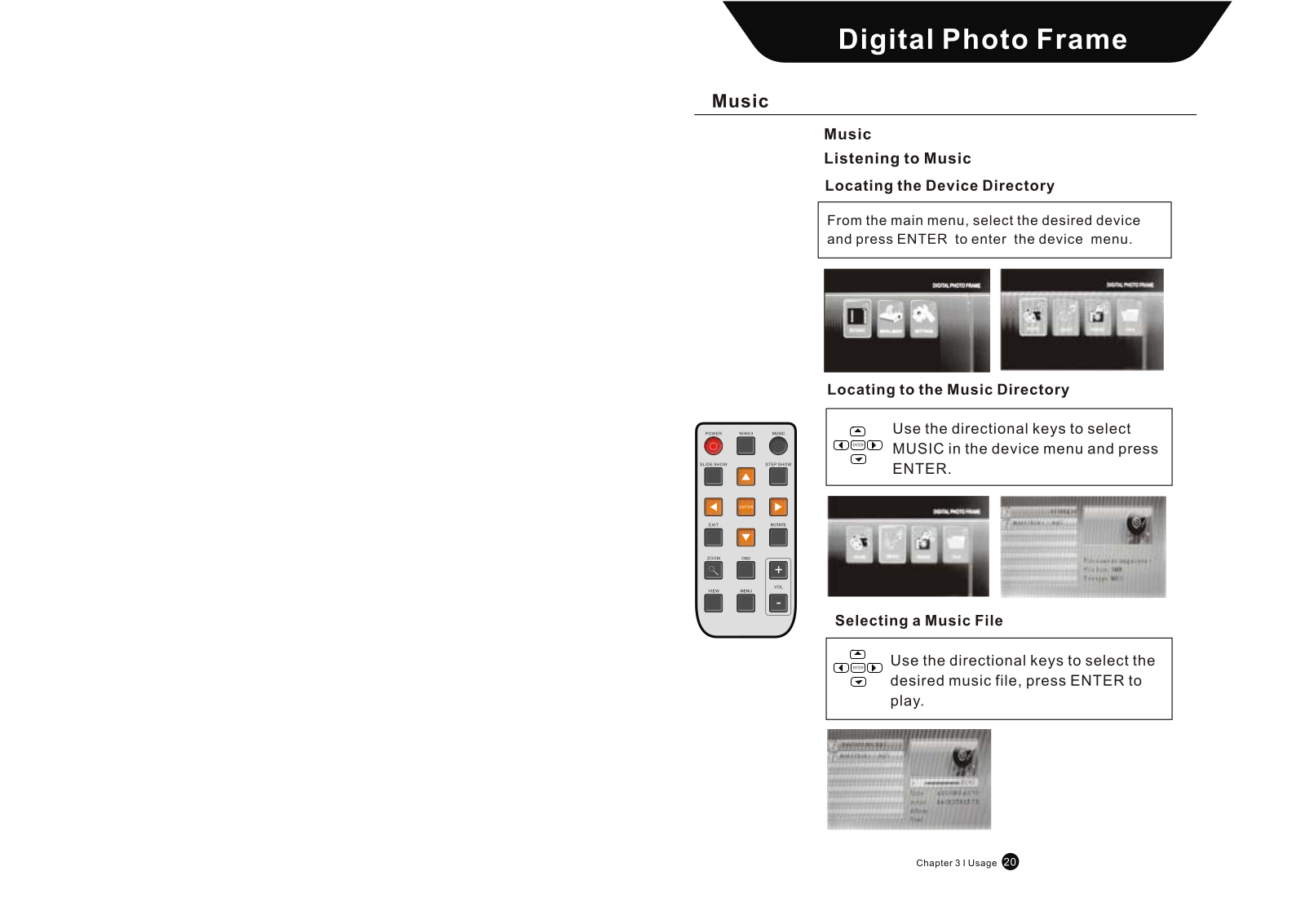

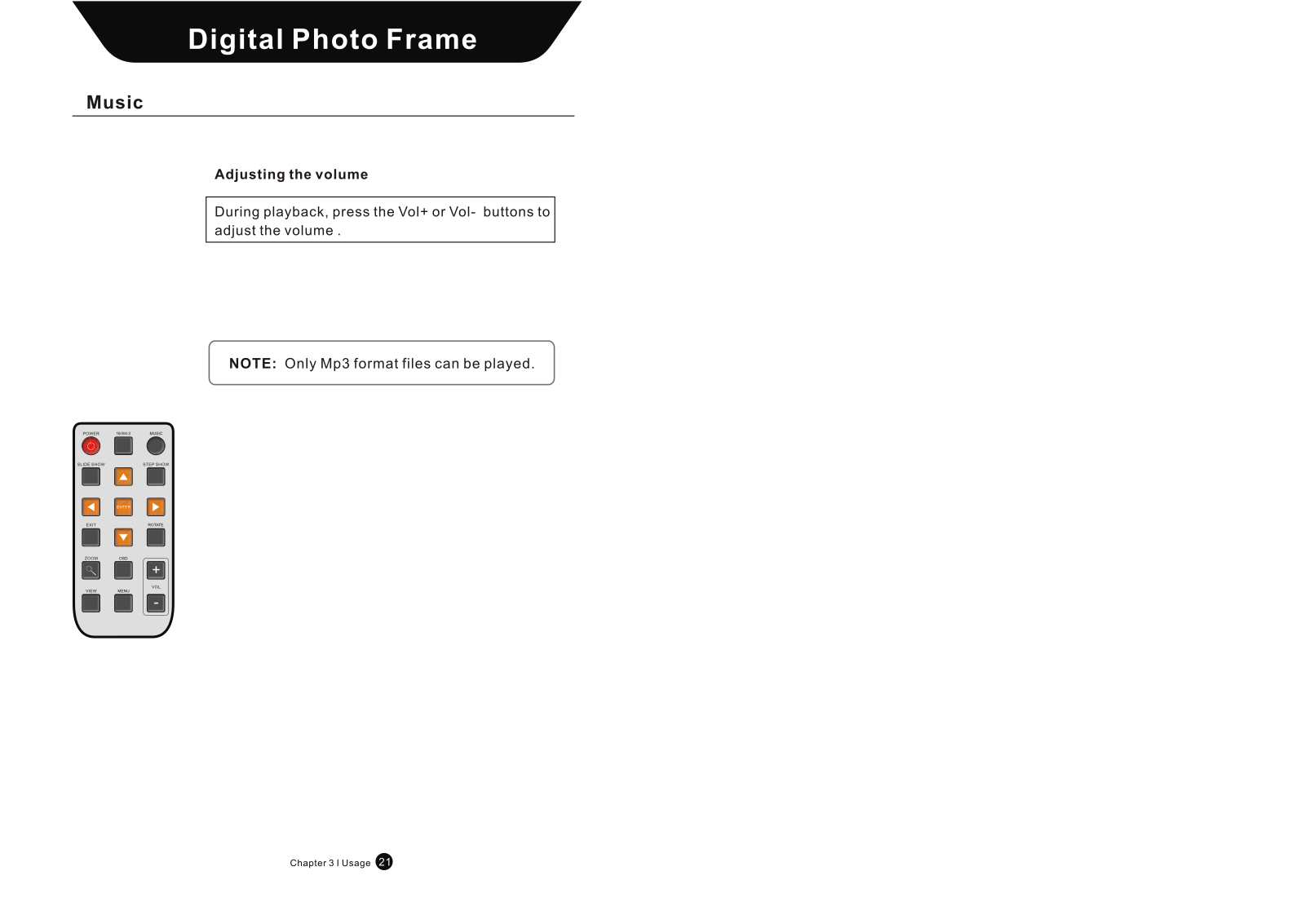

A: This specific player is limited and only supports MP3 formatted music files.
Q: What screen picture can be viewed in the clearest form?
A: The pixel density that is optimal with the player would be 480 (RGB) times 234.
