TWO-WAY BLENDER
User Guide
PB8080
Contents
Sunbeam’s Safety Precautions 1
Features Of Your Two-Way Blender 2-3
The Control Panel 3
Before Using Your Two-Way Blender 4
A Guide To Your Two-Way Blender 5
Handy Blending Hints 6
Care And Cleaning 7
Two-Way Blender Recipes 8-12

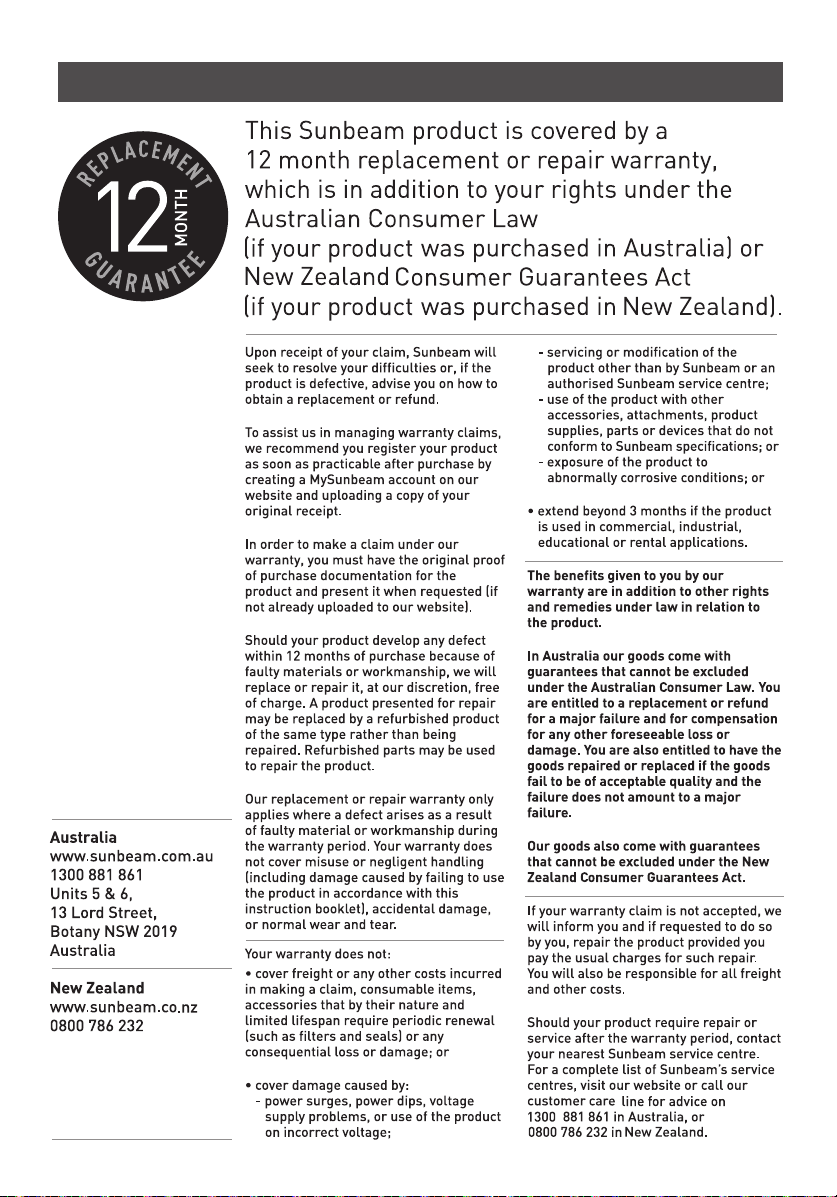

Warranty 13
Important Instructions - Retain For Future Use
Sunbeam’s Safety Precautions
SAFETY PRECAUTIONS FOR YOUR SUNBEAM
BENCHTOP BLENDER.
• Ensure fingers are kept well away from the
blades when in use.
• Do not blend warm/hot ingredients. Always
cool ingredients to room temperature before
blending. Hot/warm ingredients can eject out
of the jug when a sudden steaming is caused.
• Take care when removing the jug from the
base, emptying the bowl/jug or during fitting
and removal of blade system, as blades are
extremely sharp.
• Warn of potential injury from misuse
• Switch off the appliance and disconnect
from supply before changing accessories or
approaching parts that move in use.
• Always operate on a flat surface.
• Ensure the control dial is in the ‘off’ position
before plugging into the power outlet.
Sunbeam is very safety conscious when designing and manufacturing consumer products,
but it is essential that the product user also exercise care when using an electrical appliance.
Listed below are precautions which are essential for the safe use of an electrical appliance:
• Read carefully and save all the instructions
provided with an appliance.
• Always turn the power off at the power outlet
before you insert or remove a plug. Remove by
grasping the plug - do not pull on the cord.
• Turn the power off and remove the plug when
the appliance is not in use and before cleaning.
• Do not use your appliance with an extension
cord unless this cord has been checked and
tested by a qualified technician or service
person.
• Always use your appliance from a power
outlet of the voltage (A.C. only) marked on the
appliance.
• This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they
have been given supervision or instruction
concerning use of the appliance by a person
responsible for their safety.
• Children should be supervised to ensure that
they do not play with the appliance.
• The temperature of accessible surfaces may be
high when the appliance is operating.
• Never leave an appliance unattended while
in use.
• Do not use an appliance for any purpose
other than its intended use.
• Do not place an appliance on or near a hot gas
flame, electric element or on a heated oven.
• Do not place on top of any other appliance.
• Do not let the power cord of an appliance hang
over the edge of a table or bench top or touch
any hot surface.
• Do not operate any electrical appliance with
a damaged cord or after the appliance has
been damaged in any manner. If damage
is suspected, return the appliance to the
nearest Sunbeam Appointed Service Centre for
examination, repair or adjustment.
• For additional protection, Sunbeam recommend
the use of a residual current device (RCD)
with a tripping current not exceeding 30mA in
the electrical circuit supplying power to your
appliances.
• Do not immerse the appliance in water or any
other liquid unless recommended.
• Appliances are not intended to be operated by
means of an external timer or separate remote
control system.
• This appliance is intended to be used in
household and similar applications such
as: staff kitchen areas in shops, offices and
other working environments; farm houses; by
clients in hotels, motels and other residential
type environments; bed and breakfast type
environments.
• If the supply cord is damaged, it must be
replaced by the manufacturer, its service agent
or similarly qualified persons in order to avoid
a hazard.
If you have any concerns regarding the performance and use of your appliance,
please visit the Sunbeam Website or contact Sunbeam Consumer Care -
details are on the back page. Ensure the above safety precautions are understood.
1
Features Of Your Two-Way Blender
A
B
C
D
E
F
GREEN/FROZEN
SMOOTHIE
FOOD CHOP
SALSA
MILKSHAKE
FRAPPE
LOW
MED
HI
PULSE
ON/OFF
STOP
WARNING FLASHING = READY DO NOT TOUCH BLADES
G
H
2
Features Of Your Two-Way Blender
A. Ingredient Cup
Handy 50ml ingredient cup. Can also be
used to unscrew the blade assembly from
the base of the jug.
B. Jug Lid With Pouring Hole
Pouring hole allows you to easily add
ingredients during blending, without
removing the lid.
C. 2L BPA Free Tritan™ Jug
The BPA free jug is constructed of Tritan
material which is impact resistant and
withstands cracking in the dishwasher for
hundreds of cycles. It is also heat, stain and
scratch resistant and is lightweight for easy
use.
D. Detachable Blade Assembly
The detachable blade assembly unit
unscrews from the Tritan blending jug for
convenient and thorough cleaning.
The Control Panel
E. Extra Wide 9cm Reversible Blade
System
Specially designed for extra durability, the
heavy-duty, stainless steel blade changes
the direction of the blade motion to make
sure all food gets drawn into the vortex, so
no food gets left behind.
F. Powerful 1100 Watt Motor
Powerful motor for the most demanding
blending tasks.
G. 7 Speed Control
This blender has a speed for every need
from LOW to HI to PULSE. It also includes 3
pre-programmed recipes GREEN/FROZEN
SMOOTHIE, FOOD CHOP/SALSA and
MILKSHAKE/FRAPPE.
H. Non-Slip Feet
PULSE
• Ice cubes
• Meat
• Breadcrumbs
• Biscuits
• Finely ground nuts
• Chocolate
• Self cleaning the unit
GREEN/FROZEN
SMOOTHIE
FOOD CHOP
SALSA
LOW MED HI
ON/OFF STOP
WARNING FLASHING = READY DO NOT TOUCH BLADES
PULSE
MILKSHAKE
FRAPPE
GREEN/FROZEN SMOOTHIE
FOOD CHOP/SALSA
MILKSHAKE/FRAPPE
LOW
• Whipping cream
• Pureeing vegetables and fruit
MED
• Mayonnaise/Salad dressings
• Cake batters
HI
• Hummus
• Soups
3
Before Using Your Two-Way Blender
Important: Always ensure your blender is
unplugged from the power outlet before
fitting or removing the blade assembly.
Always handle the blade assembly with
caution, as the blades are extremely sharp.
Before using your Two-Way Blade Blender,
we recommend removing the six-blade
system for thorough cleaning.
To Remove The Six Blade System In The
Glass Jug
Unscrew the blade system from the jug,
using the inner measuring cup from the
lid and turning anti-clockwise. Remove
the silicone rubber seal from the blade
assembly. Wash the lid, jug, silicone rubber
seal and the blade assembly in warm soapy
water.
Note: When removing the blade assembly
from the jug you may need to slightly tilt
the blade so that it slides out easily.
Jug Assembly
1. Install the sealing ring over the blade.
2. Turn the jug upside down and place it on a
flat and stable surface.
3. Turn the blade with sealing ring upside
down and place into the bottom of the jug.
4. Install the threaded jug bottom over the
blade assembly. Turn clockwise to tighten.
Be sure the threaded jug bottom is
tightened to the jug before using.
5. Choose a recipe from the recipes provided.
6. Put the ingredients into the jug.
7. Secure the lid and filler cap.
8. Slide the jug onto the base.
Note: The blender jug will leak if the six
blade system is not assembled correctly.
Note: Do not attempt to remove the stainless
steel blades from the blade assembly.
Note: The appliance will start only if the
jug is correctly positioned on the
motor base.
Interlock
The unit is supplied with an interlock on
the base. This will prevent the motor or the
control panel from starting if the blender
jug is not properly placed on the base. If
the jug is removed from the base during
operation the unit will stop, and Med LED
and High LED will keep blinking fast.
To restart the blender, turn off the blender
by pressing ON/OFF button, place the
jug on the blender base and select the
preferred speed to begin again.
Note: The filler cap can be used as a tool to
tighten or remove the threaded jug bottom.
Filler Cap
Threaded
Jug Bottom
4
A Guide To Your Two-Way Blender
Pre-Programmed Functions
1. Press the ON/OFF button to turn the
blender on. The On indicator light will flash.
The light will come on, and remain on when
the motor is running.
2. Press the desired function button:
• GREEN/FROZEN SMOOTHIE
• FOOD CHOP/SALSA
• MILKSHAKES/FRAPPE
The corresponding function light will come
on, and remain on until the program is
finished.
3. To change your selection, press the STOP
button followed by another function button.
4. When the program is finished, the motor
automatically stops. You can press the Stop
button at any time to cancel the program.
The On indicator light will flash, showing
that the blender is ready to use.
Speed Functions
Your blender has three speeds: LOW, MED
and HI (1, 2 and 3). You can use these
functions for personal recipes or to continue
blending after a pre-programmed function is
finished.
1. Press the ON/OFF button to turn the
blender on. The On indicator light will flash.
The light will come on, and remain on when
the motor is running.
2. Press the desired speed button to start
blending. The corresponding speed light
will come on, and remain on until you press
the STOP button.
3. Press the STOP button to cancel processing
at any time.
Pulse Function
Use the pulse function to crush ice or chop
food.
1. Press the ON/OFF button. The On indicator
light will flash.
2. Press and hold the PULSE button. The
pulse function operates only as long as the
PULSE button is held down.
3. Release the PULSE button to stop.
Note:
The appliance will start only if the
jug is correctly positioned on the motor
base.
5
Handy Blending Hints
• Nothing can beat a blender for making
smooth purees and sauces or for whipping
up frothy drinks - from healthy breakfast
shakes to frozen daiquiris.
• Use your blender for chopping small
amounts of food like nuts, bread crumbs
and whole spices.
• Turn any oil-based salad dressing into a
creamy style dressing by blending it until
slightly thickened.
• Food items for blending should be cut
into cubes (approximately 2-3cm), this will
assist in achieving an even result.
• Ensure the lid is firmly and securely
placed on the jug. Do not operate the
blender without the lid on, if you wish to
add any additional ingredients remove the
ingredient cup and add as necessary.
• Never fill above the maximum level
indicator 2L. When blending very liquid
substances do not fill the jug above 1.5L to
avoid spilling.
• To ensure efficient mixing when blending
dry mixtures, it may be necessary to stop
the blender and push ingredients down the
sides of the jug with a spatula.
• When pureeing fruit or vegetables, cooked
or raw, cut into small pieces to facilitate
blending.
• When making bread crumbs, use 2 to 3 day
old bread, leaving crusts on, to minimise
the possibility of clumping. If only fresh
bread is available, dry it out for a few
minutes in a low heated oven.
• When blending a variety of ingredients
together, blend the liquids first, then add
dry ingredients.
• Always ensure stones are removed from
fruit and bones from meat as these can
harm the blades.
• Don’t allow a used blender to sit for too
long as the food will dry onto the blades,
making it very difficult to clean. If you can’t
clean the blender straight away, pour some
warm water in it and allow to soak.
• Do not process hot/warm liquids in your
blender. Allow to cool to room temperature
before blending.
• Select the FOOD CHOP/SALSA function for
recipes that require a fine chop.
6
Care And Cleaning
Quick Cleaning Method.
Half fill the blender with warm water and a
small amount of detergent. Press the PULSE
button for 10-20 seconds. Then remove the
jug and rinse it under running water.
For Thorough Cleaning.
Turn the blender jug upside down. Unscrew
the blade assembly from the jug by placing
the open end of the ingredient cap at the
base of the blade assembly. Use the grooves
on the opening of the ingredient cap to align
the cap to the base of the jug. Turn the
ingredient cap in an anti-clockwise direction
to remove the blade assembly.
Remove the rubber seal from the blade
assembly. Wash the blender lid, ingredient
cup, rubber seal, blade assembly and blender
jug in warm soapy water.
Caution:
blades as they are extremely sharp.
Note:
lid and feeder cap may be washed in a
dishwasher.
To Clean The Motor Base.
Use a damp, soft sponge with mild detergent
and wipe over the motor base.
Note:
water.
Take care when cleaning the
The jug, blade, seal, locking ring,
Never immerse the motor base in
7
Two-Way Blender Recipes
Rainforest Smoothie
Makes 1 serving
¾ cup cubed fresh pineapple
½ cup cubed ripe mango
1 cup lightly packed baby spinach leaves
1 small ripe banana, peeled
½ cup light milk
½ cup ice cubes
1. Place all ingredients into the blender jug
in the order listed. Place the lid securely
onto the jug.
2. Press the GREEN/FROZEN SMOOTHIE
setting. When cycle has completed, the
motor will stop.
3. Serve immediately.
Tomato Salsa
Makes 2 cups
½ spanish onion, peeled
1 large clove of garlic
1 fresh jalapeño or green chilli, seeds
removed
2 ripe tomatoes, quartered
¼ bunch of fresh coriander
1 tablespoon of Balsamic vinegar
2 tablespoon extra-virgin olive oil
Salt and pepper to taste
1.Place the onions, garlic, chilli, tomatoes
and coriander into the blender jug in the
order listed.
2.Using the PULSE button, pulse to a
small chop.
3.Remove ingredients from blender jug to a
serving bowl.
4.Dress with combined balsamic and olive
oil seasoned with salt and pepper.
8
Two-Way Blender Recipes (continued)
Roasted Tomato Salsa Dip
Makes 2 cups
6 truss tomatoes
½ small onion, sliced
1 large green chilli, seeds removed
¼ cup coriander leaves
Juice of half a lime
Salt and peppe
1. Heat the grill setting on your oven. Place
tomatoes, onion and chilli on a baking
sheet lined with baking paper.
2. Place tray under the grill and grill for
about 8 minutes, turning occasionally,
until all ingredients are lightly charred.
3. Transfer vegetables to blender jug and
add coriander leaves and lime juice.
Place the lid securely onto the jug. Select
FOOD CHOP/SALSA setting. Season to
taste with salt and pepper and serve
immediately.
r
Creamy Strawberry Smoothie
Serves 4
2 punnets strawberries, hulled
2 medium bananas, peeled
½ cup raw cashews
1 tablespoon honey (optional)
1 teaspoon vanilla essence
2 cups milk
1 cup ice cubes
1. Place all ingredients into blender jug.
Place lid securely onto the jug.
2. Select HI and blend until creamy.
3. Remove the lid and pour into serving
glasses. Serve immediately.
9
Two-Way Blender Recipes (continued)
Traditional Milkshake
Serves 3-4. Makes approximately 1 litre.
500ml (2 cups) milk
4 scoops (180g) vanilla ice cream
2 teaspoons vanilla extract
1. Place ingredients into blender jug. Place
the lid securely onto the jug.
2. Press the MILKSHAKE/FRAPPE button.
When the cycle is complete, the motor
will stop. Remove the lid and pour into
serving glasses.
Beetroot, Crème Friache and Mint Dip
Makes 2 cups
400g beetroot, peeled, roughly chopped
¹⁄³ cup crème friache
¹⁄³ cup olive oil
1 tablespoon fresh mint
Salt and pepper, to taste
1. Place all ingredients in blender. Place the
lid securely onto the jug.
2. Blend on HI speed for 1 minute or until
smooth. Season to taste.
3. Store in a clean, covered container in the
refrigerator for up to one week.
Serving suggestion: Great on lamb
burgers.
10
Two-Way Blender Recipes (continued)
Traditional Hummus
Makes 1½ cups
400g can chickpeas, drained, rinsed
½ clove garlic, crushed
2 tablespoons lemon juice
½ teaspoon sesame oil
¹⁄³ cup olive oil
Salt and pepper, to taste
1. Place all ingredients in blender. Place the
lid securely onto the jug.
2. Blend on HI speed for 30-40 seconds, or
until smooth. Season to taste.
3. Store in a clean, covered container in the
refrigerator for up to one week.
Serving suggestion: For a tasty twist add
a big dollop to pumpkin soup.
Curried Coconut Carrot Soup
Serves 4
500g carrots, peeled and halved
1 brown onion, peeled and quartered
1 tablespoon extra virgin olive oil
1/3 cup raw cashews
400ml can light coconut milk
1 teaspoon curry powder
½ teaspoon ground ginger
1 cup vegetable stock
Salt and pepper
1. Preheat oven to 180°C. Place carrots and
onion on a lined baking tray, drizzle with
olive oil and toss to coat. Roast for 30-35
minutes, or until vegetables are tender.
Remove from oven and allow to cool for
10-15 minutes.
2. Transfer vegetables to blender jug and
add cashew nuts, coconut milk, curry
powder and ground ginger. Place the
lid securely onto the jug. Blend on MED
speed until creamy.
3. Pour soup into a medium sized saucepan
and stir through vegetable stock. Cook on
medium heat until heated through, about
5 minutes. Season to taste and serve.
Tip: Try this soup with a swirl of Greek
yoghurt, chopped coriander leaves or
toasted unsweetened coconut.
11
Two-Way Blender Recipes (continued)
Smoked Salmon Dip
Makes 1 cup
50g smoked salmon
2 tablespoons finely chopped onion
1 lemon, juiced
250g cream cheese, softened and cubed
1 tablespoon dill
1 teaspoon capers, drained
1. Place all ingredients into blender jug and
select LOW speed. Blend until creamy.
2. Spoon dip into a small serving bowl
and serve with vegetable crudités and
crackers.
Basil Walnut Pesto
Makes 1.5 cups
½ cup walnuts, toasted
2 garlic cloves
2 cups basil leaves
1 cup flat leaf parsley
¼ cup parmesan, grated
½ cup extra virgin olive oil
1. Combine walnuts, garlic, basil, parsley
and parmesan in the blender jug. Select
PULSE to finely chop ingredients.
2. While pulsing, slowly drizzle olive oil
down into the blender jug to form a
chunky paste. Serve with freshly cooked
pasta.
12
Warranty
Should you experience
any difficulties with
your product during the
warranty period,
please contact
Sunbeam Customer Care:
Level 6, Building 5,
Central Park,
660–670 Great South Road
Greenlane, Auckland
New Zealand
:
13
Need help with your appliance?
Contact our Customer Care Team or
visit our website for information and tips
on getting the most from your appliance.
AUSTRALIA
Visit:
Phone:
Mail:
NEW ZEALAND
Visit:
Phone:
Mail:
MADE IN CHINA TO
SUNBEAM’S
SPECIFICATION
www.sunbeam.com.au
1300 881 861
Units 5 & 6, 13 Lord Street,
Botany NSW 2019
www.sunbeam.co.nz
0800 786 232
Level 6, Building 5, Central Park,
660–670 Great South Road,
Greenlane, Auckland
APPROVED BY
APPROPRIATE
ELECTRICAL REGULATORY
AUTHORITIES
Sunbeam Corporation PTY LTD | ACN 000 006 771
Sunbeam is a registered trade mark.
Due to continued product improvements,
product illustrations and photographs in this User Guide
may differ slightly from the actual product.
PN 193353-001-000 PB8080_17EM2 CSH-LD0817-SUN52455 Printed in Mexico
Loading...
