LC9600Z
Contents
Sunbeam’s Safety Precautions 2
Features of your Zumbo Limited Edition Food Processor 3
Attachments for your Zumbo Limited Edition Food Processor 5
Using your Zumbo Limited Edition Food Processor 6
Fitting/using the tools on your Zumbo Limited Edition Food Processor 8
Storing your Zumbo Limited Edition Food Processor 10
Handy hints for processing 12
Care and cleaning 13
Important instructions – retain for
future use.
1
Sunbeam’s Safety Precautions
SAFETY PRECAUTIONS FOR YOUR SUNBEAM
FOOD PROCESSOR LC9600Z.
• Always use extreme care when handling blades and
cutting discs. These are extremely sharp and may
cause injury if handled incorrectly. Always store
blades and cutting discs in their respective covers
or processing containers.
• Unplug from power outlet when not in use, before
putting on or taking off attachments, and before
cleaning.
• Do not put hot liquids into the processing bowl.
Cool to room temperature before placing in
processing bowl.
• Avoid contacting moving parts at all times.
• Place the processing bowl onto the base of the
processor before fitting any attachments.
Sunbeam is very safety conscious when designing and
manufacturing consumer products, but it is essential
that the product user also exercise care when using
an electrical appliance. Listed below are precautions
which are essential for the safe use of an electrical
appliance:
• Read carefully and save all the instructions provided
with an appliance.
• Always turn the power off at the power outlet before
you insert or remove a plug. Remove by grasping the
plug - do not pull on the cord.
• Turn the power off and remove the plug when the
appliance is not in use and before cleaning.
• Do not use your appliance with an extension cord
unless this cord has been checked and tested by a
qualified technician or service person.
• Always use your appliance from a power outlet of the
voltage (A.C. only) marked on the appliance.
• This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety.
• Children should be supervised to ensure that they do
not play with the appliance.
• The temperature of accessible surfaces may be high
when the appliance is operating.
• Never leave an appliance unattended while in use.
If you have any concerns regarding the performance and use of your appliance,
please visit www.sunbeam.com.au or contact the Sunbeam Consumer Service Line.
Ensure the above safety precautions are understood.
• All blades and attachments should be removed
with care before cleaning.
• Potential injury from misuse.
• Do not over fill the processor.
• Do not process for longer than the time periods
recommended in the operating chart.
• Always remove the blade before emptying the
processing bowl of its contents.
• Do not operate for more than 30 seconds at a time
when processing heavy loads. None of the recipes
in this manual are considered a ‘heavy load’.
• Take care when removing the bowl from the base,
emptying the bowl or during fitting and removal of
blade system, as blades are extremely sharp.
• Do not use an appliance for any purpose
other than its intended use.
• Do not place an appliance on or near a hot gas
flame, electric element or on a heated oven.
• Do not place on top of any other appliance.
• Do not let the power cord of an appliance hang over
the edge of a table or bench top or touch any hot
surface.
• Do not operate any electrical appliance with a
damaged cord or after the appliance has been
damaged in any manner. If damage is suspected,
return the appliance to the nearest Sunbeam
Appointed Service Centre for examination, repair
or adjustment.
• For additional protection, Sunbeam recommend the
use of a residual current device (RCD) with a tripping
current not exceeding 30mA in the electrical circuit
supplying power to your appliances.
• Do not immerse the appliance in water or any other
liquid unless recommended.
• Appliances are not intended to be operated
by means of an external timer or separate remote
control system.
• This appliance is intended to be used in household
and similar applications such as: staff kitchen areas
in shops, offices and other working environments;
farm houses; by clients in hotels, motels and other
residential type environments; bed and breakfast
type environments.
2
Features of your Zumbo Limited Edition
Food Processor
Processing cover
The processing cover or lid of bowl provides a
safety feature to the appliance. The appliance
will not operate unless the bowl, cover and large
feed pusher are correctly positioned and locked
into place.
1400 watt induction motor
The die-cast base houses a powerful 1400
watt motor. This motor is ideal for high load
applications during processing, and provides a
greater starting strength whilst maintaining speed
throughout. The Zumbo Limited Edition Food
Processor motor is reliable, quiet, will provide a
long life and is backed by a 10 year guarantee.
START/STOP button
For easy use the START/STOP button starts
and stops the operation of the food processor.
Auto Pulse
The Auto Pulse function is a clever
and versatile feature providing short bursts
of processing, for a set length of time.
Creating bread or biscuit crumbs couldn’t
be easier.
Pulse
The control panel includes a Pulse function for
optimum cutting precision during processing.

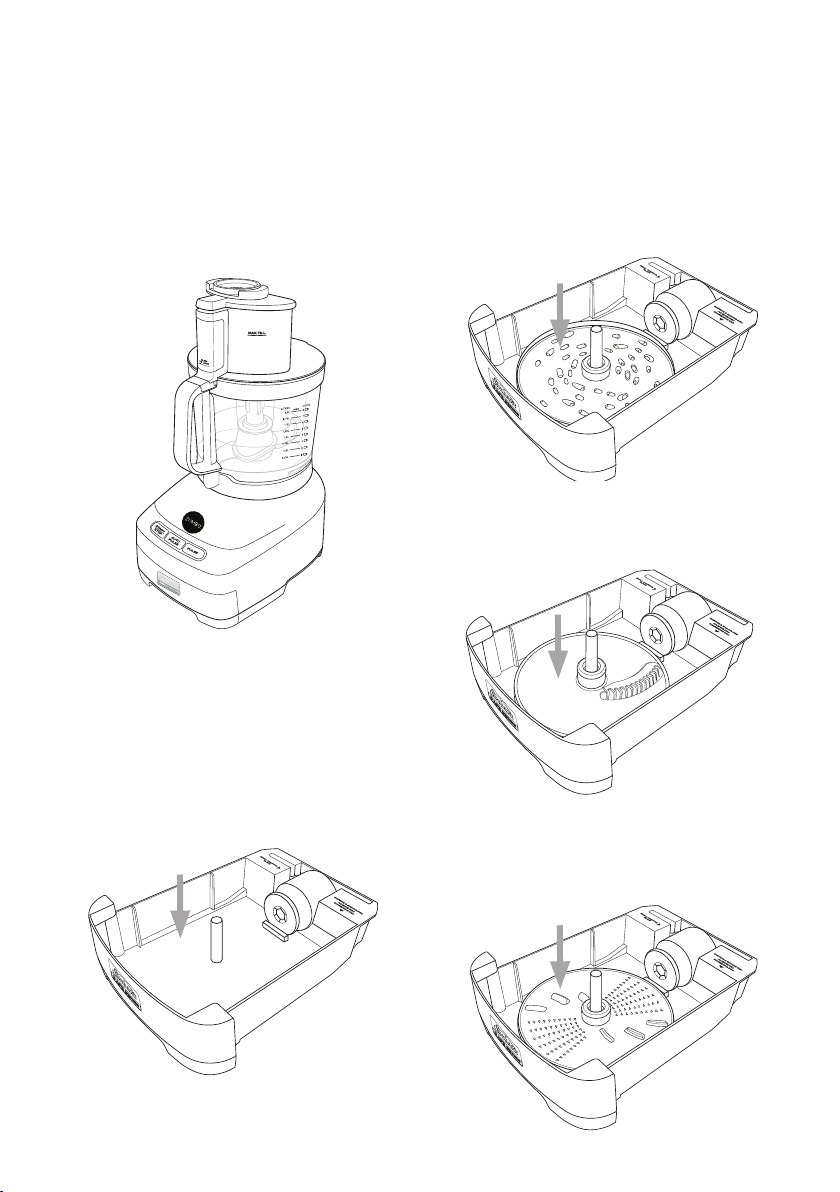

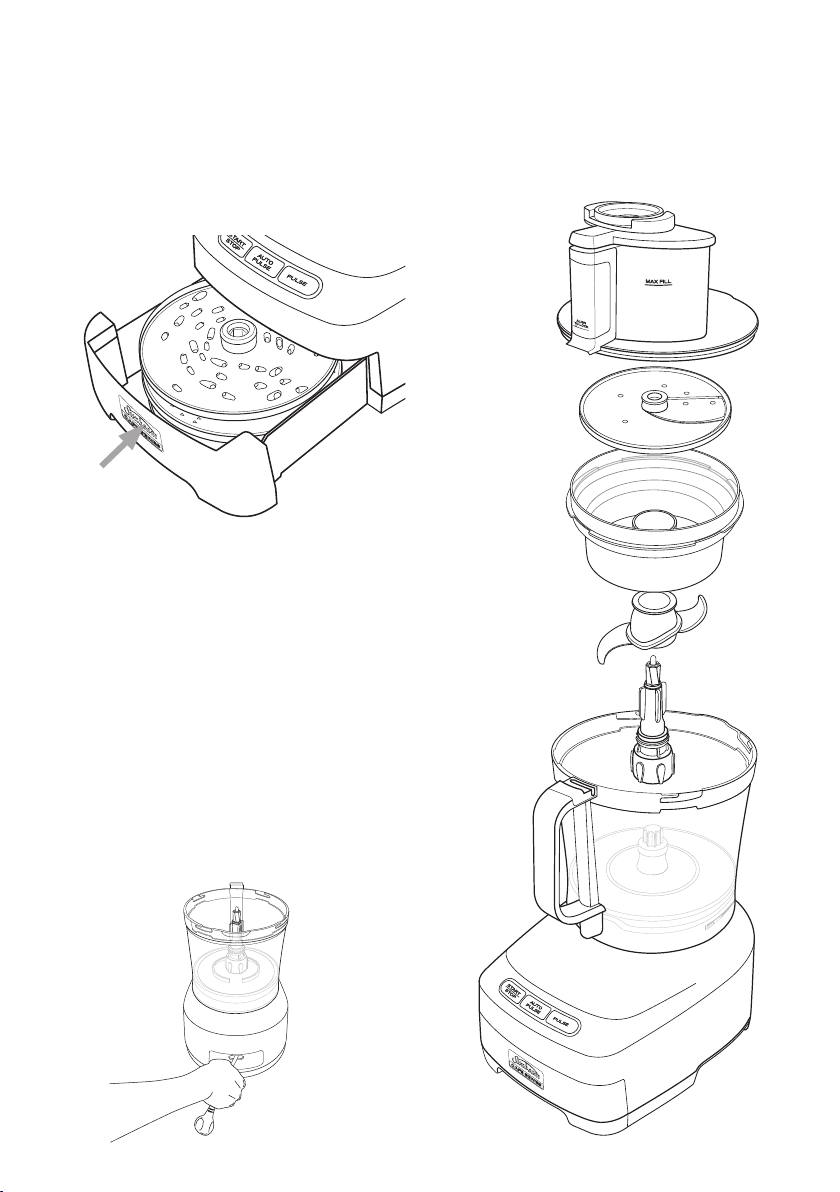

Storage drawer
The unique drawer design enables attachments
to be stored conveniently, and safely, within the
appliance when not in use.
Non-slip feet
Keeps the food processor secure on the bench
top during use.
3
Food Pushers
The food pushers assist in guiding the food
through the chute to ensure ingredients hit
the blade vertically for best processing results.
Three food pushers are included, depending on
the size of the chute being used and the size
of foods. For thinner foods, use the smaller
internal pusher for consistent even slicing.
This pusher also doubles as a measuring cup.
Wide Chute
At 14cm’s wide, the extra wide chute
eliminates the need to cut most ingredients,
to fit into the chute. Guide ingredients through
the chute into the selected blades. Additional
ingredients can be added during other
processing tasks.
Chute Safety Feature
The wide chute pusher provides a safety
interlock feature to the appliance. The motor
will not operate unless the bowl and lid are
correctly locked in position, and the large feed
pusher is inserted.
Spindle
Drives all the food processing attachments.
The spindle must be in place to operate the
food processor.
Processing bowl with handle
Large 2 litre capacity processing bowl.
The handle of the processing bowl includes a
patent-pending robust stainless steel interlock
that prevents food catching and building up,
ensuring easy cleaning.
Second processing bowl
The smaller processing bowl is ideal for small
amounts of ingredients. At 400ml in volume,
this bowl is perfect for chopping nuts, creating
pesto or chopping herbs.
Cord storage facility
For added convenience the unused cord length
can easily be pushed into the base of the
processor for storage.
4
Attachments for your Zumbo
Limited Edition Food Processor
1. Universal 's' blade
Stainless steel smooth edged processing blade
is designed for cutting, kneading, whisking and
emulsifying. The second smaller ‘s’ blade is
suitable for the smaller bowl.
2. Variable slicing blade
The variable stainless steel slicing blade
allows foods to be sliced to a variety of
thicknesses, up to 7mm. This blade can not
be used in the small processing bowl.
4. Reversible shredding disc - fine and coarse
Ideal control, the reversible stainless steel
shredding blades allow for the choice of fine
or coarse results.
5. Reversible grating and shaving disc
Unique to processing is the shaving blade.
It does lovely thin flakes, great for parmesan
and sweet potato crisps. The alternate side is
ideal for hard cheeses and chocolate.
3. Julienne disc
The stainless steel julienne blade is perfect
for achieving consistent julienne cut food,
perfect for salad, stir fry or garnishing.
5
Using your Zumbo Limited Edition
Food Processor
• Before using your Zumbo Limited Edition
Food Processor, familiarise yourself with
all parts, remove all promotional and
packaging materials. Use caution when
handling blades, as blades are sharp.
• Wash the processing bowl, processing cover
and all attachments in warm water using a
mild detergent. Dry each part thoroughly
before use.
• Before you assemble the food processor,
ensure that the power cord is unplugged.
1. Place the motor base facing you on a dry,
level surface.
2. Place the processing bowl onto the motor
base, the bowl will only sit correctly on the
base when the handle is positioned to the
right, see figure 1.
3. Rotate the handle clockwise to lock, as
indicated by the graphics on the left side
of the motorbase, see figure 2.
4.
Position the lid onto the processing bowl
You will notice a solid grey line to the left
of the holding lip on the lid, when placing
the lid onto the bowl this arrow needs
to align with the solid grey line on the
handle of the bowl. To lock, turn the lid
clockwise, as indicated by the graphics, on
the top of the handle, see figure 3.
Fig 2
.
Fig 1
Fig 3
6
Using your Zumbo Limited Edition Food Processor continued
Important: If the processing bowl, processing
cover and large pusher are not correctly
assembled, the food processor will not
operate. This is a safety feature.
Using your Food Processor
1. Plug the power cord into a 230-240V AC
power outlet and turn the power ‘ON’.
2. Using the START/STOP button on the control
panel, press once to start processing.
The Pulse function remains on as long as the
Pulse button is pressed down.
The Auto Pulse function will run for a
predetermined length of time.
Further ingredients can be added whilst the
appliance is running by pouring through the
medium or small feed tube once the food
pusher/s have been removed. Removing the
large pusher will stop the motor running.
3. After you have completed processing, press
the START/STOP button to stop processing.
Note: For maximum control, load the feed
tube before turning on your food processor.
Always use the food pusher for more evenly
processed foods and never push with your
fingers.
Important: The food processor is fitted with
a safety thermal cut-out device and will
shut off in the event of overload. If this
occurs, switch the appliance off and it will
automatically reset when cool.
7
Fitting/Using the tools on your Zumbo
Limited Edition Food Processor

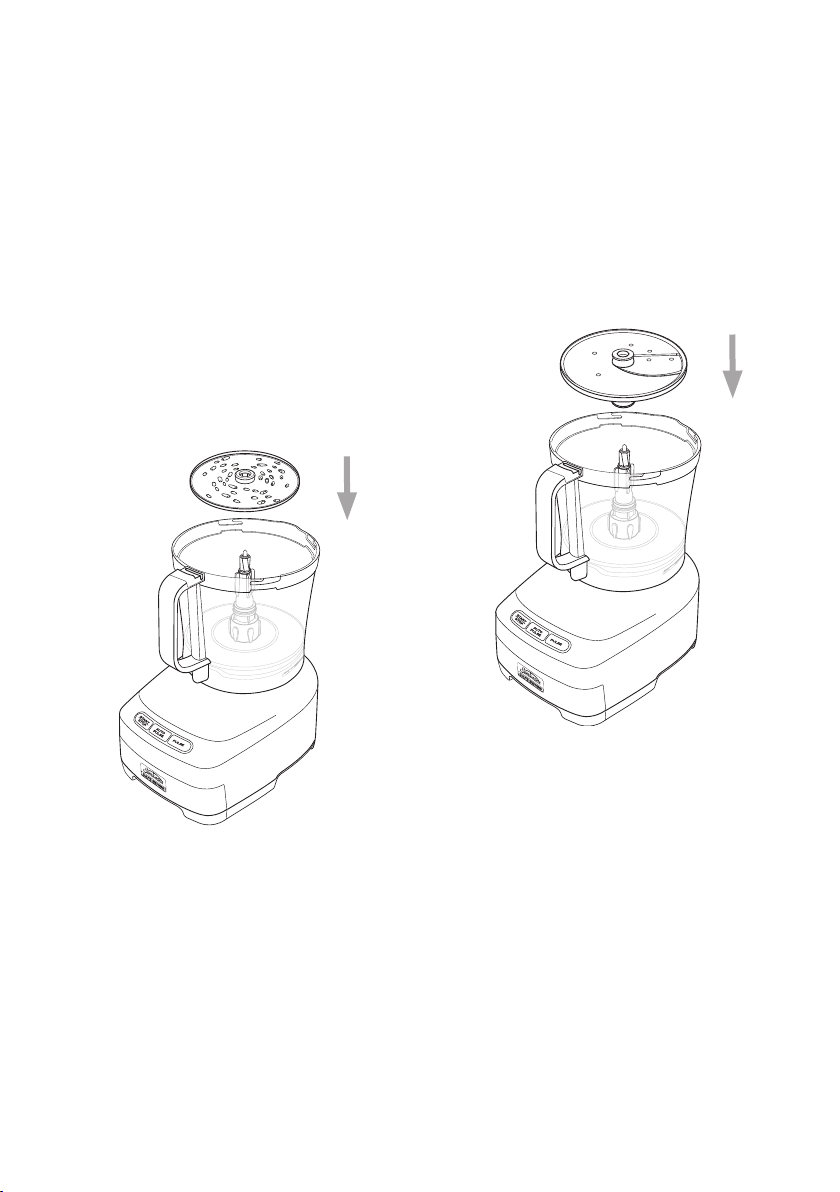

Note: All attachments must be firmly
attached to the spindle. Always adjust the
attachments until you are sure that they are
correctly fitted.
Placing the spindle
1. Fit the spindle onto the drive shaft,
see figure 4.
Fig 4
Universal 's' Blade
1. Fit the processing bowl and spindle as
detailed previously in figures 1, 2 & 4.
2. Fit the universal 's' blade over the spindle
and press firmly into place, see figure 5.
Warning: Use caution, as blades are sharp.
Always handle the processing blade by its
central plastic section.
3. Place food into the processing bowl.
4. Fit the processing cover to the processing
bowl, see figure 3 and place the food
pusher in the feed chute.
5. Plug the power cord into a 230-240V AC
power outlet and turn the power ‘ON’.
6. Start processing using the START/STOP
or Pulse buttons.
7. When processing is complete, remove the
spindle and blade from the processing bowl
before removing the processed food.
Fig 5
8
Fitting/Using the tools on your Zumbo Limited Edition Food
Processor continued
Reversible grating/shaving, shredding and
julienne discs
1. Fit the processing bowl and spindle as
detailed previously, in figures 1, 2 and 4.
2. Select the 'Reversible' disc of your choice –
Shredding (fine or coarse), Grating/Shaving
or the dedicated Julienne disc.
3. Fit the disc over the spindle and press
firmly into place, see figure 6.
Warning: Use caution as the blades are sharp.
Fig 6
4. Fit the processing cover to the processing
bowl as previously shown in figure 3 and
place the food pusher in the feed chute.
5. Plug the power cord into a 230-240V AC
power outlet and turn the power ‘ON’.
6. Start processing using the START/STOP
button.
7. When processing is complete, remove the
disc and spindle from the processing bowl
before removing the processed food.
Variable slicing blade
1. Fit the processing bowl and spindle as
detailed previously in figures 1, 2 and 4.
2. Fit the slicing disc over the spindle and
press firmly into place, see figure 7.
Fig 7
Warning: The variable slicing blade can be
used in the large processing bowl only.
Do Not use the variable slicing blade in the
small bowl.
Warning: Use caution as the blades are sharp.
3. Fit the processing cover to the processing
bowl as previously shown in figure 3 and
place the food pusher in the feed tube.
4. Plug the power cord into 230-240V AC
power outlet and turn the power 'ON'.
5. Start processing using the START/STOP
button.
6. When processing is complete, remove the
disc and spindle from the processing bowl
before removing the processed food.
9
Storing your Zumbo Limited Edition
Food Processor
The Zumbo Limited Edition Food Processor
was designed so that all attachments can be
stored within the unit itself, see figure 8.
Fig 8
Storage drawer
The 'Julienne Blade', 'Reversible Shredding'
disc, 'Reversible Grating and Shaving' disc
are all stored in the storage drawer.
1. Slide out the storage drawer at the base of
the food processor.
2. Place the small universal ‘s’ blade at the
rear of the drawer as indicated in figure 9.
3. Place one of the 'Reversible discs' in
storage drawer as indicated in figure 10.
Fig 10
4. Place the 'Julienne Disc' in the storage
drawer as indicated in figure 11.
Fig 11
5. Place the remaining 'Reversible Disc' in on
top of the first 'Julienne Disc' as indicated
in figure 12.
Fig 9
Fig 12
10
Storing your Zumbo Limited Edition Food Processor continued
6. Close storage drawer, see figure 13.
Fig 13
Processing bowl storage, see figure 14.
1. Place the processing bowl onto the base of
the food processor.
2. Fit the spindle over the drive shaft.
3. Fit the large universal 's' blade over
spindle.
3. Place the small bowl inside the large bowl.
4. Place the 'Variable Slicing' blade over the
spindle and then fit the processing cover to
the processing bowl.
Cord storage
The power cord can be stored by pushing it
into the back of the motor base,
see figure 15.
Fig 15
11
Fig 14
Handy hints for Processing
Chopping
For the best, most consistent results, you
should try to process pieces of food that are
approximately equal in size. When you break,
cut or tear food into uniform pieces before
you begin processing, the finished results will
be more uniform.
More consistent processing results are
achieved if the container is not overloaded.
Mincing
Pre-cut meat into cubes approximately 2cm
square.
Vegetables
When processing vegetables such as onions,
peel and quarter or cut large vegetables into
eighths.
Mixing
The quantities that can be processed within
the Processing bowl will vary with the density
of the mixture.
For best results with cheese
Softer cheeses such as Cheddar or Swiss
should be well chilled before processing.
For best results with harder cheeses such as
Parmesan or Romano, use the shaving disc,
with the cheese at room temperature.
Note: When grating parmesan cheese do not
apply a lot of pressure to the food pusher.
Soups
When preparing soups, always allow
ingredients to cool to room temperature,
before processing.
Adding Ingredients
When various recipes require dry ingredients
such as flour, add them directly into the
processing bowl before processing. There
is no need to sift ingredients when using
your food processor. Liquid ingredients may
be added while the processor is operating
by pouring through the feed tube in the
processor cover.
Note: When processing sauces or semi-liquid
ingredients, stop the food processor and
scrape down the container sides with the
spatula provided.
Using the Feed Tube
The most important factor for successful
slicing and shredding is the way in which the
food is packed into the feed tube.
When slicing, shredding, shaving or grating
Cut all ingredients to a size that fits
comfortably into the feed tube. Pack the
feed tube and, while holding food steady
and upright with the food pusher, press
down evenly until all ingredients are sliced
or shredded. The more firmly you push,
the thicker the slices or shreds. Do not use
excessive force or you may damage the food
processor.
Note: Never use fingers to push food down
the feed tube. Always use the food pusher.
For best results when slicing
The feed tube should always be packed firmly
to allow each piece of food to support the
others. There will always be a small portion
of food left unprocessed between the food
pusher and the blade.
12
Care and cleaning
When you have finished processing, unplug
the Cafè Series® Food Processor from the
power outlet.
All accessories and processor tools can be
washed in hot soapy water except for the
processor body. Clean the processor body
by wiping with a damp cloth.
Warning: Care must be taken when handling
the metal blades as these items are extremely
sharp.
Note: Always unplug the Cafè Series® Food
Processor before cleaning.
Dishwasher Use
All plastic components deteriorate through
the prolonged use of a dishwasher for
cleaning.
We do not recommend to place any parts of
the food processor in the dishwasher.
If using the dishwasher, place parts only
on the top rack of your dishwasher. Do not
place any parts in the bottom racks. This
may cause plastic parts to distort due to the
heating element in the dishwasher.
13
Notes
14
The Sunbeam
10 Year Motor
Guarantee
Sunbeam has built its reputation
on manufacturing quality electrical
appliances. Our Zumbo Limited Edition
Food Processor is constructed from the
highest quality materials. So much so, we
guarantee our Food Processor motor for
ten (10) years against faulty materials
or manufacture. This guarantee is just
another expression of our confidence in
the way we make appliances at Sunbeam.
In order to be eligible for this guarantee,
you must retain your receipt as proof of
purchase.
Your Zumbo Limited Edition Food Processor
is covered for the first year against faulty
material or manufacture by the Sunbeam
12 Month Replacement Guarantee. Should
you experience any difficulties with your
appliance within this 12 Month period,
please phone our customer service line for
advice on 1300 881 861 in Australia, or
0800 786 232 in New Zealand.
The Sunbeam (10) ten year motor guarantee
begins from date of purchase and extends
for nine years beyond the 12 Month
Replacement Guarantee. It covers only
the motor, guaranteeing it against faulty
materials or manufacture. It does not cover
damage caused by accident, misuse or
being used in a manner not in accordance
with the Instruction Book. Similarly, this
motor guarantee does not cover freight or
any other costs incurred in making a claim.
If a fault should develop with the motor
after the period covered by the 12 Month
Replacement Guarantee, please call
Sunbeam Customer Service on the number
listed below or send a written claim to
Sunbeam at the address listed below.
On receipt of your claim, Sunbeam will
advise you on how to obtain a replacement
motor if your motor is defective.
Alternatively, you can return the Zumbo
Limited Edition Food Processor to any of
Sunbeam’s authorised service centres,
together with your receipt. The service
centre will examine the motor and if it
is faulty or defective, the motor will be
replaced free of charge.
For a complete list of Sunbeam’s authorised
service centres visit our website or call:
Sunbeam Corporation Ltd.
Australia
www.sunbeam.com.au
1300 881 861
Units 5 & 6, 13 Lord Street
Botany NSW 2019 Australia
Sunbeam Corporation Ltd.
New Zealand
www.sunbeam.co.nz
0800 786 232
26 Vestey Drive, Mt Wellington
Auckland, New Zealand
The benefits given to you by this guarantee
are in addition to your other rights and
remedies under any laws which relate to
the appliance.
Our goods come with guarantees that
cannot be excluded under the Australian
Consumer Law and under the New Zealand
Consumer Guarantees Act. In Australia you
are entitled to a replacement or refund for
a major failure and for compensation for
any other reasonably foreseeable loss or
damage. You are also entitled to have the
goods repaired or replaced if the goods fail
to be of acceptable quality and the failure
does not amount to a major failure.
IMPORTANT NOTE
Sunbeam agrees to replace the motor in
the event of the motor developing a fault or
defect, within the four years after the
12 Month Replacement Guarantee.
As your Zumbo Limited Edition Food
Processor needs to be assessed at a
Sunbeam authorised service centre, it will
not be accepted through retail stores.
If using the Zumbo Limited Edition Food
Processor for commercial use this motor
guarantee is limited to 12 months from the
date of purchase.
12 Month Replacement Guarantee
In the unlikely event that this appliance develops any malfunction
within 12 months of purchase (3 months commercial use) due
to faulty materials or manufacture, we will replace it for you free
of charge.
Should you experience any difficulties with
your appliance, please phone our customer
service line for advice on 1300 881 861 in
Australia, or 0800 786 232 in New Zealand.
Alternatively, you can send a written claim
to Sunbeam at the address listed below.
On receipt of your claim, Sunbeam will
seek to resolve your difficulties or, if the
appliance is defective, advise you on how
to obtain a replacement or refund.
Your Sunbeam 12 Month Replacement
Guarantee naturally does not cover misuse
or negligent handling and normal wear and
tear.
Similarly your 12 Month Replacement
Guarantee does not cover freight or any other
costs incurred in making a claim. Please
retain your receipt as proof of purchase.
The benefits given to you by this guarantee
are in addition to your other rights and
remedies under any laws which relate to the
appliance.
Our goods come with guarantees that cannot
be excluded under the Australian Consumer
Law and under the New Zealand Consumer
Guarantees Act.
In Australia you are entitled to a
replacement or refund for a major failure and
for compensation for any other reasonably
foreseeable loss or damage. You are also
entitled to have the goods repaired or
replaced if the goods fail to be of acceptable
quality and the failure does not amount to
a major failure.
Should your appliance require repair or
service after the guarantee period, contact
your nearest Sunbeam service centre.
For a complete list of Sunbeam’s authorised
service centres visit our website or call:
Australia
www.sunbeam.com.au
1300 881 861
Units 5 & 6, 13 Lord Street
Botany NSW 2019 Australia
New Zealand
www.sunbeam.co.nz
0800 786 232
26 Vestey Drive, Mt Wellington
Auckland, New Zealand
Need help with your appliance?
Contact our customer service team or visit
our website for information and tips on
getting the most from your appliance.
In Australia
Visit www.sunbeam.com.au
Or call 1300 881 861
In New Zealand
Visit www.sunbeam.co.nz
Or call 0800 786 232
is a registered trademark.
Made in China. Designed and engineered in Australia.
Due to minor changes in design or otherwise, the product
may differ from the one shown in this leaflet.
© Copyright. Sunbeam Corporation Limited 2016.
ABN 45 000 006 771
Units 5 & 6, 13 Lord Street
Botany NSW 2019 Australia
Level 6, Building 5, Central Park
660-670 Great South Road
Greenlane, Auckland
New Zealand
Sunbeam Corporation Pty Ltd, Acn 000 006 771
LC9600Z_16EM1
GCDS-SUN46156-JC
5/16
Loading...
