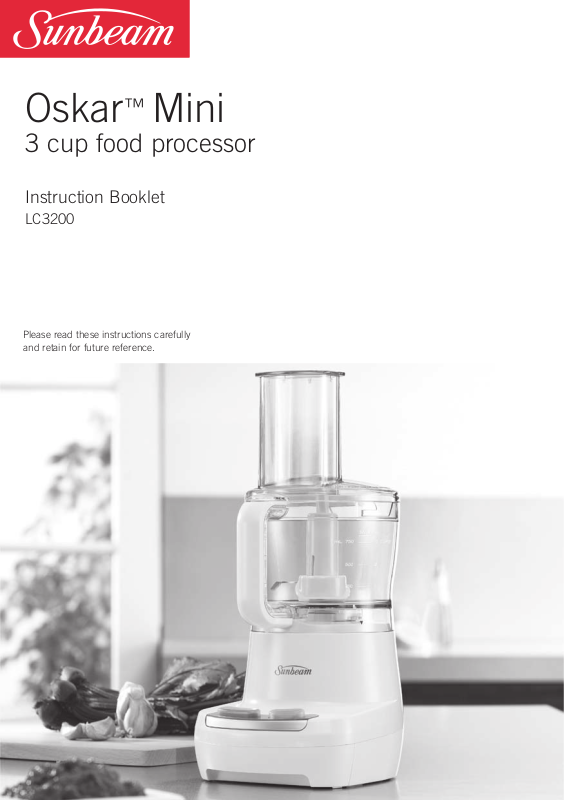

Sunbeam LC3200 User Manual

Oskar

™

Mini

3 cup food processor

Instruction Booklet

LC3200

Please read these instructions carefully and retain for future reference.

ContentsContents

Sunbeam’s Safety Precautions 4

Features of Your Sunbeam Oskar™ Mini 6

Attachments for your Sunbeam Oskar™ Mini 8

Using your Sunbeam Oskar™ Mini 9

Fitting/using the tools on your Oskar™ Mini 11

Storing your Sunbeam Oskar™ Mini 13

Handy hints for Processing 1

Care and cleaning 1

Recipes 1

Important instructions – retain for future use.

Sunbeam’s Safety Precautions

Sunbeam are very safety conscious when

designing and manufacturing consumer products, but it is essential that the product user also exercise care when using an electrical appliance. Listed below are precautions which are essential for the safe use of an electrical appliance:

• Read carefully and save all the instructions provided with an appliance.

• Always turn the power off at the power outlet before you insert or remove a plug. Remove by grasping the plug - do not pull on the cord.

• Turn the power off and remove the plug when the appliance is not in use and before cleaning.

• Do not use your appliance with an extension cord unless this cord has been checked and tested by a qualified technician or service person.

• Always use your appliance from a power outlet of the voltage (A.C. only) marked on the appliance.

• Close supervision is necessary when your appliance is being used near children or infirm persons.

• Never leave an appliance unattended while in use.

• Young children should be supervised to ensure that they do not play with the appliance.

• Do not use an appliance for any purpose other than its intended use.

• Do not place an appliance on or near a hot gas flame, electric element or on a heated oven. Do not place on top of any other appliance.

• Do not let the power cord of an appliance hang over the edge of a table or bench top or touch any hot surface.

• For safety reasons and to avoid maintenance by unskilled persons, some appliances are ‘sealed’ using tamperproof screws. Such appliances should always be returned to the nearest Sunbeam Appointed Service Centre for adjustment or repair if required.

• Do not operate any electrical appliance with a damaged cord or after the appliance has been dropped or damaged in any manner. If damage is suspected, return the appliance to the nearest Sunbeam Appointed Service Centre for examination, repair or adjustment.

• For additional protection, Sunbeam recommend the use of a residual current device (RCD) with a tripping current not exceeding 30mA in the electrical circuit supplying power to your appliances.

• Do not immerse the appliance in water or any other liquid unless recommended.

If you have any concerns regarding the performance and use of your appliance,

please visit www.sunbeam.com.au or contact the Sunbeam Consumer Service Line.

Ensure the above safety precautions are understood.

Sunbeam’s Safety Precautions

SAFETY PRECAUTIONS FOR YOUR

SUNBEAM FOOD PROCESSOR LC3200.

• Always use extreme care when handling processing blades and cutting discs. These are extremely sharp and may cause injury if handled incorrectly. Always store processing blades and cutting discs in their respective covers or processing containers.

• Unplug from power outlet when not in use, before putting on or taking off attachments, and before cleaning.

• Do not put hot liquids into the food processor bowl or blender. Warm liquids only.

• Avoid contacting moving parts at all times.

• Place the processor bowl onto the base of the processor before fitting any attachments.

• All blades and attachments should be removed with care before cleaning.

• Do not over fill the processor.

• Do not exceed the max indicator 3 cups / 750mL when processing dry ingredients.

• Do not exceed the liquid max indicator 2 cups/500mL when processing liquids.

• Do not process for longer than the time periods recommended in the operating chart.

• Always remove the blade before emptying the processor bowl of its contents.

• Do not operate this food processor for more than 10 seconds using heavy loads. None of the recipes in this instruction booklet are considered to be heavy loads.

Important instructions – retain for future use.

If you have any concerns regarding the performance and use of your appliance,

please visit www.sunbeam.com.au or contact the Sunbeam Consumer Service Line.

Ensure the above safety precautions are understood.

Features of Your Sunbeam Oskar™ Mini

Processing cover

The processing cover activates the automatic safety system. The Oskar™ Mini will not operate unless the cover is correctly positioned on the processing bowl and locked into place.

600 watt motor

The base houses a 600 watt motor, which provides consistent processing results.

On / off button

For easy use the large ON / OFF button starts and stops the operation of the food processor.

Pulse

The 'Pulse' feature allows for total control over processing tasks.

Storage drawer

Unique drawer design enables attachments to be stored conveniently within the appliance when not in use.

Food pusher

Assists in guiding food through the chute to ensure food hits the blade vertically for best processing results. The food pusher also doubles as a measuring cup.

Feed tube

The feed tube is used to guide ingredients down into the selected blades and allows you to add ingredients during other processing tasks.

Spindle

Drives all the food processing attachments. The spindle must be in place to operate the food processor.

Processing bowl

The processing bowl achieves a 3 cup / 750mL processing capacity for dry ingredients and a 2 cup / 500mL capacity for liquids.

Cord storage facility

For added convenience the unused cord length can easily be pushed into the base of the processor for storage.

Non-slip feet

Keeps the food processor secure on the bench top during use.

Attachments for your Sunbeam Oskar

1. Processing blade

Stainless steel smooth edged processing blade is designed for cutting, kneading, whisking and emulsifying.

2. Reversible slicing blade - thick and thin

The reversible stainless steel slicing blade allows both thick & thin slicing.

™

Mini

3. Reversible shredding disc - fine and coarse

Ideal control, the reversible stainless steel shredding blades allow for the choice of fine or coarse results.

Using your Sunbeam Oskar

MAX

250

Mini

™

Before using your Oskar™ Mini

• Wash the processing bowl, cover and all attachments in warm water using a mild detergent. Dry each part thoroughly before use.

• Before you assemble the food processor, ensure that the power cord is unplugged.

1. Place the motor base facing you on a dry, level surface.

2. Place the processing bowl onto the motor base, the bowl will only sit correctly on the base when the handle is positioned to the right, see figure 1.

Fig 1

3. Rotate the handle clockwise to lock, as indicated by the graphics on the left side of the motorbase, see figure 2.

Position the lid onto the processing bowl You will notice a solid grey arrow left of the holding lip on the lid, when placing the lid onto the bowl this arrow needs to align with the solid grey arrow on the handle of the bowl. To lock, turn the lid clockwise, as indicated by the graphics, on the top of the handle, see figure 3.

 to the

Fig 2



Fig 3
