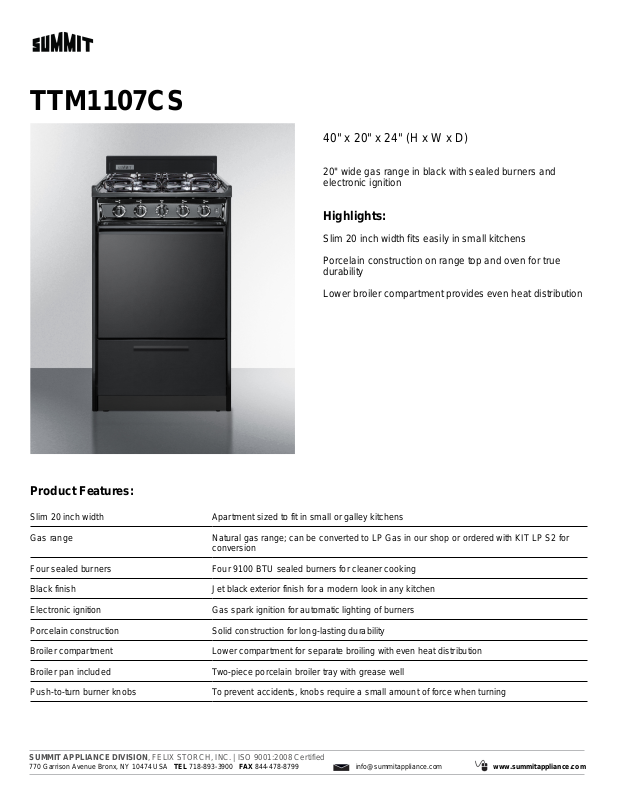

TTM1107CS

40" x 20" x 24" (H x W x D)

20" wide gas range in black with sealed burners and
electronic ignition

Highlights:

Slim 20 inch width fits easily in small kitchens
Porcelain construction on range top and oven for true

durability
Lower broiler compartment provides even heat distribution

Product Features:

Slim 20 inch width Apartment sized to fit in small or galley kitchens
Gas range Natural gas range; can be converted to LP Gas in our shop or ordered with KIT LP S2 for

conversion
Four sealed burners Four 9100 BTU sealed burners for cleaner cooking
Black finish Jet black exterior finish for a modern look in any kitchen
Electronic ignition Gas spark ignition for automatic lighting of burners
Porcelain construction Solid construction for long-lasting durability
Broiler compartment Lower compartment for separate broiling with even heat distribution
Broiler pan included Two-piece porcelain broiler tray with grease well
Push-to-turn burner knobs To prevent accidents, knobs require a small amount of force when turning

SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2008 Certified

770 Garrison Avenue Bronx, NY 10474 USA TEL [phone] FAX [phone] [e-mail] www.summitappliance.com

TTM1107CS Specifications:

Overview

Height of Cabinet 40.0" (102 cm)
Width 20.0" (51 cm)
Depth 24.0" (61 cm)
Door Black
Cabinet Black
US Electrical Safety CSA
Weight 120.0 lbs. (54 kg)
Shipping Weight 140.0 lbs. (64 kg)
Parts & Labor

Warranty

Gas Range

Ignition Spark
LP Convertible With KitLP

Oven Capacity 2.46 cu.ft
Cooktop Surface Porcelain
Burner Type Sealed
Number of Burners 4
Burner #1 BTU 9100.0
Burner #2 BTU 9100.0
Burner #3 BTU 9100.0
Burner #4 BTU 9100.0
Burner Controls Dial
Oven Controls Dial
Backguard Yes
Cleaning Type Manual
Oven Rack Qty 2
Oven Interior Height 14.0" (36 cm)
Oven Interior Width 16.0" (41 cm)
Oven Interior Depth 19.0" (48 cm)
Broiler Location Below Oven
Broiler Door White
Oven Door White

1 Year

Accessory
