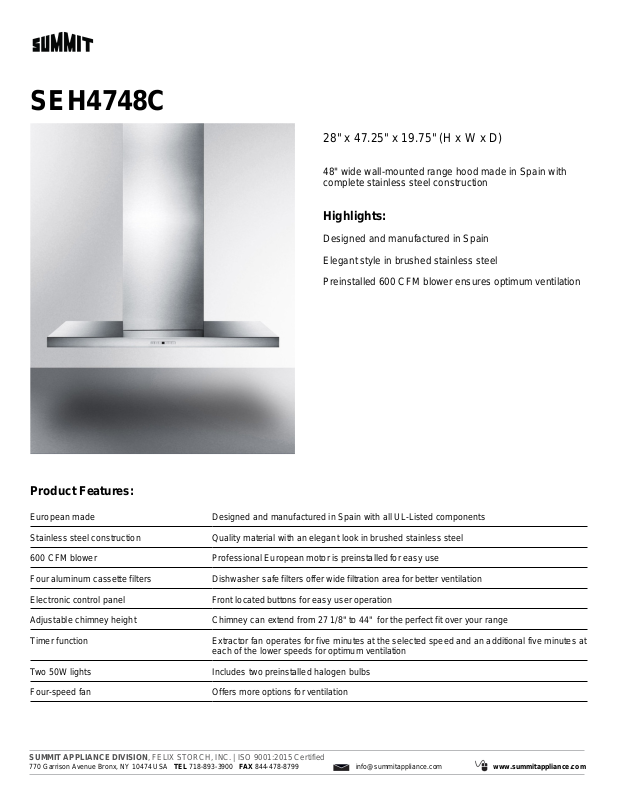

Summit SEH4748C Specification Sheet

SEH4748C

28" x 47.25" x 19.75" (H x W x D)

48" wide wall-mounted range hood made in Spain with
complete stainless steel construction

Highlights:

Designed and manufactured in Spain
Elegant style in brushed stainless steel
Preinstalled 600 CFM blower ensures optimum ventilation

Product Features:

European made Designed and manufactured in Spain with all UL-Listed components
Stainless steel construction Quality material with an elegant look in brushed stainless steel
600 CFM blower Professional European motor is preinstalled for easy use
Four aluminum cassette filters Dishwasher safe filters offer wide filtration area for better ventilation
Electronic control panel Front located buttons for easy user operation
Adjustable chimney height Chimney can extend from 27 1/8" to 44" for the perfect fit over your range
Timer function Extractor fan operates for five minutes at the selected speed and an additional five minutes at

each of the lower speeds for optimum ventilation
Two 50W lights Includes two preinstalled halogen bulbs
Four-speed fan Offers more options for ventilation

SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2015 Certified

770 Garrison Avenue Bronx, NY 10474 USA TEL [phone] FAX [phone] [e-mail] www.summitappliance.com

SEH4748C Specifications:

Overview

Height of Cabinet 28.0" (71 cm)
Width 47.25" (120 cm)
Depth 19.75" (50 cm)
Cabinet Stainless Steel
US Electrical Safety UL
Canadian Electrical

Safety
Amps 5.2
Voltage/Frequency 115 V AC/60 Hz
Weight 44.0 lbs. (20 kg)
Shipping Weight 70.0 lbs. (32 kg)
Parts & Labor

Warranty

Range Hood

Installation Wall-Mounted
Venting Convertible w/ Filter

Controls Push Button
Light Yes
Number of Lights 2
Light Type Halogen
Number of Fan

Speeds
Maximum Air

Movement
Sone Rating 12
Minimum Height 27.13" (69 cm)
Maximum Height 44.0" (112 cm)
Duct Shape 6" Round

1 Year

600.0 CFM

ULC

Set

4
