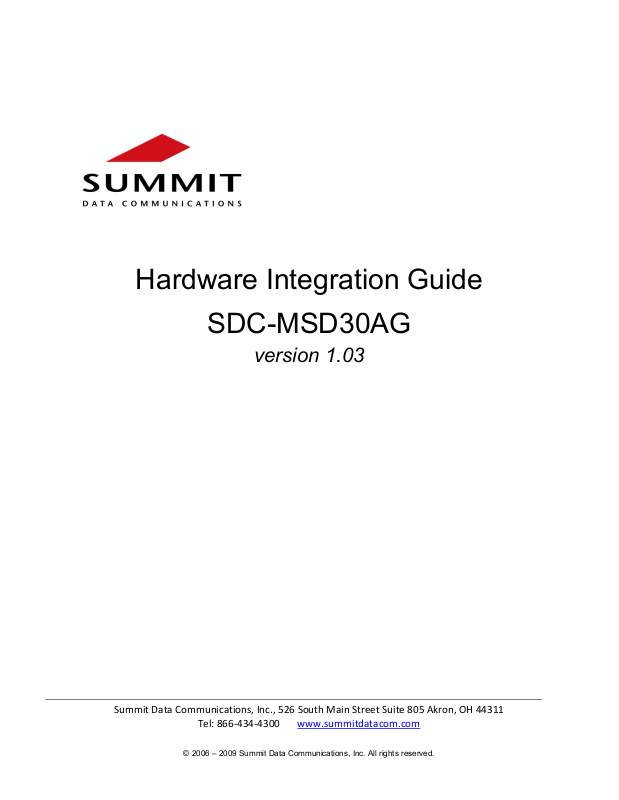

Summit SDC-MSD30AG User Manual

Hardware Integration Guide

SDC-MSD30AG

version 1.03

Summit Data Communications, Inc., 526 South Main Street Suite 805 Akron, OH 44311

Tel: 866-434-4300 www.summitdatacom.com

Hardware Integration Guide – SDC-MSD30AG

Contents

Scope ......................................................................................................................... .................................... 3

Specifications ................................................................................................................................................ 3

Pin Definitions and Interface Notes .............................................................................................................. 8

Pin Definitions ........................................................................................................................................... 8

Interface Notes ....................................................................................................................................... 10

Mechanical Specifications ..................................................................................................... ...................... 11

Connector Overview ............................................................................................................................... 11

Mounting ................................................................................................................................................. 11

Regulatory ................................................................................................................................................... 12

Certified Antennas .................................................................................................................................. 12

Documentation Requirements ............................................................................................................... 12

FCC ...................................................................................................................................................... 13

Industry Canada .................................................................................................................................. 14

European Union .................................................................................................................................. 16

2 SDC-MSD30AG_HIG1.04

Hardware Integration Guide – SDC-MSD30AG

Scope

This document describes key hardware aspects of the Summit MSD30AG 802.11a/b/g SDIO (Secure Digital Input/Output) Radio Module. This document is intended to assist device manufacturers and related parties with the integration of this radio into their host devices. Data in this document are drawn from a number of sources and includes information found in the Atheros AR6002 data sheet issued in April of

2008.

The SDC-MSDAG is currently in pre-production and as such, this document is preliminary in nature. The information in this document is subject to change. Please contact Summit or visit the Summit website at

www.summitdatacom.com

The device is labeled with all applicable regulatory information in a manner that’s compliant with all regulatory standards. Regulatory operational requirements are included with this document and are to be incorporated into the operating manual of any device into which the SDC-MSD30AG installed. The SDC- MSD30AG is designed for installation into mobile devices such as vehicle mount data terminals which typically operate at distances greater than 20 cm from the human body and portable devices such as handheld data terminals which typically operate at distances less than 20 cm from the human body. See “Documentation Requirements

to obtain the most recent version of this document.

” for more information.

Specifications

Feature Description

System Interface

Antenna Interface

Chip Set

Input Power Requirements

Current Consumption

(At maximum transmit power setting)

Operating Temperature

Operating Humidity

Storage Temperature

4-bit Secure Digital I/O Molex 54722-0607 60-pin connector (mates to Molex 55560-0607 60-pin connector)

2 Hirose U.FL connectors for dual-band antenna diversity on Wi-Fi

Atheros AR6002

3.3 VDC +/- 10%

802.11a

Transmit: 381 mA (1257 mW) Receive: 116 mA (383 mW) Standby: 3 mA (10 mW)

802.11b/g

Transmit: 324 mA (1069 mW) Receive: 93 mA (307 mW) Standby: 2 mA (7 mW)

-25° to 75°C (-13° to 167°F)

10 to 90% (non-condensing)

-30° to 85°C (-22° to 185°F)

Storage Humidity

Length

Width

10 to 90% (non-condensing)

32 mm (1.26 in.)

22 mm (0.87 in.)

3 SDC-MSD30AG_HIG1.04

Hardware Integration Guide – SDC-MSD30AG

Feature Description

Thickness

Weight

Mounting

Wi-Fi Wireless Media

Wi-Fi Media Access Protocol

Network Architecture Types

Network Standards

Wi-Fi Data Rates Supported

Wi-Fi Modulation

4.5 mm (0.18 in.)

Note: With the mating connector, the thickness is 5.1 mm above

the board it plugs into.

10 g (0.35 oz.)

60-pin connector 3 mounting holes (2.36 mm, 0.093 in.)

Direct Sequence-Spread Spectrum (DSSS) Orthogonal Frequency Divisional Multiplexing (OFDM)

Carrier sense multiple access with collision avoidance (CSMA/CA)

Infrastructure and ad hoc

IEEE 802.11a, 802.11b, 802.11d, 802.11e, 802.11g, 802.11h,

802.11i

802.11a (OFDM) 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11b (DSSS) 1, 2, 5.5, 11 Mbps

802.11g (OFDM) 6, 9, 12, 18, 24, 36, 48, 54 Mbps BPSK @ 1, 6, and 9 Mbps

QPSK @ 2, 12, and 18 Mbps CCK @ 5.5 and 11 Mbps

16-QAM @ 24 and 36 Mbps 64-QAM @ 48 and 54 Mbps

Regulatory Domain Support

2.4 GHz Frequency Bands

5 GHz Frequency Bands ETSI

FCC (Americas, Parts of Asia, and Middle East) ETSI (Europe, Middle East, Africa, and Parts of Asia) TELEC (Japan) KCC (Korea)

ETSI

2.4 GHz to 2.483 GHz

FCC

2.4 GHz to 2.473 GHz

TELEC

2.4 GHz to 2.495 GHz

KCC

2.4 GHz to 2.483 GHz

5.15 GHz to 5.35 GHz

5.47 GHz to 5.725 GHz

FCC

5.15 GHz to 5.35 GHz

5.47 GHz to 5.725 GHz

5.725 GHz to 5.82 GHz

TELEC

5.15 GHz to 5.35 GHz

KCC

5.15 GHz to 5.25 GHz

5.725 GHz to 5.82 GHz

4 SDC-MSD30AG_HIG1.04

Hardware Integration Guide – SDC-MSD30AG

Feature Description

2.4 GHz Operating Channels

5 GHz Operating Channels

Wi-Fi Transmit Power Settings

Note: Maximum transmit power

varies according to individual country regulations. All values nominal, +/-2 dBm

Typical Receiver Sensitivity

Note: All values nominal,

+/-3 dBm.

ETSI: 13 (3 non-overlapping) FCC: 11 (3 non-overlapping) TELEC 14 (4 non-overlapping) KCC: 13 (3 non-overlapping)

ETSI: 19 non-overlapping FCC: 23 non-overlapping TELEC: 8 non-overlapping KCC: 8 non-overlapping

802.11a 15 dBm (30 mW) 13 dBm (20 mW) 10 dBm (10 mW)

802.11b 18 dBm (63 mW) 17 dBm (50 mW) 15 dBm (30 mW) 13 dBm (20 mW) 10 dBm (10 mW) 7 dBm (5 mW) 0 dBm (1 mW)

802.11g 18 dBm (63 mW) 17 dBm (50 mW) 15 dBm (30 mW) 13 dBm (20 mW) 10 dBm (10 mW) 7 dBm (5 mW) 0 dBm (1 mW)

802.11a:

6 Mbps -85 dBm 12 Mbps -83 dBm 18 Mbps -81 dBm 24 Mbps -75 dBm 36 Mbps -73 dBm 48 Mbps -68 dBm 54 Mbps -67 dBm (PER <= 10%)

802.11b:

1 Mbps -95 dBm 2 Mbps -94 dBm

5.5 Mbps -93 dBm 11 Mbps -89 dBm (PER <= 10%)

802.11g:

6 Mbps -93 dBm 12 Mbps -88 dBm 18 Mbps -85 dBm 24 Mbps -83 dBm 36 Mbps -77 dBm 48 Mbps -74 dBm 54 Mbps -72 dBm (PER <= 10%)

5 SDC-MSD30AG_HIG1.04

Hardware Integration Guide – SDC-MSD30AG

Feature Description

Wi-Fi Delay Spread

Operating Systems Supported

Security Standards

600 ns @ 1 Mbps 500 ns @ 2 Mbps 400 ns @ 5.5 Mbps 400 ns @ 6 Mbps 400 ns @ 9 Mbps 200 ns @ 11 Mbps 350 ns @ 12 Mbps 350 ns @ 18 Mbps 250 ns @ 24 Mbps 250 ns @ 36 Mbps 150 ns @ 48 Mbps 150 ns @ 54 Mbps

Windows Mobile 6.5 Windows Mobile 6.1 Windows Mobile 6.0 Windows Mobile 5.0 Pocket PC 2003

Windows Embedded CE 6.0 R2 Windows Embedded CE 6.0 Windows Embedded CE 5.0 Windows Embedded CE 4.2

 Wireless Equivalent Privacy (WEP)  Wi-Fi Protected Access (WPA)  IEEE 802.11i (WPA2)

Encryption

 Wireless Equivalent Privacy (WEP, RC4 Algorithm)  Temporal Key Integrity Protocol (TKIP, RC4 Algorithm)  Advanced Encryption Standard (AES, Rijndael Algorithm)

Encryption Key Provisioning

 Static (40-bit and 128-bit lengths)  Pre-Shared (PSK)  Dynamic

802.1X Extensible Authentication Protocol Types

 EAP-FAST  EAP-TLS  EAP-TTLS  PEAP-GTC  PEAP-MSCHAPv2  PEAP-TLS  LEAP

6 SDC-MSD30AG_HIG1.04
