Summit FFBF191SS Brochure

FFBF191SS

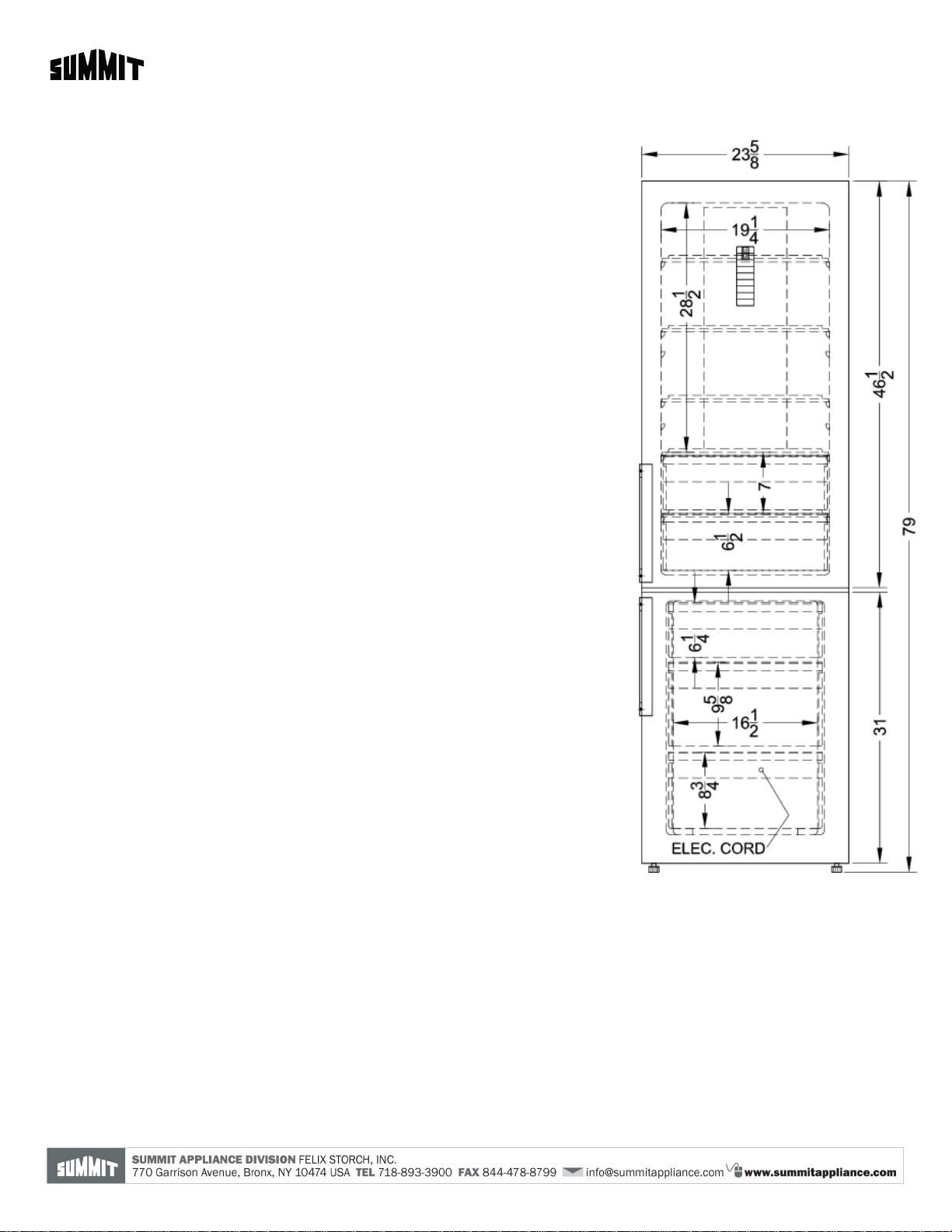

79" x 23.63" x 25.63" (H x W x D)

Counter depth ENERGY STAR certified bottom freezer
refrigerator in a slim fit, with frost-free operation, stainless
steel doors, and digital controls

Highlights:

ENERGY STAR certified for guaranteed savings
Full 13.3 cu.ft. capacity in a slim counter depth fit
Bottom freezer design allows easier access to the

refrigerator
Fully frost-free in both compartments for low maintenance

use

Product Features:

ENERGY STAR certified Rated by the DOE to perform with more efficiency than federal standards require, saving your

unit energy and you on higher utility costs
Bottom freezer Convenient design keeps all refrigerated storage at eye level for easier use
Full capacity in slim fit Unique size offers a full 13.3 cu.ft. capacity in less than 24" of width
Digital thermostats Separate digital controls let you adjust the refrigerator and freezer section, with a digital

display viewable in Celsius or Fahrenheit
Frost-free operation Eliminates the need to manually defrost the refrigerator or freezer section
Adjustable glass shelves Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves

for a simple clean-up
Door storage Store tall bottles and condiments right on the door for convenient access
Multiple crispers Two clear crispers offer the perfect storage conditions for meats, dairy items, and produce.

The lower crisper includes a dial for humidity control
LED lighting Automatically illuminates when you open the door

FFBF191SS Specifications:

Overview

Height 79.0"
Width 23.63"
Width with Door Open 24.63"
Depth 25.63"
Depth with Handle 27.63"
Depth with door at 90° 47.25"
Capacity 13.3 cu.ft.
Defrost Type Frost-Free
Door Stainless Steel
Cabinet Platinum
US Electrical Safety CSA
Canadian Electrical

Safety
Energy Usage/Year 413.0kWh/year
Amps 1.5
Voltage/Frequency 115 V AC/60 Hz
Weight 183.0 lbs.
Shipping Weight 205.0 lbs.
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years

Refrigerator-Freezer

Door Swing RHD
Reversible Factory

Crisper Qty 2
Crisper Finish Transparent
Crisper Cover Glass
Refrigerator - Shelf Type Glass
Refrigerator - Shelf Qty 3
Refrigerator - Full Door

Shelves
Adjustable Shelves Yes
Interior Light Yes
Thermostat Type Digital
Fan Type Interior
Refrigerant Type R134a
High Side PSI 250.0
Low Side PSI 88.0
Level Legs 2

CSA-C

Reversible

Interior Drawers Yes
Drawer Qty 3
Interior Height - Drawer 1 8.75"
Interior Width - Drawer 1 16.5"
Interior Depth - Drawer 1 12.0"
Interior Height - Drawer 2 9.63"
Interior Width - Drawer 2 16.5"
Interior Depth - Drawer 2 12.0"
Interior Height - Drawer 3 6.25"
Interior Width - Drawer 3 16.5"
Interior Depth - Drawer 3 12.0"
