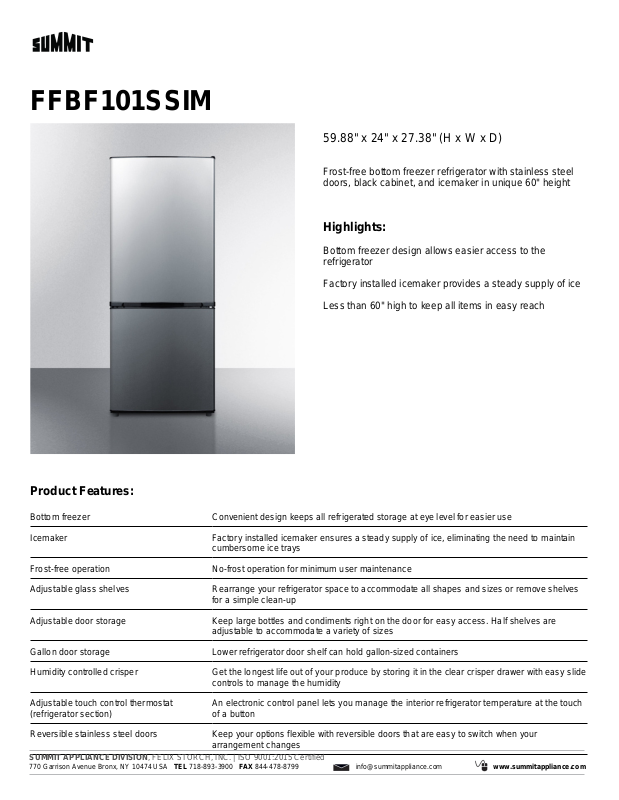

Summit FFBF101SSIM Specification Sheet

FFBF101SSIM

59.88" x 24" x 27.38" (H x W x D)

Frost-free bottom freezer refrigerator with stainless steel
doors, black cabinet, and icemaker in unique 60" height

Highlights:

Bottom freezer design allows easier access to the
refrigerator

Factory installed icemaker provides a steady supply of ice
Less than 60" high to keep all items in easy reach

Product Features:

Bottom freezer Convenient design keeps all refrigerated storage at eye level for easier use
Icemaker Factory installed icemaker ensures a steady supply of ice, eliminating the need to maintain

cumbersome ice trays
Frost-free operation No-frost operation for minimum user maintenance
Adjustable glass shelves Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves

for a simple clean-up
Adjustable door storage Keep large bottles and condiments right on the door for easy access. Half shelves are

adjustable to accommodate a variety of sizes
Gallon door storage Lower refrigerator door shelf can hold gallon-sized containers
Humidity controlled crisper Get the longest life out of your produce by storing it in the clear crisper drawer with easy slide

controls to manage the humidity
Adjustable touch control thermostat

(refrigerator section)
Reversible stainless steel doors Keep your options flexible with reversible doors that are easy to switch when your

SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2015 Certified

770 Garrison Avenue Bronx, NY 10474 USA TEL [phone] FAX [phone] [e-mail] www.summitappliance.com

An electronic control panel lets you manage the interior refrigerator temperature at the touch

of a button

arrangement changes

FFBF101SSIM Specifications:

Overview

Height of Cabinet 59.38" (151 cm)
Height to Hinge Cap 59.88" (152 cm)
Width 24.0" (61 cm)
Depth 27.38" (70 cm)
Depth with door at 90° 49.0" (124 cm)
Capacity 10.2 cu.ft. (289

Defrost Type Frost-Free
Door Stainless Steel
Cabinet Black
US Electrical Safety UL
Canadian Electrical Safety ULC
Energy Usage/Year 454.0kWh/year
Amps 1.1
Voltage/Frequency 115 V AC/60 Hz
Weight 128.0 lbs. (58

Shipping Weight 150.0 lbs. (68

Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years

Refrigerator-Freezer

Door Swing RHD
Reversible Yes
Adjustable Shelves Yes
Interior Drawers Yes
Drawer Qty 1
Crisper Qty 1
Crisper Finish Transparent
Crisper Cover Glass
Interior Light Yes
Refrigerator - Interior

Height
Refrigerator - Interior Width 19.0" (48 cm)
Refrigerator - Interior Depth 22.25" (57 cm)
Refrigerator - Shelf Type Glass
Refrigerator - Shelf Qty 3
Refrigerator - Full Door

Shelves

30.0" (76 cm)

kg)

kg)

Refrigerator - Half Door
Shelves

Freezer - Interior Height 20.0" (51 cm)
Freezer - Interior Width 17.75" (45 cm)
Freezer - Interior Depth 17.0" (43 cm)
Freezer - Full Door Shelves 1
Gallon Door Storage Yes
Thermostat Type Digital

L)

Fan Type Interior
Refrigerant Type R600a
Refrigerant Amount 1.48 oz.
High Side PSI 201.0
Low Side PSI 103.0
Level Legs 2
Compressor Step Height 9.0" (23 cm)
Compressor Step Width 17.75" (45 cm)
Compressor Step Depth 5.0" (13 cm)

1

5
