Summit FFAR22LW User Manual
COMPACT ALL-REFRIGERATOR
Model No.
FFAR22LW
Instruction Manual
BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES
AND OPERATING INSTRUCTIONS. KEEP THIS MANUAL IN A SECURE LOCATION.
Write Serial Number (on back of unit) here:
_______________________________
Felix Storch, Inc.
770 Garrison Avenue
Bronx, New York 10474
www.summitappliance.com
TABLE OF CONTENTS
Technical Information ........................................................................................1
Important Safeguards ...................................................................................2 - 3

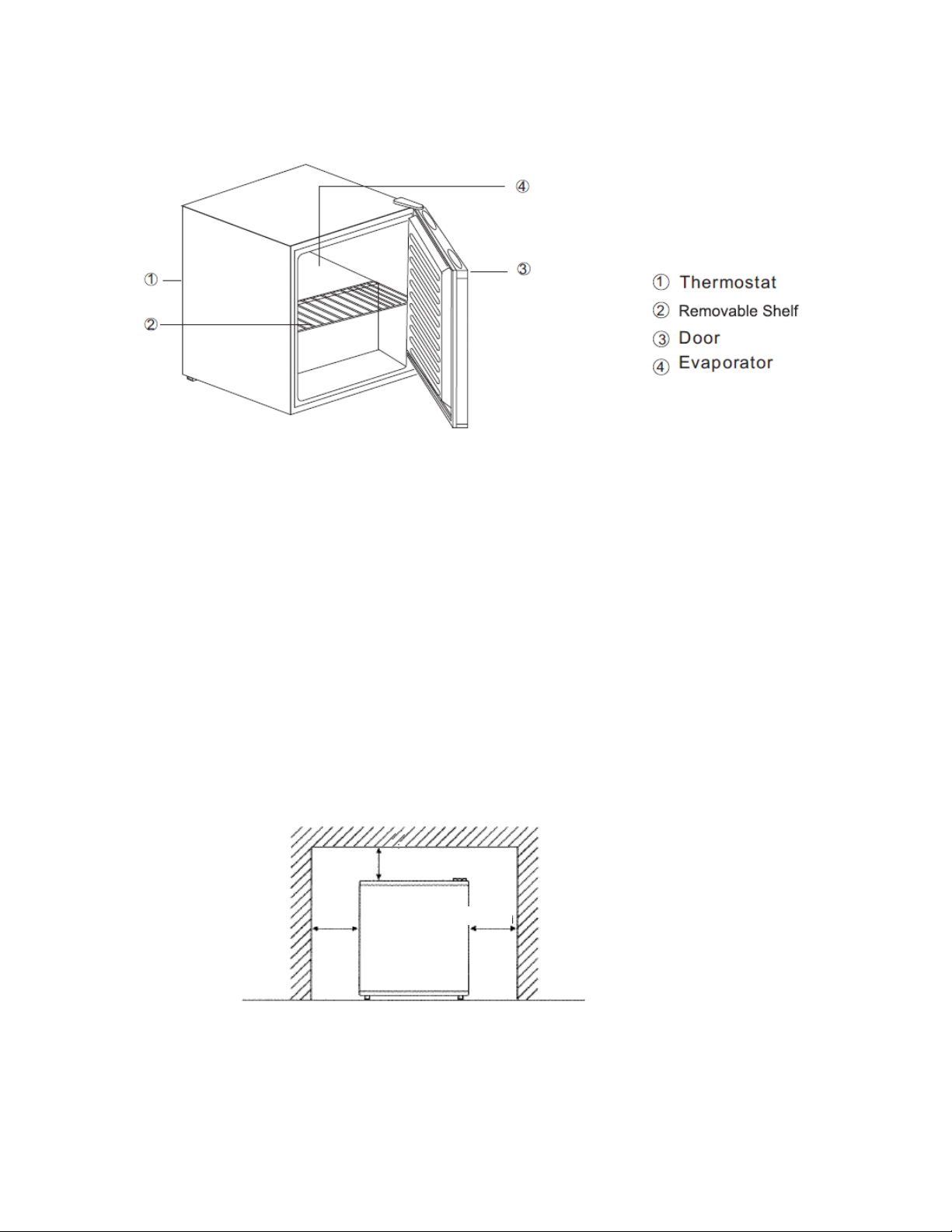

Location of Parts ................................................................................................4
Installation .....................................................................................................4 - 5
Placement ........................................................................................... 4 - 5
Electrical Connection ................................................................................5
Before the First Use ..................................................................................5
Operation ...................................................................................................... 6 - 7

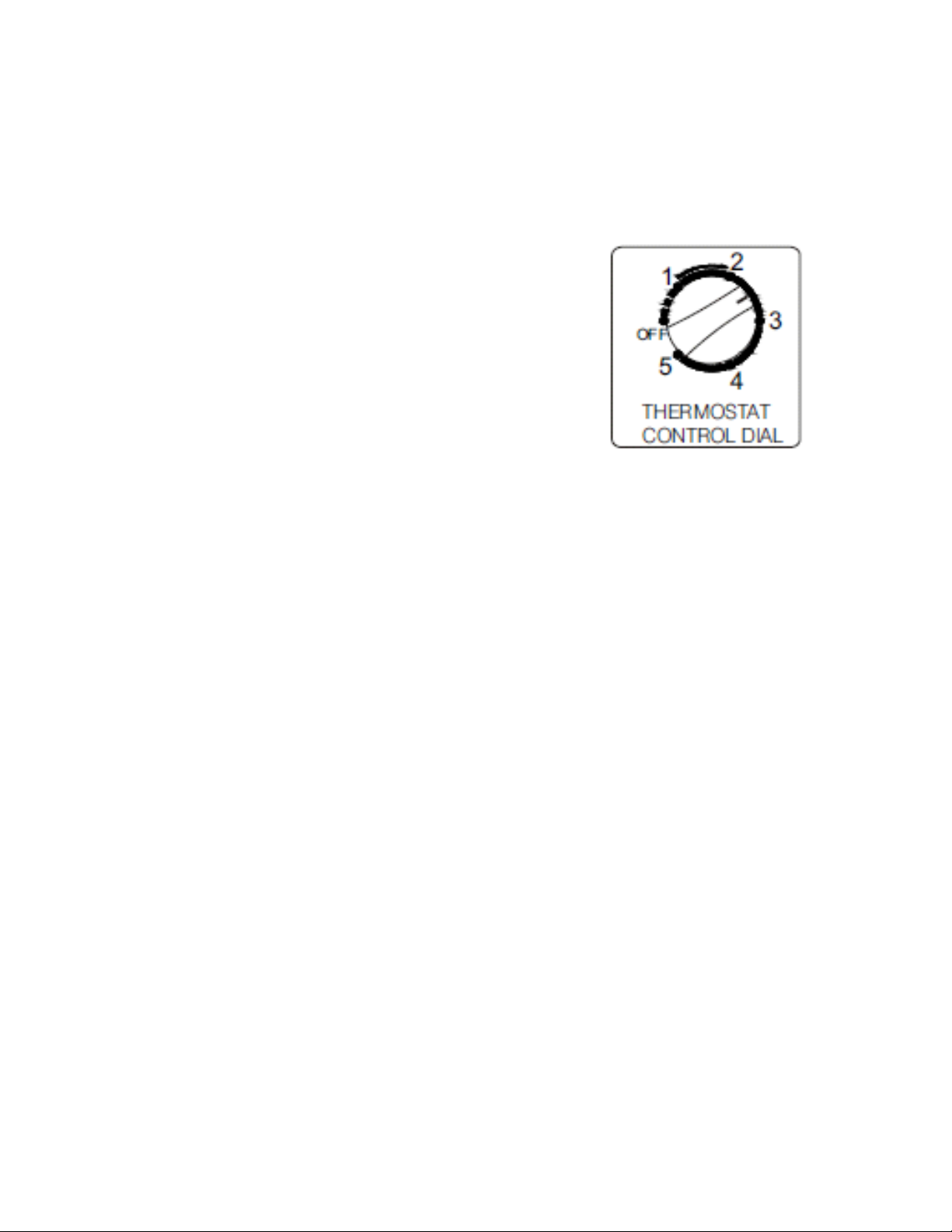

Temperature Adjustment ........................................................................... 6
Defrosting .................................................................................................. 6
Food Storage ............................................................................................6
Normal Phenomena .............................................................................6 - 7
Cleaning and Maintenance ...........................................................................7 - 9
Cleaning Your Refrigerator ........................................................................7
Vacation Time ...........................................................................................7
Moving Your Refrigerator ..........................................................................7
Energy-Saving Tips ................................................................................... 8
Locking the Refrigerator ............................................................................ 8

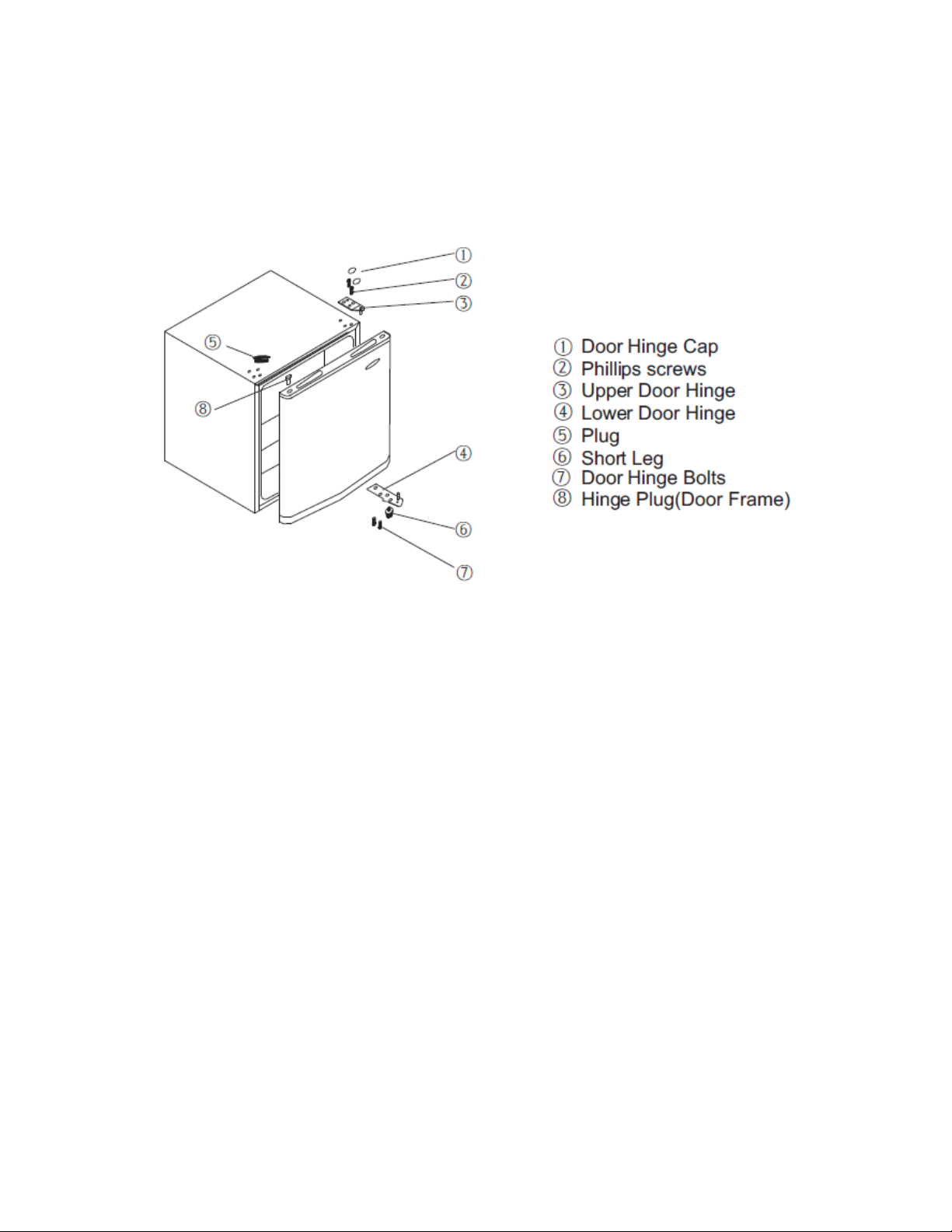

Reversing the Door Swing of Your Refrigerator ........................................9
Troubleshooting .............................................................................................. 10
Limited Warranty ............................................................................................. 11
TECHNICAL INFORMATION
Capacity: 1.66 cubic feet
Electrical Rating: 115V AC / 60Hz / 1.2A
Input Power: 85 watts
Energy Consumption: 316 kWh/year
Refrigerant: R134a, 1.94 oz
Weight: 35.3 lbs
Unit Dimensions: 17.3"W x 19.3"D x 20.7"H
Model Number: FFAR22LW
1
IMPORTANT SAFEGUARDS
Before the refrigerator is used, it must be properly positioned and
installed as described in this manual, so read the manual carefully.
To reduce the risk of fire, electrical shock or injury when using the
refrigerator, follow basic precautions, including the following:
Plug into a grounded 3-prong outlet, do not remove grounding prong, do not use an
adapter, and do not use an extension cord.
It is recommended that a separate circuit, serving only your refrigerator be provided. Use
receptacles that cannot be turned off by a switch or pull chain.
If the power cord is damaged, it must be replaced by the manufacturer, its service agent
or a similarly-qualified person in order to avoid an electrical hazard.
The power supply to the refrigerator must match the indicated power supply on the
nameplate. Otherwise the refrigerator will be damaged and the manufacturer's warranty
will be invalidated.
Do not place or use anything flammable, such as gasoline, gas cylinders, solvent-based
cleaning fluids, near the refrigerator due to the risk of fire. Substances with a high
percentage of alcohol must be stored in tightly sealed bottles or other containers and
should always be placed in an upright position.
Do not locate the refrigerator in a damp or wet environment or in a position where it is
likely to get splashed. Such an environment would weaken the electrical insulation or
expose live wires, possibly causing an electric shock or fire.
The refrigerator must be disconnected from its power source if it stops working or when it
is being cleaned or repaired.
To remove the plug from the socket, grasp the plug firmly and pull it out. Do not pull on
the cable. Do not connect the machine to electrical outlets while your hands are wet or
damp.
If a gas leak is discovered in the same room as the refrigerator, turn off the gas supply.
Do not open the refrigerator door and do not remove the plug from the main electrical
supply. A small spark resulting from such actions could cause a gas explosion. Open all
of the doors and windows in the room to disperse the gas.
Risk of child entrapment!
Child entrapment and suffocation are not problems of the past. Junked or abandoned
refrigerators are still dangerous, even if they will "just sit in the garage a few days."
Before you throw away your old refrigerator: Take off the doors. Leave the
shelves in place so that children may not easily climb inside.
Never allow children to operate, play with, or crawl inside the refrigerator.
2
This unit is not designed to operate in enclosed spaces. When placing your unit,
make sure you allow at least 4” of clearance on all sides.
Use two or more people to move and install refrigerator. Failure to do so can result in
back or other injury.
To ensure proper ventilation for your refrigerator, the front of the unit must be completely
unobstructed. Choose a well-ventilated area with temperatures above 60°F (16°C) and
below 90°F (32°C). This unit must be installed in an area protected from the elements,
such as wind, rain, water spray or drips, and away from direct sunlight.
The refrigerator should no t be located next to ovens, grills or other sources of high heat.
The refrigerator must be installed with its electrical connection in accordance with state
and local codes. A standard electrical supply (115 V AC only, 60 Hz), properly grounded
in accordance with the National Electrical Code and local codes and ordinances is
required.
Do not kink, pinch or coil the power supply cord of the refrigerator. Keep cord away from
the compressor at the back of the appliance; heat from the compressor could damage
the insulation of the cord and cause electrical leakage.
The fuse (or circuit breaker) size should be 15 amperes.
It is important for the refrigerator to be leveled in order to work properly. You may need to
make several adjustments to level it.
In order to ensure normal operation of the refrigerator, after moving it a considerable
distance, you must wait for ½ to 1 hour before turning the unit on.
After an electrical failure, wait at least 5 minutes before turning on the refrigerator
again or the compressor may be damaged.
This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
IMPORTANT: Do not use mechanical devices or other means to accelerate the
defrosting process, other than those recommended by the manufacturer.
IMPORTANT: Do not damage the refrigerant circuit.
IMPORTANT: Do not use electrical appliances inside the food storage compartment of
the appliance, unless they are of the type recommended by the manufacturer.
Do not use solvent-based cleaning agents or abrasives on the interior. These cleaners
may damage or discolor the interior.
Do not use this apparatus for other than its intended purpose.
SAVE THESE INSTRUCTIONS
3
