Summit FFAR21LMAN USE & CARE

Felix Storch, Inc.

COMPACT REFRIGERATOR

Model

FFAR21LMAN

Instruction Manual

BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES

AND OPERATING INSTRUCTIONS. KEEP THIS MANUAL IN A SECURE LOCATION.

Write Serial Number (on back of unit) here:

_______________________________

770 Garrison Avenu e
Bronx, New York 10474
www.summitappliance.com

1

TABLE OF CONTENTS

Technical Information ........................................................................................ 1

Important Safeguards ................................................................................... 2 - 3

Location of Parts ................................................................................................ 4

Installation ..................................................................................................... 4 - 5

Placement ................................................................................................ 4

Electrical Connection ................................................................................ 5

Before the First Use .................................................................................. 5

Operation ........................................................................................................... 6

Temperature Adjustment

Defrosting
Food Storage
Normal Phenomena

Cleaning and Maintenance ........................................................................... 7 - 8

Cleaning Your Refrigerator ........................................................................ 7

Vacation Time ........................................................................................... 7

Moving Your Refrigerator .......................................................................... 7

Energy-Saving Tips .............................................................................. 7 - 8

Reversing the Door Swing of Your Refrigerator ........................................ 8

Locking the Refrigerator ............................................................................ 8

Wiring Diagram .................................................................................................. 9

Troubleshooting .............................................................................................. 10

Limited Warranty ............................................................................................. 11

Technical Information

Capacity: 1.77 cubic feet
Electrical Rating: 115V AC / 60 Hz
Input Power: 87 watts
Energy Consumption: 248 kWh/year
Refrigerant: R134a, 1.17 oz
Weight: 37.49 lbs
Unit Dimensions: 18.63"W x 17.25"D x 19.38"H

Model Number: FFAR21LMAN

2

IMPORTANT SAFEGUARDS

Before the refrigerator is use d, it m ust be properly positione d and
installed as described in this ma nual, so read the manual carefully.
To reduce the risk of fire, electrical shock or injury when us ing t he
refrigerator, follow basic precautions, including the f ollowing:

Plug into a grounded 3-prong outlet, do not remove groun din g pr ong, do not use an

•

adapter, and do not use an ext ension cord.

• It is recommended that a separat e circuit, serving only y our r efrigerator be provided. Use

receptacles that cannot be turned off by a switch or pull chain.

• If the power cord is damaged, it must be replaced by the manufacturer, its service agent

or a similarly-qualified person in order to avoid an electrical hazard.

• The power supply to the refrigerator must match the indicated power supply on the

nameplate. Otherwise the refrigerator will be damaged and the manufacturer's warranty
will be invalida ted .

• Do not place or use anything flammable, such as gasoline, gas cylinders, solvent-based

cleaning fluids, near the refrigerator due to the risk of fire. Substances with a high
percentage of alcohol must be stored in tightly sealed bottles or other containers and
should always be placed i n an upright position.

• Do not locate the refrigerator in a damp or wet environment or in a position where it is

likely to get splashed. Such an environment would weaken the electrical insulation or
expose live wires, possibly causing an electric shock or fire.

• The refrigerator must be disconnected from its power source if it stops working or when it

is being cleaned or repaired.

• To remove the plug from the socket, grasp the plug firmly and pull it out. Do not pull on

the cable. Do not connect the machine to electrical outlets while your hands are wet or
damp.

• If a gas leak is discovered in the same room as the refrigerator, turn off the gas supply.

Do not open the refrigerator door and do not remove the plug from the main electrical
supply. A small spark resulting from such actions could cause a gas explosion. Open all
of the doors and windows in the r oom to disperse the gas.

• Risk of child entrapment

Child entrapment and suff oca t io n ar e not problems of the past. Junked or abandoned
refrigerators are still dangerous, even if they will "just sit in the garage a few days."

√ Before you throw away your ol d r efrigerator: Take off t he doors. Leave the

shelves in place so that children may not easily climb inside.

√ Never allow children to oper at e, play with, or crawl inside the refr igerator.

!

3

• Use two or more people to move and install refrigerator. Failure to do so can result i n
back or other injury.

• To ensure proper ventilation for your refrigerator, the front of the unit must be completely
unobstructed. Choos e a well-ventilated area with t emper atures above 60°F (16°C) and
below 90°F (32°C). This unit must be i nst alled in an area protected from the elements,
such as wind, rain, water spr ay or drips, and away from direct sunlight.

• The refrigerator should not be located next t o ovens, grills or other sources of high heat.

• The refrigerator must be installed with its electrical connection in accordance with state

and local codes. A standa r d electr ical supply (115 V AC only, 60 Hz ) , pr operly grounded
in accordance with the Nat ional Electrical Code and local co des and ordinances is
required.

• Do not kink or pinch the power supply cor d of the refrigerator.

• The fuse (or circuit breaker) size should be 15 amperes.

• It is important for the refrigerator to be leveled in order to work properly. You may need to

make several adjustments to level it.

• In order to ensure normal operation of the refrigerator, after moving it a considerable

distance, you must wait for ½ to 1 hour before turning the unit on.

• After an electrical failure, wait at least 5 minutes before turning on the refrigerator

again or the compressor may be damaged.

• This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and know l edge, unless
they have been given super vision or instruction concer ni ng use of the appliance by a
person responsible for the ir saf et y.

• IMPORTANT: Do not use mechanic al devices or other means to accel er at e t he
defrosting process, other t han t hose recommended by t he manu fa cturer.

• IMPORTANT: Do not damage the refrigerant circuit.

• IMPORTANT: Do not use electrical appliances inside the food storage compartment of

the appliance, unless t hey are of the type recommen ded by the manufacturer.

• Do not use solvent-based cleaning agents or abrasives on the interior. These c lea ner s
may damage or discolor the interior.

• Do not use this apparatus for other than its intende d pur pose.

SAVE THESE INSTRUCTIONS

4

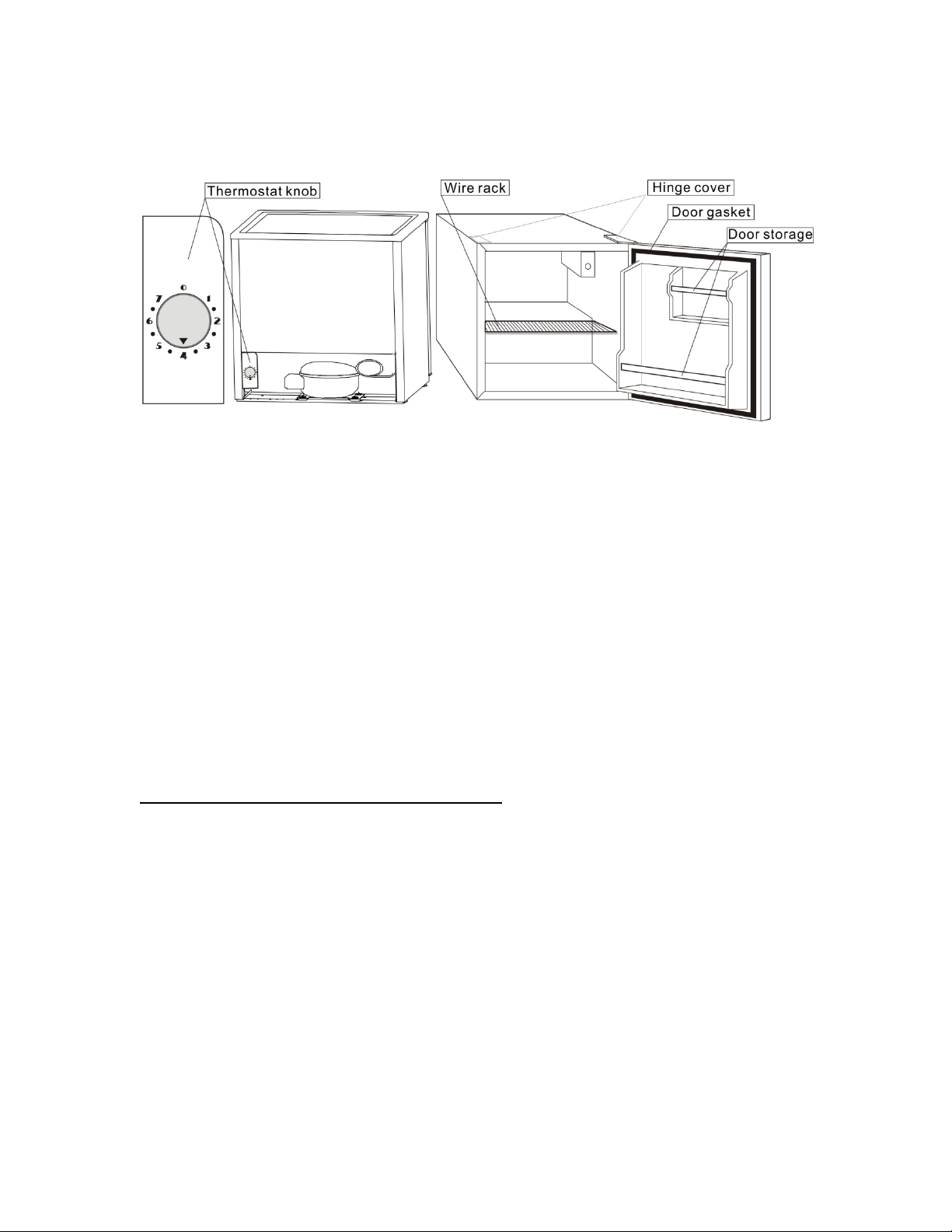

LOCATION OF P ARTS

INSTALLATION

PLACEMENT

The refriger ator should not be placed in direct sunlight or close to heat sources such

•

as oven, grill, radiator, etc. Also avoid locations where the unit will be exposed to
moisture or can be easily splashed.

• Place the unit on a firm flat surfac e. An uneven floor will cause vibration and noise.

• Good ventilation around the refrigerator allows heat to escape smoothly, improving

cooling efficiency and saving energy. To mainta in h ig h o perating ef f ici enc y, do not
place anythi ng o n to p of th e refriger at or .

• This refrigerator is meant to be installed free-standing, and not built-in or enclosed.

Be sure to leave space around the appliance to allow for proper air circulation for
cooling the compressor. This improves efficiency and saves energy.

• After plugging the appliance into a wall outlet, allow the unit to cool down for 2-3

hours before placing food into the refrigerator.

When installing the unit on a table or countertop

• Surface (countertop) must be f lat, level, and strong enough to support the unit once it

is fully loaded.

• Surface must be wide enough to accommodate the unit without any overhang.

• Surface must be deep enough to accommodate the unit when the door is opened to

90º.

, keep the following in mind:

5



ELECTRICAL CONNECTION

Improper use of the grounded plug can result in the risk of electrical shock. If the power
cord is damaged, have it replaced by an authorized service center.

Warning

• Plug the refrigerator into an exclusive, properly installed, grounded wall outlet. Do not

under any circumstances cut or remove the third (ground) prong from the power
cord. Any questions concerning power and/or grounding should be directed toward a
certified electrician or an authorized service center.

• This refrigerator should be properly grounded for your safety. The power cord of this

refrigerator is equipped with a three-prong plug that mates with standard three-prong
wall outlets to minimize the possibility of electrical shock.

• This refrigerator requires a standard 115/120-volt, 60Hz electrical outlet with three-

prong ground.

• To prevent accidental injury, the cord should be secured behind the refrigerator and

not left exposed or dangling.

• Never unplug the refrigerator by pulling on the power cord. Always grip the plug

firmly and pull straight out from the receptacle.

• The use of an extension cord is strongly discouraged.

BEFORE THE FIRST USE

CAUTION: After unpacking you MUST allow this applian ce t o st and upright for at least 2

hours to allow the lubricant and r ef rigerant to drain back into the compressor and stabilize.
Failure to do so may adversely aff ect performance and the lifetime of the unit.

• All the accessories have been installed. Remove all packing materials and tape.

• Clean the interior surface with lukewarm water using a soft cloth. Any plastic odor

that you notice when you first open the door will dissipate once the appliance is
operating.

• Put food in t o ref r igerator af t er t he c a bi n et te mp e ra t ur e has had time to reach its

lowest point. For initial operation, it will be about 3 hours.

6

OPERATION

TEMPERATURE ADJUSTM ENT

The cabinet temperature is controlled by a thermostat locat e d at t he ba ck of th e

•

unit, to the left of th e compressor. Rotate the dial to adjust the cabinet temperature.

• The optimum position of the thermostat depends on the temperature you prefer.

Cabinet temperature is affected by the ambient temperature, frequency of door
opening, the number of stored items and the placement of the refrigerator. You can
adjust the thermostat according to current conditions.

• Generally, the thermostat knob is set at the midpoint of the dial. When room

temperature is lower than usual, place the dial at a lower setting. Conversely, if the
room temperature is higher than normal, adjust the thermostat to a higher setting.

DEFROSTING

This appliance’s static cooling system req uires manual defrosting. When the frost and
ice layer in the refrigerator reaches a thickness of 1/8” to 1/4”, it is necessary to defrost
the unit.

1. First turn the thermostat knob to OFF and disconnect the power supply. Remove the

contents of the refrigerator and temporarily store them in another refrigerator or
cooler.

2. Place a tray or other suitable container on the compartment floor to collect the defrost

water. Leave the door open to accelerate defrosting.

3. When the frost and ice have melted, dump the defrost water and dry the interior of the

refrigerator thoroughly with paper towels or a soft, clean cloth.

4. Plug in the refrigerator and reset the thermostat to its normal setting.

5. Close the door and let the unit cool down before returning contents to the refrigerator.

If you notice excessive ice build-up on the rear wall, try setting the temperature slightly
higher (i.e., a lower setting of the thermostat). Also, be sure that the door gasket is
sealing well.

FOOD STORAGE

Hot food should not be stored until it has completely cooled.

•

• In order to allow air to circulate, when placing food in the refrigerator, allow proper

spacing between food items. To prevent drying out and to keep odors from mixing,
pack stored food carefully.

NORMAL PHENOMENA

•

It is normal that both side panels and the top of the refrigerator be warm because of
the built-in condenser.

• There may be condensation on the surface of the appliance when it is placed in an

area of high humidity or when the weather is hot. It resembles the moisture that
condenses on a glass of cold liquid during summer. Dry it with a clean, soft cloth.

• Occasionally the sound of a gurgling liquid can be heard. This is the refrigerant

flowing through the condensing tubes. The sound can also be heard when the
refrigerator stops working.

7

CLEANING AND MAINTENANCE

CLEANING YOUR REFRIGERATOR

Turn the thermostat off, unplug the refrigerator, and remove the food, shelf and any

•

trays.

• Wash the inside surfaces with a solution of a warm water and baking soda. The

solution should consist of about 2 tablespoons of baking soda to a quart of water. If
you use a spray bottle, do not spray in the area of the temperature control, vents or
any electrical connections.

• Clean the door gasket with a soft cloth dampened in warm water or mild detergent

solution.

• Wash the shelf and trays with a mild detergent solution.

• The outside of the refrigerator should be cleaned with mild detergent and warm water.

Rinse well and wipe dry with a clean, soft cloth.

• Wring excess water out of the sponge or cloth when cleaning the area of the controls,

or any electrical parts.

• Dust on the compressor and condensing coils (at the back of the appliance) will affect

the diffusion of heat. Clean them periodically with a soft brush or dusting utensil.

VACATION TIME

Short vacations: Leave the refrigerator operating during vacations of less than three

•

weeks.

• Long vacations: If the appliance will not be used for several months, remove all food

and unplug the power cord. Clean and dry the interior thoroughly. To prevent odor
and mold growth, leave the door open slightly, blocking it open if necessary

MOVING YOUR REFRIGERATOR

.

1. Remove all the food.

2. Securely tape down all loose items inside your refrigerator.

3. Tape the door shut.

4. Be sure the refrigerator stays secure in the upright position during transportation.

Also protect the outside of the refrigerator with a blanket or similar item.

ENERGY-SAVING TIPS

•

The refrigerator should be located in the coolest area of the room, away from heat­producing appliances and out of direct sunlight.

• Let hot foods cool to room temperature before placing in the refrigerator. Overloading

the refrigerator forces the compressor to run longer.

• Be sure to wrap foods properly, and wipe containers dry before placing them in the

refrigerator. This cuts down on frost build-up inside the refrigerator.

• To allow proper air circulation, keep a space between stored foodstuffs. To inhibit

drying and to cut down on odors, be sure food is packed well.

8

• Refrigerator shelves should not be lined with aluminum foil, wax paper, or paper

toweling. Liners interfere with cold air circulation, making the refrigerator less
efficient.

• Organize and label food to reduce door openings and extended searches. Remove

as many items as needed at one time, and close the door as soon as possible.

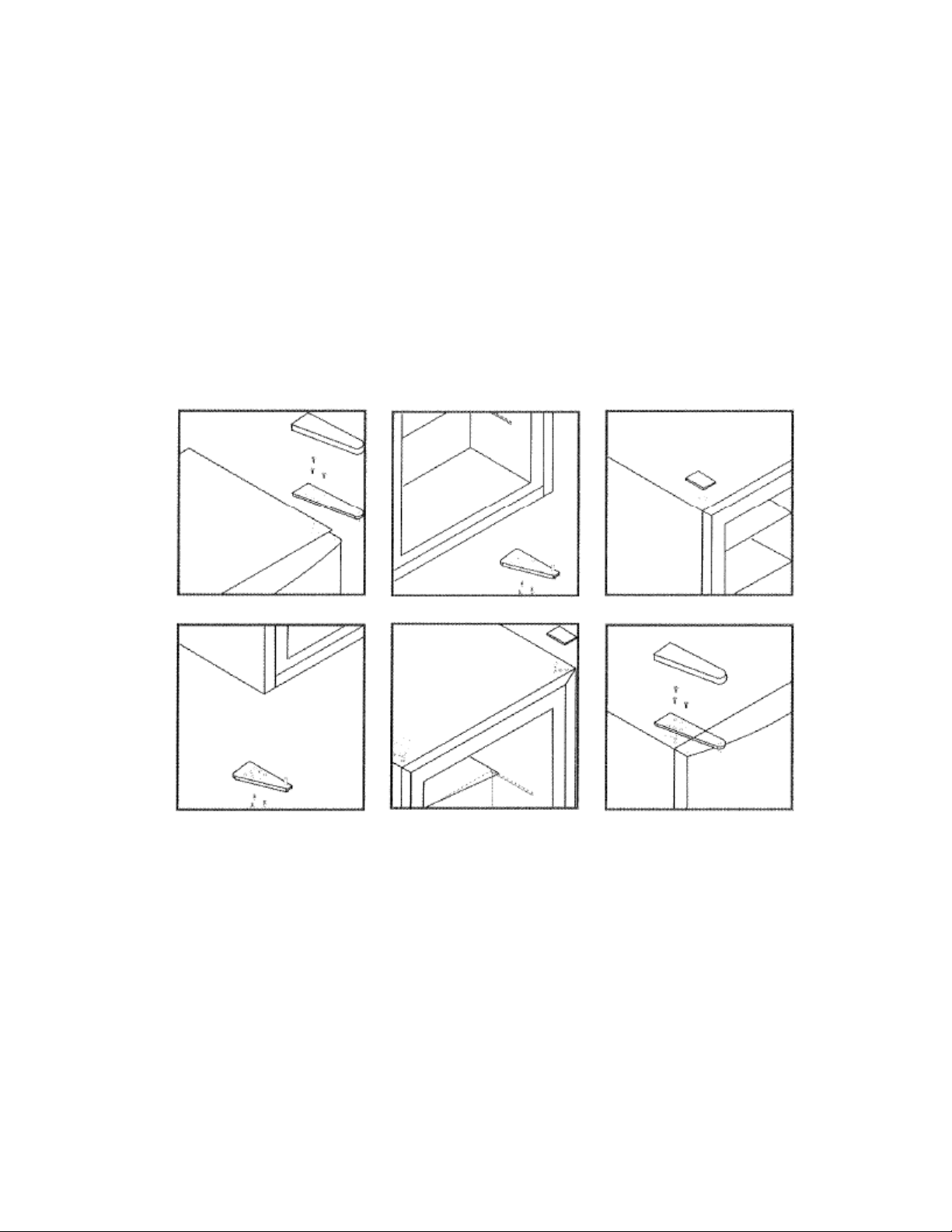

REVERSING THE DOOR SWING OF YOUR REFRIGERATOR

This appliance has the capability of the door opening from either the left or the right side.
The unit is delivered to you with the door opening from the left side. Should you desire
to reverse the opening direction, you can refer to the diagrams below. If you have a
problem, call SUMMIT Customer Service at 1-800-932-4267.

LOCKING THE REFRIGERATOR

Your refrigerator comes with two keys and a lock at the bottom center of the door. Turn
the key a quarter-turn to the left to lock the door, and a quarter-turn to the right to unlock
it. Keep keys in a secure place.

9

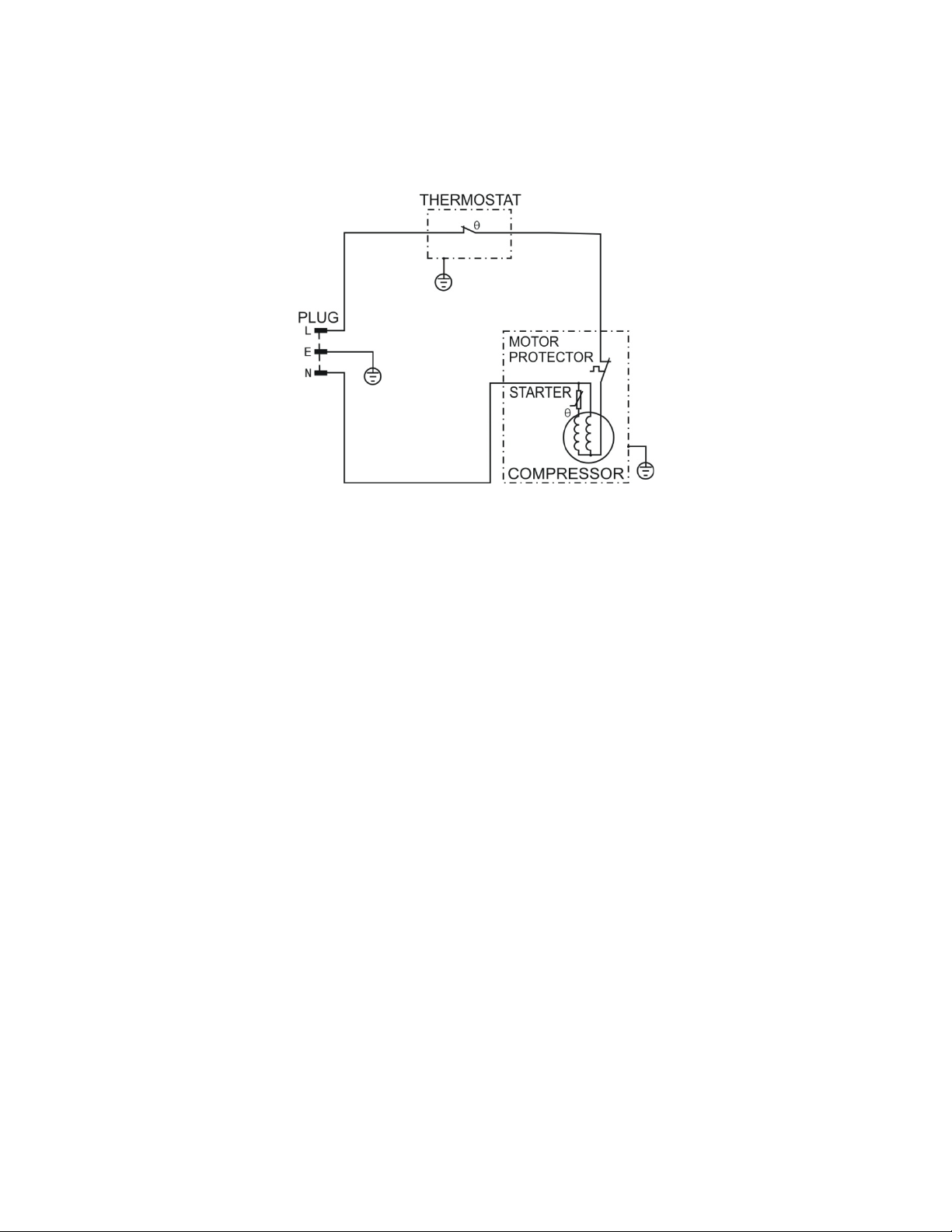

WIRING DIAGRAM

WARNING: DO NOT USE AN EXTENSION CORD!

10

TROUBLESHOOTING

Problem

Possible Cause

The refrigerator does not have the correct clearances.

The refrigerator is not level.

You can solve many common refrigerator problems easily, saving you the cost of a
possible service call. Try the suggestions below to see if you can solve the problem
before calling a service technician.

Refrigerator does not
operate.

Not plugged in.
The circuit breaker has tripped or fuse has blown.
The thermostat is turned off.

Turns on and off frequently. The room temperature is warmer than normal.

A large amount of food has been added to the refrigerator.
The door is opened too often.
The door is not closed completely.
The temperature control is not set correctly.
The door gasket does not seal properly.

Vibrations Check to be sure that the refrigerator is level.
The refriger ator seems to

make too much noise.

The rattling noise may come from the flow of the

refrigerant, which is normal.

As each cycle ends, you may hear gurgling sounds

caused by the flow of refrigerant in your refrigerator.

Contraction and expansion of the inside walls may cause

popping and crackling noises.

The door will not close
properly.

The refrigerator is not level.
The door was reversed and not properly re-installed.
The gasket is dirty.
The shelf is out of position.

If your refrigerator shows other symptoms than those described above, or if you have
checked all items listed as the cause and the problem still exists, then call SUMMIT®
Customer Service at

1-800-932-4267

11

LIMITED WARRANTY

FELIX STORCH, INC.

WARNING! This product may contain chemicals known to the state of

concentrations higher than threshold limits: NONE.

ONE-YEAR LIMITED WARRAN TY

Within the 48 contiguous United States, for one year from the date of purchase, when this appliance is
operated and maintained according to instructions attached to or furnished with the product, warrantor will
pay for factory-specified parts and repair labor to correct defects in materials or workmanship. Service must
be provided by a designated service company. Outside the 48 states, all parts are warranted for one year
from manufacturing defects. Plastic parts, shelves and cabinets are warranted to be manufactured to
commercially acceptable standards, and are not covered from damage during handling or breakage.

5-YEAR COMPRESSOR WARRANTY

1. The compressor is covered for 5 years.

2. Replacement does not include labor.

ITEMS WARRANTOR WILL NOT PAY FOR:

1. Service calls to correct the installation of your appliance, to instruct you how to use your appliance, to
replace or repair fuses or to correct wiring or plumbing.

2. Service calls to repair or replace appliance light bulbs or broken shelves. Consumable parts (su ch as
filters) are excluded from warranty coverage.

3. Damage resulting from accident, alteration, misuse, abuse, fire, flood, acts of God, improper
installation, installation not in accordance with electrical or plumbing codes, or use of products not
approved by warrantor.

4. Replacement parts or repair labor costs for units operated outside the United States.

5. Repairs to parts or systems resulting from unauthorized modifications made to the applianc e.

6. Expenses for travel and transportation for product service in remote locations.

7. The removal and reinstallation of your appliance if it is installed in an inaccessible location or is not
installed in accordance with published installation instructions.

DISCLAIMER OF IMPLIED WARRANTIES – LIMITATION OF REMEDIES

CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE
PRODUCT REPAIR AS PROVIDED HEREIN. IMPLIED WARRANTIES, INCLUDING WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR.
WARRANTOR SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOME
STATES DO NOT ALLOW THE EXCLUSION O R LIMITATION OF INCIDENTAL OR CONSEQUENTIAL
DAMAGES, OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES OF MERCHANTABILITY
OR FITNESS, SO THESE EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU. THIS WARRANTY
GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY
FROM STATE TO STATE.

California to cause cancer or birth defects or other reproductive harm. For
more information, visit: www.summitappliance.com/prop65

Chemicals known by the manufact urer to be present in this product in

770 Garrison Avenue
Bronx, NY 10474
Phone: [phone]
Fax: [phone]
www.summitappliance.com

For parts and accessory ordering,

troubleshooting and helpful hints, visit:

www.summitappliance.com/support
