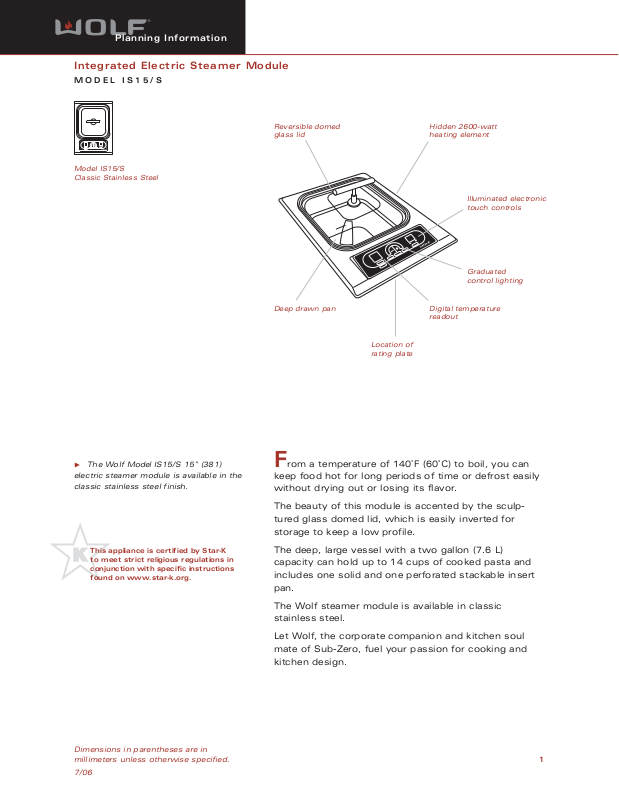

Planning Information
Integrated Electric Steamer Module
MODEL IS15/S
Dimensions in parentheses are in millimeters unless otherwise specified.
7/06
1
Model IS15/S Classic Stainless Steel
From a temperature of 140˚F (60˚C) to boil, you can
keep food hot for long periods of time or defrost easily without drying out or losing its flavor.
The beauty of this module is accented by the sculp­tured glass domed lid, which is easily inverted for storage to keep a low profile.
The deep, large vessel with a two gallon (7.6 L) capacity can hold up to 14 cups of cooked pasta and includes one solid and one perforated stackable insert pan.
The Wolf steamer module is available in classic stainless steel.
Let Wolf, the corporate companion and kitchen soul mate of Sub-Zero, fuel your passion for cooking and kitchen design.
The Wolf Model IS15/S 15" (381) electric steamer module is available in the classic stainless steel finish.
This appliance is certified by Star-K to meet strict religious regulations in conjunction with specific instructions found on www.star-k.org.
Hidden 2600-watt heating element
Reversible domed glass lid
Graduated control lighting
Illuminated electronic touch controls
Deep drawn pan Digital temperature
readout
Location of rating plate
Page 2
Planning Information
Integrated Electric Steamer Module
MODEL IS15/S
Dimensions in parentheses are in millimeters unless otherwise specified.
Dimensions may vary by ±
1
/8" (3).
2
FEATURES
Integrated design allows for installation of
multiple cooktops or modules
Stainless steel top construction with classic
stainless steel finish
Hidden 2600 -watt heating element
Illuminated electronic touch controls with
graduated control lighting
Large two-gallon (7.6 L) maximum
capacity
tub— 10-cup capacity for steaming
Two stackable stainless steel steamer insert
pans— one solid and one perforated
Reversible domed glass lid for easy storage
Independent digital timer
Digital temperature readout and preheat indicator
Electronic drain
Certified by Star-K to meet religious regulations
CSA certified for US and Canada
Two and five year residential warranty – exclusions apply; warranty information can be found on our website, wolfappliance.com
OVERALL DIMENSIONS
21"
(533)
OVERALL
DEPTH
15" (381)
OVERALL WIDTH
71/2"
(191)
131/2" (343)
TO DRAIN
OUTLET
Page 3
Planning Information
Integrated Electric Steamer Module
MODEL IS15/S
Dimensions in parentheses are in millimeters unless otherwise specified.
3
SPECIFICATIONS
Overall Width 15" (381)
Overall Height 131/2" (343)
Overall Depth 21" (533)
Countertop Cut-Out Width 14" (356)
Countertop Cut-Out Depth 191/4" (489)
Minimum Cabinet Depth 223/4" (578)
Minimum Height Clearance 131/2" (343)
Heating Element 2600 W
Electrical Supply Requirements 240/ 208 V AC, 60 Hz
15 amp dedicated circuit
Conduit 4 ft (1.2 m) flexible 3-wire
Electrical Rating 2.6 kW at 240 V
1.9 kW at 208 V
Shipping Weight 40 lbs (18 kg)
Special Note Module can be installed in combination
with other cooktops or modules
Specifications are subject to change without notice.
TRIM FINISH
Classic Stainless Steel IS15/S
VENTILATION OPTIONS
30" (762) Cooktop or Pro wall
hood or liner
36" (914) Cooktop or Pro island
hood
For additional information, refer to the Wolf Cooktop Ventilation or Pro Ventilation sections of our website, wolfappliance.com.
ACCESSORIES
Filler strip
Accessories are available through your Wolf dealer. To obtain local dealer information, visit the Locator section of our website, wolfappliance.com.
Model IS15/S Classic Stainless Steel
Page 4
Planning Information
Integrated Electric Steamer Module
MODEL IS15/S
Dimensions in parentheses are in millimeters unless otherwise specified.
4

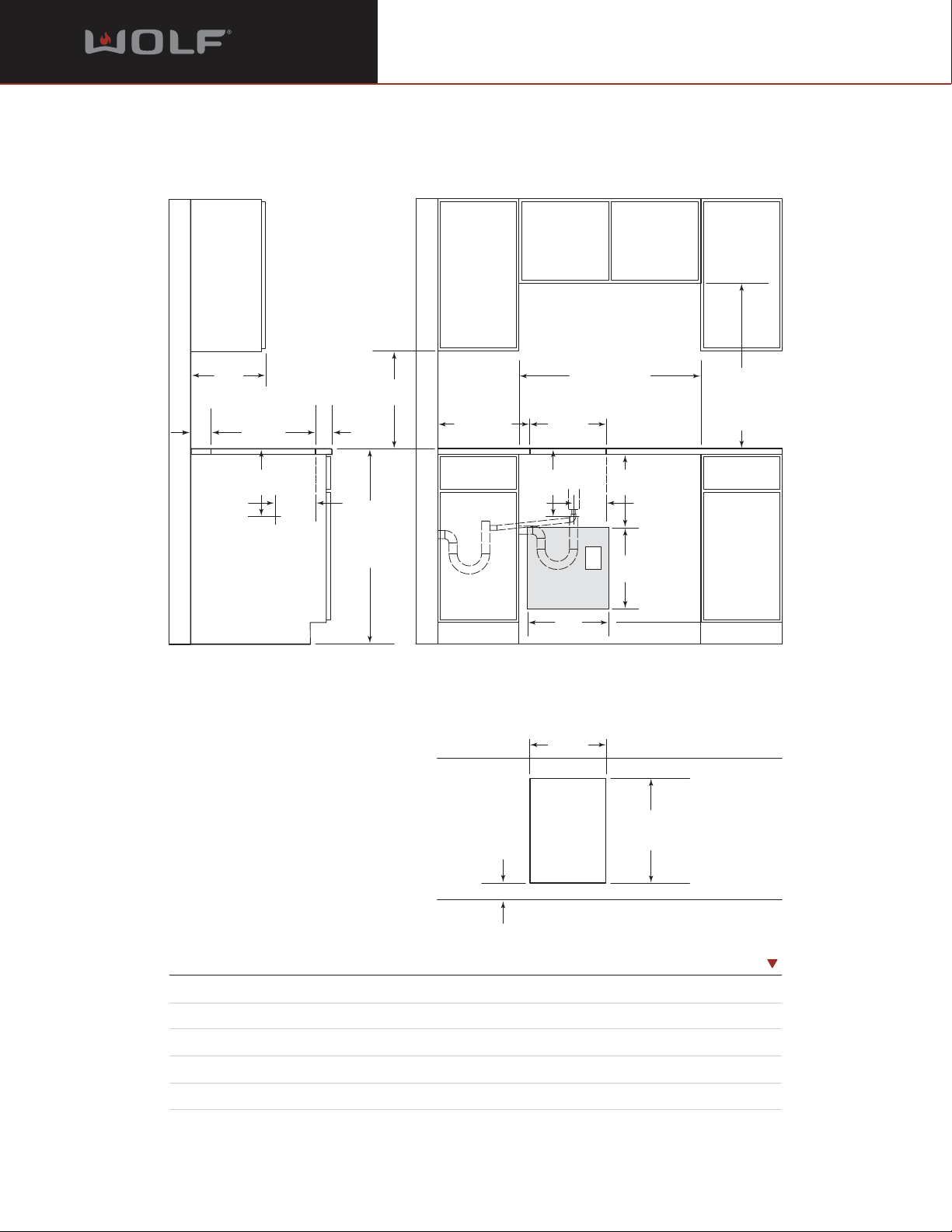

INSTALLATION SPECIFICATIONS
DIMENSIONS
Countertop Cut-Out Width 14" (356)
Recommended Cabinet Width 33" (838)
Countertop Cut-Out Depth 191/4" (489)
Minimum Cabinet Depth 223/4" (578)
Location of Electrical Within shaded area
See Installation Instructions shipped with unit for detailed specifications.
t
13" max
(330)
2"**
191/4" (489)
2"**
(64)
COOKTOP CUT-OUT
(64)
DEPTH
21/2"min
(64)
18"
(457)
7"*min (178)
CUT-OUT TO
COMBUSTIBLE
MATERIALS
(BOTH SIDES)
33" (838)
RECOMMENDED
CABINET WIDTH
14" (356)
COOKTOP CUT-OUT
WIDTH
30" (762)
COUNTERTOP TO
COMBUSTIBLE
MATERIALS
ABOVE COOKTOP
123/8"
(314)
75/8"
(194)
DRAIN OUTLET
LOCATION
NOTE: Application shown allows for installation of two 15" (381) modules side-by-side with 33" (838) recommended cabinet width. 18" (457) recommended cabinet width for installation of single 15" (381) cooktop or module. *Minimum clearance from both side edges of cooktop cut-ou to combustible materials up to 18" (457) above countertop. **Minimum clearance from rear edge of cooktop cut-out to combustible materials up to 18" (457) above countertop.
36" (914)
STANDARD
FLOOR TO
COUNTERTOP
HEIGHT
21/2"min
123/8"
(314)
14" (356)
COOKTOP CUT-OUT
(64)
15"
(381)
WIDTH
FRONT OF COUNTERTOP
131/2"
(343)
6"
(152)
E
(381)
CUT-OUT DEPTH
DRAIN
OUTLET
LOCATION
15"
191/4" (489)
COOKTOP
Page 5
Planning Information
Integrated Electric Steamer Module
MODEL IS15/S
Dimensions in parentheses are in millimeters unless otherwise specified.
5
INSTALLATION NOTES
Refer to the illustrations and specifications for overall dimensions, cut-out dimensions and installation specifics.
Wolf recommends using 33" (838) wide cabinets for installation of two 15" (381) modules side by side. An 18" (457) wide cabinet is recommended for installation of a single 15" (381) cooktop or module.
IMPORTANT NOTE: Review specific installation instructions for product to product capabilities
When multiple cooktops or modules are installed side by side, refer to the countertop cut-out dimensions on page 6.
A Wolf Cooktop or Pro ventilation hood is recommended. When installing a ventilation hood, refer to the specific requirements of the hood for the minimum dimension to countertop. Also refer to Ventilation Recommendations in the Cooktop Ventilation or Pro Ventilation sections of our website, wolfappliance.com.
IMPORTANT NOTE: Wolf does not recommend the use of downdraft ventilation with the integrated steamer module.
The Wolf integrated steamer module requires a separate, grounded 3-wire 240/208 V AC, 60 Hz, 15 amp service with its own circuit breaker. The unit is provided with a 4' (1.2 m) flexible 3-wire conduit for connection at the electrical supply. Locate electrical within the shaded area shown in the Installation illustration on page 4.
You must follow all National Electrical Code regulations. In addition, be aware of local codes and ordinances when installing your service.
For the drain connection, the
5
/8" (16) outlet from the valve will accept a drain hose that must flow downward to and tie into an existing sink drain, or a separate drain with a freefall may be installed. Following local building codes, your plumber will dictate how to plumb the unit. As a third option, the consumer will supply a heat resistant bucket for drainage in the location of the drain outlet. Refer to the Installation illustration on page 4 for location of the drain outlet.
Refer to the installation instructions shipped with each Wolf product for detailed specifications.
This cooktop is intended for indoor use only.
This steamer module must be installed at least 15" (381) away from a Wolf fryer module, as contact between water and hot oil may cause burns from steam and hot oil.
Page 6
Planning Information
Integrated Electric Steamer Module
MODEL IS15/S
Dimensions in parentheses are in millimeters unless otherwise specified.
6

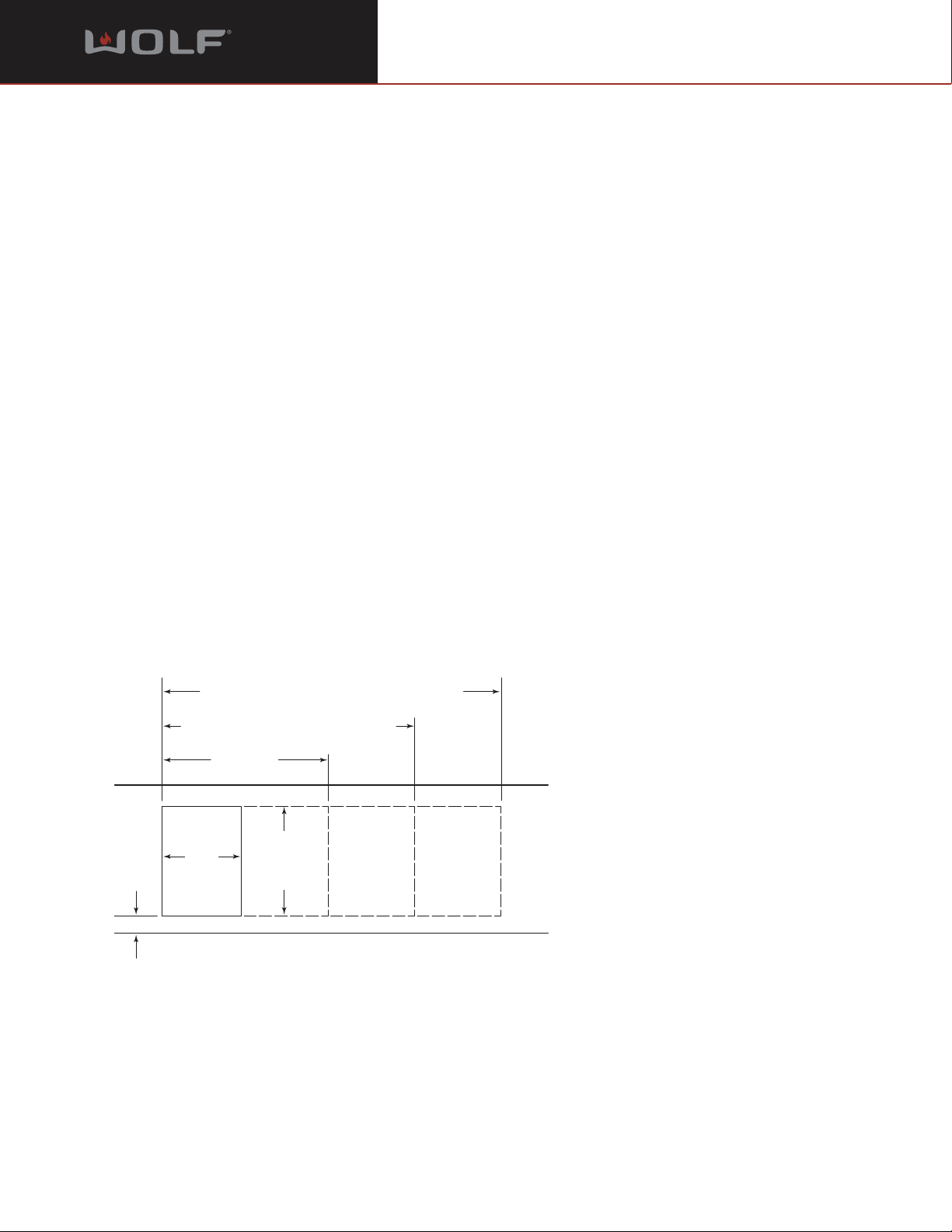

Countertop cut-out dimensions for installation of multiple cooktop units.
INTEGRATED MODULES—
MULTIPLE UNIT INSTALLATION
With Wolf's integrated modules, you have the ultimate in customization. You can create your own design by mixing and matching the various components within this system. And when you couple these modules with other cooktops within the Wolf inventory you and your client will truly understand freedom of choice.
Some Wolf integrated modules can be installed together or with a 30" (762) or 36" (914) cooktop. When multiple units are installed side by side, the cut-out dimensions that are shown in the illustration are derived by adding 1
1
/4" (32) additional space for each additional unit, to give you your total cut-out width. Refer to the illus­tration below for countertop cut-out dimensions for installation of multiple cooktops.
IMPORTANT NOTE: Refer to the pages for each specific integrated module for installation limitations.
IMPORTANT NOTE: Where multiple cooktops and/ or modules are installed side by side, each unit must have its own separate recommended electrical circuit. When multiple gas cooktops and/ or modules are installed next to one another, they can receive their gas supply from a common line. However, each unit must have its own regulator installed between the mainline and the cooktop or module.
When two or more cooktops or modules are installed together, an integrated module filler strip is recommended. Contact your Wolf dealer for information on this accessory component.
For electrical requirements, additional specifica­tions and installation limitations, refer to the Installation Notes on page 5.
IMPORTANT NOTE: Review specific installation instructions for product to product capabilities.
593/4"
591/2"
501/4"
441/2"
441/4"
(1124) 30" COOKTOP AND ONE MODULE
291/4"
TWO MODULES WIDTH
14"
(356)
21/2"min
(64)
CUT-OUT
WIDTH
FRONT OF COUNTERTOP
(1518) FOUR MODULES WIDTH OR
(1511) 30" COOKTOP AND TWO MODULES OR
(1276) 36" COOKTOP AND ONE MODULE
(1130) THREE MODULES WIDTH OR
(743)
191/4"
(489)
CUT-OUT
DEPTH
