Sub-zero INTERNATIONAL DESIGN BROCHURE
INTERNATIONAL DESIGN GUIDE
SUB-ZERO®is a registered trademark of Sub-Zero Freezer Company, Inc.
CONTENTS
Built-In Refrigeration 4
Integrated Refrigeration 27
Wine Storage 46
Undercounter Refrigeration 63
Features and specifications indicated
herein and on our website are subject
to change at any time without notice.
Check our website, subzero.com, for
the most up-to-date specifications.
The information and images in this
guide are the copyright property of
Sub-Zero Freezer Company, Inc.
Neither this book nor any information
or images contained herein may be
copied or used in whole or in part
without the express written permission
of Sub-Zero Freezer Company, Inc.
©Sub-Zero Freezer Company, Inc. all
rights reserved.
IMPORTANT NOTE
International models from the
factory designed without a transformer require a 220/240 V AC,
50/60 Hz electrical supply, fused
at the correct rating for the unit.
If required by local or national
codes, the power cord can be
easily replaced using the power
inlet device.
International models using a
factory installed transformer
require a 220/240 V AC, 50/60 Hz
electrical supply, fused at the
correct rating for the unit. These
models will come equipped with
Schuko power cords. The power
cord may need to be replaced
depending on local and national
codes. The USA power cord that is
supplied with the product must be
disconnected with the appropriate
transformer output to be
connected in its place.
3
As you follow these instructions, you
will notice warning and caution symbols.
This blocked information is important
for the safe and efficient installation of
Sub-Zero equipment. There are two
types of potential hazards that may
occur during installation.
Another footnote we would like to
identify is IMPORTANT NOTE: This
highlights information that is especially
relevant to a problem-free installation.
signals a situation where minor
injury or product damage may occur
if you do not follow instructions.
states a hazard that may cause
serious injury or death if precautions
are not followed.
CONTACT
INFORMATION
Website:
subzero.com
WELCOME TO SUB-ZERO
We make the ultimate built-in, integrated and
undercounter refrigerators, freezers and wine
storage units. We offer more solutions to your
daily design problems of trying to work the
largest appliance into a home without being
obtrusive. Placing refrigeration in the home is no
longer a problem, but, rather, an opportunity to
exercise your creativity.
Sub-Zero has rethought traditional built-in
refrigeration, a category it pioneered, with over
60 years of experience. When our complete line
of configurations— all refrigerator and all freezer,
over-and-under, or side-by-side—are coupled
with overlay or stainless steel design alternatives, the result is unlimited flexibility in satisfying your client‘s needs for residential refrigeration.
Created to blend invisibly into your home‘s
decor, the Integrated line lets you incorporate
refrigeration anywhere in the house— the kitchen,
master suite, media room or workout room.

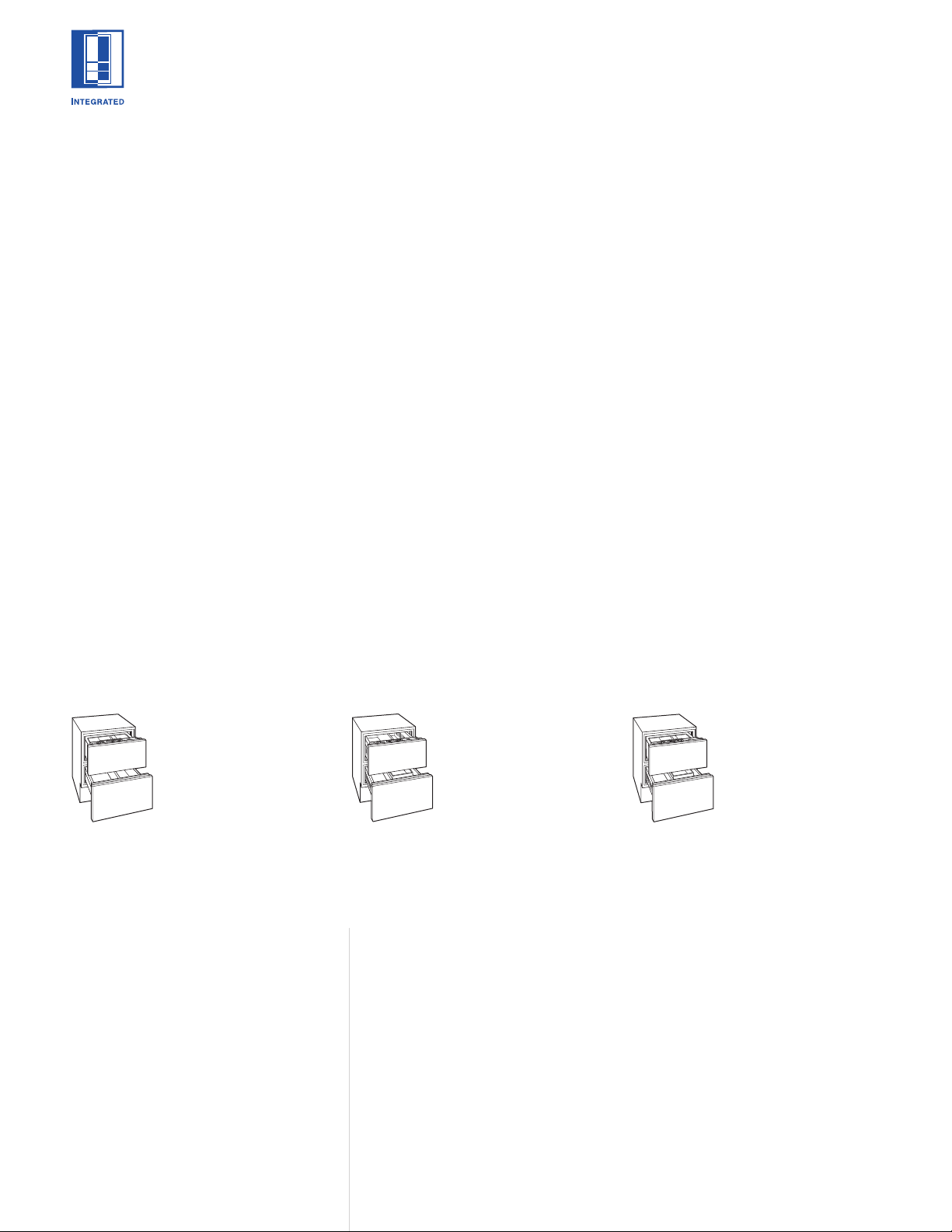

These tall units or two-drawer base refrigerators,
freezers and combination units can be hidden
inside the furniture or cabinetry of your
choosing.
Sub-Zero is breaking with conventional ways of
offering Wine Storage for designers and their
clients. Our Built-In and Integrated models, along
with the free-standing Model I424FS, offer
unlimited design and storage capabilities.
Comprehensive installation instructions are
shipped with each model. Refer to those
instructions in preparing and installing all
Sub-Zero products. These instructions along
with product specifications and downloadable
2D and 3D CAD files, as well as pdf files can be
found on our website, subzero.com.
4
BUILT-IN REFRIGERATION
Sub-Zero’s Built-In line offers you the most
complete set of design options in built-in refrigeration for all of its models, from the beauty of
the overlay models to the professional treatment
of the wrapped stainless steel doors.
Glass doors are available on our Models I601R,
I611 and I650. They each come in a framed,
overlay and stainless steel design. Model
ICB648PROG also features a glass door in its
classic stainless steel look.
In the illustrations, we have shown the two
different design configurations of the overlay
and stainless steel units applied to Model I695.
Please note how we qualify the different looks
with the model number.
Model I695/S
Classic
Stainless Steel
Model I695/O
Overlay
Overlay models will come with no handle
hardware, because the beauty of this design is
that you can match the surrounding cabinetry
hardware; however, we do offer optional handles
as sales accessories. The new ice and water
dispensing Models I685 and I695 are able to
accept overlay panels. Overlay models will come
with a standard 279 mm panel grille that will
accept decorative panel inserts. Models I601R,
I601RG and I601F are only available with the
louvered grille. No panel grille option is available.
All stainless steel models are offered in the
classic stainless steel finish. Stainless steel
models come with a standard 279 mm heavyduty grille, 25 mm diameter stainless steel
handles and a stainless steel kickplate.
All grilles will be offered as options in 25 mm
increments from 254 mm to 381 mm and can be
ordered as sales accessories. Models I601R,
I601RG, I601F, ICB648PRO and ICB648PROG
are the exception and are available only with a
279 mm grille.
An important step in assuring a successful plan
is to make sure that the actual equipment
shipped to your installation site matches the
design you have ordered. Each of these design
options has specific installation requirements,
which means it is vital that the unit match your
planning and space needs.
5
914 mm
1854
mm
914 mm 1067 mm 1067 mm 1219 mm 1219 mm 1219 mm 1219 mm
2134
mm
2134
mm
2134
mm
2134
mm
2134
mm
2134
mm
2134
mm
762 mm
2134
mm
ALL REFRIGERATOR | ALL FREEZER
OVER-AND-UNDER
SIDE-BY-SIDE
MODEL I601R
All Refrigerator
MODEL I601RG
All Refrigerator
with Glass Door
MODEL I601F
All Freezer

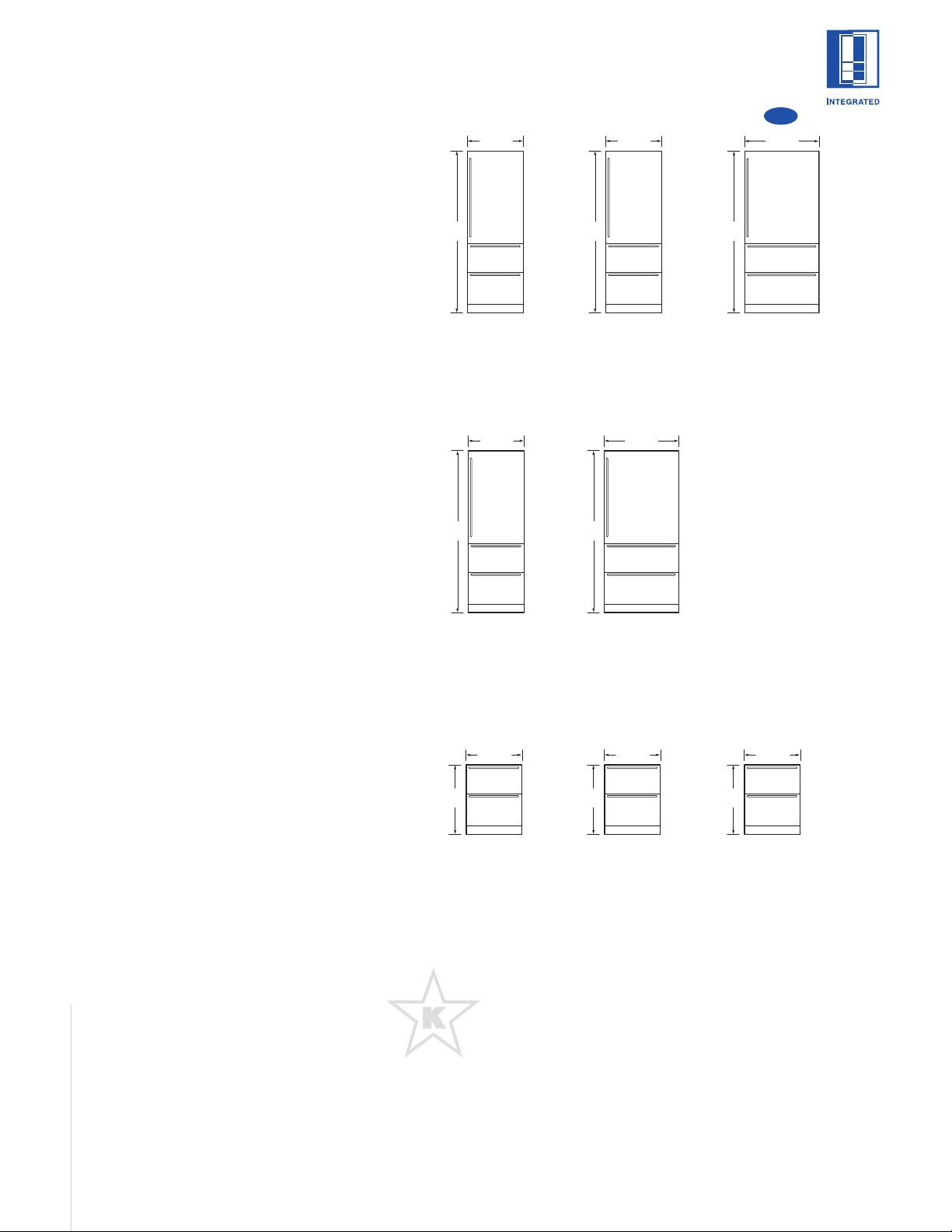

With the installation of a harness kit,
these appliances are Star-K compliant
to meet strict religious regulations in
conjunction with specific instructions
found on www.star-k.org. Models
ICB648PRO and ICB648PROG are
Star-K certified from the factory with
no extra wiring harness required. For
details about the harness kit, contact
your Sub-Zero dealer.
914 mm
1854
mm
914 mm
1854
mm
MODEL I661 MODEL I642 MODEL I685
Ice | Water
Dispensing
MODEL I632 MODEL I695
Ice | Water
Dispensing
MODEL
ICB648PRO
Free-Standing
or Built-In
MODEL
ICB648PROG
Free-Standing
or Built-In
MODEL I611 MODEL I611G
with Glass Door
MODEL I650
762 mm
2134
mm
914 mm
2134
mm
914 mm
2134
mm
MODEL I650G
with Glass Door
BUILT-IN REFRIGERATION
These illustrations represent the full line of
Sub-Zero Built-In models shown in the stainless steel design application with heavy-duty
grille. Models ICB648PRO and ICB648PROG
are available as built-in or free-standing units
in classic stainless steel only.
For information regarding specific Built-In
models, refer to the illustrations in this
section. Regardless of the specific design
application, overlay or stainless steel, the
interior specifications of each model are
identical.
Comprehensive installation
instructions are shipped with each
model. Refer to those instructions
in preparing and installing all
Sub-Zero products. The instructions
can also be found on our website,
subzero.com.
6
BUILT-IN FEATURES
Overlay models blend seamlessly into your
overall room design and complement surrounding
cabinetry. You add decorative hardware. Overlay
models come with a panel grille that will accept
decorative panel inserts. The new ice and water
dispensing Models I685 and I695 are also available in the overlay application.
Stainless steel models feature wrapped doors,
25 mm diameter stainless steel handles and a
heavy-duty grille designed specifically to enhance
the aesthetics of today's professional looking
kitchens. All Built-In stainless steel models are
offered in the classic stainless steel finish.
Dual Refrigeration System. All Built-In combination models have the Sub-Zero dual refrigeration
system, which ensures the freshest food and
energy efficiency at the same time. You have
precise independent control of the refrigerator
and freezer compartments. In addition to two
compressors, the PRO 48 has three separate
evaporators to keep foods fresher longer and
prevent odor transfer.
Glass Door. Model I601RG is an all refrigerator
unit featuring a glass door. Models I611G and
I650G are over-and-under combination units with
a glass door on the refrigerator. These glass door
models come in overlay and stainless steel
designs. The side-by-side Model ICB648PROG
features a glass door on the refrigerator side and
comes in classic stainless steel only.
Stainless Steel. The PRO 48 (Models
ICB648PRO and ICB648PROG) feature stainless
steel construction inside and out with classic
finish for professional strength and beauty.
Ice and Water Dispensing. Models I685 and I695
feature a dispenser that gives you both ice and
chilled water through the refrigerator door.
Built-In Design. True cabinet depth design means
every inch of the interior is easy to see and to
reach. The PRO 48 can be built in or, with the
free-standing accessory kit, used in a freestanding application.
Fresh Food. High-humidity crisper drawer with
removable dividers is large and deep, with
smooth sides for easy cleaning. The top refrigerated drawer on the PRO 48 features a tight-seal,
retracting glass crisper lid that keeps produce
exceptionally humid and fresh.
Electronic Controls. Up-front touch controls
give you digital readings for quick, easy-to-read
reference. The microprocessor provides supreme
control, accurate to within one degree of preset
temperatures, automatic defrosting that senses,
then adapts to your use patterns, and a service
indicator light. The PRO 48 also features exterior
temperature displays.
Advanced Lighting. Bright lighting spreads
even illumination throughout the compartment.
The source of the illumination is concealed. The
PRO 48 top LED lights bathe upper compartments in a soft glow. On the refrigerator side,
channeled sidewall LEDs can even serve as a
door-area night-light for Model ICB648PROG.
Adjustable Shelves. Cantilevered glass shelves
make repositioning quick and easy. They are
easy to clean, spill proof and steel reinforced for
durability. The PRO 48 features glass shelves
with stainless steel trim in the refrigerator and
100% stainless steel shelves in the freezer.
Slide-Out Bins. An exclusive PRO 48 feature—
these versatile stainless steel bins hold small
items, remove easily, and fit neatly under any
shelf.
Door Shelves. All door shelves are adjustable for
complete flexibility and convenience.
Dairy Storage. Dairy compartment is adjustable,
with easy, one-door access, compartment
dividers and a clean design. The dairy shelf is
magnetically sealed to maintain freshness.
Automatic Ice. Ice maker provides high-quality,
crescent-shaped ice that won‘t stick to the side
of the glass.
Energy Efficient. Our solid core doors improve
insulation and structural integrity. Magnetic
gaskets around all doors give extra-tight seals.
Kickplate. Solid, adjustable kickplate gives a true
built-in look and conforms to American Institute
of Architects standards.
ACCESSORIES
Optional accessories
are available
through your
Sub-Zero dealer.
7
MODEL I601F
ALL FREEZER
MODEL OPTIONS
Overlay Design I601F/O
Classic Stainless Steel I601F/S
SPECIFICATIONS
Overall Width 914 mm
Overall Height 1854 mm
Overall Depth 610 mm
Freezer Capacity 547 L
Min Height Required 1848 mm
Door Swing Clearance 916 mm
Specify Door Swing LH or RH
Shipping Wt (O) 171 kg
Shipping Wt (S) 184 kg
FREEZER FEATURES
Automatic Ice Maker
3 Adjustable Wire Shelves
1 Stationary Glass Shelf
3 Freezer Storage Drawers
5 Adjustable Door Shelves
MODEL I601R
ALL REFRIGERATOR
MODEL OPTIONS
Overlay Design I601R/O
Classic Stainless Steel I601R/S
SPECIFICATIONS
Overall Width 914 mm
Overall Height 1854 mm
Overall Depth 610 mm
Refrigerator Capacity 564 L
Min Height Required 1848 mm
Door Swing Clearance 916 mm
Specify Door Swing LH or RH
Shipping Wt (O) 177 kg
Shipping Wt (S) 191 kg
REFRIGERATOR FEATURES
4 Adjustable Glass Shelves
1 Stationary Glass Shelf
High-Humidity Compartment with Dividers
Adjustable Roll-Out Deli Basket
3 Adjustable Door Shelves
Adjustable Dairy Compartment
Egg Container
MODEL I601RG
ALL REFRIGERATOR
WITH GLASS DOOR
MODEL OPTIONS
Overlay Design I601RG/O
Classic Stainless Steel I601RG/S
SPECIFICATIONS
Overall Width 914 mm
Overall Height 1854 mm
Overall Depth 610 mm
Refrigerator Capacity 569 L
Min Height Required 1848 mm
Door Swing Clearance 916 mm
Specify Door Swing LH or RH
Shipping Wt (O) 181 kg
Shipping Wt (S) 195 kg
REFRIGERATOR FEATURES
4 Adjustable Glass Shelves
1 Stationary Glass Shelf
High-Humidity Compartment with Dividers
Triple-Pane UV Resistant Glass Door
Optional Accessory Roll-Out Deli Basket
Available
Egg Container
All models are shown in the stainless
steel design application.
MODEL I601R MODEL I601RG MODEL I601F
ACCESSORIES
Contact your Sub-Zero Dealer
Side panels in white and
classic stainless steel
Full-length framed handles
Decorative overlay handles
90˚ and 105˚ door stop kits
Roll-out deli basket
(Model I601RG)
Dozen egg container with lid
Harness kit for Star-K compliance
6
0
1
R
G
8
MODEL I611
OVER-AND-UNDER
MODEL OPTIONS
Overlay Design I611/O
Classic Stainless Steel I611/S
SPECIFICATIONS
Overall Width 762 mm
Overall Height 2134 mm
Overall Depth 610 mm
Refrigerator Capacity 360 L
Freezer Capacity 110 L
Min Height Required 2108 mm
Door Swing Clearance 765 mm
Shipping Wt (O) 195 kg
Shipping Wt (S) 210 kg
REFRIGERATOR (DOOR)
3 Adjustable Glass Shelves
1 Stationary Glass Shelf
High-Humidity Compartment with Divider
Adjustable Roll-Out Deli Basket
2 Adjustable Door Shelves
Adjustable Dairy Compartment
Egg Container
FREEZER (DRAWER)
Full-Extension Roll-Out Freezer Drawer
Two-Tier Wire Storage Baskets
Automatic Ice Maker
MODEL I611G
OVER-AND-UNDER
WITH GLASS DOOR
MODEL OPTIONS
Overlay Design I611G/O
Classic Stainless Steel I611G/S
SPECIFICATIONS
Overall Width 762 mm
Overall Height 2134 mm
Overall Depth 610 mm
Refrigerator Capacity 365 L
Freezer Capacity 110 L
Min Height Required 2108 mm
Door Swing Clearance 765 mm
Shipping Wt (O) 214 kg
Shipping Wt (S) 216 kg
REFRIGERATOR (DOOR)
3 Adjustable Glass Shelves
1 Stationary Glass Shelf
High-Humidity Compartment with Divider
Triple-Pane UV Resistant Glass Door
Optional Accessory Roll-Out Deli Basket
Available
Egg Container
FREEZER (DRAWER)
Full-Extension Roll-Out Freezer Drawer
Two-Tier Wire Storage Baskets
Automatic Ice Maker
MODEL I611 MODEL I611G
All models are shown in the stainless
steel design application.
9
MODEL I650
OVER-AND-UNDER
MODEL OPTIONS
Overlay Design I650/O
Classic Stainless Steel I650/S
SPECIFICATIONS
Overall Width 914 mm
Overall Height 2134 mm
Overall Depth 610 mm
Refrigerator Capacity 445 L
Freezer Capacity 139 L
Min Height Required 2108 mm
Door Swing Clearance 916 mm
Shipping Wt (O) 219 kg
Shipping Wt (S) 234 kg
REFRIGERATOR (DOOR)
3 Adjustable Glass Shelves
1 Stationary Glass Shelf
High-Humidity Compartment with Dividers
Adjustable Roll-Out Deli Basket
2 Adjustable Door Shelves
Adjustable Dairy Compartment
Egg Container
FREEZER (DRAWER)
Full-Extension Roll-Out Freezer Drawer
Two-Tier Wire Storage Baskets
Automatic Ice Maker
MODEL I650
MODEL I650G
OVER-AND-UNDER
WITH GLASS DOOR
MODEL OPTIONS
Overlay Design I650G/O
Classic Stainless Steel I650G/S
SPECIFICATIONS
Overall Width 914 mm
Overall Height 2134 mm
Overall Depth 610 mm
Refrigerator Capacity 453 L
Freezer Capacity 139 L
Min Height Required 2108 mm
Door Swing Clearance 916 mm
Shipping Wt (O) 237 kg
Shipping Wt (S) 240 kg
REFRIGERATOR (DOOR)
3 Adjustable Glass Shelves
1 Stationary Glass Shelf
High-Humidity Compartment with Dividers
Triple-Pane UV Resistant Glass Door
Optional Accessory Roll-Out Deli Basket
Available
Egg Container
FREEZER (DRAWER)
Full-Extension Roll-Out Freezer Drawer
Two-Tier Wire Storage Baskets
Automatic Ice Maker
MODEL I650G
ACCESSORIES
Contact your Sub-Zero Dealer
Side panels in white and classic
stainless steel
Panel, louvered or stainless steel
grilles in 25 mm increments from
254 mm to 381 mm high
Full-length framed handles
Decorative overlay handles
Roll-out deli basket
(Models I611G and I650G)
Dozen egg container with lid
Harness kit for Star-K compliance
ACCESSORIES
Optional accessories
are available
through your
Sub-Zero dealer.
10
MODEL I685
SIDE-BY-SIDE
ICE
|
WATER DISPENSING
MODEL OPTIONS
Overlay Design I685/O
Classic Stainless Steel I685/S
SPECIFICATIONS
Overall Width 1067 mm
Overall Height 2134 mm
Overall Depth 610 mm
Refrigerator Capacity 442 L
Freezer Capacity 232 L
Min Height Required 2108 mm
Door Swing Clearance 649 mm
Shipping Wt (O) 258 kg
Shipping Wt (S) 276 kg
REFRIGERATOR FEATURES
4 Adjustable Glass Shelves
1 Stationary Glass Shelf
High-Humidity Compartment
1 Storage Drawer
Adjustable Roll-Out Deli Basket
3 Adjustable Door Shelves
Adjustable Dairy Compartment
Egg Container
FREEZER FEATURES
Automatic Ice Maker
2 Adjustable Wire Shelves
1 Stationary Wire Shelf
3 Storage Drawers
5 Adjustable Door Shelves
2 Juice Can Shelves
MODEL I642
SIDE-BY-SIDE
MODEL OPTIONS
Overlay Design I642/O
Classic Stainless Steel I642/S
SPECIFICATIONS
Overall Width 1067 mm
Overall Height 2134 mm
Overall Depth 610 mm
Refrigerator Capacity 459 L
Freezer Capacity 232 L
Min Height Required 2108 mm
Door Swing Clearance 649 mm
Shipping Wt (O) 245 kg
Shipping Wt (S) 264 kg
REFRIGERATOR FEATURES
4 Adjustable Glass Shelves
1 Stationary Glass Shelf
High-Humidity Compartment
1 Storage Drawer
Adjustable Roll-Out Deli Basket
3 Adjustable Door Shelves
Adjustable Dairy Compartment
Egg Container
FREEZER FEATURES
Automatic Ice Maker
3 Adjustable Wire Shelves
1 Stationary Solid Shelf
3 Storage Drawers
5 Adjustable Door Shelves
MODEL I661
SIDE-BY-SIDE
MODEL OPTIONS
Overlay Design I661/O
Classic Stainless Steel I661/S
SPECIFICATIONS
Overall Width 914 mm
Overall Height 2134 mm
Overall Depth 610 mm
Refrigerator Capacity 354 L
Freezer Capacity 249 L
Min Height Required 2108 mm
Door Swing Clearance 527 mm
Shipping Wt (O) 227 kg
Shipping Wt (S) 244 kg
REFRIGERATOR FEATURES
4 Adjustable Glass Shelves
1 Stationary Glass Shelf
High-Humidity Compartment
1 Storage Drawer
Adjustable Roll-Out Deli Basket
3 Adjustable Door Shelves
Adjustable Dairy Compartment
Egg Container
FREEZER FEATURES
Automatic Ice Maker
2 Adjustable Wire Shelves
1 Stationary Solid Shelf
4 Storage Drawers
5 Adjustable Door Shelves
MODEL I661 MODEL I642 MODEL I685
11
MODEL I632
SIDE-BY-SIDE
MODEL OPTIONS
Overlay Design I632/O
Classic Stainless Steel I632/S
SPECIFICATIONS
Overall Width 1219 mm
Overall Height 2134 mm
Overall Depth 610 mm
Refrigerator Capacity 535 L
Freezer Capacity 278 L
Min Height Required 2108 mm
Door Swing Clearance 743 mm
Shipping Wt (O) 264 kg
Shipping Wt (S) 286 kg
REFRIGERATOR FEATURES
4 Adjustable Glass Shelves
1 Stationary Glass Shelf
High-Humidity Compartment with Divider
2 Storage Drawers
Adjustable Roll-Out Deli Basket
3 Adjustable Door Shelves
Adjustable Dairy Compartment
Egg Container
FREEZER FEATURES
Automatic Ice Maker
3 Adjustable Wire Shelves
1 Stationary Solid Shelf
3 Storage Drawers
5 Adjustable Door Shelves
MODEL I695
SIDE-BY-SIDE
ICE
|
WATER DISPENSING
MODEL OPTIONS
Overlay Design I695/O
Classic Stainless Steel I695/S
SPECIFICATIONS
Overall Width 1219 mm
Overall Height 2134 mm
Overall Depth 610 mm
Refrigerator Capacity 515 L
Freezer Capacity 278 L
Min Height Required 2108 mm
Door Swing Clearance 743 mm
Shipping Wt (O) 277 kg
Shipping Wt (S) 298 kg
REFRIGERATOR FEATURES
4 Adjustable Glass Shelves
1 Stationary Glass Shelf
High-Humidity Compartment with Divider
2 Storage Drawers
Adjustable Roll-Out Deli Basket
3 Adjustable Door Shelves
Adjustable Dairy Compartment
Egg Container
FREEZER FEATURES
Automatic Ice Maker
2 Adjustable Wire Shelves
1 Stationary Wire Shelf
3 Storage Drawers
5 Adjustable Door Shelves
2 Juice Can Shelves
MODEL I632 MODEL I695
All models are shown in the stainless
steel design application.
ACCESSORIES
Contact your Sub-Zero Dealer
Side panels in white and classic
stainless steel
Panel, louvered or stainless steel
grilles in 25 mm increments from
254 mm to 381 mm high
Full-length framed handles
Decorative overlay handles
90˚ and 105˚ door stop kits
Dozen egg container with lid
Harness kit for Star-K compliance
12
MODEL ICB648PRO
SIDE-BY-SIDE
BUILT-IN OR FREE-STANDING
SPECIFICATIONS
Overall Width 1219 mm
Overall Height 2134 mm
Overall Depth 657 mm
Refrigerator Capacity 521 L
Freezer Capacity 331 L
Min Height Required 2121 mm
Door Swing Clearance 730 mm
Shipping Weight 390 kg
REFRIGERATOR
(Door and Two Drawers)
3 Adjustable Glass Shelves
1 Stationary Glass Shelf
2 Adjustable Slide-Out Stainless Steel Bins
1 Crisper Lid
Dividers for Drawers Included
FREEZER
(Door and Two Drawers)
Automatic Ice Maker
3 Adjustable Stainless Steel Shelves
1 Stationary Stainless Steel Shelf
1 Stainless Steel Ice Bucket
MODEL ICB648PROG
SIDE-BY-SIDE
WITH GLASS DOOR
BUILT-IN OR FREE-STANDING
SPECIFICATIONS
Overall Width 1219 mm
Overall Height 2134 mm
Overall Depth 657 mm
Refrigerator Capacity 521 L
Freezer Capacity 331 L
Min Height Required 2121 mm
Door Swing Clearance 730 mm
Shipping Weight 397 kg
REFRIGERATOR
(Door and Two Drawers)
3 Adjustable Glass Shelves
1 Stationary Glass Shelf
2 Adjustable Slide-Out Stainless Steel Bins
1 Crisper Lid
Dividers for Drawers Included
Triple-Pane UV Resistant Glass Door
FREEZER
(Door and Two Drawers)
Automatic Ice Maker
3 Adjustable Stainless Steel Shelves
1 Stationary Stainless Steel Shelf
1 Stainless Steel Ice Bucket
MODEL ICB648PRO MODEL ICB648PROG
ACCESSORIES
Contact your Sub-Zero Dealer
90˚ door stop kit— right or left
hinge
Dozen egg container with lid
Slide-out stainless steel
refrigerator bin
Refrigerator drawer dividers
Classic stainless steel side panel
Free-standing kit— includes two
stainless steel side panels and
top lid
13
MODEL OPTIONS
Model I601R
914 mm
All Refrigerator
Model I601RG
914 mm
All Refrigerator
with Glass Door
Model I601F
914 mm
All Freezer
Model I611
762 mm
Over-and-Under
Model I611G
762 mm
Over-and-Under
with Glass Door
Model I650
914 mm
Over-and-Under
Model I650G
914 mm
Over-and-Under
with Glass Door
Model I661
914 mm
Side-by-Side
Model I642
1067 mm
Side-by-Side
Model I685
1067 mm
Side-by-Side
Ice | Water Dispensing
Model I632
1219 mm
Side-by-Side
Model I695
1219 mm
Side-by-Side
Ice | Water Dispensing
Model ICB648PRO
1219 mm
Side-by-Side
Built-In or Free-Standing
Model ICB648PROG
1219 mm
Side-by-Side
with Glass Door
Built-In or Free-Standing
PLANNING INFORMATION
Although the Sub-Zero Built-In line offers a wide
range of designs and configurations, the basic
planning considerations for all models have
much in common. As you integrate Built-In
models into your overall plan, review installation
requirements for your particular model(s). The
Installation Specifications illustrations provide
planning information for all Built-In models—
overlay and stainless steel.
Allow the door(s) to open a minimum of 90˚ or
you‘ll have problems removing drawers. With the
door opening at 90˚, you may have to move
drawers slightly to clear the door interior.
For corner installations, allow for a minimum
76 mm filler so that the door can open to 90˚.
If you‘re using raised panels, consider using a
wider filler.
When units are installed side by side, a filler strip
is recommended. The width of this filler strip will
vary depending on the configuration and panels
you use.
Be sure to add the filler strip width to your
finished rough opening dimension. In any
installation of two units side by side without a
filler strip, add an additional 13 mm to your
combined numbers. This will allow for the
proper width.
IMPORTANT NOTE: Refer to the full-scale illustrations at the end of this section for specifics
on door openings and filler size alternatives.
ELECTRICAL REQUIREMENTS
International models from the factory designed
without a transformer require a 220/240 V AC,
50/60 Hz electrical supply, fused at the correct
rating for the unit. If required by local or national
codes, the power cord can be easily replaced
using the power inlet device.
International models using a factory installed
transformer require a 220/240 V AC, 50/60 Hz
electrical supply, fused at the correct rating for
the unit. These models will come equipped with
Schuko power cords. The power cord may need
to be replaced depending on local and national
codes. The USA power cord that is supplied
with the product must be disconnected with the
appropriate transformer output to be connected
in its place.
IMPORTANT NOTE: The electrical outlet must
be grounded. The outlet must be flush with the
back wall. Refer to the Installation Specifications
illustration for your model for exact placement.
IMPORTANT NOTE: A ground fault circuit
interrupter (GFCI) is not recommended and may
cause interruption of operation.
PLUMBING CONSIDERATIONS
For Built-In models with an automatic ice maker,
rough in the water supply line. Connect a
6.35 mm OD copper line to the house supply,
being sure to use an easily accessible shut-off
valve between the supply and the refrigerator.
Do not use self-piercing valves. A saddle valve kit
(4200880) is available from your Sub-Zero dealer.
For Built-In models, a line filter is required when
water conditions have a high sediment content.
The ice maker operates on water pressure of 1.4
bar to 6.9 bar.
IMPORTANT NOTE: In some cases a reverse
osmosis water filter system may not be able to
maintain the minimum water pressure consistently.
IMPORTANT NOTE: A reverse osmosis system
can be used with Models ICB648PRO and
ICB648PROG, provided there is constant water
pressure of 1.4 bar to 8.3 bar supplied to the
unit at all times.
The water line should be routed up through the
floor within 13 mm from the back wall and no
higher than 76 mm off the floor. If you have to
come through the wall, make sure the water line
is no more than 76 mm from the floor.
Regardless of the routing, allow 1 m of excess
copper tubing to remain outside the wall or floor
for easy connection to the unit. Refer to Installation Specification illustrations.
14
914 mm
1854 mm
914 mm
1854 mm
914 mm
610 mm
1854 mm
INSTALLATION SPECIFICATIONS
All Refrigerator | All Freezer Models
Models I601R and I601RG, which do not
have an ice maker, will not require the water
line connection.
Dimensions are for finished rough openings.
Door swing clearances are based on
stainless steel door and handle dimensions.
OVERALL DIMENSIONS
All Refrigerator | All Freezer Models
ALL REFRIGERATOR
ALL FREEZER
Model I601R
All Refrigerator
Model I601RG
All Refrigerator
with Glass Door
Model I601F
All Freezer
Model I601R
All Refrigerator
Width 914 mm
Height 1854 mm
Depth 610 mm
Model I601RG
All Refrigerator
with Glass Door
Width 914 mm
Height 1854 mm
Depth 610 mm
Illustrations shown in stainless steel design.
Model I601F
All Freezer
Width 914 mm
Height 1854 mm
Depth 610 mm
INSTALLATION
Refer to the
installation instructions shipped with
each Sub-Zero
product for detailed
specifications.
Refer to the fullscale illustrations at
the end of this
section for specifics
on door openings
and other
specifications.
10 mm
FRAME
EXTENSION
606 mm
BEHIND
FRAME
610 mm
ROUGH
OPENING
DEPTH
ROUGH OPENING WIDTH
APPROX 914 mm
FROM BACK WALL
SHUT-OFF
VALVE
TOP VIEW
902 mm
WATER LINE
(I601F ONLY)
EXTEND
90˚
916 mm
1848 mm
ROUGH OPENING
HEIGHT TO
FINISHED
FLOORING
LOCATE ELECTRICAL
WITHIN ENTIRE SHADED AREA
LOCATE WATER SUPPLY
WITHIN BOTTOM SHADED
AREA ONLY (I601F ONLY)
610 mm
279
mm
E
W
FRONT VIEW
152
mm
76
mm
1848 mm
MINIMUM HEIGHT
REQUIRED TO
FINISHED
FLOORING
(LEVELERS IN)
15
Refer to the fullscale illustrations at
the end of this
section for specifics
on door openings
and other
specifications.
INSTALLATION
Refer to the
installation instructions shipped with
each Sub-Zero
product for detailed
specifications.
762 mm
2134 mm
914 mm
2134 mm
762 mm
2134 mm
914 mm 610 mm
2134 mm
INSTALLATION SPECIFICATIONS
Over-and-Under Refrigerator/ Freezer Models
Model I611
A) Rough Opening Width 749 mm
B) Min Door Clearance 765 mm
Model I611G
A) Rough Opening Width 749 mm
B) Min Door Clearance 765 mm
Model I650
A) Rough Opening Width 902 mm
B) Min Door Clearance 916 mm
Model I650G
A) Rough Opening Width 902 mm
B) Min Door Clearance 916 mm
Dimensions are for finished rough openings.
Door swing clearances are based on
stainless steel door and handle dimensions.
OVERALL DIMENSIONS
Over-and-Under Refrigerator/ Freezer Models
OVER-AND-UNDER
Model I611
Model I611G
with Glass Door
Model I650
Model I650G
with Glass Door
B
606 mm
BEHIND
FRAME
10 mm
FRAME
EXTENSION
90˚
Model I611
Width 762 mm
Height 2134 mm
Depth 610 mm
Model I611G
with Glass Door
Width 762 mm
Height 2134 mm
Depth 610 mm
Model I650
Width 914 mm
Height 2134 mm
Depth 610 mm
Illustrations shown in stainless steel design.
Model I650G
with Glass Door
Width 914 mm
Height 2134 mm
Depth 610 mm
610 mm
ROUGH
OPENING
DEPTH
2108 mm
MIN HEIGHT
REQUIRED TO
FINISHED
FLOORING
(LEVELERS IN)
1918
mm
EXTEND
WATER LINE
APPROX 914 mm
FROM BACK WALL
SHUT-OFF
VALVE
TOP VIEW
178
mm
LOCATE ELECTRICAL
WITHIN SHADED AREA
A
ROUGH OPENING WIDTH
76
mm
LOCATE WATER SUPPLY
WITHIN SHADED AREA
457 mm
W
FRONT VIEW
152
mm
152
mm
E
2127 mm
ROUGH OPENING
HEIGHT TO
FINISHED
FLOORING WITH
STANDARD
279 mm GRILLE
16
914 mm
1067 mm
1219 mm
1067 mm
1219 mm 610 mm
2134 mm
INSTALLATION SPECIFICATIONS
Side-by-Side Refrigerator | Freezer Models
Model I661
A) Rough Opening Width 902 mm
B) Min Door Clearance 527 mm
Model I642
A) Rough Opening Width 1054 mm
B) Min Door Clearance 649 mm
Model I685
A) Rough Opening Width 1054 mm
B) Min Door Clearance 649 mm
Model I632
A) Rough Opening Width 1206 mm
B) Min Door Clearance 743 mm
Model I695
A) Rough Opening Width 1206 mm
B) Min Door Clearance 743 mm
Dimensions are for finished rough openings.
Door swing clearances are based on
stainless steel door and handle dimensions.
OVERALL DIMENSIONS
Side-by-Side Refrigerator | Freezer Models
SIDE-BY-SIDE
Model I661
Model I642
Model I685
Ice | Water Dispensing
Model I632
Model I695
Ice | Water Dispensing
B
606 mm
BEHIND
FRAME
10 mm
FRAME
EXTENSION
90˚
Model I661
Width 914 mm
Height 2134 mm
Depth 610 mm
Model I642
Width 1067 mm
Height 2134 mm
Depth 610 mm
Model I685
Ice | Water Dispensing
Width 1067 mm
Height 2134 mm
Depth 610 mm
Model I632
Width 1219 mm
Height 2134 mm
Depth 610 mm
Illustrations shown in stainless steel design.
Model I695
Ice | Water Dispensing
Width 1219 mm
Height 2134 mm
Depth 610 mm
INSTALLATION
Refer to the
installation instructions shipped with
each Sub-Zero
product for detailed
specifications.
MIN HEIGHT
REQUIRED TO
FLOORING
(LEVELERS IN)
2108 mm
FINISHED
610 mm
ROUGH
OPENING
DEPTH
TOP VIEW
LOCATE ELECTRICAL
WITHIN SHADED AREA
ROUGH OPENING WIDTH
1918
mm
LOCATE WATER SUPPLY
WITHIN SHADED AREA
76
mm
FRONT VIEW
EXTEND
WATER LINE
APPROX 914 mm
FROM BACK WALL
SHUT-OFF
VALVE
178
mm
A
457 mm
W
152
mm
152
mm
E
2127 mm
ROUGH OPENING
HEIGHT TO
FINISHED
FLOORING WITH
STANDARD
279 mm GRILLE
17
INSTALLATION
Refer to the
installation instructions shipped with
each Sub-Zero
product for detailed
specifications.
1219 mm
INSTALLATION SPECIFICATIONS
PRO 48 Side-by-Side Refrigerator | Freezer Models
Built-In or Free-Standing
Models ICB648PRO and ICB648PROG can be
used free-standing or installed as a standard
or flush built-in application. For standard
built-in installations, the face frame of the
unit will extend 51 mm beyond cabinetry.
In flush built-in installations, the front of the
face frame will be flush with surrounding
cabinetry.
Dimensions are for finished rough openings.
OVERALL DIMENSIONS
PRO 48 Side-by-Side Refrigerator | Freezer Models
PRO 48
SIDE-BY-SIDE
Model ICB648PRO
Built-In or Free-Standing
Model ICB648PROG
with Glass Door
Built-In or Free-Standing
Model ICB648PRO
Width 1219 mm
Height 2134 mm
Depth 606 mm*
657 mm**
Model ICB648PROG
with Glass Door
Width 1219 mm
Height 2134 mm
Depth 606 mm*
657 mm**
1219 mm
2134 mm
657 mm
766 mm
606 mm
606 mm
BEHIND
FAC E
FRAME
657 mm
TO FRONT
OF FACE
FRAME
730 mm
521 mm
1219 mm
*Depth from behind face frame to back of unit for standard installation.
**Depth from front of face frame to back of unit for flush installation.
ROUGH
OPENING DEPTH
610 mm
STANDARD
660 mm
FLUSH
MIN HEIGHT
REQUIRED
TO FINISHED
FLOORING
(LEVELERS IN)
2121 mm
STANDARD
2127 mm
FLUSH
ROUGH
OPENING HEIGHT
TO FINISHED
FLOORING
2127 mm
STANDARD
2137 mm
FLUSH
MIN 914 mm
1
/4" COPPER
WATER LINE
SHUT-OFF
VALVE
TOP VIEW
LOCATE ELECTRICAL
WITHIN SHADED AREA
ROUGH
OPENING WIDTH
1206 mm STANDARD
1219 mm FLUSH
178
mm
152
mm
E
1918 mm
LOCATE WATER SUPPLY
WITHIN SHADED AREA
76 mm
FRONT VIEW
152
mm
W
132
mm
18
ANTI-TIP BLOCKING KIT
To prevent the unit from tipping forward and to
provide a stable installation, the unit must be
secured in place with an anti-tip blocking kit. If
there is a solid soffit above the unit with clearance between the unit and the soffit of 25 mm
or less, you won‘t need to block the unit. But for
installations with clearances of more than 25
mm, you must block the unit with the anti-tip
blocking kit (wood block and hardware) provided
with each Sub-Zero Built-In model. Refer to the
Built-In Installation Guide packed with the appliance, which provides step-by-step procedures
for making sure the unit is installed properly.
ADDING PANELS
In your plan for panels, be sure you are working
with the Sub-Zero panel design family called for
in your design. If you have chosen the stainless
steel design, the unit will be shipped complete
with wrapped stainless steel doors and handle
hardware. You will not have to install door
panels.
Specifications on the following pages provide
panel dimensions and installation considerations
for overlay door panels.
Side panels can be used with the overlay and
stainless steel design applications. Refer to
specifications on page 20.
ACCESSORIES
Optional accessories
are available
through your
Sub-Zero dealer.
19
Illus. 5 Illus. 6
Illus. 4Illus. 3
PANEL
REQUIREMENTS
The overlay door
panel assembly
must be a minimum
of16 mm thick
and cannot exceed
23 kg.
IMPORTANT NOTE: Keep in mind that the
Sub-Zero door panels have the potential for
hitting adjacent cabinets and/ or countertops
when they are opened. You need to be aware of
your surrounding cabinetry and space limitations
when using the overlay models. Refer to the fullscale illustrations at the end of this section.
If you are using an overlay door panel with
Model I611, I611G, I650 or I650G, it is necessary
to rout a space for the unit‘s lower hinge plate
so it does not strike the door panel. Refer to
illustration 5.
For Models I611, I611G, I650 and I650G, you will
minimize the reveal between the bottom of the
overlay door panel and the top of the overlay
drawer panel. Refer to illustration 6.
IMPORTANT NOTE: If you choose not to rout a
space for the lower hinge plate, you can reduce
the total height of the overlay panel (decorative
panel only) by 13 mm.
Do not exceed the overlay decorative panel
dimensions for Models I611, I611G, I650 or
I650G listed on page 22. If you try to make
the reveal tighter between the door and
drawer panels, the panels may hit when
opening and closing, causing possible
damage to the panels and the Sub-Zero unit.
OVERLAY DOOR PANELS
If you and your client have ordered an overlay
design model, you will be adding panels to give
the unit the custom Sub-Zero look. The overlay
panel design option is available on all Built-In
units except Models ICB648PRO and
ICB648PROG.
For exact door panel dimensions for Built-In
overlay models, refer to the Overlay Panel Specifications on pages 22–23.
The overlay design allows decorative panels to
cover the door trim for a more seamless
appearance that blends with the design of the
room. To achieve this look, the most common
way is to work with three panels—the decorative
overlay panel, a 3 mm spacer panel and a 6 mm
backer panel. Depending on your cabinet manufacturer, this could be one panel routed for
different dimensions or, more likely, three different panels.
Regardless of the physical construction of the
panels (routing or three-panel assembly), you will
need to follow the Overlay Panel Specifications
on the following pages for exact sizing and panel
placement to ensure a proper fit.
Illustration 3 is a cross section view of the threepanel assembly showing placement of the door,
drawer or grille trim. Illustration 4 shows a rear
view of the three-panel assembly and critical
dimensions, standard for all models.
Spacer Panel
3
mm
4 mm
2 mm
Overlay Panel
6 mm Backer Panel
8 mm min
Door /Drawer /
Grille Trim
Overlay Panel
~19
mm
3 mm
Spacer Panel
Backer
Panel
6 mm
Overlay Panel
6 mm Backer Panel
Spacer Panel
76 mm
13
mm
10 mm
Bottom Edge –
Hinge Side
(rear view)
Overlay Panel
21
mm
Spacer Panel
Backer
Panel
mm
13 mm
8
20
Illustration 8 shows how you can box out a
landing space for the bezel using stiles and rails
to create this space. Again, keep in mind, that
the total thickness of the panel at this level must
not exceed 29 mm.
OVERLAY PANEL GRILLE
Overlay grille panels for the panel grille match
the design of the door panels. Overlay units,
except Models I601R, I601RG and I601F, come
standard with an 279 mm panel grille. Optional
grilles are available in 25 mm height increments
from 254 mm to 381 mm. Overlay grille panel
specifications for the panel grille are listed on
page 23. Also refer to illustration 4 on page 19
for additional overlay panel dimensions.
Do not exceed the panel dimensions listed
for the appropriate overlay grille panel you
are specifying. The decorative panel cannot
be any larger or it may restrict the airflow
to the compressor area and cause problems
with the operation of the Sub-Zero unit.
OVERLAY DOOR PANELS
For glass door Models I601RG, I611G and I650G,
the refrigerator door panel must include a cutout to accommodate the window. Refer to the
Overlay Panel Specifications for Models I601RG,
I611G and I650G on page 22.
IMPORTANT NOTE: On glass door models, the
glass portion of the door must be exposed and
not covered by any part of the panel.
For Models I685 and I695, the refrigerator door
panel must include a cut-out to accommodate
the glasswell and bezel. The thickness of the
panel in this area can range from 6 mm to a
maximum of 29 mm.
IMPORTANT NOTE: Regardless of the thickness
of the overlay panel for Model I685 or I695, you
must plan for a flat ’landing’ space for the
decorative bezel surrounding the glasswell area.
Refer to page 23 for exact cut-out dimensions of
the glasswell area in the overlay, spacer and
backer panels. This ’landing’ area can be accomplished in a number of different ways. We are
showing two in Illustrations 7 and 8 below.
Illustration 7 shows how you can recess the
bezel to the inset panel. You must rout out a
space to accommodate the 327 mm height of
the bezel. Also keep in mind that the amount of
material you will rout out of the stile will vary
because of the thickness of this element.
However, the width of the stile immediately
adjacent to the bezel must be 37 mm. DO NOT
cut the entire stile to this dimension. In this illustration you can see that rails above and below
the bezel give this a finished look. Make sure
that the bezel is not supporting weight from
the panel.
INSTALLATION
To install overlay
panels, see the
detailed procedures
outlined in the
Sub-Zero Built-In
Installation Guide.
43 mm
Edge of
Panel to
Cut-Out
Glasswell
Cut-Out
37 mm
Width
of Stile
Adjacent
to Bezel
Routing
Required
327
mm
Height
of Bezel
Illus. 8Illus. 7
21
INSTALLATION
To install overlay
panels, see the
detailed procedures
outlined in the
Sub-Zero Built-In
Installation Guide.
ACCESSORIES
Optional accessories
are available
through your
Sub-Zero dealer.
HANDLE HARDWARE
Overlay models come without handle hardware.
The beauty of this design is that you can match
the surrounding cabinet hardware. You or the
cabinet manufacturer must provide handle
hardware to match the overall decorating
scheme.
The handle hardware must be installed before
installing the panel assembly. Use larger D-style
handles. If screws with thick heads are used,
the screws will need to be countersunk into the
door before the panel is put into place.
IMPORTANT NOTE: Sub-Zero does not recommend using single pull knobs on any of its BuiltIn models.
For overlay Models I685 and I695, mounting
placement of the refrigerator door handle must
assure proper access to the glasswell and
adequate clearance under the handle. Illustration
8 shows placement of the refrigerator door
handle in relationship to the glasswell bezel on
stainless steel models.
Optional stainless steel handles are available in a
variety of diameters and lengths, as are handles
to match the color and style of Wolf ovens.
Contact your Sub-Zero dealer for specifics.

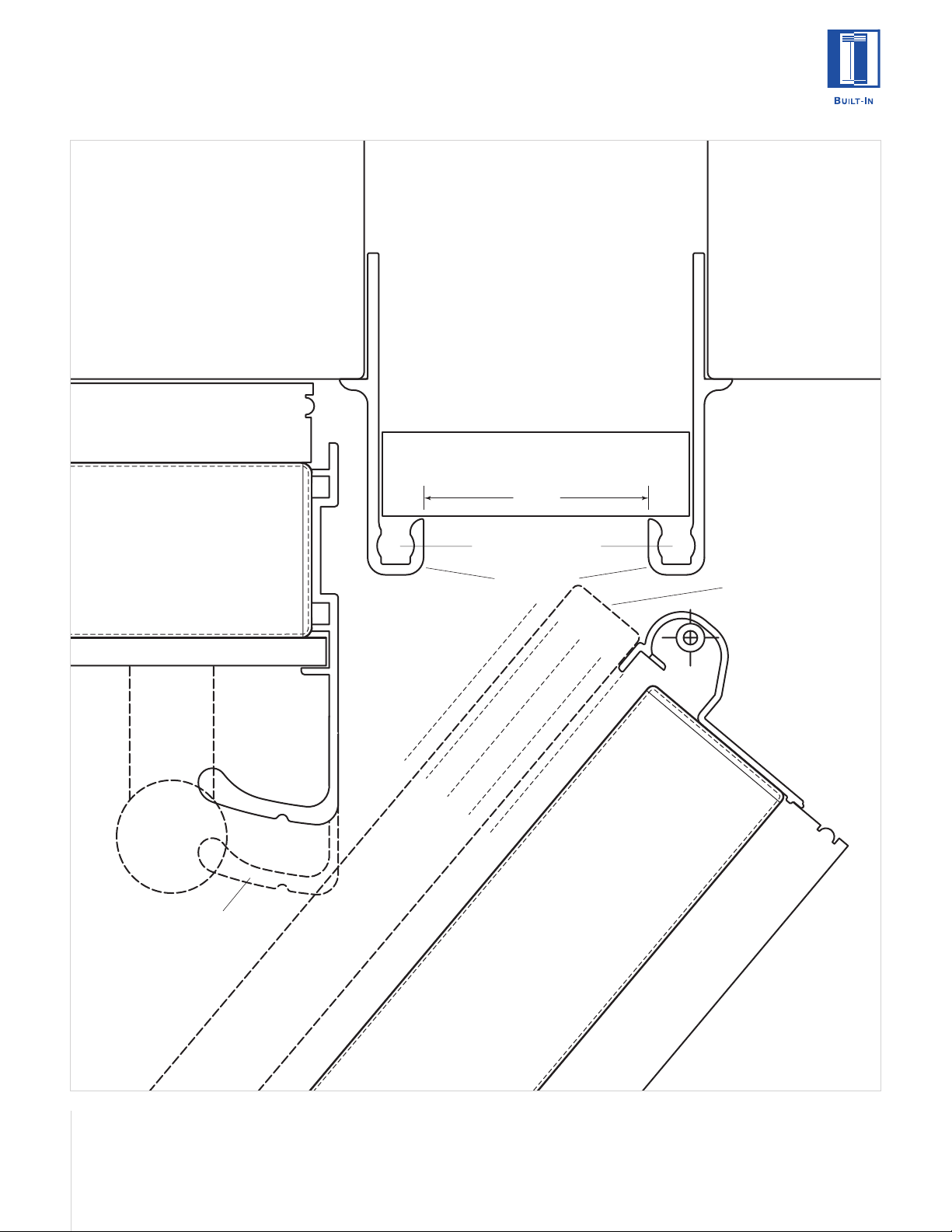

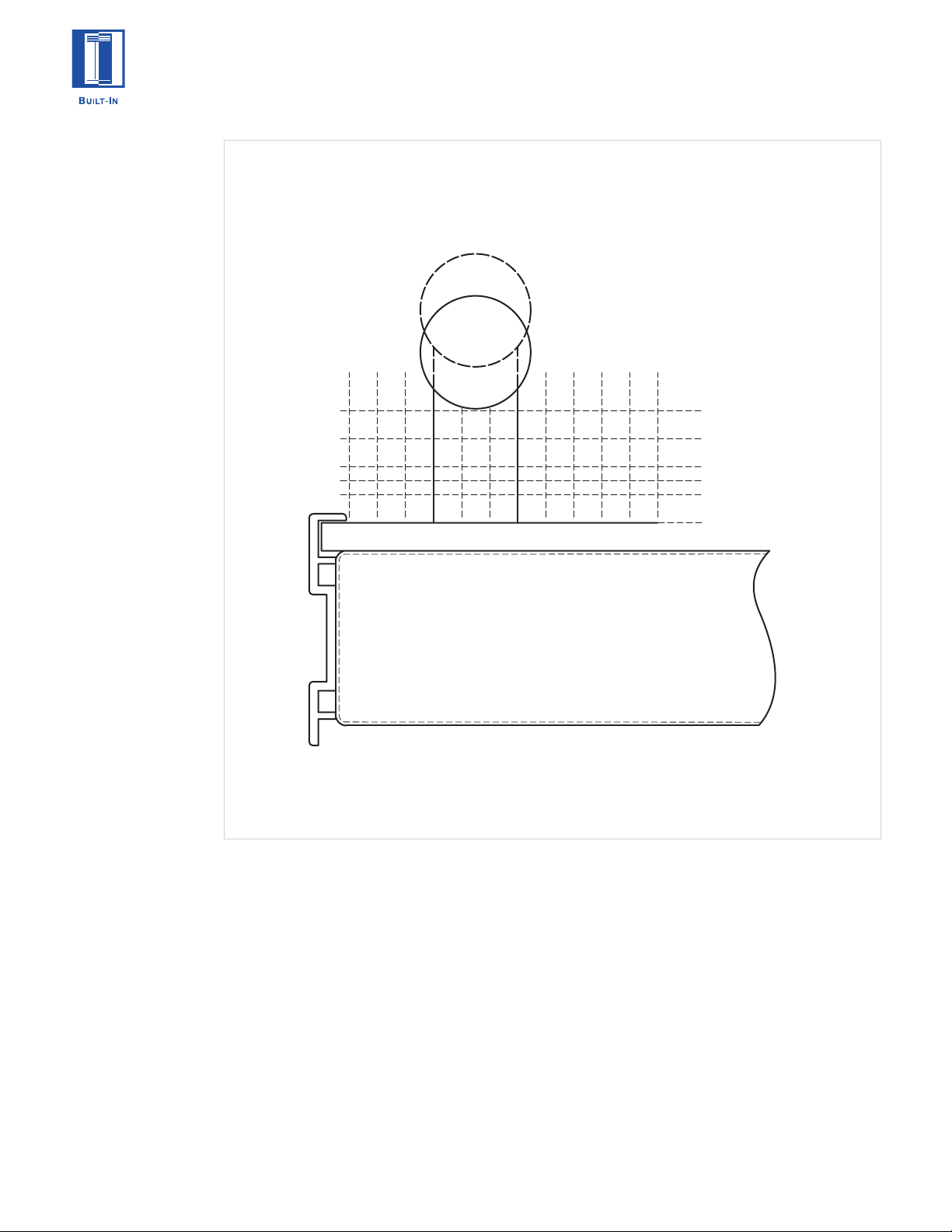

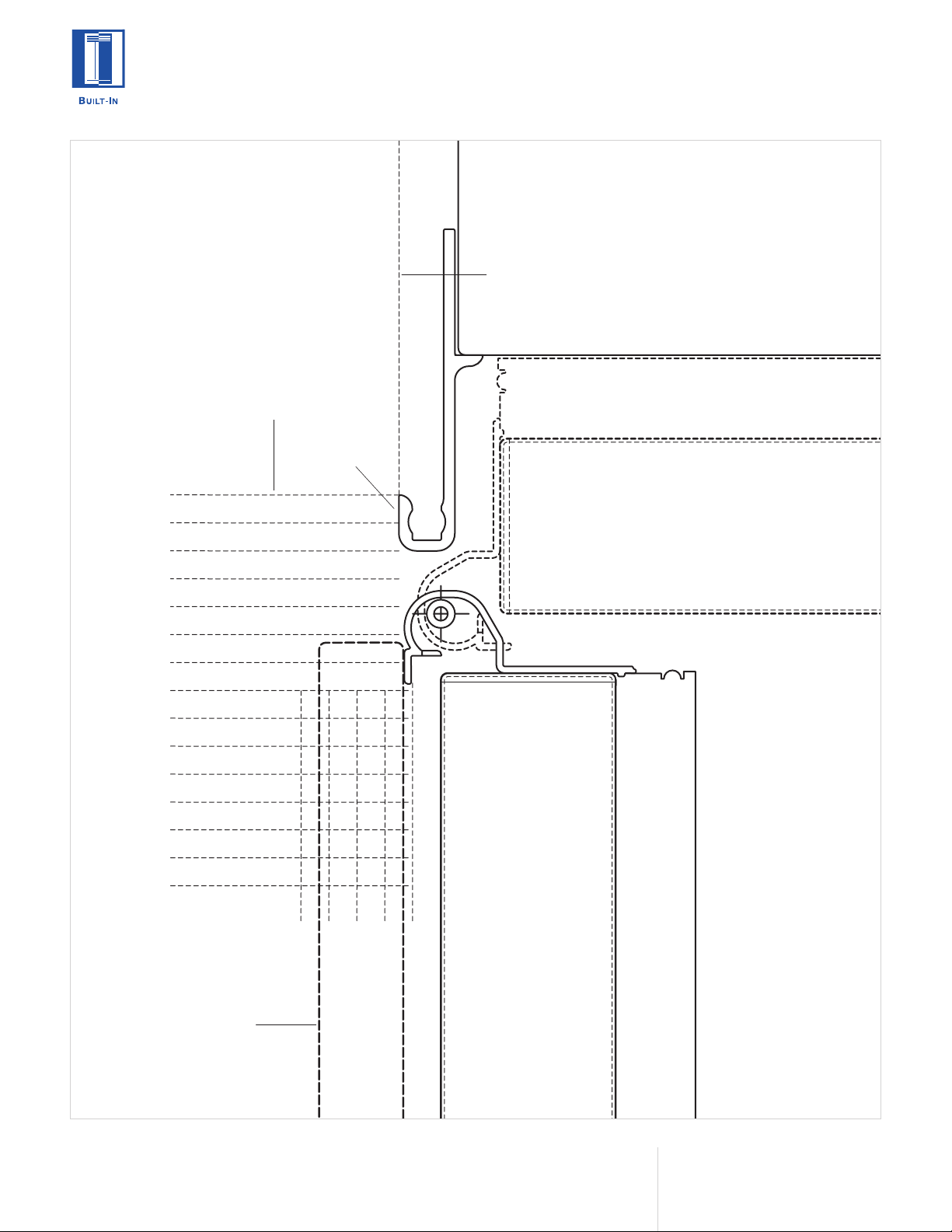

Refer to the full-scale illustrations at the end of
this section for handle hardware considerations.

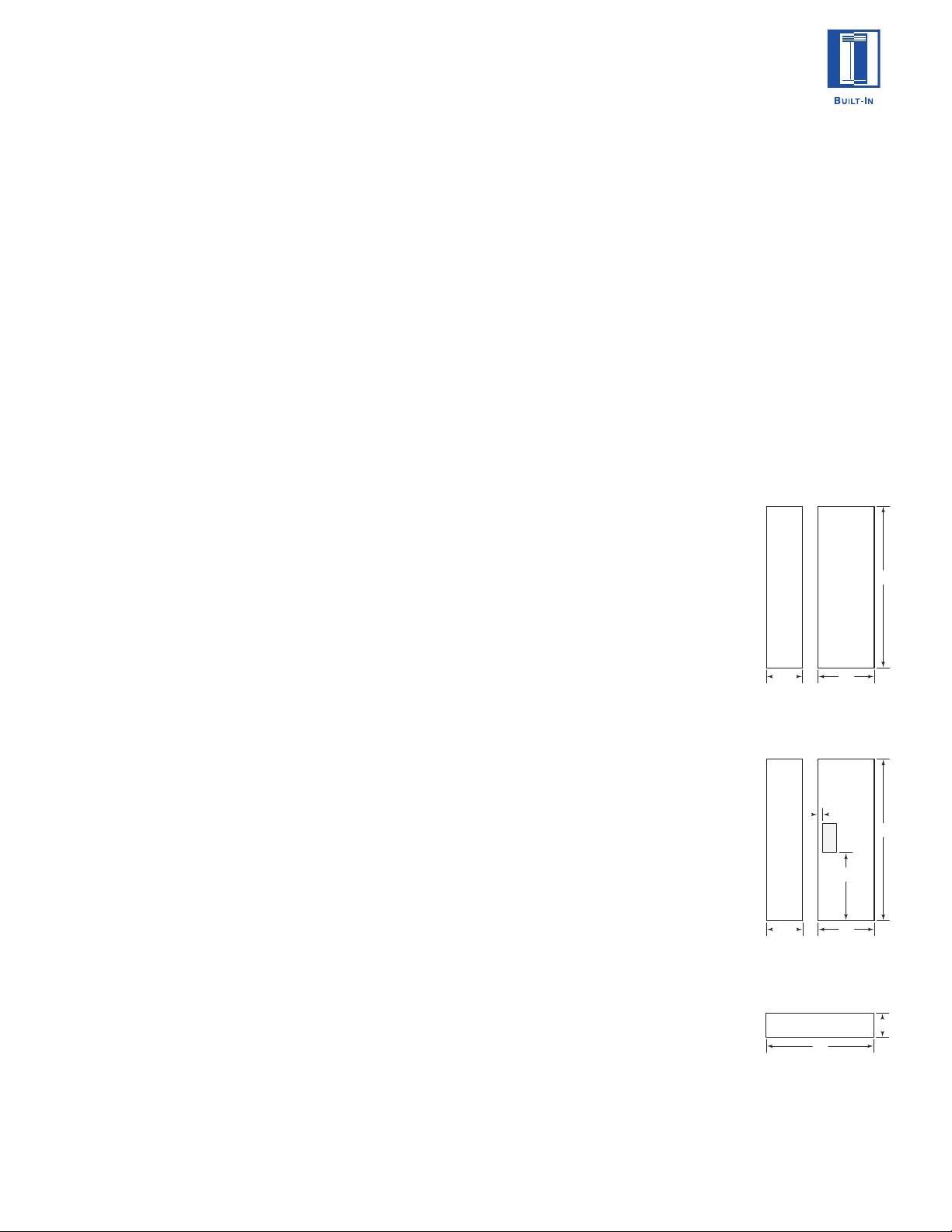

SIDE PANELS
Side panels can be used with the overlay and
stainless steel design applications. When
planning for side panels with the installation of a
Built-In model, you need to be aware of space
configuration to achieve a pleasing fit. Depending on the exact panel you are using with your
unit, the height of the panel will vary.
Cut-outs around the toe kick and grille area are
required if a 6 mm thick panel will be inserted
into the main frame channel. The panel will need
to be 610 mm deep. If a 10 mm thick panel is
used, the panel will abut the main frame and
should be 606 mm deep. Refer to illustrations
9–11 below for placement of toe kick and grille
area cut-outs for your specific model. These
dimensions do not apply to Models ICB648PRO
and ICB648PROG.
The toe kick area may or may not be cut out
depending on the look you want to achieve.
IMPORTANT NOTE: The use of side panels may
change the width of your rough opening.
102 mm
76 mm
606 mm
BEHIND FRAME
Illus. 9— Models I601R,
I601RG and I601F
Illus. 8
337 mm
102 mm
6 mm
6 mm
76 mm
76 mm
606 mm
BEHIND FRAME
Illus. 11— Models I661, I642,
I632, I685 and I695
337 mm
102 mm
6 mm
76 mm
606 mm
BEHIND FRAME
Illus. 10— Models I611, I611G,
I650 and I650G
25 mm
51 mm
Glasswell
Profile
Handle
Profile
22
C
C C
H
W
H
D
H
W
H
C
W
H
C C
D
W
H
OVERLAY DOOR PANEL SPECIFICATIONS
All Refrigerator | All Freezer Overlay (O) Models
Model I601R W H
Refrigerator Overlay Panel 875 mm 1505 mm
Refrigerator Spacer Panel 851 mm 1481 mm
Refrigerator Backer Panel 867 mm 1497 mm
Model I601RG W H
Refrigerator Overlay Panel 875 mm 1505 mm
Refrigerator Spacer Panel 851 mm 1481 mm
Refrigerator Backer Panel 867 mm 1497 mm
Window Cut-out Dimensions 646 mm 1048 mm
Window Cut-out Location C) 114 mm D) 343 mm
Model I601F W H
Freezer Overlay Panel 875 mm 1505 mm
Freezer Spacer Panel 851 mm 1481 mm
Freezer Backer Panel 867 mm 1497 mm
IMPORTANT NOTE: Panel specifications are for Built-In overlay (O)
models.
OVERLAY DOOR PANEL SPECIFICATIONS
Over-and-Under Overlay (O) Models
Model I611 W H
Refrigerator Overlay Panel 722 mm 1241 mm
Refrigerator Spacer Panel 699 mm 1205 mm
Refrigerator Backer Panel 714 mm 1221 mm
Freezer Overlay Panel 722 mm 475 mm
Freezer Spacer Panel 699 mm 451 mm
Freezer Backer Panel 714 mm 467 mm
Model I611G W H
Refrigerator Overlay Panel 722 mm 1241 mm
Refrigerator Spacer Panel 699 mm 1205 mm
Refrigerator Backer Panel 714 mm 1221 mm
Freezer Overlay Panel 722 mm 475 mm
Freezer Spacer Panel 699 mm 451 mm
Freezer Backer Panel 714 mm 467 mm
Window Cut-out Dimensions 494 mm 1000 mm
Window Cut-out Location C) 114 mm D) 127 mm
Model I650 W H
Refrigerator Overlay Panel 875 mm 1241 mm
Refrigerator Spacer Panel 851 mm 1205 mm
Refrigerator Backer Panel 867 mm 1221 mm
Freezer Overlay Panel 875 mm 475 mm
Freezer Spacer Panel 851 mm 451 mm
Freezer Backer Panel 867 mm 467 mm
Model I650G W H
Refrigerator Overlay Panel 875 mm 1241 mm
Refrigerator Spacer Panel 851 mm 1205 mm
Refrigerator Backer Panel 867 mm 1221 mm
Freezer Overlay Panel 875 mm 475 mm
Freezer Spacer Panel 851 mm 451 mm
Freezer Backer Panel 867 mm 467 mm
Window Cut-out Dimensions 646 mm 1000 mm
Window Cut-out Location C) 114 mm D) 127 mm
IMPORTANT NOTE: Panel specifications are for Built-In overlay (O)
models.
Models I611 and
I650
Models I611G and
I650G
Model I601RGModels I601R
and I601F
