Integrated Refrigeration 3
subzero.com
Sub-Zero Integrated Refrigeration
he importance of the installation of the Sub-Zero
T
integrated unit cannot be overemphasized. Installation
should be done by a qualified installer.
Before you begin the installation process, it is recommended that you read this entire installation guide. There
are key details that you should take special care to
observe during the installation. By reading these instructions carefully, you will make the installation process
easier, problem-free and, most importantly, safe.
Any questions or problems regarding the installation
should be directed to your Sub-Zero dealer or Sub-Zero
customer service at 800-222-7820. You may also check
the contact & support sectionofour website, subzero.com.
Important product information, including the model and
serial number of your unit are listed on the product rating
plate. The rating plate is located inside the cabinet, to the
left of the upper drawer. Refer to the illustration below.
IMPORTANT NOTE: Throughout this guide, dimensions in
parentheses are millimeters unless otherwise specified.
Before You Start
ake sure that the finished rough opening where the
M
integrated unit is to be installed is properly prepared.
Refer to the specifications for your specific model on the
following pages. Make sure that the opening dimensions,
door and drawer clearances, electrical service and
plumbing are correct for the model you are about to
install.
IMPORTANT NOTE: The inside edges of the rough
opening, as well as the sides and a portion of the
backside of the decorative panels will need to be finished,
as they will be exposed when the doors are open.
TOOLS AND MATERIALS REQUIRED
• Appliance dolly able to support 500 lbs (227 kg) and
adequate manpower to handle the weight of the unit.
• Phillips and slotted screwdrivers.
• Allen, standard and crescent wrenches.
• Various sized pliers.
5
•
/16" hex bolt nut driver.

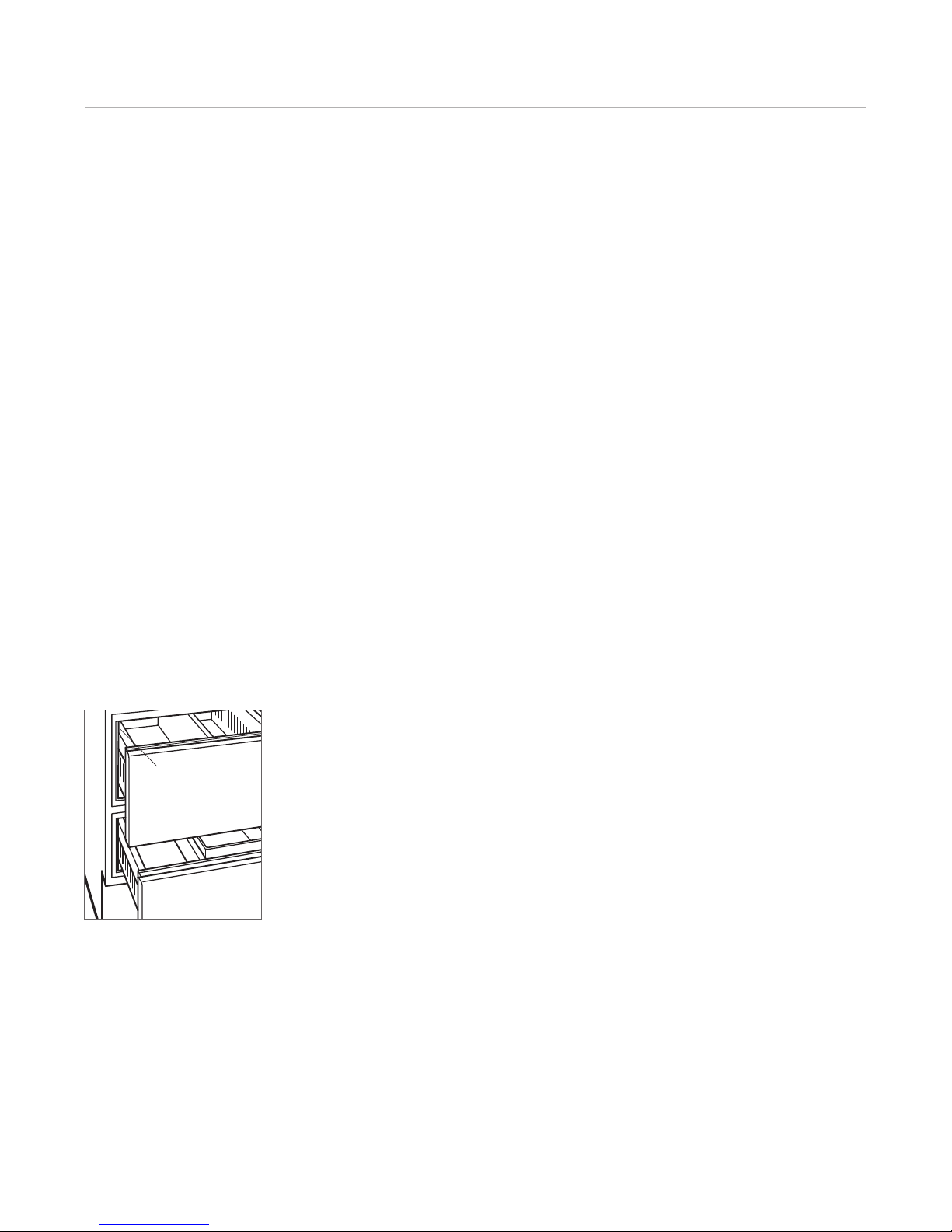

RATING PLATE
Location of rating plate.
• Cordless drill and assorted drill bits.
• Level—2' (.6 m) and 4' (1.2 m) recommended.
• 4' (1.2 m) of
1
/4" copper tubing and saddle valve for the
water line (4200880)—do not use self-piercing valves.
• Copper tubing cutter.
• Masonite, plywood,
1
/8" pressed fiberboard, cardboard
or other suitable material to protect finished flooring.
• Appropriate materials to cover and protect the home
and its furnishings during installation.
Page 4
Model Specifications 4
27" (686)
14"(356)
13
/16"
(21)
341/2"
(876)
24"
(610)
203/8"
(518)
101/4"
(260)
131/4"
(337)
DIMENSIONS WILL VARY WITH PANEL THICKNESS
1
/2"
(13)
3
/8"
(10)
191/2"
(495)
251/2"
(648)
45/8"
(117)
80"
(
2032)
TO TOP OF
OPENNG
24" (610)
789/16"
(1995)
93/4"
(248)
4"
(102)
HEIGHT DIMENSIONS ±
1
/2" (13)
27" (686)
341/2"
(876)
24"
(610)
203/8"
(518)
DIMENSIONS WILL VARY WITH PANEL THICKNESS
1
/2"
(13)
3
/8"
(10)
191/2"
(495)
257/8" (657)
24" (
610)
93/4" (248)
4"
(102)
101/4"
(260)
131/4"
(337)
HEIGHT DIMENSIONS ±
1
/2" (13)

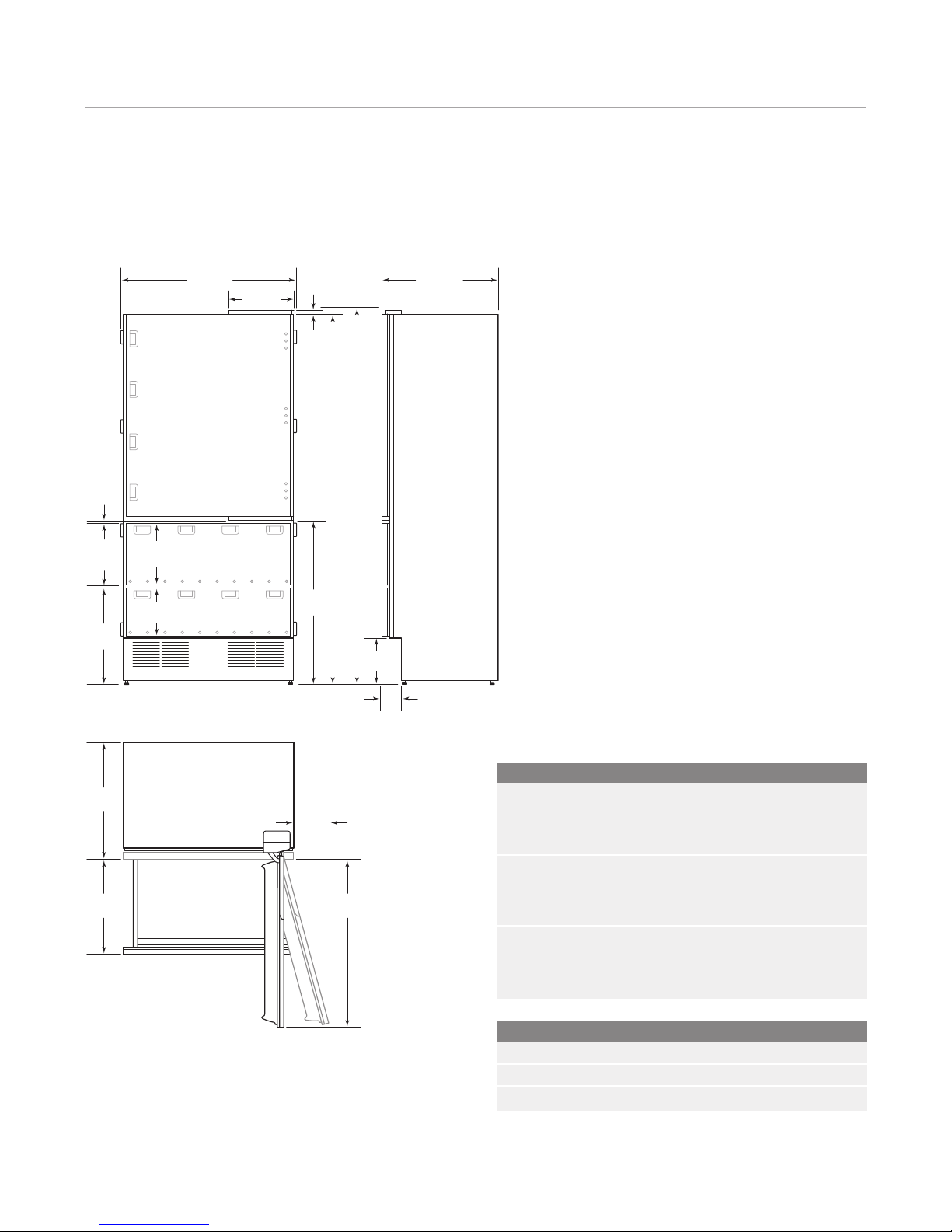

Overall Dimensions
27" (686) MODELS
MODELS 700TR, 700TF(I) AND 700TC(I)
TALL UNITS
MODELS 700BR, 700BF(I) AND 700BC(I)
DRAWER UNITS
Page 5
Model Specifications 5
36" (
914)
14"(356)
80"
(2032)
TO TOP OF
OPENNG
24" (
610)
15/16"
(33)
7713/16"
(
1976)
341/2"
(876)
24"
(610)
203/8"
(
518)
101/4"
(260)
131/4"
(337)
93/4"
(248)
4"
(102)
DIMENSIONS WILL VARY WITH PANEL THICKNESS
1
/2"
(
13)
3
/8"
(
10)
191/2"
(495)
341/2"
(876)
7" (178)
HEIGHT DIMENSIONS ±
1
/2" (13)
subzero.com

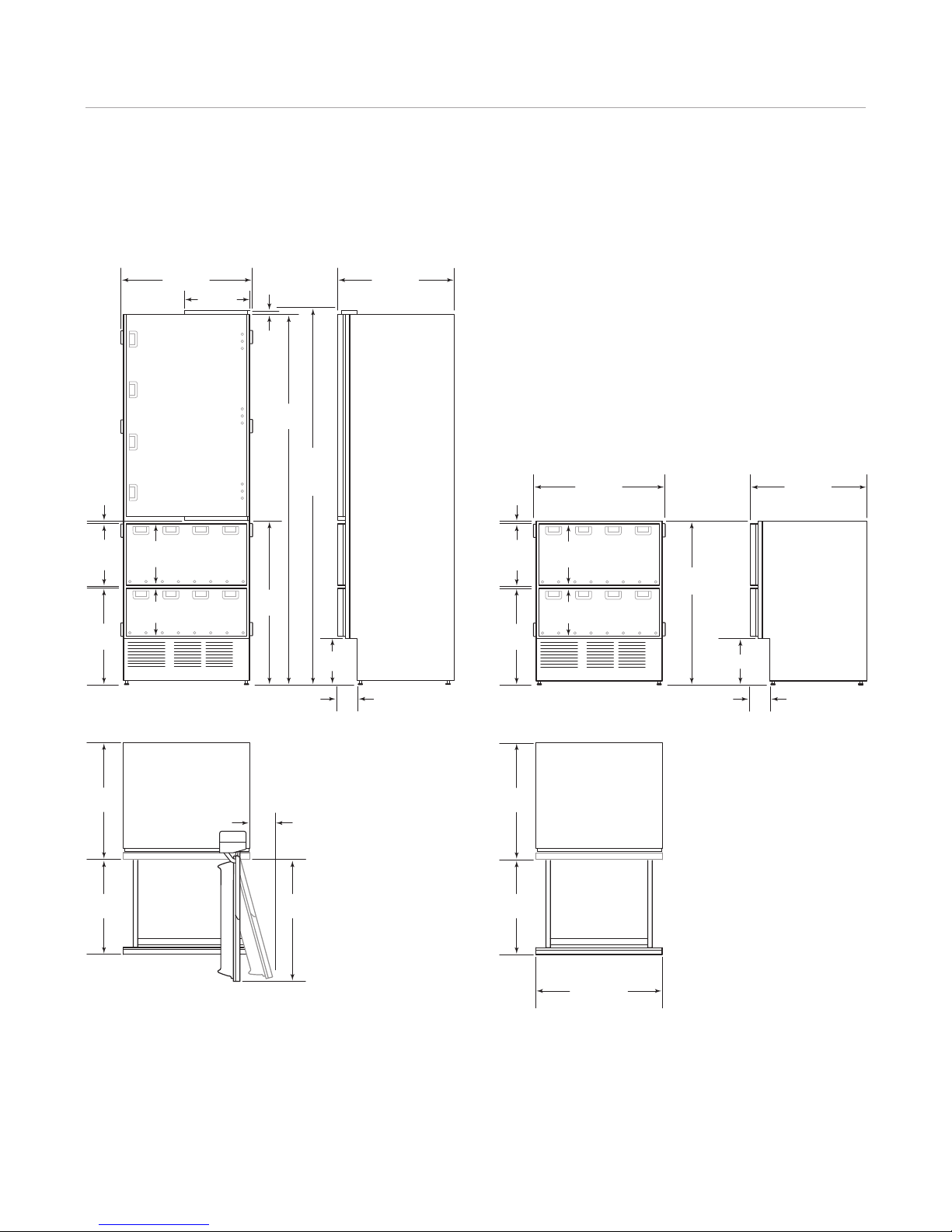

Overall Dimensions
36" (914) MODELS
Interior Capacity and Weight
Interior Capacity R cu ft (L) F cu ft (L)
27" (686 ) TALL UNITS
700TR 15.5 (439)
700TF(I) 15.3 (433)
700TC(I) 10.2 (289) 5.1 (144)
27" (686 ) D RAWER UNITS
700BR 5.3 (150)
700BF(I) 5.1 (144)
700BC(I) 2.9 (82) 2.1 (59)
36" (914 ) TALL UNITS
736TR 20.9 (592)
736TFI 21.5 (609)
736TCI 13.3 (377) 7.1 (201)
MODELS 736TR, 736TFI AND 736TCI
TALL UNITS
Shipping Weight lbs (kg)
700TR, 700TF(I) and 700TC(I) 360 (163)
700BR, 700BF(I) and 700BC(I) 190 (86)
736TR, 736TFI and 736TCI 480 (218)
Page 6

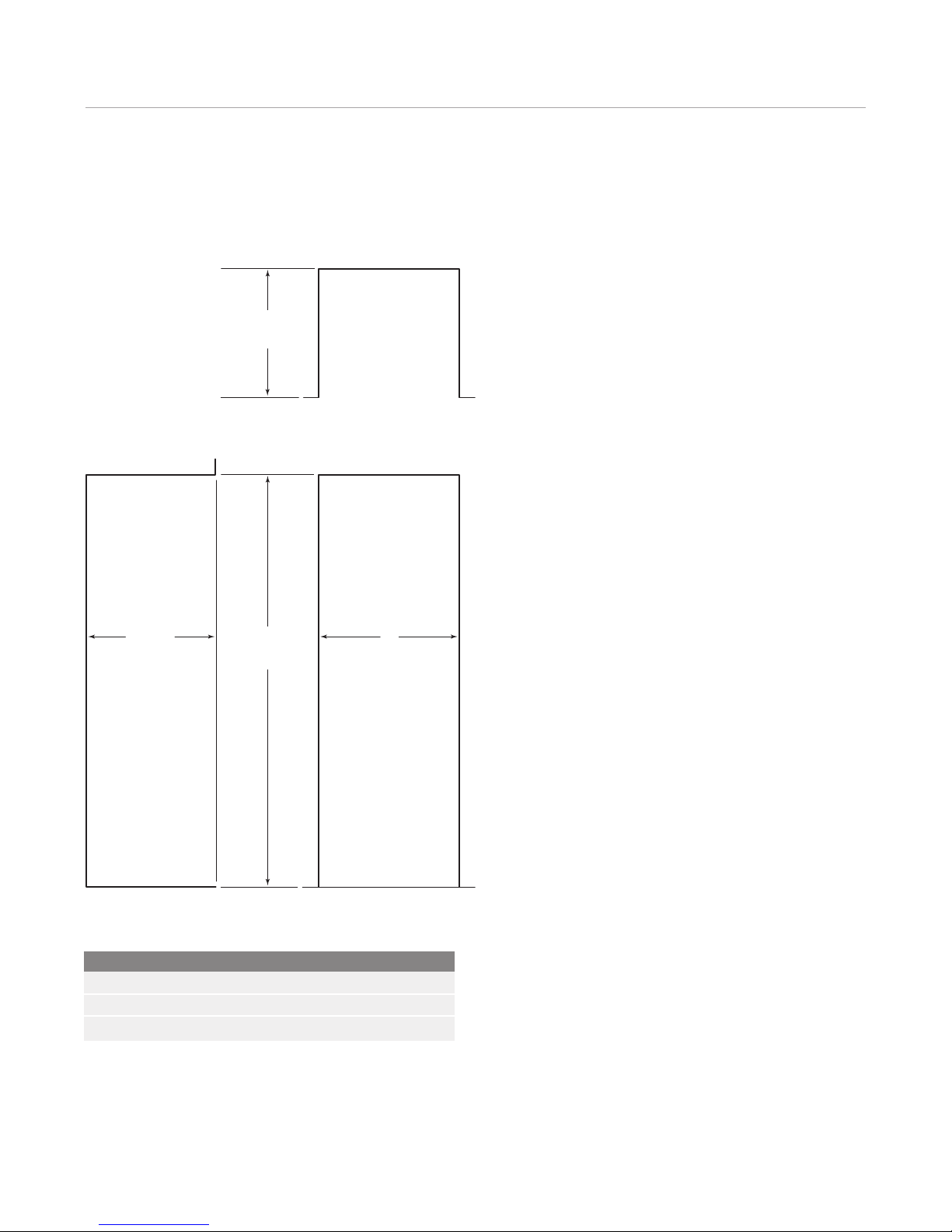

Site Preparation 6
25" (635)
OPENING
DEPTH
A
OPENING WIDTH
25" (635)
OPENING DEPTH
B
OPENING
HEIGHT
TOP VIEW
FRONT VIEWSIDE VIEW

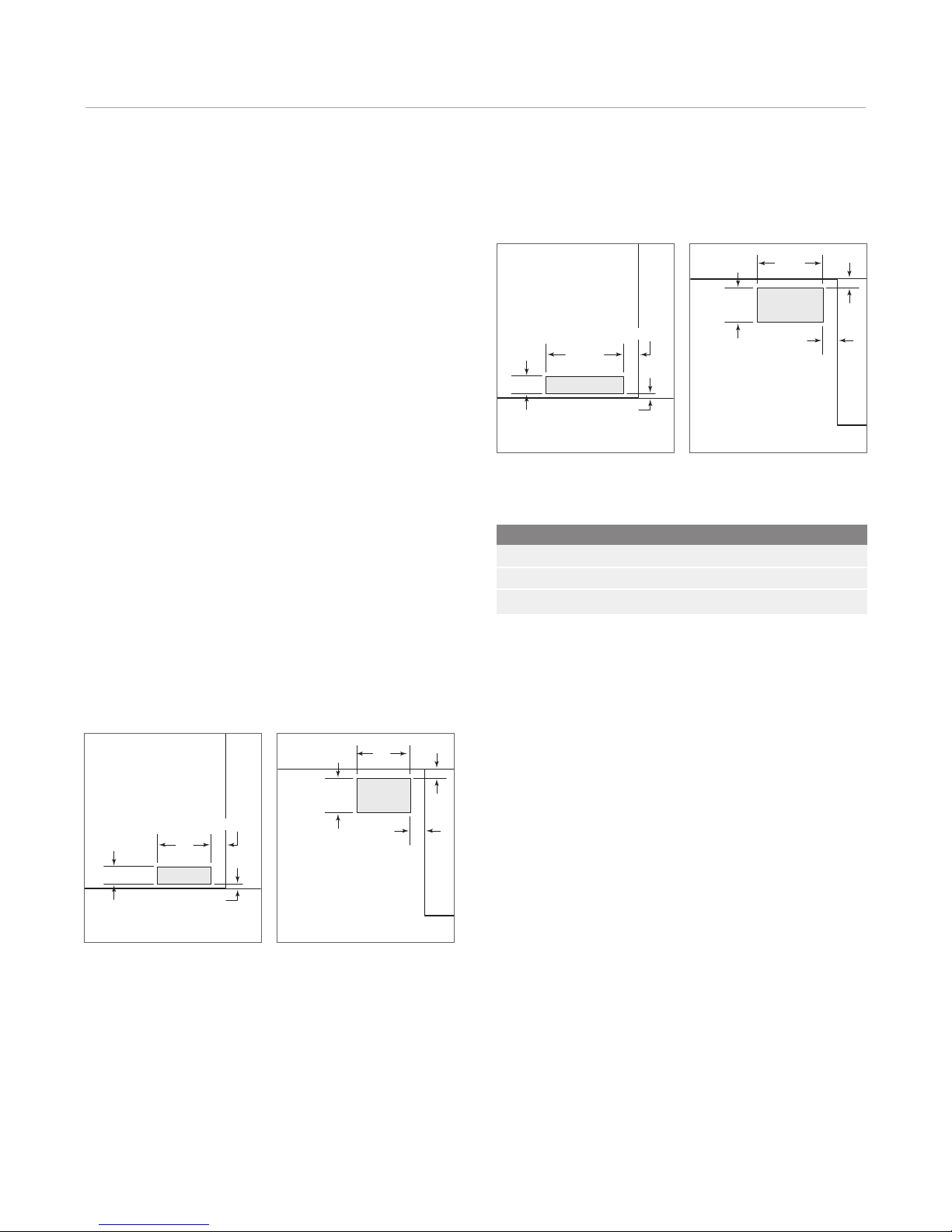

Opening Dimensions
INTEGRATED MODELS
Opening Width A
700TR, 700TF(I) and 700TC(I) 27" (686)
700BR, 700BF(I) and 700BC(I) 27" (686)
736TR, 736TFI and 736TCI 36" (914)
IMPORTANT NOTE: The depth of each integrated model is
24" (610) from the front of the unit to its back. Your design may
necessitate moving the unit back or cabinets forward to achieve
a flush fit. This will require a minimum rough opening depth of
25" (635).
Page 7
Site Preparation 7
13" (330)
1
/4" (6)
41/2"
(
114
)
POSITION OUTLET WITH
GROUNDING PRONG
TO THE RIGHT
FLOOR
21/2" (64)
FRONT VIEW
171/2" (445)
41/2"
(
114
)
POSITION OUTLET WITH
GROUNDING PRONG
TO THE RIGHT
FRONT VIEW
FLOOR
21/2" (64)
1
/4" (6)
subzero.com

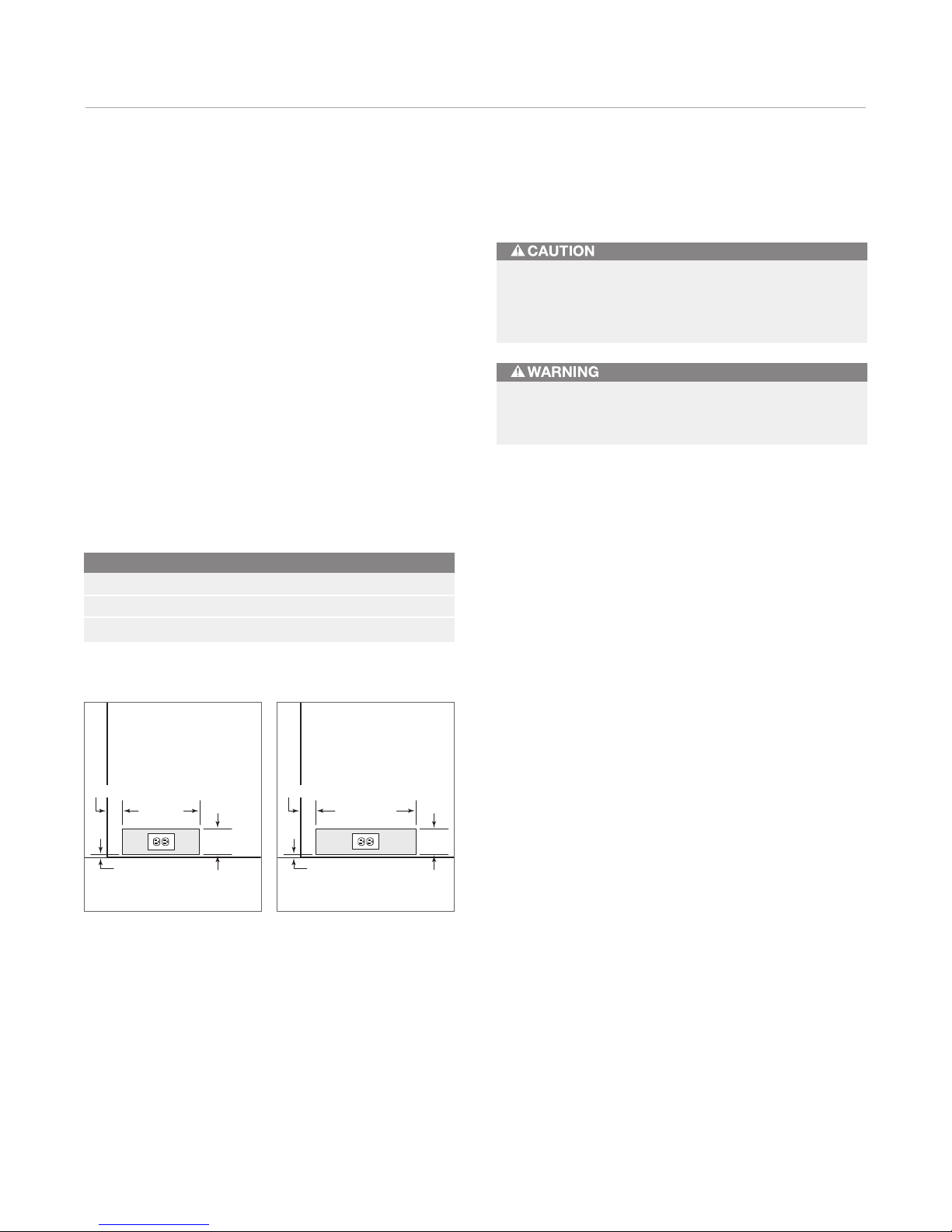

Electrical Requirements
he electrical supply should be located within the shaded
T
area shown in the illustrations. Follow the National
Electrical Code and local codes and ordinances when
installing the receptacle. A separate circuit, servicing only
this appliance is required.
IMPORTANT NOTE: It is critical that the electrical outlet be
located within the shaded area shown so it does not interfere with installation of the anti-tip bracket. It must be
flush with the back wall and positioned with the grounding
prong to the right of the thinner blades.
IMPORTANT NOTE: A ground fault circuit interrupter
(GFCI) is not recommended and may cause interruption of
operation.
The outlet must be checked by a qualified electrician
o be sure that it is wired with the correct polarity.
t
Verify that the outlet is properly grounded.
Do not use an extension cord or two-prong adapter.
Do not remove the power supply cord ground prong.
Electrical Requirements
Power Supply 115 V AC, 60 Hz
Circuit Breaker 15 amp
Receptacle 3-prong grounding-type
27" (686) models. 36" (914) models.
Page 8
Site Preparation 8
3" (76)
9"
(229)
3
/4"
(19)
FLOOR
21/2" (64)
FRONT VIEW
9"
(229)
6"
(152)
TOP VIEW
11/2"
(38)
21/2"
(64)
BACK
WALL
131/2"
(343)
3" (76)
FRONT VIEW
3
/4"
(19)
FLOOR
21/2" (
64)
1
3
1
/2"
(343)
T
OP VIEW
6
"
(152)
11/2"
(38)
21/2"
(
64)
BACK
W
ALL
Plumbing Requirements
or integrated models with an automatic ice maker, the
F
water supply line should be located through the floor or
back wall, within the shaded area shown in the illustrations. Routing the line in these locations will avoid any
interference with the anti-tip bracket.
The water supply line should be connected to the house
supply with an easily accessible shut-off valve between
the supply and the unit. Do not use self-piercing valves.
A saddle valve kit (4200880) is available from your
Sub-Zero dealer.
An in-line filter is required when water conditions have
a high sediment content.
A reverse osmosis system can be used provided there is
constant water pressure of 20 psi (1.4 bar) to 100 psi
(6.9 bar) supplied to the unit at all times. In some cases,
a reverse osmosis water filter system may not be able to
maintain the minimum pressure consistently.
IMPORTANT NOTE: Do not route the water supply line in
front of the compressor tray. The tray must be slid forward
for service.
36" (914) models.
Plumbing Requirements
Water Supply Line
1
/4" OD copper line
Water Pressure 20 –100 psi (1.4– 6.9 bar)
Excess Water Line for Connection 27" (686)
27" (686) models.
Page 9
Site Preparation 9
FINISHED FLOORING
UNDERLAYMENT
CONCRETE
FLOOR
WALL PLATE
SUBFLOORING
11/2"
min
(38)
FINISHED FLOORING
UNDERLAYMENT
CONCRETE
FLOOR
WALL PLATE
SUBFLOORING
subzero.com

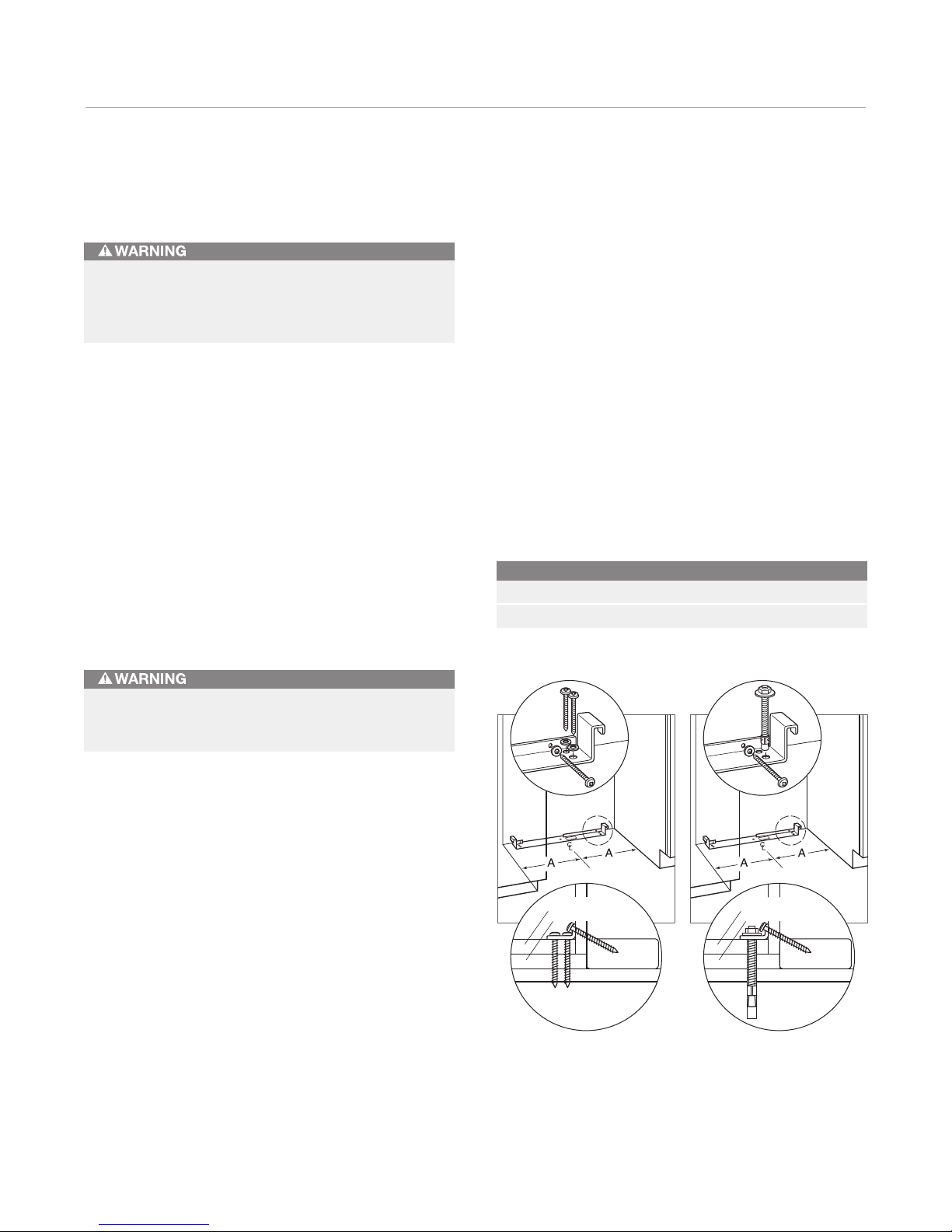

Anti-Tip Bracket Installation
WOOD FLOOR APPLICATIONS
To prevent the unit from tipping forward and provide
stable installation, the unit must be secured in place
a
with the anti-tip brackets shipped with the unit.
An anti-tip bracket and hardware is provided with the integrated unit. Placement of the anti-tip bracket is critical to
a stable installation. The anti-tip bracket must be installed
on a solid base.
If you are installing the unit in a space deeper than 24"
(610), be sure to locate the anti-tip bracket so that it
engages the unit properly. It is important that the anti-tip
bracket is placed 24" (610) from the front of the unit
(without panels) to the back of the anti-tip bracket.
IMPORTANT NOTE: In some installations the subflooring
or finished floor may require angling the wood screws
used to fasten the anti-tip bracket to the back wall. Refer
to the illustrations.
Make sure there are no electrical wires or plumbing
in the area which the screws could penetrate.
Use the six #12 x 21/2" wood screws and the six1/4" flat
washers provided. Drill pilot holes
3
/16" (5) diameter
maximum, and be sure that the screws penetrate through
the flooring material and into the wall plate a minimum of
3
/4" (19). Be sure that the screws hold tight. Refer to the
illustration below.
CONCRETE FLOOR APPLICATIONS
Use the two3/8" x 33/4" concrete wedge anchors, two
#12 x 2
1
/2" wood screws and two1/4" flat washers
provided. Be sure that the anchors and screws hold tight.
Refer to the illustration below.
Anti-Tip Bracket Placement A
27" (686) Models 131/2" (343)
36" (914) Models 18" (457)
Wood floors. Concrete floors.
Page 10
Site Preparation 10
Anti-Tip Bracket Installation
INSTALL CONCRETE WEDGE ANCHORS:
1) Drill a3/8" (10) diameter hole any depth exceeding the
minimum embedment. Clean the hole or continue
drilling additional depth to accommodate drill fines.
Use a carbide drill bit manufactured within ANSI
B94.12-77.
2) Assemble the washer and nut flush with the end of
anchor to protect threads. Drive the anchor through the
material to be fastened until the washer is flush with
the surface material.
3) Expand the anchor by tightening the nut 3–5 turns past
hand-tight position or to 25 foot-pounds of torque.
Always wear safety glasses and use other necessary
protective devices or apparel when installing or
working with anchors.
Anchors are not recommended for use in lightweight
masonry material such as block or brick, or for use
in new concrete which has not had sufficient time to
cure. The use of core drills is not recommended to
drill holes for the anchors.
Unpacking and Moving
ncrate the unit and inspect for any damages. Remove
U
the wood base and discard the shipping bolts that hold the
wood base to the bottom of the unit. Remove and discard
all packing materials.
Retract the front leveling legs all the way up to allow the
unit to be moved into position more easily. You will extend
the leveling legs when the unit is in its final position to
reduce the possibility of the unit tipping forward.
Use an appliance dolly to move the integrated unit near
the installation opening. Position the dolly at the side of
the unit to prevent damage to finished surfaces.
Page 11
Integrated Installation 11
UNIT
ON/OFF
C
O
L
D
ER
W
A
R
M
ER
R
EFR
I
G
ER
A
T
O
R
FR
EEZ
ER
C
O
LD
ER
W
A
R
M
ER
I
C
E
O
N
/
O
F
F
O
N
/
O
F
F
U
N
I
T
O
N
/
O
F
F
UNIT
ON/OFF
subzero.com

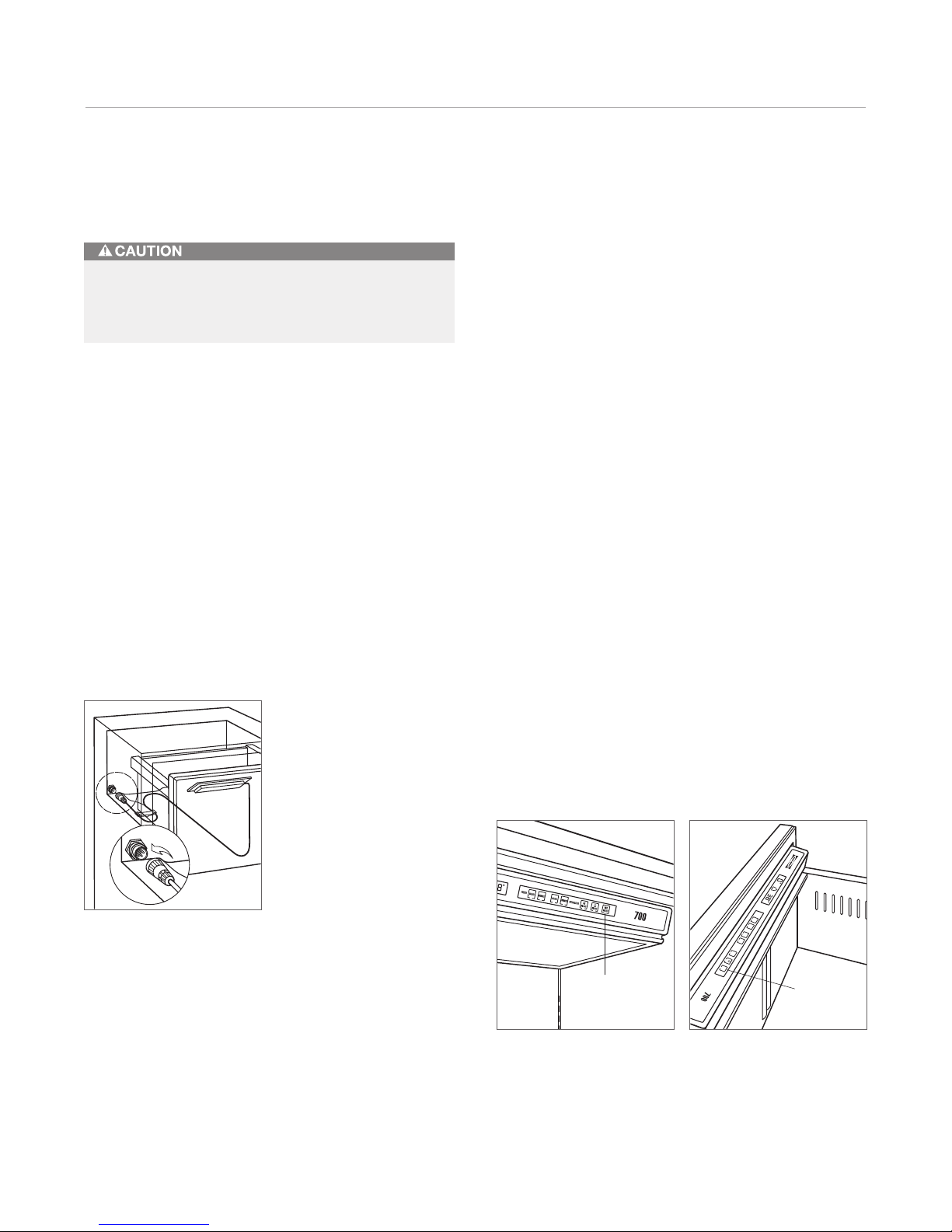

Position the Unit
Before moving the integrated unit into position,
rotect any finished flooring, secure the door closed
p
and remove the drawers.
IMPORTANT NOTE: For drawer units, the top drawer has a
control cable that needs to be disconnected before
removing this drawer. Refer to the illustration below for
placement and how to disconnect this fitting.
The drawers should be placed aside until you are ready for
installation of the panels. Remove the decorative top and
side molding pieces and the kickplate/grille.
If two integrated units are installed closer than 2" (51) to
one another, it is necessary to use the Sub-Zero dual
installation heater kit (7007529). Refer to dual installations
on page 18 for additional information. The heater plate
from this kit must be attached to the left side exterior of
the right-hand unit before the units are slid into position.
IMPORTANT NOTE: I
f for any reason the integrated unit
has been laid on its back or side, you must allow the unit
to stand upright for a minimum of 24 hours before connecting power.
Plug the power cord into the electrical outlet. With power
applied to the unit, check for lighting and cooling. Press
the UNIT ON/OFF key pad on the control panel. Refer to
the illustrations below. Once you are satisfied that the unit
is operating properly, shut off power to the electrical outlet
at the circuit breaker and proceed.
Pre-level the unit before moving into position. This is to
allow the unit to engage the anti-tip bracket properly.
Slide the unit into position, making sure the anti-tip
bracket is engaged properly. Extend the front leveling legs
down approximately
3
/16" (5) to make additional adjust-
ments easier.
When the integrated unit is installed, the anti-tip bracket
will be positioned just below the engaging bracket on the
unit. It is not necessary to raise the unit up so that it locks
into the anti-tip bracket, but the unit must be in alignment
with the anti-tip bracket.
Control cable—drawer unit.
The floor under the integrated unit must be at the same
level as the surrounding finished floor to allow the compressor tray to be slid forward for service.
On/off key pad—tall unit. On/off key pad—drawer unit.
Page 12
Integrated Installation 12
TOP
MOLDING
SIDE
MOLDING

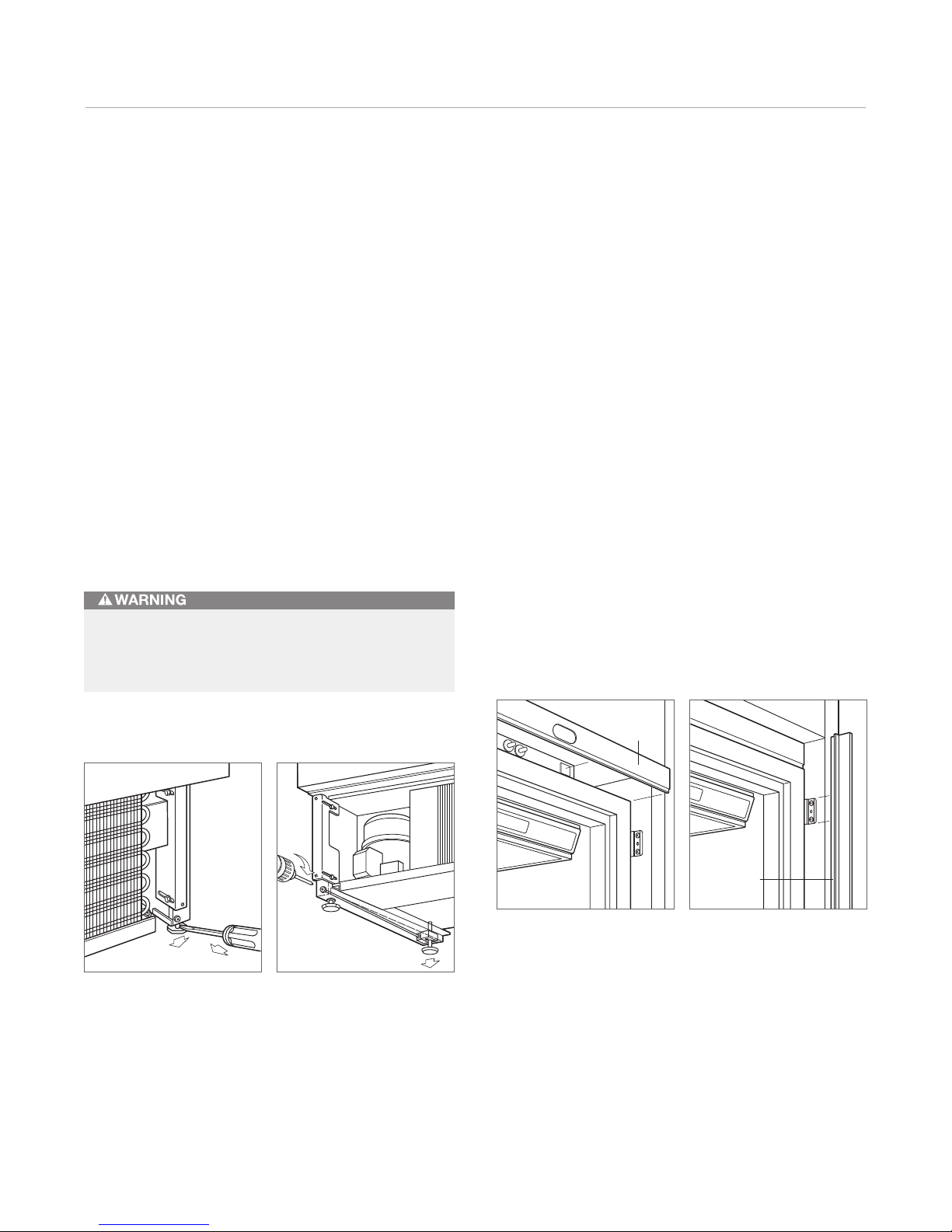

Level the Unit
evel the integrated unit by turning the front leveling legs
L
clockwise to raise the unit, or counterclockwise to lower it.
To assist you in adjusting the front leveling legs up or
down, use a standard screwdriver blade and place it in the
front leveling leg as shown in the illustration below.
The rear leveling legs are adjusted from the front of the
base by turning the Phillips head screw as shown in the
illustration below.
IMPORTANT NOTE: The rear leveling legs will only move
1
/16" (2) for every 18 revolutions on the Phillips head
screw. Do not over torque. Use the lowest torque setting
on any power screwdriver. Do not turn the rear leveling
legs by hand. Damage will occur if you turn these legs.
Once the unit is leveled, secure the unit in place by using
the side mounting clips and #8 x
To reduce the possibility of the unit tipping forward,
the front leveling legs must be in contact with the
floor.
1
/2" screws provided.
Molding Installation
he decorative white molding strips for the side and top of
T
the unit can be snapped into place. The top molding strip
used on integrated tall units, must be installed before the
side molding can be attached. The top molding strip is
held in place by double-sided velcro fasteners. Refer to
the illustration below for positioning of the top molding.
The illustration below shows side molding installation for
tall units. Installation of the side molding for base units is
the same. For installations where units are side by side,
refer to dual installations on page 18.
The molding strips may be painted to match surrounding
cabinetry, if desired. Follow these easy steps:
• Rough up the surface to be painted with fine grit
sandpaper.
• Wipe with alcohol to ensure that the surface is clean
and dry.
• Use an appliance or industrial grade, oil base, high
gloss enamel paint.
Front leveling legs. Rear leveling legs.
Top molding. Side molding.
Page 13
Integrated Installation 13
PEX
TUBING
subzero.com

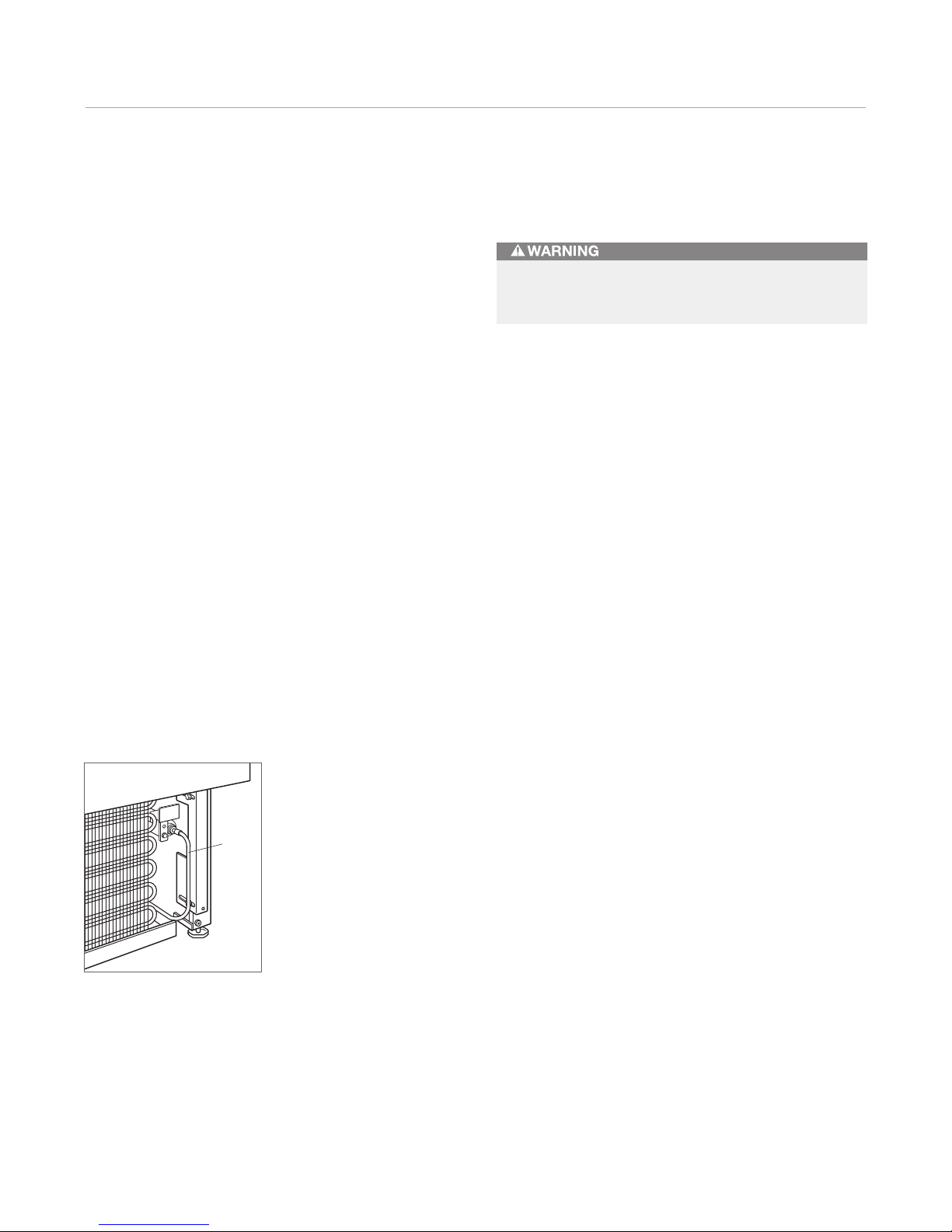

Water Line Connection
QUICK CONNECT WATER VALVE
For units with an ice maker, the quick connect water valve
and PEX tubing are located on the bottom right side of the
unit.
To connect the ice maker water line, attach the union
fitting to the copper house water supply line. Pull the
coiled gray PEX tubing with red cap and captured nut
toward the house water supply line. Remove and discard
the red cap. Then attach the tubing to the union with the
nut. Tighten all connections. Recoil the excess tubing
under the unit. Refer to the illustration below.
Turn on the water supply and check all fittings for leaks.
Make certain the electrical harness is attached to the
solenoid.
In areas with water of high mineral content, an in-line
water filter is recommended. Make sure the filter is accessible for replacement when necessary.
The ice maker will not fill with water immediately. Allow 24
hours for proper ice production. The first container of ice
should be discarded. As with any new connection, there
may be impurities in the ice from the water supply line.
Shut power off at the circuit breaker before making
lectrical connection to the solenoid.
e
Top anchoring.
Page 14
Integrated Installation 14
MOUNTING
BRACKET

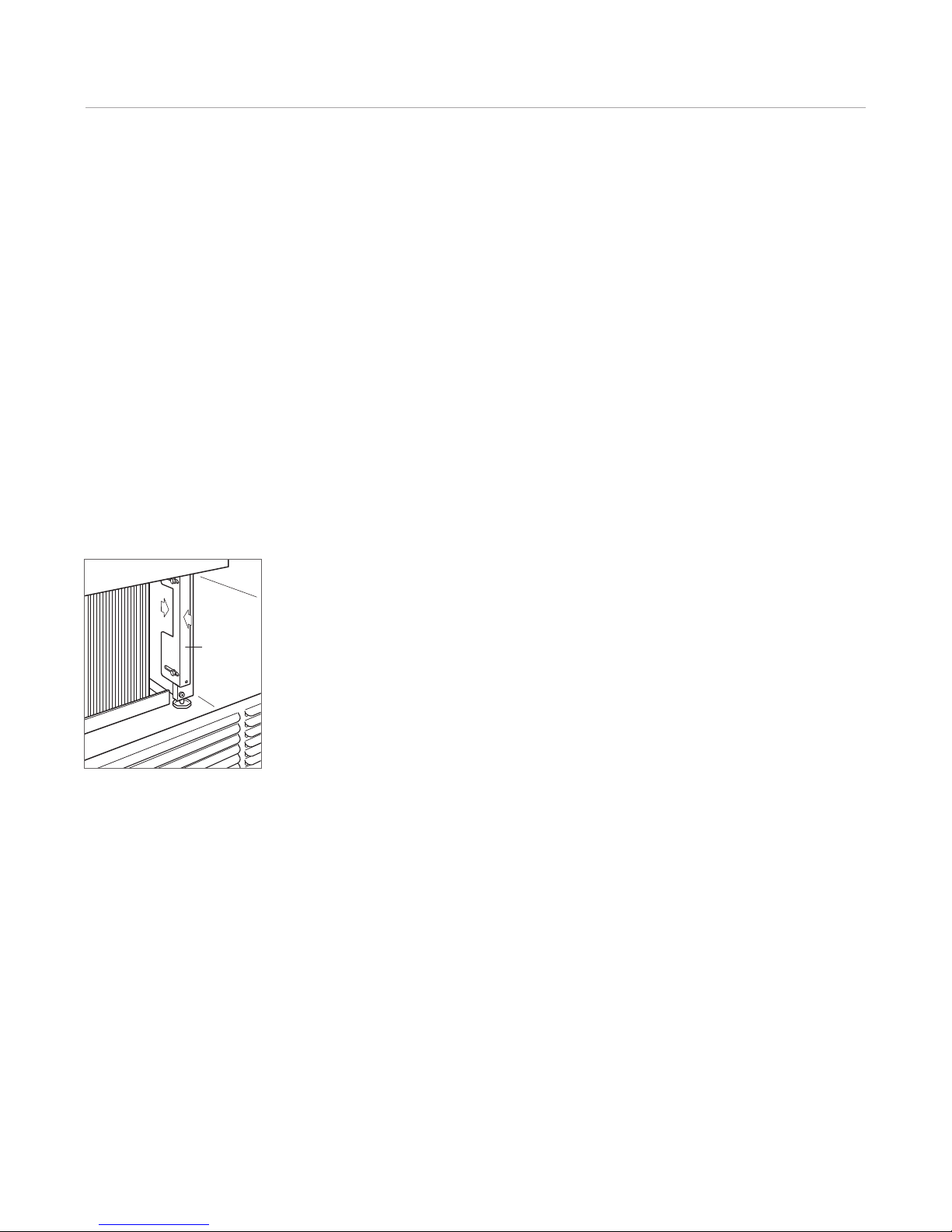

Kickplate/Grille Installation
nce the integrated unit is secured, the kickplate/grille
O
can be installed. The mounting bracket may be adjusted
slightly forward or back so the kickplate/grille will fit flush
with the surrounding area. Refer to the illustration below.
The kickplate/grille must be removable for servicing. The
floor cannot interfere with removal.
IMPORTANT NOTE: The unit must be allowed to have
ventilation through the fins of the kickplate/grille. You may
cover the solid area, but do not block the fins. The lower
drawer panel may hang in front of the fins, but the baseboard molding must not cover them.
Turn power back on to the electrical outlet.
he kickplate/grille may be painted another color, if
T
desired. Follow these easy steps:
• Rough up the surface to be painted with fine grit sand-
paper.
• Wipe with alcohol to ensure that the surface is clean
and dry.
• Use an appliance or industrial grade, oil base, high
gloss enamel paint.
Kickplate/grille installation.
Page 15
Integrated Installation 15
BACK OF PANEL
TEMPLATE FLUSH WITH
BOTTOM OF PANEL
SIDE EDGE GAP WILL VARY
subzero.com
Panel Installation
he integrated design uses custom wood or other decora-
T
tive panels and handles provided by the customer.
Stainless steel panels are available as sales accessories
through your Sub-Zero dealer. To obtain local dealer information, visit the showroom locator section of our website,
subzero.com.
Check panel dimensions before proceeding. Additional
panel information can be found in the Sub-Zero design
guide. Visit our website, subzero.com. If you have questions, contact your Sub-Zero dealer or cabinet supplier.
IMPORTANT NOTE: A portion of the backside of the deco-
rative panels will need to be finished, as they will be
exposed when the doors are open.
D-style handles are recommended. Handles should be
located on the opposite side from the hinge, centered on
the cabinet door, and on the top center area of the drawer
panel. Screw heads may have to be countersunk to ensure
that the hardware does not interfere with the panel fitting
flush with the door or drawer.

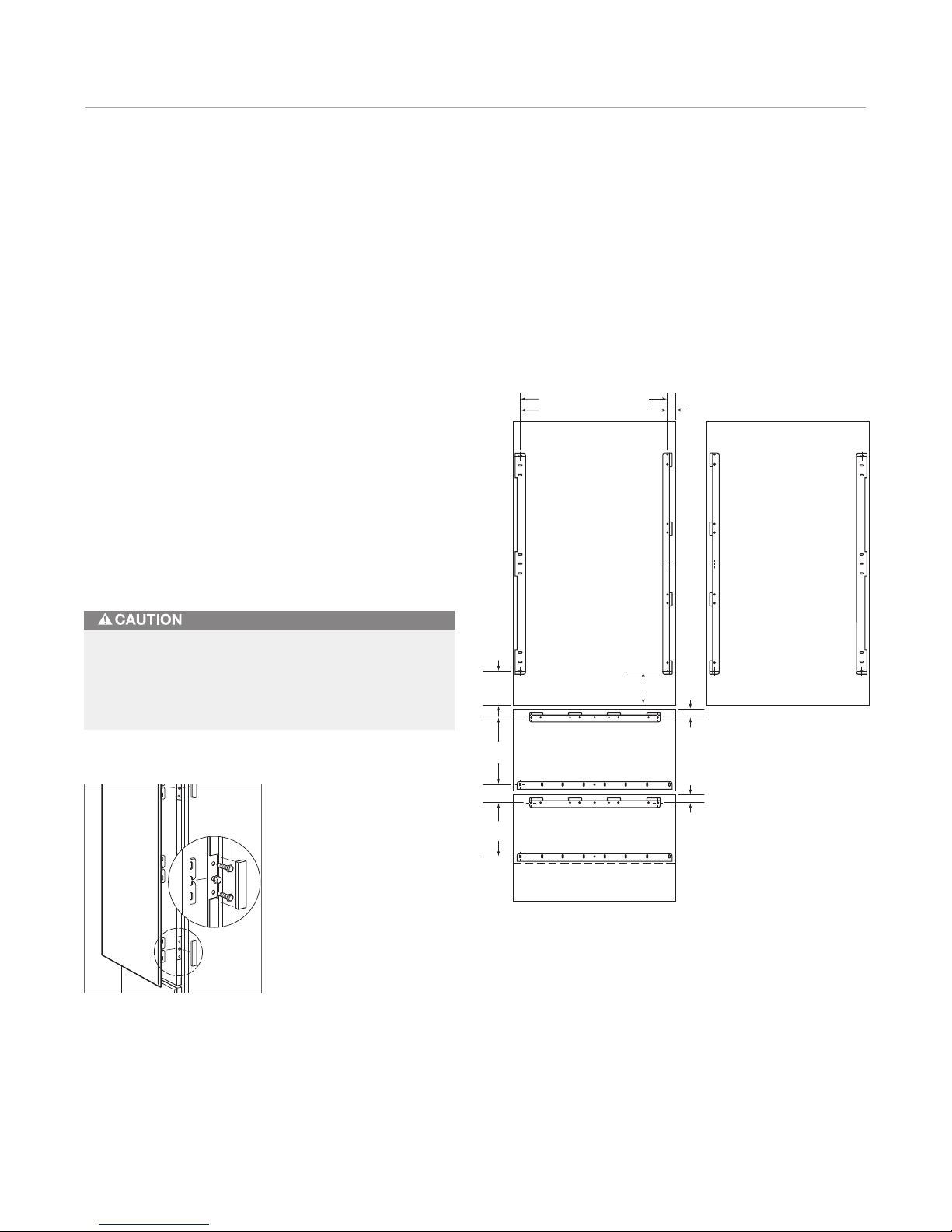

DOOR PANEL INSTALLATION
Remove the two pieces of mounting hardware attached to
the front of the door and set aside. Place the door panel
lying face down on a protected surface to ensure that the
front is not scratched or damaged.
Position the plastic template (provided) flush with the
bottom edge of the door panel. Be sure you are following
the exact location for the right-hand (RH) or left-hand (LH)
door position. Refer to the illustration below.
IMPORTANT NOTE: The template has two sides, one for
the door and one for drawers. Make sure you use the
proper side and holes. Remember that you are viewing the
door panel from the back side in the illustration.
Once you have located the proper position for the bracket,
mark the pilot holes, remove the template and drill pilot
holes for mounting the bracket. Start with a few holes,
position the bracket, drill the remaining holes and secure
the mounting bracket with the #8 x
1
/2" screws provided.
It is recommended that the door panel of the tall unit be
installed first and then the upper and lower drawer panels.
Integrated Panel Requirements
MAX WEIGHT PER PANEL
27" (686) Door Panel 40 lbs (18 kg)
27" (686) Drawer Panel 12 lbs (5 kg)
36" (914) Door Panel 53 lbs (24 kg)
36" (914) Drawer Panel 16 lbs (7 kg)
MIN PANEL TH ICKNESS
All Panels
5
/8" (16)
Exercise caution when drilling holes for mounting
hardware. This is especially critical with inset panels.
Template position—door.
Page 16
Integrated Installation 16
53/16" (132)
55/16"
(
135)
87/16"
(214)
115/16"
(287)
11/4"
(32)
11/4"
(32)
237/8" (
606)
F
OR 27" UNITS
3
2
7
/8" (835) FOR 36"UNIT S
LH DOOR SWING
BACK OF PANEL
RH DOOR SWING
BACK OF PANEL
BACK OF PANEL
BACK OF PANEL
17/16"(37)
Panel Installation
DOOR PANEL INSTALLATION
Before attaching the door panel to the door, place two
screws in the center of each mounting position, just
enough that the slotted holes on the hinge side door panel
bracket will slide under the heads. These positioning
screws will support the door panel during installation and
adjustment. Refer to the illustration below.
Install the door panel by engaging the tabbed bracket to
the handle side of the door first and then sliding the hinge
side mounting bracket onto the positioning screws on the
hinge side of the door. The panel can be adjusted
up and down and side to side.
Once the door panel is in place and adjusted correctly,
attach the six remaining #10 x
1
/2" screws to the hinge
side mounting bracket and install the magnetic decorative
caps as shown in the illustration below.
As the reveal between cabinets and the unit
decreases, the potential exists for severe finger
pinching if fingers are placed in the opening when
the door is closing.
1
/4" (6)
PANEL BRACKET POSITIONING
The illustration below shows mounting hardware location
for door and drawer panels. Dimensions are based on a
1
/8" (3) reveal. A reveal of up to1/4" (6) is possible, but
panel dimensions need to be adjusted accordingly.
Door panel installation.
Page 17
Integrated Installation 17
BACK OF PANEL
TEMPLATE FLUSH WITH
TOP OF PANEL
SIDE
EDGE GAP
WILL VARY
TABBED BRACKET
L BRACKET
subzero.com
Panel Installation
ith the two mounting brackets in place, install the
DRAWER PANEL INSTALLATION
Remove the mounting hardware provided and set aside.
As with the door panel, you should work on the back side
of each drawer panel to protect the front surface.
Position the top edge of the template (provided) flush with
the top edge of each drawer. For the top drawer, there is
only one location for the lower mounting bracket. The
bottom drawer allows a second option by inverting the
lower mounting bracket, depending on the height and
thickness of the panel. Refer to the illustration below.
Secure the template in place and mark the pilot holes.
Remove the template and drill pilot holes for mounting the
bracket. Place the mounting brackets in the proper
location with the tabbed bracket on top and ’L’ bracket on
the bottom of the panel. Fasten brackets securely with the
1
#8 x
/2" screws provided. Refer to the illustration below.
W
drawer panel by engaging the top tabbed bracket first,
then slide the lower ’L’ bracket onto the positioning
screws. Each drawer panel can be adjusted
1
/4" (6) up and
down and side to side. Fasten all screws to the lower ’L’
bracket to secure the drawer panel.
Drawers can be placed back in the unit. Reconnect the
control cable for the top drawer (drawer units only). Refer
to the illustration below.
To help with the placement of the drawer panels, examine
the lower ’L’ bracket and panel to determine the slotted
holes on the bracket that will be used. Then position
screws into the lower portion of the drawer that correspond with these slots. Leave the screws out slightly so
the slotted holes will slide under the heads.
Template position—drawer. Drawer panel installation.
Control cable—drawer unit.
Page 18
Integrated Installation 18
Dual Installations
hen two integrated units are installed closer than 2" (51)
W
to one another, it is necessary to use the Sub-Zero dual
installation heater kit (7007529 or 7007530). The heater
plate from this kit must be attached to the left side exterior
of the right-hand unit before the units are slid into
position.
Contact your Sub-Zero dealer for the proper components
and installation instructions. To obtain local dealer information, visit the showroom locator section of our website,
subzero.com. For questions relative to the installation,
call Sub-Zero at 800-222-7820.

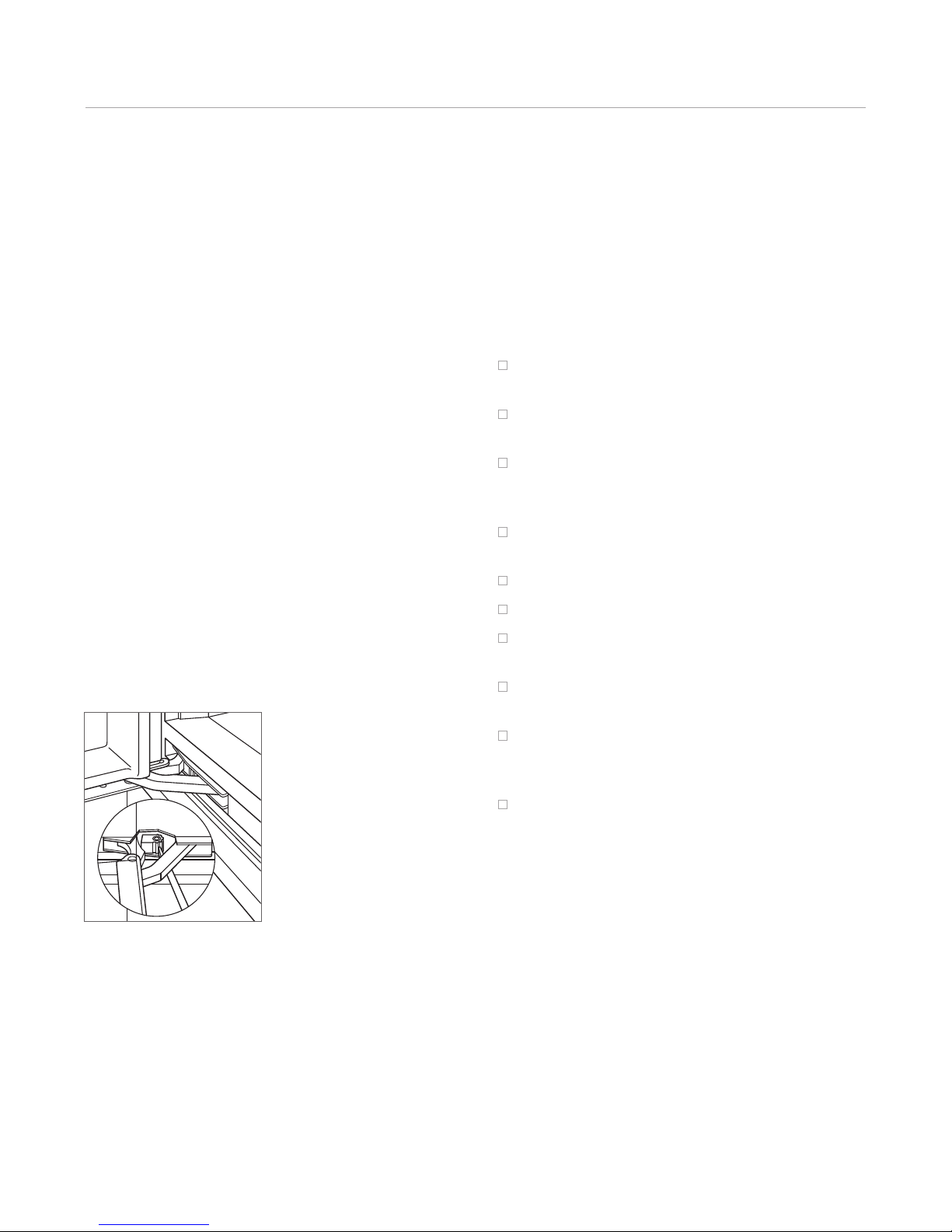

90° Door Stop
All integrated tall units have a 90° door stop built into the
hinge system. Use the blade edge of a standard screwdriver and rotate the cam in the center portion of
the hinge until you reach the stop. You must make this
adjustment to both the bottom and top hinge. Refer to the
illustration below.
Installation Checklist
o ensure a safe and proper installation, the following
T
checklist should be completed by the installer to ensure
that no part of the installation has been overlooked.
INSTALLATION CHECKLIST
Has the anti-tip bracket been installed properly and is
it making contact with the unit?
Is the unit level? Are all leveling legs making contact
with the floor?
Is the power cord plugged into a properly grounded
3-prong outlet, which has been installed in accordance
with all applicable electrical codes?
Is the water supply connected for units with an
automatic ice maker? Have you checked for leaks?
Has the kickplate/grille been installed properly?
Are panels attached securely and properly aligned?
Has the door been aligned for proper appearance and
operation?
90° door stop.
Does the customer understand the unit's operation?
Have you given the customer the warranty package?
Have any installation or service problems been noted
on the product registration card? Has the registration
card been mailed in?
Have stainless steel panels been inspected for any
imperfections? This is to be done by the dealer or
installer with the customer upon completion of the
installation. Classic, platinum and carbon stainless
steel panels are covered by a limited 60-day parts and
labor warranty for cosmetic defects.
Page 19

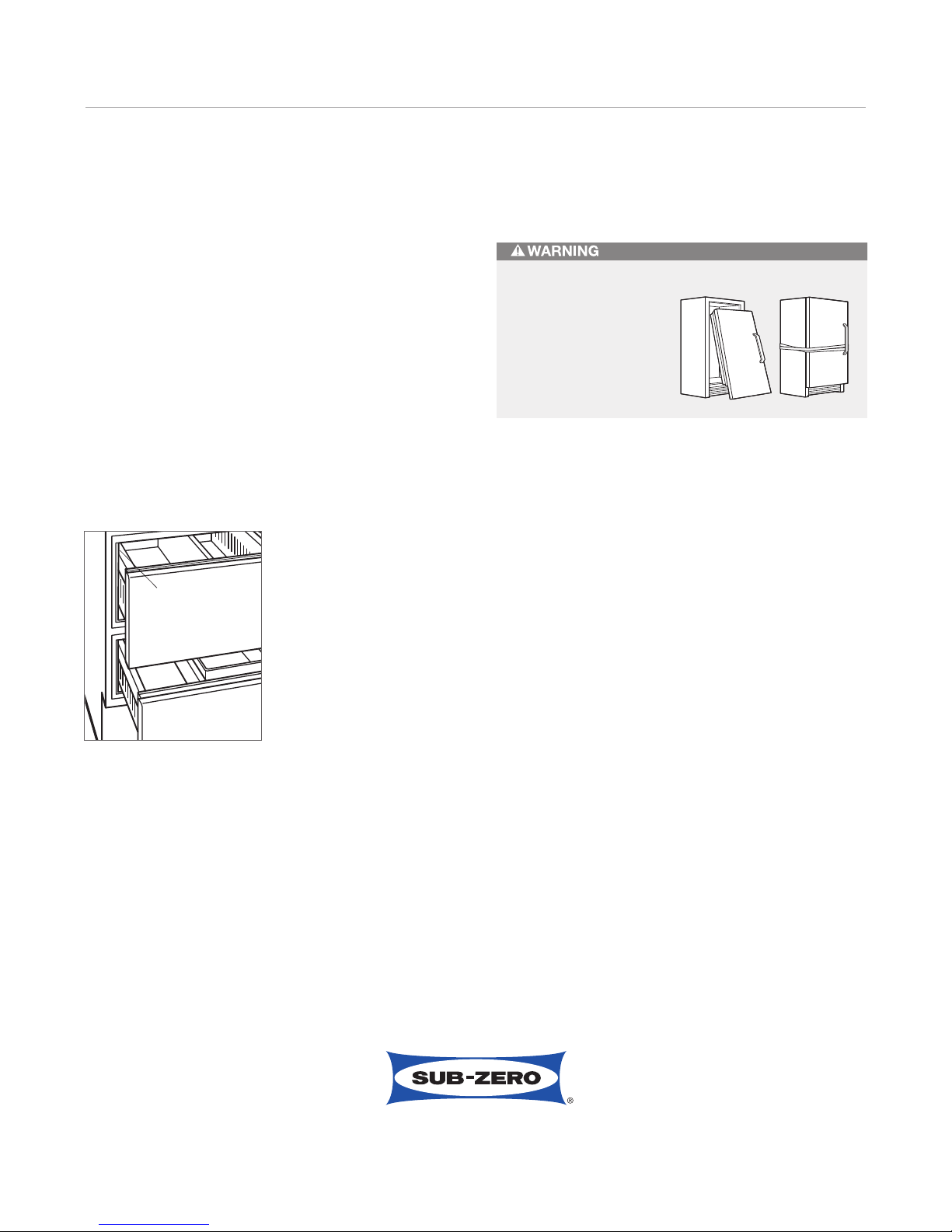

Service Information 19
subzero.com
Service Information
f service is necessary, maintain the quality built into your
I
Sub-Zero unit by calling a Sub-Zero authorized service
center.
To obtain the name and number of a Sub-Zero authorized
service center, check the contact & support section of our
website, subzero.com or call Sub-Zero customer service
at 800-222-7820.
When calling for service, you will need the model and
serial number of your unit. Both numbers are listed on the
product rating plate, located inside the cabinet, to the left
of the upper drawer. Refer to the illustration below.
If you are storing or disposing of your old refrigerator
r freezer, please do it
o
safely. Remove the
doors or tightly secure
the doors closed.
Child entrapment
accidents can be tragic.
RATING PLATE
Location of rating plate.
The information and images in this guide are the copyright property of Sub-Zero, Inc. Neither this guide nor any information or images contained
herein may be copied or used in whole or in part without the express written permission of Sub-Zero, Inc. ©Sub-Zero, Inc. all rights reserved
.
Page 20
SU B-ZER O, IN C. P. O. B OX 44 130 MA DISON , WI 5 3744 SUBZ ERO.C OM 8 00.22 2.782 0
701 2802 RE V-A 6/ 2009
Loading...
