Planning Information
Integrated Gas Multi-Function Cooktop
MODEL IM15/S
Dimensions in parentheses are in
millimeters unless otherwise specified.
7/06
1
Model IM15/S
Classic Stainless Steel
It’s really a misnomer to describe this wonderful
cooktop as a wok instrument because it is much more
than that. The large, low-profile grate will fit in nicely
with any Wolf gas cooktop.
For true wok cooking, the burner sculpts the gas flame
into a plume, focusing heat in the center of the wok,
then dispersing it outward for precisely controlled
cooking. The larger grate will handle your wok
perfectly, but also accommodate even your largest
stockpots, Dutch ovens and the like. The powerful
burner exceeds 18,000 Btu/hr (5.3 kW).
Let Wolf, the corporate companion and kitchen soul
mate of Sub-Zero, fuel your passion for cooking and
kitchen design.
The Wolf Model IM15/S 15" (381) gas
multi-function cooktop is available in
natural or LP gas, with classic stainless
steel finish. The model number followed
by (-LP) denotes an LP gas model.

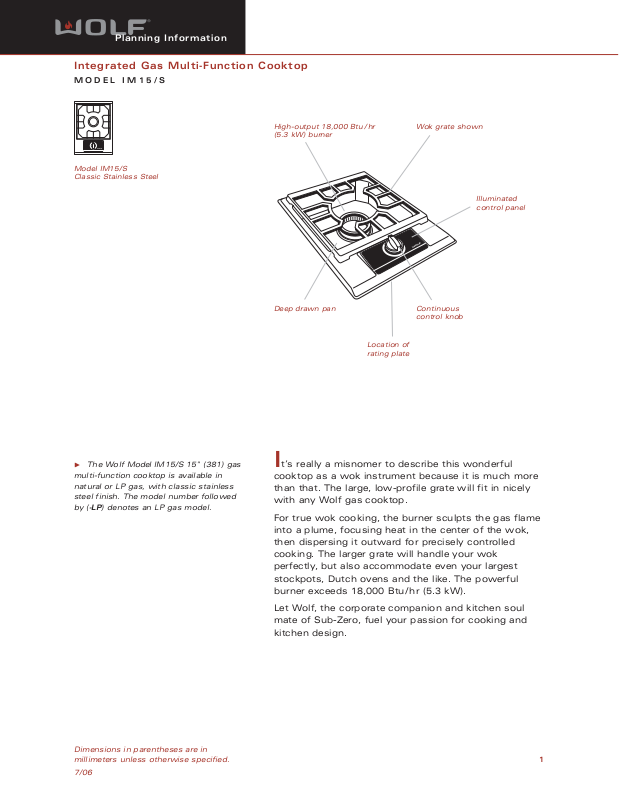

Wok grate shownHigh-output 18,000 Btu / hr
(5.3 kW) burner
Continuous
control knob
Illuminated
control panel
Deep drawn pan
Location of
rating plate
Page 2
Planning Information
Integrated Gas Multi-Function Cooktop
MODEL IM15/S
Dimensions in parentheses are in
millimeters unless otherwise specified.
Dimensions may vary by ±
1
/8" (3).
2
FEATURES
Integrated design allows for installation of
multiple cooktops or modules
Available in natural and LP gas
Stainless steel top construction with classic
stainless steel finish
High output 18,000 Btu/ hr (5.3 kW) dual-
stacked sealed burner
Automatic electronic reignition system
Illuminated control panel
Individual spark ignition system
Two interchangeable cast iron burner grates
with matte porcelain finish— wok grate and
low-profile continuous grate
Deep drawn burner pan
CSA certified for US and Canada
Two and five year residential warranty –
exclusions apply; warranty information can
be found on our website, wolfappliance.com
OVERALL DIMENSIONS
21"
(533)
OVERALL
DEPTH
15" (381)
OVERALL WIDTH
5" (127)
Page 3
Planning Information
Integrated Gas Multi-Function Cooktop
MODEL IM15/S
Dimensions in parentheses are in
millimeters unless otherwise specified.
3
SPECIFICATIONS
Overall Cooktop Width 15" (381)
Overall Cooktop Height 5" (127)
Overall Cooktop Depth 21" (533)
Cooktop Cut-Out Width 14" (356)
Cooktop Cut-Out Depth 191/4" (489)
Minimum Cabinet Depth 223/4" (578)
Minimum Height Clearance 5" (127)
Surface Burner 18,000 Btu/ hr (5.3 kW)
Gas Rating 18,000 Btu/ hr (5.3 kW)
Electrical Supply Requirements 120 V AC, 60 Hz
15 amp dedicated circuit
Power Cord 6' (1.8 m) power cord with
3-prong grounded plug
Shipping Weight 30 lbs (14 kg)
Special Note Cooktop can be installed in combination
with other cooktops or modules
Specifications are subject to change without notice.
TRIM FINISH
Classic Stainless Steel IM15/S
VENTILATION OPTIONS
30" (762) Cooktop or Pro wall
hood or liner
30" (762) or 45" (1143) downdraft
ventilation system
36" (914) Cooktop or Pro island
hood
For additional information, refer to the
Wolf Cooktop Ventilation or Pro
Ventilation sections of our website,
wolfappliance.com.
ACCESSORIES
Filler strip
Bracket supports for installation
of two integrated modules with
downdraft (Model DD30 only)
High altitude conversion kit
Accessories are available through your
Wolf dealer. To obtain local dealer
information, visit the Locator section of
our website, wolfappliance.com.
Model IM15/S
Classic Stainless Steel
Page 4
Planning Information
Integrated Gas Multi-Function Cooktop
MODEL IM15/S
Dimensions in parentheses are in
millimeters unless otherwise specified.
4

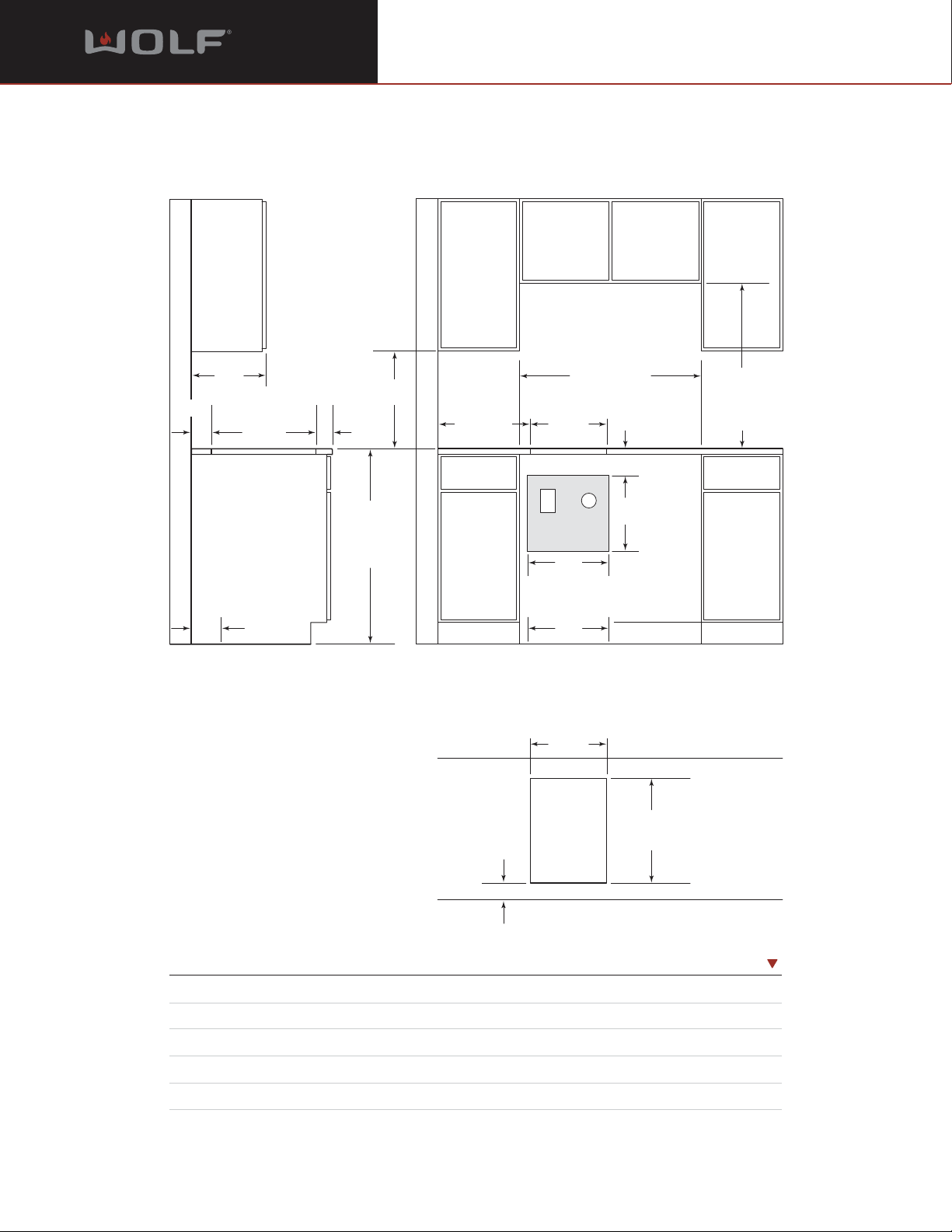

INSTALLATION SPECIFICATIONS
DIMENSIONS
Cooktop Cut-Out Width 14" (356)
Recommended Cabinet Width 33" (838)
Cooktop Cut-Out Depth 191/4" (489)
Minimum Cabinet Depth 223/4" (578)
Location of Electrical Within shaded area
See Installation Instructions shipped with unit for detailed specifications.
t
13" max
(330)
21/2"**
(64)
COOKTOP CUT-OUT
LOCATION OF GAS
SUPPLY MAY ALSO
EXTEND 5" ON FLOOR
FROM BACK WALL
5"
(127)
191/4" (489)
DEPTH
21/2"min
COUNTERTOP
(457)
(64)
36" (914)
STANDARD
FLOOR TO
HEIGHT
18"
7"*min (178)
CUT-OUT TO
COMBUSTIBLE
MATERIALS
(BOTH SIDES)
33" (838)
RECOMMENDED
CABINET WIDTH
14" (356)
COOKTOP CUT-OUT
WIDTH
5" (127)
G
E
15"
(381)
LOCATION OF GAS SUPPLY
MAY ALSO EXTEND 5" ON
FLOOR FROM BACK WALL
15"
(381)
15"
(381)
30" (762)
COUNTERTOP TO
COMBUSTIBLE
MATERIALS
ABOVE COOKTOP
NOTE: Application shown allows for installation of two 15" (381) modules side-by-side with 33" (838) recommended cabinet width. 18" (457)
recommended cabinet width for installation of single 15" (381) cooktop or module. *Minimum clearance from both side edges of cooktop cut-ou
to combustible materials up to 18" (457) above countertop. **Minimum clearance from rear edge of cooktop cut-out to combustible materials up
to 18" (457) above countertop.
21/2"min
(64)
14" (356)
COOKTOP CUT-OUT
WIDTH
FRONT OF COUNTERTOP
191/4" (489)
COOKTOP
CUT-OUT DEPTH
Page 5
Planning Information
Integrated Gas Multi-Function Cooktop
MODEL IM15/S
Dimensions in parentheses are in
millimeters unless otherwise specified.
5
INSTALLATION NOTES
Refer to the illustrations and specifications
for overall dimensions, cut-out dimensions and
installation specifics.
Wolf recommends using 33" (838) wide
cabinets for installation of two 15" (381)
modules side by side. An 18" (457) wide
cabinet is recommended for installation of a
single 15" (381) cooktop or module.
IMPORTANT NOTE: Review specific installation
instructions for product to product capabilities
When multiple cooktops or modules are
installed side by side, refer to the countertop
cut-out dimensions on page 6.
A Wolf downdraft system, Cooktop or
Pro ventilation hood is recommended. When
installing a ventilation hood, refer to the specific
requirements of the hood for the minimum
dimension to countertop. Also refer to
Ventilation Recommendations in the Cooktop
Ventilation or Pro Ventilation sections of our
website, wolfappliance.com.
The Wolf gas multi-function cooktop
requires a separate 120 V, 60 Hz power supply.
The service should have its own 15 amp circuit
breaker, and a grounded 3-prong receptacle
should be located within the reach of the 6'
(1.8 m) power cord. Locate electrical within
the shaded area shown in the Installation
illustration on page 4.
IMPORTANT NOTE: A ground fault circuit
interrupter (GFCI) is not recommended and may
cause interruption of operation.
For the gas multi-function cooktop, the gas
service may be supplied through the floor. Refer
to the Installation illustration on page 4 for
placement of electrical and gas supply.
The Wolf gas multi-function cooktop is
designed to operate on natural gas at 5"
(12.5 mb) WC (water column) pressure or LP
(propane) gas at 10" (25 mb) WC pressure. The
minimum line pressure for natural gas is 7"
(17.5 mb) WC and 11" (27.4 mb) WC for LP
gas. The maximum gas supply pressure to the
regulator should never exceed 14" (34.9 mb)
WC; .5 psi (3.5 kPa). The cooktop is supplied
with a
1
/2" NPT male gas connection at the
right rear bottom corner of the cooktop. The
male connector exits the unit straight down and
you are supplied with a regulator with two
female connectors.
Wolf gas cooktops using natural gas
function up to an altitude of 8,000' (2438 m)
without any adjustment. Natural gas installations from 8,000' (2438 m) to 10,000' (3048 m)
need the high altitude conversion kit. LP gas
installations will operate up to 10,000' (3048 m)
without adjustment.
You must follow all National Electrical Code
and gas regulations. In addition, be aware of
local codes and ordinances when installing your
services.
Refer to the installation instructions
shipped with each Wolf product for detailed
specifications.
This cooktop is intended for indoor use only.
Page 6
Planning Information
Integrated Gas Multi-Function Cooktop
MODEL IM15/S
Dimensions in parentheses are in
millimeters unless otherwise specified.
6

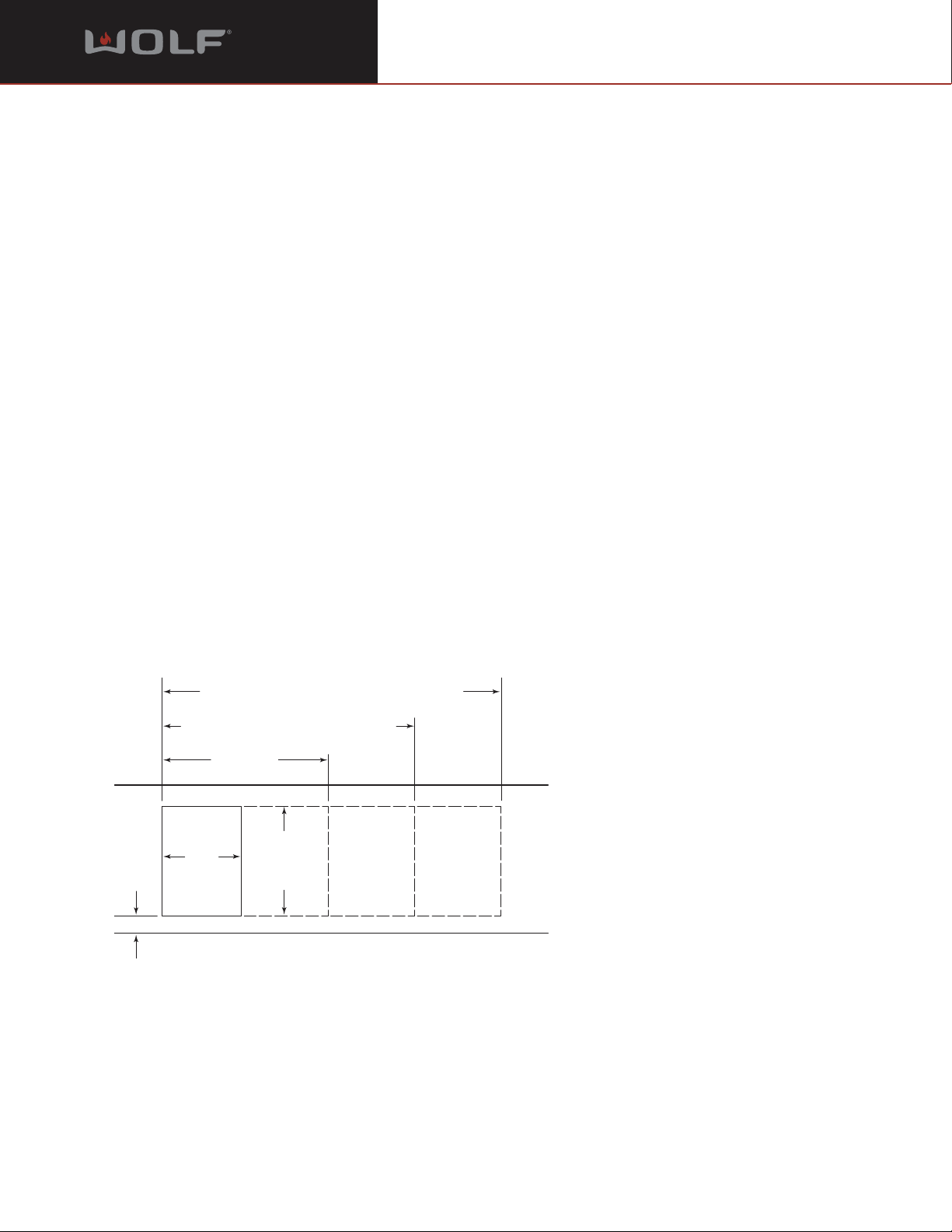

Countertop cut-out dimensions for installation of multiple cooktop units.
INTEGRATED MODULES—
MULTIPLE UNIT INSTALLATION
With Wolf's integrated modules, you have the
ultimate in customization. You can create your
own design by mixing and matching the various
components within this system. And when you
couple these modules with other cooktops
within the Wolf inventory you and your client will
truly understand freedom of choice.
Some Wolf integrated modules can be installed
together or with a 30" (762) or 36" (914)
cooktop. When multiple units are installed side
by side, the cut-out dimensions that are shown
in the illustration are derived by adding 1
1
/4" (32)
additional space for each additional unit, to give
you your total cut-out width. Refer to the illustration below for countertop cut-out dimensions
for installation of multiple cooktops.
IMPORTANT NOTE: Refer to the pages for each
specific integrated module for installation
limitations.
IMPORTANT NOTE: Where multiple cooktops
and/ or modules are installed side by side, each
unit must have its own separate recommended
electrical circuit. When multiple gas cooktops
and/ or modules are installed next to one
another, they can receive their gas supply from a
common line. However, each unit must have its
own regulator installed between the mainline
and the cooktop or module.
When two or more cooktops or modules are
installed together, an integrated module filler
strip is recommended. Contact your Wolf dealer
for information on this accessory component.
For gas and electrical requirements, additional
specifications and installation limitations, refer to
the Installation Notes on page 5.
IMPORTANT NOTE: Review specific installation
instructions for product to product capabilities.
593/4"
591/2"
501/4"
441/2"
441/4"
(1124) 30" COOKTOP AND ONE MODULE
291/4"
TWO MODULES WIDTH
14"
(356)
21/2"min
(64)
CUT-OUT
WIDTH
FRONT OF COUNTERTOP
(1518) FOUR MODULES WIDTH OR
(1511) 30" COOKTOP AND TWO MODULES OR
(1276) 36" COOKTOP AND ONE MODULE
(1130) THREE MODULES WIDTH OR
(743)
191/4"
(489)
CUT-OUT
DEPTH
