Page 1

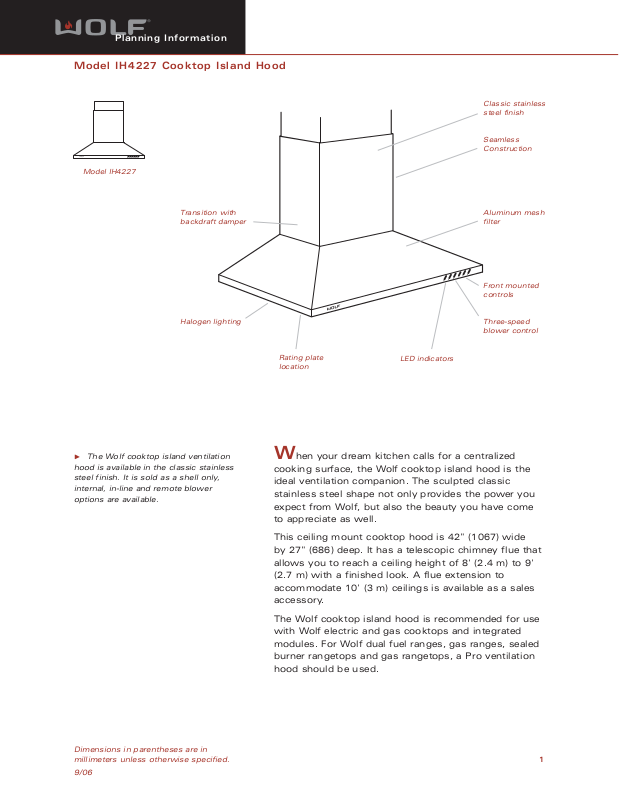

Planning Information

Model IH4227 Cooktop Island Hood

Dimensions in parentheses are in millimeters unless otherwise specified.

9/06

When your dream kitchen calls for a centralized

cooking surface, the Wolf cooktop island hood is the ideal ventilation companion. The sculpted classic stainless steel shape not only provides the power you expect from Wolf, but also the beauty you have come to appreciate as well.

This ceiling mount cooktop hood is 42" (1067) wide by 27" (686) deep. It has a telescopic chimney flue that allows you to reach a ceiling height of 8' (2.4 m) to 9' (2.7 m) with a finished look. A flue extension to accommodate 10' (3 m) ceilings is available as a sales accessory.

The Wolf cooktop island hood is recommended for use with Wolf electric and gas cooktops and integrated modules. For Wolf dual fuel ranges, gas ranges, sealed burner rangetops and gas rangetops, a Pro ventilation hood should be used.

The Wolf cooktop island ventilation hood is available in the classic stainless steel finish. It is sold as a shell only, internal, in-line and remote blower options are available.

Classic stainless steel finish

Aluminum mesh filter

Front mounted controls

Rating plate location

Three-speed blower control

Seamless Construction

Transition with backdraft damper

Model IH4227

LED indicators

Halogen lighting

Page 2

Planning Information

Model IH4227 Cooktop Island Hood

Dimensions in parentheses are in millimeters unless otherwise specified.

Dimensions may vary by ±

/8" (3).

OVERALL DIMENSIONS

FEATURES

Classic stainless steel finish

Internal, in-line and remote blower options

Front mounted controls with LED indicator

Heavy-duty stainless steel seamless

construction

Three-speed blower control

Variable speed blowers

Filter clean timer lets you know when the

filter needs cleaning

Delay-off mode automatically turns unit off

Sealed halogen lighting with three settings

Stainless steel filter cover with dishwasher safe aluminum mesh filter

Heat sentry feature automatically turns unit on when heat is sensed and automatically adjusts blower speed

Transition with backdraft damper included

Fits 8' (2.4 m) to 9' (2.7 m) ceilings – flue extension to accommodate 10’ (3 m) ceilings is available as a sales accessory

UL listed to US and Canadian safety standards

Two and five year residential warranty – exclusions apply; warranty information can be found on our website, wolfappliance.com

18"

(457)

339/16" TO 471/16"

(853 - 1195)

OVERALL HEIGHT

42" (1067)

OVERALL WIDTH

12"

(305)

27" (686)

OVERALL DEPTH

5"min

(127)

195/16"

(491)

19/16"

(40)

91/4"

(235)

Page 3

Planning Information

Model IH4227 Cooktop Island Hood

Model IH4227

Dimensions in parentheses are in millimeters unless otherwise specified.

SPECIFICATIONS

Overall Width 42" (1067)

Overall Height (excluding chimney) 91/4" (235)

Overall Height (including chimney) 339/16" (853)

Maximum Height (full extension) 471/16" (1195)

Overall Depth 27" (686)

Transition 8" (203) to 10" (254) round

Duct Size 8" (203) round

Discharge Vertical

Electrical Supply Requirements 110 / 120 V AC, 60 Hz

15 amp dedicated circuit

Shipping Weight 110 lbs (50 kg)

Specifications are subject to change without notice.

BLOWER OPTIONS

600 CFM Internal Blower 801644

900 CFM Internal Blower 801645

600 CFM In-Line Blower 808331

1100 CFM In-Line Blower 808332

600 CFM Remote Blower 801640

900 CFM Remote Blower 801641

1200 CFM Remote Blower 801642

1500 CFM Remote Blower 804701

Model IH4227 is sold as a shell only, an internal, in-line or remote blower will be required. Refer to Wolf Cooktop Ventilation Recommendations at the end of this section.

ACCESSORIES

Flue extension to accommodate

10' (3 m) ceilings

8" (203) to 10" (254) round

transition

Accessories are available through your Wolf dealer. To obtain local dealer information, visit the Locator section of our website, wolfappliance.com.

Page 4

Planning Information

Model IH4227 Cooktop Island Hood

Dimensions in parentheses are in millimeters unless otherwise specified.

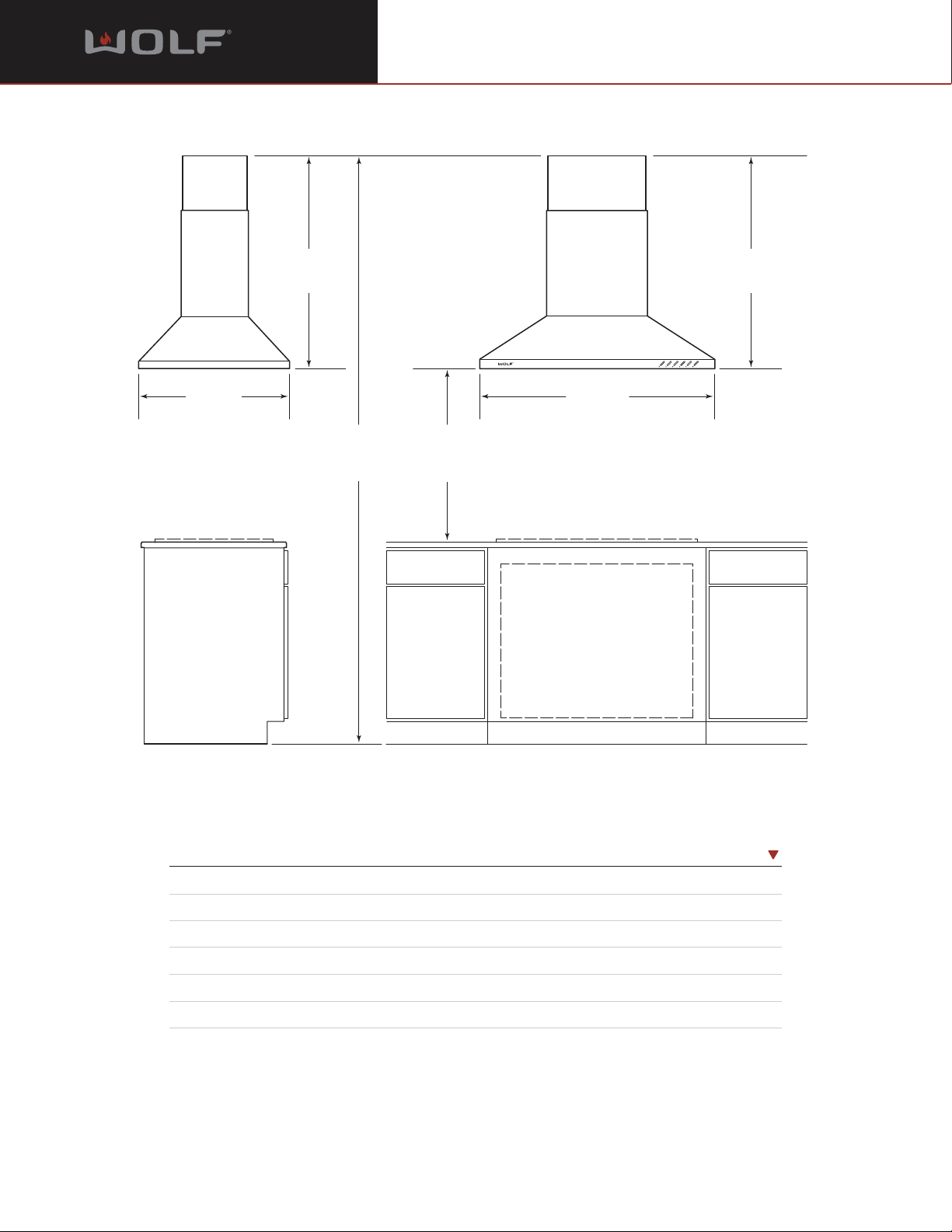

DIMENSIONS

Overall Width of Hood 42" (1067)

Floor to Ceiling Height 8' (2.4 m) to 9' (2.7 m)

Countertop to Bottom of Hood 24" (610) to 30" (762)

Minimum Height of Hood (fully collapsed) 339/16" (853)

Maximum Height of Hood (full extension) 471/16" (1195)

Location of Electrical Through top of hood

See Installation Instructions shipped with unit for detailed specifications.

27" (686)

471/16" (1195)

MAXIMUM

HEIGHT OF HOOD

8' TO 9'

(2.4 m – 2.7 m)

FLOOR TO

CEILING HEIGHT

24" TO 30"

(610 – 762)

COUNTERTOP

339/16" (853)

MINIMUM

HEIGHT OF HOOD

42" (1067)

LOCATION OF ELECTRICAL

ON CEILING THROUGH

TOP OF HOOD

*8' (2.4 m) ceilings will not allow for a 30" (762) maximum height above the countertop. Based on a 36" (914) high countertop, an 8' (2.4 m) ceiling will allow for a maximum height above the countertop of 26

/16" (672).

Page 5

Planning Information

Model IH4227 Cooktop Island Hood

Dimensions in parentheses are in millimeters unless otherwise specified.

INSTALLATION NOTES

Refer to the illustrations and specifications for overall dimensions and installation specifics.

The Wolf cooktop island hood is recommended for use with Wolf electric and gas cooktops and integrated modules. The hood should be at least as wide as the cooking surface.

IMPORTANT NOTE: Wolf Pro ventilation hoods should be used with Wolf dual fuel ranges, gas ranges, sealed burner rangetops and gas rangetops.

The Wolf cooktop island hood comes with a telescopic chimney flue extension that allows you to reach a ceiling height of 8' (2.4 m) to 9' (2.7 m) with a finished look. A flue extension to accommodate 10' (3 m) ceilings is available as a sales accessory.

Installation of the cooktop island hood should be 30" (762) to 36" (914) from the bottom of the hood to the countertop. Follow the dimensions shown in the Installation illustration.

IMPORTANT NOTE: 8' (2.4 m) ceilings will not allow for a 30" (762) maximum height above the countertop. Based on a 36" (914) high countertop, an 8' (2.4 m) ceiling will allow for a maximum height above the countertop of 26

/16" (672).

The Wolf cooktop island hood is shipped without a blower assembly. Internal, in-line and remote blower assemblies are available. Blower options also vary with the volume of air that needs to be moved and the length of the duct run. Refer to the charts at the end of this section for ventilation recommendations and blower options.

IMPORTANT NOTE: Install this ventilation hood only with a Wolf blower.

The Wolf cooktop island hood requires a separate, grounded 110/120 V AC, 60 Hz power supply. The service should have its own 15 amp circuit breaker. Placement of the outlet is not critical, as long as you provide a minimum of 12" (305) of 120 V AC, 60 Hz power cable. Locate electrical supply on the ceiling through the top of the hood.

You must follow all National Electrical Code regulations. In addition, be aware of local codes and ordinances when installing your service.

The Wolf cooktop island hood has an 8" (203) round vertical discharge.

Refer to the installation instructions shipped with each Wolf product for detailed specifications. This information can also be found on our website, wolfappliance.com.

Page 6

Planning Information

Model IH4227 Cooktop Island Hood

Dimensions in parentheses are in millimeters unless otherwise specified.

MODEL IH4227

(A) (B) (C) (D) (E) (F)

96" (2438) 36" (914) 24" (610) min 339/16" (853) 27/16" (62) 471/16" (1195)

96" (2438) 36" (914) 267/16" (672) max 339/16" (853) 0" 471/16" (1195)

108" (2743) 36" (914) 24" (610) min 339/16" (853) 147/16" (367) 471/16" (1195)

108" (2743) 36" (914) 30" (762) max 339/16" (853) 87/16" (214) 471/16" (1195)

Letters correspond to those in the illustration.

COOKTOP HOOD PLACEMENT

The Wolf cooktop island ventilation hood comes with a telescopic chimney flue that allows you to reach a ceiling height of 8' (2.4 m) to 9' (2.7 m) with a finished look. A flue extension to accommodate 10' (3 m) ceilings is available as a sales accesory.

Installation of the island hood should be 24" (610) to 30" (762) from the bottom of the hood to the countertop.

/16" (672).

IMPORTANT NOTE: Both sections of the telescopic chimney flue must be installed in order for the chimney to be lifted for service.

To determine placement of the cooktop island hood, you must calculate the height of the telescopic chimney flue. Refer to the illustration and chart below.

To calculate the height of the telescopic chimney flue:

1) First measure A (total kitchen height from finished floor

to finished ceiling height).

2) Next measure B (height from finished floor to countertop).

3) Then determine the minimum C value (distance from countertop to bottom of hood). Refer to the chart for ceiling heights from 8' (2.4 m) to 9' (2.7 m). Dimension C must be greater than 24" (610) and less than 30" (762).

4) To determine the upper flue section height: E=A-(C+B+D).

IMPORTANT NOTE: If dimension E falls between 0" (0) and

/2" (13), you will need to modify the flue to affix to the flue attachment brackets. For ease of installation, Wolf recommends that dimension E be no less than

/2" (13).

(A)

TOTAL

FLOOR TO

CEILING HEIGHT

(E) UPPER FLUE TOTAL

HEIGHT TO CEILING

(F)

MAXIMUM

HEIGHT OF

HOOD

OF HOOD TO

MINIMUM FLUE

EXTENSION

(C)

COUNTERTOP

TO BOTTOM

OF HOOD

(B)

FLOOR TO

COUNTERTOP

HEIGHT

(D)

BOTTOM

Page 7

Planning Information

Model IH4227 Cooktop Island Hood

Dimensions in parentheses are in millimeters unless otherwise specified.

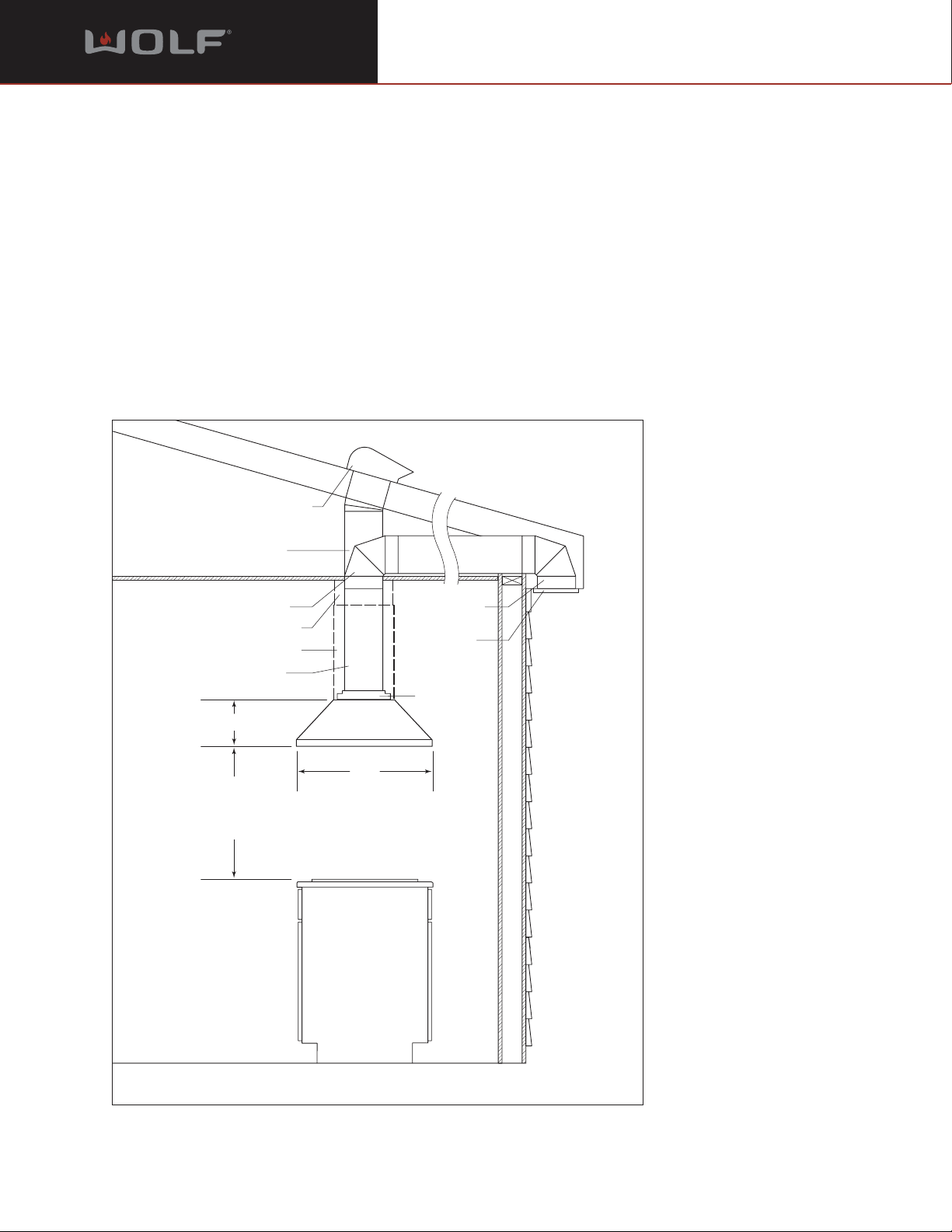

Ducting considerations for the Model IH4227 cooktop island hood.

DUCTING CONSIDERATIONS

The Wolf cooktop island hood is shipped without the blower assembly. Internal, in-line or remote blower assemblies are available. The remote blower will be mounted on the roof.

The cooktop island hood has an 8" (203) round vertical discharge. The ventilation hood will operate most efficiently when ductwork does not exceed 40' (12 m) in length. Ducting can run through the roof or through an eave as shown in the illustration below.

8" (203) ROUND DUCT

8" (203) ROUND ELBOW

CHIMNEY FLUE EXTENSION

TELESCOPIC CHIMNEY FLUE

8" (203) ROUND DUCT

24" TO 30"

(610– 762)

COUNTERTOP

TO BOTTOM OF

VENTILATION HOOD

COOKTOP

ISLAND HOOD

DUCTWORK INSTALLATION

THROUGH ROOF

DUCTWORK

INSTALLATION

THROUGH

EAVE –

INTERNAL

BLOWER ONLY

8" (203) ROUND

ELBOW

EAVE VENT

91/4" (235)

27"

(686)

8" (203) ROUND

VERTICAL

DISCHARGE

ROOF CAP OR REMOTE BLOWER –

TRANSITION FROM 8" (203) TO 10" (254) DUCT

REQUIRED FOR REMOTE BLOWER

IMPORTANT NOTE: All Wolf ventilation hoods must be vented to the outside. Use only metal ductwork.

Local building codes may require the use of make-up air. Consult your local HVAC professional for specific requirements in your area.

IMPORTANT NOTE: Install this ventilation hood only with a Wolf blower.

Page 8

Planning Information

Wolf Ventilation Recommendations

Dimensions in parentheses are in millimeters unless otherwise specified.

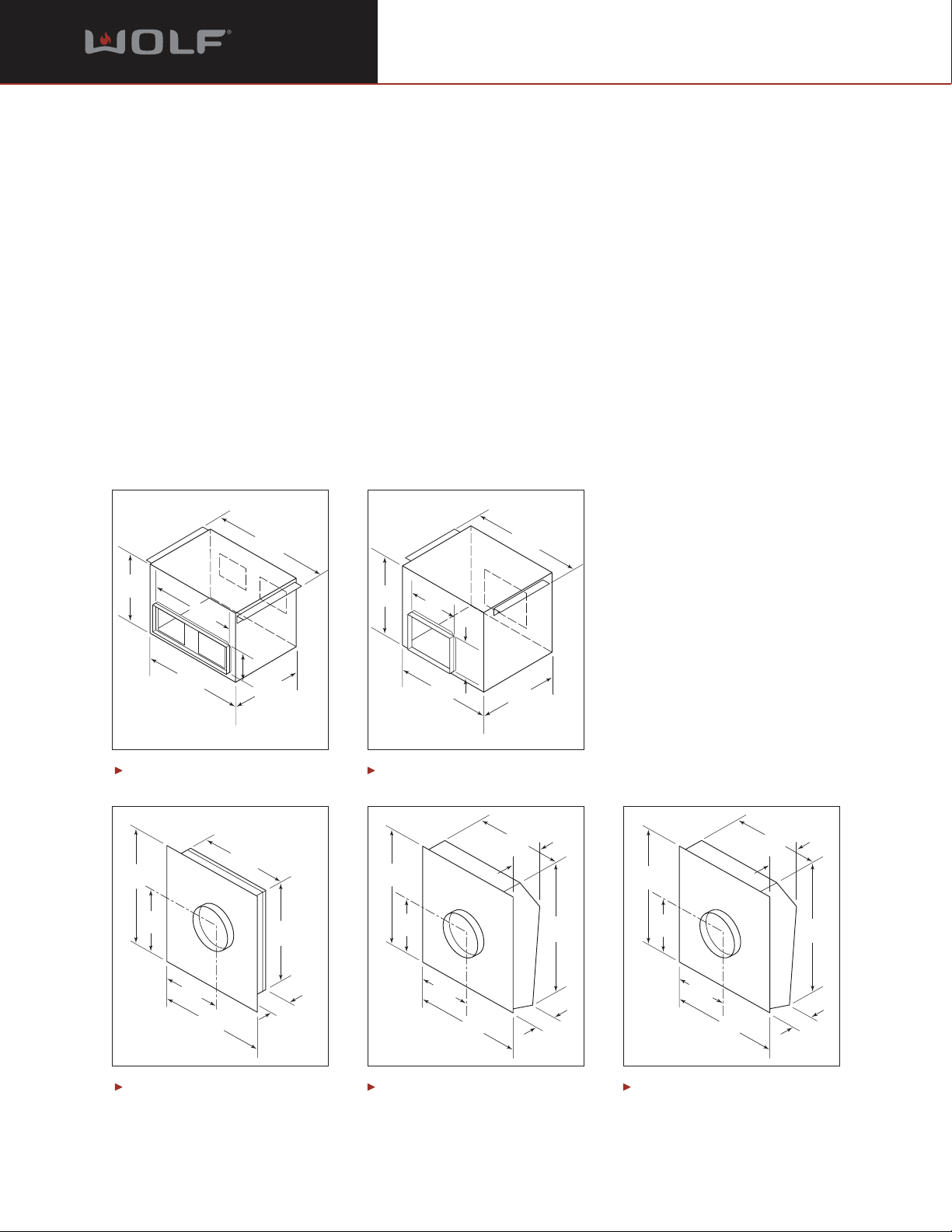

Remote BLOWER-60REM and BLOWER-90REM

WOLF BLOWER ASSEMBLIES

A ventilation system must include a blower assembly. With a few exceptions where internal blowers are included, Wolf ventilation hoods and downdrafts are shipped without the blower assembly. An internal, in-line or remote blower assembly must be selected to accommodate the cooking appliance, CFM requirements and homeowner preferences. Internal, in-line and remote blower assemblies are available as sales accessories through your Wolf dealer.

Wolf internal, in-line and remote blowers are for use with Wolf cooktop hoods, downdraft systems and Pro ventilation hoods and hood liners.

IMPORTANT NOTE: Use only a Wolf blower with all Wolf ventilation products.

Internal blowers are mounted inside the hood canopy or downdraft blower box. In-line blowers are mounted in between the hood and the exterior of the home. Remote blowers can be mounted on the roof or in some cases, on an exterior wall. Refer to the illustrations below for dimensions of Wolf in-line and remote blowers.

Ventilation recommendation charts on the following pages provide minimum CFM recommendations according to the cooking appliance and ventilation system used and blower options for each specific ventilation hood or downdraft.

Remote BLOWER-120REM Remote BLOWER-150REM

In-line BLOWER-60IL In-line BLOWER-110IL

Dimensions may vary by ±1/8" (3).

243/8"

(619)

113/4"

(298)

181/2"

(470)

211/2"

(546)

41/2"

(114)

121/4"

(311)

18"

(457)

12"

(305)

22"

(559)

(203)

(632)

18"

(457)

(718)

(394)

14"

(356)

10" (254)

Diameter

(629)

(527)

(622)

(121)

(749)

(375)

10" (254)

Diameter

(257)

22"

(559)

18" (457)

10"

(254)

(749)

(184)

21" (533)

10"

(749)

(375)

10" (254)

Diameter

(264)

25"

(635)

(254)

(749)

(184)

Page 9

Planning Information

Wolf Cooktop Ventilation Recommendations

Dimensions in parentheses are in millimeters unless otherwise specified.

COOKTOP VENTILATION CFM RECOMMENDATIONS

Cooktop Hoods, Downdrafts and Pro Hoods

CTWH30 CTWH36 IH4227 DD30 DD36 DD45 Pro Hoods

Electric Cooktops

Model CT15E 215* 215* 215* 215* 150* 215*

Model CT30E 450 600 600 500 350 600

Model CT30EU 450 600 600 600

Model CT36E 600 600 500 600

Model CT36EU 600 600 600

CTWH30 CTWH36 IH4227 DD30 DD36 DD45 Pro Hoods

Gas Cooktops

Model CT15G 215* 215* 215* 215* 150* 215*

Model CT30G 450 600 600 500 350 600

Model CT36G 600 600 500 600

CTWH30 CTWH36 IH4227 DD30 DD36 DD45 Pro Hoods

Modules

Model CT15I 215* 215* 215* 215* 150* 215*

Model IG15 215* 215* 215* 215*

Model IS15 215* 215* 215* 215*

Model IF15 215* 215* 215* 215*

Model IM15 215* 215* 215* 215* 150* 215*

*Use these requirements to determine total CFM when installing multiple cooktops or modules.

CFM recommendations are based on total Btu/hr output. Wolf recommends 1 CFM per 100 Btu/hr (.03 kW). Additional CFM may be required for long duct runs.

COOKTOP VENTILATION BLOWER OPTIONS

Cooktop Ventilation Hoods

Blower Description Blower Number Cooktop Hood Models

450 CFM Internal CTBLOWER-45INT (801643) CTWH30

600 CFM Internal CTBLOWER-60INT (801644) CTWH36 / IH4227

900 CFM Internal CTBLOWER-90INT (801645) CTWH36 / IH4227

600 CFM In-Line BLOWER-60 IL (808331) CTWH30 / CTWH36 / IH4227

1100 CFM In-Line BLOWER-110 IL (808332) CTWH30 / CTWH36 / IH4227

600 CFM Remote BLOWER-60REM (801640) CTWH30 / CTWH36 / IH4227

900 CFM Remote BLOWER-90REM (801641) CTWH30 / CTWH36 / IH4227

1200 CFM Remote BLOWER-120REM (801642) CTWH30 / CTWH36 / IH4227

1500 CFM Remote BLOWER-150REM (804701) CTWH30 / CTWH36 / IH4227

Vertical discharge with 8" (203) round duct for wall and island hoods. Transition is not required for internal blowers; in-line and remote blowers require TRANS-8-10. Backdraft damper included with wall and island hoods.

Blower configurations are for reference only. Refer to minimum CFM recommendations for your specific cooking product. Always consult a qualified HVAC Engineer for specific applications.
