Subaru Baja 2008 User Manual

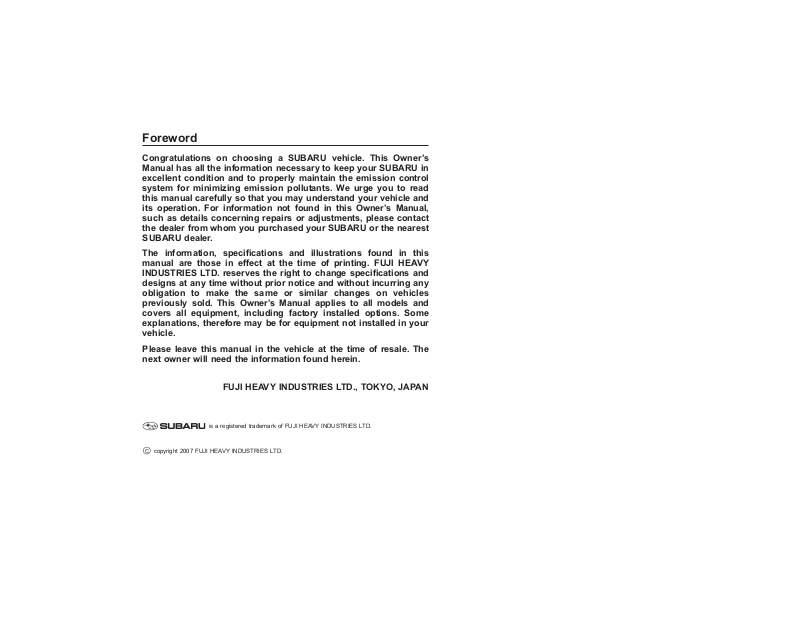

Foreword
Congratulations on choosing a SUBARU vehicle. This Owners Manual has all the information necessary to keep your SUBARU in excellent condition and to properly maintain the emission control system for minimizing emission pollutants. We urge you to read this manual carefully so that you may understand your vehicle and its operation. For information not found in this Owners Manual, such as details concerning repairs or adjustments, please contact the dealer from whom you purchased your SUBARU or the nearest SUBARU dealer.
The information, specifications and illustrations found in this manual are those in effect at the time of printing. FUJI HEAVY INDUSTRIES LTD. reserves the right to change specifications and designs at any time without prior notice and without incurring any obligation to make the same or similar changes on vehicles previously sold. This Owners Manual applies to all models and covers all equipment, including factory installed options. Some explanations, therefore may be for equipment not installed in your vehicle.
Please leave this manual in the vehicle at the time of resale. The next owner will need the information found herein.
FUJI HEAVY INDUSTRIES LTD., TOKYO, JAPAN
is a registered trademark of FUJI HEAVY INDUSTRIES LTD.
C
*
copyright 2007 FUJI HEAVY INDUSTRIES LTD.
1
Warranties
& Warranties for U.S.A.
All SUBARU vehicles distributed by Subaru of America, Inc. and sold at retail by an authorized SUBARU dealer in the United States come with the following warranties:
. SUBARU Limited Warranty . Emission Control Systems Warranty . Emissions Performance Warranty
All warranty information, including details of coverage and exclusions, is in the Warranty and Maintenance Booklet. Please read these warranties carefully.
& Warranties for Canada
All SUBARU vehicles distributed by Subaru Canada, Inc. and sold at retail by an authorized SUBARU dealer in Canada come with the following warranties:
. SUBARU Limited Warranty . Anti-Corrosion Warranty . Emission Control Warranty
All warranty information, including details of coverage and exclusions, is in the Warranty and Service Booklet. Please read these warranties carefully.
CAUTION
. If your vehicle is equipped with a
navigation system and/or Rear Seat Entertainment System, the displays contain mercury. There­fore, the displays of the naviga­tion system and/or Rear Seat Entertainment System must be removed before vehicle disposal. Once the displays have been removed, please reuse, recycle or dispose of them as hazardous waste.
. If your vehicle is equipped with
High Intensity Discharge (HID) headlights, the HID headlights contain mercury. Therefore, it is necessary to remove HID head­lights before vehicle disposal. Once removed, please reuse, re­cycle or dispose of the HID head­lights as hazardous waste.
How to use this Owners Manual
& Using your Owners Manual
Before you operate your vehicle, carefully read this manual. To protect yourself and extend the service life of your vehicle, follow the instructions in this manual. Failure to observe these instructions may result in serious injury and damage to your vehicle.
This manual is composed of fourteen chapters. Each chapter begins with a brief table of contents, so you can usually tell at a glance if that chapter contains the information you want.
Chapter 1: Seat, seatbelt and SRS airbags
This chapter informs you how to use the seat and seatbelt and contains precau­tions for the SRS airbags.
Chapter 2: Keys and doors
This chapter informs you how to operate the keys, locks and windows.
Chapter 3: Instruments and controls
This chapter informs you about the opera­tion of instrument panel indicators and how to use the instruments and other switches.
CONTINUED
2
Chapter 4: Climate control
This chapter informs you how to operate the climate control.
Chapter 5: Audio
This chapter informs you how to operate your audio system.
Chapter 6: Interior equipment
This chapter informs you how to operate interior equipment.
Chapter 7: Starting and operating
This chapter informs you how to start and operate your SUBARU.
Chapter 8: Driving tips
This chapter informs you how to drive your SUBARU in various conditions and ex­plains some safety tips on driving.
Chapter 9: In case of emergency
This chapter informs you what to do if you have a problem while driving, such as a flat tire or engine overheating.
Chapter 10: Appearance care
This chapter informs you how to keep your SUBARU looking good.
Chapter 11: Maintenance and service
This chapter informs you when you need to take your SUBARU to the dealer for scheduled maintenance and informs you how to keep your SUBARU running properly.
Chapter 12: Specifications
This chapter informs you about dimension and capacities of your SUBARU.
Chapter 13: Consumer information and Reporting safety defects
This chapter informs you about Tire information, Uniform tire quality grading standards and Reporting safety defects.
Chapter 14: Index
This is an alphabetical listing of all thatsin this manual. You can use it to quickly find something you want to read.
& Safety warnings
You will find a number of WARNINGs, CAUTIONs and NOTEs in this manual.
These safety warnings alert you to poten­tial hazards that could result in injury to you or others.
Please read these safety warnings as well as all other portions of this manual care­fully in order to gain a better understand­ing of how to use your SUBARU vehicle safely.
WARNING
A WARNING indicates a situation in which serious injury or death could result if the warning is ignored.
CAUTION
A CAUTION indicates a situation in which injury or damage to your vehicle, or both, could result if the caution is ignored.
NOTE
A NOTE gives information or sugges­tions how to make better use of your vehicle.
& Safety symbol
You will find a circle with a slash through it in this manual. This symbol means Do not, Do not do this,or“Do not let this happen, depending upon the context.
3
Vehicle symbols
There are some of the symbols you may see on your vehicle.
For warning and indicator lights, refer to Warning and indicator lightsin the illustrated index section in this chapter.
Mark Name
WARNING
CAUTION
Passengerswindows lock
Fuel
Front fog lights
Parking lights
Hazard warning flasher
Seat heater
Mark Name
Child restraint lower an­chorages
Child restraint top tether an­chorages
Horn
Windshield wiper deicer
Wiper intermittent
Windshield wiper and washer
Rear window wiper
Rear window washer
Lights
Headlight beam leveler
Parking lights, tail lights, li­cense plate lights and instru­ment panel illumination
Mark Name
Headlights
Turn signal
Illumination brightness
Engine hood
Fan speed
Instrument panel outlets
Instrument panel outlets and foot outlets
Foot outlets
Windshield defroster and foot outlets
Windshield defroster
Rear window defogger/Out­side mirror defogger
CONTINUED
4
Mark Name
Air recirculation
Outside air
Engine oil
Washer
Door lock (Transmitter)
Door unlock (Transmitter)
Rear gate (Transmitter)
Power folding mirror
Safety precautions when driving
& Seatbelt and SRS airbag
WARNING
. All persons in the vehicle should
fasten their seatbelts BEFORE the vehicle starts to move. Other­wise, the possibility of serious injury becomes greater in the event of a sudden stop or acci­dent.
. To obtain maximum protection in
the event of an accident, the driver and all passengers in the vehicle should always wear seat­belts when the vehicle is moving. The SRS (Supplemental Restraint System) airbag does not do away with the need to fasten seatbelts. In combination with the seat­belts, it offers the best combined protection in case of a serious accident.
Not wearing a seatbelt increases the chance of severe injury or death in a crash even when the vehicle has the SRS airbag.
. The SRS airbags deploy with
considerable speed and force. Occupants who are out of proper position when the SRS airbag deploys could suffer very serious injuries. Because the SRS airbag needs enough space for deploy­ment, the driver should always sit upright and well back in the seat as far from the steering wheel as practical while still maintaining full vehicle control and the front passenger should move the seat as far back as possible and sit upright and well back in the seat.
Carefully read the sections Seat, seatbelt and SRS airbagsin chapter 1 of this Owners Manual for instructions and pre­cautions concerning the seatbelt system and SRS airbag system.
5
& Child safety
WARNING
. Never hold a child on your lap or
in your arms while the vehicle is moving. The passenger cannot protect the child from injury in a collision, because the child will be caught between the passen­ger and objects inside the vehi­cle.
. While riding in the vehicle, in-
fants and small children should always be placed in one of the rear seating positions recom­mended in this Owners Manual in an infant or child restraint system which is appropriate for the childs age, height and weight. If a child is too big for a child restraint system, the child should sit in a REAR seat and be restrained using the seatbelts. According to accident statistics, children are safer when properly restrained in the rear seating positions than in the front seat­ing positions. Never allow a child to stand up or kneel on the seat.
. Put children aged 12 and under in
a REAR seat properly restrained
at all times in a child restraint device or in a seatbelt. The SRS airbag deploys with considerable speed and force and can injure or even kill children, especially if they are 12 years of age and under and are not restrained or improperly restrained. Because children are lighter and weaker than adults, their risk of being injured from deployment is great­er.
. NEVER INSTALL A REARWARD
FACING CHILD SAFETY SEAT IN THE FRONT SEAT. DOING SO RISKS SERIOUS INJURY OR DEATH TO THE CHILD BY PLA­CING THE CHILDS HEAD TOO CLOSE TO THE SRS AIRBAG.
. Always use the child safety locks
whenever a child rides in the rear. Serious injury could result if a child accidentally opened the door and fell out. Refer to the Child safety lockssection in chapter 2.
. Always lock the passengers win-
dows using the lock switch when children are riding in the vehicle. Failure to follow this procedure could result in injury to a child operating the power window. Re-
fer to the Power windowssec­tion in chapter 2.
. Never leave unattended children
in the vehicle. They could acci­dentally injure themselves or others through inadvertent op­eration of the vehicle. Also, on hot or sunny days, temperature in a closed vehicle could quickly become high enough to cause severe or possibly fatal injuries to them.
Carefully read the sections Child restraint systems”, “*SRS airbag (Supplemental Restraint System airbag), and Seatbelts in chapter 1 of this Owners Manual for instructions and precautions concerning the child restraint system, seatbelt system and SRS airbag system.
& Engine exhaust gas (carbon
monoxide)
WARNING
. Never inhale engine exhaust gas.
Engine exhaust gas contains carbon monoxide, a colorless and odorless gas which is dan­gerous, or even lethal, if inhaled.
. Always properly maintain the en-
CONTINUED
6
gine exhaust system to prevent engine exhaust gas from enter­ing the vehicle.
. Never run the engine in a closed
space, such as a garage, except for the brief time needed to drive the vehicle in or out of it.
. Avoid remaining in a parked
vehicle for a lengthy time while the engine is running. If that is unavoidable, then use the venti­lation fan to force fresh air into the vehicle.
. Always keep the front ventilator
inlet grille free from snow, leaves or other obstructions to ensure that the ventil ation system al­ways works properly.
. If at any time you suspect that
exhaust fumes are entering the vehicle, have the problem checked and corrected as soon as possible. If you must drive under these conditions, drive only with all windows fully open.
. Keep the rear gate closed while
driving to prevent exhaust gas from entering the vehicle.
& Drinking and driving
WARNING
Drinking and then driving is very dangerous. Alcohol in the blood­stream delays your reaction and impairs your perception, judgment and attentiveness. If you drive after drinking - even if you drink just a little - it will increase the risk of being involved in a serious or fatal accident, injuring or killing yourself, your passengers and others. In addition, if you are injured in the accident, alcohol may increase the severity of that injury.
Please dont drink and drive.
Drunken driving is one of the most frequent causes of accidents. Since alco­hol affects all people differently, you may have consumed too much alcohol to drive safely even if the level of alcohol in your blood is below the legal limit. The safest thing you can do is never drink and drive. However if you have no choice but to drive, stop drinking and sober up comple­tely before getting behind the wheel.
& Drugs and driving
WARNING
There are some drugs (over the counter and prescription) that can delay your reaction time and impair your perception, judgment and at­tentiveness. If you drive after taking them, it may increase your, your passengersand other personsrisk of being involved in a serious or fatal accident.
If you are taking any drugs, check with your doctor or pharmacist or read the literature that accompanies the medication to determine if the drug you are taking can impair your driving ability. Do not drive after taking any medications that can make you drowsy or otherwise affect your ability to safely operate a motor vehicle. If you have a medical condition that requires you to take drugs, please consult with your doctor.
Never drive if you are under the influence of any illicit mind-altering drugs. For your own health and well-being, we urge you not to take illegal drugs in the first place and to seek treatment if you are addicted to those drugs.
7
& Driving when tired or sleepy
WARNING
When you are tired or sleepy, your reaction will be delayed and your perception, judgment and attentive­ness will be impaired. If you drive when tired or sleepy, your, your passengersand other persons chances of being involved in a serious accident may increase.
Please do not continue to drive but instead find a safe place to rest if you are tired or sleepy. On long trips, you should make periodic rest stops to refresh yourself before continuing on your journey. When possible, you should share the driving with others.
& Car phone/cell phone and
driving
CAUTION
Do not use a car phone/cell phone while driving; it may distract your attention from driving and can lead to an accident. If you use a car phone/cell phone, pull off the road and park in a safe place befo re using your phone. In some States/ Provinces, only hands-free phones may legally be used while driving.
& Modification of your vehicle
CAUTION
Your vehicle should not be modified other than with genuine Subaru parts and accessories. Other types of modifications could affect its performance, safety or durability, and may even violate governmental regulations. In addition, damage or performance problems resulting from modification may not be cov­ered under warranties.
& Driving with pets
Unrestrained pets can interfere with your driving and distract your attention from driving. In a collision or sudden stop, unrestrained pets or cages can be thrown around inside the vehicle and hurt you or your passengers. Besides, the pets can be hurt under these situations. It is also for their own safety that pets should be properly restrained in your vehicle. Re­strain a pet with a special traveling harness which can be secured to the rear seat with a seatbelt or use a pet carrier which can be secured to the rear seat by routing a seatbelt through the carrier s handle. Never restrain pets or pet carriers in the front passengers seat. For further information, consult your veterinarian, local animal protection society or pet shop.
& Tire pressures
WARNING
Driving at high speeds with exces­sively low tire pressures can cause the tires to deform severely and to rapidly become hot. A sharp in­crease in temperature could cause tread separation, and destruction of the tires. The resulting loss of
CONTINUED
8
vehicle control could lead to an accident.
Check and, if necessary, adjust the pressure of each tire (including the spare) at least once a month and before any long journey.
Check the tire pressure when the tires are cold.
Use a pressure gauge to adjust the tire pressures to the values shown on the tire placard.
Refer to the Tires and wheelssection in chapter 11 for detailed information.
& California proposition 65
warning
WARNING
Engine exhaust, some of its consti­tuents, and certain vehicle compo­nents contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. In addi­tion, certain fluids in vehicles and certain components of product wear contain or emit chemicals known to the State of California to cause cancer and birth defects or other
reproductive harm.
& On-pavement and off-road
driving
This vehicle is classified as a utility vehicle. Utility vehicles have a significantly higher rollover rate than other types of vehicles. Your vehicle has a higher ground clearance and higher center of gravity, making it more likely to roll over than ordinary passenger cars. It also handles and maneuvers differently from other passenger cars. For this reason, please read carefully the On-pavement and off road drivingsection in chapter 8 of this Owners Manual and follow the instruc­tions and precautions in order to prevent serious injury or death due to loss of control, rollover and other accidents.
Table of contents
Seat, seatbelt and SRS airbags
Keys and doors
Instruments and controls
Climate control
Audio
Interior equipment
Starting and operating
Driving tips
In case of emergency
Appearance care
Maintenance and service
Specifications
Consumer information and Reporting safety defects
1
2
3
4
5
6
7
8
9
10
11
12
13
Index
14
10
Illustrated index
& Exterior
1) Engine hood lock release (page 11-4)
2) Headlight switch (page 3-26)
3) Bulb replacement (page 11-41)
4) Wiper switch (page 3-34)
5) Moonroof (page 2-23)
6) Roof rail (if equipped) (page 8-13)
7) Door locks (page 2-4)
8) Tire pressure (page 11-25)
9) Flat tires (page 9-6)
10) Tire chains (page 8-11)
11) Fog light switch (page 3-32)
12) Tie-down hooks (page 9-15)
13) Towing hook (page 9-15)
1) Rear gate (page 2-22)
2) Rear wiper switch (page 3-35)
3) Rear window defogger button (page 3-37)
4) Fuel filler lid and cap (page 7-3)
5) Child safety locks (page 2-19)
6) Tie-down hooks (page 9-15)
7) Bulb replacement (page 11-41)
8) Towing hook (page 9-15)
11
CONTINUED
12
& Interior
! Passenger compartment area
1) Seatbelt (page 1-15)
2) Lower anchorages for child restraint system (page 1-37)
3) Center console (page 6-6)
4) Front seat (page 1-2)
5) Second-row seat (page 1-7)
6) Third-row seat (page 1-12)
13
1) Cargo area light (page 6-2)
2) Dome lights (page 6-2)
3) Rear center seatbelt (page 1-22)
4) Sun visors (page 6-4)
5) Map light (page 6-3)
6) Top tether anchorages (Rear seat/ Second-row seat) (page 1-40)
7) Top tether anchorages (Third-row seat) (page 1-41)
CONTINUED
14
1) Select lever (page 7-13)
2) Hazard warning flasher switch (page 3-5)
3) Multi function display (page 3-23)
4) Glove box (page 6-5)
5) Audio (page 5-1)
6) Climate control (page 4-1)
7) Cup holder (page 6-7/page 6-9)
15
& Instrument panel
1) Door locks (page 2-4)
2) Illumination brightness control (page 3-28)
3) Remote control mirror (page 3-40) Power folding mirror switch (if equipped) (page 3-41)
4) Windshield wiper deicer (page 3-36)
5) Traction Control system OFF switch (page 7-26)
6) Headlight beam leveler (if equipped) (page 3-29)
7) Light control lever (page 3-26)
8) Combination meter (page 3-5)
9) Wiper control lever (page 3-33)
10) Cruise control (page 7-30)
11) Horn (page 3-42)
12) SRS airbag (page 1-44)
13) Tilt steering (page 3-41)
14) Hood lock release knob (page 11-4)
15) Fuse box (page 11-38)
16) Power windows (page 2-19)
CONTINUED
16
& Light control and wiper control levers/switches
1) Parking light switch (page 3-32)
2) Windshield wiper (page 3-33)
3) Mist (page 3-34)
4) Windshield washer (page 3-35)
5) Rear window wiper and washer switch (page 3-35)
6) Wiper control lever (page 3-34)
7) Light control lever (page 3-26)
8) Fog light switch (page 3-32)
9) Headlight ON/OFF (page 3-26)
10) Headlight flasher High/Low beam change (page 3-27)
11) Turn signal (page 3-28)
17
& Combination meter
! U.S.-spec. vehicles
1) Temperature gauge (page 3-9)
2) Tachometer (page 3-7)
3) Speedometer (page 3-6)
4) Fuel gauge (page 3-8)
5) Trip meter and odometer (page 3-6/page 3-7)
6) Trip meter A/B selection and trip meter reset knob (page 3-7)
7) Selector lever/Gear position indicator (page 3-20)
CONTINUED
18
! Except U.S.-spec. vehicles
1) Temperature gauge (page 3-9)
2) Tachometer (page 3-7)
3) Speedometer (page 3-6)
4) Fuel gauge (page 3-8)
5) Trip meter and odometer (page 3-6/page 3-7)
6) Trip meter A/B selection and trip meter reset knob (page 3-7)
7) Selector lever/Gear position indicator (page 3-20)
19
& Warning and indicator lights
Mark Name Page
Drivers seatbelt warning light
Front passengers seat­belt warning light
SRS airbag system warning light
CHECK ENGINE warn­ing light/Malfunction indi­cator lamp
Charge warning light 3-13
Oil pressure warning light 3-13
AT OIL temperature warning light
/ ABS warning light 3-15
Brake system warning
/
light
Door open warning light
3-10
3-10
3-11
3-12
3-13
3-16
3-17
Mark Name Page
Low fuel warning light 3-17
All-Wheel Drive warning light
Vehicle Dynamics Con­trol operation indicator light
Vehicle Dynamics Con­trol warning light / Trac­tion Control system OFF indicator light
Security indicator light 3-19
Turn signal indicator lights
High beam indicator light 3-20
Front fog light indicator light
Headlight indicator light 3-21
Cruise control indicator light
3-18
3-18
3-18
3-20
3-21
3-20
Mark Name Page
Cruise control set indica­tor light
Low tire pressure warn­ing light
Passenger airbag ON in­dicator light
Passenger airbag OFF indicator light
SPORT mode indicator light
Windshield washer fluid warning light
Rear differential oil tem­perature warning light
3-21
3-14
3-12
3-12
3-20
3-18
3-14
CONTINUED
20
& Cargo area
! 7-seater models
1) Jack handle (page 9-19)
2) Maintenance tools (page 9-19)
3) Jack (page 9-19)
4) Spare tire (page 9-5)
21
! 5-seater models
1) Jack handle (page 9-19)
2) Jack (page 9-19)
3) Maintenance tools (page 9-19)
4) Spare tire (page 9-5)
22
Function settings
A SUBARU dealer can change the settings of the functions shown in the following table to meet your personal requirements. Contact the nearest SUBARU dealer for details. If your vehicle is equipped with navigation system, the settings for some of these functions can be changed using the monitor. For details, please refer to the Owners Manual supplement for the monitor.
Item Function Possible settings Default setting Page
Alarm system Alarm system Operation / Non-operation Operation 2-15
Monitoring start delay time (after closure of doors)
Impact sensor operation (only vehicles with shock sensors (dealer option))
Passive arming Operation / Non-operation Non-operation 2-17
Remote keyless entry system Hazard warning flasher Operation / Non-operation Operation 2-7
Audible signal Operation / Non-operation Operation 2-10
Key lock-in prevention Key lock-in prevention Operation / Non-operation Operation 2-6
Rear window defogger Rear window defogger Operation for 15 minutes / Continuous
Windshield wiper deicer (if equipped)
Map light/Dome light Operation in interlock with remote keyless
Battery drainage prevention function
Windshield wiper deicer Operation for 15 minutes / Continuous
entry system
Battery drainage prevention function Operation / Non-operation Operation 2-6
0 second / 30 seconds 30 seconds 2-15
Operation / Non-operation Non-operation 2-18
operation
operation
OFF / Short / Normal / Long Normal 6-2
Operation for 15 minutes
Operation for 15 minutes
3-37
3-36
Seat, seatbelt and SRS airbags
Front seats........................................................ 1-2
Power seat....................................................... 1-3
Memory function (Drivers seat – if
equipped)....................................................... 1-4
Head restraint adjustment................................. 1-5
Active head restraint ........................................ 1-5
Lumbar support ............................................... 1-6
Seat heater (if equipped) ................................. 1-6
Rear seats (5-seater models)/Second-row
seats (7-seater models) ................................ 1-7
Fore and aft adjustment.................................... 1-8
Reclining the seatback ..................................... 1-9
Folding down the seatback ............................... 1-9
Head restraint adjustment................................ 1-11
Armrest ......................................................... 1-12
Third-row seat (7-seater models) .................. 1-12
Access to the third-row seat ........................... 1-13
Folding down the seatback ............................. 1-14
Head restraint adjustment............................... 1-15
Seatbelts ......................................................... 1-15
Seatbelt safety tips......................................... 1-15
Emergency Locking Retractor (ELR) ............... 1-17
Automatic/Emergency Locking Retractor
(A/ELR) ........................................................ 1-17
Seatbelt warning light and chime .................... 1-17
Fastening the seatbelt..................................... 1-18
Seatbelt maintenance...................................... 1-27
Front seatbelt pretensioners......................... 1-27
System monitors ............................................ 1-28
System servicing ............................................ 1-29
Precautions against vehicle modification ......... 1-30
Child restraint systems ................................. 1-30
Where to place a child restraint system........... 1-31
Choosing a child restraint system ................... 1-33
Installing child restraint systems with A/ELR
seatbelt ........................................................ 1-33
Installing a booster seat.................................. 1-36
Installation of child restraint systems by use of
lower and tether anchorages (LATCH) ........... 1-37
Top tether anchorages .................................... 1-40
*SRS airbag (Supplemental Restraint
System airbag) ............................................ 1-44
Your vehicles SRS configuration .................... 1-44
Subaru advanced frontal airbag system........... 1-48
SRS side airbag and SRS curtain airbag.......... 1-58
SRS airbag system monitors ........................... 1-68
SRS airbag system servicing .......................... 1-69
Precautions against vehicle modification ......... 1-69
1
1-2 Seat, seatbelt and SRS airbags
Front seats
WARNING
. Never adjust the seat while driv-
ing to avoid the possibility of loss of vehicle control and of personal injury.
. Before adjusting the seat, make
sure the hands and feet of rear seat passengers or luggage are clear of the adjusting mechan­ism.
. Seatbelts provide maximum re-
straint when the occupant sits well back and upright in the seat. To reduce the risk of sliding under the seatbelt in a collision, the front seatbacks should be always used in the upright posi­tion while the vehicle is running. If the front seatbacks are not used in the upright position in a collision, the risk of sliding under the lap belt and of the lap belt sliding up over the abdomen will increase, and both can result in serious internal injury or death.
. The SRS airbags deploy with
considerable speed and force. Occupants who are out of proper
position when the SRS airbag deploys could suffer very serious injuries. Because the SRS airbag needs enough space for deploy­ment, the driver should always sit upright and well back in the seat as far from the steering wheel as practical while still maintaining full vehicle control and the front passenger should move the seat as far back as possible and sit upright and well back in the seat.
WARNING
Put children aged 12 and under in a rear seat properly restrained at all times. The SRS airbag deploys with
considerable speed and force and can injure or even kill children, especially if they are 12 years of age and under and are not re­strained or improperly restrained. Because children are lighter and weaker than adults, their risk of being injured from deployment is greater. Consequently, we strongly recommend that ALL children (in­cluding those in child seats and those that have outgrown child re­straint devices) sit in a REAR seat properly restrained at all times in a child restraint device or in a seat­belt, whichever is appropriate for the childs age, height and weight.
Always secure ALL types of child restraint devices (including forward facing child seats) in one of the rear seating positions recommended in this Owners Manual.
NEVER INSTALL A REARWARD FA­CING CHILD SEAT IN THE FRONT SEAT. DOING SO RISKS SERIOUS INJURY OR DEATH TO THE CHILD BY PLACING THE CHILDS HEAD TOO CLOSE TO THE SRS AIRBAG.
According to accident statistics, children are safer when properly restrained in the rear seating posi­tions than in the front seating posi-
Seat, seatbelt and SRS airbags 1-3
tions. For instructions and precau­tions concerning child restraint sys­tems, refer to the Child restraint systemssection in this chapter.
& Power seat
! Fore and aft adjustment
To adjust the seat forward or backward, move the control switch forward or back­ward.
NOTE
During backward-forward adjustment of the seat, you cannot adjust the seat cushion angle or seat height.
! Reclining the seatback
WARNING
To prevent the passenger from slid­ing under the seatbelt in the event of a collision, always put the seatback in the upright position while the vehicle is in motion. Also, do not place objects such as cushions between the passenger and the seatback. If you do so, the risk of sliding under the lap belt and of the lap belt sliding up over the abdomen will increase, and both can result in serious internal injury or death.
To adjust the angle of the seatback, move the control switch.
! Seat cushion angle adjustment
(Drivers seat)
To adjust the seat cushion angle, pull up or push down the front end of the control
CONTINUED
1-4 Seat, seatbelt and SRS airbags
switch.
! Seat height adjustment (Drivers
seat)
To adjust the seat height, pull up or push down the rear end of the control switch.
& Memory function (Drivers
seat – if equipped)
Two of your favorite seat positions can be registered. Register the seat position with button 1or 2and retrieve the seat position by pressing either button.
The following seat positions can be registered:
. Forward/backward position of the seat . Angle of seatback . Angle of seat cushion
. Height of seat
! Registration of seat position
WARNING
. Never adjust the seat while driv-
ing to avoid the possibility of loss of vehicle control and of personal injury.
. Before adjusting the seat, make
sure the hands and feet of rear seat passengers or luggage are clear of the adjusting mechan­ism.
1. With the transmission selector lever in the Pposition, adjust the seat position.
2. While pressing the SETbutton, press
the desired button 1or 2.
3. The chime sounds once, and the seat position is registered.
! Retrieval of seat position
WARNING
. Never retrieve the seat position
while driving to avoid the possi­bility of loss of vehicle control and of personal injury.
. Perform the seat position retrie-
val before driving. Be sure to confirm that the selector lever position is in the Pposition. Do not drive until the retrieval of the seat position is complete.
. Be sure to press the correct
button to retrieve your registered seat position. If the seat position is not optimum for you, it may adversely affect your driving and may reduce the effectiveness of the seatbelt. That could result in an accident involving serious injury or death.
. When retrieving a registered seat
position, make sure the hands, feet and possessions of rear seat passengers are clear of the seat adjusting mechanism.
Seat, seatbelt and SRS airbags 1-5
. When any trouble or a malfunc-
tion occurs during the retrieval of the seat position, stop the retrie­val of the seat position using any of the control switches for man­ual adjustment, seat memory set button, seat memory registered button 1 or 2.
1. With the transmission selector lever in the Pposition, press the desired button 1or 2.
2. The chime sounds once and the seat moves to the registered position.
3. When the seat moves to the registered position, the chime sounds twice.
NOTE
. If a new position is registered for the same button, the previous seat posi­tion is deleted. . Even if the battery is disconnected, the registered seat position is not deleted.
& Head restraint adjustment
To raise the head restraint, pull it up. To lower it, push the head restraint down while pressing the release button on the top of the seatback.
The head restraint should be adjusted so that the center of the head restraint is closest to the top of the occupants ears.
WARNING
Never drive the vehicle with the head restraints removed because they are designed to reduce the risk of serious neck injury in the event that the vehicle is struck from the rear.
& Active head restraint
The front seats of y our vehicle are equipped with active head restraints. They automatically tilt forward slightly in the event the vehicle is struck from the rear, decreasing the amount of rearward head movement and thus reducing the risk of whiplash. For maximum effectiveness the head restraint should be adjusted so that
CONTINUED
1-6 Seat, seatbelt and SRS airbags
the center of the head restraint is closest to the top of the occupants ears.
CAUTION
. Each active head restraint is
effective only when its height is properly adjusted and the driver/ passenger sits in the correct position on the seat.
. If your vehicle is involved in a
rear-end collision, have an authorized SUBARU dealer in­spect the active head restraints.
. The active head restraints may
not operate in the event the vehicle experiences only a slight impact in the rear.
. The active head restraints may be
damaged if they are pushed hard from behind or subjected to shock. As a result, they may not function if the vehicle suffers a rear impact.
& Lumbar support
Pull the lever forward or backward. Pulling the lever forward will increase the
amount of support for your lower back.
Seat heater (if equipped)
The seat heater is equipped in the front seats.
The seat heater operates when the igni­tion switch is in the ONposition.
The seat heater can be adjusted in three levels. Press the button to activate the seat heater. Each subsequent press of the button will reduce the level. Pushing the button four times or keeping the button pressed for approximately 1 second will turn the heater off. While the seat heater is operating, its operating level is shown by the number of illuminated indicators. To warm the seat as quickly as possible, set the heater with three indicators illumi­nated.
Loading...
+ 379 hidden pages
