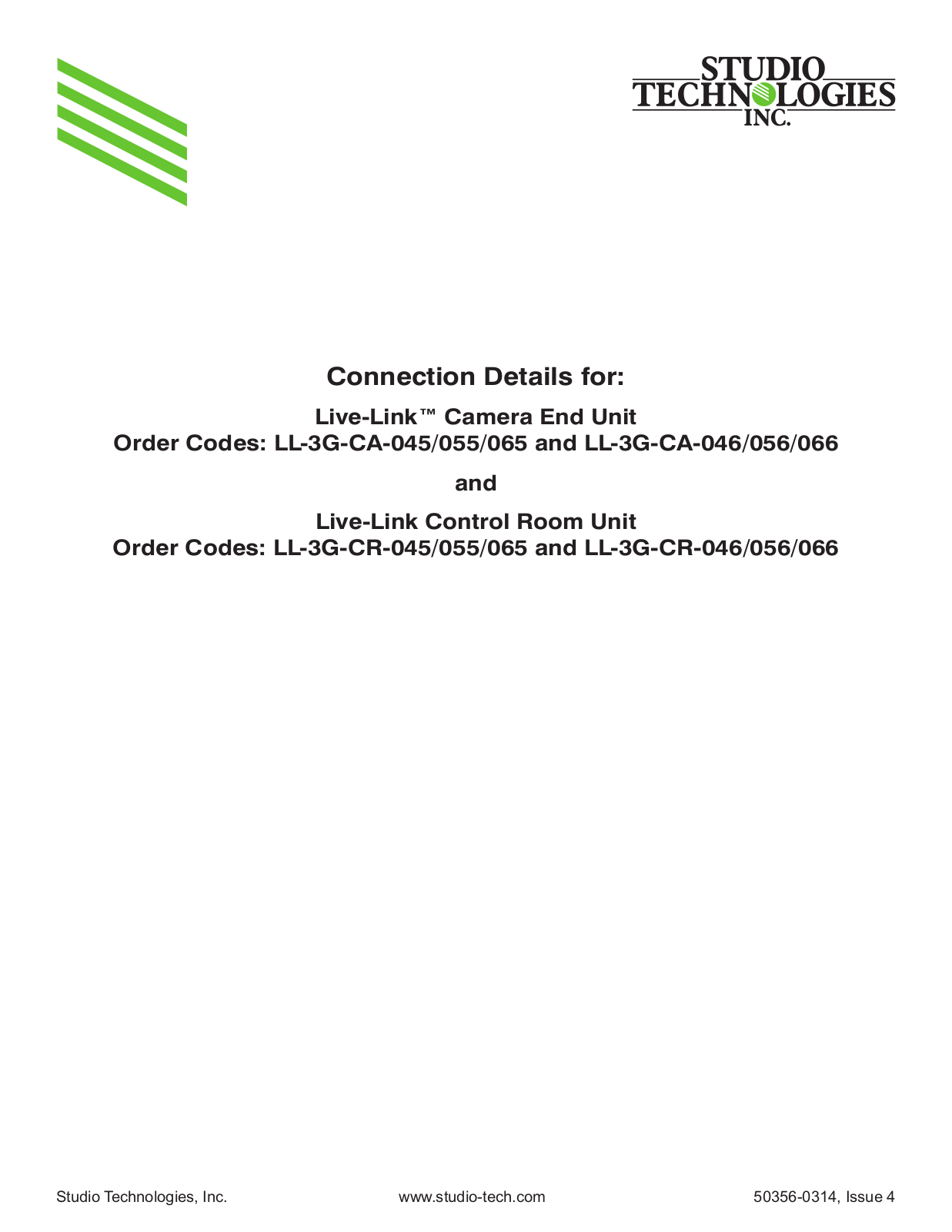

Connection Details for:
Live-Link™ Camera End Unit
Order Codes: LL-3G-CA-045/055/065 and LL-3G-CA-046/056/066
and
Live-Link Control Room Unit
Order Codes: LL-3G-CR-045/055/065 and LL-3G-CR-046/056/066
Studio Technologies, Inc. www.studio-tech.com 50356-0314, Issue 4

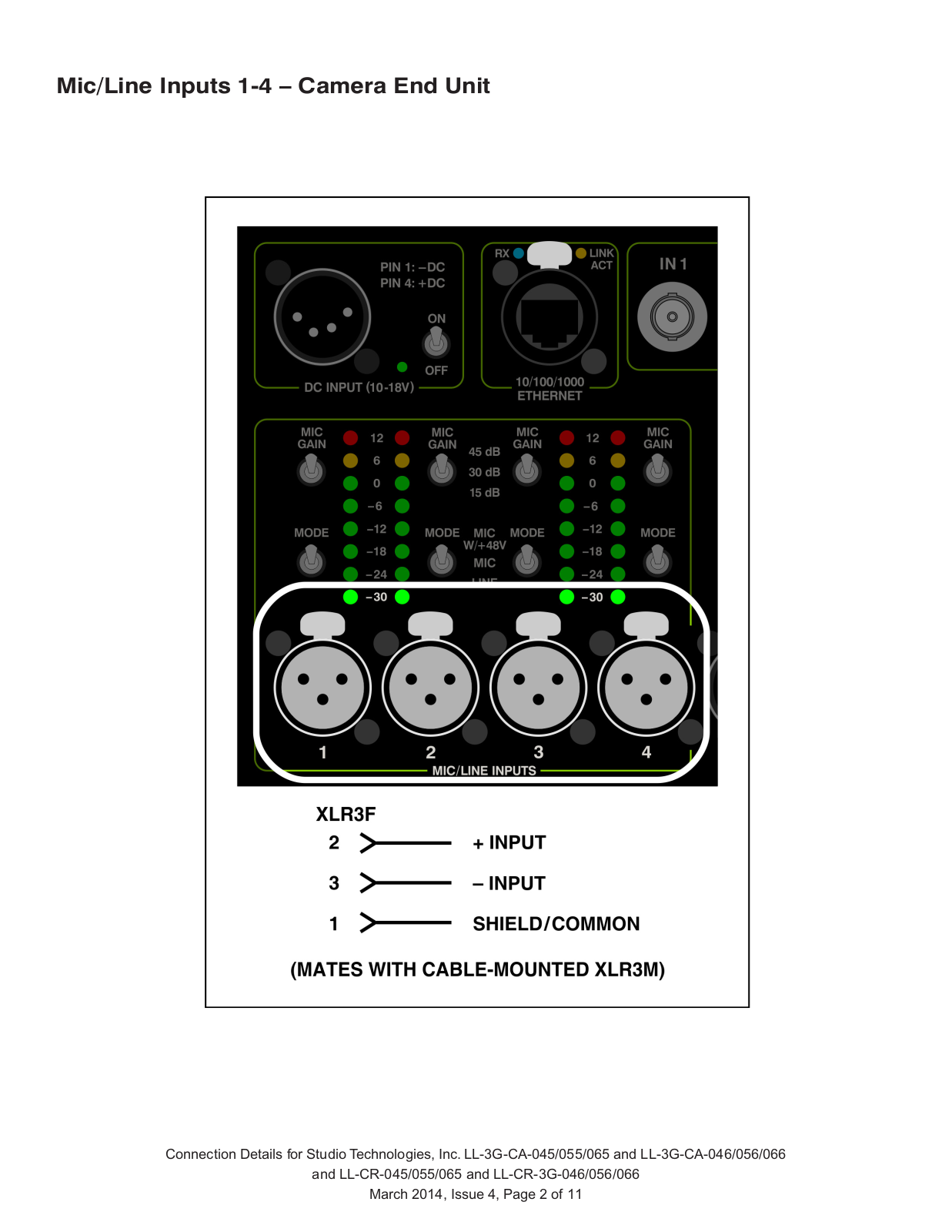

Mic/Line Inputs 1-4 – Camera End Unit
Connection Details for Studio Technologies, Inc. LL-3G-CA-045/055/065 and LL-3G-CA-046/056/066
and LL-CR-045/055/065 and LL-CR-3G-046/056/066
March 2014, Issue 4, Page 2 of 11

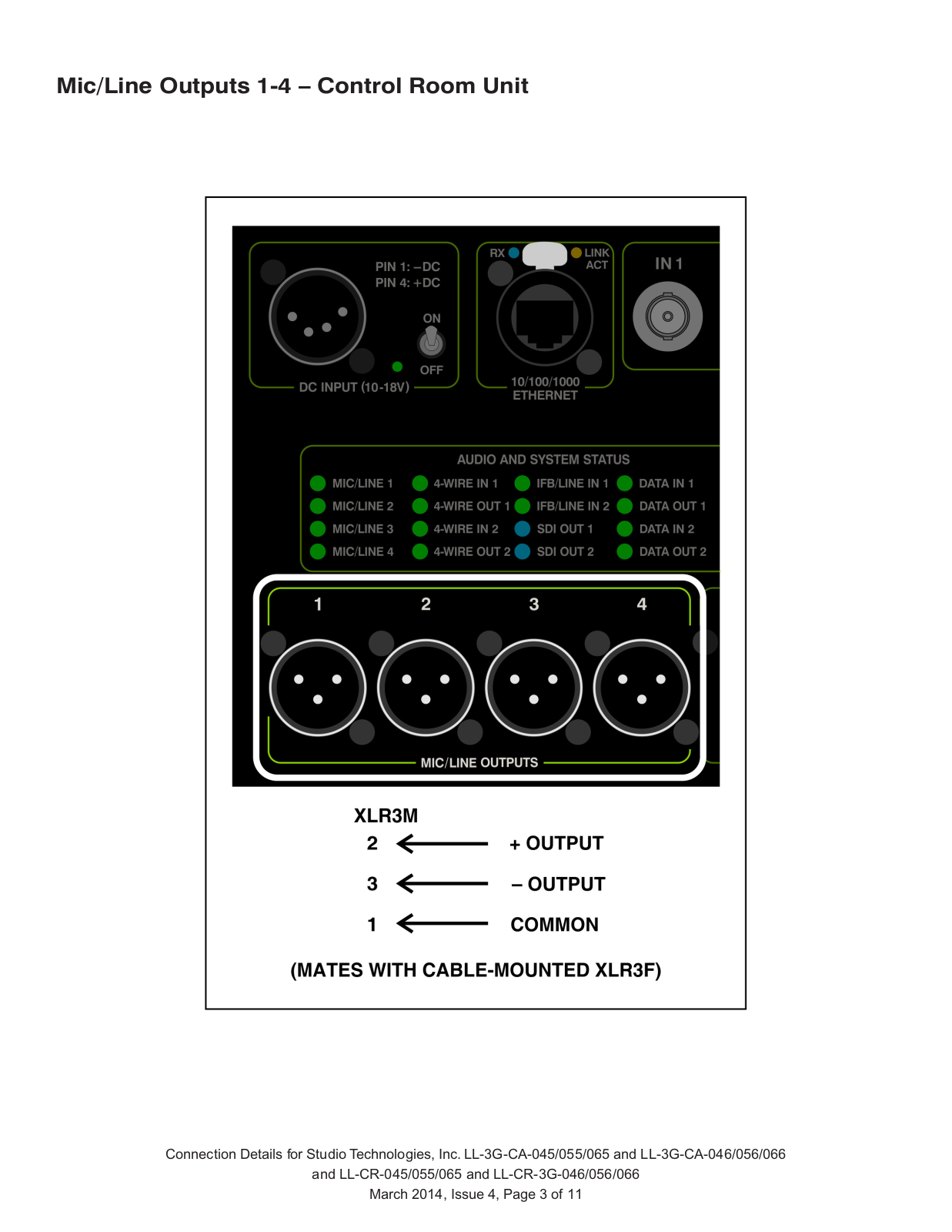

Mic/Line Outputs 1-4 – Control Room Unit
Connection Details for Studio Technologies, Inc. LL-3G-CA-045/055/065 and LL-3G-CA-046/056/066
and LL-CR-045/055/065 and LL-CR-3G-046/056/066
March 2014, Issue 4, Page 3 of 11

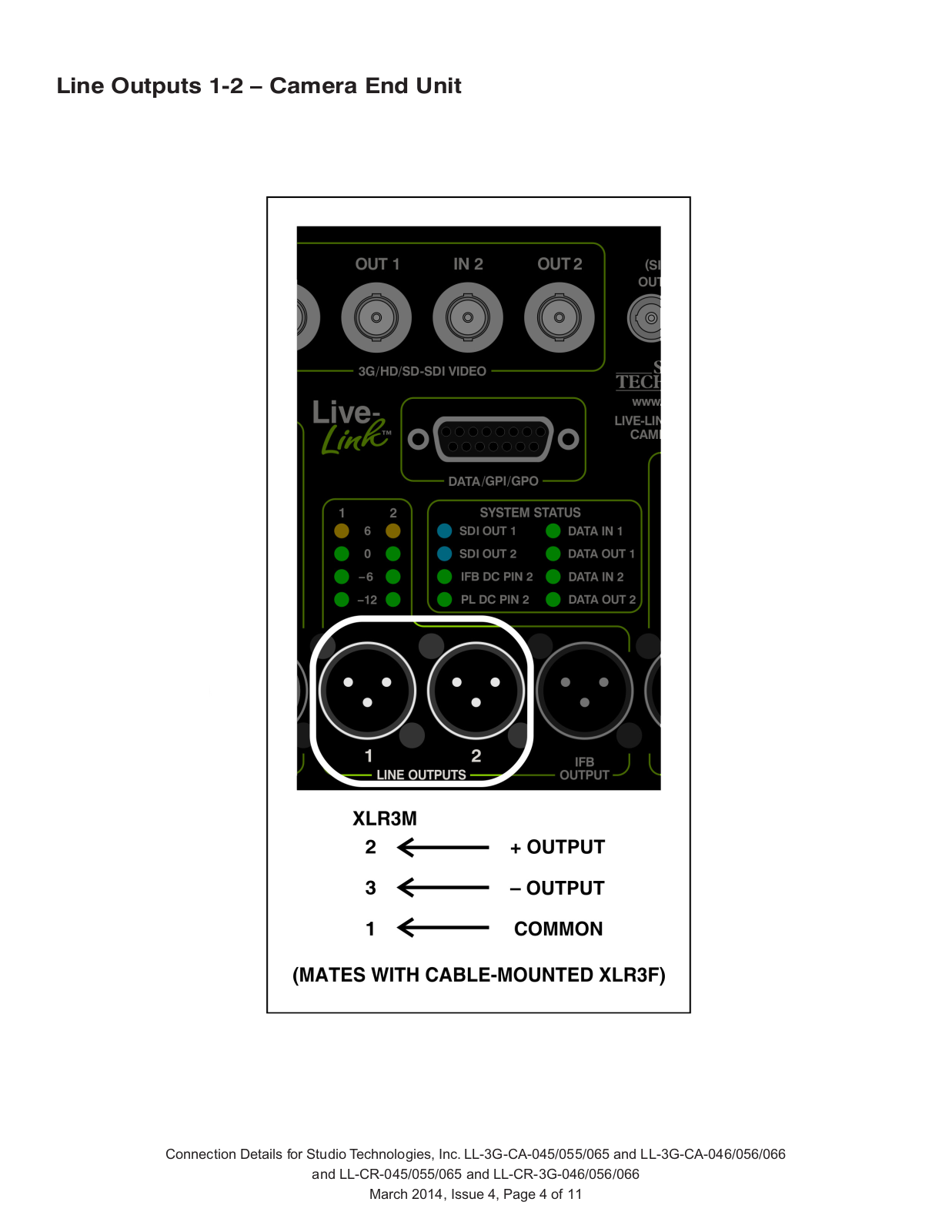

Line Outputs 1-2 – Camera End Unit
Connection Details for Studio Technologies, Inc. LL-3G-CA-045/055/065 and LL-3G-CA-046/056/066
and LL-CR-045/055/065 and LL-CR-3G-046/056/066
March 2014, Issue 4, Page 4 of 11

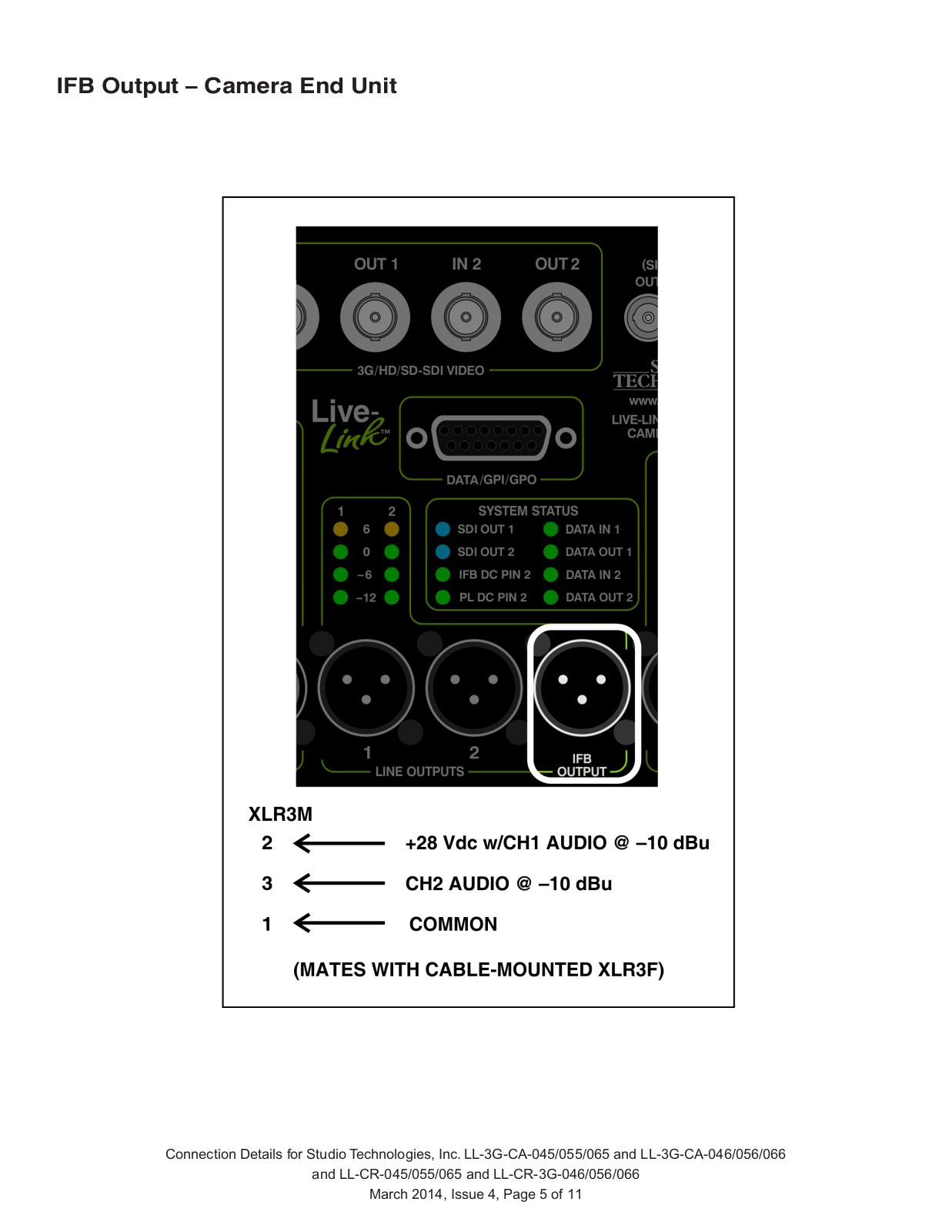

IFB Output – Camera End Unit
Connection Details for Studio Technologies, Inc. LL-3G-CA-045/055/065 and LL-3G-CA-046/056/066
and LL-CR-045/055/065 and LL-CR-3G-046/056/066
March 2014, Issue 4, Page 5 of 11

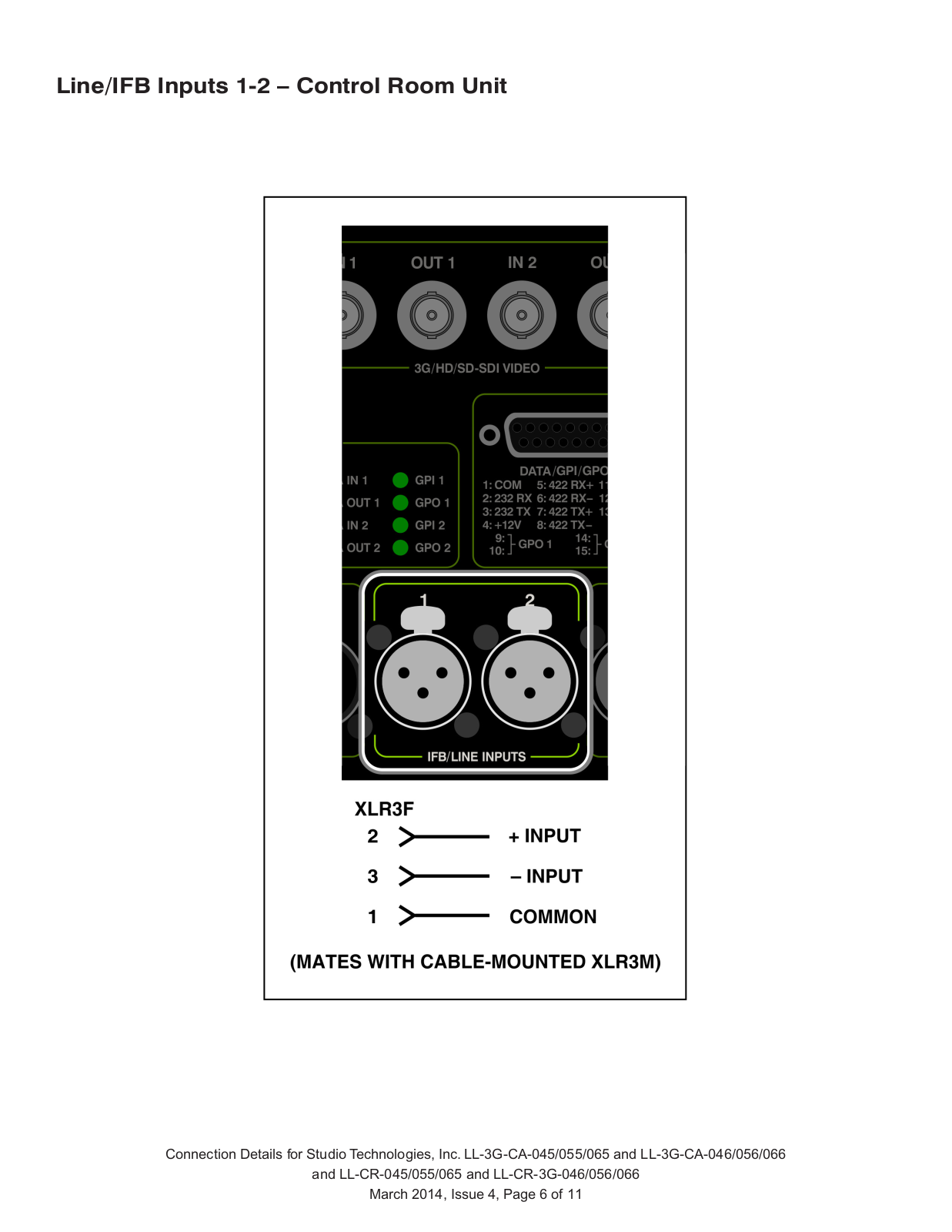

Line/IFB Inputs 1-2 – Control Room Unit
Connection Details for Studio Technologies, Inc. LL-3G-CA-045/055/065 and LL-3G-CA-046/056/066
and LL-CR-045/055/065 and LL-CR-3G-046/056/066
March 2014, Issue 4, Page 6 of 11

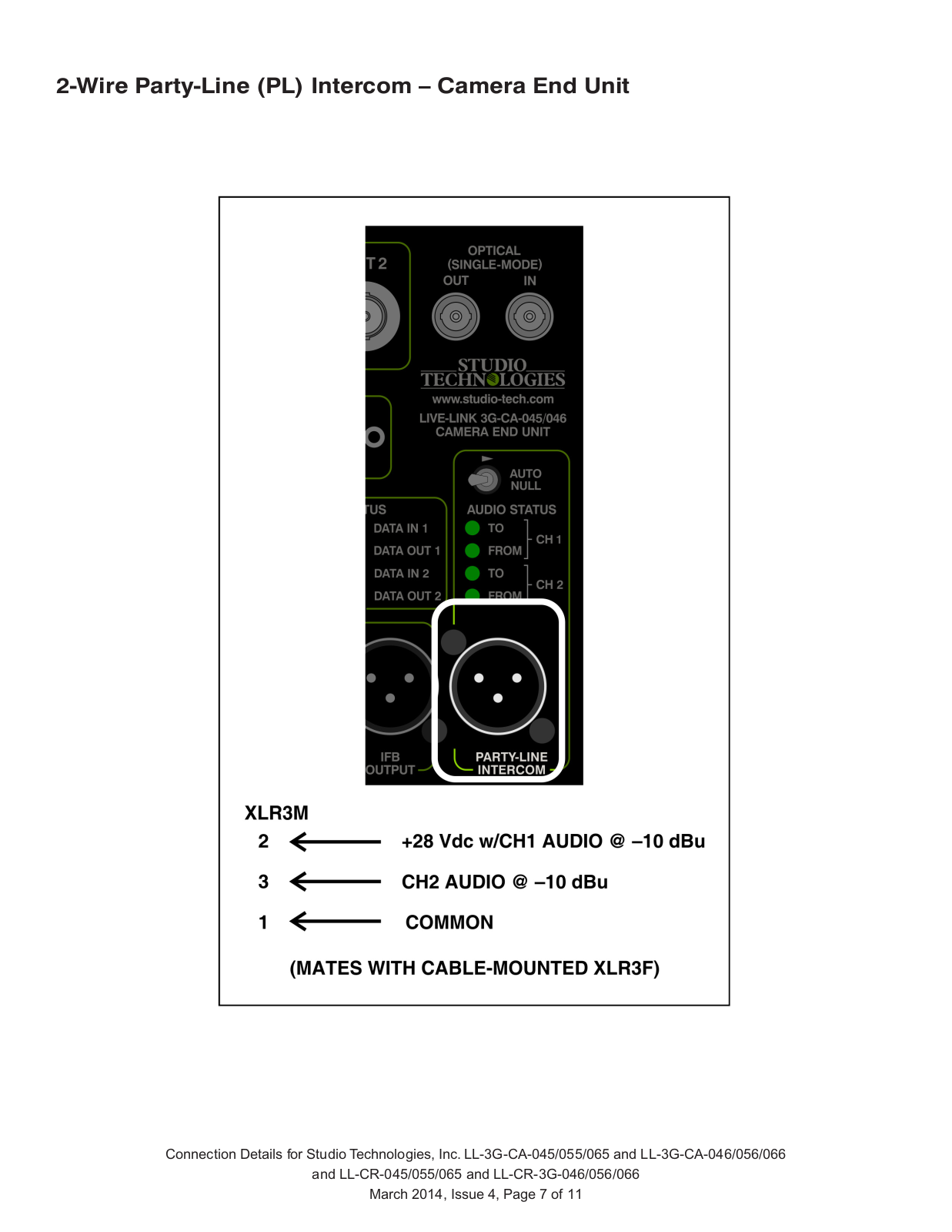

2-Wire Party-Line (PL) Intercom – Camera End Unit
Connection Details for Studio Technologies, Inc. LL-3G-CA-045/055/065 and LL-3G-CA-046/056/066
and LL-CR-045/055/065 and LL-CR-3G-046/056/066
March 2014, Issue 4, Page 7 of 11

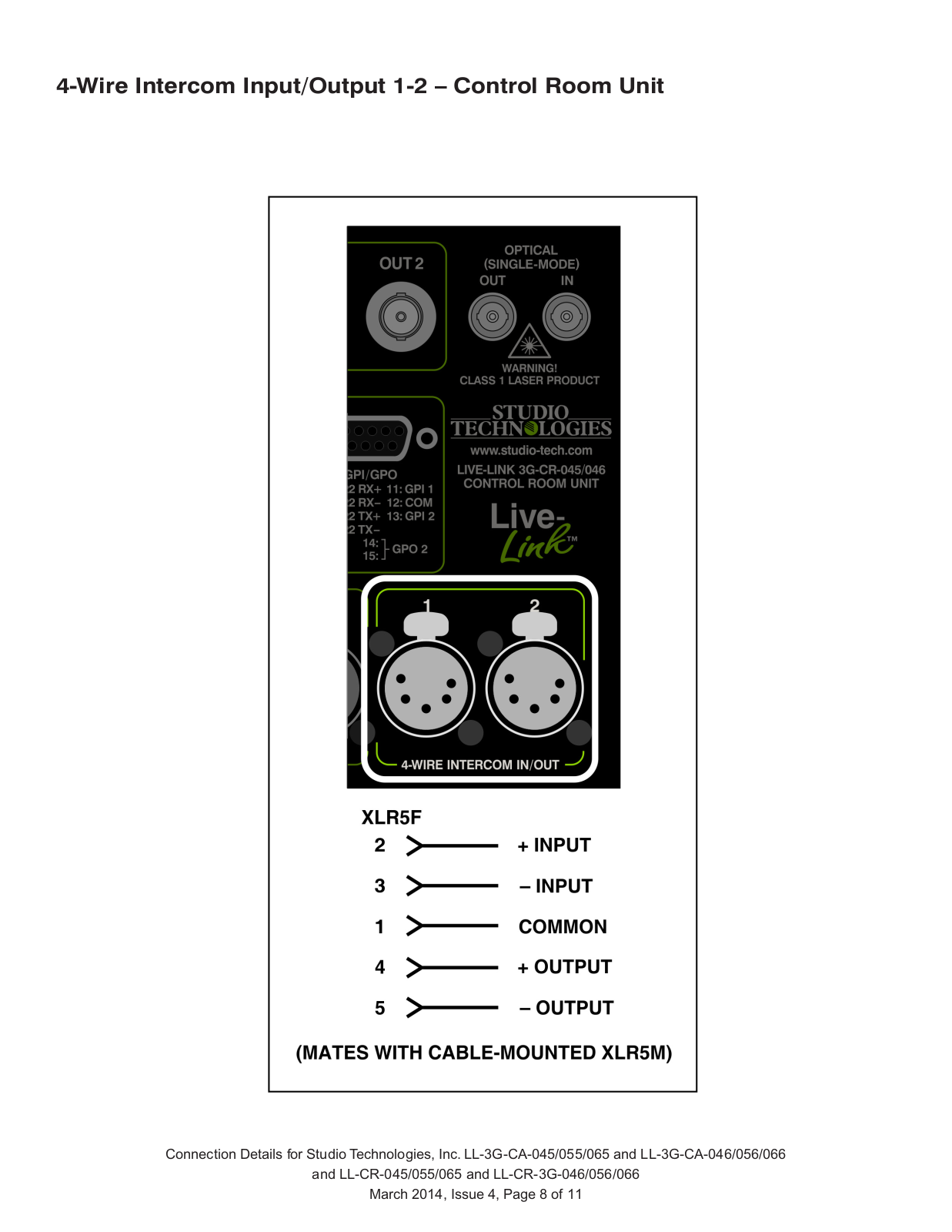

4-Wire Intercom Input/Output 1-2 – Control Room Unit
Connection Details for Studio Technologies, Inc. LL-3G-CA-045/055/065 and LL-3G-CA-046/056/066
and LL-CR-045/055/065 and LL-CR-3G-046/056/066
March 2014, Issue 4, Page 8 of 11

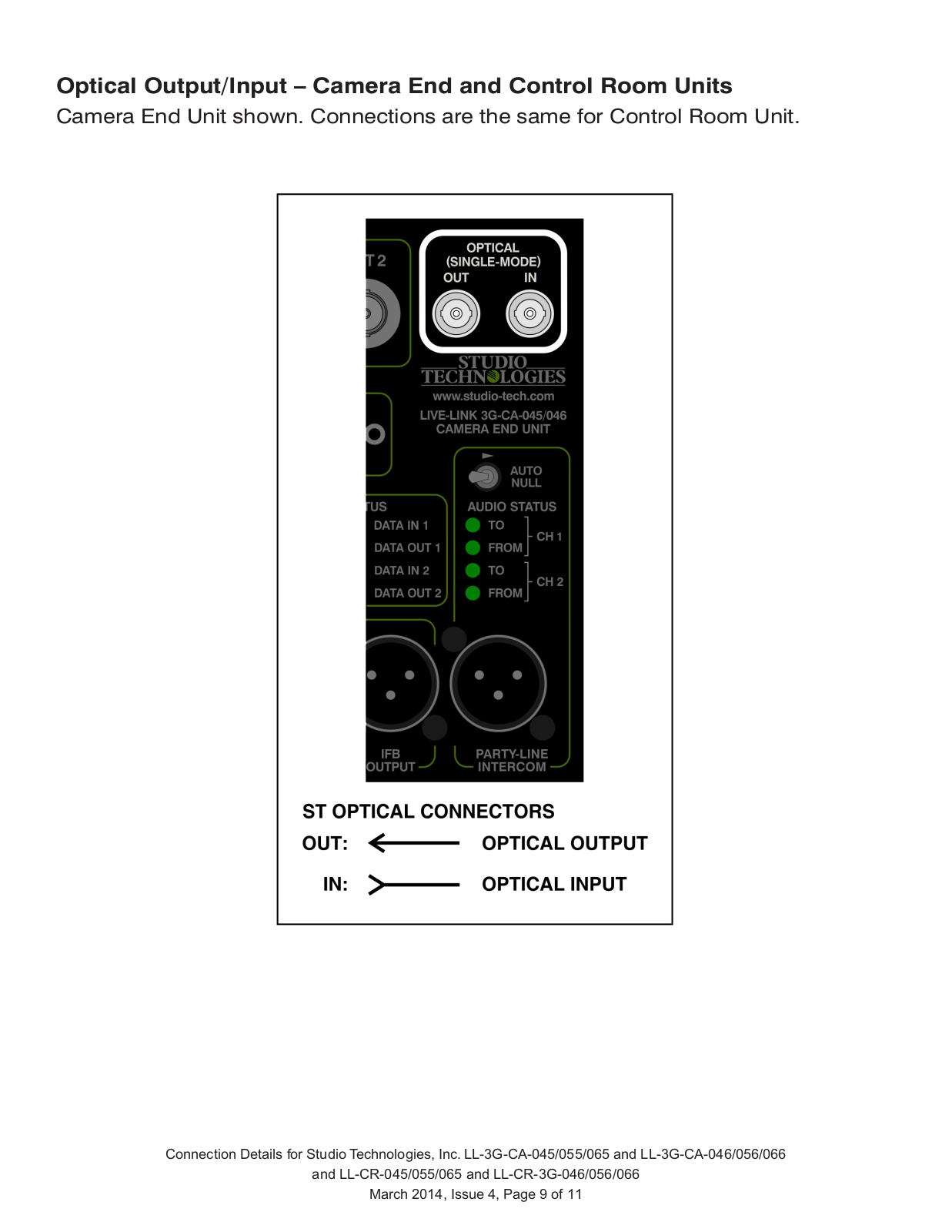

Optical Output/Input – Camera End and Control Room Units
Camera End Unit shown. Connections are the same for Control Room Unit.
Connection Details for Studio Technologies, Inc. LL-3G-CA-045/055/065 and LL-3G-CA-046/056/066
and LL-CR-045/055/065 and LL-CR-3G-046/056/066
March 2014, Issue 4, Page 9 of 11

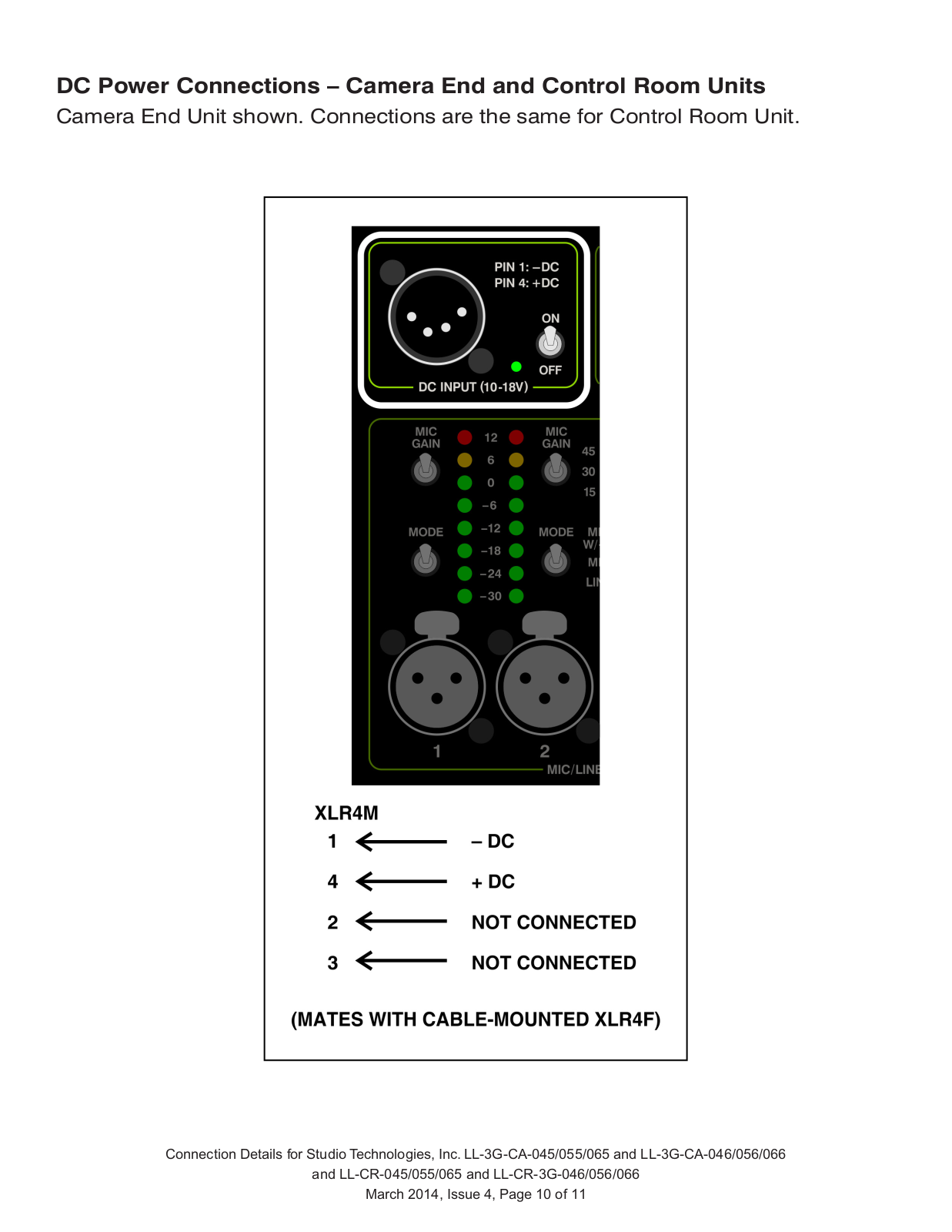

DC Power Connections – Camera End and Control Room Units
Camera End Unit shown. Connections are the same for Control Room Unit.
Connection Details for Studio Technologies, Inc. LL-3G-CA-045/055/065 and LL-3G-CA-046/056/066
and LL-CR-045/055/065 and LL-CR-3G-046/056/066
March 2014, Issue 4, Page 10 of 11

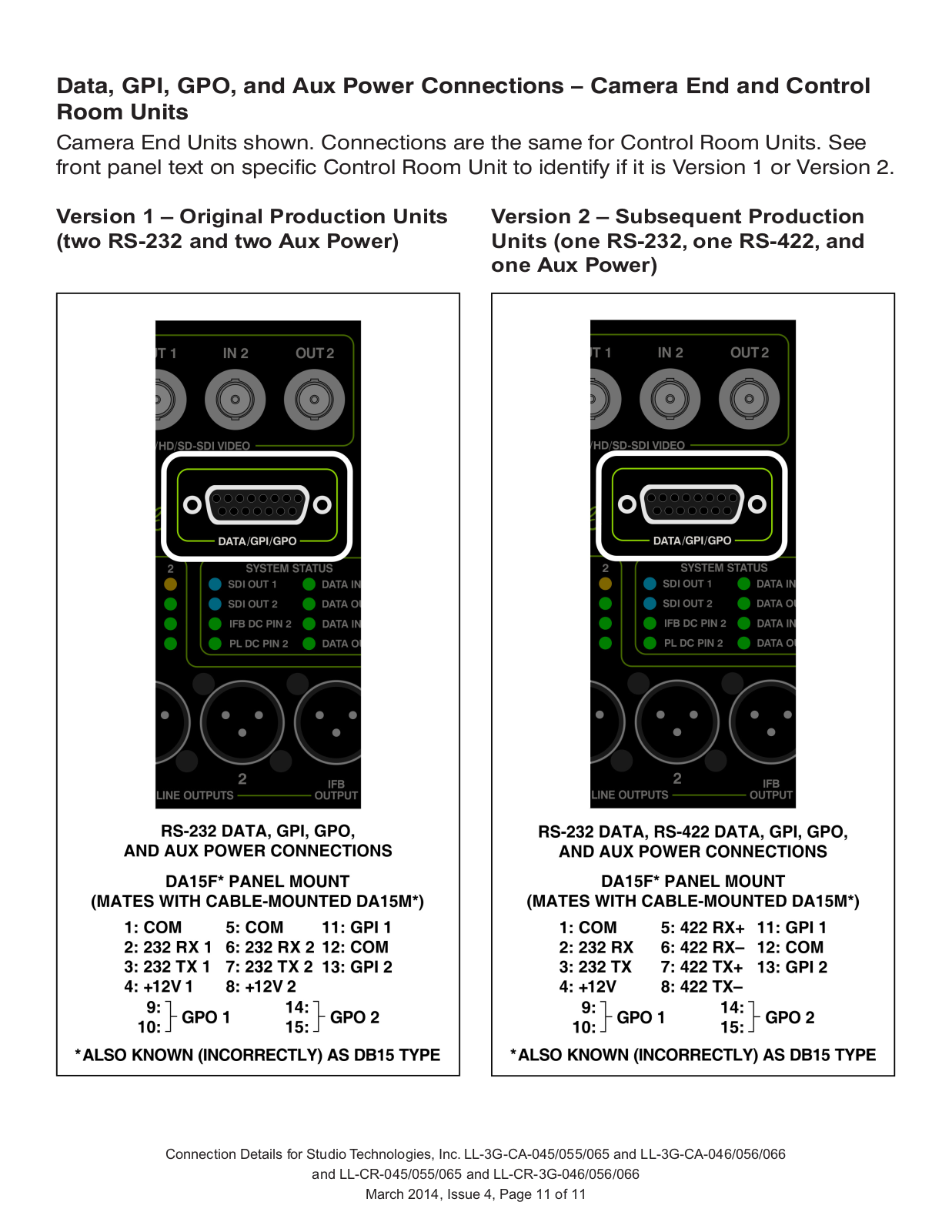

Data, GPI, GPO, and Aux Power Connections – Camera End and Control
Room Units
Camera End Units shown. Connections are the same for Control Room Units. See
front panel text on specific Control Room Unit to identify if it is Version 1 or Version 2.
Version 1 – Original Production Units
(two RS-232 and two Aux Power)
Version 2 – Subsequent Production
Units (one RS-232, one RS-422, and
one Aux Power)
Connection Details for Studio Technologies, Inc. LL-3G-CA-045/055/065 and LL-3G-CA-046/056/066
and LL-CR-045/055/065 and LL-CR-3G-046/056/066
March 2014, Issue 4, Page 11 of 11
