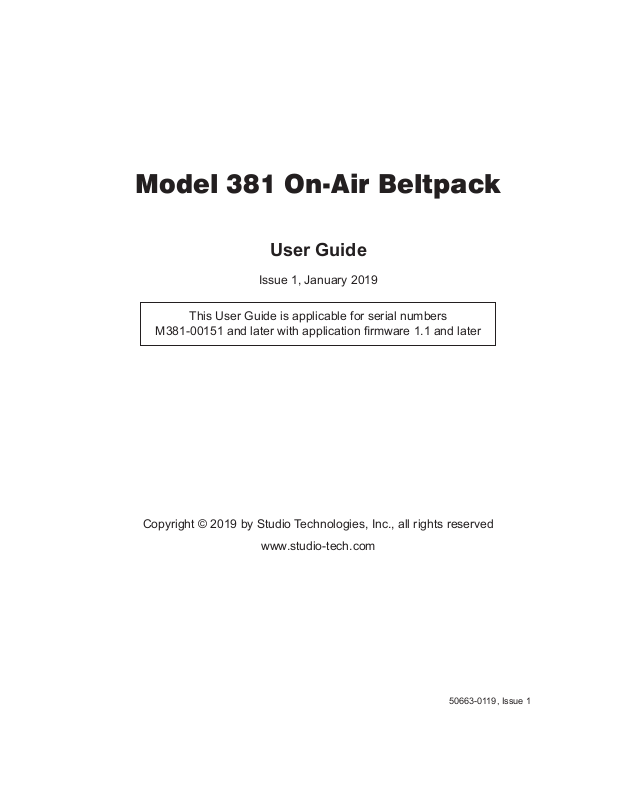

Page 1
Model 381 On-Air Beltpack
User Guide
Issue 1, January 2019
This User Guide is applicable for serial numbers
M381-00151 and later with application firmware 1.1 and later
Copyright © 2019 by Studio Technologies, Inc., all rights reserved
www.studio-tech.com
50663-0119, Issue 1
Page 2
This page intentionally left blank.
Page 3
MODEL 381
ON-AIR BELTPACK
Table of Contents
Revision History ........................................................... 4
Introduction ................................................................... 5
Getting Started ............................................................. 8
Operation ...................................................................... 14
Technical Notes ............................................................ 18
Specifications ............................................................... 22
Appendix A ................................................................... 23
Model 381 User Guide Issue 1, January 2019
Studio Technologies, Inc. Page 3
Page 4
Revision History
Issue 1, January 2019:
• Initial release.
MODEL 381
ON-AIR BELTPACK
Issue 1, January 2019 Model 381 User Guide
Page 4 Studio Technologies, Inc.
Page 5
MODEL 381
ON-AIR BELTPACK
Introduction
The Model 381 On-Air Beltpack offers a
unique combination of audio resources
to directly support a complete broadcast
“stand-up” on-air position. Using Dante®
audio-over-Ethernet technology, the unit
provides main and talkback output channels,
talent cue (IFB) input, and sidetone capabilities, as well as essential user controls in
a compact, portable package. The Model
381 is compatible with the Dante Domain
Manager™ (DDM) software application and
is AES67-compliant for direct integration into
many contemporary networked audio applications.
Optimized for broadcast sports and live entertainment events, eSports, news-gathering,
and streaming broadcast applications, the
Model 381 allows incredibly simple deployment while maintaining “pro” audio quality
and an intuitive user experience. With just
a Power-over-Ethernet (PoE) connection, a
dynamic or phantom-powered microphone,
and a pair of headphones or an earpiece,
the unit will be ready for “on-air” deployment. The STcontroller software application
is used for configuring operating parameters
including microphone preamplifier gain, P48
phantom power, headphone signal routing,
sidetone operation, and talkback button
action. The Model 381’s audio quality is
excellent, with low distortion, low noise, and
high headroom. Careful circuit design and
rugged components ensure long, reliable
operation.
Applications
The Model 381 provides an “all-Dante”
solution for one on-air talent location. Two
Dante audio input channels supply the user
with their talent cue (IFB) signals. Should
the cue signal be “mix-minus” an integrated
sidetone function can provide the user with
a microphone confidence signal. Two Dante
audio output channels, one designated
as main (for “on-air” use) and the other
talkback, are routed via the associated
local-area network (LAN) to inputs on
Dante-compatible devices. A pushbutton
switch, located on the Model 381’s top
panel, provides a combination talkback
and “cough” function. When talkback is
not active audio associated with the microphone preamplifier is routed to the Dante
main output channel; the Dante talkback
output channel is muted. When the talkback
function is active audio is muted on the
Dante main output channel and activated
on the Dante talkback output channel. The
audio switching is performed in the digital
domain and is virtually “click-free.”

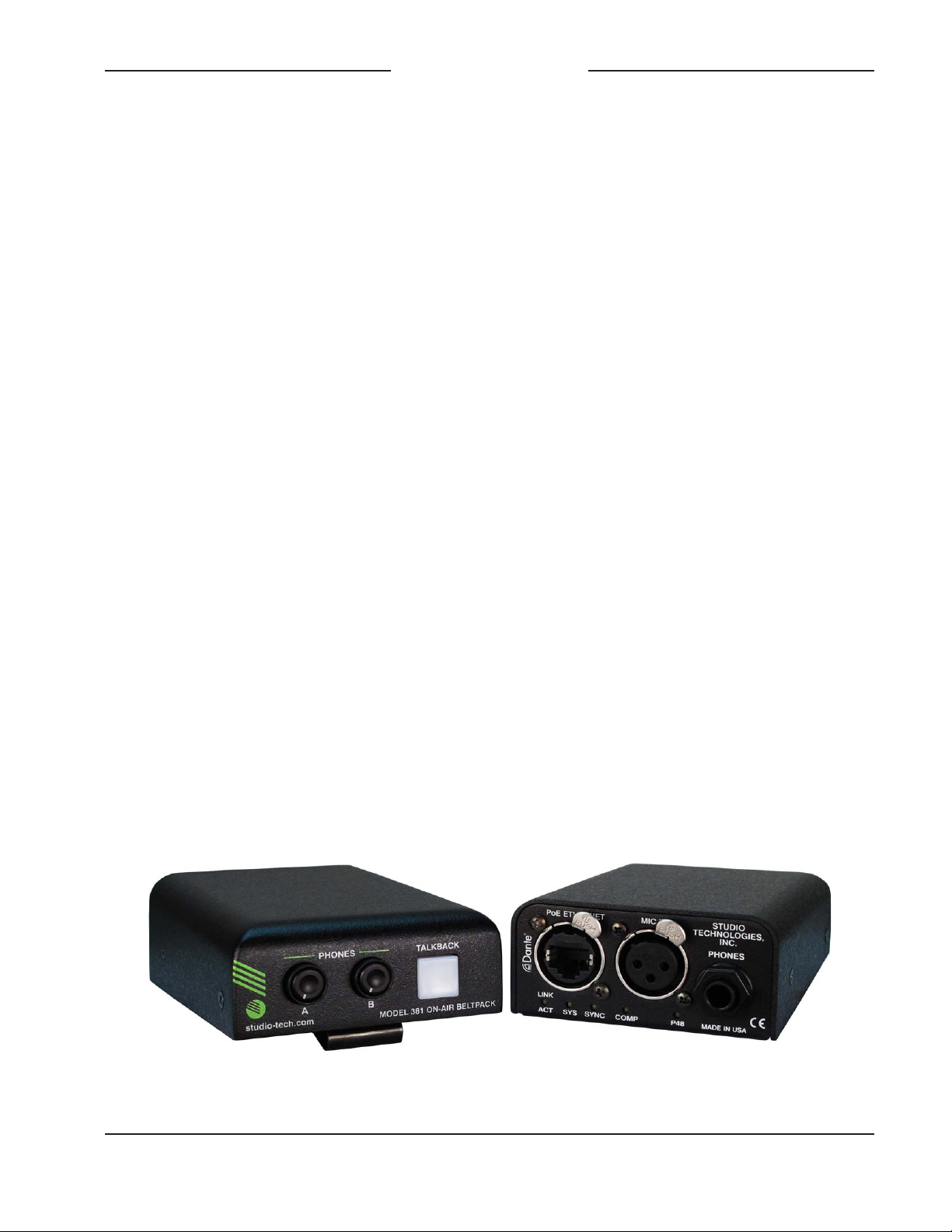

Figure 1. Model 381 On-Air Beltpack top and bottom views
Model 381 User Guide Issue 1, January 2019
Studio Technologies, Inc. Page 5
Page 6
MODEL 381
ON-AIR BELTPACK
Setup and Operation
Set up and operation of the Model 381 is
simple. An etherCON® RJ45 jack is used
to interconnect with a standard twisted-pair
Ethernet port associated with a PoE-enabled
network switch. This connection provides
both power and bidirectional digital audio.
A broadcast headset or handheld (“stick”)
microphone can be directly connected to the
unit’s 3-pin XLR microphone input connector. This input is compatible with dynamic or
condenser microphones. An integrated P48
phantom power source can be enabled if
desired. Stereo headphones, the headphone
connections from a stereo or monaural
headset, or even a monaural earpiece are
connected to the headphone output jack.
Two “push-in/push-out” rotary controls (potentiometers or “pots”) make it easy to set
the level of the talent cue signals level being
sent to the 2-channel headphone output.
The STcontroller software application is
used to configure the wide range of Model
381 operating parameters. This allows the
unit’s performance to be optimized to meet
the needs of specific applications. The
Model 381’s ultra-compact enclosure is
made from an aluminum alloy which offers
both light weight and ruggedness. A stainless steel “belt clip,” located on the back
of the unit, allows direct attachment to a
user’s clothing. The top surface is curved
to minimize the chance of the unit interfering
with clothing or being readily observable
“on camera.”
plugs, etherCON allows a ruggedized and
locking interconnection for harsh or highreliability environments. The Model 381’s
operating power is provided by way of the
Ethernet interface using the 802.3af Powerover-Ethernet (PoE) standard. This allows
fast and efficient interconnection with the
associated data network. To support PoE
power management, the Model 381’s PoE
interface enumerates (reports) to the power
sourcing equipment (PSE) that it’s a class 2
(low power) device.
Dante Audio-over-Ethernet
Audio data is sent to and received from
the Model 381 using the Dante audio-overEthernet media networking technology.
The Model 381’s two Dante output (transmitter) and two Dante input (receiver) audio
channels can be assigned to other devices
(routed) using the Dante Controller software application. The Dante transmitter and
receiver channels are limited to supporting
four Dante flows, two in each direction. The
digital audio’s bit depth is up to 24 with a
sampling rate of 44.1, 48, 88.2, or 96 kHz.
Two bi-color LEDs provide an indication of
the Dante connection status.
The Model 381 is compatible with the AES67
interoperability standard. In this mode the
two transmitter (output) channels will function in multicast; unicast is not supported.
In addition, the unit is compatible with the
Dante Domain Manager (DDM) software
application.
Ethernet Data and PoE
The Model 381 connects to a local area network (LAN) by way of a standard 100 Mb/s
twisted-pair Ethernet interface. The physical
100BASE-TX interconnection is made by
way of a Neutrik® etherCON RJ45 connector. While compatible with standard RJ45
Issue 1, January 2019 Model 381 User Guide
Page 6 Studio Technologies, Inc.
Audio Quality
The Model 381’s performance is completely
“pro,” making it appropriate for use in a
wide-range of applications. A low-noise, wide
dynamic-range microphone preamplifier
and associated voltage-controlled-amplifier
(VCA) dynamics controller (“compressor”)
circuit ensures that mic input audio quality
Page 7
MODEL 381
ON-AIR BELTPACK
is preserved while minimizing the chance
of signal overload. A configuration choice
allows selection of the signal source for the
Dante main output channel. The choices
are either the output of the microphone
preamp or the output of the compressor
circuit. These choices are referred to as
“pre-compressor” or “post-compressor.” The
ADC section utilizes a high-performance
integrated circuit that supports sampling
rates of 44.1, 48, 88.2, and 96 kHz with
a bit depth of up to 24. The audio signal,
now in the digital domain, routes through a
32-bit microprocessor and on to the Dante
interface section where it is packetized and
prepared for transport over Ethernet.
Audio input signals arrive via the Dante
receiver channels and pass into the Model
381’s microprocessor. As with the Dante
audio output channels, the sampling rate
can be 44.1, 48, 88.2, or 96 kHz with a bit
depth of up to 24. Channel routing, headphone level control, and sidetone creation
are performed in the digital domain. This
provides flexibility, allows precise control,
and keeps the two controls from having
to directly handle analog audio signals.
The audio channels destined for the headphone output channels are sent to a highperformance digital-to-analog converter
and then on to robust driver circuitry. High
signal levels can be provided to a variety
of headsets, headphones, and earpieces.
Configuration Flexibility
The Model 381 can be configured to meet
the needs of specific applications and user
preferences. All configuration tasks are
performed using the STcontroller personal
computer software application which is
compatible with version 7 and later of the
Windows® operating systems. There are
no mechanical switch settings or buttonpress sequences required to configure how
the unit functions. Selectable parameters
include microphone preamplifier gain, P48
phantom power on/off, headphone output
performance, sidetone operation, button
action, and main output audio source.
The gain of the microphone preamplifier
can be selected from among five choices.
This allows the Model 381 to match the output sensitivity of a range of handheld and
headset-associated microphones. A lownoise source of P48 phantom power can
be enabled if required to support condenser
(capacitor) microphones. The two Dante
input audio sources and the way in which
they are assigned to the headphone output
channels can be configured. In addition,
the operation of the two rotary controls can
be selected. These unique choices allow
almost any required headphone monitoring
situation to be implemented. Whether for
use in on-air sports, in an eSports broadcast, or as a production support tool, the
Model 381 should be able to achieve the
desired configuration.
The integrated sidetone function can be
configured to operate from among three
choices. This allows audio associated with
the microphone input and microphone preamplifier to be returned to the headphone
output as required. Sidetone can be important as some applications may provide a
“mix-minus” talent cue signal that doesn’t
include the user’s own voice content. A
configuration selection allows the talkback
button to be selected for a push to mute or
latching operation. The Dante main output
channel can be selected to its audio source
to be “pre-” or “post-” the dynamics control
circuitry.
Model 381 User Guide Issue 1, January 2019
Studio Technologies, Inc. Page 7
Page 8
MODEL 381
ON-AIR BELTPACK
Future Capabilities and
Firmware Updating
The Model 381 was designed so that its
capabilities and performance can be enhanced in the future. A USB connector,
located on the unit’s main circuit board
(underneath the unit’s cover), allows the
application firmware (embedded software)
to be updated using a USB flash drive.
The Model 381 uses Audinate’s Ultimo™
integrated circuit to implement the Dante
interface. The firmware in this integrated
circuit can be updated via the Ethernet connection, helping to ensure that its capabilities remain up to date.
Getting Started
What’s Included
Included in the shipping carton will be a
Model 381 On-Air Beltpack and a printed
copy of this guide. As a device that is
Power-over-Ethernet (PoE) powered,
no external power source is provided.
Connections
In this section signal interconnections will
be made using the three connectors located
on the bottom of the Model 381’s enclosure.
An Ethernet data connection with Powerover-Ethernet (PoE) capability will be made
using either a standard RJ45 patch cable
or an etherCON protected RJ45 plug.
A microphone will be connected using a
cable-mounted 3-pin male XLR connector.
A set of headphones or an earpiece will be
connected by way of a 2- or 3-conductor
¼-inch plug.
Ethernet Connection with PoE
A 100BASE-TX Ethernet connection that
supports Power-over-Ethernet (PoE) is
required for Model 381 operation. This one
connection will provide both the Ethernet
data interface and power for the Model
381’s circuitry. A 10BASE-T connection is
not sufficient as Dante does not support
this Ethernet protocol. And a 1000BASE-T
(“GigE”) connection is not supported unless
it can automatically “fall back” to 100BASETX operation. The Model 381 supports
Ethernet switch power management,
enumerating itself as a PoE class 2 device.
The Ethernet connection is made by way
of a Neutrik etherCON protected RJ45 connector that is located on the bottom of the
Model 381’s enclosure. This allows connection by way of a cable-mounted etherCON
connector or a standard RJ45 plug. The
Model 381’s Ethernet interface supports
auto MDI/MDI-X so that a “cross-over” or
“reversing” cable will never be required.
Ethernet Connection without PoE
As previously discussed in this guide, the
Model 381 was designed such that the
Ethernet connection will provide both data
and Power-over-Ethernet (PoE) power.
There may be situations where the associated Ethernet switch does not provide
PoE power. In such cases an external PoE
midspan power injector can be used. If the
selected midspan power injector is 802.3afcompatible it should function correctly.
Midspan units are available from a variety
of sources, including many online retailers.
Microphone Input
The Model 381 provides a 3-pin female
XLR connector which allows a balanced dynamic or phantom-powered condenser microphone to be connected. The microphone
can be a standalone handheld (“stick”) type
or can be part of a broadcast-style headset. The Model 381’s microphone input is
directly compatible with balanced dynamic
Issue 1, January 2019 Model 381 User Guide
Page 8 Studio Technologies, Inc.
Page 9
MODEL 381
ON-AIR BELTPACK
or P48 phantom powered microphones. A
microphone should be connected such that
its common is on connector pin 1, its signal
high (+) is on connector pin 2, and its sign
low (–) is on connector pin 3. An STcontroller configuration setting allows the P48
microphone power sources to be enabled or
disabled as desired. Details on configuring
the unit will be described later in this guide.
Headphone Output
The Model 381 provides a 2-channel
(“stereo”) headphone output by way of a
3-conductor ¼-inch phone jack. Devices
such as stereo headphones or “dual-ear”
broadcast-style headsets can be directly
connected using a 3-conductor ¼-inch
plug. Following the usual convention the
left channel should be terminated on the
tip lead, the right channel on the ring lead,
and common on the sleeve lead.
It’s also possible to use a monaural (“singleear”) headset or broadcast-type single
earbud as long as sufficient care is taken.
If a 3-conductor ¼-inch plug is used by the
device it should be wired such that the tip
lead is connected to the positive terminal
of the transducer and the sleeve lead is
connected to the negative or common lead
of the transducer; the plug’s ring should
be left unconnected. But it’s also likely that
the monaural device will be terminated on
a 2-conductor (tip and sleeve) ¼-inch plug.
When a plug of this type is inserted into the
Model 381’s headphone output connector
(jack) the Model 381’s right headphone output channel will be shorted. (This will occur
since the ring lead will be directly shorted to
the sleeve lead.) This can lead to stress on
the Model 381’s right channel headphone
output circuitry as well as drawing extra current from the output stage. To prevent this
condition the Headphone Output – Controls
(A/B) mode configuration choice should be
set for Single-Channel Mono. This disables
the right headphone output channel and
sends the listen audio source or sources
only to the left headphone output channel.
Refer to a later section in this guide for details on configuring the headphone output.
Dante Configuration
For audio to pass to and from the Model
381 requires configuration of several
Dante-related parameters. These configuration settings will be stored in non-volatile
memory within the Model 381’s circuitry.
Configuration will typically be done with the
Dante Controller software application which
is available for download free of charge at
www.audinate.com. Versions of Dante Controller are available to support Windows and
OS X® operating systems. The Model 381
uses the Ultimo 2-input/2-output integrated
circuit to implement the Dante architecture.
The two Dante transmitter (Tx) channels
associated with the Model 381’s Dante
interface must be assigned to the desired
receiver (Rx) channels. This achieves routing the Model 381’s two output audio channels to the device (or devices) that will be
“listening” to them. Within Dante Controller
a “subscription” is the term used for routing
a transmitter flow (a group of output channels) to a receiver flow (a group of input
channels). The number of transmitter flows
associated with an Ultimo integrated circuit
is limited to two. These can either be unicast, multicast, or a combination of the two.
If the Model 381’s Dante transmitter channels need to be subscribed (routed) to more
than two flows it’s possible that an intermediary device, such as the Studio Technologies’ Model 5422 Dante Intercom Audio
Engine, can be used to “repeat” the signals.
The two Dante receiver (Rx) channels associated with the Model 381’s audio inputs
Model 381 User Guide Issue 1, January 2019
Studio Technologies, Inc. Page 9
Page 10
MODEL 381
ON-AIR BELTPACK
also need to be subscribed (routed) with
the desired Dante transmitter (Tx) channels. These two audio signals will provide a
Model 381 user with their headphone cue
signals.
The Model 381 has a default Dante device
name of ST-M381- and a unique suffix.
The suffix identifies the specific Model 381
that is being configured. The suffix’s actual
alpha and/or numeric characters relate to
the MAC address of the unit’s Ultimo integrated circuit. The two Dante transmitter
(Tx) channels have default names of Main
and Talkback. The two Dante receiver (Rx)
channels have default names of Head-
phone Ch1 and Headphone Ch2. Using
Dante Controller, the default device name
and channel names can be revised as appropriate for the specific application.
The Model 381 supports audio sample rates
of 44.1, 48, 88.2, and 96 kHz. A setting in
Dante Controller is used to configure the
desired sample rate. The Model 381 can
serve as the clock master for a Dante network but in most cases, it will be configured
to “sync” to another device. No clock configuration settings associated with the Model
381 will typically require configuration within
Dante Controller.
Model 381 Configuration
The STcontroller software application is
used to configure the way in which the Model 381 functions. No DIP switch settings or
other local actions are used to configure the
unit. This makes it imperative that STcontroller be available for convenient use in a
personal computer that’s connected to the
related LAN.
Installing STcontroller
STcontroller is available free of charge on
the Studio Technologies website (www.
studio-tech.com/stcontroller). STcontroller
versions 1.08.00 and later will fully support
the Model 381. If required, download and install STcontroller onto a designated personal
computer. This personal computer must be
on the same local area network (LAN) and
subnet as the Model 381 unit or units that
are to be configured. Immediately after starting STcontroller the application will locate the
devices that it can control. The Model 381 unit
or units will appear in the device list. Use the
Identify command to allow easy recognition of
a specific Model 381 unit. Double-clicking on
a device name will cause the associated configuration menu to appear. Review the current
configuration and make changes as required.
Parameters
The configurable functions include:
• P48 phantom power on/off status
• Microphone preamplifier gain
• Headphone output routing and level
control operation
• Sidetone operation and level
• Talkback button operation
• Main output audio source
Changes made using STcontroller will be
immediately reflected in the unit’s operation.
No “reboot” of the Model 381 is required.
Each time a change is made the talkback
button on the top panel will flash orange in
two quick sequences to indicate that a command from STcontroller has been received.
Microphone Input – P48 Phantom Power
STcontroller allows selection of the on/off
status of the microphone input’s P48 phantom
power source. The on/off status is displayed
by way of an LED, red in color, located on
the bottom panel adjacent to the microphone
input connector. Select the status of the P48
source to meet the needs of the connected
microphone.
Issue 1, January 2019 Model 381 User Guide
Page 10 Studio Technologies, Inc.
Page 11
MODEL 381
ON-AIR BELTPACK
Microphone Input – Gain
Choices are 36 dB, 42 dB, 48 dB, 54 dB,
and 60 dB.
The gain of the Model 381’s microphone
preamplifier can be selected from among
five choices. The compressor active LED,
orange in color and visible on the bottom of
the Model 381’s enclosure adjacent to the
microphone input connector, can act as a
guide when setting the preamp gain. When
a voice signal at a normal level is present
on the microphone input the compressor
active LED should light intermittently. If, for
example, it rarely lights and the gain is set
to 42 dB, it might be a good idea to change
the setting to 48 dB. If the LED is lit fully
while speaking at a normal level into the
microphone and the gain is set for 54 dB
or 60 dB, changing the gain to one of the
lower values might be warranted. There’s
no “hard and fast” rule about which gain
setting is appropriate. But unless otherwise
indicated, 42 dB is typically a good initial
choice.
Headphone Output – Routing
Choices are Dual-Channel Stereo, DualChannel Mono, and Single-Channel Mono.
be routed to both the left and right headphone output channels.
Dual-Channel Mono
The Dual-Channel Mono mode can be useful in applications where the same audio
signals need to be provided to the user on
both the left and right headphone output
channels. In this mode Dante audio inputs
1 and 2 are combined (mixed together or
“summed”) and routed to both the left and
right headphone output channels. Note that
in this mode the sidetone audio signal will
be routed to both the left and right headphone output channels.
Single-Channel Mono
The Single-Channel Mono mode is specifically provided for applications where a
2-conductor ¼-inch plug is being used with
the connected headphones, headset, or
a broadcast-style earpiece. In this mode
Dante audio inputs 1 and 2 are combined to
monaural and routed to only the left channel
of the headphone output; no audio signal
is routed to the right channel of the headphone output. Note that in this mode the
sidetone audio signal will be routed to only
the left headphone output channel.
STcontroller allows selection from among
three headphone output modes. Each mode
is distinct and careful selection will help optimize the Model 381’s operation for a range
of applications.
Dual-Channel Stereo
The Dual-Channel Stereo mode is provided
for on-air applications where two independent audio sources need to be routed to the
two headphone output channels. Dante
audio input channel 1 will be routed to the
left headphone output channel and Dante
audio input channel 2 will be routed to the
right headphone output channel. Note that
in this mode the sidetone audio signal will
Model 381 User Guide Issue 1, January 2019
Studio Technologies, Inc. Page 11
Headphone Output – Controls (A/B)
Choices are Ch 1 Level / Ch 2 Level, Ch 1
& 2 Level / Balance, and Ch 1 & 2 Level /
Sidetone Level.
Three configuration choices in STcontroller
allow selection of the manner in which the
two rotary controls (“pots”), labeled A and B,
will function.
Ch 1 Level / Ch 2 Level
This mode is provided for on-air applications where independent control of the
channel 1 and channel 2 input signals is
required. The control on the left, labeled
A, will allow adjustment of input channel 1.
Page 12
MODEL 381
ON-AIR BELTPACK
The control on the right, labeled B, will allow
adjustment of input channel 2. Note that in
this mode the level of the sidetone audio signal will be determined by the configuration of
the Fixed Sidetone Level setting.
Ch 1 & 2 Level / Balance
This mode is provided primarily for use
in “stereo” applications such as live music
events or radio broadcasts. In these applications it’s typical to want the user to have
a single control to simultaneously adjust
the level of both input channels 1 and 2
with a separate control used to adjust the
left/right level balance. When the Headphone Output – Routing configuration is
set for Dual-Channel Stereo the control on
the left, labeled A, will be used to adjust the
level of both input channels 1 and 2. The
control on the right, labeled B, will be used
to adjust the balance of the channel levels.
If the Headphone Output – Routing configuration is set to either of the mono choices
the action of the balance control, on the right
and labeled B, will simply change the level
ratio of input 1 versus input 2. Also note that
in this mode the level of the sidetone audio
signal will be determined by the configuration of the Fixed Sidetone Level setting.
Ch 1 & 2 Level / Sidetone Level
This mode is provided for applications where
the user needs to adjust the level of both the
audio input channels and the sidetone signal
as they are sent to the headphone output
channel or channels. The control on the left,
labeled A, will be used to adjust the level of
both input channels 1 and 2. The control
on the right, labeled B, will be used to adjust
the level of the sidetone signal.
Note that in this mode the configuration
choice for Fixed Sidetone Level will be
“grayed out” (become inactive) as it will
not be utilized.
Headphone Output – Sidetone Mode
Choices are Main Active, Talkback Active,
and Always Active.
The overall mode of the Model 381’s sidetone function can be configured. Sidetone is
audio from the microphone input that is sent
to the headphone output channel or channels. This can be important, allowing the user
to “hear” themselves for performance confirmation and comfort. Making a specific selection from among the three available modes
will depend on the needs of the application.
If a “full mix” is being provided to the Model
381’s audio inputs then locally provided sidetone won’t be needed when “on air,” i.e., the
main output is enabled. The user will hear
themselves by way of the audio signals being
routed to the Dante audio input channels.
But if a “mix-minus” is being supplied to the
Model 381 then having one of the sidetone
modes enabled can be an important means
of establishing user confidence. There are
also cases where a “full mix” is provided but
the user desires to hear themselves when
the talkback function is active.
Note that the actual level of sidetone audio
as it is sent the headphone output will be
determined by the configuration of the Headphone Output – Controls (A/B) selection. It
will either follow the Fixed Sidetone Level
configuration or the position of the level control that is located on the right and labeled B.
STcontroller allows selection from among
three sidetone modes:
Main Active
In this mode the sidetone function will be
active whenever the main output is active,
i.e., audio signal associated with the microphone input is present on the Dante main
output. Whenever the talkback function is
active sidetone audio will not be enabled.
Issue 1, January 2019 Model 381 User Guide
Page 12 Studio Technologies, Inc.
Page 13
MODEL 381
ON-AIR BELTPACK
Talkback Active
In this mode the sidetone function will be active whenever the talkback function is active
and the audio signal is present on the Dante
talkback output channel. Whenever the main
output function is active sidetone audio will
not be enabled.
Always Active
In this mode the sidetone function will always
be active and sidetone audio will be continuously routed to the headphone output.
Headphone Output – Fixed Sidetone
Level
Choices are
Off, Low, Medium Low, Medium,
Medium High, and High.
When the configuration for the Headphone
Output – Controls (A/B) is set for either of
the dual-channel modes the level of the
sidetone audio will follow the Fixed Sidetone Level setting. This level can be selected
from among five values. The correct value
is simply the one that makes the user most
comfortable. Sidetone audio can also be disabled by selecting the Off choice. Selecting
Off is useful for applications such as when
user microphone audio (a “full mix”) is being
returned as part of their listen audio signals.
As previously discussed, the Fixed Sidetone
Level choice will be “grayed out” and inaccessible if the Ch 1 & 2 / Sidetone mode
is selected for the Headphone Output –
Controls (A/B) configuration choice. In this
case the rotary control on the right, labeled
B, will be used to adjust the sidetone level.
Button Operation – Talkback
Choices are Push to Mute and Latching.
STcontroller allows the operating configuration of the talkback button to be selected.
There are two choices available.
Push to Mute
If this mode is selected when the talkback
button is not pressed the microphone signal
will be sent to the Dante main output channel and the Dante talkback output channel
will be muted. The green LED associated
with the talkback button will be lit. Whenever the talkback button is pressed and
held the audio signal will mute on the Dante
main output channel and the audio signal
will become active on the Dante talkback
output channel. In addition, the talkback
button will light orange.
Latching
If this mode is selected the talkback function will alternate between its on (active)
and off (inactive) states whenever the
button is momentarily pressed. The button
will light green whenever the main output
is active and light orange whenever the
talkback output is active. Upon power being
initially applied to the Model 381 the main
output function will be active and the talkback button will be lit green.
System Mode – Main Output Source
Choices are Pre-Compressor and PostCompressor.
This STcontroller selection allows the audio
source for the main output channel to be
selected. There are two choices available.
In most cases the post-compressor selection will be appropriate. In all cases the output of the compressor circuitry will be used
by the talkback output (transmitter) channel.
Pre-Compressor
When selected for Pre-Compressor the
audio source for the Dante main output
channel will be the output of the microphone preamplifier. No dynamic range
control is performed on the signal that is
provided to the main output. This selection
Model 381 User Guide Issue 1, January 2019
Studio Technologies, Inc. Page 13
Page 14
MODEL 381
ON-AIR BELTPACK
can be appropriate when the most accurate representation of the microphone input
signal is desired. This would allow maximum “downstream” control of a signal that
is to be used for “on-air” or other primary
purposes. Any processing of audio coming
from the main output channel would need
to be performed in equipment that’s “post”
(after) the Model 381 in the audio chain.
The downside of selecting pre-compressor
is an increased risk of signal overload.
Post-Compressor
When selected for Post-Compressor the
audio source for the Dante main output
channel will be the output of the dynamics
control (compressor) circuitry. This can help
prevent excessive signal levels from being
sent out the main output channel and on to
the next audio device in the signal “chain.”
With a threshold of just above the nominal
digital output level and a “gentle” compression ratio of just 2 to 1, in most cases the
impact of the compressor on voice audio
signals will be minimal while helping to
prevent audio overloads.
Operation
At this point everything should be ready
such that Model 381 operation can commence. An Ethernet connection with Powerover-Ethernet (PoE) capability should have
been made. A microphone and headphones
or an earbud should have been connected.
Alternately, a broadcast-style headset may
be utilized.
The Model 381’s Dante configuration settings should have been selected using
the Dante Controller software application.
In this way the unit’s two audio output channels (Dante transmitter channels) and two
audio input channels (Dante receiver channels) should have been routed (subscribed)
to the Dante receiver and Dante transmitter
channels on associated equipment. The
Model 381’s operating configuration should
have been established using the STcontroller application. This will ensure that
the unit will meet the needs of the specific
application.
Initial Operation
The Model 381 will start to function as soon
as a Power-over-Ethernet (PoE) power
source is connected. However, it may take
20 to 30 seconds for full operation to commence. Upon initial power up the three
status LEDs located on the bottom panel,
below the etherCON RJ45 jack, will begin to
light as the network and Dante connections
are established. The COMP LED, adjacent
to the microphone input connector, may or
may not flash momentarily. The P48 LED,
also located adjacent to the microphone
input connector, will flash once to indicate
that it is functioning. The green and orange
LED indicators within the talkback pushbutton switch will each light once to indicate
that the main operating firmware (embedded software) has started functioning. Once
the power-up sequence has completed and
the Dante connection has been established
full operation will begin. The unit’s various
LEDs will become operational, displaying
the status of their designated functions.
How to Identify a Specific
Model 381
Functions within the Dante Controller and
STcontroller software applications allow
a specific Model 381 unit to be identified.
Each application provides an “eyeball” icon
that when selected (“clicked”) will activate
the Identify function. When Identify is selected it will send a command to the designated Model 381 unit. On that unit the
orange LED associated with the talkback
Issue 1, January 2019 Model 381 User Guide
Page 14 Studio Technologies, Inc.
Page 15
MODEL 381
ON-AIR BELTPACK
pushbutton switch will flash on and off approximately eight times. (Of course, the
Identify command will not change the on/off
status of the button.) In addition, the SYS
and SYNC status LEDs, located directly
below the etherCON RJ45 connector on the
bottom panel, will slowly flash green. After a
few seconds this LED identification pattern
will cease and normal Model 381 talkback
button LED and Dante status LED operation
will resume.
Ethernet and Dante Status
LEDs
As previously mentioned, there are three status LEDs located below the etherCON RJ45
connector on the Model 381’s bottom panel.
The LINK ACT LED lights green whenever
an active connection to a 100 Mb/s Ethernet
network has been established. It will flash
in response to Ethernet data packet activity. The SYS and SYNC LEDs display the
operating status of the Dante interface and
associated network. The SYS LED will light
red upon Model 381 power up to indicate
that the Dante interface is not ready. After a
short interval it will light green to indicate that
it is ready to pass data with another Dante
device. The SYNC LED will light red when
the Model 381 is not synchronized with a
Dante network. It will light solid green when
the Model 381 is synchronized with a Dante
network and an external clock source (timing reference) is being received. It will slowly
flash green when the Model 381 is part of a
Dante network and it is serving as a clock
master. It’s possible that up to 30 seconds
may be required for the SYNC LED to reach
its final state.
P48 Status LED
A red LED indicator is located on the
bottom panel adjacent to the microphone
input connector. It is labeled P48 and will
light whenever the P48 phantom power
source is active and providing power to
the microphone input.
Compressor Active LED and
Mic Preamp Gain
An orange LED indicator is located on the
bottom panel, also adjacent to the microphone input connector. It is labeled COMP
and displays the status of the microphone
audio compressor function. This function
controls the dynamic range of the audio
signal that is sent to the talkback output
channel as well as being used by the sidetone function. This signal may also, depending on a configuration setting, be present on
the Dante main output (transmitter) channel.
The compressor LED will light whenever the
input signal from the microphone, along with
the configured mic preamp gain, is of sufficient level such that the dynamic range of
the microphone signal is being actively controlled. It’s perfectly acceptable for this LED
to light intermittently whenever a user is talking at a normal voice level into an associated microphone. But if the COMP LED lights
solid orange while a user is talking at a normal voice level this will typically indicate that
the mic gain should be reduced. Conversely,
if the COMP LED almost never lights when
normal talking is taking place, it’s likely that
changing the gain to a higher value would
be beneficial. Note that due to the design of
the circuitry the compressor active LED will
function whether or not the main, talkback,
or sidetone functions are active.
Headphone Output – General
Users should find the headphone output
audio quality to be excellent, with high maximum output level and low distortion. Two
rotary controls (potentiometers or “pots”) are
located on the top panel and are “push-in/
push-out” type. This allows their associated
Model 381 User Guide Issue 1, January 2019
Studio Technologies, Inc. Page 15
Page 16
MODEL 381
ON-AIR BELTPACK
knobs to be in the “out” position when the
level needs to be adjusted and in the “in”
position when protection from an unwanted
change is desired. Analog audio signals do
not pass directly through the two controls.
The position of the controls is recognized
by the Model 381’s processor which then
adjusts the actual signal level within the
digital domain.
Headphone Output – Routing
and Controls (A/B)
How the two rotary controls function will
depend on two configuration settings as
made using the STcontroller application.
The Headphone Output – Routing mode
configures how the two Dante audio inputs,
Ch 1 and Ch 2, are assigned to the two
headphone output channels. The Head-
phone Output – Controls (A/B) configuration
determines exactly the way in which the two
controls will function. Since the two configurations each offer three choices, this provides nine separate configurations that each
provide a unique operating scenario.
When Headphone Output – Routing is
configured to the Dual-Channel Stereo
mode:
• In the
control on the left, labeled A, is used to adjust the level of the channel 1 input audio
signal as it is being sent to the left channel of the headphone output. The control
on the right, labeled B, is used control the
level of the channel 2 input audio signal
as it is sent to the right headphone output.
Sidetone audio, whose level will follow the
Fixed Sidetone Level configuration, will be
sent to both the left and right headphone
output channels.
Ch 1 Level / Ch 2 Level mode the
• In the Ch 1 & 2 Level / Balance mode the
control on the left, labeled A, adjusts the
level of the Ch 1 input audio signal as it
is being sent to the left headphone output
and the Ch 2 input audio signal as it is
being sent to the right headphone output.
The control on the right, labeled B, will
adjust the level balance of both audio input
Ch 1 and audio input Ch 2 as they are sent
to the headphone output channels. The
level of the sidetone audio will follow the
Fixed Sidetone Level configuration and
will be sent to both the left and right headphone output channels.
• In the Ch 1 & 2 Level / Sidetone Level
mode the control on the left, labeled A, adjusts the level of both the Ch 1 input audio
signal as it is being sent to the left headphone output and the Ch 2 input audio
signal as it is being sent to the right headphone output. The control on the right,
labeled B, adjusts the level of the sidetone
audio as it is being sent to both the left and
right channels of the headphone output.
In this mode the Fixed Sidetone Level
configuration will be ignored.
When Headphone Output – Routing is
configured to the Dual-Channel Mono
mode:
• In the
Ch 1 Level / Ch 2 Level mode the
control on the left, labeled A, is used to adjust the level of the channel 1 input audio
signal as it is being sent to both the left
and right headphone output channels. The
control on the right, labeled B, controls the
level of the channel 2 input audio signal
as it is sent to both the left and right headphone output channels. Sidetone audio,
whose level will follow the Fixed Sidetone
Level configuration, will be sent to both the
left and right headphone output channels.
Issue 1, January 2019 Model 381 User Guide
Page 16 Studio Technologies, Inc.
Page 17
MODEL 381
ON-AIR BELTPACK
• In the Ch 1 & 2 Level / Balance mode the
control on the left, labeled A, adjusts the
level of both the Ch 1 and Ch 2 input audio
signals as they are sent to both the left and
right headphone output channels. The control on the right, labeled B, will adjust the
level balance of audio input Ch 1 and audio
input channel 2. The level of the sidetone
audio will follow the Fixed Sidetone Level
configuration and will be sent to both the
left and right headphone output channels.
• In the Ch 1 & 2 Level / Sidetone Level
mode the control on the left, labeled A,
adjusts the level of both the Ch 1 and
Ch 2 input audio signals as they are sent
to both the left and right headphone output
channels. The control on the right, labeled
B, adjusts the level of the sidetone audio
as it is being sent to both the left and right
channels of the headphone output. In this
mode the Fixed Sidetone Level configuration will be ignored.
When Headphone Output – Routing is
configured to the Single-Channel Mono
mode:
• In the
Ch 1 Level / Ch 2 Level mode the
control on the left, labeled A, is used to
adjust the level of the channel 1 input
audio signal as it is being sent to the left
headphone output channel. The control
on the right, labeled B, controls the level
of the channel 2 input audio signal as it is
sent to the left headphone output channel.
Sidetone audio, whose level will follow the
Fixed Sidetone Level configuration, will be
sent to the left headphone output channel.
• In the Ch 1 & 2 Level / Balance mode the
control on the left, labeled A, adjusts the
level of both the Ch 1 and Ch 2 input audio
signals as they are sent to the left headphone output channel. The control on
the right, labeled B, will adjust the level
balance of audio input Ch 1 and audio
input channel 2. The level of the sidetone
audio will follow the Fixed Sidetone Level
configuration and will be sent to the left
headphone output channel.
• In the Ch 1 & 2 Level / Sidetone Level
mode the control on the left, labeled A,
adjusts the level of both the Ch 1 and
Ch 2 input audio signals as they are sent
to the left headphone output channel. The
control on the right, labeled B, adjusts the
level of the sidetone audio as it is being
sent to the left headphone output channel. In this mode the Fixed Sidetone Level
configuration will be ignored.
Sidetone Function Activity
The Model 381’s sidetone function is used
to send post-compressor microphone audio
to the headphone output as a user confirmation signal. When sidetone audio will be
actively sent to the headphone output will
depend on the configuration of the Headphone Output – Sidetone Mode in the
STcontroller application. The Sidetone
Mode can be configured such that sidetone
audio will be active only when the main
output is active, is active only when the
talkback output is active, or is active at all
times.
Whether sidetone audio will be sent to the
left and right headphone output channels or
only the left headphone output channel will
depend on the configuration of the Headphone Output – Routing configuration in
STcontroller. As expected, when the Headphone Output – Routing mode is configured
for Dual-Channel Stereo or Dual-Channel
Mono sidetone audio will be sent to both the
left and right headphone output channels.
When configured for Single-Channel Mono
sidetone audio will be sent only to the left
headphone output channel.
Model 381 User Guide Issue 1, January 2019
Studio Technologies, Inc. Page 17
Page 18
MODEL 381
ON-AIR BELTPACK
Depending on the configuration of the
Headphone Output – Controls selection in
STcontroller, the level of the sidetone audio
will be determined either by the selected
value in the Fixed Sidetone Level configuration or by adjustment of the right control,
labeled B, that is located on the top panel.
Typically, providing a precise sidetone level
is not important and most users will not
be concerned about setting it to a specific
value. But ensuring that the level of the side
tone audio is reasonable is important. Setting the level too low will encourage a user
to speak too loudly; setting it too high and
the user will be tempted to speak hesitantly.
Talkback Button
The Talkback pushbutton serves as both
a main output mute and a talkback enable
function. When “talkback” is active audio
is no longer sent out the Dante main output channel but instead is routed to the
Dante talkback output channel. In this way
the “on-air” channel is muted and the talkback channel is active. When the button’s
LED is lit green audio is being sent out the
main output channel and no audio is being
sent out the talkback output channel. The
button’s LED will light orange when the main
output is muted and audio is present on the
talkback output channel. The button’s specific action in response to being pressed will
depend on its configuration as made using
STcontroller.
Momentary
When the Button Operation – Talkback
selection has been configured for Push
to Mute its functionality will be pretty selfexplanatory. When the button is not pressed
its LED is lit green and audio is sent out the
Dante main output channel. Press and hold
the button to enable the talkback function.
When talkback is enabled its LED will be lit
orange, microphone audio will be sent out
the Dante talkback output channel; and the
Dante main output will be muted.
Latching
If the Talkback button has been configured
for the latching mode its operation is a bit
different. Momentarily pressing (“tapping”)
the button will cause the talkback function to change states: off-to-on or on-to-off.
Whenever microphone audio is being sent
only to the Dante main output channel the
button will light green. The button will light
orange when the talkback function is enabled and microphone audio is being sent
out the Dante talkback output channel while
the Dante main output channel is muted.
Technical Notes
IP Address Assignment
By default, the Model 381’s Ethernet interface will attempt to automatically obtain an
IP address and associated settings using
DHCP (Dynamic Host Configuration Protocol). If a DHCP server is not detected an
IP address will automatically be assigned
using the link-local protocol. This protocol is
known in the Microsoft® world as Automatic
Private IP Addressing (APIPA). It is also
sometimes referred to as auto-IP (PIPPA).
Link-local will randomly assign a unique IP
address in the IPv4 range of 169.254.0.1
to 169.254.255.254. In this way multiple
Dante-enabled devices can be connected
together and automatically function, whether or not a DHCP server is active on the
LAN. Even two Dante-enabled devices that
are directly inter-connected using an RJ45
patch cord will, in most cases, correctly
acquire IP addresses and be able to communicate with each other.
Issue 1, January 2019 Model 381 User Guide
Page 18 Studio Technologies, Inc.
Page 19
MODEL 381
ON-AIR BELTPACK
An exception does arise when trying to
directly interconnect two Dante-enabled
devices that use Ultimo integrated circuits
to implement Dante. The Model 381 uses
the Ultimo “chip” and, as such, a direct oneto-one interconnection to another Ultimobased product is not supported. An Ethernet
switch linking the two units is required to
successfully interconnect two Ultimo-based
devices. The technical reason that a switch
is required relates to the need for a slight
latency (delay) in the data flow; an Ethernet
switch will provide this.
Using the Dante Controller software application, the Model 381’s IP address and
related network parameters can be set for
a fixed (static) configuration. While this is a
more involved process than simply letting
DHCP or link-local “do their thing,” if fixed
addressing is necessary then this capability is available. But in this case it’s highly
recommended that every unit be physically
marked, e.g., directly using a permanent
marker or “console tape,” with its specific
static IP address. If knowledge of a Model
381’s IP address has been misplaced there
is no reset button or other method to easily
restore the unit to a default IP setting.
In the unfortunate event that a device’s IP
address is “lost,” the Address Resolution
Protocol (ARP) networking command can
be used to “probe” devices on a network for
this information. For example, in Windows
OS the arp –a command can be used to
display a list of LAN information that includes MAC addresses and corresponding
IP addresses. The simplest means of identifying an unknown IP address is to create a
“mini” LAN with a small PoE-enabled Ethernet switch connecting a personal computer
to the Model 381. Then by using the appropriate ARP command the required “clues”
can be obtained.
Optimizing Network
Performance
For best Dante audio-over-Ethernet performance a network that supports VoIP QoS
capability is recommended. In applications that utilize multicast Ethernet traffic
enabling IGMP snooping can be valuable.
These protocols can be implemented on
virtually all contemporary managed Ethernet switches. There are even specialized
switches that are optimized for entertainment-associated applications. Refer to the
Audinate website (www.audinate.com) for
details on optimizing networks for Dante
applications.
Application Firmware Version
Display
There are two ways in which the version
number of the Model 381’s application firmware (embedded software) can be identified. One requires only the Model 381 unit
and involves a button press sequence performed upon power up. The other method
utilizes the Model 381 and the STcontroller
software application. Either method may
prove to be useful when working with factory personnel on application support and
troubleshooting.
As part of the Model 381’s power-up sequence the unit’s application firmware can
be directly displayed. Before connecting
the PoE-enabled Ethernet cable, press and
hold the talkback button. Then connect the
Ethernet cable. Upon application of PoE
power the Model 381 will not go through
its normal power-up sequence but instead
will display the firmware version. The LED
associated with the talkback button will
“flash” green in color to display the major
version number and then “flash” orange
to display the minor version number. Then
the LED will remain off until the talkback
Model 381 User Guide Issue 1, January 2019
Studio Technologies, Inc. Page 19
Page 20
MODEL 381
ON-AIR BELTPACK
button is released. Once the talkback button is released normal operation will then
take place. As an example of what would
be a typical firmware display, if the talkback
button’s LED “flashes” green once followed
by the LED “flashing” orange once it would
indicate that application firmware version
1.1 is present in the Model 381.
A selection in the STcontroller software application allows the Model 381’s application
firmware version to be identified. Connect
the Model 381 unit to the network and let
it connect and start to function. Then, after
starting STcontroller, review the list of identified devices and select the specific Model
381 from which you want to determine its
application firmware version. Then select
Version under the Device tab. A page will
then display that will provide lots of useful
information. This includes the application
firmware version and well as details on the
Dante interface firmware.
Application Firmware Update
Procedure
It’s possible that updated versions of the
application firmware (embedded software)
that is utilized by the Model 381’s processor
(microcontroller or MCU) integrated circuit
will be released to add features or correct
issues. Refer to the Studio Technologies
website for the latest application firmware
file. The unit has the ability to load a revised
file into the MCU’s non-volatile memory by
way of a USB interface. The Model 381
implements a USB host function that directly supports connection of a USB flash drive.
The Model 381’s MCU updates its firmware
using a file named m381.bin.
The update process begins by preparing
a USB flash drive. The flash drive doesn’t
have to be empty (blank) but must be in the
personal-computer-standard FAT32 format.
The processor in the Model 381 is compatible with both USB 2.0, USB 3.0, and USB
3.1-compliant Flash drives. Save the new
firmware file in the root directory with a
name of m381.bin. Studio Technologies will
supply the application firmware file inside
a .zip archive file. While the firmware file
inside of the zip file will adhere to the naming convention required by the Model 381,
the name of the zip file itself will include the
file’s version number. For example, a file
named m381v1r2MCU.zip would indicate
that version 1.2 of the application firmware
(m381.bin) is contained within this zip file.
Once the USB flash drive is inserted into
the USB interface, located on the main
circuit board under the cover, the unit must
be powered off and again powered on. At
this point the file will automatically load. The
precise steps required will be highlighted in
the next paragraphs of this guide.
To install the application firmware file follow
these steps:
1. Disconnect power from the Model 381.
This will entail removing the Ethernet
connection that is providing PoE power.
2. Remove the cover from the Model 381.
Begin by removing the four Phillips
head screws (#1 screw driver tip), two
per side. Be certain to save the screws
so that re-assembly will be fast and
painless. Then carefully slide the cover
forward to separate it from the level controls and button and then lift it off.
3. Locate the USB connector on the main
circuit board. It’s near the top of the unit,
directly between the two rotary level
controls. Insert the prepared USB flash
drive into it.
4. Apply power to the Model 381 by connecting to a Power-over-Ethernet (PoE)
Ethernet source.
Issue 1, January 2019 Model 381 User Guide
Page 20 Studio Technologies, Inc.
Page 21
MODEL 381
ON-AIR BELTPACK
5. After a few seconds the Model 381 will
run a “boot loader” program that will
automatically load the new application
firmware file (m381.bin). This loading
process will take only a few seconds.
During this time period the talkback
button LED will flash slowly in alternate
colors. Once the entire loading process
is over, taking approximately 10 seconds, the Model 381 will restart using
the newly-loaded application firmware.
6. At this time the Model 381 is functioning with the newly-loaded application
firmware and the USB flash drive can be
removed. But to be conservative, remove PoE power first and then remove
the USB flash drive.
7. Confirm that the desired firmware version has been correctly loaded. This
can be done by pressing and holding
the talkback button, applying power to
the Model 381, and then “reading” the
application firmware version number by
observing the talkback button’s LED.
Alternately, the STcontroller application
can be used to identify the application
firmware version number. Whatever
method you use, ensure that the desired
version is present.
Note that upon power being applied to the
Model 381 if a connected USB flash drive
doesn’t have the correct file (m381.bin)
in the root folder no harm will occur. Upon
power up the talkback button’s LED will
flash on and off rapidly for a few seconds
to indicate this condition and then normal
operation using the unit’s existing application firmware will begin.
Ultimo Firmware Update
As previously discussed in this guide,
the Model 381 implements Dante connectivity using the 2-input/2-output Ultimo
integrated circuit from Audinate. The Dante
Controller software application can be used
to determine the version of the firmware
(embedded software) residing in the Ultimo
“chip.” This firmware can be updated by
way of the Model 381’s Ethernet connection. The latest Dante firmware file is available on the Studio Technologies website.
The Dante Firmware Update Manager
(FUM) application is used to install the
firmware. This program is also available
for download on the Studio Technologies
website. It’s anticipated that a more automated method of updating Dante firmware
will become available by way of a new
version of Dante Controller. It this comes to
fruition then it might offer a much-simplified
method of keeping the firmware current.
Restoring Factory Defaults
A command in the STcontroller software
application allows the Model 381’s defaults
to be reset to the factory values. From
STcontroller select the Model 381 for which
you want to restore its defaults. Select the
Device tab and then the Defaults tab.
Select the Factory Defaults feature. Then
click on the OK box. Refer to Appendix A
for a list of the Model 381’s factory defaults.
Model 381 User Guide Issue 1, January 2019
Studio Technologies, Inc. Page 21
Page 22
MODEL 381
ON-AIR BELTPACK
Specifications
Power Source:
Power-over-Ethernet (PoE): class 2 (low power,
≤6.49 watts)
Network Audio Technology:
Type:
Dante audio-over-Ethernet
AES67-2013 Support: yes
Dante Domain Manager (DDM) Support: yes
Bit Depth: up to 24
Sample Rate: 44.1,48, 88.2, and 96 kHz
Number of Transmitter (Output) Channels:
Description of Transmitter Channels:
(pre- or post-compressor, selectable), talkback
(post-compressor)
Number of Receiver (Input) Channels: 2
Description of Receiver Channels: headphone
channel 1 and headphone channel 2
Dante Audio Flows: 4; 2 transmitter, 2 receiver
Network Interface:
Type:
100BASE-TX, twisted-pair Ethernet, Power-
over-Ethernet (PoE) supported
Data Rate: 100 Mb/s (10 Mb/s and 10000 Mb/s
“GigE” Ethernet not supported)
Microphone Input:
Compatibility: dynamic or phantom-powered
microphones
Type:
balanced, capacitive coupled
Impedance: 2.8 k ohms, nominal
Gain: 36, 42, 48, 54, and 60 dB, selectable
Frequency Response: 30 Hz to 20 kHz, –3 dB at
30 Hz, –0.6 dB at 20 kHz
Distortion (THD+N): <0.020%, 1 kHz, 36 dB gain,
–32 dBu input level
Dynamic Range: 96 dB, A-weighted
Phantom Power: P48 per IEC 61938 standard, on/off
selectable with status LED
2
main
Headphone Output:
Type:
2-channel
Compatibility: intended for connection to stereo
(dual-channel) or mono (single-channel) headphones,
headsets or earpieces with nominal impedance of
50 ohms or greater
Maximum Output Voltage: 3.1 Vrms, 1 kHz,
150-ohm load
Frequency Response: 20 Hz to 20 kHz, +0/–1 dB
Distortion (THD+N): 0.001%, +10 dBu output,
150-ohm load
Dynamic Range: >102 dB
Connectors:
Microphone Input: 3-pin female XLR
Headphone Output: ¼-inch 3-conductor jack
Ethernet: Neutrik etherCON RJ45
USB: type A receptacle (located inside Model 381’s
enclosure and used only for updating firmware)
Configuration: uses Studio Technologies’
STcontroller personal computer application, version
1.08.00 and later
Environmental:
Operating Temperature:
(32 to 122 degrees F)
Storage Temperature:
(–40 to 158 degrees F)
Humidity: 0 to 95%, non-condensing
Altitude: not characterized
Dimensions (Overall):
3.1 inches wide (7.9 cm)
1.5 inches high (4.0 cm) w/out belt clip; 1.8 inches
(4.6 cm) with belt clip
4.9 inches deep (12.5 cm)
Deployment: intended for portable applications;
contains integral belt clip
Weight:
0.5 pounds (0.23 kg)
0 to 50 degrees C
–40 to 70 degrees C
Compressor:
Application: always used for Dante talkback audio
output channel, can be used for Dante main output
channel
Threshold: 1 dB above nominal level (–19 dBFS)
Slope: 2:1
Status LED: compressor active
Issue 1, January 2019 Model 381 User Guide
Page 22 Studio Technologies, Inc.
Specifications and information contained in this User
Guide subject to change without notice.
Page 23
MODEL 381
ON-AIR BELTPACK
Appendix A
STcontroller default Model 381 configuration values:
Microphone Input – P48 Phantom Power: Off
Microphone Input – Gain: 42 dB
Headphone Output – Routing: Dual-Channel Stereo
Headphone Output – Controls (A/B): Ch 1 Level/Ch 2 level
Headphone Output – Sidetone Mode: Main Active
Headphone Output – Fixed Sidetone Level: Off
Button Operation – Talkback: Push to Mute
System Mode – Main Output Source: Post-Compressor
Model 381 User Guide Issue 1, January 2019
Studio Technologies, Inc. Page 23
Loading...
