MUSIC INTERFACE
CONTENTS:
1 - Music Interface Module
3 - Power Distribution Blocks
3 - Quick Connectors
1 - 5' extension wire
1 - 6 amp mini fuse holder
6 - large mounting screws
2 - small mounting screws
INSTALLATION INSTRUCTIONS:
1) Locate and mount the Music Interface in a desired location
with 2 small mounting screws provided.
2) Connect the 6 amp fuse holder to the BLACK/WHITE
striped wire of the module using the Quick Connector provided.
Then connect input of the fuse to a 12v source.
3) Connect the BLACK wire of the Music Interface to chassis
ground of the vehicle.
4) Mount Power Distribution Blocks close to the Music Interface
with the large screws provided.
5) Connect Power Distribution Blocks to module’s output.
- BLACK wire connects to negative (-) output of module
- BLACK/WHITE Stripe wire connects to positive (+) 12V DC
output of module
6) Enjoy!
Connect up to 12 accent tubes (max. 6 amps)
MUSIC
Activates a neon
flash to the beat
of music.
LITE
Keeps the neon
on a constant
light setting.
SENSITIVITY
Adjusts microphone
to pick-up music.
ON/OFF BUTTON
Four 12V DC ouputs
Four 12V DC ouputs
Four 12V DC ouputs
power outlets (total 5A)
power inlet
- + - + - +- +
power outlets (total 5A)
power inlet
- + - + - +- +
power outlets (total 5A)
power inlet
- + - + - +- +

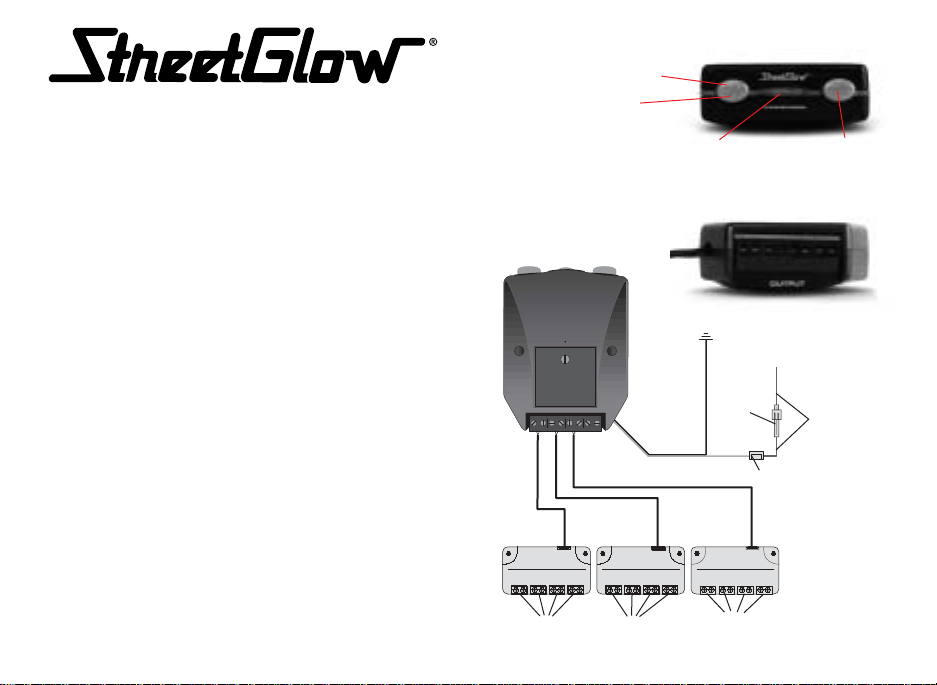

Black = Ground
Blk/Wh = +12V
Black = Ground
Blk/Wh = +12V
Black = Ground
Blk/Wh = +12V
Blk/Wh = +12V
Black = Ground
Quick Connector
Connect to fused
12V source
6A Mini
Fuse
(MAX)
RED
Chassis/Ground
